Wildfire WF-252F1, WF-252F2, WF-252WS1, WF-252S1, WF-252WS2 Operation Manual

WF-252(F)(WS)(S)1
WF-252(F)(WS)(S)2

Table of Contents

Introduction 3

Safety Statements 3

Specifications 4

Setup & Operation 5

Unpacking 5
Installation 5
Operation 5
Lamp Timer 5
DMX Control 6

Maintenance & Troubleshooting 6

Lamp Replacement 6
Cleaning 6
Troubleshooting 6

Diagrams 7

Line View 7
Exploded View 8
Part List 9

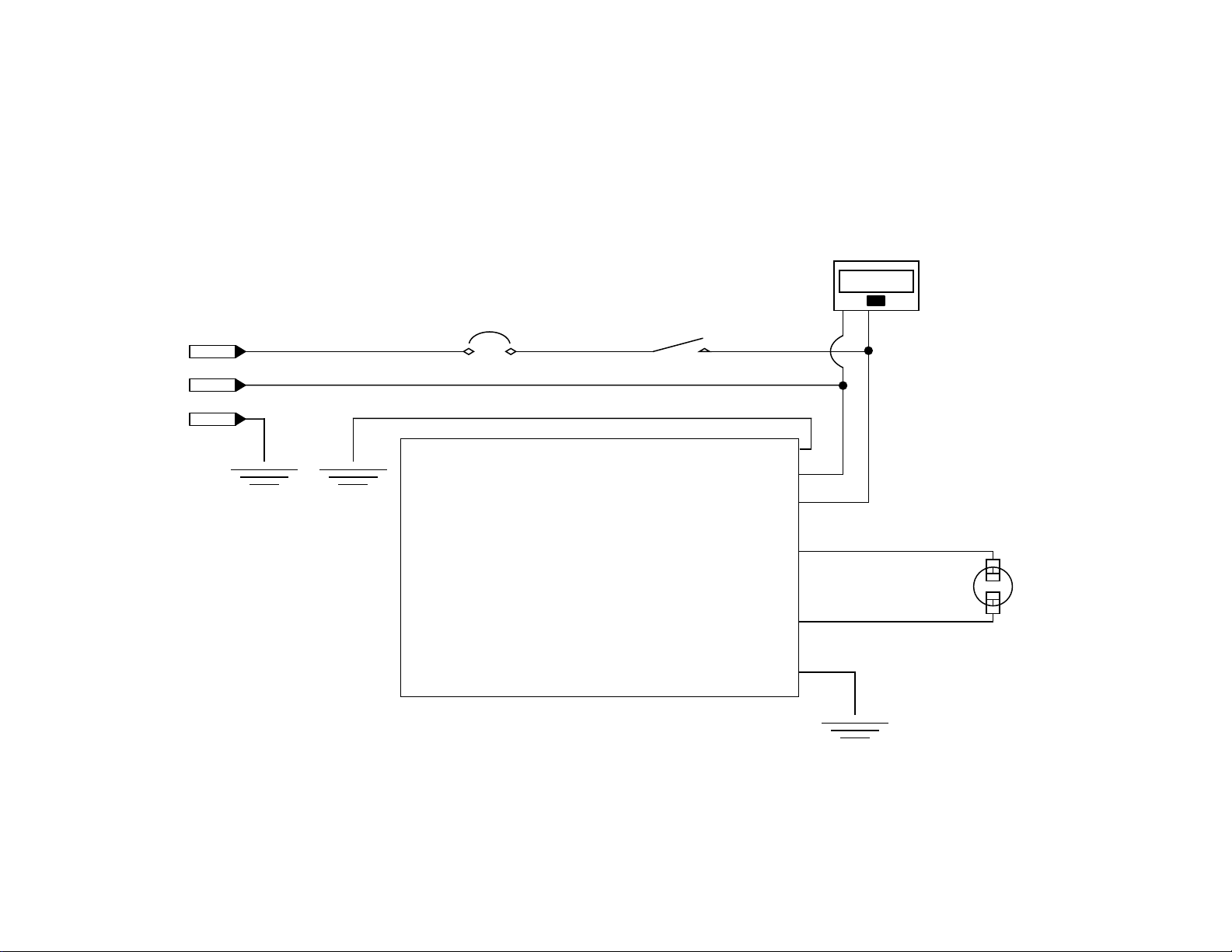

Schematic 10
Schematic (DMX Option) 11
Spectral Transmission Graph 12
Photometrics Chart 12

2

Introduction

Congratulations on your purchase of a Wildfire 252 Long-Throw UV-A Lighting Fixture. This 250-watt series is a
family of three highly advanced fixtures providing just the right format for a wide variety of UV effect applications.
The extraordinary balance of power, throw, energy-efficiency, and value defines a new standard of excellence.
Please take a moment to read this manual thoroughly before attempting to operate this fixture. Improper set-up,
use or servicing may cause damage to the fixture and/or lamp and void the unit’s warranty.

Safety Statements

CAUTION – RISK OF EXPOSURE TO ULTRAVIOLET (UV) RADIATION DO NOT OPERATE WITHOUT

COMPLETE LAMP ENCLOSURE IN PLACE, OR IF FILTER GLASS LENS IS DAMAGED

DANGER – INTENSE HEAT AVOID CONTACT BY PERSONS AND MATERIAL.
CAUTION – RISK OF ELECTRICAL SHOCK AND FIRE DISCONNECT FIXTURE BEFORE RELAMPING. USE

WITH MAX 250W LAMP TYPE M58 (WILDFIRE IRONARC MODEL LMP-250D). DRY LOCATIONS ONLY.
NOT FOR RESIDENTIAL USE.

WARNING – THIS FIXTURE CONTAINS A HIGH INTENSITY UV METAL HALIDE LAMP, WHICH IS SAFELY
CONTAINED WITHIN AN INTERLOCKING HOUSING. WHEN THIS FIXTURE IS USED IN ACCORDANCE
WITH THE MANUFACTURERS OPERATING INSTRUCTIONS, NO HAZARDS EXIST TO MOST PEOPLE
STANDING WITHIN THE BEAM OF THE FIXTURE. HOWEVER INDIVIDUALS SUFFERING FROM A RANGE
OF SUNLIGHT EXPOSURE DISORDERS, APHAKIC AND PSEUDOAPHIKIC, OR THOSE INDIVIDUALS
RECEIVING PHOTOSENSITIVE MEDICATION MAY RECEIVE DISCOMFORT IF EXPOSED TO
ULTRAVIOLET LIGHT.

3

Specifications

Ballast:

Electronic, Power Factor > 92%

Rating:

100-120VAC / 50-60Hz. / 2.5 Amps Max / 250W
220 VAC / 50-60Hz. / 1.5 Amps Max / 250W

Ballast Features:

Flicker & Noise Free
Automatic Lamp Failure Shutdown
Automatic High Temperature Shut Down
Automatic Hot Re-strike Prevention

Circuit Protection:

5 Amp Magnetic Over-current Breaker Switch (100-120VAC)
3 Amp Magnetic Over-current Breaker Switch (220VAC)

Lamp:

Wildfire IronArc™ 250 Watt Metal Halide Model LMP-250D (1000 Hr. Rated)

Beam:

WF-252F 90°
WF-252WS 50°
WF-252S 20°

Reflector:

Spun Aluminum, Alzak Coated

Lens:

6” UV-A Transmission Filter Glass
6” Clear Boro Float Front Glass (Optional)

Peak Spectral Transmission:

350-365nm

Optimum Operating Temperature:
+50°F to +120°F
Weight:

WF-252(WS)(F) 19.4Lbs. / 8.82kg.
WF-252S 21.9lbs / 9.95kg

Dimensions:

WF-252(WS)(F) 7.90”/20.06cm High x 8.63”/21.92cm Wide x 18.16”/46.12cm Long
WF-252S 7.90”/20.06cm High x 8.63”/21.92cm Wide x 21.90”/55.62cm Long

Accessory Bracket:

7.5” / 19.05cm

Standard Equipment:

Lamp (LMP-250D)
Pipe Mounting Clamp (ACC-0026)
Safety Cable (ACC-0027)

Specifications subject to change without notice

4
