Wildfire LT-404S/FF Kit, LT-404S/FG Kit, LT-404S/FH Kit, LT-404S/FI Kit, LT-404S/F1 Kit Operation Manual

LT-404S/FF Kit
LT-404S/FG Kit
LT-404S/FH Kit
LT-404S/FI Kit
LT-404S/F1 Kit
LT-404S/F2 Kit

Table of Contents

Introduction 3

Safety Statements 3

Specifications 4

Setup & Operation 5

Unpacking 5
Installation 5
Operation 5
DMX Address Mode 6
Lamp Timer Mode 6
DMX Data Mode 6
Dark Mode 6
Focusing 6

Maintenance & Troubleshooting 7

Lamp Replacement 7
Cleaning 7
Troubleshooting 7

Diagrams 8

Isometric & Line Views, Lamp Assembly 8
Isometric & Line Views, Ballast 9

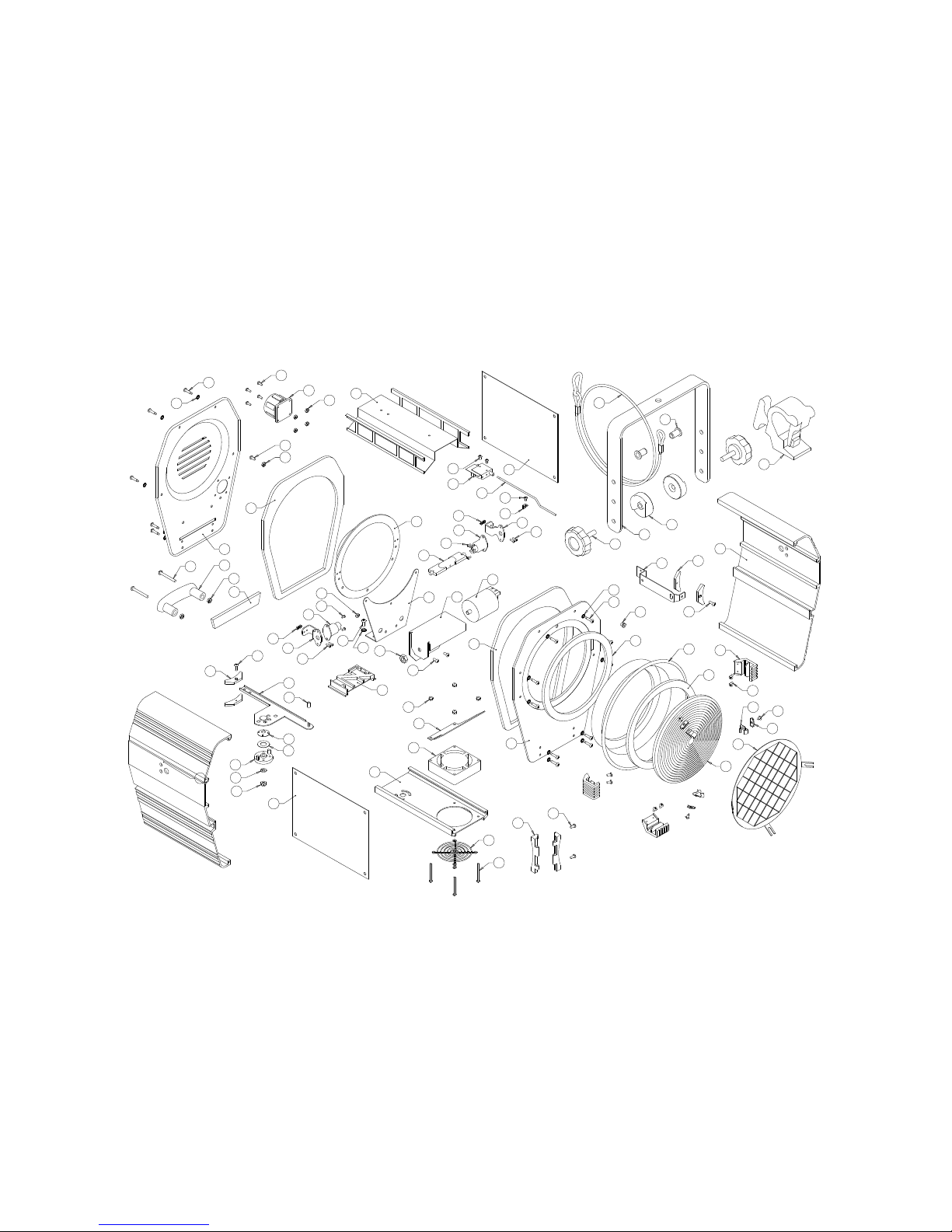

Exploded View, Lamp Assembly 10
Part List, Lamp Assembly 11
Exploded View, Ballast LT-404S/F(F)(G)(H)(I) 12
Part List, Ballast LT-404(F)(G)(H)(I) 13
Exploded View, Ballast LT-404S/F(1)(2) 14
Part List, Ballast LT-404(1)(2) 15
Schematic, LT-404S/F(F)(G)(H)(I) 16
Schematic, LT-404S/F(1)(2) 17
Spectral Transmission Graph 18
Photometrics Chart 18

2

Introduction

Congratulations on your purchase of a Wildfire Long-Throw 404S/F UV-A Lighting Fixture. Designed to
powerfully illuminate fluorescent objects at distances up to 100’ the 404S/F has been a long time favorite for film
and television production. The easy slide focus mechanism and soft focus fresnel lens enables this fixture to
adjust quickly from an 8° Spot to a 59° flood. New state of the art digital DMX control with four user selectable
modes, offers increased flexibility and easy integration with intelligent lighting systems. Please take a moment to
read this manual thoroughly before attempting to operate this fixture. Improper set-up, use or servicing may
cause damage to the fixture and/or lamp and void the unit’s warranty.

Safety Statements

CAUTION – RISK OF EXPOSURE TO ULTRAVIOLET (UV) RADIATION DO NOT OPERATE WITHOUT

COMPLETE LAMP ENCLOSURE IN PLACE, OR IF FILTER GLASS LENS IS DAMAGED

DANGER – INTENSE HEAT AVOID CONTACT BY PERSONS AND MATERIAL.
CAUTION – RISK OF ELECTRICAL SHOCK AND FIRE DISCONNECT FIXTURE BEFORE RELAMPING. USE

WITH MAX 400W LAMP WILDFIRE IRONARC MODEL LMP-400D. DRY LOCATIONS ONLY. NOT FOR
RESIDENTIAL USE.

WARNING – THIS FIXTURE CONTAINS A HIGH INTENSITY UV METAL HALIDE LAMP, WHICH IS SAFELY
CONTAINED WITHIN AN INTERLOCKING HOUSING. WHEN THIS FIXTURE IS USED IN ACCORDANCE
WITH THE MANUFACTURERS OPERATING INSTRUCTIONS, NO HAZARDS EXIST TO MOST PEOPLE
STANDING WITHIN THE BEAM OF THE FIXTURE. HOWEVER INDIVIDUALS SUFFERING FROM A RANGE
OF SUNLIGHT EXPOSURE DISORDERS, APHAKIC AND PSEUDOAPHIKIC, OR THOSE INDIVIDUALS
RECEIVING PHOTOSENSITIVE MEDICATION MAY RECEIVE DISCOMFORT IF EXPOSED TO
ULTRAVIOLET LIGHT.

HG – THE LAMP IN THIS FIXTURE CONTAINS MERCURY. MANAGE IN ACCORDANCE WITH DISPOSAL
LAWS. SEE:

WWW.LAMPRECYCLE.ORG OR CALL 1-800-937-8065

3

Specifications

Ballast:

Magnetic
Electronic Power Factor > 92%

Rating:

120VAC / 60Hz. / 5 Amps Max / 400W (Mag.)
220VAC / 50-60Hz / 2 Amps Max / 400W (Elec.)

Optional Magnetic Ballast Electrical Configurations:

100VAC / 50Hz. (Mag.)
100VAC / 60Hz. (Mag.)
120VAC / 50Hz. (Mag.)

Electronic Ballast Features:

Flicker & Noise Free

Automatic Lamp Failure Shutdown

Automatic High Temperature Shutdown

Automatic Hot Re-strike Prevention

Circuit Protection:

7 Amp Magnetic Over-current Breaker Switch (100-120VAC)
5 Amp Magnetic Over-current Breaker Switch (220VAC)

Lamp:

Wildfire IronArc 400 Watt Metal Halide Model LMP-400D (1000 Hr. Rated)

Beam:

Adjustable 8° to 59°

Reflector:

Alzak Coated Aluminum

Lens:

8” UV-A Transmitting Fresnel Filter Glass

Peak Spectral Transmission:

350-365nm

Optimum Operating Temperature:
50°F to 110°F
Weight:

Lamp Assembly 17.6Lbs. / 8.0Kg.

Ballast 26.35Lbs. / 11.95Kg. (Mag.)

Ballast 16.55Lbs. / 7.51Kg. (Elec.)

Dimensions:

Lamp Assembly 13.5”/34.29cm High x 10.76”/27.33cm Wide x 14.25”/36.19cm Long
Ballast 9.25”/23.50cm High x 12.74”/32.40cm Wide x 9.25”/23.50cm Long

Accessory Bracket:

10” / 25.4cm Bracket Assembly

Standard Equipment:

25’ Connection Cable (CBL-0001)

Lamp (LMP-400D)

2 Pipe Mounting Clamps (ACC-0026)

2 Safety Cables (ACC-0027)

Specifications subject to change without notice

4

Setup & Operation

Unpacking

Unpack the fixture and carefully inspect for any signs of physical damage. Report any damage to Wildfire or
your local distributor immediately. Included with each unit should be the following items:

1. Lamp Assembly

2. Ballast

3. 25’ connection cable

4. Two pipe mounting clamps, designed to attach the fixture and ballast to a 11/2” to 2” pipe truss

5. Two safety cables, provided to secure the fixture and ballast when mounted on a pipe truss

6. Wildfire IronArc

Before mounting the fixture you will need to install the lamp refer to Lamp Replacement on page 6 for correct
installation.

Installation

After installing the lamp place the fixture in desired location the fixture is equipped with a yoke assembly for
mounting. The yoke may be fitted with either a pipe clamp (included) for mounting on a pipe truss or a baby bail
block or junior pin for mounting on a light stand.

If the fixture or ballast are mounted on a pipe truss be sure to use the included safety cables looping them
through the yoke assembly and around the pipe truss this will prevent the fixture or ballast from falling and
possibly causing injury in the event that the pipe clamp was not securely tightened.

To adjust the angle of the fixture loosen the knobs on either side of the unit slightly, rotate to desired angle and
tighten. Care should be taken to support the front of the fixture while loosening the knobs to prevent the fixture
from rotating forward and possibly causing injury.

The fixture comes standard with a 10” Bracket assembly for attaching dowsers and scrollers such as Wybron’s
Eclipse or Coloram Series as well as barndoors and other accessories. When using accessories with this fixture
be sure to attach the safety cable provided by the accessory manufacturer to the fixtures yoke assembly.

Connect the lamp assembly to the ballast using the included 25’ connection cable. This connection cable is
designed to connect in only one way. Once the lamp assembly and ballast have been connected plug the ballast
into the appropriate power source. If you are controlling the unit with a lighting control board you will need to
make sure it is plugged into a non-dim circuit if the fixture is plugged into a dimmable circuit it will not operate.

Operation

To strike the fixture push the power/breaker switch on the ballast to the on position after striking the lamp allow
at least 2 minutes for the lamp to get to full brightness. Once the fixture has been powered up and the lamp has
ignited if you shut it off you will need to wait approximately 5 minutes to allow the lamp to cool before the fixture
can re-strike. On models LT-404S/F(F)(G)(H)(I) DO NOT leave the power/breaker switch in the on position
during this cool down period, this will cause the fixture to continue trying to strike the lamp potentially causing
damage to the ignitor.

On models LT-404S/F(1)(2) it’s ok to leave the power/breaker switch in the on position during the cool down
period as the hot re-strike prevention circuitry in the ballast will prevent the lamp from striking until it is
completely cooled. Once it has cooled sufficiently it will strike automatically. These models are also equipped
with automatic lamp failure protection circuitry that shuts the fixture down if the lamp should fail for any reason,
preventing any damage to the fixture. In addition they are equipped with high temperature protection circuitry
that shuts the fixture down if the ballast case temperature exceeds 85° C. When the fixture cools it will strike
again automatically.

®

Lamp, Model LMP-400D

5

DMX Address Mode

Select the DMX address mode by pressing the select button until the yellow DMX Address LED is lit. The
display will read the last DMX address selected. Set the desired DMX address (001 to 512) by pressing the up
or down buttons. Pressing either the up or down buttons for longer then 3 seconds will cause the display to
move up or down rapidly. Once the fixture receives a DMX signal with a data value of 140 or above the lamp will
strike. When the data value falls to 120 or below the lamp will extinguish. If power and or DMX signal to the
fixture is lost the last address selected will be retained when power and or DMX signal is regained. The DMX
input/output connector pin configuration is: Common Pin 1, Data Minus Pin 2 and Data Plus Pin 3. Pins 4 and 5
are not used at this time.

To operate the fixture without DMX set the address to 702. This forces the fixture on regardless if DMX signal is
present or not. This is the default address setting when the fixture ships from the factory.

Lamp Timer Mode

Select this mode by pressing the select button until the red Lamp Timer LED is lit. The display will show the
current hours on the lamp in the fixture. When it reaches 1000 the red LED will flash continuously to let you
know it is time to change the lamp. If another mode is selected when the lamp timer is at 1000 hours or over the
display will always default back to the lamp timer mode within 10 seconds until the lamp timer is reset or rolls
over at 9999 hours. Pressing and holding the up & down buttons simultaneously for 5 seconds while in the lamp
timer mode will reset the lamp timer. If the fixture is powered up and the lamp doesn't ignite the display will flash
"O F F" while in this mode until the lamp ignites. If another mode is selected at this time the display will always
default back to the Lamp Timer mode in 10 seconds until the lamp ignites. The lamp timer will retain the current
hours on the lamp even when the fixture is unplugged.

DMX Data Mode

To select this mode press the select button until the green DMX Data LED is lit. The display will read the data
value of the DMX signal being received. When a DMX data value of 140 or greater is received the fixture will
turn on. When a data value of 120 or less is received the fixture will turn off. If power is removed and DMX
signal is still present the current data value being sent to the fixture will be read as soon as power is reapplied. If
no DMX signal is being received or DMX signal is lost, the DMX data LED will flash, the display will read "0 0 0 "
and the fixture will default to off unless the DMX address is set to 702 as indicated above. If another mode is
selected at this time the display will always default back to the DMX data mode in 10 seconds until the DMX
signal is restored or the address is set to 702.

Dark Mode

Pressing and holding the select button for 5 seconds in any of the three modes will darke n the display and LED
while still retaining all information. To turn the display back on press the select button again.

Focusing

Once the fixture is pointed in the correct direction Move the focus control on the rear of the lamp assembly as
required. Moving it towards S (spot) produces a narrower beam. Moving it towards F (flood) produces a wider
beam. To adjust the focus control tension, hold the focus control with one hand and use a 7/16” so cket wrench
to adjust the tension nut, located on the bottom of the lamp assembly to the desired tension.

6

Maintenance & Troubleshooting

Lamp Replacement

Unplug the fixture. Remove any accessories from the front. Set the focus control to the F position Make sure the
fixture is cool to the touch before opening the lens door. Release the lens door latch by pulling the latch away
from the door. Swing the front lens door open. Grasp the lamp in the center remove it by pushing it gently to one
side sliding the other end forward. Reverse this procedure to install the new lamp. After installing gently rock the
new lamp back and forth to insure the depressions on the ends of the lamp are firmly seated on the posts of the
sockets. If the lamp is not firmly seated arcing could occur melting both the socket and lamp. Care should be
taken not to touch the new lamp directly use a cloth or glove when handling if you have touched the lamp it must
be cleaned with alcohol to remove any oils and fingerprints prior to striking. For maximum UV-A output always
use Wildfire IronArc

Cleaning

For best performance, the reflector, lamp and filter lens should be kept free of dirt and dust. At no time should
any cleaning chemicals or abrasives be used to clean any part of the fixture. Do not spray or apply any liquid
directly to any part of the fixture. Always unplug the unit. before cleaning. For normal cleaning, a dry soft cloth
should be used to wipe any surface free from dust and light dirt. Cleaning the reflector will require that the lamp
be removed. Remove the lamp by following the instructions listed under lamp replacement above. Once the
lamp has been removed, gently wipe off the reflector using a soft dry cloth. In the event the reflector is heavily
soiled, lightly dampen the cloth with a mild window cleaning agent and wipe clean. The filter lens can be cleaned
in the same manner. The lamp should be cleaned with alcohol only.

Troubleshooting

Red LED is flashing display reads 1000 to 9999: -- The lamp has reached the end of its life, reducing UV

output considerably. Replace the lamp in the fixture.
Red LED is on and the display is flashing “O F F”: -- The fixture is attempting to strike the lamp however the

lamp has either not cooled enough to strike or the lamp is bad. Wait 5 minutes for the lamp to completely cool. If
it still won’t strike, replace the lamp.

Green LED is flashing and the display reads “0 0 0”: -- The fixture is set for a valid DMX address however
DMX signal is not being received. Check DMX settings on control board or software as well as cabling to the
fixture.

Display and LED’s are not lit: -- Fixture is operating in dark mode, press the select button to reactivate the
display and LED’s.

The fixture will not strike: – Check to make sure there is power to the ballast. Make sure the power/breaker
switch on the ballast has not been tripped. Unplug the ballast. Check to see if the fixture has a lamp installed
and that it is seated properly in the sockets (see lamp replacement above). Check to see if the safety cutoff
switch is making contact by closing the lens cover and listening for a clicking sound. If the fixture still is not
striking try replacing the lamp. If you have checked all of the above and the fixture still won’t strike contact
Wildfire technical support at [phone] or your local distributor.

The effect is not working anymore: – Try changing the lamp. The lamp in your Wildfire fixture is rated at 1000
hours. This does not necessarily mean that the lamp will “burn out” or not light after 1000 hours it may continue
to burn for a much longer period of time however the amount of UV it produces will be reduced considerably
causing the effect to appear as though it isn’t working. Wildfire recommends for maximum effect to change the
lamp every 1000 hours.

®

lamps, and change the lamp in your fixture every 1000 hours.

7

Isometric & Line Views, Lamp Assembly

Diagrams

21.84"

18.86"

13.44"

14.25"

10.75"

10.00"

12.75"

8

Isometric & Line View, Ballast

10.61"

9.25"

12.74"

18.87"

14.37"

9.25"

9.25"

9

Exploded View, Lamp Assembly

10

63

64

23

2

26

46

24

27

11

13

28

53

32

48

44

22

54

59

58
56

55

57

68

45

51

47

50

34

8

29

6

36

39

5

33

9

51

33

31

34

8

6

29

20

36

60

62

61

26

4

7

3

24

35

10

1

11

43

63

64

30

12

37

12

41

67

65

66

42

40

19

52

44

22

45

17

15

38

21

18

14

24

25

16

49

Part List, Lamp Assembly

11

# QTY PART PART

1 1 ELE-0002 Fan

2 1 ELE-0008 Connector, Panel Mount, Male

3 1 ELE-0012 Ignitor, Magnetic Ballast Only

4 1 Included w/ Ignitor Nut, 3/8-16, Magnetic Ballast Only

5 1 ELE-0016 Switch, Honeywell, 2AC59

6 2 ELE-0024 Socket, Lamp, B&W 976, (252)(402)(402S/F)

7 1 FAB-0001 Ignitor Cover, Magnetic Ballast Only

8 2 FAB-0023 Socket Bracket

9 1 FAB-0024 Switch Rod

10 1 FAB-0039 Light Shield

11 2 GKT-0004 400 End Plate Seal

12 2 w/ GKT-0004 400 Door & Lens Seal

13 1 w/ GKT-0004 400 Focus Lever Seal

14 1 HAR-0019 Pipe Clamp, Mega Claw

15 2 HAR-0020 Spacer, Casting, Yoke

16 1 HAR-0036 Fan Guard

17 2 HAR-0050 Knob, Yoke Adjustment

18 1 HAR-2000 Cable, Safety, 1/8"

19 1 LEN-0003 Lens

20 1 LMP-400D Lamp, Wildfire, Iron Arc, UV, 400W

21 2 MFG-0001 Nut, Blind Rivet, 3/8-16

22 2 MFG-0031 MS, PH, PHL, 8-32, .500", 18-8 SS

23 4 MFG-0034 MS, PH, PHL, 6-32, .375", 18-8 SS

24 5 MFG-0035 MS, PH, PHL, 8-32, .375", 18-8 SS

25 4 MFG-0039 MS, PH, PHL, 6-32, 1.75", 18-8 SS

26 6 MFG-0040 Nut, 6-32, 18-8 SS, w/ Tooth Washer

27 1 MFG-0041 Nut, 8-32, 18-8 SS, w/ Tooth Washer

28 2 MFG-0044 Nut, 10-32, 18-8 SS, Tooth Washer

29 4 MFG-0048 Nut, 4-40, 18-8 SS, w/ Tooth Washer

30 1 MFG-0051 Nut, Blind Rivet, 8-32

31 1 MFG-0053 Bracket, Keystone

32 2 MFG-0062 MS, PH, PHL, 10-32, 1.75", 18-8 SS

33 3 MFG-0078 MS, PH, PHL, 6-32, .250", 18-8 SS

34 4 MFG-0085 MS, PH, PHL, 4-40, .375", 18-8 SS

# QTY PART# PART

35 4 MFG-0091 Nut, 6-32, 18-8 SS, Nylok

36 4 MFG-0078 MS, PH, PHL, 6-32, .250", 18-8 SS

37 1 SLP-002 Front Door

38 1 SPL-003 Bail Bracket

39 1 SLP-005 Reflector

40 1 SPL-006 Safety Screen

41 3 SLP-007 Shutter Holder

42 3 SLP-008 Clip, Lens

43 1 SLP-009 Front Plate

44 4 SLP-010 Handle, Door Latch

45 2 SLP-011 Extrusion

46 1 SLP-012 Upper Center Cover

47 1 SLP-013 Bottom Cover

48 1 SLP-014 Rear Plate

49 1 SLP-015 Hinge Assembly, Lens Door

50 1 SLP-016 Slider

51 2 SLP-017 Heat Shield

52 1 SLP-018 Spring Latch

53 1 SLP-019 Handle

54 1 SLP-020 Lever

55 1 SLP-021 Cam Disk

56 1 SLP-022 Thrust Washer

57 1 SLP-023 Washer, Lock, 1/4"

58 1 SLP-024 Spring, Washer, Cam Lever

59 1 SLP-025 Roller Bushing

60 1 SLP-026 Reflector Bracket

61 2 SLP-027 MS, PH, PHL, 10-32, .500", 18-8 SS

62 2 SLP-028 Washer, #10, Tooth

63 18 SLP-029 SCR, PH, PHL, 8-18, .75", Self Drill

64 18 SLP-030 Washer, #8, Tooth

65 3 SLP-031 Screw, Sheet Metal

66 3 SLP-032 Nut, Sheet Metal

67 6 SLP-033 MS, PH, PHL, 8-32, .312", 18-8 SS

68 1 SLP-034 Nut, 1/4-20, 18-8 SS, Nylok

Exploded View, Ballast, LT-404S/F(F)(G)(H)(I)

12

4

42

41

19

15

26

27

28

29

3

12

33

30

34

25

2

27

14

32

23

1

5

35

11

31

36

7

8

6

37

20

18

24

13

21

12

17

16

22

14

32

Optional Outdoor Kit

38 39 40

9 10

Part List, Ballast, LT-404S/F(F)(G)(H)(I)

13

# QTY. PART # PART NAME

1 1 ELE-0005 APM Hexseal, Breaker Switch

2 1 ELE-0006 Panel, Connector, Female

3 1 ELE-0021 Strain Relief, Power Cord

4 1 ELE-0038 Power Cord, 120V

5 1 ELE-0045 Display Module

6 1 ELE-0046 Power Supply Module

7 1 ELE-0048 Jack, DMX, Male

8 1 ELE-0049 Jack, DMX, Female

9 1 ELE-0051 Breaker, Switch, Carling, 7 amp, 100-120V Ballast

10 1 ELE-0052 Breaker, Switch, Carling, 5 amp, 220V Ballast

11 1 ELE-0064 Ribbon Cable, Display to Power

12 2 FAB-0007 Rear Control Plate LT-404 (F) (S/F)

13 1 FAB-0074 Yoke, 401 / 600

14 2 FAB-0117 Divider Plate

15 1 FAB-0159 Bracket, Capacitor, Dry Film

16 8 GKT-0002 Gasket, Lens Door, 401/600

17 1 HAR-0019 Pipe Clamp, Mega Claw

18 2 HAR-0020 Spacer, Casting, Yoke

19 1 HAR-0023 Bracket, Capacitor, Oil

20 2 HAR-0050 Knob, Yoke Adjustment

21 1 HAR-2000 Cable, Safety, 1/8"

# QTY. PART # PART NAME

22 1 HSG-400B Housing, Ballast

23 1 LAB-0005 Control Label, WF-404B

24 2 MFG-0001 Nut, Blind Rivet, 3/8-16

25 4 MFG-0030 MS, PH, PHL, 6-32, .500", 18-8 SS

26 1 MFG-0034 MS, PH, PHL, 6-32, .375", 18-8 SS

27 5 MFG-0040 Nut, 6-32, 18-8 SS, w/ Tooth Washer

28 2 MFG-0041 Nut, 8-32, 18-8 SS, w/ Tooth Washer

29 2 MFG-0043 MS, FH, PHL, 8-32, .500", 18-8 SS

30 2 MFG-0044 Nut, 10-32, 18-8 SS, Nylok

31 4 MFG-0048 Nut, 4-40, 18-8 SS, w/ Tooth Washer

32 8 MFG-0055 SS, PH, PHL, #10, 1", 18-8 SS

33 2 MFG-0056 MS, FH, PHL, 10-32, .750", 18-8 SS

34 2 MFG-0063 Washer Rectangular

35 2 MFG-0078 MS, PH, PHL, 6-32, .250", 18-8 SS

36 4 MFG-0085 MS, PH, PHL, 4-40, .375", 18-8 SS

37 4 MFG-0086 MS, FH, PHL, 6-32, .375", 18-8 SS

38 1 PS-MH-400G Ballast, 400W, 100V, 200V, 60HZ

39 1 PS-MH-400F Ballast, 400W, 100V, 200V, 50HZ

40 1 PS-MH-400IK Ballast, 400W, 120V, 208V, 240V, 277V, 60HZ

41 1 Included w/Ballast Capacitor, Dry Film

42 1 Included w/Ballast Capacitor, Oil

Exploded View, Ballast, LT-404S/F(1)(2)

14

4

3

12

23

2

24

14

28

21

1

5

29

11

27

30

7

8

6

31

18

17

22

13

19

12

16

15

20

14

28

Optional Outdoor Kit

9 10

32 33

26

25

Part List, Ballast, LT-404S/F(1)(2)

15

# QTY. PART # PART NAME

1 1 ELE-0005 APM Hexseal, Breaker Switch

2 1 ELE-0006 Panel, Connector, Female

3 1 ELE-0021 Strain Relief, Power Cord

4 1 ELE-0038 Power Cord, 120V

5 1 ELE-0045 Display Module

6 1 ELE-0046 Power Supply Module

7 1 ELE-0048 Jack, DMX, Male

8 1 ELE-0049 Jack, DMX, Female

9 1 ELE-0051 Breaker, Switch, Carling, 7 amp, 100-120V Ballast

10 1 ELE-0052 Breaker, Switch, Carling, 5 amp, 220V Ballast

11 1 ELE-0064 Ribbon Cable, Display to Power

12 2 FAB-0117 Rear Control Plate LT-404 (F) (S/F)

13 1 FAB-0074 Yoke, LT-404F, 404S/FB

14 2 FAB-0073 Divider Plate

15 8 GKT-0002 Gasket, Lens Door, 401/600

16 1 HAR-0019 Pipe Clamp, Mega Claw

17 2 HAR-0020 Spacer, Casting, Yoke

# QTY. PART # PART NAME

18 2 HAR-0050 Knob, Yoke Adjustment

19 1 HAR-2000 Cable, Safety, 1/8"

20 1 HSG-400B Housing, Ballast

21 1 LAB-0005 Control Label, WF-404B

22 2 MFG-0001 Nut, Blind Rivet, 3/8-16

23 4 MFG-0030 MS, PH, PHL, 6-32, .500", 18-8 SS

24 4 MFG-0040 Nut, 6-32, 18-8 SS, w/ Tooth Washer

25 4 MFG-0041 Nut, 8-32, 18-8 SS, w/ Tooth Washer

26 4 MFG-0043 MS, FH, PHL, 8-32, .500", 18-8 SS

27 4 MFG-0048 Nut, 4-40, 18-8 SS, w/ Tooth Washer

28 8 MFG-0055 SS, PH, PHL, #10, 1", 18-8 SS

29 2 MFG-0078 MS, PH, PHL, 6-32, .250", 18-8 SS

30 4 MFG-0085 MS, PH, PHL, 4-40, .375", 18-8 SS

31 4 MFG-0086 MS, FH, PHL, 6-32, .375", 18-8 SS

32 1 PS-MH-400L1 Ballast, Electronic, 120V, 50-60HZ, 400W

33 1 PS-MH-400L2 Ballast, Electronic, 220V, 50-60HZ, 400W

Schematic, LT-404S/F(F)(G)(H)(I)

16

POWER SWITCH / CIRCUIT BREAKER

100-220V

COM

GRND

L

N

L

N

POWER SUPPLY BOARD

DMX IN DMX OUT

G

G

AC INPUT

AC OUTPUT

CONTROL FAN

DMX CONTROL BOARD

SELECT

DOWN

UP

MEMBRANE SWITCH

B

C

D

E

F

G

A

LAMP ASSEMBLY CONNECTION

CAPACITOR

120V

208V

240V

277V

COM COM

120-277VAC / 60Hz.

PS-MH400IK Ballast

120V

220/240V

120-240VAC / 50Hz.

PS-MH400HJ Ballast

100V

200V

(F) 100 or 200VAC / 60Hz.
(G) 100 or 200VAC / 50Hz.

PS-MH400(F)(G) Ballast

B

C

D

E

F

G

A

BALLAST CONNECTION

B LP

N

IGNITOR

LAMP
400W

SAFETY SWITCH

24VDC FAN

L
N

24VDC

POWER

SUPPLY

+

-

Schematic, LT-404S/F(1)(2)

17

POWER SWITCH / CIRCUIT BREAKER

120-220V

COM

GRND

L

N

L

N

POWER SUPPLY BOARD

DMX IN DMX OUT

G

G

AC INPUT

AC OUTPUT

CONTROL FAN

DMX CONTROL BOARD

SELECT

DOWN

UP

MEMBRANE SWITCH

400W ELECTRONIC BALLAST

G

N

L

LAMPGROUND

B

C

D

E

F

G

A

LAMP ASSEMBLY CONNECTION

B

C

D

E

F

G

A

LAMP
400W

BALLAST CONNECTION

24VDC FAN

N
L

24VDC
POWER
SUPPLY

+

-

SAFETY SWITCH

Spectral Transmission Graph

100%

90%

80%

70%

60%

50%

40%

30%

PERCENTAGE OF TRANSMISSION

20%

10%

0

280

300

320

340

UV-B UV-A

400

360

380

420

440

480

460

500

520

540

560

580

600

620

640

660

680

700

720

740

760

VISIBLE LIGHT

820

780

800

840

900

860

880

IR-A

940

920

960

980

1100

1000

1200

IR-B

Photometrics Chart

Beam Diameter Feet

Beam Diameter Meters

Beam Diameter Feet

Beam Diameter Meters

8° Spot

Distance in Feet/Meters

5

10

0

6.

3.

/

/

10

20

30

1.40

2.80

4.20

0.85

220.9

1.28

101

0.43

2

879.9

59° Flood

Distance in Feet/Meters

5

10

0

6.

3.

/

/

20

22.63

6.90

51.7

30

33.95

10.35

23.5

10

11.32

3.45

2

218.5

WAVELENGTH /NM

9

2

14

9.

12.19

/

5.60

1.71

56.4

14

9.

/

45.26

13.80

14.1

15.24

/

/

40

50

60

7.00

8.40

2.13

2.56

39.9

23.5

12.19

15.24

/

/

40

50

60

56.58

67.90

17.24

20.69

9.4

3.5

.33

18.

21

/

/

0

0

7

8

9.80

11.20

2.99

3.41

16.4

13.1

9

2

.33

18.

21

/

/

0

7

79.21

24.14

2.3

24.38

/

12.60

3.84

10.1

3

.4

30.48

27

/

/

0

0

9

10

14.00

15.40

4.27

4.69

8.2

5.6

36.57

33.53

/

0

11

16.80

5.12

3.7

39.42

/

/

0

0

12

13

18.20

5.55

2.3

18

5200 West 83rd Street, Los Angeles, CA 90045
310-645-7787 800-937-8065 Fax: [phone]

www.wildfirefx.com [e-mail]

Wildfire and its symbol are registered trademarks of Wildfire, Inc. Los Angeles, CA
IronArc and its symbol are registered trademarks of Wildfire, Inc. Los Angeles, CA

The Professional Choice and Long Throw are trademarks of Wildfire, Inc. Los Angeles, CA

c

2000, 2001, 2002, 2003, 2004, 2005 Wildfire, Inc.
