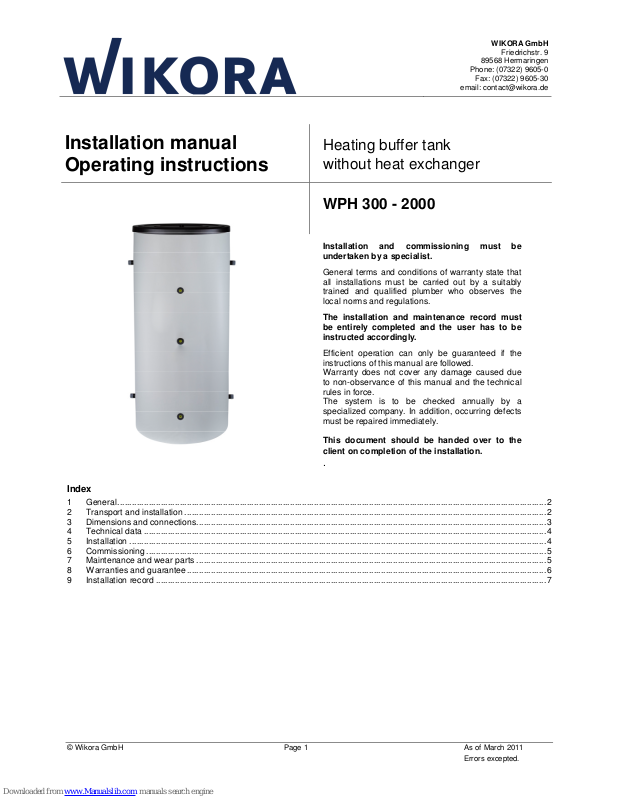

WIKORA WPH 300, WPH 2000 Installation Manual

© Wikora GmbH Page 1 As of March 2011
Errors excepted.

WIKORA GmbH

Friedrichstr. 9

89568 Hermaringen

Phone: [phone]

Fax: [phone]

email: [e-mail]

Installation manual
Operating instructions

Heating buffer tank
without heat exchanger

WPH 300 - 2000

Installation and commissioning must be
undertaken by a specialist.

General terms and conditions of warranty state that
all installations must be carried out by a suitably
trained and qualified plumber who observes the
local norms and regulations.

The installation and maintenance record must
be entirely completed and the user has to be
instructed accordingly.

Efficient operation can only be guaranteed if the
instructions of this manual are followed.
Warranty does not cover any damage caused due
to non-observance of this manual and the technical
rules in force.
The system is to be checked annually by a
specialized company. In addition, occurring defects
must be repaired immediately.

This document should be handed over to the
client on completion of the installation.

.

Index

1 General ................................................................................................................................................................................... 2

2 Transport and installation ....................................................................................................................................................... 2

3 Dimensions and connections .................................................................................................................................................. 3

4 Technical data ........................................................................................................................................................................ 4

5 Installation .............................................................................................................................................................................. 4

6 Commissioning ....................................................................................................................................................................... 5

7 Maintenance and wear parts .................................................................................................................................................. 5

8 Warranties and guarantee ...................................................................................................................................................... 6

9 Installation record ................................................................................................................................................................... 7

© Wikora GmbH Page 2 As of March 2011
Errors excepted.

1 General

Depending on the type and design, W IKORA tanks are suitable for heating and / or storing DHW and / or heating water. The
heating is achieved indirectly via heat generators, if applicable, from different heat sources. The maximum working pressure
and working temperature can be found in the technical data.

Set-up, installation and commissioning must be undertaken by a qualified specialist, who must observe these instructions.

The site of installation must be frost-protected according to DIN 4753 and should be in direct proximity to the heat
generator.

When setting-up and installing the tank, the following regulations should be considered:
In addition to the technical rules in force DIN 1988, DIN 18160, DIN 4753, DIN 4109, DIN 4708, DIN 4751 section 2-4 energy
conservation law and VDE regulations are to be observed. Moreover, the relevant regulations of the suppliers as well as legal
building regulations are to be considered.

Important: The exhaust pipe must be at least as big as the safety valve outlet in width. It may not have more than 2 bends and
should not be longer than 2 m. If for any compelling reasons 3 bends or a length up to 4 m are required, then the entire exhaust
line must be designed one nominal size larger. More than 3 bends, or a length exceeding 4 m is prohibited. The exhaust pipe
must be installed with downward gradient. The drain line behind the funnel must feature at least the double width of the valve
entrance. A sign is to be attached close to the exhaust pipe of the safety valve or on the safety valve itself. „For safety reasons
water may leak from the exhaust pipe during the heating process! Do not lock! "The operability of the safety valve is to be
checked at regular intervals by means of de-ventilation.

2 Transport and installation

In order to prevent damage during transport, the packaging should only be removed at the site of installation. During shipment,
it should be ensured that the tank does not come in contact with any spiky or sharp items, nor is damaged through dropping or
knocks.
During installation, the tank must be disconnected from any humidity carrying components. Moreover, sufficient space for
maintenance and cleaning purposes should be kept free in front of, beside, above and behind the tank.

Please note that the insulation provided should be kept in a dry place at least 24 hours at a minimum temperature of
20°C before installation.

© Wikora GmbH Page 3 As of March 2011
Errors excepted.

3 Dimensions and connections

Illustration

1

Dimensions:

Type

d D

H K L S T W X1 X2 X3

[mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]

WPH 300

550 710 1550 1230 230 1230 230 1570 1100 800 230

WPH 400

600 760 1630 1300 245 1300 245 1650 1150 850 245

WPH 500

600 760 1960 1630 245 1630 245 1980 1450 950 245

WPH 750

750 910 1970 1610 280 1610 280 2000 1430 980 280

WPH 825

790 950 1905 1560 280 1560 280 1950 1480 940 280

WPH 980

790 950 2175 1830 280 1830 280 2200 1750 1060 280

WPH 1000

850 1010 1920 1590 280 1590 280 1980 1485 940 280

WPH 1500

1000 1160 2130 1710 340 1710 340 2180 1600 1000 340

WPH 2000

1200 1400 2090 1620 370 1620 370 2200 1400 1010 370

Chart 1

W = Tilting dimension

Connections:

Type WPH

300 / 400

WPH

500/750/825/980

WPH
1000

WPH

1500 /

2000

Load flow 8 R 1 5/4 5/4 2
Load return 9 R 1 5/4 5/4 2
Heating flow 10 R 1 5/4 5/4 2
Heating return 11 R 1 5/4 5/4 2
Vent 13 Rp 1 1 2 2
Sensor socket 15 Rp ½ ½ ½ ½
Thermometer socket 16 Rp ½ ½ ½ ½

Chart 2

R = male thread

Rp = female thread

© Wikora GmbH Page 4 As of March 2011
Errors excepted.

4 Technical data

Description

WPH

300

WPH

400

WPH

500

WPH

750

WPH

825

WPH

980

WPH
1000

WPH
1500

WPH
2000

Capacity

[litre] ca. 300 ca. 400 ca. 500 ca. 750 ca. 825 ca. 980 ca. 1000 ca. 1500 ca. 2000

Max. working temperature

[°C] 95 95 95 95 95 95 95 95 95

Max. working pressure [bar] 3 3 3 3 3 3 3 3 3

Insulation

80 mm soft foam

Weight (empty)

[kg] ca. 80

ca. 95 ca. 106 ca. 150 ca. 160 ca. 170

ca. 170

ca. 264

ca. 325

Chart 3

5 Installation

All pipes connecting to the tank should have removable connections (fitting/flange). Pipe thread seals with teflon are
to be avoided.

All tank connecting pipes are to be planned, constructed and tested according to the technical rules in force, as well as to the
corresponding norms and regulations in accordance with their application and supply medium.

Sensors and thermostats necessary for temperature control must be securely and permanently positioned on the tank
(immersion sleeve and sensor rail).

The tank’s venting and draining facilities must have the appropriate dimensions and be correctly installed.
The installation company is responsible for the correct execution of work and for the safe and careful insulation of the pipes.

The thread diameter of the heating safety valve depends on the nominal capacity of the water space and the maximum heating
capacity of the heat generator. It can be determined as follows:

Reaction pressure Max. heating capacity of the heat generator

1,5 bar 36 kW 72 kW 144 kW 252 kW 433 kW 650 kW
2,0 bar 43 kW 86 kW 172 kW 302 kW 518 kW 778 kW
2,5 bar 50 kW 100 kW 200 kW 350 kW 600 kW 900 kW
3,0 bar 56 kW 112 kW 224 kW 395 kW 678 kW 1017 kW

Thread diameter (inch) 1/2 ¾ 1 5/4 6/4 2

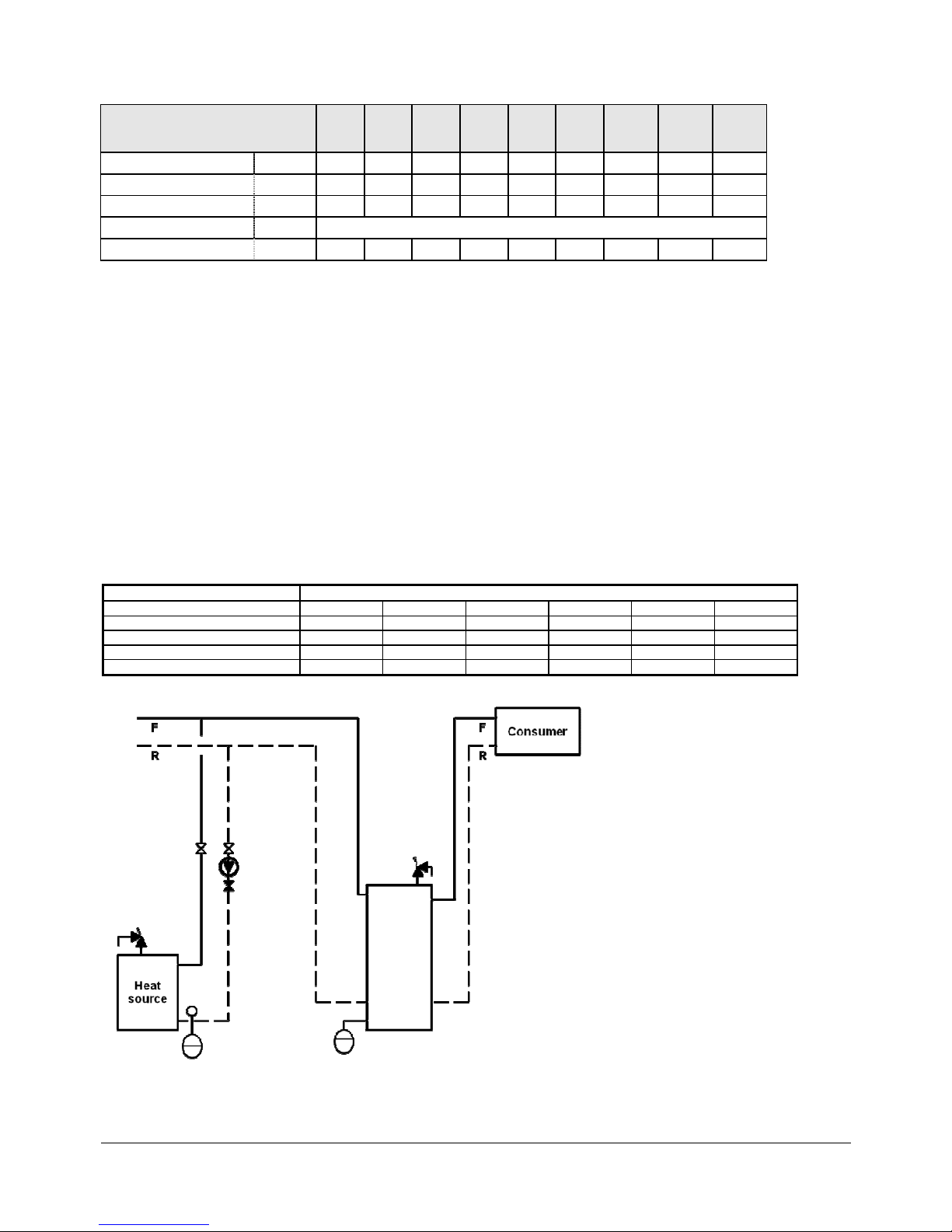

Illustration 2 (Schematic drawing– example hydraulic system heating)

© Wikora GmbH Page 5 As of March 2011
Errors excepted.

6 Commissioning

 Before putting into operation, the entire system should be flushed through. Particles in the system compromise the

operating reliability.

 Fill the heating system slowly with water and vent all the air.
 Start-up the heating system.
 While the System is heating up, water will leak out of the safety valve.
 Before the handover of the system to the end user/owner, the plumbing contractor should ensure that the

system is tested to full load, controls are set and that pipe work and connections are without leaks. Afterwards,
the end user has to be instructed in the operation and handling of the tank, as well as the system. The instruction must
to be documented in the installation and maintenance record.,

 Please note that the operation and lifetime of the system depend decisively on a regular maintenance.

7 Maintenance and wear parts

Regular maintenance increases the lifetime and operation reliability of the system. Decalcification at regular intervals may be
necessary in highly calcareous water areas. Attention – only valid for heating tanks with hot water supply.

A chemical decalcification can be carried out by a specialist using an approved decalcifier and taking the appropriate
precautions.

1. The safety valve protects the tank against excess pressure. The functional capacity must be checked at regular intervals
by venting. If an expansion vessel is used, the safety valve is not, or only rarely, required. Over a longer period of time
therefore, it can become blocked and not function when needed.

2. If there is a danger of freezing, the DHW tank should be permanently heated or completely emptied.

3. A damp cloth is sufficient to clean the outer parts. Please avoid using any abrasive or solvent cleaning.

© Wikora GmbH Page 6 As of March 2011
Errors excepted.

8 Warranties and guarantee

The product warranty is based upon the legal regulations of the German Civil Code and the Consumer Protection Act.
The warranty of the different products is shown in the table below. The correct installation and operation as well as the annual
maintenance of the tank are a prerequisite. During the first 12 months we guarantee that the products are free of any faults, as
of the date of the invoice. During this period, any occurring defects will be corrected free of charge. From the 2nd operating
year, there is a tank warranty, but this excludes assembly and disassembly costs. All other claims are excluded. Repairs and
costs which occur due to damage, inappropriate installation, chemical, electrochemical or electrical influences, incorrect
operation or improper manipulation, are excluded.
Furthermore, the warranty becomes invalid if the appliance has been modified through the installation of externally supplied
parts or through irregular professional maintenance.

Subject to our general terms and conditions.

Legal

Warranty

2 Years

Warranty

Years*

Conditions

WBO T 120, 160 ● 5 20 / 27
WBL 150, 200 ● 5 20 / 27
WBO Uno 120, 150, 200, 300, 401, 500, 751, 1000, 1500, 2000 ● 5 20 / 27
WBO Duo 302, 403, 502, 753, 1000, 1502, 2002 ● 5 20 / 27
WBO Basic Integral 302 ● 5 20 / 27
WP/Sol 302, 403, 502, 750 ● 5 20 / 27
WBO H 300, 400, 500, 750, 1000 ● 5 20 / 27
WTL 120, 150, 200, 300 ● 5 20 / 27
GS 117, 152, 192 ● 5 20 / 27

Wikosol Twin 600, 800 ● - 27
Wikosol III 803, 1003, 1503, 2003 ● 10 27
Wikosol IV 804, 1004, 1504, 2004 ● 10 27
WPKR Twin 600, 750, 1000 ● 5 20 / 27
WPKR 750, 1000 ● 5 20 / 27
WPK 750, 1000 ● 5 20 / 27
WPH-FW 820, 1020 ● - 27
WPR-FW 820, 1020 ● - 27

WPS 200, 300, 400, 500, 750, 1000, 1500 ● 5 20 / 27
WPH 300, 400, 500, 750, 825, 980, 1000, 1500, 2000 ● - ­WPB 300, 400, 500, 750, 825, 980, 1000, 1500, 2000 ● - ­WPR 500, 750, 1000, 1500, 2000 ● - ­WPRR 750, 1000, 1500, 2000 ● - ­WKS 200, 300, 400, 500, 750, 1000, 1500, 2000 ● - -

Cu-finned tube heat exchanger ● - 27
Electric heating element ● - -

Conditions

20

27

Coverage Germany:
Com pliance with the lim its of the valid DHW regulations(TrinkwV 2001), especially the
lim its in accordance with Appendix 2, Part 1-2 and Appendix 3
Coverage EU :
Com pliance with the lim its of the EG-Regulations 83/98

* Start of warranty at date of invoice

Products

DHW tanks

Combi tanks

Buffer tanks

Tank accessories

Within 12 m onths full replacement is guaranteed, including exchange costs. After a further

2 years, free container replacem ent is guaranteed under condition that the anode has
been examined annually and replaced after 2 years by an original Wikora anode
(individual receipts needed) and - if proof of m aintenance and the exchange of the anode
is provided by a specialized company in accordance with our maintenance log.

© Wikora GmbH Page 7 As of March 2011
Errors excepted.

9 Installation record

The installation has been completed according to DIN and the technical rules in force. In addition, the customer has received
instruction concerning the operation and maintenance.

Place……………………………………………….. Date…………………………………………………………

Customer Installer

……………………………………………………. ……………………………………………………………….
Signature Signature

Place of installation: ………………………………………………………………………………………………………………………

Name: ……………………………………………………………………………………………………………………...

ZIP Code/Place: …………………………………………………..………………………………………………………………….

Street: ……………………………………………………………………...………………………………………………

Phone: ……………………………………………………………………………...……………………………………...

Tank model: ………………………………. Serial number …………….………………..………………

Date of invoice ………………………………………………………...…………………………………………………………..

In the case of reclamation, the receipts for maintenance must be provided as proof. Please complete the data sheet, including
the reason for reclamation, and submit to W ikora.

Submitting the maintenance record does not ensure any promise of guarantee or claim.
