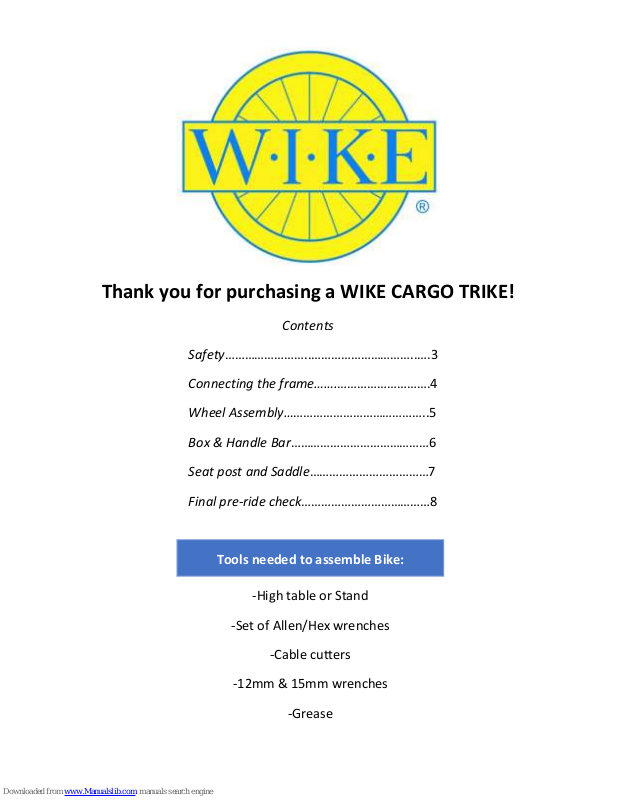

WIKE 9032 User Manual

Tools needed to assemble Bike:

-High table or Stand

-Set of Allen/Hex wrenches

-Cable cutters

-12mm & 15mm wrenches

-Grease

Thank you for purchasing a WIKE CARGO TRIKE!

Contents

Safety……………………..…………………………..….3

Connecting the frame…….……………………….4

Wheel Assembly……………………………………..5

Box & Handle Bar……………………………………6

Seat post and Saddle………………………………7

Final pre-ride check…………………………………8

Cargo Trike (9032) References

Fig.1

1. Handle bar

2. Gear shift

3. Box

4. Brake lever

5. Corner iron

6. Saddle

7. Seat Post

8. Seat Post clamp

9. Rear Light

10. Rear Fender

11. Rear 26’’ Wheel/Tire

12. Chain cover and chain

13. Rear Frame

14. Chain wheel and crank

15. Pedal

16. Front 20’’ Wheel/Tire

17. Brake Rotor

18. Brake Caliper

19. Front Fender

20. Front Frame

2.

Safety

Before you ride your bike for the first time, familiarize yourself with the
location and operation of both brakes and steering attributes

Always check to make sure that all nuts are secured each time before
you ride in order to make sure the box is stable

Make sure the seat post bolt is securely fastened and that the seat post
does not slip before you ride

Never operate the bicycle if the frame, wheels or quick releases are
damaged

Proper maintenance and adjustment of the box bicycle will greatly
increase riding safety and performance

Always check your tires for proper inflation (25-40psi) that is indicated
on the tire’s sidewall

Reflectors alone are not adequate for riding at night. Front and rear
lighting systems are recommended to increase visibility

Always wear a helmet when riding the bicycle

The bicycle is designed for users of all sizes. However box bikes should
not be operated by children and young adults

Remember to comply with all bicycle safety laws and use common sense
especially in adverse weather condition

Wike takes no responsibility for accidents resulting from failure to
comply with all bicycle safety laws, careless driving or improper
maintenance of your box bicycle

3.
