Page 1
Differential pressure transmitter DPT10 - metal mea-
suring diaphragm
Profibus PA
Document ID:
37245
Page 2
Contents
Contents
1 About this document
1.1 Function. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.2 Target group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.3 Symbolism used . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 For your safety
2.1 Authorised personnel . . . . . . . . . . . . . . . . . . . . . . . .
2.2 Appropriate use . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.3 Warning about misuse . . . . . . . . . . . . . . . . . . . . . . .
2.4 General safety instructions . . . . . . . . . . . . . . . . . . . .
2.5 Safety label on the instrument . . . . . . . . . . . . . . . . . .
2.6 CE conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.7 Fulfillment of NAMUR recommendations . . . . . . . . . .
2.8 Safety instructions for Ex areas . . . . . . . . . . . . . . . . .
2.9 Safety instructions for oxygen applications . . . . . . . . .
3 Product description
3.1 Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.2 Principle of operation . . . . . . . . . . . . . . . . . . . . . . . .
3.3 Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.4 Packaging, transport and storage . . . . . . . . . . . . . . .
4 Mounting
4.1 General instructions . . . . . . . . . . . . . . . . . . . . . . . . .
4.2 Special application conditions . . . . . . . . . . . . . . . . . .
4.3 Measurement setup flow . . . . . . . . . . . . . . . . . . . . . .
4.4 Measurement setup level . . . . . . . . . . . . . . . . . . . . .
4.5 Measurement setup density and interface . . . . . . . . .
4.6 Measurement setup differential pressure . . . . . . . . . .
4.7 Mounting arrangement and connection valve block . . .
4.8 External housing. . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.9 Mounting control. . . . . . . . . . . . . . . . . . . . . . . . . . . .
4
4
4
5
5
5
5
6
6
6
6
6
7
8
12
12
14
15
16
18
23
25
27
29
29
5 Connecting to power supply
5.1 Preparing the connection . . . . . . . . . . . . . . . . . . . . .
5.2 Connection procedure. . . . . . . . . . . . . . . . . . . . . . . .
5.3 Single chamber housing . . . . . . . . . . . . . . . . . . . . . .
5.4 Double chamber housing . . . . . . . . . . . . . . . . . . . . .
5.5 Double chamber housing Ex d . . . . . . . . . . . . . . . . .
5.6 Version IP 66/IP 68, 1 bar . . . . . . . . . . . . . . . . . . . . .
5.7 External housing with version IP 68 . . . . . . . . . . . . . .
5.8 Switch on phase. . . . . . . . . . . . . . . . . . . . . . . . . . . .
6 Adjustment with the indicating and adjustment module
6.1 Short description . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.2 Insert indicating and adjustment module. . . . . . . . . . .
6.3 Adjustment system . . . . . . . . . . . . . . . . . . . . . . . . . .
6.4 Parameter description . . . . . . . . . . . . . . . . . . . . . . . .
6.5 Menu schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA
30
31
34
35
37
38
39
40
42
42
44
45
54
37245-EN-100120
Page 3
Contents
6.6 Menu schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.7 Saving the parameter adjustment data . . . . . . . . . . . .
7 Setup with PDM
7.1 Parameter adjustment with PDM . . . . . . . . . . . . . . . .
8 Set up
8.1 Select the mode . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8.2 Flow measurement . . . . . . . . . . . . . . . . . . . . . . . . . .
8.3 Level measurement . . . . . . . . . . . . . . . . . . . . . . . . .
8.4 Density and interface measurement . . . . . . . . . . . . . .
8.5 Differential pressure measurement. . . . . . . . . . . . . . .
9 Maintenance and fault rectification
9.1 Maintain. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9.2 Rectify malfunctions . . . . . . . . . . . . . . . . . . . . . . . . .
9.3 Instrument repair . . . . . . . . . . . . . . . . . . . . . . . . . . .
10 Dismounting
10.1 Dismounting steps . . . . . . . . . . . . . . . . . . . . . . . . . .
10.2 Dispose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11 Supplement
11.1 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11.2 Information on Profibus PA . . . . . . . . . . . . . . . . . . . .
11.3 Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
55
58
59
60
60
62
66
66
69
69
71
72
72
73
84
89
Supplementary documentation
Information:
Supplementary documents appropriate to the ordered version come
with the delivery. You can find them listed in chapter "Product
description".
Instructions manuals for accessories and replacement parts
Tip:
To ensure reliable setup and operation of your instrument, we offer
accessories and replacement parts. The corresponding instructions
manuals are:
l 31550 - External indicating and adjustment unit
37245-EN-100120
Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA 3
Page 4
1 About this document
1 About this document
1.1 Function
This operating instructions manual provides all the information you
need for mounting, connection and setup as well as important
instructions for maintenance and fault rectification. Please read this
information before putting t he instrument into operation and keep this
manual accessible in the immediate vicinity of the device.
1.2 Target group
This operating instructions manual is directed to trained qualified
personnel. The contents of this manual should be made available to
these personnel and put into practice by them.
1.3 Symbolism used
Information, tip, note
This symbol indicates helpful additional information.
Caution: If this warning is ignored, faults or malfunctions can
result.
Warning: If this warning is ignored, injury to persons and/or serious
damage to the instrument can result.
Danger: If this warning is ignored, serious injury to persons and/or
destruction of the instrument can result.
Ex applications
This symbol indicates special instructions for Ex applications.
l List
The dot set in front indicates a list with no implied sequence.
à Action
This arrow indicates a single action.
1 Sequence
Numbers set in front indicate successive steps in a procedure.
4 Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA
37245-EN-100120
Page 5
2 For your safety
2 For your safety
2.1 Authorised personnel
Mount and set up the pressure transmitter only if you know the
applicable national regulations and have the appropriate qualification.
You must be aquainted with the regulations and instructions for
hazardous areas, measurement and control technology as well as
electrical circuits because the pressure transmitter is "electrical
equipment" according to EN 50178. Depending on the application
conditions, it is necessary that you have appropriate knowledge, e.g.
concerning corrosive products or high pressure.
2.2 Appropriate use
DPT10 is a differential pressure transmitter for measurement of flow,
level, differential pressure, density and interface.
You can find detailed information on the application range in chapter
"Product description".
Operational reliability is ensured only if the instrument is properly used
according to the specifications in the operating instructions manual as
well as possible supplementary instructions.
For safety and warranty reasons, any invasive work on the device
beyond that described in the operating instructions manual may be
carried out only by personnel authorised by the manufacturer. Arbitrary
conversions or modifications are explicitly forbidden.
2.3 Warning about misuse
Inappropriate or incorrect use of the instrument can give rise to
application-specific hazards, e.g. vessel overfill or damage to system
components through incorrect mounting or adjustment.
2.4 General safety instructions
This is a high-tech instrument requiring the strict observance of
standard regulations and guidelines. The user must take note of the
safety instructions in this operating instructions manual, the countryspecific installation standards as well as all prevailing safety
regulations and accident prevention rules.
The instrument must only be operated in a technically flawless and
reliable condition. The operator is responsible for trouble-free
operation of the instrument.
During the entire duration of use, the user is obliged to determine the
compliance of the required occupational safety measures with the
current valid rules and regulations and also take note of new
regulations.
37245-EN-100120
Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA 5
Page 6
2 For your safety
2.5 Safety label on the instrument
The safety approval markings and safety tips on the device must be
observed.
2.6 CE conformity
This device fulfills the legal requirements of the applicable EC
guidelines. By attaching the CE mark, we provide confirmation of
successful testing.
2.7 Fulfillment of NAMUR recommendations
The device fulfills the requirements of the applicable NAMUR
recommendations.
2.8 Safety instructions for Ex areas
Please note the Ex-specific safety information for installation and
operation in Ex areas. These safety instructions are part of the
operating instructions manual and come with the Ex-approved
instruments.
2.9 Safety instructions for oxygen applications
For instruments in oxygen applications the special instructions in
chapters "Storage and transport", "Mounting" as well as "Technical
data" under "Process conditions"must be noted. Furthermore the valid
national regulations, implementation instructions and memorandums
of the BG (professional assoc.) must be noted.
6 Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA
37245-EN-100120
Page 7
3 Product description
+ –
1
2
3
3.1 Configuration
3 Product description
Scope of delivery
Constituents
The scope of delivery encompasses:
l DPT10 differential pressure transmitter
l Depending on the version ventilation valves and/or closing screws
l Optional accessory
l Documentation
- this operating instructions manual
- Test certificate for pressure transmitters
- Operating instructions manual "Indicating and adjustment
module" (optional)
- Ex-specific "Safety instructions" (with Ex-versions)
- if necessary, further certificates
The following illustration shows the components of DPT10:
Fig. 1: DPT10 in basic version
1 Housing cover, optionally with integrated indicating and adjustment module
2 Housing with electronics
3 Process components with measuring cell
The components are available in different versions.
Type label
37245-EN-100120
Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA 7
The type label contains the most important data for identification and
use of the instrument:
l Instrument type
l Article number instrument
l Ex approval
l Technical data: Measuring range, process pressure, process
temperature, signal output, voltage supply, protection, protection
class
l Order number, serial number instrument
Page 8
QQ
p
1
p
1
p
2
p
2
Q ~
∆p
Q ~
∆p
++
––
1 2
3 Product description
l Hardware and software version
l Article numbers, documentation
3.2 Principle of operation
Application area
DPT10 is a differential pressure transmitter for measurement of flow,
level, differential pressure, density and interface. Measured products
are gases, vapours and liquids.
Flow measurement
Fig. 2: Flow measurement with DPT10 and effective pressure transmitter, Q =
flow, Δp = differential pressure, Δp = p
1 Orifice
2 Dynamic pressure probe
- p
1
2
8 Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA
37245-EN-100120
Page 9
1
2
3
h =
∆p
ρ g
+
+
–
–
h
+ –
+
2
1
3 Product description
Level measurement
Fig. 3: Level measurement with DPT10. Δp = differential pressure, ρ = density of
the medium, g = acceleration of gravity
1 Basic version with effective pressure lines
2 Version with flange isolating diaphragm
3 Version with capillaries and cell isolating diaphragms
Differential pressure measurement
Fig. 4: Differential pressure measurement with DPT10
1 Filter
2 DPT10
37245-EN-100120
Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA 9
Page 10
=
∆p
h
g
+
–
h
1
+
–
h
2
3
3 Product description
Density measurement
Fig. 5: Density measurement with DPT10, h = defined mounting distance, Δp =
differential pressure, ρ = density of the medium, g = acceleration of gravity
1 DPT10
Interface measurement
Fig. 6: Interface measurement with DPT10
1 DPT10
2 Liquid with highest density
3 Liquid with lowest density
Functional principle
A metallic measuring cell is used as sensor element. The process
pressures are transmitted via separating diaphragms and filling oils to
the resistance measuring bridge (semi-conductor technology). The
differential-pressure dependent change of the bridge voltage is
measured, further processed and converted into a corresponding
output signal.
10 Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA
37245-EN-100120
Page 11
1
2
3
4
5
1
p
2
p
1
p
2
p
1
2
3
4
3 Product description
The configuration of the measuring cells differs depending on the
measuring range:
Fig. 7: Metallic measuring cell 10 mbar and 30 mbar - p1and p2process
pressures
1 Measuring element
2 Silicone diaphragm
3 Separating diaphragm
4 Filling oil
5 Integrated overvoltage arrester
Fig. 8: Metallic measuring cell from 100 mbar - p1and p2process pressures
1 Measuring element
2 Overload diaphragm/Middle diaphragm
3 Filling oil
4 Separating diaphragm
Power supply and bus
communication
Power supply via the Profibus DP/PA segment coupler. A two-wire
cable according to Profibus specification serves as carrier of both
power and digital data transmission for multiple sensors. The
instrument profile of DPT10 corresponds to profile specification
version 3.0.
GSD/EDD
37245-EN-100120
Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA 11
The GSD (instrument master files) and bitmap files necessary for
planning your Profibus DP (PA) communication network are available
from the download section on the WIKA homepage
under "Service". There you can also find the appropriate certificates. In
www.wika.com
Page 12
3 Product description
a PDM environment, an EDD (Electronic Device Description) is also
required to enable the full range of sensor functions (also available as
a download). A CD with the appropriate files can be ordered via e-mail
or by phone from one of the WIKA agencies.
The backlight of the indicating and adjustment module is powered by
the sensor. Prerequisite is a certain level of operating voltage.
The data for power supply are specified in chapter "Technical data".
3.3 Operation
DPT10 can be adjusted with different adjustment media:
l with indicating and adjustment module
l the Simatic adjustment program PDM
The entered parameters are generally saved in DPT10, optionally also
in the indicating/adjustment module.
3.4 Packaging, transport and storage
Packaging
Transport
Transport inspection
Storage
Your instrument was protected by packaging during transport. Its
capacity to handle normal loads during transport is assured by a test
according to DIN EN 24180.
The packaging of standard instruments consists of environmentfriendly, recyclable cardboard. For special versions, PE foam or PE foil
is also us ed. Dispose of the packaging material via specialised
recycling companies.
Caution:
Instruments for oxygen applications are sealed in PE foil and provided
with a label "Oxygen! Use no Oil". Remove this foil just before
mounting the instrument! See instruction under "Mounting".
Transport must be carried out under consideration of the notes on the
transport packaging. Nonobservance of these instructions can cause
damage to the device.
The delivery must be checked for completeness and possible transit
damage immediately at receipt. Ascertained transit damage or
concealed defects must be appropriately dealt with.
Up to the time of installation, the packages must be left closed and
stored according to the orientation and storage markings on the
outside.
Unless otherwise indicated, the packages must be stored only under
the following conditions:
l Not in the open
l Dry and dust free
37245-EN-100120
12 Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA
Page 13
Storage and transport
temperature
3 Product description
l Not exposed to corrosive media
l Protected against solar radiation
l Avoiding mechanical shock and vibration
l Storage and transport temperature see chapter "Supplement -
Technical data - Ambient conditions"
l Relative humidity 20 … 85 %
37245-EN-100120
Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA 13
Page 14
2
1
1
4 Mounting
4 Mounting
4.1 General instructions
Suitability for the process conditions
Mounting position
Moisture
Ventilation
Make sure that all parts of the instrument exposed to the process, in
particular the sensor element, process seal and process fitting, are
suitable for the existing process conditions. These include above all
the process pressure, process temperature as well as the chemical
properties of the medium.
You can find the specifications in chapter "Technical data" or on the
type label.
Select an installation position you can easily reach for mounting and
connecting as well as later retrofitting of an indicating and adjustment
module. The housing can be rotated by 330° without the use of any
tools. You can also install the indicating and adjustment module in four
different positions (each displaced by 90°).
Use the recommended cables (see chapter "Connecting to power
supply") and tighten the cable gland.
You can give your DPT10 additional protection against moisture
penetration by leading the connection cable downward in front of the
cable entry. Rain and condensation water can thus drain off. This
applies mainly to outdoor mounting as well as installation in areas
where high humidity is expected (e.g. through cleaning processes) or
on cooled or heated vessels.
The ventilation for the electronics housing is realised via a filter
element in the vicinity of the cable glands.
Fig. 9: Position of the filter element with single and double chamber housing
1 Filter element for ventilation of the electronics housing
2 Blind stopper
Information:
Make sure that the filter element is always free of buildup during
operation. A high-pressure cleaner must not be used for cleaning.
14 Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA
37245-EN-100120
Page 15
4 Mounting
Effective pressure lines
Vibrations
Temperature limits
Oxygen applications
You find general recommendations for wiring of effective pressure
lines in DIN 19210 "Effective pressure lines for flow systems" or the
corresponding national or international standards. When wiring
effective pressure lines outdoors, keep in mind to use a suitable
antifreeze, e.g. by using tube heat tracing. Wire effective pressure
lines with a monotonic decrease of at least 10 %.
In case of strong vibrations at the application position, the instrument
version with external electronics should be used.
Higher process temperatures often mean also higher ambient
temperatures for electronics and connection cable. Make sure that the
upper temperature limits stated in chapter "Technical data" for the
environment of the electronics housing and connection cable are not
exceeded.
4.2 Special application conditions
Oxygen and other gases can be explosive with oils, grease and
plastics so that the following provisions must also be taken:
l All components of the plant, such as e.g. measuring instruments
must be cleaning according to the requirements of BAM
(DIN 19247)
l Depending on the materials used, a certain max. temperature and
pressure must not be exceeded in oxygen applications
Danger:
Instruments for oxygen applications must be unpacked just before
mounting. After removing the protective cover of the pr ocess fitting, the
label "O₂" will be visible on the process fitting. Penetration of oil,
grease and dirt should be avoided. Danger of explosion!
Pure gas applications
We also offer oil and grease free instruments for special applications
such as e.g. ultra-pure gas. There are no special restrictions with
respect to the process conditions.
37245-EN-100120
Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA 15
Page 16
+
–
1
2
4
3
4 Mounting
4.3 Measurement setup flow
In gases
In vapours
à Mount DPT10 above the measurement loop so that condensate
can drain off in the process cable.
Fig. 10: Measurement setup, flow measurement in gases
1 DPT10
2 3-fold valve block
3 Blocking valves
4 Orifice or impact pressure probe
à Mount DPT10 below the measurement loop
à Mount condensate vessels at the same height with the discharge
socket and at the same distance to DPT10
à For measurements in products with solid content such as e.g. dirty
liquids, the installation of separators and drain valves is
recommended to enable collection and removal of debris and
sediment.
à Fill the effective pressure lines to the height of the condensate
vessels before setup
16 Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA
37245-EN-100120
Page 17
+
–
1
2
3 3
5 5
6 6
7
4
Fig. 11: Measurement setup, flow measurement in vapours
1 Condensate vessels
2 Orifice or impact pressure probe
3 Blocking valves
4 DPT10
5 Precipitator
6 Drain valves
7 3-fold valve block
4 Mounting
In liquids
à Mount DPT10 below the measurement loop so that the effective
pressure lines are always filled with liquid and gas bubbles can
bubble up to the process line
à For measurements in products with solid content such as e.g. dirty
liquids, the installation of separators and drain valves is
recommended to enable collection and removal of debris and
sediment.
à Fill the effective pressure lines to the height of the condensate
vessels before setup
37245-EN-100120
Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA 17
Page 18
+
–
1
2 2
3
5 5
6
4 4
4 Mounting
Fig. 12: Measurement setup, flow measurement in liquids
1 Orifice or impact pressure probe
2 Blocking valves
3 DPT10
4 Precipitator
5 Drain valves
6 3-fold valve block
4.4 Measurement setup level
In open vessels with
effective pressure line
à Mount DPT10 below the lower measurement connection so that
the effective pressure lines are always filled with liquid
à Minus side is open to the atmospheric pressure
18 Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA
37245-EN-100120
Page 19
+
p
atm
min.
p
atm
1
2
3
4
5
+
min.
p
atm
p
atm
1
2
+ –
4 Mounting
à For measurements in products with solid content such as e.g. dirty
liquids, the installation of separators and drain valves is
recommended to enable collection and removal of debris and
sediment.
Fig. 13: Measurement setup, level measurement in the open vessel
1 DPT10
2 Minus side is open to the atmospheric pressure
3 Blocking valve
4 Precipitator
5 Drain valve
In open vessels with
unilateral pressure
transmitter
37245-EN-100120
Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA 19
à Mount DPT10 directly to the vessel
à Minus side is open to the atmospheric pressure
Fig. 14: Measurement setup, level measurement in the open vessel
1 DPT10
2 Minus side is open to the atmospheric pressure
Page 20
+
–
min.
max.
1
3
4
3
4
5
1
2
4 Mounting
In closed vessels with
effective pressure lines
à Mount DPT10 below the lower measurement connection so that
the effective pressure lines are always filled with liquid
à Connect minus side always above the max. level
à For measurements in products with solid content such as e.g. dirty
liquids, the installation of separators and drain valves is
recommended to enable collection and removal of debris and
sediment.
Fig. 15: Measurement setup, level measurement in closed vessel
1 Blocking valves
2 DPT10
3 Precipitator
4 Drain valves
5 3-fold valve block
In closed vessels with
unilateral pressure
transmitter
à Mount DPT10 directly to the vessel
à Connect minus side always above the max. level
à For measurements in products with solid content such as e.g. dirty
liquids, the installation of separators and drain valves is
recommended to enable collection and removal of debris and
sediment.
20 Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA
37245-EN-100120
Page 21
+
–
max.
min.
+ –
1
2
3
4
Fig. 16: Measurement setup, level measurement in closed vessel
+
–
min.
max.
1
1 Blocking valve
2 Precipitator
3 Drain valve
4 DPT10
4 Mounting
In closed vessels with
bilateral pressure transmitter
à Mount DPT10 below the lower isolating diaphragm
à The ambient temperature should be the same for both capillaries
Information:
Level measurement is only ensured between the upper edge of the
lower and the lower edge of the upper pressure transmitter.
Fig. 17: Measurement setup, level measurement in closed vessel
1 DPT10
In closed vessels with
steam layering with effective pressure line
37245-EN-100120
Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA 21
à Mount DPT10 below the lower measurement connection so that
the effective pressure lines are always filled with liquid
Page 22
+
–
min.
max.
1
2
2
3
4
6
5 5
4 Mounting
à Connect minus side always above the max. level
à The condensate vessel ensures a constant pressure on the minus
side
à For measurements in products with solid content such as e.g. dirty
liquids, the installation of separators and drain valves is
recommended to enable collection and removal of debris and
sediment.
Fig. 18: Measurement setup in closed vessel with superimposed steam
1 Condensate vessel
2 Blocking valves
3 DPT10
4 Precipitator
5 Drain valves
6 3-fold valve block
In closed vessels with
steam layering with unilateral pressure transmitter
à Mount DPT10 directly to the vessel
à Connect minus side always above the max. level
à The condensate vessel ensures a constant pressure on the minus
side
à For measurements in products with solid content such as e.g. dirty
liquids, the installation of separators and drain valves is
recommended to enable collection and removal of debris and
sediment.
22 Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA
37245-EN-100120
Page 23
+
–
min.
max.
1
2
3
4
5
+ –
=
∆p
h
g
+
–
0,3 m
4 Mounting
Fig. 19: Measurement setup in closed vessel with superimposed steam
1 Condensate vessel
2 Blocking valve
3 Precipitator
4 Drain valve
5 DPT10
4.5 Measurement setup density and interface
Density and interface measurement are carried out in level measurement mode.
Density measurement
à Mount DPT10 below the lower isolating diaphragm
à The ambient temperature should be the same for both capillaries
Information:
The density measurement is only ensured at a level above the upper
measuring point. Homogeneous density allocation is a prerequisite.
Fig. 20: Measurement setup with density measurement. Density 1 and h = 0.3 m
means Δp = 29.4 mbar. With density change: e.g. measured Δp = 35.3 mbar
37245-EN-100120
Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA 23
corresponds to density 1.2, measured Δp = 23.5 mbar corresponds to density
0.8
Page 24
1
+
–
0,3 m
0,8
1,0
4 Mounting
Interface measurement
à Mount DPT10 below the lower isolating diaphragm
à The ambient temperature should be the same for both capillaries
Information:
An interface measurement is only possible if the densities of the two
media remain the same and the interface is between the two
measurement points. The total level must be above the upper
measurement point.
Fig. 21: Measurement setup with interface measurement. Min. adjustment with
filling complete with density 0.8 (Δp = 23.5 mbar), max. adjustment with filling
complete with density 1.0 (Δp = 29.4 mbar)
24 Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA
37245-EN-100120
Page 25
+
1
2
3
4
3
4 Mounting
4.6 Measurement setup differential pressure
In gases and vapours
In liquids
à Mount DPT10 above the measurement loop so that condensate
can drain off in the process cable.
Fig. 22: Measurement setup, differential pressure measurement in gases and
vapours
1 DPT10
2 3-fold valve block
3 Blocking valves
4 E.g. filter
à Mount DPT10 below the measurement loop so that the effective
pressure lines are always filled with liquid and gas bubbles can
bubble up to the process line
à For measurements in products with solid content such as e.g. dirty
liquids, the installation of separators and drain valves is
recommended to enable collection and removal of debris and
sediment.
37245-EN-100120
Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA 25
Page 26
+
–
1
2
4
5
6
4
5
2
3
+
–
1
4
22
3
4 Mounting
Fig. 23: Measurement setup, flow measurement in liquids
1 E.g. filter
2 Blocking valves
3 DPT10
4 Precipitator
5 Drain valves
6 3-fold valve block
In gases, vapours and
liquids
26 Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA
à Mount isolating diaphragm with capillaries on top or laterally on the
pipeline
à In vacuum applications: Mount DPT10 below the measurement
loop
à The ambient temperature should be the same for both capillaries
Fig. 24: Measurement setup, differential pressure measurement in gases,
vapours and liquids
1 Isolating diaphragm with bolting
2 Capillaries
3 E.g. filter
4 DPT10
37245-EN-100120
Page 27
2
3 4
5
6
7
8
9
1
+ –
4 Mounting
4.7 Mounting arrangement and connection valve
block
Mounting arrangement
The following illustration shows the elements for a tube mounting and
an example for a mounting arrangement with valve block.
Fig. 25: Mounting arrangement with tube mounting
1 Strap for tube mounting
2 Mounting bracket
3 Ventilation valve
4 Fixing screws
5 DPT10
6 PTFE seal
7 3-fold valve block
8 Oval flange adapter
9 Fixing screws
37245-EN-100120
Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA 27
Page 28
A:
A
5
1 2
43
5 7 89 6
21
8
4 6
7 9
3
4 Mounting
Connection valve block
The following illustration shows the connection of a 5-fold valve block.
Fig. 26: Connection of a 5-fold valve block
1 Process
2 Process
3 Purging
4 Purging
5 DPT10
6 PTFE seal
7 5-fold valve block
28 Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA
37245-EN-100120
Page 29
8 Oval flange adapter
90 mm (3.54")
R3,5 mm
(0.14")
3 mm
(0.12")
70 mm (2.76")
8 mm
(0.32")
93 mm (3.66")
110 mm (4.33")
9 Fixing screws
4.8 External housing
4 Mounting
Wall mounting
1 Mark the holes according to the following drilling template
2 Depending on the mounting surface, fasten the wall mounting
plate with 4 screws
Fig. 27: Drilling template - wall mounting plate
Mount the wall mounting plate so that the cable entry of the socket
housing points downward. The socket housing can be displaced by
180° to the wall mounting plate.
37245-EN-100120
Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA 29
Check the following after mounting the instrument:
l Did you tighten all screws?
l Closing screws and ventilation valves closed
4.9 Mounting control
Page 30
5 Connecting to power supply
5 Connecting to power supply
5.1 Preparing the connection
Note safety instructions
Take note of
safety instructions for Ex applications
Select power supply
Selecting connection
cable
Cable screening and
grounding
Always keep in mind the following safety instructions:
l Connect only in the complete absence of line voltage
l If overvoltage surges are expected, overvoltage arresters should
be installed according to Profibus specifications
In hazardous areas you should take note of the appropriate
regulations, conformity and type approval certificates of the sensors
and power supply units.
Power is supplied via a Profibus DP/PA segment coupler. The power
supply range can differ depending on the instrument version. The
exact range is stated in the "Technical data".
DPT10 is connected with screened cable according to the Profibus
specification. Power supply and digital bus signal are carried over the
same two-wire connection cable.
Use cable with round cross-section. A cable outer diameter of 5 … 9 mm
(0.2 … 0.35 in) ensures the seal effect of the cable gland. If you are
using cable with a different diameter or cross-section, exchange the
seal or use a suitable cable gland.
Please make sure that your installation is carried out according to the
Profibus specification. In particular, make sure that the termination of
the bus is done with appropriate terminating resistors.
In systems with potential equalisation, connect the cable screen
directly to ground potential at the power supply unit, in the connection
box and at the sensor. The screen in the sensor must be connected
directly to the internal ground terminal. The ground terminal outside on
the housing must be connected to the potential equalisation (low
impedance).
In systems without potential equalisation, connect the cable screen
directly to ground potential at the power supply unit and at the sensor.
In the connection box or T-distributor, the screen of the short stub to
the sensor must not be connected to ground potential or to another
cable screen. The cable screens to the power supply unit and to the
next distributor must be connected to each other and also connected
to ground potential via a ceramic capacitor (e.g. 1 nF, 1500 V). The low
frequency potential equalisation currents are thus suppressed, but the
protective effect against high frequency interference signals remains.
The total capacitance of the cable and of all capacitors must not exceed
10 nF in Ex applications.
37245-EN-100120
30 Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA
Page 31
5 Connecting to power supply
Select connection cable for Ex
applications
Single/Double chamber
housing
Take note of the corresponding installation regulations for Ex
applications. In particular, make sure that no potential equalisation
currents flow over the cable screen. In case of grounding on both sides
this can be achieved by the use of a capacitor or a separate potential
equalisation.
5.2 Connection procedure
Proceed as follows:
1 Unscrew the housing cover
2 If an indicating and adjustment module is installed, remove it by
turning it slightly to the left.
3 Loosen compression nut of the cable entry
4 Remove approx. 10 cm of the cable mantle, strip approx. 1 cm
insulation from the individual wires
5 Insert the cable through the cable gland into the sensor
6 Lift the opening levers of the terminals with a screwdriver (see
following illustration)
7 Insert the wire ends into the open terminals according to the wiring
plan
8 Press down the opening levers of the terminals, you will hear the
terminal spring closing
9 Check the hold of the wires in the terminals by lightly pulling on
them
10 Connect the screen to the internal ground terminal, connect the
outer ground terminal with potential equalisation
11 Tighten t he compression nut of the cable entry. The seal ring must
completely encircle the cable
12 Screw the housing cover on
37245-EN-100120
Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA 31
Page 32
5 Connecting to power supply
The electrical connection is finished.
Fig. 28: Connection steps 6 and 7
IP 68 version with exter-
nal housing
Proceed as follows:
1 Loosen the four screws on the housing base with an Allen key size
4
32 Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA
37245-EN-100120
Page 33
3
2
1
5 Connecting to power supply
2 Remove the housing socket from the mounting plate
Fig. 29: Components of the external housing
1 Screw
2 Wall mounting plate
3 Cable gland
3 Loop the connection cable through the cable entry on the housing
base
1)
Information:
The cable gland can be mounted in three positions each displaced by
90°. Simply exchange the cable gland against the blind plug in the
suitable thread opening.
4 Connect the wire ends as described under "Single/Double
chamber housing" according to the numbering
5 Connect the screen to the internal ground terminal, connect the
outer ground terminal above on the housing to potential equalisation
6 Tighten the compression nut of the cable entry. The seal ring must
completely encircle the cable
7 Attach the mounting plate again and tighten the screws
The electrical connection of the sensor to the external housing is
hence ready.
1)
The connection cable is already preconfectioned. If necessary, shorten it to
the requested length, cut the breather capillaries clean. Remove approx.
5 cm of the cable mantle, strip approx. 1 cm insulation from the ends of the
individual wires. After shortening the cable, fasten the type plate with support back onto the cable.
37245-EN-100120
Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA 33
Page 34
I²C
Display
1 2 5 6 7 8
3
4
1
2
I2C
Display
1
1 2 5
6 7 8
5 Connecting to power supply
Electronics and connection compartment
5.3 Single chamber housing
The following illustrations apply to the non-Ex as well as to the Ex-ia
version.
Fig. 30: Electronics and connection compartment with single chamber housing
1 Plug connector for service
2 Spring-loaded terminals for connection of the external indicating and
adjustment module
3 Ground terminal for connection of the cable screen
4 Spring-loaded terminals for voltage supply
Wiring plan
Fig. 31: Wiring plan, single chamber housing
34 Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA
1 Voltage supply/Signal output
37245-EN-100120
Page 35
1
3
2
Display
1 2 5 6 7 8
I²C
Electronics compartment
5 Connecting to power supply
5.4 Double chamber housing
The following illustration apply to non-Ex as well as Ex ia versions. The
Exd version is described in the next subchapter.
Fig. 32: Electronics compartment, double chamber housing
1 Plug connector for service
2 Internal connection cable to the connection compartment
3 Terminals for the external indicating and adjustment module
37245-EN-100120
Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA 35
Page 36
3
1
2
Display
1 2
I²C
I2C
1
1 2
5 Connecting to power supply
Connection compartment
Wiring plan
Fig. 33: Connection compartment double chamber housing
1 Plug connector for service
2 Ground terminal for connection of the cable screen
3 Spring-loaded terminals for voltage supply
Fig. 34: Wiring plan with double chamber housing
1 Voltage supply/Signal output
36 Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA
37245-EN-100120
Page 37
1
3
2
Display
1 2 5 6 7 8
I²C
1
2
1 2
Electronics compartment
5 Connecting to power supply
5.5 Double chamber housing Ex d
Fig. 35: Electronics compartment, double chamber housing
1 Plug connector for service
2 Internal connection cable to the connection compartment
3 Terminals for the external indicating and adjustment module

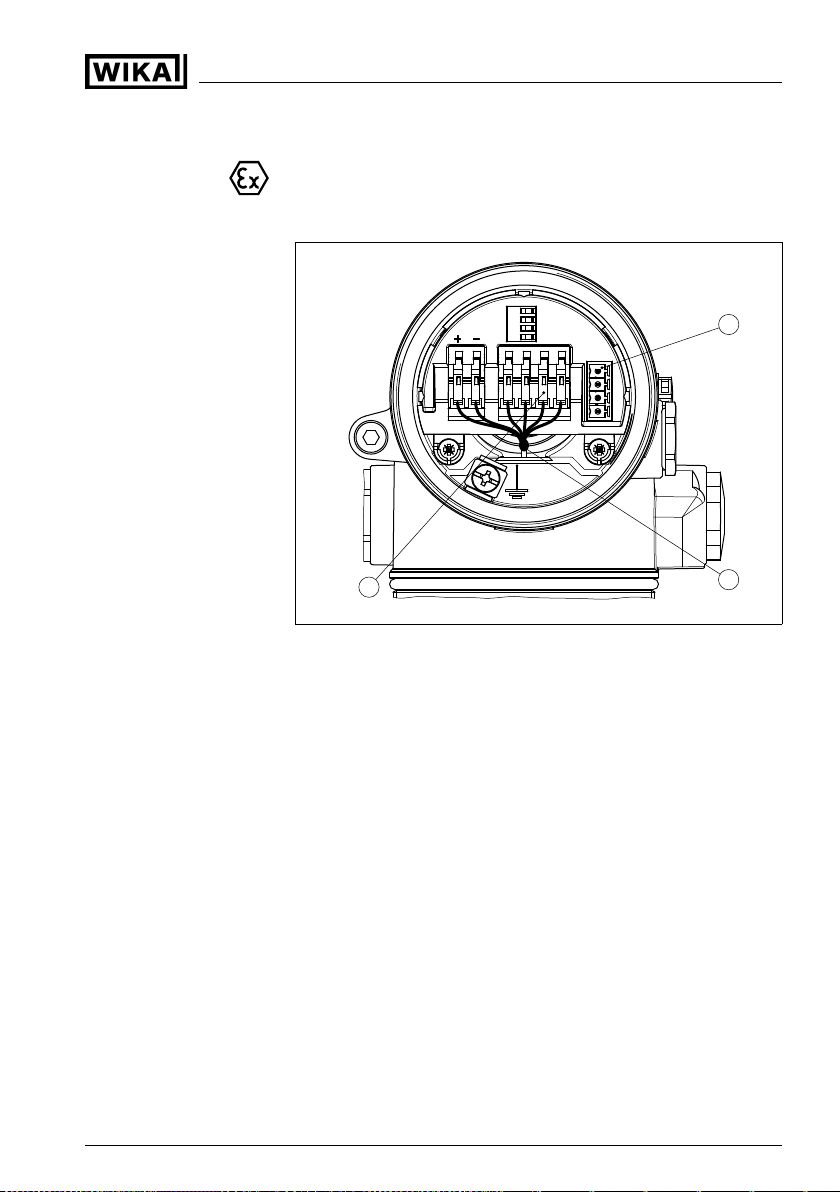

Connection compartment
Fig. 36: Connection compartment double chamber housing Ex d
37245-EN-100120
Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA 37
1 Spring-loaded terminals for power supply and cable screen
2 Ground terminal for connection of the cable screen
Page 38
1
1 2
+
-
1
2
5 Connecting to power supply
Wiring plan
Wire assignment, con-
nection cable
Fig. 37: Wiring plan with double chamber housing Ex d
1 Voltage supply/Signal output
5.6 Version IP 66/IP 68, 1 bar
Fig. 38: Wire assignment, connection cable
1 brown (+) and blue (-) to power supply or to the processing system
2 Shielding
38 Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA
37245-EN-100120
Page 39
5 6 7 81 2
Display
I²C
4
5
1
2
3
Electronics and connection compartment for
power supply
5 Connecting to power supply
5.7 External housing with version IP 68
Fig. 39: Electronics and connection compartment
1 Plug connector for service
2 Spring-loaded terminals for connection of the external indicating and
adjustment unit
3 Cable gland to the process component
4 Ground terminal for connection of the cable screen
5 Spring-loaded terminals for voltage supply
37245-EN-100120
Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA 39
Page 40
1 2 3 4
341
2
5
I2C
Display
1
1 2 5
6 7 8
5 Connecting to power supply
Terminal compartment
for sensor connection
Fig. 40: Connection of the sensor in the housing socket
1 Brown
2 Blue
3 Yellow
4 White
5 Shielding
Wiring plan external
electronics
Fig. 41: Wiring plan external electronics
Switch on phase
1 Voltage supply
5.8 Switch on phase
After DPT10 is connected to voltage supply or after voltage
recurrence, the instrument carries out a self-check for approx. 30
seconds. The following steps are carried out:
40 Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA
37245-EN-100120
Page 41
5 Connecting to power supply
l Internal check of the electronics
l Indication of the instrument type, the firmware as well as the
sensor TAG s (sensor designation)
l Status byte goes briefly to fault value
Then the current measured value will be displayed and the corresponding digital output signal will be outputted to the cable.
2)
2)
The values correspond to the actual measured level as well as to the settings already carried out, e.g. default setting.
37245-EN-100120
Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA 41
Page 42
6 Adjustment with the indicating and adjustment module
6 Adjustment with the indicating and
adjustment module
6.1 Short description
Function/Configuration
Mount/Dismount indicat-
ing and adjustment
module
The indicating and adjustment module is used for measured value
display, adjustment and diagnosis. It can be mounted in the following
housing versions and instruments:
l All sensors of the IPT-1* instrument family, in the single as well as
double chamber housing (optionally in the electronics or connection compartment)
l External indicating and adjustment unit
Note:
You can find detailed information on adjustment in the operating
instructions manual "Indicating and adjustment module".
6.2 Insert indicating and adjustment module
The indicating and adjustment module can be inserted and removed at
any time. It is not necessary to interrupt the voltage supply.
For installation, proceed as follows:
1 Unscrew the housing cover
2 Place the indicating and adjustment module in the desired position
on the electronics (you can choose any one of four different
positions - each displaced by 90°)
3 Press the indicating and adjustment module onto the electronics
and turn it to the right until it snaps in.
4 Screw housing cover with inspection window tightly back on
Removal is carried out in reverse order.
The indicating and adjustment module is powered by the sensor, an
additional connection is not necessary.
42 Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA
37245-EN-100120
Page 43
6 Adjustment with the indicating and adjustment module
Fig. 42: Insert indicating and adjustment module
Note:
If you intend to retrofit the instrument with an indicating and adjustment
module for continuous measured value indication, a higher cover with
an inspection glass is required.
37245-EN-100120
Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA 43
Page 44
1.1
2
3
1
6 Adjustment with the indicating and adjustment module
6.3 Adjustment system
Fig. 43: Indicating and adjustment elements
1 LC display
2 Indication of the menu item number
3 Adjustment keys
Key functions
l [OK] key:
- Move to the menu overview
- Confirm selected menu
- Edit parameter
- Save value
l [->] key to select:
- menu change
- list entry
- Select editing position
l [+] key:
- Change value of the parameter
l [ESC] key:
- interrupt input
- jump to the next higher menu
Adjustment system
The sensor is adjusted via the four keys of the indicating and
adjustment module. The LC display indicates the individual menu
items. The functions of the individual keys are shown in the above
illustration. Approx. 10 minutes after the last pressing of a key, an
automatic reset to measured value indication is triggered. Any values
not confirmed with [OK] will not be saved.
44 Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA
37245-EN-100120
Page 45
6 Adjustment with the indicating and adjustment module
6.4 Parameter description
Introduction
Application
DPT10 has general adjustment parameters which are also used for
other measuring principles as well as instrument-specific adjustment
parameters. The general adjustment parameters are described in the
operating instructions manual "Indicating and adjustment module".
The instrument-specific adjustment parameters are described in this
chapter.
Information:
If the adjustment limits of the adjustment parameters are exceeded,
the message "Outside parameter limits" appears. The editing
procedure can be aborted with [ESC] or the displayed limit value can
be accepted with [OK].
DPT10 can be used for differential pressure, level as well as flow
measurement. The delivery status is level measurement. The selection
is made in the menu item "Application". Depending on the selected
application, the adjustment is carried out as zero/span or min./max.
adjustment.
Proceed as follows to switch over to the application differential
pressure or flow measurement:
1 Push the [OK] button in the measured value display, the menu
overview is displayed.
▶
Basic adjustment
Display
Diagnostics
Service
Info
2 Confirm the menu "Basic adjustment" with [OK].
Application
Level
▼
3 Confirm the menu item "Application" with [OK].
Warning:
Note the warning: "Output can change".
4 Select with [->] "OK" and confirm with [OK].
5 Select the requested application in the selection list, for example
"Flow" and confirm with [OK].
37245-EN-100120
Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA 45
Page 46
6 Adjustment with the indicating and adjustment module
Unit of measurement
In this menu item you select the adjustment unit as well as the unit for
the temperature indication in the d isplay.
To select the adjustment unit (in the example switching over from mbar
to bar), proceed as follows:
1 Push the [OK] button in the measured value display, the menu
overview is displayed.
▶
Basic adjustment
Display
Diagnostics
Service
Info
2 Confirm the menu "Basic adjustment" with [OK], the menu item
"Unit" will be displayed.
Unit
Unit of measurement
▼
mbar
Temperature unit
▼
°C
3 Activate the selection with [OK] and select "Units of measure-
ment with [->].
4 Activate the selection with [OK] and select the requested unit with
[->] (in the example bar).
5 Confirm with [OK] and move to position correction with [->].
The adjustment unit is thus switched over from mbar to bar.
Information:
When switching over to adjustment in a height unit (for example for
level measurement), the density also has to be entered.
Proceed as follows to enter the density:
1 Push the [OK] button in the measured value display, the menu
overview is displayed.
2 Confirm the menu "Basic adjustment" with [OK], the menu item
"Units of measurement" will be displayed.
3 Activate the selection with [OK] and select the requested unit with
[->] (in the example m).
4 Confirm with [OK], the submenu "Density unit" appears.
Unit of measurement
Density unit
▶
kg/dm³
pcf
5 Select the requested unit, e.g. kg/dm³ with [->] and confirm with
[OK], the submenu "Density" appears.
46 Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA
37245-EN-100120
Page 47
DP
DP
6 Adjustment with the indicating and adjustment module
Unit of measurement
Density
0001000
kg/dm³
6 Enter the requested density value with [->] and [+], confirm with
[OK] and move to position correction with [->].
The adjustment unit is thus switched over from bar to m.
Proceed as follows to select the temperature unit:
à Activate the selection with [OK] and select "Temperature unit
with [->].
à Activate the selection with [OK] and select the requested unit with
[->] (e.g. °F).
à Confirm with [OK].
The temperature unit is hence switched over from °C to °F.
Position correction
The position correction compensates the influence of the installation
position of the instrument on the measured value. In this menu item,
the offset value as well as the current measured value are displayed.
Proceed as follows:
1 Activate in the menu item "Position correction" the selection with
[OK].
Position correction
Offset
=
0.0000 bar
0.0035 bar
2 Select with [->], e.g. to accept the actual measured value
0.0035 bar.
Position correction
Accept current measured
value?
▶
Accept
Edit
3 Confirm with [OK].
Position correction
Offset
=
-0.0035 bar
0.0000 bar
4 Move to min. (zero) adjustment with [->].
The current measured value was corrected to 0, the corrective value is
available in the display as offset value with sign reversal.
37245-EN-100120
Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA 47
Page 48
DP
DP
6 Adjustment with the indicating and adjustment module
If a known value should be taken over as position correction which is
not the current value, then you have to select the function "Edit" and
enter the requested value.
Zero adjustment with
differential pressure
Span adjustment with
differential pressure
In this menu item, the min. differential pressure is entered.
Proceed as follows:
1 Edit the bar value in the menu item "zero" with [OK].
Zero adjustment
0.00 %
=
0.0000 bar
0.0000 bar
2 Set the requested value with [+] and [->].
3 Confirm with [OK] and move to span adjustment with [->].
For an adjustment with pressure, simply enter t he actual measured
value indicated at the bottom of the display.
The zero adjustment is finished.
Information:
The zero adjustment shifts the value of the span adjustment. The span,
i.e. the difference between these values, however, remains unchanged.
In this menu item, the max. differential press ure is entered.
Proceed as follows:
1 Edit the bar value in the menu item "span" with [OK].
Span adjustment
100.00 %
=
0.5000 bar
0.0000 bar
Information:
When the instrument is not yet adjusted, then the display pressure for
100 % corresponds to the nominal measuring range of the sensor (in
the above example 500 mbar).
2 Set the requested value with [+] and [->].
3 Confirm with [OK] and move to the menu overview with [ESC].
For an adjustment with pressure, simply enter t he actual measured
value indicated at the bottom of the display.
The span adjustment is finished.
48 Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA
37245-EN-100120
Page 49
DP
- +
6 Adjustment with the indicating and adjustment module
Min. adjustment with
level
Max. adjustment with
level
Proceed as follows:
1 Edit the % value in the menu item "Min. adjustment" with [OK].
Min. adjustment
0.00 %
=
0.0000 bar
0.0000 bar
2 Set the requested value with [+] and [->].
3 Confirm with [OK] and edit the requested bar value.
4 Set the requested bar value with [+] and [->].
5 Confirm with [OK] and move to max. adjustment with [->].
For an adjustment with filling, simply enter the actual measured value
indicated at the bottom of the display.
The min. adjustment is finished.
Proceed as follows:
1 Edit the % value in the menu item "Max. adjustment" with [OK].
100.00 %
=
0.5000 bar
0.0000 bar
Information:
When the instrument is not yet adjusted, then the display pressure for
100 % corresponds to the nominal measuring range of the sensor (in
the above example 500 mbar).
2 Set the requested value with [->] and [OK].
3 Edit the requested mbar value with [OK].
4 Set the requested value with [+] and [->].
5 Confirm with [OK] and move to the menu overview with [ESC].
For an adjustment with filling, simply enter the actual measured value
indicated at the bottom of the display.
The max. adjustment is finished.
Min. adjustment with
flow
Proceed as follows:
1 Edit the bar value in the menu item "Min. adjustment" with [OK].
Min. adjustment
0.00 %
=
0.0000 bar
0.0000 bar
37245-EN-100120
Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA 49
Page 50
DP
- +
6 Adjustment with the indicating and adjustment module
2 Set the requested bar value with [+] and [->].
3 Confirm with [+] and move to max. adjustment with [->].
For an adjustment with flow, simply enter the actual measured value
indicated at the bottom of the display.
Information:
The DPT10 is also suitable for bidirectional flow measurement (flow in
both directions). The selection is carried out in the menu item
"Linearization curve". With the bidirectional flow measurement, the
min. adjustment value must be equal to the negative max. adjustment
value.
Example: Max. adjustment value +100 mbar, as min. adjustment
value, -100 mbar must hence be entered.
The min. adjustment is finished.
Max. adjustment with
flow
Linearization curve with
level
Proceed as follows:
1 Edit the bar value in the menu item "Max. adjustment" with [OK].
Max. adjustment
100.00 %
=
0.5000 bar
0.0000 bar
Information:
When the instrument is not yet adjusted, then the display pressure for
100 % corresponds to the nominal measuring range of the sensor (in
the above example 500 mbar).
2 Set the requested mbar value with [->] and [OK].
3 Confirm with [OK] and move to the menu overview with [ESC].
For an adjustment with flow, simply enter the actual measured value
indicated at the bottom of the display.
The max. adjustment is finished.
For level measurement, a linearization is necessary for all vessels in
which the vessel volume does not increase linearly with the level - e.g.
in a cylindrical or spherical tank - and the indication or output of the
volume is requested.
Respective linearisation curves are stored for these vessels. They
indicate the relation between the percentage level and the vessel
volume. By activating the suitable curve, the percentage vessel
volume is displayed correctly.
37245-EN-100120
50 Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA
Page 51
6 Adjustment with the indicating and adjustment module
Linearisation curve
linear
Enter the requested parameter via the appropriate keys, save your
settings and jump to the next menu item with the [->] key.
Leak flow volume suppression with flow
Total amounts counter
and subtotalizer with
flow
In some application, small flow quantities should not be detected. With
the creeping quantity suppression, the flow value can be suppressed
up to a certain % value. The default value is 5 % of the max. flow value,
corresponding to 0.25 % of the max. differential pressure value. The
limit value is 50 %. This function depends on the selected linearization
function and is only available with root extracted characteristics.
The square root/bidirectional square root characteristics is very steep
at the zero point. This means that small changes in the measured
differential pressure cause big changes in the output signal. The leak
volume suppression stabilises the signal output.
The DPT10 has two internal totalizers. For both you can adjust volume
or mass as count function as well as separately the unit.
Proceed as follows:
1 Select, for exa mple, menu item "Part sum counter".
Part sum counter
00
0.0000 10
gal
Modify settings?
2 Activate the function "Modify settings?" with [OK].
Part sum counter
▶
Effective pressure transmitter
Unit
3 Confirm with [OK] "Effective pressure transmitter".
Part sum counter
▶
Mass flow
▶
Volume flow
Without unit
4 Select the requested variable with [->] and confirm with [OK].
5 Select calibration unit of the effective pressure transmitter with [-
>], for example m
3
/s and confirm with [OK].
37245-EN-100120
Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA 51
Page 52
6 Adjustment with the indicating and adjustment module
Part sum counter
0 % = +0000
3
m
/s=
100 % = +0000
3
m
/s=
6 Edit with [OK] and set the requested values with [+] and [->].
7 Confirm with [OK] and jump back to the indication of the part sum
counter.
8 Select with [->] the unit of the sum counter, adjust the requested
unit with [->], for example m
The setting of the part sum counter is hence terminated, the counting
function is activated.
The procedure of the total sum counter is the same.
3
/s and confirm with [OK].
Copy sensor data
Reset
This function enables reading out parameter adjustment data as well
as writing parameter adjustment data into the sensor via the indicating
and adjustment module. A description of the function is available in the
operating instructions manual "Indicating and adjustment module".
The following data are read out or written with this function:
l Measured value presentation
l Application
l Adjustment
l Damping
l Linearisation curve
l Leak volume suppression
l Sensor-TAG
l Displayed value
l Scaling unit (Out-Scale unit)
l Positions after the decimal point (scaled)
l Scaling PA/Out-Scale 4 values
l Unit of measurement
l Language
The following safety-relevant data are not read out or written:
l Sensor address
l PIN
Copy sensor data
Copy sensor data?
37245-EN-100120
Basic adjustment
The reset "Basic adjustment" resets the following menu items to the
reset values (see chart):
52 Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA
Page 53
6 Adjustment with the indicating and adjustment module
Menu item Reset value
Basic settings Unit of measurement bar
Temperature unit °C
Zero/Min. adjustment Measuring range begin
Span/Max. adjustment Measuring range end
Density 1 kg/l
Density unit kg/l
Damping 1 s
Linearisation linear
Sensor-TAG Sensor
Display Displayed value PA-Out
Diagnostics Total sum counter 0.0000 10
Part sum counter 0.0000 10
Service Additional PA value Secondary Value 1
Out-Scale-Unit Volume/l
Scaling 0.00 to 100.0
Decimal point indication 8888.8
00
gal
00
gal
The values of the following menu items are not reset with "Reset:
Menu section Menu item Reset value
Basic settings Application no reset
Position correction no reset
Display Lighting no reset
Service Language no reset
Pointer
The min. and max. temperature or pressure values are each reset to
the actual value.
Totalizer
The total and part sum counter are reset to zero.
Optional settings
Additional adjustment and diagnosis options such as e.g. scaling,
simulation or trend curve presentation are shown in the following menu
schematic. You will find a detailed description of these menu items in
the operating instructions manual "Indicating and adjustment module".
37245-EN-100120
Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA 53
Page 54
DP
DP
DP
6 Adjustment with the indicating and adjustment module
6.5 Menu schematic
Information:
Depending on the version and application, the highlighted menu
windows are not always available.
Basic adjustment differential pressure
▶
Basic adjustment
Display
Diagnostics
Service
Info
1
Sensor address
126
Zero
000.0 %
=
0.0000 bar
0.0000 bar
Sensor-TAG
Sensor
1.1
1.3
1.7
Application
Differential pressure
Max. adjustment
100.00 %
=
0.5000 bar
0.0000 bar
1.1
▼
1.4
Unit
Unit of measurement
bar
▼
Temperature unit
°C
▼
Damping
1 s
1.1
1.5
Position correction
Offset
=
-0.0035 bar
0.0000 bar
Linearisation curve
▶
linear
Cylindrical tank
Spherical tank
User programmable
1.2
1.6
54 Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA
37245-EN-100120
Page 55
Basic adjustment flow
DP
DP
- +
DP
- +
DP
▶
Basic adjustment
Display
Diagnostics
Service
Info
1
6 Adjustment with the indicating and adjustment module
6.6 Menu schematic
Sensor address
126
Min. adjustment
000.0 %
=
0.0000 bar
0.0000 bar
Leak volume suppression
Activated
▼
Basic setting level
▶
Basic adjustment
Display
Diagnostics
Service
Info
Sensor address
126
Min. adjustment
000.0 %
=
0.0000 bar
0.0000 bar
1.1
1.3
1.6
1.1
1.3
1
Application
Flow
▼
Max. adjustment
100.00 %
=
0.5000 bar
0.0000 bar
Sensor-TAG
Sensor
Application
Level
Max. adjustment
100.00 %
=
0.5000 bar
0.0000 bar
1.1
1.4
1.7
1.1
▼
1.4
Unit
Unit of measurement
bar
▼
Temperature unit
°C
▼
Damping
1 s
Unit
Unit of measurement
bar
▼
Temperature unit
▼
°C
Damping
1 s
1.1
1.5
1.1
1.5
Position correction
Offset
=
-0.0035 bar
0.0000 bar
Linearisation curve
Position correction
Offset
=
-0.0035 bar
0.0000 bar
Linearisation curve
▶
linear
Cylindrical tank
Spherical tank
User programmable
linear
1.2
1.6
▼
1.2
1.6
Sensor-TAG
Sensor
1.7
37245-EN-100120
Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA 55
Page 56
6 Adjustment with the indicating and adjustment module
Display
Basic adjustment
▶
Display
Diagnostics
Service
Info
2
Displayed value
Differential pressure
Lighting
Switched off
Diagnostics
Basic adjustment
Display
▶
Diagnostics
Service
Info
Pointer
p-min.: -5.8 mbar
p-max.: 167.5 mbar
T-min.: -12.5 °C
T-max.: +85.5 °C
Part sum counter
00
0.0000 10
gal
Modify settings?
2.1
▼
2.4
Displayed value
PA-Out
2.1
Display unit
Volume
l
▼
2.2
▼
Scaling
0 % = 0.0
l
100 % = 100.0
l
2.3
▼
3
3.1
3.5
Sensor status
3.2
OK
Trend curve
Start trend curve?
3.3
Total sum counter
00
0.0000 10
gal
Modify settings?
3.4
56 Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA
37245-EN-100120
Page 57
Service
Basic adjustment
Display
Diagnostics
▶
Service
Info
6 Adjustment with the indicating and adjustment module
4
Additional PA value
Secondary Value 1
Reset
Select reset
Copy sensor data
Copy sensor data?
Info
Basic adjustment
Display
Diagnostics
Service
▶
Info
Instrument type
Serial number
12345678
5
Out-Scale-Unit
Volume
l
Language
▼
Deutsch
PIN
Enable?
Date of manufacture
23rd October 2009
Software version
1.01
4.2
4.4
4.8
5.2
4.1
4.3
▼
4.7
5.1
PA-Out-Scale
100.00 lin %
= 0.0 l
0.00 lin %
= 100.0 l
SIL
▼
Deactivated!
Last change using PC
23rd October 2009
4.3
4.5
5.3
Simulation
Start simulation
HART mode
Standard
Address 0
Sensor characteristics
Display now?
4.2
▼
4.6
5.4
37245-EN-100120
Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA 57
Page 58
6 Adjustment with the indicating and adjustment module
6.7 Saving the parameter adjustment data
It is recommended noting the adjusted data, e.g. in this operating
instructions manual and archive them afterwards. They are hence
available for multiple use or service purposes.
If DPT10 is equipped with an indicating and adjustment module, the
most important data can be read out of the sensor into indicating and
adjustment module. The procedure is described in the operating
instructions manual "Indicating and adjustment module" in the menu
item "Copy sensor data". The data remain there permanently even if
the sensor power supply fails.
If it is necessary to exchange the sensor, the indicating and adjustment
module is inserted into the replacement instrument and the data are
written into the sensor under the menu item "Copy sensor data".
58 Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA
37245-EN-100120
Page 59
7 Setup with PDM
7 Setup with PDM
7.1 Parameter adjustment with PDM
For WIKA sensors, instrument descriptions are also available as EDD s
for the adjustment program PDM. The instrument descriptions are
already implemented in the current version of PDM. For older versions
of PDM, a free-of-charge download is available via Internet.
www.wika.com to the item "Service".
Go via
37245-EN-100120
Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA 59
Page 60
+
–
I
II
+
6
7
3
24
AB
8 Set up
8 Set up
8.1 Select the mode
The following modes can be adjusted on DPT10:
l Flow measurement
l Level measurement
l Differential pressure measurement
8.2 Flow measurement
Instructions
Installation for gases
In flow measurement, normally DPT10 is used without isolating
diaphragm.
Before adjusting DPT10, you have to clean the effective pressure lines
and the instrument must be filled with the medium.
Fig. 44: Preferred installation for gases
I DPT10
II 3-fold valve block
2.4 Inlet valves
3 Breather valve
6.7 Vent valves on DPT10
A, B Blocking valves
60 Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA
37245-EN-100120
Page 61
A
B
+
1
5
6
7
+
–
24
3
II
I
IIIIII
Installation for liquids
8 Set up
Fig. 45: Preferred installation for liquids
I DPT10
II 3-fold valve block
III Precipitator
1.5 Drain valves
2.4 Inlet valves
3 Breather valve
6.7 Vent valves on DPT10
A, B Blocking valves
Prepare the adjustment
Proceed as follows:
1 Close valve 3
2 Fill measuring system with medium.
Open valves A, B, 2, 4: Medium flows in
If necessary, clean the differential pressure lines: - with gases by
blowing out with compressed air - with liquids by rinsing.
For this purpose close valve 2 and 4, i.e. block the instrument.
Then open valve 1 and 5 so that the effective pressure lines blow
out/rinse.
After cleaning, close valves 1 and 5
3 Remove air from instrument:
Open valves 2 and 4: Medium flows in
37245-EN-100120
Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA 61
Close valve 4: Minus side will be closed
Open valve 3: Equalisation plus and minus side
Briefly open valve 6 and 7, then close again: Fill the measuring
instrument completely with the medium and remove air
3)
Arrangement with 5 valves.
3)
Page 62
8 Set up
4 Carry out a position correction if the following conditions apply. If
the conditions are not fulfilled, then carry out the position
correction after step 6.
Conditions:
The process cannot be sealed off.
The pressure extraction points (A and B) are at the same geodesic
height.
5 Put measurement loop into operation:
Close valve 3: Separate plus and minus side
Open valve 4: Connect minus side
Now:
Valves 1, 3, 5, 6 and 7 are closed
4)
Valves 2 and 4 open
Valves A and B open (if available)
6 Carry out position correction, if flow can be blocked. In this case,
step 5 is deleted.
Then carry out adjustment, see chapter "Set parameters".
8.3 Level measurement
Instructions
For level measurements, the DPT10 in all versions is used.
DPT10 with bilateral isolating diaphragm CSB is immediately ready for
operation.
The DPT 10 without isolating diaphragm or with unilaterial isolating
diaphragm CSS is ready for operation after opening a possibly
available block valve.
Before you adjust DPT10 without isolating diaphragm or with unilateral
isolating diaphragm, the effective pressure lines must be cleaned and
the instrument filled with the medium.
4)
Valves 1, 3, 5: Configuration with 5 valves.
62 Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA
37245-EN-100120
Page 63
Installation for open
vessels
8 Set up
Fig. 46: Preferred installation for open vessels
I DPT10
II Precipitator
1 Drain valve
6.7 Vent valves on DPT10
A Blocking valve
Prepare the adjustment
Proceed as follows:
1 Fill the vessel to just over the lower tap.
2 Fill measuring system with medium.
Open valve A: Medium flows in.
3 Vent instrument
Briefly open valve 6, then close it: Fill the measuring instrument
completely with the medium and remove air.
4 Set measurement loop to operation
Now:
Valve A open and valve 6 closed
Then carry out adjustment, see below.
37245-EN-100120
Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA 63
Page 64
+
A
B
6
7
3
2
4
1
5
+
–
II
I
IIIIII
8 Set up
Installation for closed
vessels
Fig. 47: Preferred installation for closed vessels
I DPT10
II 3-fold valve block
III Precipitator
1, 5 Drain valves
2, 4 Inlet valves
6, 7 Vent valves on DPT10
A, B Blocking valves
Prepare the adjustment
Proceed as follows:
1 Fill the vessel to just above the lower tap
2 Fill measuring system with medium
Close valve 3: Separate plus and minus side
Open valve A and B: Open block valves
3 Vent plus side (probably empty minus side)
Open valve 2 and 4: Discharge medium on the plus side
Briefly open valve 6 and 7, then close again: Fill the plus side
completely with the medium and remove air.
4 Set measurement loop to operation
64 Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA
Now:
Valve 3, 6 and 7 are closed
Valves 2, 4, A and B are open
Then carry out adjustment, see below.
37245-EN-100120
Page 65
+
A
B
6
7
3
2
4
1
5
+
–
II
I
IIIIII
IV
Installation for closed
vessels with steam layer
8 Set up
Fig. 48: Preferred installation for closed vessels with steam overlay
I DPT10
II 3-fold valve block
III Precipitator
IV Condensate vessel
1, 5 Drain valves
2, 4 Inlet valves
3 Breather valve
6, 7 Vent valves on DPT10
A, B Blocking valves
Prepare the adjustment
Proceed as follows:
1 Fill the vessel to just above the lower tap
2 Fill measuring system with medium
Open valve A and B: Open block valves
Fill the minus effective pressure line on the height of the
condensation pot
3 Remove air from instrument:
Open valve 2 and 4: Discharge medium
Open valve 3: Equalisation plus and minus side
37245-EN-100120
Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA 65
Briefly open valve 6 and 7, then close again: Fill the measuring
instrument completely with the medium and remove air
4 Put measurement loop into operation:
Close valve 3: Separate plus and minus side
Open valve 4: Connect minus side
Page 66
+
–
I
II
+
6
7
3
24
AB
8 Set up
Now:
Valve 3, 6 and 7 are closed
Valves 2, 4, A and B are open.
Then carry out adjustment, see chapter "Set parameters".
8.4 Density and interface measurement
For density and interface measurements, DPT10 with bilateral isolating
diaphragm CSB is used.
DPT10 in this version is immediately ready for operation.
8.5 Differential pressure measurement
Instructions
Installation for gases
For differential pressure measurements, DPT10 without isolating
diaphragm or with bilateral isolating diaphragm CSB is used.
DPT10 with bilateral isolating diaphragm CSB is immediately ready for
operation.
Before adjusting DPT10 without isolating diaphragm, the effective
pressure lines must be cleaned and the instrument filled with medium.
Fig. 49: Preferred installation for gases
I DPT10
II 3-fold valve block
2, 4 Inlet valves
3 Breather valve
6, 7 Vent valves on DPT10
A, B Blocking valves
37245-EN-100120
66 Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA
Page 67
A
B
+
1
5
6
7
+
–
24
3
II
I
IIIIII
Installation for liquids
8 Set up
Fig. 50: Preferred installation for liquids
I DPT10
II 3-fold valve block
III Precipitator
1.5 Drain valves
2.4 Inlet valves
3 Breather valve
6, 7 Vent valves on DPT10
A, B Blocking valves
Prepare the adjustment
Proceed as follows:
1 Close valve 3
2 Fill measuring system with medium.
Open valves A, B, 2, 4: Medium flows in.
If necessary, clean the differential pressure lines: - with gases by
blowing out with compressed air - with liquids by rinsing.
Close valve 2 and 4, block the instrument
Open valve 1 and 5
Close valve 1 and 5
3 Remove air from instrument:
Open valves 2 and 4: Medium flows in
Close valve 4: Minus side will be closed
37245-EN-100120
Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA 67
Open valve 3: Equalisation plus and minus side
Briefly open valve 6 and 7, then close again: Fill the measuring
instrument completely with the medium and remove air
4 Put measurement loop into operation:
Close valve 3: Separate plus and minus side
5)
Arrangement with 5 valves.
5)
Page 68
8 Set up
Open valve 4: Connect minus side
Now:
Valves 1, 3, 5, 6 and 7 are closed
6)
Valves 2 and 4 open
Valves A and B open (if available)
Then carry out adjustment, see chapter "Set parameters".
6)
Valves 1, 3, 5: Configuration with 5 valves.
68 Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA
37245-EN-100120
Page 69
9 Maintenance and fault rectification
9 Maintenance and fault rectification
9.1 Maintain
Maintenance
Reaction when malfunc-
tions occur
Causes of malfunction
Fault rectification
Checking Profibus PA
When the instrument is used properly, no special maintenance is
required in normal operation.
In some applications, product buildup on the separating diaphragms
can influence the measuring result. Depending on the sensor and
application, take precautions to ensure that heavy buildup, and
especially a hardening thereof, is avoided.
9.2 Rectify malfunctions
The operator of the system is responsible for taking suitable measures
to rectify malfunctions.
DPT10 offers maximum reliability. Nevertheless, faults can occur
during operation. These may be caused by the following, e.g.:
l Sensor
l Process
l Voltage supply
l Signal processing
The first measures to be taken are to check the output signals as well
as to evaluate the error messages via the indicating and adjustment
module. The procedure is described below. Further comprehensive
diagnostics can be carried out on a PC with the software PACTware
and the suitable DTM. In many cases, the causes can be determined
this way and faults rectified.
? When an additional instrument is connected, the segment fails.
l Max. supply current of the segment coupler exceeded
à Measure the current consumption, reduce size of segment
? Wrong presentation of the measured value in Simatic S5
l Simatic S5 cannot interpret the number format IEEE of the
measured value
à Insert converting component from Siemens
? In Simatic S7 the measured value is always presented as 0
l Only four bytes are consistently loaded in the PLC
à Use function component SFC 14 to load 5 bytes consistently
37245-EN-100120
Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA 69
Page 70
9 Maintenance and fault rectification
? Measured value on the indicating and adjustment module does not
correspond to the value in the PLC
l The menu item "Display - Display value" is not set to "PA-Out"
à Check values and correct, if necessary
? No connection between PLC and PA network
l Incorrect adjustment of the bus parameter and the segment
à Check data and correct, if necessary
? Instrument does not appear during connection setup
l Profibus DP cable pole-reversed
à Check cable and correct, if necessary
l Incorrect termination
à Check termination at the beginning and end points of the bus
l Instrument not connected to the segment, double assignment
à Check and correct, if necessary
In Ex applications, the regulations for the wiring of intrinsically safe
circuits must be observed.
coupler-dependent baud rate
and terminate, if necessary, according to the specification
of an address
Fault messages via the
indicating/adjustment
module
? E013
l no measured value available
à Exchange the instrument or send it for repair
7)
? E017
l Adjustment span too small
à repeat with modified values
? E036
l no operable sensor software
à Carry out a software update or send instrument for repair
? E041
l Hardware error
à Exchange the instrument or send it for repair
Reaction after fault rectification
70 Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA
Depending on the failure reason and measures taken, the steps
described in chapter "Set up" must be carried out again, if necessary.
7)
Fault message can also appear if the pressure is higher than the nominal
range.
37245-EN-100120
Page 71
9 Maintenance and fault rectification
9.3 Instrument repair
You can download a return form (24 KB) in the Internet from our
homepage
If a repair is necessary, please proceed as follows:
l Print and fill out one form per instrument
l If necessary, state a contamination
l Clean the instrument and pack it damage-proof
l Attach the completed form and probably a safety data sheet to the
l Please contact the agency serving you for the address of the
By doing this you help us carry out the repair quickly and without
having to call back for needed information.
www.wika.com under the item "Service".
instrument
return shipment
37245-EN-100120
Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA 71
Page 72
10 Dismounting
10 Dismounting
10.1 Dismounting steps
Warning:
Before dismounting, be aware of dangerous process conditions such
as e.g. pressure in the vessel, high temperatures, corrosive or toxic
products etc.
Take note of chapters "Mounting" and "Connecting to power supply"
and carry out the listed steps in reverse order.
10.2 Dispose
The instrument consists of materials which can be recycled by
specialised recycling companies. We use recyclable materials and
have designed the electronics to be easily separable.
WEEE directive 2002/96/EG
This instrument is not subject to the WEEE directive 2002/96/EG and
the respective national laws. Pass the instrument directly on to a
specialised recycling company and do not use the municipal collecting
points. These may be used only for privately used products according
to the WEEE directive.
Correct disposal avoids negative effects to persons and environment
and ensures recycling of useful raw materials.
Materials: see chapter "Technical data"
If you have no possibility to dispose of the old instrument
professionally, please contact us concerning return and disposal.
72 Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA
37245-EN-100120
Page 73
11 Supplement
11 Supplement
11.1 Technical data
General data
Pressure type Differential pressure
Measuring principle Piezoresistive
Communication interface I²C bus
Materials and weights
Material 316L corresponds to stainless steel 1.4404 or 1.4435
Materials, wetted parts
- Process fitting with lateral flanges C22.8, 316L, Alloy C276
- Separating diaphragm 316L, Alloy C-276, Tantalum, Alloy C-276 gold-
- Seal FKM (Viton), FKM cleaned from oil and grease,
- Closing screws 316L
Internal transmission liquid Synthetic oil, Halocarbon oil
Materials, non-wetted parts
- Electronics housing Plastic PBT (polyester), Alu die-casting powder-
- External electronics housing plastic PBT (Polyester)
- Socket, wall mounting plate external
electronics housing
- Seal between housing socket and wall
mounting plate
- Seal ring, housing cover Silicone
- Inspection window in housing cover for
indicating and adjustment module
- Screws and nuts for lateral flange PN 160: hexagon screw ISO 4014-M12 x 90-A4,
- Ground terminal 316Ti/316L
- Connection cable with version IP 68
(1 bar)
- Connection between IP 68 transmitter
and external electronics housing
- Type plate support with IP 68 version on
cable
rhodium coated
FKM for oxygen application, PTFE, PTFE for
oxygen application, NBR, copper, copper for oxygen application
8)
coated
plastic PBT (Polyester)
TPE (fixed connected)
Polycarbonate (UL-746-C listed)
PN 420: hexagon nut ISO 4032-M12-A4-bs
PE, PUR, FEP
PUR
PE hard
8)
Halocarbon oil generally with oxygen applications, not with vacuum and
absolute pressure measuring range < 1 bar
.
abs
37245-EN-100120
Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA 73
Page 74
I
63 %
100 %
t
t1t
2
11 Supplement
Max. torque screws mounting strap 30 Nm
Max. torque screws socket external housing 5 Nm (3.688 lbf ft)
Weight approx. 4.2 … 4.5 kg (9.26 … 9.92 lbs), depending on
process fitting
Output variable
Output signal digital output signal, format according to IEEE-754
Sensor address 126 (default setting)
Current value 10 mA, ±0.5 mA
Dynamic behaviour output
Run-up time ≤ 20 s
Fig. 51: Presentation of the dead time t1and the time constant t
Version, nominal measuring range Dead time t
Basic version 10 bar and 30 bar 100 ms 250 ms
Basic version 100 mbar 100 ms 180 ms
Basic version 500 mbar 100 ms 180 ms
Basic version, 3 bar 100 ms 180 ms
Basic version 16 bar and 40 bar 100 ms 180 ms
Isolating diaphragm version, all nominal measuring
ranges
2
1
Depending on the isolating diaphragm
Time constant t
Depending on the isolating
diaphragm
2
Response time with Profibus PA
- cyclically approx. 10 ms
- acyclically approx. 50 ms
Damping (63 % of the input variable) 0 … 999 s, adjustable
74 Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA
37245-EN-100120
Page 75
11 Supplement
Additional output parameter - temperature
Processing is made via output signal HART multidrop, Profibus PA and Foundation Fieldbus
Range -50 … +150 °C (-58 … +302 °F)
Resolution 1 °C (1.8 °F)
Accuracy in the range of 0 … +100 °C
±3 K
(+32 … +212 °F)
Accuracy in the range of -50 … 0 °C
typ. ±3 K
(-58 … +32 °F) and +100 … +150 °C
(+212 … +302 °F)
Input variable
Measured variable Differential pressure, flow and level derived from it
Nominal range Lower measurement
limit
10 mbar (1 kPa) -10 mbar (-1 kPa) +10 mbar (+1 kPa) 0.25 mbar (25 Pa)
30 mbar (3 kPa) -30 mbar (-3 kPa) +30 mbar (+3 kPa) 0.3 mbar (30 Pa)
100 mbar (10 kPa) -100 mbar (-10 kPa) +100 mbar (+10 kPa) 1 mbar (100 Pa)
500 mbar (50 kPa) -500 mbar (-50 kPa) +500 mbar (+50 kPa) 5 mbar (500 Pa)
3 bar (300 kPa) -3 bar (-300 kP a) +3 bar (+300 kPa) 30 mbar (3 kPa)
16 bar (1600 kPa) -16 bar (-1600 kPa) +16 bar (+1600 kPa) 160 mbar (16 kPa)
40 bar (4000 kPa) -40 bar (-4000 kPa) +40 bar (+4000 kPa) 400 mbar (40 kPa)
Upper measuring limit Smallest adjustable
span
Reference conditions and actuating variables (similar to DIN EN 60770-1)
Reference conditions according to DIN EN 61298-1
- Temperature +18 … +30 °C (+64 … +86 °F)
- Relative humidity 45 … 75 %
- Air pressure 860 … 1060 mbar/86 … 106 kPa (12.5 … 15.4 psig)
Determination of characteristics Limit point adjustment according to IEC 61298-2
Characteristics linear
Position of the measuring cell constant, in the range: horizontal ±1°
Span based on the zero point
Diaphragm material 316L, Alloy C276, gold rhodium plated, Monel
Filling oil Silicone oil
Material, lateral flanges 316L
37245-EN-100120
Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA 75
Page 76
11 Supplement
Influence of the installation position basic
≤ 4 mbar
9)10)
version
A position-dependent zero-point shift can be corrected (see also chapter "General installation
instructions" and "Installation instructions, isolating diaphragm systems").
Deviation determined according to the limit point method according to IEC 60770
11)
Applies to digital interfaces (HART, Profibus PA, Foundation Fieldbus) as well as to analogue
current output 4 … 20 mA. Specifications refer to the set span. Turn down (TD) is the ratio nominal
measuring range/set span.
Reference accuracy - all versions
The following applies to square root extracted characteristics: The accuracy data of DPT10 are
entered with factor 0.5 in the accuracy calculation of the flow.
Reference accuracy - Basic version
10 mbar, 30 mbar measuring cell
- Turn down 1 : 1 ±0.15 % of the set span
- Turn down > 1 : 1 ±0.15 % of the set span x TD
100 mbar measuring cell
- Turn down 1 : 1 up to 4 : 1 ±0.075 % (±0.05 %) of the set span
- Turn down > 4 : 1 ±(0,012 % x TD + 0.027) of the set span
Measuring cells ≥ 500 mbar
- Turn down 1 : 1 up to 15 : 1 ±0.075 % (±0.05 %) of the set span
- Turn down > 15 : 1 ±(0.0015 % x TD + 0.053) of the set span
Reference accuracy - Isolating diaphragm versions
100 mbar measuring cell
- Turn down 1 : 1 up to 4 : 1 ±0.075 % (±0.05 %) of the set span + influence of
the isolating diaphragm
- Turn down > 4 : 1 ±(0.012 % x TD + 0.027) of the set span + influence
of isolating diaphragm
Measuring cells ≥ 500 mbar
- Turn down 1 : 1 up to 15 : 1 ±0.075 % (±0.05 %) of the set span + influence of
the isolating diaphragm
- Turn down > 15 : 1 ±(0.0015 % x TD + 0.053) of the set span +
influence of the isolating diaphragm
Influence of the product or ambient temperature
Applies to instruments in basic version with digital signal output (HART, Profibus PA, Foundation
Fieldbus) as well as to instruments with analogue current output 4 … 20 mA. Specifications refer
to the set span. Turn down (TD) = nominal measuring range/set span.
9)
Instrument is rotated vertically to the diaphragm axis.
10)
For instruments with inert oil, the value doubles.
11)
Incl. non-linearity, hysteresis and non-repeatability.
76 Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA
37245-EN-100120
Page 77
11 Supplement
Measuring range Thermal changes of the zero
-10 … +60 °C (+14 … +140 °F) 10 mbar, 30 mbar ±(0.31 x TD + 0.06) %
-40 … +10 °C (-40 … +50 °F)
+60 … +85 °C (+140 … +185 °F)
signal and the output span relating to the adjusted span
100 mbar ±(0.18 x TD + 0.02) %
500 mbar, 3 bar ±(0.08 x TD + 0.05) %
16 bar ±(0.1 x TD + 0.1) %
16 bar ±(0.08 x TD + 0.05) %
10 mbar, 30 mbar ±(0.45 x TD + 0.1) %
100 mbar ±(0.3 x TD + 0.15) %
500 mbar, 3 bar ±(0.12 x TD + 0.1) %
16 bar ±(0.15 x TD + 0.2) %
40 bar ±(0.37 x TD + 0.1) %
Applies also to instruments with analogue 4 … 20 mA current output and refers to the set span.
Thermal change, current output < 0.15 % at -40 … +80 °C (-40 … +176 °F)
Influence of the system pressure on the zero point and span
316L, Alloy C276-, Alloy C276 gold-rhodium coated diaphragm
Measuring cell 10 mbar 30 mbar 100 mbar 500 mbar
Influence of the system pressure to the
zero point
Influence of the system pressure to the
span
±0.15 % of URL/
7 bar
±0.035 % of URL/
7 bar
±0.35 % of URL/
70 bar
±0.14 % of URL/
70 bar
±0.15 % of URL/
70 bar
±0.14 % of URL/
70 bar
±0.075 % of URL/
70 bar
±0.14 % of URL/
70 bar
Measuring cell 3 bar 16 bar 40 bar
Influence of the system
pressure to the zero point
Influence of the system
pressure to the span
±0.075 % of URL/7 bar ±0.075 % of URL/70 bar ±0.075 % of URL/70 bar
±0.14 % of URL/7 bar ±0.14 % of URL/70 bar ±0.14 % of URL/70 bar
Tantalum diaphragm
Measuring cell 10 mbar 30 mbar 100 mbar 500 mbar
37245-EN-100120
Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA 77
Page 78
11 Supplement
Measuring cell 10 mbar 30 mbar 100 mbar 500 mbar
Influence of the system pressure to the
±0.28 % of URL/
7 bar
±0.70 % of URL/
70 bar
±0.42 % of URL/
70 bar
±0.14 % of URL/
70 bar
zero point
Influence of the system pressure to the
±0.28 % of URL/
7 bar
±0.70 % of URL/
70 bar
±0.42 % of URL/
70 bar
±0.14 % of URL/
70 bar
span
Measuring cell 3 bar 16 bar 40 bar
Influence of the system
±0.14 % of URL/7 bar ±0.14 % of URL/70 bar ±0.14 % of URL/70 bar
pressure to the zero point
Influence of the system
±0.14 % of URL/7 bar ±0.14 % of URL/70 bar ±0.14 % of URL/70 bar
pressure to the span
Total accuracy
Total Performance - Basic version
The speci fication "Total Performance" comprises non-linearity incl. hysteresis and nonrepeatability, thermal change of the zero point and static pressure influence (p
= 70 bar).
st
Total Performance
- 316L, Alloy, gold-rhodium diaphragm ±0.15 % of the set span
- Tantalum diaphragm ±0.30 % of the set span
12)13)
14)15)
Total Error - basic version
The speci fication "Total Error" comprises the longterm stability and the total performance.
Diaphragm material Measuring range Total Error
316L-, Alloy-, Gold-Rhodium < 500 mbar 0.33 % of the measuring range end
value/year
from 500 mbar 0,20 % of the measuring range final
value
Tantalum < 500 mbar 0.48 % of the measuring range end
value/year
from 500 mbar 0.35 % of the measuring range end
value/year
12)
For measuring ranges ≥ 500 mbar up to TD 2 : 1
13)
All specifications apply to the temperature range +10 … +60 °C
(+50 … +140 °F).
14)
For measuring ranges ≥ 500 mbar up to TD 2 : 1
15)
All specifications apply to the temperature range +10 … +60 °C
(+50 … +140 °F).
78 Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA
37245-EN-100120
Page 79
11 Supplement
Heating time - all versions
Warm-up time ≤ 10 s
Long-term stability (similar to DIN 16086, DINV 19259-1 and IEC 60770-1)
Applies to digital interfaces (HART, Profibus PA, Foundation Fieldbus) as well as to analogue
current output 4 … 20 mA. Specifications refer to the set span. Turn down (TD) = nominal
measuring range/set span.
Measuring cells ≥ 500 mbar ±0.05 % of the nominal measuring range/year,
±0.125 % of the nominal measuring range/5 years
Measuring cells ≤ 500 mbar ±0.18 % of the nominal measuring range/year
Ambient conditions
Ambient, storage and transport temperature
- Standard version -40 … +80 °C (-40 … +176 °F)
- Version for oxygen applications
- Versions IP 66/IP 68 (1 bar) connection
16)
-40 … +60 °C (-40 … +140 °F)
-20 … +60 °C (-4 … +140 °F)
cable PE
- Versions IP 66/IP 68 (1 bar) and IP 68,
-20 … +80 °C (-4 … +176 °F)
connection cable PUR
Process conditions
The pressure and temperature specifications are used as overview. In general, the max. pressure
for the pressure transmitter depends on the weakest (with regard to pressure) link. In detail, the
respective specifications of the type label apply.
Process temperature limits, basic version as well as minus side with version with
unilateral isolating diaphragm
With effective pressure lines longer than
17)18)
-40 … +120 °C (-40 … +248 °F)
100 mm
With effective pressure lines longer than
-10 … +120 °C (+14 … +248 °F)
100 mm, process fitting steel C22.8
Seal material Temperature limits
FKM -20 … +85 °C (-4 … +185 °F)
PTFE -40 … +85 °C (-40 … +185 °F)
NBR -20 … +85 °C (-4 … +185 °F)
Copper -40 … +85 °C (-40 … +185 °F)
Copper, cleaned for oxygen application -20 … +60 °C (-4 … +140 °F)
FKM, oil and grease-free -10 … +85 °C (+14 … +185 °F)
16)
Up to 60 °C (140 °F).
17)
For measuring cells with PN 420 a lower temperature application limit of
-10 °C (+14 °F) applies.
18)
For the version for oxygen application, note chapter "Oxygen applications".
37245-EN-100120
Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA 79
Page 80
11 Supplement
Seal material Temperature limits
FKM, cleaned for oxygen application -10 … +60 °C (-4 … +140 °F)
PTFE, cleaned for oxygen application -20 … +60 °C (-4 … +140 °F)
Process pressure limits
Nominal range Nominal pressure Overload unilateral Overload bilateral
10 mbar (1 kPa) 160 bar (16000 kPa) 160 bar (16000 kPa) 240 bar (24000 kPa)
30 mbar (3 kPa) 160 bar (16000 kPa) 160 bar (16000 kPa) 240 bar (24000 kPa)
100 mbar (10 kPa) 160 bar (16000 kPa) 160 bar (16000 kPa) 240 bar (24000 kPa)
500 mbar (50 kPa) 160 bar (16000 kPa)
420 bar (42000 kPa)
3 bar (300 kPa) 160 bar (16000 kPa)
420 bar (42000 kPa)
16 bar (1600 kPa) 160 bar (16000 kPa)
420 bar (42000 kPa)
40 bar (4000 kPa) 160 bar (16000 kPa)
420 bar (42000 kPa)
160 bar (16000 kPa)
420 bar (42000 kPa)
160 bar (16000 kPa)
420 bar (42000 kPa)
160 bar (16000 kPa)
420 bar (42000 kPa)
Plus side: 160 bar
(16000 kPa)
420 bar (42000 kPa)
Minus side: 100 bar
(10000 kPa)
240 bar (24000 kPa)
630 bar (63000 kPa)
240 bar (24000 kPa)
630 bar (63000 kPa)
240 bar (24000 kPa)
630 bar (63000 kPa)
240 bar (24000 kPa)
630 bar (63000 kPa)
Min. system pressure with all measuring
0.1 mbar
abs
(10 Pa
abs
)
ranges
Vibration resistance mechanical vibrations with 4 g and 5 … 100 Hz
Shock resistance Acceleration 100 g/6 ms
20)
19)
Electromechanical data - version IP 66/IP 67
Cable entry/plug
21)
- Single chamber housing l 1 x cable gland M20 x 1.5 (cable: ø 5 … 9 mm),
1 x blind stopper M20 x 1.5
or:
l 1 x closing cap ½ NPT, 1 x blind plug ½ NPT
or:
l 1 x plug (depending on the version), 1 x blind
stopper M20 x 1.5
19)
Tested according to the directives of the German Lloyd, GL directive 2. Not
in the case of double chamber housing of precision cast stainless steel.
20)
Tested according to EN 60068-2-27.
21)
Depending on the version M12 x 1, according to DIN 43650, Harting, 7/
8" FF.
80 Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA
37245-EN-100120
Page 81
11 Supplement
- Double chamber housing l 1 x cable entry M20 x 1.5 (cable: ø 5 … 9 mm),
1 x blind stopper M20 x 1.5; plug M12 x 1 for
the external indicating and adjustment unit
(optional)
or:
l 1 x closing cap ½ NPT, 1 x blind stopper
½ NPT, plug M 12 x 1 for the external indicating
and adjustment unit (optional)
or:
l 1 x plug (depending on the version), 1 x blind
stopper M20 x 1.5; plug M12 x 1 for the
external indicating and adjustment unit (optional)
Spring-loaded terminals for wire cross-sec-
2.5 mm² (AWG 14)
tion up to
Electromechanical data - version IP 66/IP 68 (1 bar)
Cable entry
- Single chamber housing l 1 x IP 68 cable gland M20 x 1.5; 1 x blind
stopper M20 x 1.5
or:
l 1 x closing cap ½ NPT, 1 x blind plug ½ NPT
Connection cable
- Configuration four wires, one suspension cable, one breather
capillary, screen braiding, metal foil, mantle
- Wire cross-section 0.5 mm² (AWG 20)
- Wire resistance < 0.036 Ω/m (0.011 Ω/ft)
- Tensile strength > 1200 N (270 pounds force)
- Standard length 5 m (16.4 ft)
- Max. length 1000 m (3281 ft)
- Min. bending radius at 25 °C/77 °F 25 mm (0.985 in)
- Diameter approx. 8 mm (0.315 in)
- Colour - standard PE Black
- Colour - standard PUR Blue
- Colour - Ex-version Blue
Electromechanical data - version IP 66/IP 68 with external electronics
Connection cable between IP 68 instrument and external housing:
- Configuration Four wires, screen braiding, inner cover, screen
braiding, outer cover
- Wire cross-section 0.5 mm² (AWG 20)
- Standard length 5 m (16.40 ft)
- Max. length 25 m (82.02 ft)
37245-EN-100120
Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA 81
Page 82
11 Supplement
- Min. bending radius at 25 °C/77 °F 25 mm (0.985 in)
- Diameter approx. 8 mm (0.315 in)
- Colour Blue
Cable entry/plug
22)
- External housing l 2 x cable gland M20 x 1.5 (cable: ø 5 … 9 mm),
1 x blind stopper M20 x 1.5
or:
l 1 x cable gland M20 x 1.5, 1 x plug (depending
on version), 1 x blind stopper M20 x 1.5
Spring-loaded terminals for wire cross-sec-
2.5 mm² (AWG 14)
tion up to
Indicating and adjustment module
Voltage supply and data transmission through the sensor
Indication LC display in dot matrix
Adjustment elements 4 keys
Protection rating
- unassembled IP 20
- mounted into the sensor without cover IP 40
Materials
- Housing ABS
- Inspection window Polyester foil
Voltage supply
Operating voltage
- Non-Ex instrument 9 … 32 V DC
- EEx-ia instrument 9 … 24 V DC
- EEx-id instrument 9 … 32 V DC
Operating voltage with lighted indicating and adjustment module
- Non-Ex instrument 12 … 36 V DC
- EEx-ia instrument 12 … 30 V DC
- EEx-id instrument 12 … 32 V DC
Power supply by DP/PA segment coupler
max. number of sensors 32 (10 with Ex)
22)
Depending on the version M12 x 1, according to DIN 43650, Harting, 7/
8" FF.
82 Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA
37245-EN-100120
Page 83
11 Supplement
Electrical protective measures
Protection rating
- Housing, standard IP 66/IP 67
- Aluminium and stainless housing (optio-
IP 68 (1 bar)
23)
24)
nally available)
- Process component in IP 68 version IP 68
- External housing IP 65
Overvoltage category III
Protection class II
Approvals
Depending on the version, instruments with approvals can have different technical data. For these
instruments, please note the corresponding approval documents. They are included in the scope
of delivery.
23)
Instruments with gauge pressure measuring ranges cannot detect the ambient pressure when submerged, e.g. in water. This can lead to falsification
of the measured value.
24)
Only with instruments with absolute pressure ranges.
37245-EN-100120
Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA 83
Page 84
bar
% Lin%
Min-Max
adjustment
Linearization
PROFIBUS PA-output
Primary
Value
Secondary
Value 1
Secondary
Value 2
Target
Mode
Failure
mode
AlarmsScaling
Source for
scaling
t
i
Damping
Sensor
characteristics
PA-Out
TB
FB
Select additional cyclic
value
Sensor mounting
correction
11 Supplement
11.2 Information on Profibus PA
Instrument master file
The instrument master file (GSD) contains the characteristic data of the Profibus PA instrument.
These data are, e.g. the permissible transmission rates as well as information on diagnostics values
and the format of the measured value outputted by the PA instrument.
A bitmap file is also provided for the Profibus network planning tool. This file is installed automatically
when the GSD file is integrated. The bitmap file is used for symbolic indication of the PA instrument in
the configuration tool.
Ident number
Each Profibus instrument gets an unambiguous ident number (ID number) from the Profibus user
organisation (PNO). This ID number is also included in the name of the GSD file. For DPT10 the ID
number is 0 x 0BFB(hex) and the GSD file DF650BFB.GSD. Optionally to this manufacturer-specific
GSD file, PNO provides also a general so-called profile-specific GSD file. For DPT10 you have to use
the general GSD file PA139701.GSD. If the general GSD file is used, the sensor must be set to the
profile-specific ident number via the DTM software. By default, the sensor operates with the
manufacturer-specific ID number.
When using the profile-specific GSD file, the PA-OUT value as well as the temperature value are
transmitted to the PLC (see block diagram "Cyclical data traffic").
Cyclical data traffic
The master class 1 (e.g. PLC) cyclically reads out measured values from the sensor during operation.
The below block diagram below shows which data can be accessed by the PLC.
Fig. 52: DPT10: Block diagram with AI (PA-OUT) value and Additional Cyclic Value
84 Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA
37245-EN-100120
Page 85
PROFIBUS PA-output
Target
Mode
Failure
mode
AlarmsScaling
Source for
scaling
t
i
Damping
Sensor
characteristics
PA-Out
°C
TB
FB 2
11 Supplement
Fig. 53: DPT10: Block diagram with temperature value
Module of the PA sensors
For the cyclic data traffic, DPT10 provides the following modules:
l AI (PA-OUT)
- PA-OUT value of the FB1 after scaling
l Temperature
- PA-OUT value of the FB2 after scaling
l Additional Cyclic Value
- Additional cyclical value (depending on the source)
l Free Place
- This module must be used if a value should not be used in the data telegram of the cyclical data
traffic (e.g. replacement of the temperature and Additional Cyclic Value)
Max. three modules can be active. By means of the configuration software of the Profibus master,
you can determine the configuration of the cyclical data telegram with these modules. The procedure
depends on the respective configuration software.
The modules are available in two versions:
l Short for Profibus master supporting only one "Identifier Format" byte, e.g. Allen Bradley
l Long for Profibus master only supporting the "Identifier Format" byte, e.g. Siemens S7-300/400
Examples of telegram configuration
In the following you will see how the modules can be combined and how the appendant data telegram
is structured.
Example 1 (standard setting) with pressure value, temperature value and additional cyclical value:
l AI (PA-OUT)
l Temperature
37245-EN-100120
Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA 85
Page 86
Byte-No.
1 2 3 4 5 6 7 8 9 10 11 12 13 14
15
Format
Value
IEEE-754-
Flieskommazahl
PA -OUT
(FB1)
Status
Status
(FB1)
IEEE-754-
Flieskommazahl
Temperature
(FB2)
IEEE-754-
Flieskommazahl
Additional Cyclic
Value
Status
Status
(FB2)
Status
Status
Byte-No.
1 2 3 4 5 6 7 8 9 10
Format
Value
IEEE-754-
Flieskommazahl
PA -OUT
(FB1)
Status
Status
(FB1)
IEEE-754-
Flieskommazahl
Temperature
(FB2)
Status
Status
(FB2)
Byte-No.
1 2 3 4 5 6 7 8 9 10
Status
Status
Status
Status
(FB1)
IEEE-754-
Floating point value
PA-OUT
(FB1)
IEEE-754-
Floating point value
Additional Cyclic
Value
Format
Value
Byte4
Byte3
Byte2
Byte1
Byte0
Status Value (IEEE-754)
11 Supplement
l Additional Cyclic Value
Fig. 54: Telegram configuration example 1
Example 2 with pressure value and temperature value without additional cyclical value:
l AI (PA-OUT)
l Temperature
l Free Place
Fig. 55: Telegram configuration example 2
Example 3 with pressure value and additional cyclical value without temperature value:
l AI (PA-OUT)
l Free Place
l Additional Cyclic Value
Fig. 56: Telegram configuration example 3
Data format of the output signal
Fig. 57: Data format of the output signal
86 Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA
37245-EN-100120
Page 87
Byte n
Byte n+1
Bit
7
VZ
Exponent
Bit
6
2
Bit
5
2
Bit
4
2
Bit
3
2
Bit
2
2
Bit
1
2
Bit
0
2
Bit
7
2
Bit
6
2
Bit
5
2
Bit
4
2
Bit
3
2
Bit
2
2
Bit
1
2
Bit
0
2
Sign
Bit
Significant
7
6 543
2 1
0-1-2-3-4-5-6 -7
Byte n+2
Byte n+3
Bit
7
2
Significant
Bit
6
2
Bit
5
2
Bit
4
2
Bit
3
2
Bit
2
2
Bit
1
2
Bit
0
2
Bit
7
2
Bit
6
2
Bit
5
2
Bit
4
2
Bit
3
2
Bit
2
2
Bit
1
2
Bit
0
2
Significant
-9
-10 -11
-12
-13
-14 -15
-16
-17
-18
-19
-20
-21
-22
-23
-8
Value = (-1)
VZ
2
(Exponent - 127)
(1 + Significant)
37245-EN-100120
11 Supplement
The status byte corresponds to profile 3.0 "Profibus PA Profile for Process Control Devices" coded.
The status "Measured value OK" is coded as 80 (hex) (Bit7 = 1, Bit6 … 0 = 0).
The measured value is transferred as a 32 bit floating point number in the IEEE-754 format.
Fig. 58: Data format of the measured value
Coding of the status byte associated with the PA output value
Status
code
0x00 bad - non-specific Flash-Update active
0x04 bad - configuration error l Adjustment error
0x0C bad - sensor failure l Hardware error
0x10 bad - sensor failure l Measured value generation error
0 x 1f bad - out of service constant "Out of Service" mode switched on
0 x 44 uncertain - last unstable value Failsafe replacement value (Failsafe-Mode = "Last value" and
0 x 48 uncertain substitute set l Switch on simulation
0 x 4c uncertain - initial value Failsafe replacement value (Failsafe-Mode = "Last valid value" and
0 x 51 uncertain - sensor; conversion
0 x 52 uncertain - sensor; conversion
0 x 80 good (non-cascade) - OK OK
0 x 84 good (non-cascade) - active
Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA 87
Description according to Pro-
fibus standard
not accurate - low limited
not accurate - high limited
block alarm
Possible cause
l Configuration error with PV-Scale (PV-Span too small)
l Unit irregularity
l Error in the linearization table
l Converter error
l Leakage pulse error
l Trigger error
l Temperature measurement error
already valid measured value since switching on)
l Failsafe replacement value (Failsafe-Mode = "Fsafe value")
no valid measured value since switching on)
Sensor value < lower limit
Sensor value > upper limit
Static revision (FB, TB) changed (10 sec. active, after the parameter
of the static category was written)
Page 88
11 Supplement
Status
code
0 x 89 good (non-cascade) - active ad-
0 x 8a good (non-cascade) - active ad-
0 x 8d good (non-cascade) - active crit-
0 x 8e good (non-cascade) - active crit-
Description according to Pro-
fibus standard
visory alarm - low limited
visory alarm - high limited
ical alarm - low limited
ical alarm - high limited
Possible cause
Lo-Alarm
Hi-Alarm
Lo-Lo-Alarm
Hi-Hi-Alarm
88 Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA
37245-EN-100120
Page 89
11.3 Dimensions
1
~ 69 mm
(2.72")
ø 77 mm
(3.03")
112 mm (4.41")
M20x1,5/
½ NPT
2
~ 87 mm (3.43")
ø 84 mm
(3.31")
120 mm (4.72")
M20x1,5/
½ NPT
~ 116 mm (4.57")
ø 84 mm (3.31")
116 mm (4.57")
M20x1,5
M20x1,5/
½ NPT
21
~ 87 mm (3.43")
ø 84 mm
(3.31")
120 mm (4.72")
M20x1,5/
½ NPT
Plastic housing
1 Single chamber version
2 Double chamber version
Aluminium housing
11 Supplement
1 Single chamber version
2 Double chamber version
37245-EN-100120
Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA 89
Page 90
116mm (4
9
/
16
")
~ 150mm (5 29/32")
ø 84mm (3
5
/16")
M20x1,5M20x1,5
1
M20x1,5/
½ NPT
M16x1,5
2
120mm (4
23
/
32
")
~ 105mm (4 9/64")
ø 84mm
(3
5
/16")
1
2
+ –
68,3 mm
(2.69")
103 mm
(4.06")
93 mm
(3.66")
115 mm
(4.53")
ø 55 mm
(2.17")
ø 55 mm
(2.17")
90 mm (3.54")
110 mm (4.33")
~ 66 mm
(2.6")
59 mm
(2.32")
11 Supplement
Aluminium housing in protection rating IP 66/IP 68 (1 bar)
1 Single chamber version, Aluminium
4 Double chamber housing Aluminium
Version IP 68 with external electronics
1 Lateral cable outlet
2 Axial cable outlet
90 Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA
37245-EN-100120
Page 91
Oval flange, connection ¼-18 NPT or RC ¼
41,3 mm
(1.63")
85 mm
(3.35")
134,5 mm (5.3")
41,3 mm
(1.63")
72 mm
(2.84")
128 mm (5.04")
100 mm
(3.94")
98 mm
(3.94")
100 mm
(3.94")
106 mm
(4.17")
54 mm
(2.13")
54 mm
(2.13")
+
–
+
–
7/16-20 UNF
M 10
1/4-18 NPT
RC1/4
7/16-20 UNF
M 10 (M12)
1/4-18 NPT
RC1/4
11 Supplement
Fig. 63: Top: 10 mbar and 30 mbar measuring cell. Bottom: Measuring cell ≥ 100 mbar
Version Connection Fastening Material Equipment
B 1/4-18 NPT
IEC 61518
D 1/4-18 NPT
F 1/4-18 NPT
37245-EN-100120
Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA 91
IEC 61518
IEC 61518
7/16-20 UNF Steel C 22.8 incl. 2 vent valves
(316L)
7/16-20 UNF AISI 316L incl. 2 vent valves
(316L)
7/16-20 UNF Alloy C276 without valves/clos-
ing screws
Page 92
1/4-18NPT
RC1/4
41,3 mm
(1.63")
42 mm
(1.65")
85 mm
(3.35")
134,5 mm (5.3")
100 mm
(3.94")
106 mm
(4.17")
54 mm
(2.13")
+
–
7/16-20 UNF
M 10
1/4-18 NPT
RC1/4
11 Supplement
Version Connection Fastening Material Equipment
U RC 1/4 7/16-20 UNF AISI 316L incl. 2 vent valves
(316L)
1 1/4-18 NPT
IEC 61518
2 1/4-18 NPT
IEC 61518
3 1/4-18 NPT
IEC 61518
PN 160: M10, PN
420: M12
PN 160: M10, PN
420: M12
PN 160: M10, PN
420: M12
Steel C 22.8 incl. 2 vent valves
(316L)
AISI 316L incl. 2 vent valves
(316L)
Alloy C276 without valves/clos-
ing screws
Oval flange, connection ¼-18 NPT or RC ¼, with lateral ventilation
Fig. 64: 10 mbar and 30 mbar measuring cell
Version Connection Fastening Material Equipment
C 1/4-18 NPT
IEC 61518
7/16-20 UNF Steel C 22.8 incl. 4 closing screws
(AISI 316L) and 2
ventilation valves
E 1/4-18 NPT
IEC 61518
H 1/4-18 NPT
92 Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA
IEC 61518
7/16-20 UNF AISI 316L incl. 4 closing screws
(AISI 316L) and 2
7/16-20 UNF Alloy C276 without valves/clos-
ventilation valves
ing screws
37245-EN-100120
Page 93
2
3
72 mm
(2.84")
128 mm (5.04")
98 mm
(3.94")
54 mm
(2.13")
+
–
41,3 mm
(1.63")
98 mm
(3.94")
54 mm
(2.13")
+
–
7/16-20 UNF
M 10 (M12)
M6
1
11 Supplement
Version Connection Fastening Material Equipment
V RC 1/4 7/16-20 UNF AISI 316L incl. 4 closing screws
(AISI 316L) and 2
ventilation valves
Oval flange, prepared for isolating diaphragm connection
Fig. 65: left: Process fitting DPT10 prepared for isolating diaphragm connection. right: Position of the copper ring
seal
1 Isolating diaphragm connection
2 Copper ring seal
3 Cup diaphragm
37245-EN-100120
Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA 93
Page 94
Index
INDEX
A
Adjustment
- Unit 46
- with differential pressure 48
- with ow 49-50
- with level 49
Application area
- Density measurement 10
- Differential pressure measurement 9
- Flow measurement 8
- Interface measurement 10
- Level measurement 9
C
Connection compartment double chamber
housing 36
D
Density measurement 23
Differential pressure measurement
- In gases and vapours 25
- In liquids 25
E
Electronics and connection compartment
- Single chamber housing 34
Electronics compartment, double chamber
housing 35, 37
Error messages 70
F
Fault rectification 69
Flow measurement
- In gases 16
- In liquids 17
- In vapours 16
Functional principle 10
M
Maintenance 69
Mounting arrangement 27
Mounting position 14
O
Oxygen applications 15
P
Position correction 47
Process conditions 14
S
Setup
- Differential pressure measurement 66-67
- Flow measurement 60-61
- Level measurement 63-65
T
Totalizer 51
Tube mounting 27
Type label 7
V
Valve block 28
W
Wiring plan
- Double chamber housing 36
- External electronics 40
- Single chamber housing 34
I
Interface measurement 24
L
Leak volume suppression 51
Level measurement
- In the closed vessel 20-22
- In the open vessel 18-19
Linearisation curve
- with level 50
94 Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA
37245-EN-100120
Page 95
Index
37245-EN-100120
Differential pressure transmitter DPT10 - metal measuring diaphragm • Profibus PA 95
Page 96
WIKA Alexander Wiegand SE & Co. KG
Alexander-Wiegand-Straße 30
63911 Klingenberg/Germany
Phone +49 9372 132295
Fax +49 9372 132706
e-mail: support-tronic@wika.de
www.wika.de
Printing date::
All statements concerning scope of delivery, application,
practical use and operating conditions of the sensors and
processing systems correspond to the information avail-
able at the time of printing.
37245-EN-100120
