Digital indicator model DI30
for panel mounting or wall mounting
Operating instructions
Digital indicator model DI30 GB
14037419 • V2.3 • 02/2012
GB Operating instructions model DI30 page 1 - 40
© 2010 WIKA Alexander Wiegand SE & Co. KG
All rights reserved.
WIKA® is a registered trademark in various countries.
Prior to starting any work, read the operating instructions!
Keep for later use!
2 WIKA operating instructions digital indicator DI30
Contents
1 General information ................................................................................ 4
2 Safety ....................................................................................................... 5
2.1 Intended use ........................................................................................ 5
2.2 Personnel qualification......................................................................... 7
2.3 Special hazards ................................................................................... 7
2.4 Labelling / Safety marks ...................................................................... 8
3 Specifications .......................................................................................... 9
4 Design and function .............................................................................. 11
4.1 Short description ................................................................................ 11
4.2 Scope of delivery ............................................................................... 12
5 Transport, packaging and st orage ....................................................... 12
5.1 Transport ........................................................................................... 12
5.2 Packaging .......................................................................................... 12
5.3 Storage .............................................................................................. 12
6 Commissoning, operat ion .................................................................... 13
6.1 Mounting ............................................................................................ 13
6.2 Elec trical connection .......................................................................... 16
6.3 Function and operation description .................................................... 19
6.4 Programming ..................................................................................... 22
6.5 D escription of the measuring input .................................................... 24
6.6 Description of device parameters ...................................................... 26
6.7 Program number ta ble ....................................................................... 30
6.8 Default values .................................................................................... 32
7 Maintenance and cleaning .................................................................... 32
7.1 Maintenance ...................................................................................... 32
7.2 Cleaning ............................................................................................ 32
8 Faults ..................................................................................................... 33
9 Dismounting, return and disposal ....................................................... 34
9.1 Dismounting ...................................................................................... 34
9.2 Return ............................................................................................... 34
9.3 Disposal ............................................................................................. 35
10 Application example: DI30 and gas cylinder scale GCS-1 ................. 36

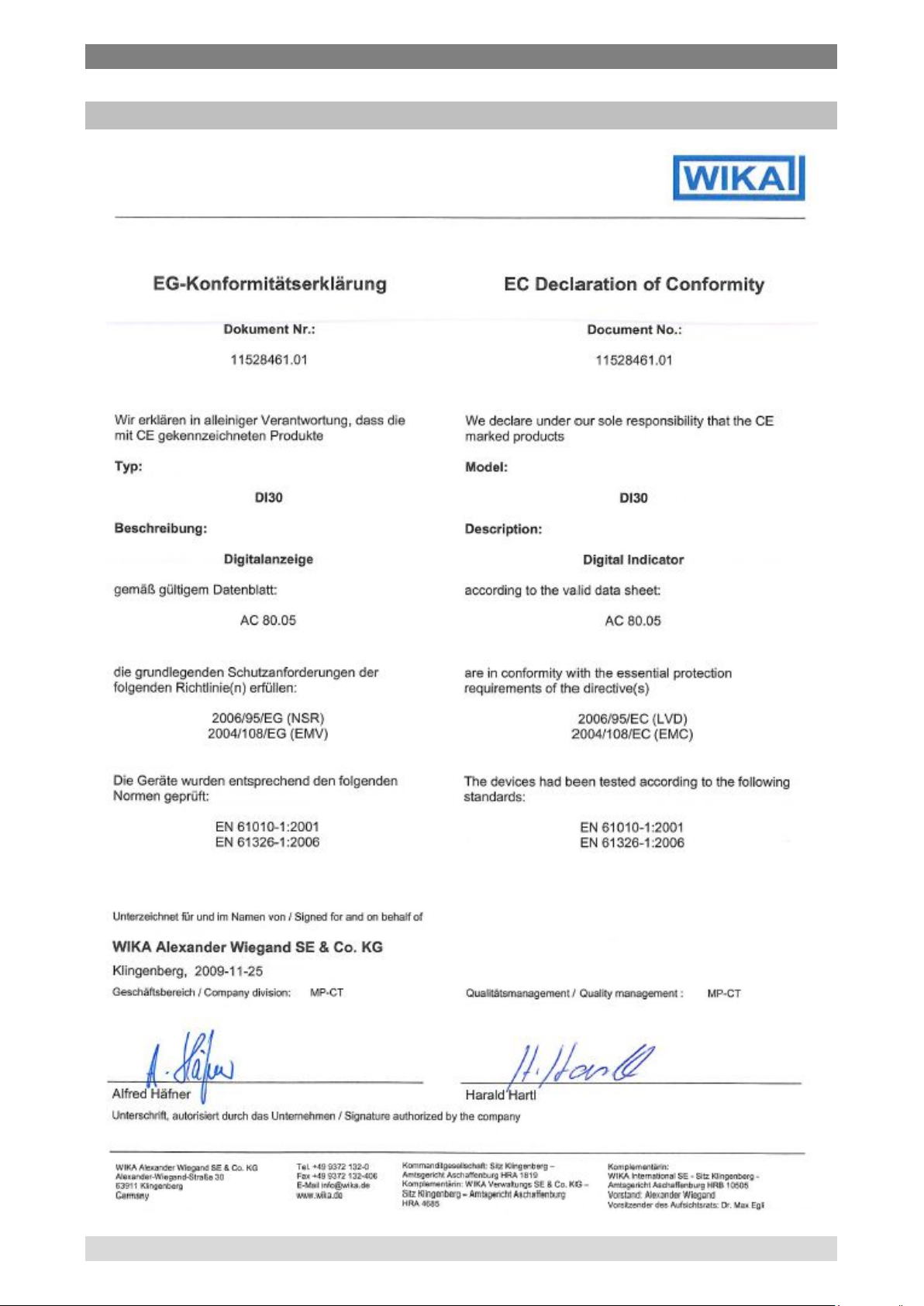

11 Appendix: Declaration of conformity ................................................... 38
Declarations of conformity can be found online at www.wika.com.
WIKA operating instructions digital indicator model DI30 3
1 General information
1 General information
The instrument described in the operating instructions has been
designed and manufactured using state-of-the-art technology.
All components are subject to stringent quality and environmental
criteria during production. Our management systems are certified to
ISO 9001.
These operating instructions contain important information on handling
the instrument. Working safely requires that all safety instructions and
work instructions are observed.
Observe the relevant local accident prevention regulations and general
safety regulations for the instrument's range of use.
The operating instructions are part of the instrument and must be kept
in the immediate vicinity of the instrument and readily accessible to
skilled personnel at any time.
Skilled personnel must have carefully read and understood the
operating instructions, prior to beginning any work.
The manufacturer's liability is void in the case of any damage caused by
using the product contrary to its intended use, non-compliance with
these operating instructions, assignment of insufficiently qualified skilled
personnel or unauthorised modifications to the instrument.
The general terms and conditions, contained in the sales
documentation, shall apply.
Subject to technical modifications.
Further information:
- Internet address: www.wika.de / www.wika.com
- Relevant data sheet: AC 80.05
- Application consultant: Tel.: (+49) 9372/132-0
Fax: (+49) 9372/132-406
E-Mail: info@wika.de
4 WIKA operating instructions digital indicator DI30
2 Safety
WARNING!
Explanation of symbols
WARNING!
... indicates a potentially dangerous situation that can result
in serious injury or death, if not avoided.
Information
... points out useful tips, recommendations and information
for efficient and trouble-free operation.
DANGER!
...identifies hazards caused by electric power. Should the
safety instructions not be observed, there is a risk of serious
or fatal injury.
2 Safety
Before installation, commissioning and operation, ensure that
the appropriate instrument has been selected in terms of
measuring range, design and specific measuring conditions.
Non-observance can result in serious injury and/or damage
to equipment.
Further important safety instructions can be found in the
individual chapters of these operating instructions.
2.1 Intended use
The DI30 is designed for the evaluation and display measuring transmitter
signals. With the alarm outputs, it is possible to perform simple control tasks.
The instrument has been designed and built solely for the intended use
described here, and may only be used accordingly.
WIKA operating instructions digital indicator model DI30 5
2 Safety
Please read the following safety advice and the assembly before installation
and keep it for future reference.
If the instrument is transported from a cold into a warm environment, the
formation of condensation may result in the instrument malfunctioning. Before
putting it back into operation, wait for the instrument temperature and the
room temperature to equalise.
Notes on installation
There must be no magnetic or electric fields in the vicinity of the device,
e.g. due to transformers, mobile phones or electrostatic discharge.
Do not install inductive consumers (relays, solenoid valves etc.) near
the device and suppress any interference with the aid of RC spark
extinguishing combinations or free-wheeling diodes.
Keep input, output and supply lines separate from one another and do
not lay them parallel with each other. Position “go” and “return lines”
next to one another. Where possible use twisted pair. So, you receive
best measuring results.
Screen off and twist sensor lines. Do not lay current-carrying lines in the
vicinity. Connect the screening on one side on a suitable potential
equaliser (normally signal ground).
The device is not suitable for installation in areas where there is a risk
of explosion.
Any electrical connection deviating from the connection diagram can
endanger human life and/or can destroy the equipment.
The terminal area of the devices is part of the service. Here electrostatic
discharge needs to be avoided. Attention! High voltages can cause
dangerous body currents.
Galvanic insulated potentials within one complex need to be placed on
a appropriate point (normally earth or machines ground). So, a lower
disturbance sensibility against impacted energy can be reached and
dangerous potentials, that can occur on long lines or due to faulty
wiring, can be avoided.
The fuse rating of the supply voltage should not exceed a value of 1A
N.B. fuse.
The manufacturer shall not be liable for claims of any type based on
operation contrary to the intended use.
6 WIKA operating instructions digital indicator DI30
2 Safety
WARNING!
Keep unqualified personnel away from hazardous areas.
DANGER!
WARNING!
death or serious injury and material damage.
2.2 Personnel qualification
Risk of injury should qualification be insufficient!
Improper handling can result in considerable injury and
damage to equipment.
Skilled electrical personnel
Skilled electrical personnel are understood to be personnel who, based on
their technical training, knowledge of measurement and control technology
and on their experience and knowledge of country-specific regulations,
current standards and directives, are capable of carrying out work on
electrical systems and independently recognising and avoiding potential
hazards.
The skilled electrical personnel have been specifically trained for the work
environment they are working in and know the relevant standards and
regulations.
The skilled electrical personnel must comply with current legal accident
prevention regulations.
The activities described in these operating instructions
may only be carried out by skilled personnel who have
the qualifications described below.
2.3 Special hazards
Danger of death caused by electric current.
Upon contact with live parts, there is a direct danger of
death.
Electrical instruments may only be installed and mounted
by skilled electrical personnel.
Operation using a defective power supply unit (e.g. short
circuit from the mains voltage to the output voltage) can
result in life-threatening voltages at the instrument!
Do NOT use this product as safety or emergency stopping
device, or in any other application where failure of the
product could result in personal injury or material damage.
Failure to comply with these instructions could result in
WIKA operating instructions digital indicator model DI30 7
2 Safety
1: power supply
3: serial no.
4: CE mark
6: connection diagram
2.4 Labelling / Safety marks
Product label
2: order code
Explanation of symbols
Before mounting and commissioning the instrument, ensure
you read the operating instructions!
CE, Communauté Européenne
Instruments bearing this mark comply with the relevant
European directives.
5: product name
8 WIKA operating instructions digital indicator DI30
3 Specifications
Principle
7-Segment-LED, red, 4 digit
Character size
20 mm
Indication range
-999 … +9999
Indication time
0.1….10 s ec
Memory
EEPROM (Parameter memory, Data storage >
20 years)
Input
Number and type
1 input for standard signals
Input signal
4...20 mA, input resistance ≤ 100 Ω or
DC 0...10 V, input resistance ≥ 150 kΩ
Input configuration
selectable via terminal configuration and
programming
Accuracy
± 0.1 % of the measuring span ± 1 Digit
Temperature drift
All measuring inputs 50 ppm/K
Measuring principle
Voltage/Frequency converter
Resolution
approx. 20 bit, (at measuring time 1second)
Measuring time
0.1….10 s ec
Transmitter supply
DC 24 V, max. 50 mA, galvanically isolated
Power supply
AC 230 V, 50/60 Hz, ± 10 %
{AC 115 V, 50/60 Hz, ± 10 %}
Power consumption
Max. 8 VA
Electrical connection
removable screw terminals
Line cross section up to 2.5 mm2
Alarm output
Number and type
2 independent switching contacts (relays),
freely adjustable
Contact
load:
DC 30 V, 5 A ( resistive load)
Switching cycles
0,5 * 105 at max. contact rating
Characteristics as per DIN EN 60255
3 Specifications
Specifications
Display
0...20 mA, input resistance ≤ 100 Ω or
DC 0...5 V, input resistance ≥ 150 kΩ or
AC 230 V, 5 A (resistive load)
5 * 106 mechanically
Separation as per DIN EN 50178
WIKA operating instructions digital indicator model DI30 9
3 Specifications
Material
Aluminium, black
Ingress protection
Front: IP 54, Rear: IP 00
Dimensions
96 x 96 x76 mm (w x h x d) including terminals
Mounting clearance
horizontal 120 mm / vertical 120 mm
(recommended)
Weight
Approx. 530 g
Mounting
sliding fasteners, fixed via screws, for panel
thicknesses from 1 mm to 10 mm
{Wall mounting
enclosure}
Material
ABS, black, cable gland
Ingress protection
IP 65
Dimensions
160 x 130 x 60 mm (w x h x d)
Cable gland
Cable thickness: 4.0...8.0 mm
Mounting
Fixing holes for screws
Operating temperature
0…60 °C
Storage temperature
-20…80 °C
Humidity
0…75 % relative humidity, non-condensing
EMC directive
2004/108/EC, EN 61326-1 Emission (Group 1,
Class B) and Immunity (industrial locations)
Low voltage directive
2006/95/EC, EN 61010-1
Case
Permissible ambient conditions
CE conformity
{ } Items in curved brackets are optional extras for additional price.
For further specifications see WIKA data sheet AC 80.05 and the order
documentation.
10 WIKA operating instructions digital indicator DI30
4 Design and function
1: Program key
4: Zero key
contacts
Operating elements
2: DOWN key
3: UP key
5: 7 segment display
6 +7: LEDs for displaying the alarm
4 Design and function
4.1 Short description
With the digital indicator DI30 standard signals DC 0/4…20 mA or DC
0…5/10 V can be measured. The 4 digit display shows the measurements or
the scaled value of the measurement. During programming the display is
used to indicate the set values and the user prompts.
Two relays (alarm outputs 1 and 2) are available to monitor threshold values,
the status of which is displayed via two separate LED on the front. The
integrated DC 24 V transmitter supply is used to supply connected sensors.
WIKA operating instructions digital indicator model DI30 11
5 Transport, packa ging and storage
4.2 Scope of delivery
The scope of delivery is:
Indicator for panel mounting:
Indicator
2 fixing elements
Seal
Operating instructions
Indicator for wall mounting:
Indicator
Operating instructions
Cross-check scope of delivery with delivery note.
5 Transport, packaging and storage
5.1 Transport
Check instrument for any damage that may have been caused by transport.
Obvious damage must be reported immediately.
5.2 Packaging
Do not remove packaging until just before mounting. Keep the packaging as it
will provide optimum protection during transport (e.g. change in installation
site, sending for repair).
5.3 Storage
Permissible conditions at the place of storage:
Storage temperature: -20 ... +80 °C
Humidity: 0 ... 75 % relative humidity (no condensation)
Avoid exposure to the following factors:
Direct sunlight or proximity to hot objects
Mechanical vibration, mechanical shock (putting it down hard)
Soot, vapour, dust and corrosive gases
Potentially explosive environments, flammable atmospheres
12 WIKA operating instructions digital indicator DI30
6 Commissoning, operation
WARNING!
Store the instrument in its original packaging in a location that fulfils the
conditions listed above. If the original packaging is not available, pack and
store the instrument as described below:
1. Wrap the instrument in an antistatic plastic film.
2. Place the instrument, along with shock-absorbent material, in the
packaging.
3. If stored for a prolonged period of time (more than 30 days), place a
bag, containing a desiccant, inside the packaging.
Before storing the instrument (following operation), remove
any residual media. This is of particular importance if the
medium is hazardous to health, e.g. caustic, toxic,
carcinogenic, radioactive, etc.
6 Commissoning, operation
Please read the safety instructions and installation instructions in chapter 2
before installation and keep this user manual for future reference.
6.1 Mounting
Indicator for panel mounting:
Before assembly a cut-out must be made to accommodate the device. The
sizes and tolerances are given in the technical data.
On front of the DI30 ar e the operating and display elements. On the sides are
the fixing elements to mount the device in the panel. On the back are the
terminals for all the electrical connections. A gasket is inserted between the
contact surface of the front collar and the control panel.
WIKA operating instructions digital indicator model DI30 13
6 Commissoning, ope ration
1. After removing the fixing elements, insert the device.
2. Check the seal to make sure it fits securely.
3. Click the fixing elements back into place and tighten the clamping
screws by hand. Then use a screwdriver to tighten them another half a
turn.
CAUTION! The torque should not exceed 0.1 Nm!
Indicator for wall mounting:
The wall-type housing consists of an upper part and a lower part. A suitable
seal has been inserted in the lower part to achieve protection IP 66. In the
upper part is the DI30 with its operating and display elements. On the back
are the terminals for all the electrical connections.
14 WIKA operating instructions digital indicator DI30
6 Commissoning, ope ration
1. The cover flaps have to be opened on the right and left side. Loose the
four fixing screws, which connect the upper and lower part of the
enclosure, with a screw driver. Remove the upper part.
2. Fasten the enclosure to the wall.
3. Connecting cables have to be fed into the enclos ure via the PG screws .
4. After connection the upper part of DI30 will be placed on the lower part.
Using the four fixing screws, screw the upper part to the lower part. Be
sure th at the screws are completely tightened in order to attain ingress
protection IP 6 6. Finally close the cover flaps again..
Screws for wall mounting are not part of scope of delivery.
Please use screws according to the material of the wall,
where you want to install the enclosure.
WIKA operating instructions digital indicator model DI30 15
6 Commissoning, ope ration
Power supply
4 5 6 N PE
L Relay 2 (A2)
Relay 1 (A1)
1 2 3 7 8
9
Com
Normally
open
Normally
closed
Com
Normally
open
Normally
closed
Input for standard signals
Sensor signal
Measuring range
10
11
12
0…5 V
0…10 V
0…20 mA
4…20 mA
6.2 Electrical connection
All the necessary signals for operation are connected to the rear terminals.
The connecting terminals are designed as removable screw-type terminals
with a grid pitch of 5.08 mm. This makes it possible to connect wires of up to
2.5 mm².
6.2.1 Terminal c onfi gura t ion 9-pole connector strip
On the 9-pole connector strip with terminals 1 to 9, the power supply (supply
voltage) of the digital indicator and the two relay outlets of the alarm outputs
are connected.
5-pole connector strip
On the 5-pole connector strip with terminals 10 to 14 the input signal and the
transmitter supply are connected.
Measuring input for standard signals
The input signal is connected to terminals 10 to 12. The DI30 has a voltage
input and a current input, to which most conventional sensors with a standard
signal output can be connected. The measuring input is galvanically isolated
from the power supply (supply voltage) and the transmitter supply.
U (+) U (-)
I (+) I (-)
-12…+12 V
-24…+24 mA
16 WIKA operating instructions digital indicator DI30
6 Commissoning, ope ration
Transmitter supply
13
14
Transmitter supply (-)
Transmitter supply (+)
Transmitter supply
The DC 24 V transmitter supply is available at terminals 13 and 14. The
transmitter supply is galvanic insulated from the measuring input. Current
loop sensors (2-wire) and 3-wire and 4-wire sensors can be operated via the
transmitter supply as long as their current consumption is not higher than 50
mA (Power consumption < 1.2 VA).
6.2.2 Connection Exa mple s
This section gives a few examples of practical connections.
a) 4…20 mA signal, 2-wire-transmitter
b) 0…20 mA signal, 3-wire-transmitter
The voltage drop on the transmitter supply wire is irrelevant, which is
why this can also be bridged directly on the indicator.
WIKA operating instructions digital indicator model DI30 17
6 Commissoning, ope ration
c) 0…5 V/0…10 V signal, 3-wire-transmitter
The ground is bridged via the sensor, which eliminates the measuring
error through the drop in voltage on the transmitte r su p p l y wires.
18 WIKA operating instructions digital indicator DI30
6 Commissoning, ope ration
Name
Description
1
Program key [P]
With the program key, you can call up the
in the programming mode.
2
DOWN key [▼]
With the DOW N (decrease) key, you can call up
programming mode.
3
UP key [▲]
With the UP (increase) key, you can call up the
programming mode.
4
Zero key [O]
Zero key for TARA and HOLD function
5
7-segment display
In the 7-segment display measuring values are
program numbers or parameters are displayed.
6+7
Alarm displays
The alarm display indicates the state of the relays
LED lights up..
6.3 Function and operation description
6.3.1 Operation
The DI30 has 4 keys ([P], [], [], [O]), with which you can parameterise
and call up various functions during operation.
Additionally it has a 4-digit 7-segment display and two LEDs for displaying the
alarm contacts.
programming mode or perform various functions
the MIN memory or alter parameters in the
MAX memory or alter parameters in the
displayed, respectively, during programming, the
of the alarm outputs. If a relay is switched, the
WIKA operating instructions digital indicator model DI30 19
6 Commissoning, ope ration
6.3.2 Switching on
Before switching on you have to check all the electrical connections to make
sure they are correct. On completion of the installation, the device can be
switched on by applying the power supply.
During the switching-on process a segment test is performed for approx. 1
second, whereby all LEDs on the front (including alarm LEDs) are triggered.
After this, the type of software is indicated for approx. 1 second and then,
also for 1 second, the software version. After the starting procedure, the unit
changes to operation/display mode.
6.3.3 General functi ons MIN/MAX Memory
The measured minimum and maximum values are saved in a volatile memory
in the unit and get lost when the unit is switched off.
You can call up the contents of the memory by pushing (less than 1 second)
the [▲] or [▼] key. The relevant value is indicated for approx. 7 seconds. By
briefly pressing the same key again, you will return immediately to the display
mode.
[▲] Display of the MAX value
[▼] Display of the MIN value
You can erase the value shown in the display by simultaneously operating the
[▲] & [▼] keys. The erasure is acknowledged by horizontal bars.
The content of the memory is lost when the unit is switched off.
Overflow and Underflow
An overflow of the display is indicated by horizontal bars at the top of the 7segment display „ ¯ ¯ ¯ ¯ “.
An underflow of the display is indicated by horizontal bars at the bottom of the
7 segment display „ _ _ _ _ “
20 WIKA operating instructions digital indicator DI30
6 Commissoning, ope ration
Parameter
Description
Alarm output
Deactivated, activated
Threshold
Threshold value for switchover
Hysteresis
Width of the window between the switch thresholds
Operating principle
Active above SP value / active below SP value
Switch-on delay
Time between reaching the threshold and the
resultant switching on of the relay
Switch-off delay
Time between reaching the threshold and the
resultant switching off of the relay
6.3.4 Descripti on of t he al ar m output s
With the aid of the LEDs below the 7-segment display, you can view the
switching state of the alarm outputs. An active relay is indicated by the
relevant LED lighting up.
Working principle
The alarm outputs have the following properties with regard to their switching
properties:
Active above threshold
The alarm output is off
below the threshold and
switched on when reaching
the threshold.
Active below threshold
The alarm output is on
below the threshold and
switched off on reaching the
threshold.
WIKA operating instructions digital indicator model DI30 21
6 Commissoning, ope ration
Display of e.g. program number 0
Example:
Change to programming mode by pushing key
program number (PN)
Switch-on delay
The relay is on e.g. 10
seconds after reaching the
threshold. Briefly exceeding
the threshold does not lead to
the relay being switched on.
The switch-off delay functions in a similar manner, in other words it keeps the
alarm output switched on until the parameterised time has elapsed.
Optical response: di splay flashing
The switching on of one or more alarm outputs can also be set to trigger a
flashing of the display, to enhance the optical response.
6.4 Programming
The display shows the program numbers (PN) right-aligned, as a 3-digit
number with a P at the front.
Programming Procedure
The entire programming of the DI30 is done by the steps described below.
Change to the programming mode
Pushing the [P] key changes to programming mode. The unit goes to the
lowest available program number. When the programming lock is activated,
the key must be pressed for at least 1 second.
[P]. The first released
appears, in this case PN0
22 WIKA operating instructions digital indicator DI30
6 Commissoning, ope ration
Example:
changed.
Example:
Example:
no change.
Changing to other progra m numbe rs
To change between individual program numbers, hold the [P] key down and
press the [
changing to a lower number. By keeping the keys pushed, e.g. [P] & [
] key for changing to a higher program number or the [] key for
], the
display will begin, after approx. 1 second, to automatically run through the
program numbers.
Under PN0 a 1 is parameterized.
Hold the [P] key down and press the [] key
once.
PN1 appears in the display. Under this
parameter, the final value of input can be
Change to the parameter
Once the program number appears in the display, you can press the [] or
[
] key to get to the parameters set for this program number. The currently
stored parameters are displayed.
Changing a parameter
After changing to the parameter, the lowest digit of the respective parameter
flashes on the display. The value can be changed with the [
move to the next digit, the [P] key must be briefly pressed. Once the highest
digit has been set and confirmed with [P], the lowest digit will begin to flash
again.
By pressing the [] or [] key, the currently
stored value for PN1 appears in the display.
In this case it is 75.64.
] or [] key. To
The 4 is flashing; this is the lowest value digit
and, by flashing, it is asking for a figure to be
entered. In our example, the value is to be
changed from 75.64 to 75.00. You can change
the value by changing the figure from 4 to 0
using the [
] or [] key. To move to the next
digit, the [P] key must be briefly pressed. The 6
begins flashing. Change the value from 6 to 0
using the [
] or [] key. The 5 and the 7 need
WIKA operating instructions digital indicator model DI30 23
6 Commissoning, ope ration
Example:
Example:
segments.
Saving parameters
All parameters must be acknowledged by the user by pressing the [P] key for
one second. The changed parameters are then taken over as the current
operating parameters and saved in the EEPROM. This is confirmed by
horizontal bars lighting up in the display.
Save the parameters by pressing [P] for one
second.
All the newly entered data are confirmed by the unit.
If no confirmation is received, the relevant parameters have not been saved.
You receive confirmation from the unit that the
changes have been saved through the
appearance of horizontal bars in the middle
Change to the operating mode
If no key is pressed in programming mode for approx. 7 seconds, the unit
automatically returns to operating mode.
6.5 Description of the measuring input
The DI30 is equipped with a measuring input for standard signals that
enables standardised signals (e.g. 4 … 20 mA) from all kinds of different
measuring transmitters on the market to be measured directly.
Factory calibration
For this, various sensor values for 0 … 10 V, 0 … 5 V, 0 … 20 mA and 4 …
20 mA are stored in the unit and can be called up via the parameter PN0.
They are called factory calibrations, because the data were established
during production and are saved permanently in the unit. It means that a preadjusted transmitter can be operated directly with the indicator, without any
need to previously connect the signal to be measured to the indicator.
The indicator can be scaled freely according to the physical dimension to be
measured.
Sensor calibration
If, on the other hand, the sensor has not been pre-calibrated, the indicator
can be adjusted and calibrated direct via the measurement together with the
sensor path. This can be selected via the parameter PN0 = 0 and is
consequently called sensor calibration.
24 WIKA operating instructions digital indicator DI30
6 Commissoning, ope ration
Setpoint
Pressure
Output
[mA]
Indication
correction (IN)
Desired
(OUT) 2 0
0.5
2.5
0.0
101
15
3.3
16.5
15.0
102
30
6.2
31.0
30.0
103
40
9.2
46.0
40.0
104
60
11.4
57.0
60.0
105
75
14.7
73.5
75.0
1
100
20.0
100.0
100.0
Sensor linearisation
In addition, non-linear sensors can be linearised with the aid of a
characteristic line that can be saved in the indicator. This is described with
the following example: The sensor signal must be parameterised in a strictly
monotonously manner, i.e. every new calibration point (e.g. PN104) must
have a higher input signal than the previous one (e.g. PN103) so that it is
taken over by the indicator. Otherwise, no confirmation will be shown. On the
other hand, the relevant indication values do not need to increase constantly.
They can also fall or alternate between rising and falling.
Example: Linearisation of a pressure transmitter (0...100 mbar) with output
0…20 mA.
To program e.g. 5 additional calibration points, “5” must be entered under
PN100.
Subsequently, for each of the calibration points, the voltage/current must be
applied to the unit and the respective indication value programmed under the
following program numbers PN101 - PN105.
The indicated value before correction can be either calculated from the known
characteristic line of the transmitter or determined empirically.
The non-linear range is between 0 ... 75 mbar. For calibration point 101, this
means:
A pressure of 15 mbar, the transmitter delivers 3.3 mbar instead of the ideal
value of 3.0 mbar. Since 20 mA in the display corresponds to 100.0 mbar, 3.3
mA in the display corresponds to 16.5 mA before the correction.
(PN)
[mbar]
transmitter
before
indication
WIKA operating instructions digital indicator model DI30 25
6 Commissoning, ope ration
6.6 Description of device parameters
The DI30 has a number of unit parameters with which the function of the
indicator can be adjusted to the relevant measuring tasks. Because of the
large number of these settings and the limited possibility of displaying them
on the 7-segment display, the parameters have been given consecutive
numbers. (see chapter “6.7 Program Number Table”)
PN0: Measuri ng input
One of the aspects in the basic configuration is the desired measuring input,
which consists of the terminal selection and the relevant factory or sensor
calibration.
PN1 and PN2: Scaling
The two program numbers 1 and 2 are used to scale the indication. With
these two parameters the end value and start value are parameterised. If
sensor calibration has been selected via PN0 = 0, then the current for the
relevant sensor signal must be applied during programming. Otherwise, a
simple allocation of the selected input configuration will be made. For
example, at PN0 = 3, which corresponds to a standard signal input 0 … 10 V,
the value saved under PN1 will be indicated at 10 V, and the value saved
under PN2 will be indicated at 0 V.
PN3: Decimal point
By changing this parameter the number of places shown after the decimal
point in the display is changed. This parameter has no influence on the
scaling of the indication value, only on the position of the decimal point in the
display.
PN5: Offset shift
With this parameter it is possible to carry out a parallel shift of the
parameterised characteristic line. This may be necessary, if for example a
pressure transmitter ages over the course of time, giving rise to a shift in the
zero point. With the parallel shift the transmitter can be adjusted back to the
zero point. Another application is to parameterise a certain tank level to zero
and have any deviation from this level displayed.
PN10: Zero point suppression
Via the zero point suppression, an indication value window can be defined as
zero. This means, for example, that at PN10 = 10, all indication values
between –10 … +10 are shown in the display as zero. This function is
intended to produce a reliable zero indication at high display resolution and
low sensor accuracy around zero. This could be, for example, the rpm of an
engine for which a zero would be expected in the display when standing still.
26 WIKA operating instructions digital indicator DI30
6 Commissoning, ope ration
Userlevel (PN 52 =)
0 1 2 3 4 5 6 7 8
Access to:
PN:
Locking code / user level
51, 52
●
Measuring input parameters
0 ... 3, 5, 10, 13, 14
● ● ●
Tara / Hold
54
● ● ●
Linearization parameters for measuring
input
100 ... 110
● ● ●
Parameters of the alarm outputs
59, 60, 63 … 65,70,
73 … 75
● ● ● ● ●
Hysteresis of the alarm outputs
62, 72
● ● ● ● ● ●
Thresholds of the alarm outp ut s
61, 71
● ● ● ● ● ● ●
Access code
50
● ● ● ● ● ● ● ● ●
Serial number
200
● ● ● ● ● ● ● ● ●
PN13: Indication time
The indication time is the interval at which the display is updated. The longer
the time between two indication cycles, the more calm the display. As a rule,
the eye perceives the indication time of 1 sec. as very pleasant. If the
adjusted indication time is longer than the adjusted measuring time (PN14),
no averaging of the detected measuring values during the display time takes
place. The display will be always refreshed with the newest detected
measuring value.
PN14: Measuring time
The measuring time corresponds to the conversion time of the A/D
conversion, which determines the response time of the alarm outputs. The
longer the conversion time the smaller the influence of disturbances and the
higher the resolution of the measured signal.
PN50 to PN52: Security setting, user level
With the parameters in the security settings, access to the program numbers
is regulated through the setting of various user levels. The user levels divide
the access into various levels. The user is only given access to the settings
authorised by the system operator, such as the setting of thresholds. The
lower the figure for the user level given in PN52, the lower is the security level
of the unit parameters against user intervention. (●: available function at the
selected userlevel)
The user levels 1, 3 and 7 are reserved user levels at which access to the
higher numbered user level is active.
The parameterised user level PN52 is active as long as the locking code
PN51 and the access code PN50 are different. On delivery of the DI30 both
parameters are set to 0000, so that the programming lock is deactivated.
WIKA operating instructions digital indicator model DI30 27
6 Commissoning, ope ration
To activate the set user level, you must enter a 4-digit number under PN51 as
a “locking code” and confirm it by pressing the [P] key for approx. 1 second.
On changing to programming mode, the unit jumps to the first authorised
program number. If user level PN52 = 3, then, for example, the parameters of
the alarm outputs can be changed, but changing the parameter of the
measuring input (PN0) is not possible at this user level.
In order to obtain access to all program numbers later (equivalent to user
level 0), you have to enter under PN50 the same code you entered before
under PN51. You must then acknowledge this by pressing the [P] key for
approx. 1 s. After this you have access to all program numbers.
Information
If the locking code becomes lost, the unit can be set to the
default value 0000 at the manufacturer's without any data
loss.
PN54: Allocation of functions of the zero k ey
By pushing of the zero key [O] functions like e.g. TARA and HOLD can be
actuated or an offset shift can be preset. By allocation of TARA the key needs
to be pushed for at least 1 second. The device confirms the function by
showing „0000“ in the display. With activated offset shift, the value in PN5 will
be added to the initial value directly by pushing the key. A display hold can
only be actuated for approx. 20 seconds. By pushing the zero key again one
turns back into the current measurement directly.
During HOLD phase the display flashes.
PN59: Display flashing
By activating the display flashing, various alarm states can be optically
reinforced. The trigger for the display flashing can be freely assigned to the
setpoint outputs.
PN60 to PN75: Alarm out put s
The behaviour of the alarm outputs can be influenced via various program
numbers. The data refer to the scaled measurement and are updated with the
set measuring time. A description of the various parameters is given in
chapter “6.3.4 Description of alarm outputs”.
28 WIKA operating instructions digital indicator DI30
6 Commissoning, ope ration
PN100 to PN110: Linearisation
Through linearisation, the user has the possibility to linearise a non-linear
sensor signal.
A detailed description can be found in the chapter on Sensor linearisation.
Under PN100, the desired number of additional set points can be released.
Only after changing the number are they accessible via the configuration
PN101 to max. PN110. If PN100 = 0, then no PN101 will be displayed. To
monitor the desired linearisation, all the set points should first be
parameterised, otherwise there may be deviations from the desired value in
the display!
PN200: Serial number
Under PN200 the 4-digit serial number can be called up, that allows allocation
to the production process and the manufacturing procedure. This parameter
can only be viewed.
WIKA operating instructions digital indicator model DI30 29
6 Commissoning, ope ration
PN
Function
Range of value
Default
User
level
0
Measuring input
Current, Voltage:
4 = 0 ... 5 V
2
2
1
Scaling final value
-999 ... 9999
1000
2 2 Scaling starting value
-999 ... 9999
0
2
3
Number of decimal places
0 = 0
3 = 0.000
0
2
5
Offset shift on display
value
-999 … 9999
0
2
10
Zero point suppression
0 … 999
0
2
General settings
13
Indication time
0.1 ... 10.0
1,0
2
14
Measuring time
0.01 ... 10.0
0.1
2
Security settings
50
Access code
0000 ... 9999
0000
8
51
Locking code
0000 ... 9999
0000
0
52
User level
1 ... 8
8 0 Function of the zero key
54
Actuator via zero key
0 = deactivated
3 = HOLD
0
2
Flashing of the LED-display
59
Display flashing (approx.
Flashes at alarm 1 and 2
3 = flashes at 1 and 2
0
4
6.7 Program number table
The program table lists all the program numbers (PN) with their function,
range of values, default values and user level.
Parameters 1 to 4 make
use of the factory
calibration.
0 = Sensor calibration
1 = 0 ... 20 mA
2 = 4 ... 20 mA
3 = 0 ... 10 V
1 = 0.0
2 = 0.00
0.5 seconds)
No flashing
Flashes at alarm 1
Flashes at alarm 2
30 WIKA operating instructions digital indicator DI30
1 = TARA
2 = Offset shift
0 = no flashing
1 = flashes at 1
2 = flashes at 2
6 Commissoning, ope ration
PN
Function
Range of value
Default
User
level
Alarm output 1
60
Alarm output 1
0 = deactivated
1 = activated
1
4
61
Threshold
-999 ... 9999
1000
6
62
Hysteresis
1 ... 9999
1
5
63
Active below / above
threshold value
0 = active below
1 = active above
1
4
64
Switch delay
0 … 1000 seconds
1
4
65
Delay type
0 = none
3 = switch-on/-off delay
0
4
Alarm output 2
70
Alarm output 2
0 = deactivated
1 = activated
1
4
71
Threshold
-999 ... 9999
1000
6
72
Hysteresis
1 ... 9999
1
5
73
Active below / above
threshold value
0 = active below
1 = active above
1
4
74
Switch delay
0 … 1000 seconds
1
4
75
Delay type
0 = none
3 = switch-on/-off delay
0
4
Linearisation
100
Number of additional
setpoints
0 ... 10
0
2
101...
110
Setpoints 1 ... 10
-999 ... 9999
2
Information
200
Serial number
0 ... 9999
0
8
1 = switch-on delay
2 = switch-off delay
1 = switch-on delay
2 = switch-off delay
WIKA operating instructions digital indicator model DI30 31
7 Maintenance and clea ning
CAUTION!
moisture.
6.8 Default values
Reset to default values
To return the unit to a defined basic state, a reset can be carried out to the
default values.
The following procedure should be used:
Switch off the power supply
Press button [P]
Switch on the power supply and press [P] for further approx. 2 seconds
until „- - - -“ is shown in the display.
With reset, the default values of the program table are loaded and used for
subsequent operation. This puts the unit back to the state in which it was
supplied.
Caution! This is only possible when the programming lock PN50 allows
access to all PNs or “HELP” is shown in the display.
Caution! All application-related data are lost
7 Maintenance and cleaning
7.1 Maintenance
This instrument is maintenance-free.
Repairs must only be carried out by the manufacturer.
7.2 Cleaning
Before cleaning, correctly disconnect the instrument
from the mains.
Clean the instrument with a moist cloth.
Electrical connections must not come into contact with
32 WIKA operating instructions digital indicator DI30
For information on returning the instrument see chapter "9.2
Return".
8 Faults
Fault
Solution
The unit permanently indicates
display)
The input has a very high
The unit permanently indicates
display)
The input has a very low
The device shows “HELP” in the 7-
The unit has found an error in the
your application.
Program numbers for parameterising
the input are not available.
The program lock is set to a user
level that does not permit access.
„Err1“ lights up in the 7-segment
This error can only be eliminated by
the manufacturer.
CAUTION!
In this case, contact the manufacturer.
8 Faults
overflow „ ¯ ¯ ¯ ¯ “
(4 bars in the upper part of the
underflow „ _ _ _ _ “.
(4 bars in the lower part of the
segment display.
display
measurement, check the measuring
circuit.
measurement, check the measuring
circuit.
configuration memory. Perform a
reset on the default values and
reconfigure the unit according to
the manufacturer. Please r eturn to
If a return is needed, please follow the instructions given in chapter "9.2
Return".
If faults cannot be eliminated by means of the measures
listed above, the instrument must be shut down immediately,
and it must be ensured that pressure and/or signal are no
longer present, and it must be prevented from being
inadvertently put back into service.
WIKA operating instructions digital indicator model DI30 33
9 Dismounting, retur n a nd disposal
9 Dismounting, return and disposal
WARNING!
Residual media in dismounted instruments can result in a
risk to persons, the environment and equipment. Take
sufficient precautionary measures.
9.1 Dismounting
To dismount the instrument, do the following steps:
Indicator for panel mounting:
1. Open the clamping screws and remove the fixing elements.
2. Remove the instrument and seal from panel cutout.
Indicator for wall mounting:
For dismounting the indicator open the four fastening screw s of the enclosure
and remove it.
9.2 Return
WARNING!
Strictly observe when shi pping the instrument:
All instruments delivered to WIKA must be free from any kind
of hazardous substances (acids, bases, solutions, etc.).
When returning the instrument, use the original packaging or a suitable
transport package.
Enclose the completed return form with the instrument.
The return form is available on the internet:
www.wika.de / Service / Return
34 WIKA operating instructions digital indicator DI30
9 Dismounting, retur n a nd disposal
9.3 Disposal
Incorrect disposal can put the environment at risk.
Dispose of instrument components and packaging materials in an
environmentally compatible way and in accordance with the country-specific
waste disposal regulations.
WIKA operating instructions digital indicator model DI30 35
10 Application exam ple: DI30 and gas cylinder scale GCS-1
10 Application example: DI30 and gas cylinder scale GCS-1
Adjustment hints for digit al indicator DI30 in combination with gas
cylinder scale GCS-1
In the following there is an example explaining the setting parameters of
DI30.
With the help of the gas cylinder scale GCS-1 the level of a gas cylinder has
to be calculated. This value shall be displayed on DI30. At a certain level, an
alarm will be triggered.
Please look at the type label for relevant datas:
Measuring range: 0…136.1 kg
Output signal: 4…20 mA, 2-wire
Additionally the TARA weight of the empty gas cylinder, which is printed on
the outside of the cylinder, eg. TARA=20,0 kg.
Connection example
Measurement of current signal (4…20 mA, 2-wire) using the integrated
transmitter supply:
36 WIKA operating instructions digital indicator DI30
10 Application exam ple: DI30 and gas cylinder scale GCS-1
PN
Function
Set values
0
Input signal
2 = 4 ... 20 mA
1
Scaling final value
GCS-1)
1361
2
Scaling starting value
range)
0
3
Number of decimal places after separator
1 = 0,0
5
Offset shift on display value
gas cylinder)
-20,0
Alarm output 1
60
Alarm output 1
1 = activated
61
Threshold
5
Adjustment
With the program numbers 0, 1, 2 and 3 the indicator is configured according
to the connected scale.
For program number 5 „Offset shift on display value“ the TARA-value has to
be entered as negative value. The weight of the scale is subtracted
automatically, only the actual weight of the filling will be shown in the display.
(value, which is shown at 20 mA;
Corresponds to the full measuring range of
(value which is shown at 4 mA;
Corresponds to the beginning of the measuring
(negative TARA value, which is printed on the
If an alarm should be activated at an certain filling level (eg. 5 kg) the alarm
output (eg. A1) has to be configured accordingly:
Program numbers P62…P65 have to be set accordingly to your technical
conditions.
WIKA operating instructions digital indicator model DI30 37
11 Appendix: Declarati on of conf ormity
11 Appendix: Declaration of conformity
38 WIKA operating instructions digital indicator DI30
11 Appendix: Declara t ion of conformity
WIKA operating instructions digital indicator model DI30 39
WIKA global
www.wika.de
WIKA subsidiaries worldwide can be found online at www.wika.com.
40 WIKA operating instructions digital indicator DI30
WIKA Alexander Wiegand SE & Co. KG
Alexander-Wiegand-Straße 30
63911 Klingenberg • Germany
Tel. (+49) 9372/132-0
Fax (+49) 9372/132-406
E-Mail info@wika.de
Loading...
