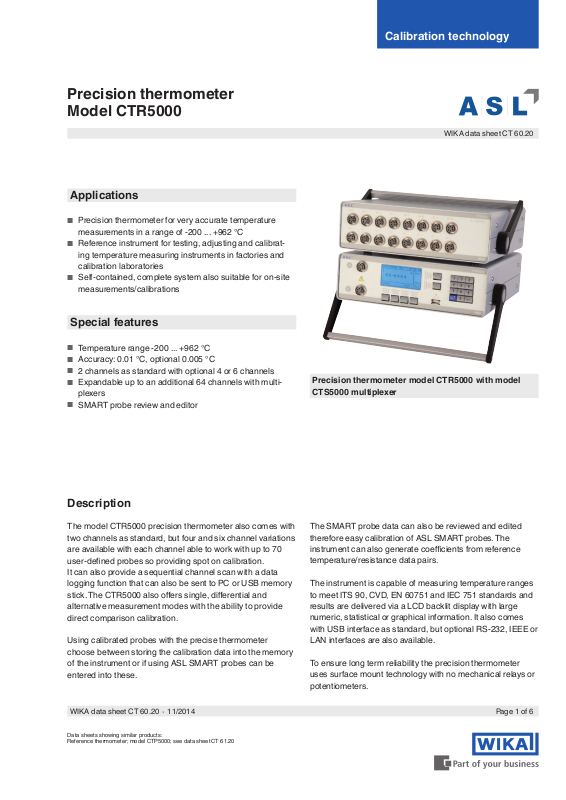

Precision thermometer
Model CTR5000
Applications
■
Precision thermometer for very accurate temperature
measurements in a range of -200 ... +962 °C
■
Reference instrument for testing, adjusting and calibrating temperature measuring instruments in factories and
calibration laboratories
■
Self-contained, complete system also suitable for on-site
measurements/calibrations
Calibration technology
WIKA data sheet CT 60.20
Special features
■
Temperature range -200 ... +962 °C
■
Accuracy: 0.01 °C, optional 0.005 °C
■
2 channels as standard with optional 4 or 6 channels
■
Expandable up to an additional 64 channels with multiplexers
■
SMART probe review and editor
Description
The model CTR5000 precision thermometer also comes with
two channels as standard, but four and six channel variations
are available with each channel able to work with up to 70
user-dened probes so providing spot on calibration.
It can also provide a sequential channel scan with a data
logging function that can also be sent to PC or USB memory
stick. The CTR5000 also oers single, dierential and
alternative measurement modes with the ability to provide
direct comparison calibration.
Using calibrated probes with the precise thermometer
choose between storing the calibration data into the memory
of the instrument or if using ASL SMART probes can be
entered into these.
Precision thermometer model CTR5000 with model
CTS5000 multiplexer
The SMART probe data can also be reviewed and edited
therefore easy calibration of ASL SMART probes. The
instrument can also generate coecients from reference
temperature/resistance data pairs.
The instrument is capable of measuring temperature ranges
to meet ITS 90, CVD, EN 60751 and IEC 751 standards and
results are delivered via a LCD backlit display with large
numeric, statistical or graphical information. It also comes
with USB interface as standard, but optional RS-232, IEEE or
LAN interfaces are also available.
To ensure long term reliability the precision thermometer
uses surface mount technology with no mechanical relays or
potentiometers.
Data sheets showing similar products:
Reference thermometer; model CTP5000; see data sheet CT 61.20
Page 1 of 6WIKA data sheet CT 60.20 ∙ 11/2014
Specications
Model CTR5000
Hand-held thermometer
Probe types Industrial platinum resistance thermometers (PRTs) and standard platinum resistance thermom-
eters (SPRTs) with Ro = 25 Ω and 100 Ω up to an alpha of 0.00392
Measuring inputs 2 (front panel), 4 or 6 (rear panel)
Expandable up to an additional 64 channels with CTS5000 multiplexers
Data entry format ITS 90 and CVD for calibrated probes; or EN 60751 for uncalibrated probes
Optional: coecient generation from data pairs
Measuring ranges
Probe current 1 mA (Pt100); optional auto-select 1 mA, 2 mA
Temperature range -200 ... +962 °C, depending on thermometer probe
Accuracy
1) The accuracy in K denes the deviation between the measured value and the reference value. (Only valid for indicating instruments.)
1)
Digital indicator
Display
Screen LCD screen with backlighting
Resolution 0.001 °C, 0.0001 Ω (user selectable)
Functions
Memory (optional) Sequential scan of all channels (only when a model CTS5000 multiplexer is used)
Real-time clock integrated clock with date and year
Voltage supply
Power supply AC 90 ... 264 V, 47 ... 63 Hz; universal rear input on rear panel
Power consumption max. 25 VA
Fuse AC 250 V, 1 A (anti surge)
Permissible ambient conditions
Operating temperature 15 ... 25 °C
Storage temperature -20 ... +50 °C
Communication
Interface Standard: USB
Case
Dimensions 260 x 80 x 270 mm (W x H x D)
Weight 2.7 kg
0.01 K, optional 0.005 K
log up to 8,000 individual readings to internal memory
export logged data directly from PC or USB memory stick
Optional: RS-232, IEEE-488.2 or LAN (Ethernet)
CE conformity, certicates
CE conformity
EMC directive 2004/108/EC, EN 61326 emission (group 1, class B) and interference immunity (portable test
and measuring equipment)
Certicates
Calibration
Recommended calibration interval 1 year (depending on the conditions of usage)
2) Only system calibration
2)
Approvals and certicates, see website
Page 2 of 6 WIKA data sheet CT 60.20 ∙ 11/2014
Standard: 3.1 calibration certicate per DIN EN 10204
Option: DKD/DAkkS calibration certicate
Dimensions in mm
Temperature sensors (immersion probe)
Resistance thermometer
Spring strain relief
2 metres
Engraved line
300 mm maximum insertion depth
350 or 450
Model Dimensions Temperature range Detector length
CTP5000-250 Pt100, d = 6 mm, l = 350 mm -50 ... +250 °C 25 mm
CTP5000-450 Pt100, d = 6 mm, l = 350 mm -80 ... +450 °C 25 mm
CTP5000-652 Pt100, d = 6 mm, l = 450 mm (without spring strain relief,
100 mm handle)
-70 ... +650 °C 30 mm
ø 6 or ø 7
nominal
Centreline
of sensor
Resistance thermometer
Brazed weld
3 metres
Model Dimensions Temperature range Detector length
CTP5000-200 Pt100, d = 3 mm, l = 30 mm -50 ... +200 °C 6 mm
Page 3 of 6WIKA data sheet CT 60.20 ∙ 11/2014
1 3 2 •
C hA IT S 90
P b09
12 :02:03
E s c
M e nu
C h a n
Z e ro
H o ld U n it
1 2 3
4 5 6
7 8 9
0
A
B
Resistance thermometer connection, 4-wire (5-pin DIN connector)
View towards front panel connector
Shield
Options
With DIN plug or SMART plug
With ASL's SMART connector on the probes, storing the data
is needed only once - in the connector! The calibration data
stays with the probe - permanently. It can even be used on
another instrument without any further action.
Viewed from top panel
Shield
The SMART connector saves time and reduces error. If there
are existing calibrated or uncalibrated probes, no problem,
CTR5000 automatically registers if a probe is SMART or
normal.
Features of the precision thermometer
■
Simple handling
■
Graphical LCD for excellent viewing of results and
instrument settings
■
AC technology: Immunity to most sources of errors
present in DC bridges
■
Statistical, graphical and large display modes
Front panel
1 2 3 4 5
■
Expandable multi-channel input multiplexing (up to 64
additional channels)
■
USB interface as standard for automated monitoring and
calibration applications
°°°° C
0 4 1
1 Inputs
2 LCD
3 Status line
4 6 soft keys
5 Numeric keypad
Page 4 of 6 WIKA data sheet CT 60.20 ∙ 11/2014
68 7
6 USB interface
7 Status LED
8 Status icons
Operation
The instrument’s keys are grouped by type and consist of
six soft-keys and a twelve-key numerical keypad. The soft
keys are used to access data and/or functions within the
instrument.
The CTR5000 keypad is shown in detail below. The keys
are used to select the various functions and menu options
The soft-keys are used to select common functions, Chan,
Zero, Hold and Unit. The blue display key is used to select
other display modes. All other settings and functions are
accessed via the menu key. The numeric keypad is used to
enter numerical values or to directly select a measurement
channel 10 or menu.
and to control the instrument. Generally, all commonly used
functions are available at the top level and no more than
one or two menu levels are below the other commonly used
settings. A few (infrequently used options) require three or
four menu levels.
Instrument functions keys
Key Description Function
Chan Select input channel Displays the channel select options
Zero Zero display measurement Toggles the display zero (null) function
Hold Hold display measurement Toggles the display hold (measurement continues)
Unit Select display units Rotates through the display units (W, °C, °F or K)
Esc Escape Returns without action. The LCD is redrawn
Menu Display menu Used to select all options and functions
Numeric keypad
Key Description Function
0 ... 9 Numerical data entry Enters a numerical digit, selects a numeric menu or selects a channel
Enter Enter data Used to select a measurement channel or after numerical data entry
Disp Display mode Changes the LCD between the 4 display modes in normal, large, statistical and
graph
Additional features of the accuracy version of 0.005 K
■
Additional 25 Ω reference resistor
■
Coecient generation from data pairs
■
Internal logging
■
External logging
■
Full SCIPI command set
■
Channel scanning
Page 5 of 6WIKA data sheet CT 60.20 ∙ 11/2014
Scope of delivery
■
Model CTR5000 precision thermometer incl. power cord
and USB cable
■
Choice of model CTP5000 temperature probes
■
Choice of model CTS5000 multiplexer
Option
■
DKD/DAkkS calibration certicate
■
UKAS calibration certicate
1) Only system calibration
1)
1)
Accessories
Expansion model CTR5000
■
2 Channels expansion card (Maximum of 2 expansion
card per CTR5000)
Temperature probes model CTP5000
■
Immersion probe
■
Customer-specic probes are available on request
Multiplexer model CTS5000
■
8-Channel multiplexer (Maximum of 4 multiplexer per
CTR5000)
■
16-Channel multiplexer (Maximum of 4 multiplexer per
CTR5000)
Test case
■
Transport case, robust
Interface
■
Interface card RS-232
■
Interface card IEEE
■
Interface card LAN (Ethernet)
Software
■
ULog
Ordering information
CTR5000 / Number of channels / Accuracy / Interface / Numbers of multiplexer CTS5000 / Number of channels per multiplexer
CTS5000 / Transport case / Additional order information
