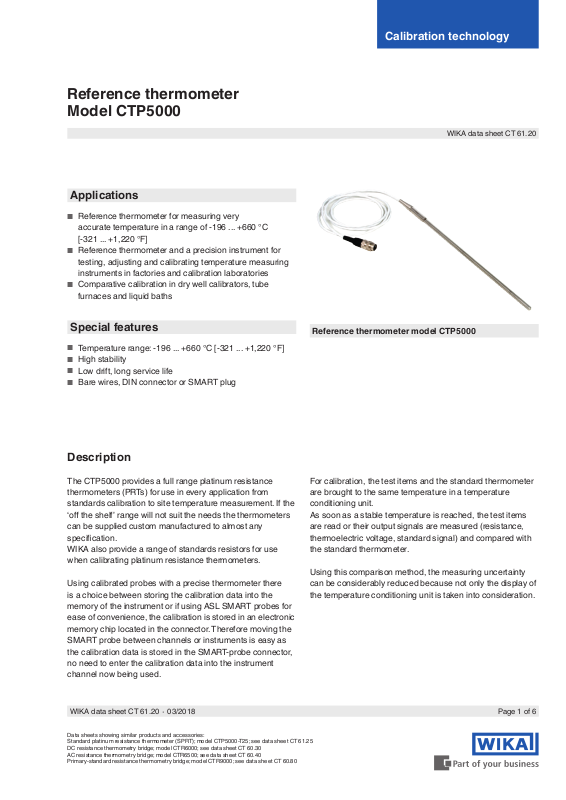

Reference thermometer
Model CTP5000
Applications
■
Reference thermometer for measuring very
accurate temperature in a range of -196 ... +660 °C
[-321 ... +1,220 °F]
■
Reference thermometer and a precision instrument for
testing, adjusting and calibrating temperature measuring
instruments in factories and calibration laboratories
■
Comparative calibration in dry well calibrators, tube
furnaces and liquid baths
Calibration technology
WIKA data sheet CT 61.20
Special features
■
Temperature range: -196 ... +660 °C [-321 ... +1,220 °F]
■
High stability
■
Low drift, long service life
■
Bare wires, DIN connector or SMART plug
Description
The CTP5000 provides a full range platinum resistance
thermometers (PRTs) for use in every application from
standards calibration to site temperature measurement. If the
‘o the shelf’ range will not suit the needs the thermometers
can be supplied custom manufactured to almost any
specication.
WIKA also provide a range of standards resistors for use
when calibrating platinum resistance thermometers.
Using calibrated probes with a precise thermometer there
is a choice between storing the calibration data into the
memory of the instrument or if using ASL SMART probes for
ease of convenience, the calibration is stored in an electronic
memory chip located in the connector. Therefore moving the
SMART probe between channels or instruments is easy as
the calibration data is stored in the SMART-probe connector,
no need to enter the calibration data into the instrument
channel now being used.
Reference thermometer model CTP5000
For calibration, the test items and the standard thermometer
are brought to the same temperature in a temperature
conditioning unit.
As soon as a stable temperature is reached, the test items
are read or their output signals are measured (resistance,
thermoelectric voltage, standard signal) and compared with
the standard thermometer.
Using this comparison method, the measuring uncertainty
can be considerably reduced because not only the display of
the temperature conditioning unit is taken into consideration.
∙ 03/2018
Data sheets showing similar products and accessories:
Standard platinum resistance thermometer (SPRT); model CTP5000-T25; see data sheet CT 61.25
DC resistance thermometry bridge; model CTR6000; see data sheet CT 60.30
AC resistance thermometry bridge; model CTR6500; see data sheet CT 60.40
Primary-standard resistance thermometry bridge; model CTR9000; see data sheet CT 60.80
Page 1 of 6WIKA data sheet CT 61.20
Specications Model CTP5000-170
Specic probe data
Temperature range -196 … +170 °C [-321 ... +338 °F]
Resistance at 0 °C [32 °F] 100 Ω
Temperature coecient 0.00385
R(Ga)/R(tpw) Ratio less than 1.11807
Annual drift ±10 mK
Recommended measurement current 1 mA
Self heating error in water at 0 °C [32 °F] 2 ... 5 mK
Sheath material Metal alloy
Dimensions
Probe diameter d = 6 mm [0.24 in]
Probe length l = 350 mm (immersion depth max. 300 mm, min. 100 mm)
Cable
Length 2 m [6.56 ft]
Connection Bare wire, DIN plug or SMART connector
1)
l = 13.78 in (immersion depth max. 11.81 in, min. 3.94 in)
Specications Model CTP5000-200
Specic probe data
Temperature range -50 … +200 °C [-58 ... +392 °F]
Resistance at 0 °C [32 °F] 100 Ω
Temperature coecient 0.00385
R(Ga)/R(tpw) Ratio less than 1.11807
Annual drift ±10 ... ±20 mK
Recommended measurement current 0.5 mA or 1 mA
Self heating error in water at 0 °C [32 °F] 2 ... 5 mK
Sheath material Stainless steel
Dimensions
Probe diameter d = 3 mm [0.12 in]
Probe length l = 30 mm [1.18 in], fully immersible
Cable
Length 3 m [9.84 ft]
Connection Bare wire, DIN plug or SMART connector
1)
Specications Model CTP5000-250
Specic probe data
Temperature range -50 … +250 °C [-58 ... +482 °F]
Resistance at 0 °C [32 °F] 100 Ω
Temperature coecient 0.00385
R(Ga)/R(tpw) Ratio less than 1.11807
Annual drift ±10 ... ±20 mK
Typical stability ±5 mK
Recommended measurement current 0.5 mA or 1 mA
Self heating error in water at 0 °C [32 °F] typically 2 ... 5 mK at 1 mA
Sheath material Stainless steel
Dimensions
Probe diameter d = 6 mm [0.24 in]
Probe length l = 350 mm (immersion depth max. 300 mm, min. 100 mm)
Cable
Length 2 m [6.56 ft]
Connection Bare wire, DIN plug or SMART connector
1) Specications may deviate; they depend on the use of the thermometer. The specied values are typical values for use in laboratories.
Page 2 of 6 WIKA data sheet CT 61.20 ∙ 03/2018
1)
l = 13.78 in (immersion depth max. 11.81 in, min. 3.94 in)
Specications Model CTP5000-450
Specic probe data
Temperature range -80 … +450 °C [-112 ... +842 °F]
Resistance at 0 °C [32 °F] 100 Ω
Temperature coecient 0.00385
R(Ga)/R(tpw) Ratio less than 1.11807
Annual drift ±20 ... ±30 mK
Typical stability ±5 mK
Recommended measurement current 0.5 mA or 1 mA
Self heating error in water at 0 °C [32 °F] typically 5 ... 10 mK at 1 mA
Sheath material Stainless steel
Dimensions
Probe diameter d = 6 mm [0.24 in]
Probe length l = 350 mm (immersion depth max. 300 mm, min. 100 mm)
Cable
Length 2 m [6.56 ft]
Connection Bare wire, DIN plug or SMART connector
1)
l = 13.78 in (immersion depth max. 11.81 in, min. 3.94 in)
Specications Model CTP5000-651
Specic probe data
Temperature range -189 … +650 °C [-308 ... +1,202 °F]
Resistance at 0 °C [32 °F] 100 Ω ±0.05 Ω
Temperature coecient 0.003925
R(Ga)/R(tpw) Ratio not less than 1.11807
Annual drift ±10 mK
Typical stability ±5 mK
Recommended measurement current 0.5 mA or 1 mA
Self heating error in water at 0 °C [32 °F] typically 13 mK at 1 mA or 3 mK at 0.5 mA
Sheath material Fused silica
Dimensions
Probe diameter d = 7.5 mm [0.30 in]
Probe length l = 450 mm (immersion depth max. 350 mm, min. 200 mm)
Cable
Length 2 m [6.56 ft]
Connection Bare wire, DIN plug or SMART connector
1)
l = 17.72 in (immersion depth max. 13.78 in, min. 7.87 in)
Specications Model CTP5000-652
Specic probe data
Temperature range -80 … +650 °C [-112 ... +1,202 °F]
Resistance at 0 °C [32 °F] 100 Ω
Temperature coecient 0.00385
R(Ga)/R(tpw) Ratio less than 1.11807
Annual drift ±15 mK
Typical stability ±5 mK
Recommended measurement current 1 mA
Self heating error in water at 0 °C [32 °F] 10 ... 15 mK at 1 mA
Sheath material Metal alloy
Dimensions
Probe diameter d = 6 mm [0.24 in]
Probe length l = 450 mm (immersion depth max. 400 mm, min. 300 mm)
Cable
Length 2 m [6.56 ft]
Connection Bare wire, DIN plug or SMART connector
1) Specications may deviate; they depend on the use of the thermometer. The specied values are typical values for use in laboratories.
WIKA data sheet CT 61.20 ∙ 03/2018 Page 3 of 6
1)
l = 17.72 in (immersion depth max. 15.75 in, min. 11.81 in)
Specications Model CTP5000-T25
Specic probe data
Temperature range -196 … +660 °C [-321 ... +1,220 °F]
Resistance at 0 °C [32 °F] 25 ±0.5 Ω
Calibration Suitable for calibration per ITS-90 up to a maximum temperature of 660.323 °C [1,220.581 °F]
Temperature coecient 0.003926
R(Ga)/R(tpw) Ratio not less than 1.11807
R(Me)/R(tpw) Ratio not greater than 0.844235
Reproducibility ±1 mK
Basic accuracy ±1 mK
Annual drift ±5 mK
Typical stability ±1 mK
Recommended measurement current 1 mA
Self heating error in water at 0 °C [32 °F] ±2 ... ±3 mK with 1mA in un-stirred water
Gas lling Dry air at 1/3 atmosphere
Sheath material Fused quartz
Dimensions
Sheath d = 6.5 ... 7.5 mm [0.26 ... 0.30 in)
Head d = 23 mm [0.91 in]
Overall length 560 mm [22.05 in]
Cable
Length 4 m [13.12 ft] PTFE insulated cable
Connection gold-plated copper spade lugs
Case
Dimensions 680 x 170 x 70 mm [26.77 x 6.69 x 2.76 in]
Weight 2.4 kg [5.29 lbs.] (including thermometer)
1) Specications may deviate; they depend on the use of the thermometer. The specied values are typical values for use in laboratories.
1)
(freezing point aluminium)
l = 480 mm (immersion depth max. 400 mm, min. 300 mm)
l = 18.90 in (immersion depth max. 15.75 in, min. 11.81 in)
l = 90 mm [3.54 in]
Approvals
Logo Description Country
- MTSCHS
Permission for commissioning
Kazakhstan
Certicates
Certicate
Calibration Standard: without certicate
Option: 3.1 calibration certicate per DIN EN 10204 or DKD/DAkkS/UKAS calibration certicate
Recommended recalibration
interval
Approvals and certicates, see website
Page 4 of 6 WIKA data sheet CT 61.20 ∙ 03/2018
1 year (dependent on conditions of use)
ø 3.0 [0.12]
ø 9.5 [0.37]
7 mm [0.28 in]
Dimensions in mm [in]
Resistance thermometer
Spring strain relief
2 metres [6.56 ft]
35.0
[1.38]
Ser No
25.0
[0.98]
Engraved line
300 mm [11.81 in] maximum insertion depth
350 or 450 [13.78 or 17.72]
Model Dimensions Temperature range Detector length
CTP5000-170 Pt100, d = 6 mm, l = 350 mm (without spring strain relief, 100 mm handle)
Pt100, d = 0.24 in, l = 13.78 in (without spring strain relief, 3.94 in handle)
CTP5000-250 Pt100, d = 6 mm, l = 350 mm
Pt100, d = 0.24 in, l = 13.78 in
CTP5000-450 Pt100, d = 6 mm, l = 350 mm
Pt100, d = 0.24 in, l = 13.78 in
CTP5000-652 Pt100, d = 6 mm, l = 450 mm (without spring strain relief, 100 mm handle)
Pt100, d = 0.24 in, l = 17.72 in (without spring strain relief, 3.94 in handle)
CTP5000-651 Pt100, d = 7.5 mm, l = 450 mm (125 mm handle)
Pt100, d = 0.30 in, l = 17.72 in (4.92 in handle)
-196 ... +170 °C
[-321 ... +338 °F]
-50 ... +250 °C
[-58 ... +482 °F]
-80 ... +450 °C
[-112 ... +842 °F]
-80 ... +650 °C
[-112 ... +1,202 °F]
-189 ... +650 °C
[-308 ... +1,202 °F]
ø 6 or ø 7 [ø 0.24 or ø 0.28]
13.0 [0.51]
nominal
35 mm
[1.38 in]
25 mm
[0.98 in]
25 mm
[0.98 in]
30 mm
[1.18 in]
50 mm
[1.97 in]
Centreline
of sensor
Resistance thermometer
Brazed weld
ø 8.0 [0.31]
3 metres [9.84 ft]
30.0 [1.18]
30.0 [1.18]
Model Dimensions Temperature range Detector length
CTP5000-200 Pt100, d = 3 mm, l = 30 mm
Pt100, d = 0.12 in, l = 1.18 in
-50 ... +200 °C
[-58 ... +392 °F]
6 mm
[0.24 in]
Resistance thermometer
nominal diameter
480 mm [18.90 in]
90 mm [3.94 in]
Model Dimensions Temperature range Detector length
CTP5000-T25 Pt25, d = 6.5 ... 7.5 mm, l = 480 mm
Pt25, d = 0.26 ... 0.30 in, l = 18.90 in
-196 ... +660 °C
[-321 ... +1,220 °F]
WIKA data sheet CT 61.20 ∙ 03/2018 Page 5 of 6
45 mm
[1.77 in]
Resistance thermometer connection, 4-wire (5-pin DIN connector)
View towards front panel connector
Shield
Options
With bare wires, DIN plug or SMART plug
With ASL's SMART connector on the probes,storing the data
is needed only once - in the connector! The calibration data
stays with the probe - permanently. It can even be used on
another read-out without any further action.
Viewed from top panel
Shield
The SMART connector saves time and reduces error. If there
are existing calibrated or uncalibrated probes, no problem,
ASL read-outs automatically register if a probe is SMART or
normal.
Scope of delivery
■
Model CTP5000 reference thermometer in accordance
with specication
Accessories
Temperature probes
■
With DIN plug
■
With SMART plug
■
Probe extension cable
Option
■
DKD/DAkkS calibration certicate
- With calculation of coecients or
- With calculation of coecients as well as additional value
table print from K to K
■
UKAS calibration certicate
Ordering information
Model / Probe / Connection of the probe / Calibration / Calculation coecients / Test point for the calibration certicate /
Additional order information
© 06/2013 WIKA Alexander Wiegand SE & Co. KG, all rights reserved.
The specications given in this document represent the state of engineering at the time of publishing.
We reserve the right to make modications to the specications and materials.
Page 6 of 6 WIKA data sheet CT 61.20 ∙ 03/2018
Test case
■
Carrying case, robust
WIKA Alexander Wiegand SE & Co. KG
Alexander-Wiegand-Straße 30
63911 Klingenberg/Germany
Tel. +49 9372 132-0
Fax +49 9372 132-406
info@wika.de
www.wika.de
03/2018 EN
Loading...
