Infrared calibrator
Model CTI5000
for further approvals see
page 2
Applications
■
Testing and calibration of non-contact temperature
measuring instruments
■
Heating source for on-site laboratories for the calibration
of infrared thermometers
■
Also suitable for on-site calibration
Special features
Calibration technology
WIKA data sheet CT 41.42
■
Testing of infrared thermometers across a wide
temperature range; 50 … 500 °C (122 ... 932 °F)
■
Large surface area of the black body (∅ 57 mm / 2.24 in)
for all types of pyrometers
■
Bore to accept a reference sensor
■
Low weight and compact design
■
Simple operation
Description
Aim – shoot – test
For the calibration of infrared thermometers above ambient
temperature, the model CTI5000 is suitable up to 500 °C
(932 °F). Due to its stability, the new portable infrared
calibrator is particularly suited to the calibration of infrared
hand-held thermometers.
The black body has a large diameter so that a wide variety of
infrared thermometers can be tested, no matter which lenses
are tted.
The emissivity is xed at 0.95 and the temperature can be
controlled in steps of 0.1 °C.
To check the black body, there is a bore located directly
behind the surface so that the measurement can be made
with contact and the quality monitored.
Infrared calibrator, model CTI5000
∙ 03/2017
Page 1 of 4WIKA data sheet CT 41.42
Specications
Model CTI5000
Infrared calibrator
Indication
Application range 50 … 500 °C (122 ... 932 °F)
Stability ±0.1 K to 100 °C (212 °F)
±0.2 K to 350 °C (662 °F)
±0.4 K to 500 °C (932 °F)
Resolution 0.1 K
Temperature control
Heating time 30 min from T
Cooling time 40 min from 500 °C to 100 °C (from 932 °F to 212 °F)
Stabilisation time approx. 15 ... 20 min
Measuring surface
Emissivity 0.95
Diameter of the measuring surface 57 mm (2.24 in)
Permissible ambient conditions
Relative humidity 35 ... 85 % r. h. (non-condensing)
Operating temperature 5 ... 35 °C (41 ... 95 °F)
Voltage supply
Power supply AC 230 V, 50/60 Hz
Power consumption 275 VA
Case
Dimensions (W x D x H) 190 x 248 x 113 mm (7.5 x 9.8 x 4.5 in)
Weight 2.1 kg (4.6 lbs)
to 500 °C (T
amb.
to 932 °F)
amb.
Approvals
Logo Description Country
EU declaration of conformity
■
EMC directive
■
Low voltage directive
■
RoHS directive
EAC
■
EMC directive
■
Low voltage directive
- MTSCHS
Permission for commissioning
BelGIM
Metrology, measurement technology
Uzstandard
Metrology, measurement technology
Approvals and certicates, see website
European Union
Eurasian Economic Community
Kazakhstan
Belarus
Uzbekistan
Page 2 of 4 WIKA data sheet CT 41.42 ∙ 03/2017
246 (9.69)
Dimensions in mm (in)
182 (7.17)
102 (4.02)
112 (4.41)
233 (9.17)
Ø 7 (0.28)
48.5 (1.91)
Bore for temperature probe
28.5
(1.12)
WIKA data sheet CT 41.42 ∙ 03/2017 Page 3 of 4

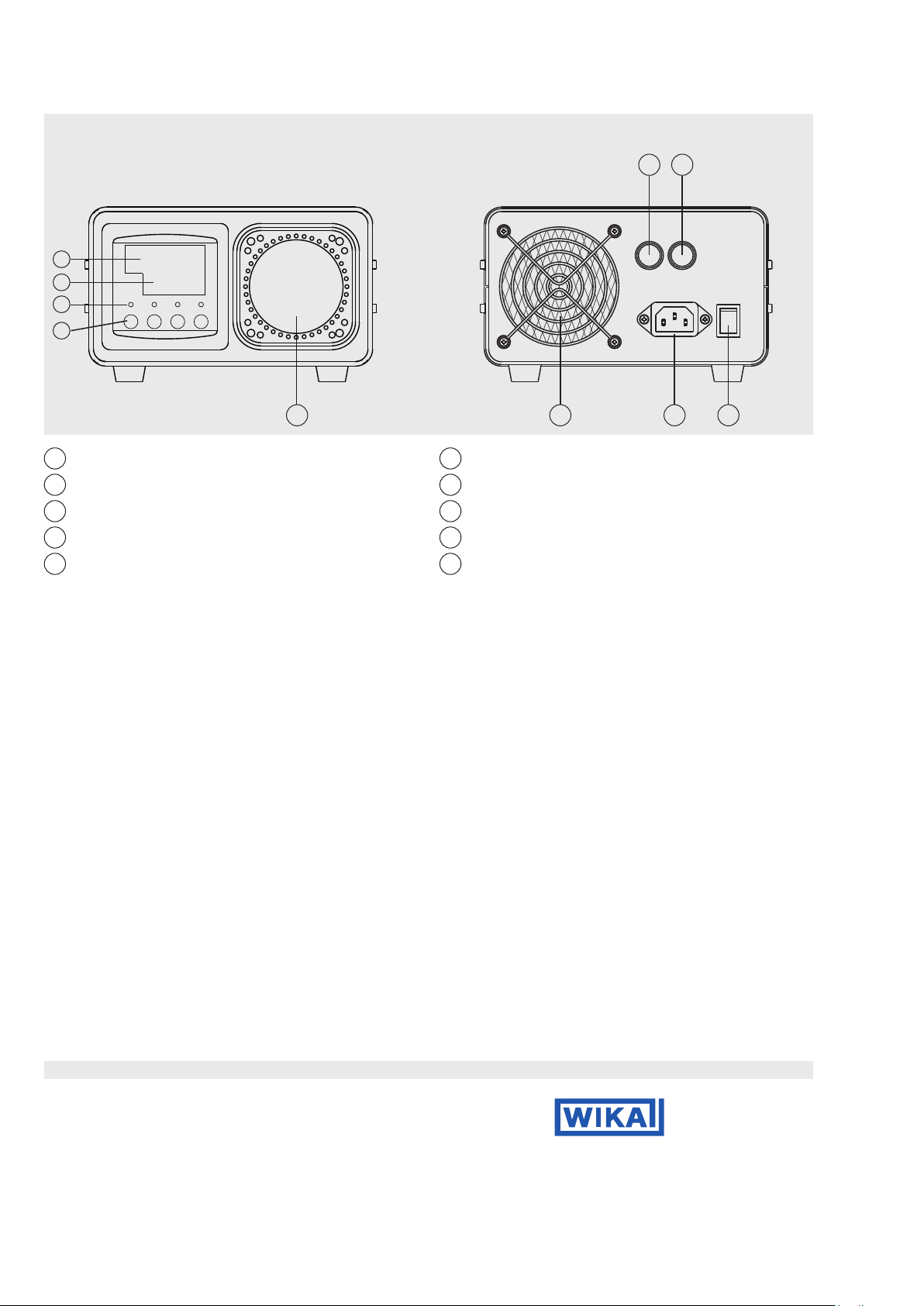

Controls
Front view Rear view
5
4
3
2
76
1
1
Measuring surface
2
Control panel
3
Status LED's
4
Indication of the currently-selected set temperature
5
Indication of the current block temperature
Scope of delivery
■
Infrared calibrator model CTI5000
■
Operating instructions
■
Power cord
10 9 8
6
Fuse for the heating
7
Fuse for the control
8
ON/OFF switch
9
Mains connection socket
10
Fan
Ordering information
Model / Mains voltage / Further approvals / Additional ordering information
