EN_s292-293_Messw-Maxi_Inhalt_2012 14.02.12 19:35 Seite 292
Wiha measurement tools/articulated hose systems.
Wiha makes it possible: Measure and cooling with Swiss precision.
292292
EN_s292-293_Messw-Maxi_Inhalt_2012 14.02.12 19:35 Seite 293
Measurement tools range
www.wiha.com
Wiha fibre-glass-reinforced folding rulers.
2 m of perfection.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Longlife All in One, Longlife Plus and Longlife.
Wiha fibre-glass-reinforced callipers.
Precision made in Switzerland.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
digiMax, caliMax, dialMax and dialMax ESD.
Wiha advertising articles.
Your name on every measurement tool.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Articulated hose range
Wiha articulated hose system.
The universal pipe system.
maxiflex system ø¼"
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
294
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
295
296
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
297
298
299
300
maxiflex system ø½"
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
301
293
EN_s294-298_Messw_2012 14.02.12 19:36 Seite 294
Wiha fibre-glass-reinforced folding rulers.
2 m of perfection.
Often emulated but never surpassed –
the Longlife Plus folding metre rule:
has a long service life and is accurate
and easy to use.
The world's first folding ruler made
of high-quality fibre-glass material
was developed and manufactured
in 1968 and, since then, has been
successfully marketed under the
"Longlife" name.
Its characteristic joint with
perfect long-life characteristics
is still unique.
294
The Polyamide reinforced with
30% fibre-glass makes the
Longlife ruler water resistant and
scratch and score-proof.
Compared to wooden folding rulers
a substantially higher service life is
attained.
A deep embossed, precise scale
on each segment contributes to the
excellent performance characteristics.
Joints
Metal ends
Backwards running scale
Fixation
Angle gauge
Angular display
Wiha fibre-glass reinforced folding rulers.
Permanent – Longlife
– no swelling from contact
with water!
– distinctly longer service life
compared to wooden folding
ruler
– resistant to chemicals,
washable
Longlife Plus
– red joint bodies for
improved legibility
– wear-resistant metal ends
– backwards running scale
Longlife All in One
– angle measurement function
– depth measurement function
Exact
– CE conformity and Swiss
precision for all rulers

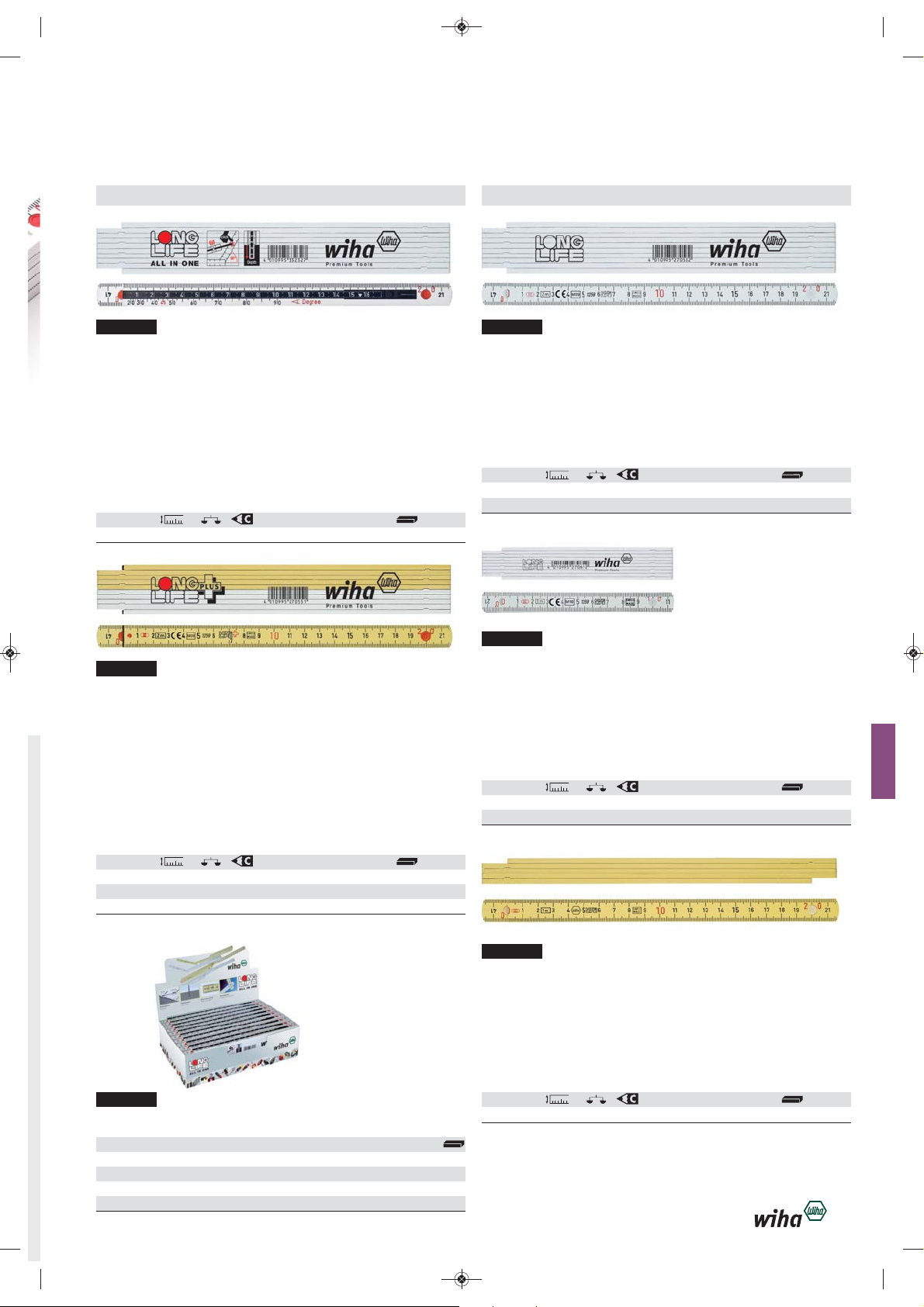

EN_s294-298_Messw_2012 14.02.12 19:36 Seite 295
www.wiha.com
Longlife All in One and Longlife Plus. Displays.
410 2007
Longlife All in One folding ruler, 2 m metric, 10 segments.
Material: Glass fibre reinforced polyamide. Scratch, weather and chemical resistant.
Joints: Play free, wear resistant and maintenance free joint
Scale: Deep embossed black scale in 1 mm increments.
Accuracy: CE conformity, EU standard accuracy class III.
Extra: Readable from both sides through a second, backwards running scale
Order-No.
33232 15 135 white 10
410 2001
With metal ends.
Material: Glass fibre reinforced polyamide. Scratch, weather and chemical resistant.
Joints: Play free, wear resistant and maintenance free joint
Scale: Deep embossed black scale in 1 mm increments.
Accuracy: CE conformity, EU standard accuracy class III.
Extra: Wear resistant metal ends on the first and last segments.
with steel spring pin for constant tension.
Usefull 90° snap-in position.
Every 10 cm is marked in red.
(Recto Verso).
Depth measurement with push-out depth gauge.
Angle measurement with anchoring of depth gauge in fixation hole.
Longlife Plus folding metre rule, 2 m, metric, 10 segments.
with steel spring pin for constant tension.
Usefull 90° snap-in position.
Every 10 cm is marked in red.
Readable from both sides through a second, backwards running scale
(Recto Verso).
Longlife.
410 2000
Material: Glass fibre reinforced polyamide.
Joints: Play free, wear resistant and maintenance free joint
Scale: Deep embossed black scale in 1 mm increments.
Accuracy: CE conformity, EU standard accuracy class III.
Order-No.
27058 15 140 yellow 10
27057 15 140 white 10
410 1000
Material: Glass fibre reinforced polyamide.
Joints: Play free, wear resistant and maintenance free joint
Scale: Deep embossed black scale in 1 mm increments.
Accuracy: CE conformity, EU standard accuracy class III.
Order-No.
27061 13 45 yellow 10
27062 13 45 white 10
Longlife folding metre rule, 2 m, metric, 10 segments.
Scratch, weather and chemical resistant.
with steel spring pin for constant tension.
Usefull 90° snap-in position.
Every 10 cm is marked in red.
Longlife folding metre rule, 1 m, metric, 10 segments.
Scratch, weather and chemical resistant.
with steel spring pin for constant tension.
Usefull 90° snap-in position.
Every 10 cm is marked in red.
Order-No.
27055 15 140 yellow 10
27059 15 140 white 10
27060 15 140 yellow/white 10
410 … VH
Sales counter display for Longlife folding rulers.
Card display with 20 pcs. (2 m) or 54 pcs. (1 m).
Order-No. Art.-No. Content
33660 410 2007 2 VH 20 x 41020072 Longlife All in One, 2 m 1
33945 410 2001 1 VH 20 x 41020011 Longlife Plus, 2 m, yellow 1
34495 410 2000 2 VH 20 x 41020002 Longlife, 2 m, white 1
33946 410 1000 2 VH 54 x 41010002 Longlife, 1 m, white 1
410 1010
Longlife folding metre rule, 1 m, metric, 5 segments.
Material: Glass fibre reinforced polyamide.
Joints: Play free, wear resistant and maintenance free joint
Scale: Deep embossed black scale in 1 mm increments.
Accuracy: CE conformity, EU standard accuracy class III.
Order-No.
27063 15 65 yellow 20
J
Special scales available on request.
Scratch, weather and chemical resistant.
with steel spring pin for constant tension.
Usefull 90° snap-in position.
Every 10 cm is marked in red.
Sale only in pack quantities!
295
EN_s294-298_Messw_2012 14.02.12 19:36 Seite 296
Wiha fibre-glass-reinforced callipers.
Precision made in Switzerland.
The Wiha callipers from the "max"
range are manufactured since 1965
with Swiss precision. Due to the
unique advantages made available
by the non-metal, high-tech material
with 50% fibre-glass component,
the callipers have found new applications where their advantages are
distinct when compared to the more
heavy metal designs.
They are particularly suitable for
measuring high-quality and highly
sensitive objects.
These measuring tools are also
ideal
for all metal, wood and plasticprocessing applications, for field
staff and service engineers.
Thanks to their antimagnetic
properties, Wiha callipers prevent
measuring surfaces from becoming
soiled by metal filings, which could
impair the accuracy of measurements. Since they are made of non-
296
corrosive material, Wiha callipers
can also be used in damp working
environments.
With the Wiha dialMax ESD callipers,
measuring at ESD workstations
and in ESD protection zones is now
possible for the first time.
The dialMax ESD calliper can be used for
measuring delicate electronic components.
The measuring jaw of the fibre-glass
reinforced calliper enables scratch-free
measurement of even very delicate,
shiny surfaces.
1
2
Play free motion of the sliding compo-
components through precision de-
nents
sign for precise measurement results:
1. Fixed position
2. Flexible spring component
Wiha fibre-glass reinforced callipers.
Permanent
– very rigid with 50% fibre-glass
component
High tech material
– non-metallic
– non-corrosive
– non-magnetic
– minimum thermal conductivity
– electrically insulating
– resistant to chemicals
– temperature resistant
measuring surfaces:
temporarily to 180°,
permanently at 100-120°
Versatile applications
– highly sensitive measurement
objects
– electronic components
– sensitive surfaces
– model making and prototype
production
– food industry
– ESD protective zones
Precise
– practical ratchet guarantees
equally balanced clamping
force of the measurement jaws
2
1

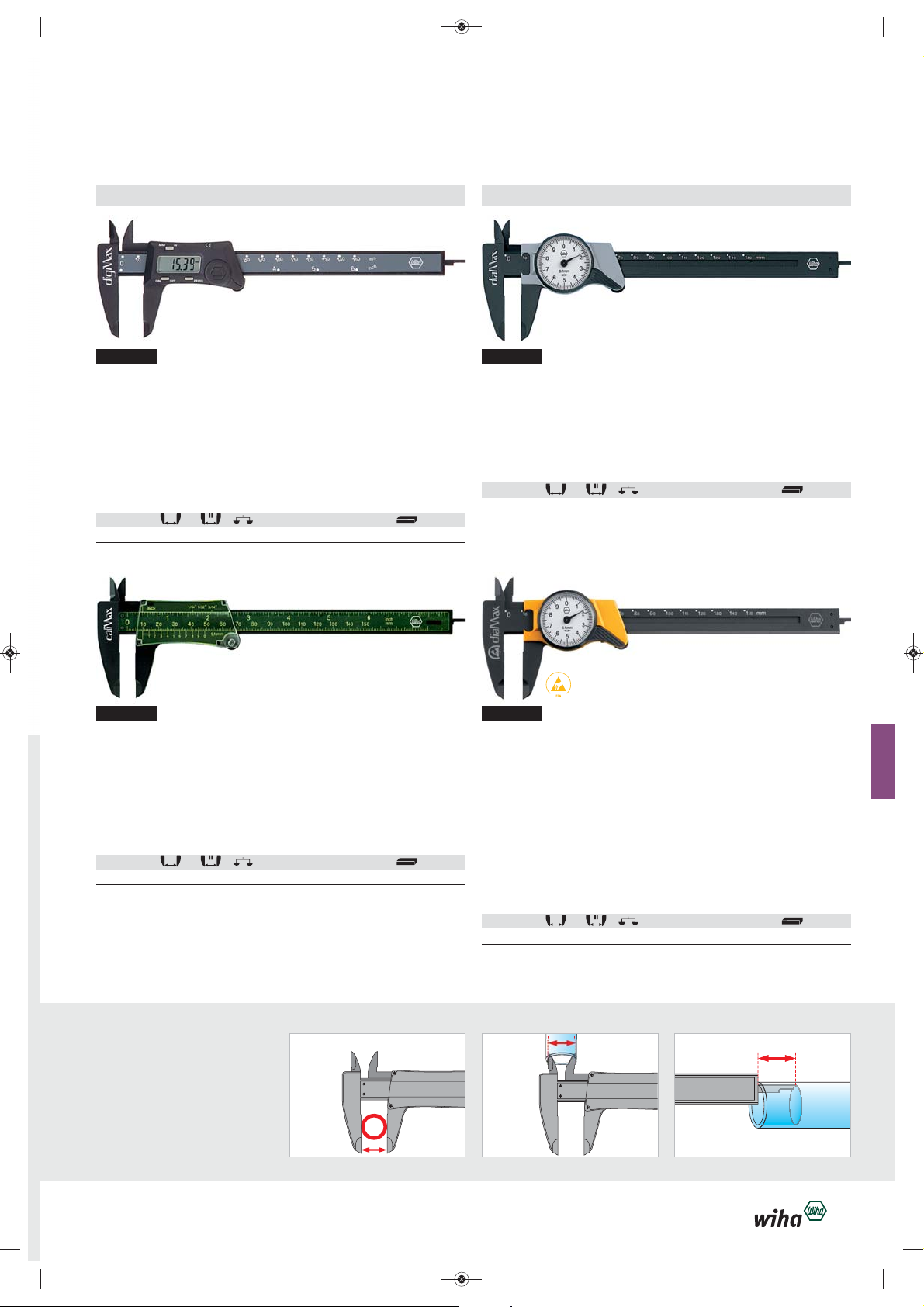

EN_s294-298_Messw_2012 14.02.12 19:36 Seite 297
www.wiha.com
digiMax and caliMax.
411 170 1
Material: Non-metallic high-tech material with 50% fibre-glass content.
Scale: 5-digit digital display with 7.5 mm numeral height for easy reading.
Reading: 0.01 mm as well as 0.0005 inch.
Packaging: Plastic box with hanging attachment.
S
Application: For outside, inside and depth measurements.
Extra: Switches off automatically after 5 minutes of non-use.
Digital calliper digiMax, reading 0.01 mm.
tandards: CE compliant.
Zero setting possible in every position for quick comparison measurements.
Battery with approx. 2-year service life included.
Order-No.
29422 150 6 48 5
dialMax and dialMax ESD.
411 210 2
Material: Non-metallic high-tech material with 50% fibre-glass content.
Scale: Dial, diameter 35 mm.
Reading: 0.1 mm; 1 dial rotation represents 10 mm.
P
Application: For outside, inside and depth measurements.
Extra: Impact resistant dial can be recalibrated to zero.
Analog calliper dialMax, reading 0.1 mm.
Accuracy as per DIN 862.
ackaging: Blister packed.
Order-No.
27082 150 6 45 5
411 320 3
Material: Non-metallic high-tech material with 50% fibre-glass content.
Scale: Vernier for millimetre and inch display.
Reading: 0.1 mm as well as 1/64 inch.
Packaging: Blister packed.
Application: For outside, inside and depth measurements.
Extra: Almost parallax-free reading of the measurement value.
Vernier calliper caliMax, reading 0.1 mm.
Accuracy as per DIN 862.
Neon green vernier scale in with strong contrast for optimal reading.
Order-No.
27083 150 6 45 10
Wiha Info
411 210 8
Material: Calliper made of ESD-safe material.
Scale: Dial, diameter 35 mm.
Reading: 0.1 mm; 1 dial rotation represents 10 mm.
Packaging: Blister packed.
Standards: IEC 61340-5-1.
Application: For all work with electrostatically endangered components.
Extra: Measurements in ESD protection zones and at ESD workstations.
Dial calliper dialMax ESD, reading 0.1 mm.
Non-metallic high-tech material with 60% fibre-glass content.
Surface resistance 10
Accuracy as per DIN 862.
For outside, inside and depth measurements.
Impact resistant dial can be recalibrated to zero.
Order-No.
31439 150 6 45 5
6
- 109ohms.
Outside measuring Inside measuring Depth measuring
297
EN_s294-298_Messw_2012 14.02.12 19:37 Seite 298
Wiha advertising articles.
Your name on every measurement tool.
Because of their excellent characteristics the Wiha measuring tools
make perfect advertising products
for you and your customers.
Do you place value on high quality
advertising products with a long
service life? Then the folding rulers
of the Longlife series with their
perfect long-life properties are the
perfect solution. The water resistant
and scratch and score-proof fibreglass reinforced plastic makes the
Longlife ruler the best advertising
product for all applications,
with a distinctly longer advertising
duration than a wooden folding ruler.
Whether 2 m, 1 m, yellow or white,
the Wiha folding rulers embellished
with your imprint give you and your
customers the ideal surface for
long-term advertising effects.
Advertise your imprint on the side
surfaces of the folding rulers or
on the measuring jaws of the Wiha
callipers.
A limited advertising space is available
for your design:
2 m folding metre rule with max.
advertising space of 160 x 25 m
Wiha advertising articles.
Permanent advertising –
Longlife
– distinctly longer service life
of Longlife rulers compared
to wooden folding rulers
because of water resistance
New: with digital printing
(complete surface of side)!
Versatile –
your name on the ruler
– 2 m, 1 m, white, yellow,
further colours on request
1 m folding metre rule with max.
advertising space of 75 x 17 mm
Versatile –
your name on the callipers
– special colours on request
Top product
Calliper with max. advertising space
A = 32 x 10 mm or B = 45 x 18 mm
A
Price on request.
Please specify your desired product,
quantity and the number of colours
to be printed.
B
– Swiss precision with all
folding rulers and callipers
298
EN_s299-301_Maxi_2012 14.02.12 19:38 Seite 299
Wiha articulated hose system.
The universal pipe system.
®
www.wiha.com
Wiha maxiflex®is a universal
articulated hose system with
maximum flexibility.
The broad range of hose joints, nozzles, connections, junctions and
stop valves supply perfect
solutions for every cooling or
lubrication task.
A high quality and indestructible
plastic, extensive design knowledge and precise manufacturing
of all components ensures that this
articulated hose system can be
adapted for each individual
application in day-to-day practice.
With tight fitting components, maxi-
®
is dimensionally stable,
flex
meaning no altering under pressure
or via machine vibrations.
Unrestricted flow design
Assembly pliers
Separation
wedge
Assembly pliers and separation wedge
The Wiha maxiflex®universal
articulatedhose system
is dimensionally stable,
individually adjustable and
has a long service life.
Wiha articulated
hose system.
Permanent
– high quality, indestructible,
dimensionally stable plastic
– resistant to chemicals and
solvents
– is not an electrical conductor
Universal use
– cooling and lubrication
for sawing, drilling, milling,
grinding and machining
processes
– blowing out and drawing in
of air
– conducting of solvents
– positioning of auxiliary aids
(so-called third hands)
Flexible
– adapter solutions for other
hose systems
Precise
– Swiss precision with
articulated hose assortment
299
EN_s299-301_Maxi_2012 14.02.12 19:38 Seite 300
Wiha articulated hose system.
The universal pipe system.
maxiflex®programme ø ¼" (6.35 mm). maxiflex®programme ø ¼" (6.35 mm).
Order-No. Article-No. J
27085 412 2030 1
Pack with 22 segments, assembled
Length: 280 mm
27086 412 2060 1
Pack with 80 segments, assembled
Length: 1000 mm
27087 412 2220 1
Pack with 4 cylindrical nozzles ø 1.6 mm
27088 412 2240 1
Pack with 4 cylindrical nozzles ø 3.2 mm
27089 412 2260 1
Pack with 4 cylindrical nozzles ø 5.6 mm
27090 412 2280 1
24 mm wide
27091 412 2330 1
24 mm wide
27092 412 2420 1
Pack with 4 angular nozzles ø 1.6 mm
27093 412 2440 1
Pack with 4 angular nozzles ø 3.2 mm
27094 412 2460 1
Pack with 4 angular nozzles ø 5.6 mm
27095 412 2480 1
Pack with 2 multi-hole angular nozzles,
7 holes (ø 2 mm)
27096 412 2640 1
Pack with 4 adapters for LOC-LINE
and ARIANA Cool-Line
27097 412 2650 1
Pack with 4 spherical double socket
segments
27098 412 2660 1
Pack with 4 double nipples
27099 412 2710 1
Pack with 4 threaded nipples R 1/8"
27100 412 2720 1
Pack with 4 threaded nipples R 1/4"
27101 412 2740 1
Pack with 2 Y-junctions
27102 412 2770 1
Pack with 2 regulating valves
27103 412 2780 1
Pack with 2 segment clips
28006 412 2020 1
6 short nozzles, assembled, with:
1 threaded nipple R 1/8"
1 segment
1 short cylindrical nozzle ø 2.5 mm
29446 412 2760 1
Ball valve with threaded outlet G 1/4"
Pack with 2 flat nozzles
Pack with 2 flat nozzles
, 7 holes (
ø 1.5 mm)
®
Order-No. Article-No. J
Flexi
27084 412 2010 1
maxiflex
1 threaded nipple R 1/4"
22 segments
1 cylindrical nozzle ø 3.2 mm
Total length: 320 mm
27108 412 2920 1
Separation wedge
27109 412 2930 1
Assembly pliers
27104 412 2810 1
Set with magnetic foot and ball valve,
assembled
1 threaded nipple R 1/4"
22 segments
1 cylindrical nozzle ø 3.2 mm
Magnetic foot with hose nozzle ø 11 mm
Extra: Magnetic adhesion 80 N
27105 412 2820 1
Set with magnetic foot, assembled
2 threaded nipples R 1/4"
44 segments, length: 2 x 320 mm
2 cylindrical nozzles ø 3.2 mm
Magnetic foot with hose nozzle ø 11 mm
Extra: Magnetic adhesion 80 N
27106 412 2830 1
Set with magnetic foot and ball valve,
assembled
22 segments
1 cylindrical nozzle ø 3.2 mm
Magnetic foot with hose nozzle ø 11 mm
Extra: Magnetic adhesion 150 N
27107 412 2850 1
Distribution block with 3 ball valves
Ball valves with threaded outlets R 1/4"
Hose nozzle ø 11 mm
Extra: Magnetic adhesion 4 x 95 N
30518 412 2000 1
maxiflex
3 tubes à 280 mm
2 cylindrical nozzles ø 1.6 mm
3 cylindrical nozzles ø 3.2 mm
2 cylindrical nozzles ø 5.6 mm
1 flat nozzle 24 mm
1 flat nozzle 24 mm, 7 holes ø 1.5 mm
2 Y-junctions
1 spherical double socket segment
2 threaded nipples R 1/8"
3 threaded nipples R 1/4"
1 adapter for LOC-LINE
1 assembly pliers
1 separation wedge
1 threaded nipple R 3/8" for hose diameter 1/2"
1 reduction of hose diameter from 1/2" to 1/4"
®
-set, assembled
®
basic set
®
®
¼
"
300
EN_s299-301_Maxi_2012 14.02.12 19:38 Seite 301
www.wiha.com
maxiflex®programme ø ½" (12.7 mm). maxiflex®programme ø ½" (12.7 mm).
Order-No. Article-No. J
27111 412 4030 1
Pack with 12 segments, assembled
Length: 265 mm
27112 412 4060 1
Pack with 48 segments, assembled
Length: 1000 mm
27113 412 4130 1
Pack with 4 jointed pipe segments
Length: 440 mm
27114 412 4160 1
27115 412 4220 1
Pack with 4 cylindrical nozzles ø 10 mm
27116 412 4240 1
30 mm wide
27117 412 4330 1
27118 412 4360 1
27119 412 4420 1
Pack with 4 angular nozzles ø 7 mm
27120 412 4440 1
Pack with 4 angular nozzles ø 10 mm
27121 412 4460 1
Pack with 2 multi-hole angular nozzles,
8 holes (ø 3.5 mm)
27122 412 4620 1
Pack with 2 reducers,
1/2" to 1/4" system
27123 412 4640 1
Pack with 4 adapters for LOC-LINE
and ARIANA Cool-Line
27124 412 4650 1
Pack with 4 spherical double socket
segments
27125 412 4660 1
Pack with 4 double nipples
27126 412 4720 1
Pack with 4 threaded nipples R 3/8"
27127 412 4730 1
Pack with 4 threaded nipples R 1/2"
27128 412 4740 1
Pack with 2 Y-junctions
27129 412 4750 1
Pack with 2 Y reducer junctions
1/2" to 1/4" system
27130 412 4770 1
Pack with 2 regulating valves
27131 412 4780 1
Pack with 2 segment clips
Pack with 4 segment clamps incl. screws
Pack with 2 flat nozzles, 6 holes (ø 10 mm)
Pack with 2 flat nozzles
Pack with 2 flat nozzles
30 mm wide
60 mm wide
®
Order-No. Article-No. J
Flexi
29447 412 4760 1
Ball valve with
threaded outlet G 3/8"
27110 412 4010 1
maxiflex
1 threaded nipple R 1/2"
12 segments
1 cylindrical nozzle ø 10 mm
Total length: 320 mm
27134 412 4920 1
Separation wedge
27135 412 4930 1
Assembly pliers
27132 412 4820 1
Set with magnetic foot and ball valve,
assembled
1 threaded nipple R 3/8"
12 segments
1 cylindrical nozzle ø 10 mm
Magnetic foot with hose nozzle ø 13 mm
Extra: Magnetic adhesion 150 N
27133 412 4860 1
Distribution block with 3 ball valves
Ball valve with threaded outlet R 3/8"
Extra: Magnetic adhesion 4 x 95 N
30519 412 4000 1
maxiflex
3 tubes à 265 mm
3 cylindrical nozzles ø 10 mm
1 flat nozzle 30 mm
1 flat nozzle 60 mm
1 flat nozzle 30 mm, 6 holes ø 3.3 mm
1 Y-junction
1 Y reducer junction
3 threaded nipples R 1/2"
2 threaded nipples R 3/8"
1 adapter for LOC-LINE
1 assembly pliers
1 separation wedge
®
®
1 reduction of hose diameter from 1/2" to 1/4"
Wiha Info
You currently use a different system?
No problem!
System Information
®
LOC-LINE
®
Snap-Loc
ARIANA Cool-Line
LEGROM-VARIO-
®
System
Compatible with help of maxiflex®adapter
order no. 27096 (¼") and 27123 (½").
Compatible on both sides (external and internal ball)
without adapter.
Compatible with help of maxiflex
order no. 27096 (¼") and 27123 (½").
Small version ¼" is compatible with help of
maxiflex adapter (order no. 27096) when using
Varios outer ball and adapters inner ball.
-set, assembled
basic set
®
®
adapter
®
½
"
301
Loading...
