Wiener MPOD LV, MPOD HV Technical Manual

25. July 2012 1 Version 2.5.5

MPOD HV& LV

Power Supply System

Technical Manual

General Remarks

The only purpose of this manual is a description of the product. It must not be interpreted as

a declaration of conformity for this product including the product and software.
W-Ie-Ne-R revises this product and manual without notice. Differences of the description in

manual and product are possible.
W-Ie-Ne-R excludes completely any liability for loss of profits, loss of business, loss of use

or data, interrupt of business, or for indirect, special incidental, or consequential damages of

any kind, even if W-Ie-Ne-R has been advises of the possibility of such damages arising

from any defect or error in this manual or product.

Any use of the product which may influence health of human beings requires the express

written permission of W-Ie-Ne-R.

Products mentioned in this manual are mentioned for identification purposes only. Product

names appearing in this manual may or may not be registered trademarks or copyrights of

their respective companies.

No part of this product, including the product and the software may be reproduced,

transmitted, transcribed, stored in a retrieval system, or translated into any language in any

form by any means with the express written permission of W-Ie-Ne-R.

Control Cabinet

In the context of this user manual, the control cabinet must fulfill the requirements on fire-

protective enclosures according to EN 60950 / IEC 60950 / UL 60950.

All devices are intended for operation in control cabinets or in closed areas. The LAN

connection and all wire connections between the different system parts must be done via

shielded cable with conductive connector shells, which are fixed with screws.

Furthermore, an additional fire-protective enclosure is required which must not affect proper

air circulation.

25. July 2012 i

Mains Voltage and Connection

The Power supplies are equipped with a “World”- mains input (rated voltage range: 100-240
VAC, frequency: 50-60 Hz, rated current: 16 A). Before connecting to the mains please
double-check correspondence.

Mains input connection at the power supply side is done with a 3-pin HIRSCHMANN
connector or power terminals. There is no main fuse inside. A circuit breaker for overcurrent
protection 16A, type B or C (EN / IEC 60898, VDE 0641), has to be installed externally.

Before disconnection the HIRSCHMANN connector, the power supply should be switched
into standby state. (Use the ON/OFF-Switch of the front pannel of the MPOD system)

Hirschmann. Signal Description Color of the Wire

Pin 1 L Phase black or brown

Pin 2 N Return, Neutral blue

Pin 3 not connected

Earth PE Protective Earth green/yellow

Connection to Earth

Safety

After connecting the Power box to the mains, the mains input module is powered
permanently. Filter and storage capacitors of the power factor correction module are charged
with about 400VDC. Any DC-On-Signal as well as a power switch at control board (if any
installed) operates as a low voltage DC on/off switch only and not as a mains breaker.

Therefore it becomes dangerous if the box cover is open. In this case a lot of
components on high voltage potential get touchable!

Before starting any kind of work inside the power box remove the unit from
mains and wait a couple of minutes with your activities! Discharge the primary
DC Filter-capacitors by use of a well isolated 22 ohm 10W resistor.
We recommend in case of any malfunction to send the power box to Wiener or
to one of our representative for service

The backplane is connected to 385 V DC voltage. So never touch the backplane
or its connectors!

The HV-Modules produce very high voltage which may be mortal danger if
handled improperly. Please read the separate manuals of the HV modules for
detailed information!

25. July 2012 ii

Declaration of Conformity

Low Voltage Directive 73/23/EEC and EMC Directive Art. 10.1 of 89/336/EEC

W-Ie-Ne-R

Plein & Baus GmbH

declare under our own responsibility that the product

MPOD Power Supply System

Items: 0MPV.xxxx, 0BP0.9003, 0316.0070, 0R00.0002

is in accordance with the following standards or standardized documents:

1. EN 60 950-1:2001

+ Corr:2004-09

Niederspannungsrichtlinie [low voltage

directive]

2. EN 61 000-6-3:2001

Störaussendung EMA [RF emission]

EN 55 022:1998
+ Corr:2001 + A1:2000 Kl. B

Störspannung [conducted noise]

EN 55 022:1998
+ Corr:2001 + A1:2000 Kl. B

Störfeldstärke [radiated noise]

EN 61 000-3-2:2001 Oberschwingungen [harmonics]
EN 61 000-3-3:1995 +Corr:1997 +A1:2001 Spannungsschwankungen [flicker]

3. EN 61 000-6-2:2001 Störfestigkeit EMB [immunity]

EN 61 000-4-6:1996 + A1:2001 HF-Einströmung [injected HF currents]
EN 61 000-4-3:1996 + A1:1998 + A2:2001 HF-Felder [radiated HF fields] incl.

”900MHz”
EN 61 000-4-4:1995 + A1:2001 Burst
EN 61 000-4-5:1995 + A1:2001 Surge
EN 61 000-4-11:1994 + A1:2000 Spannungs-Variationen [voltage

variations]
EN 61 000-4-2:1995 + A1:1998 + A2:2001 ESD

Conditions:
This unit is not a final product and is foreseen for use inside a closed cabinet. The supplying

of loads over long distances (>3m) needs possibly additional RF rejection hardware to get in

conformity of the definition.

Name and signature of authorized person Place and Date

Manfred Plein

Techn. Director
April 2008

25. July 2012 iii

Contents

Declaration of Conformity................................................................................................iii

1 General Information................................................................................................1

1.1 Mpod Features ............................................................................................................. 1

1.2 Mpod Crate - standard types..........................................................................................2

1.3 Mpod Mini crate............................................................................................................ 3

2 LV Modules..............................................................................................................4

2.1 MPOD Low Voltage Module Versions.........................................................................5

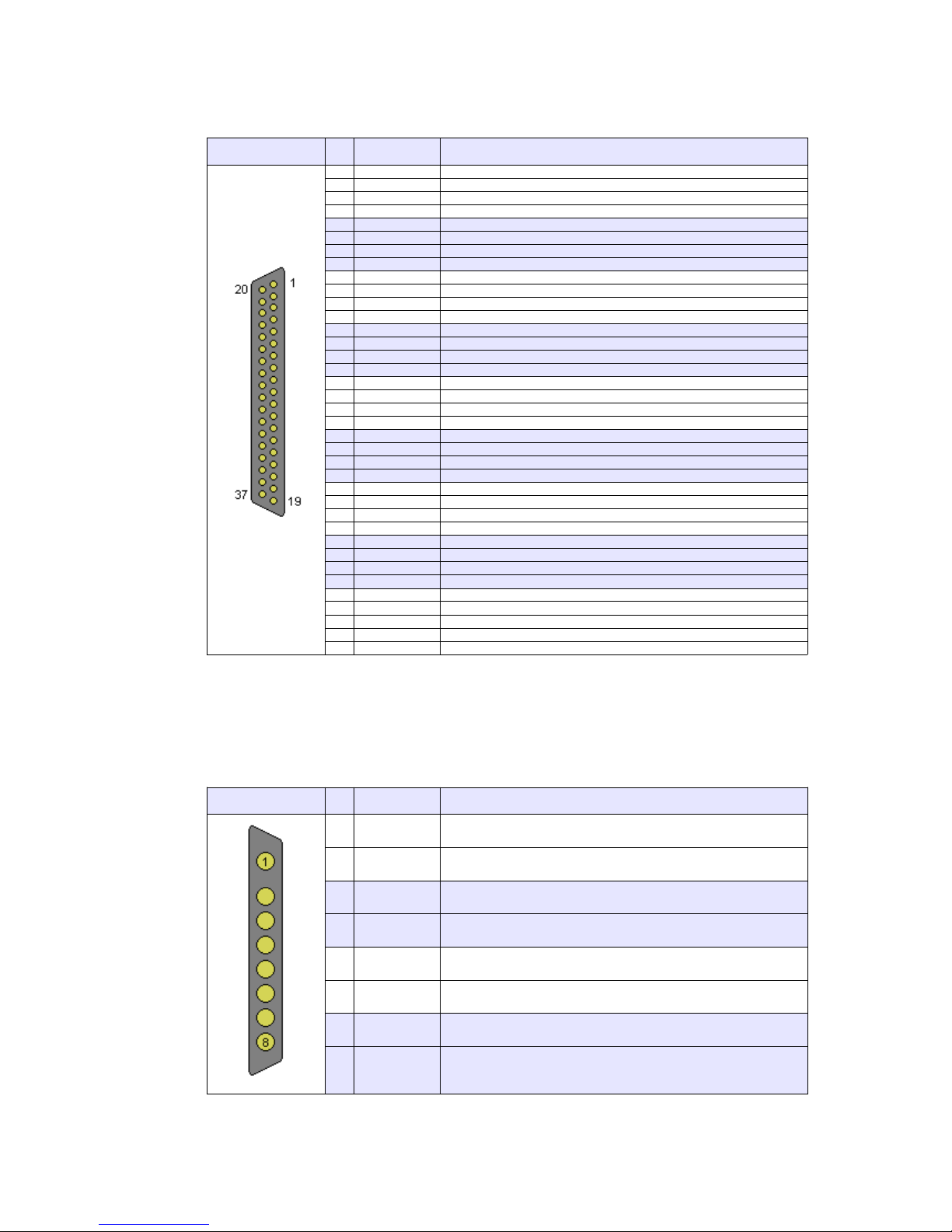

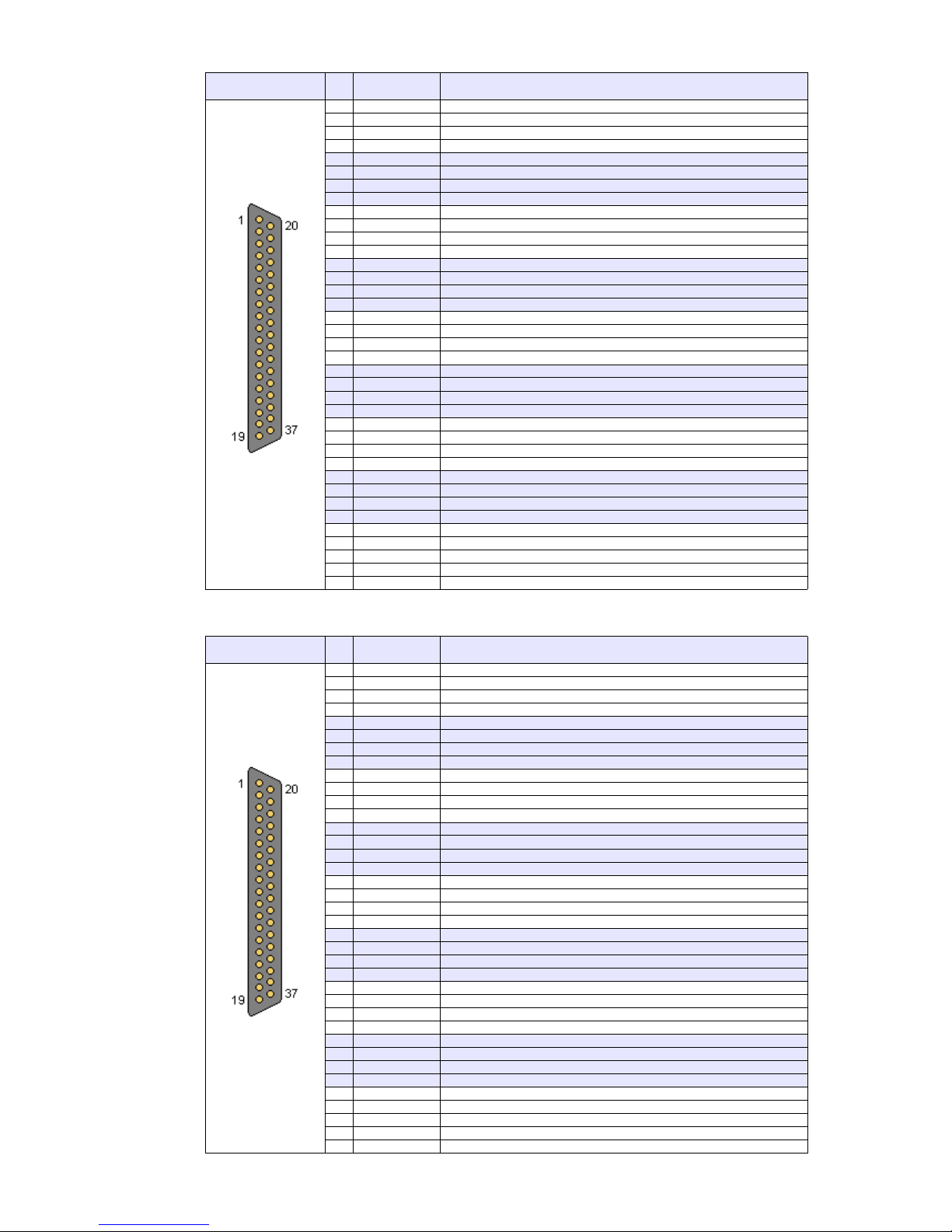

2.2 Combined Power & Sense Connector Pin Assignment (standard female type).............5

2.3 Sense & Control Connector Pin Assignment (modules with mixed DSUB37 +

DSUB37-8).........................................................................................................................7

2.4 Power Connector Pin Assignment (modules with mixed DSUB37 + DSUB37-8)........7

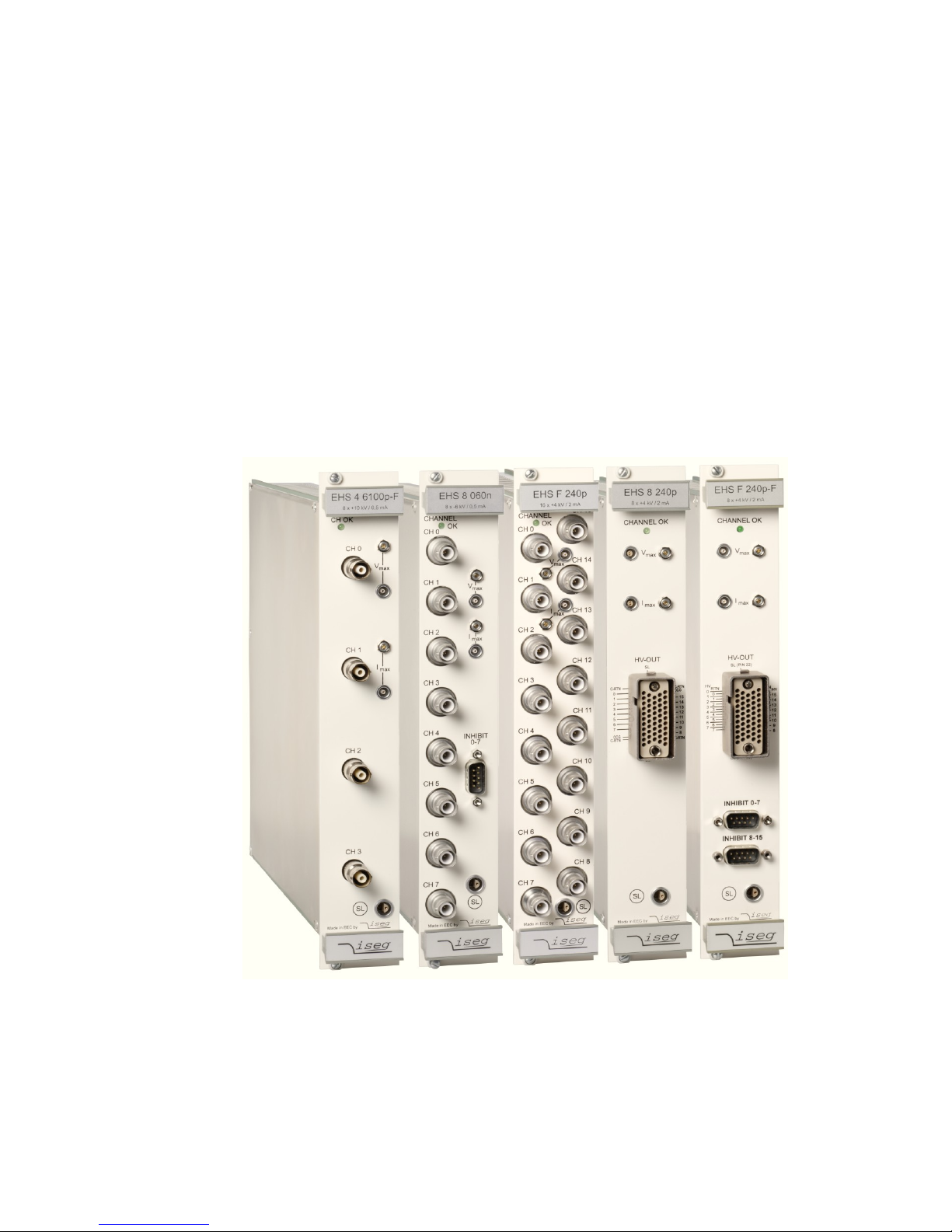

3 HV Modules .............................................................................................................9

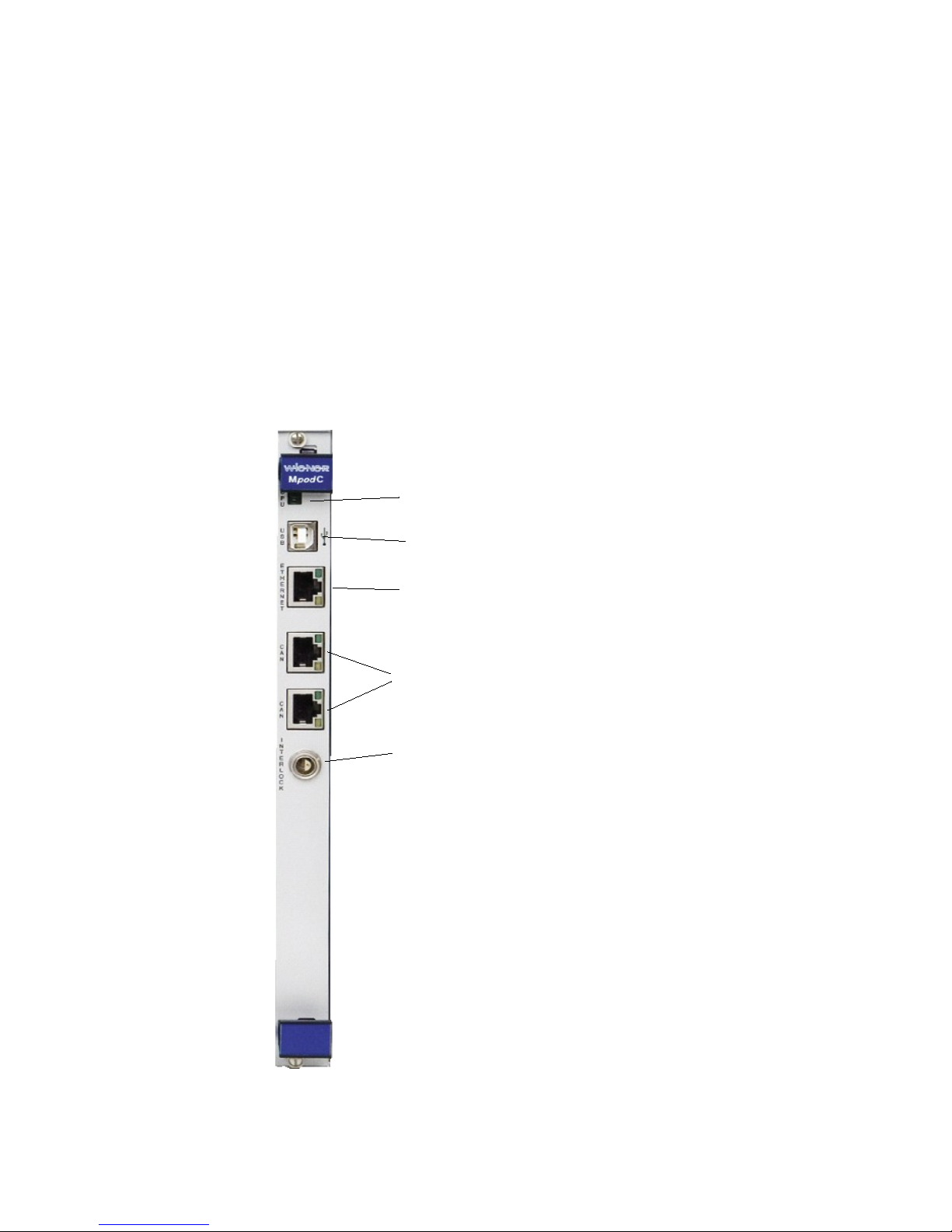

4 Mpod Controller....................................................................................................12

5 Local Control .........................................................................................................14

5.1 Introduction.................................................................................................................14

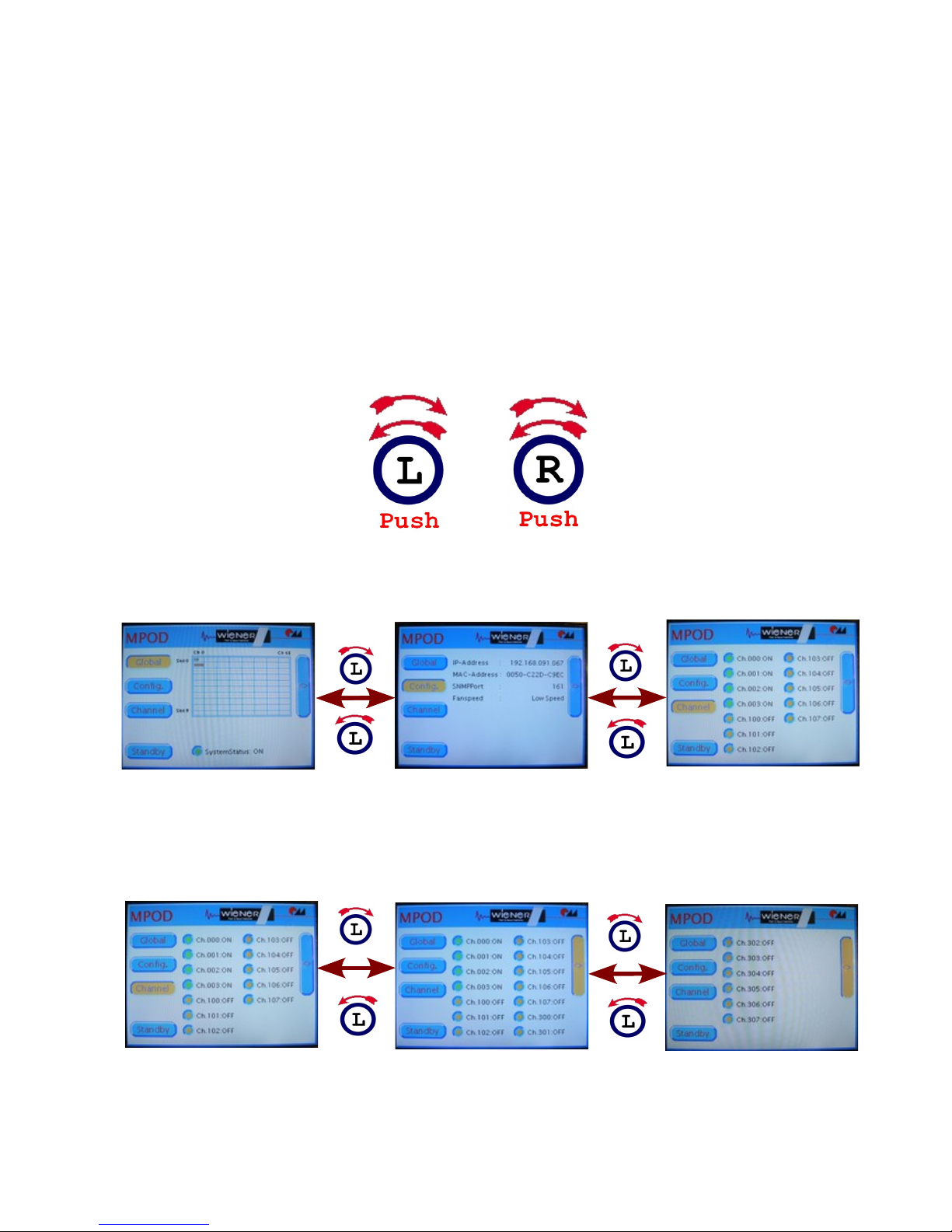

5.2 Usage of the rotary controls.........................................................................................14

5.3 Main Menu Overview..................................................................................................16

5.4 Channel Menu Overview.............................................................................................17

6 Remote Control / Software....................................................................................18

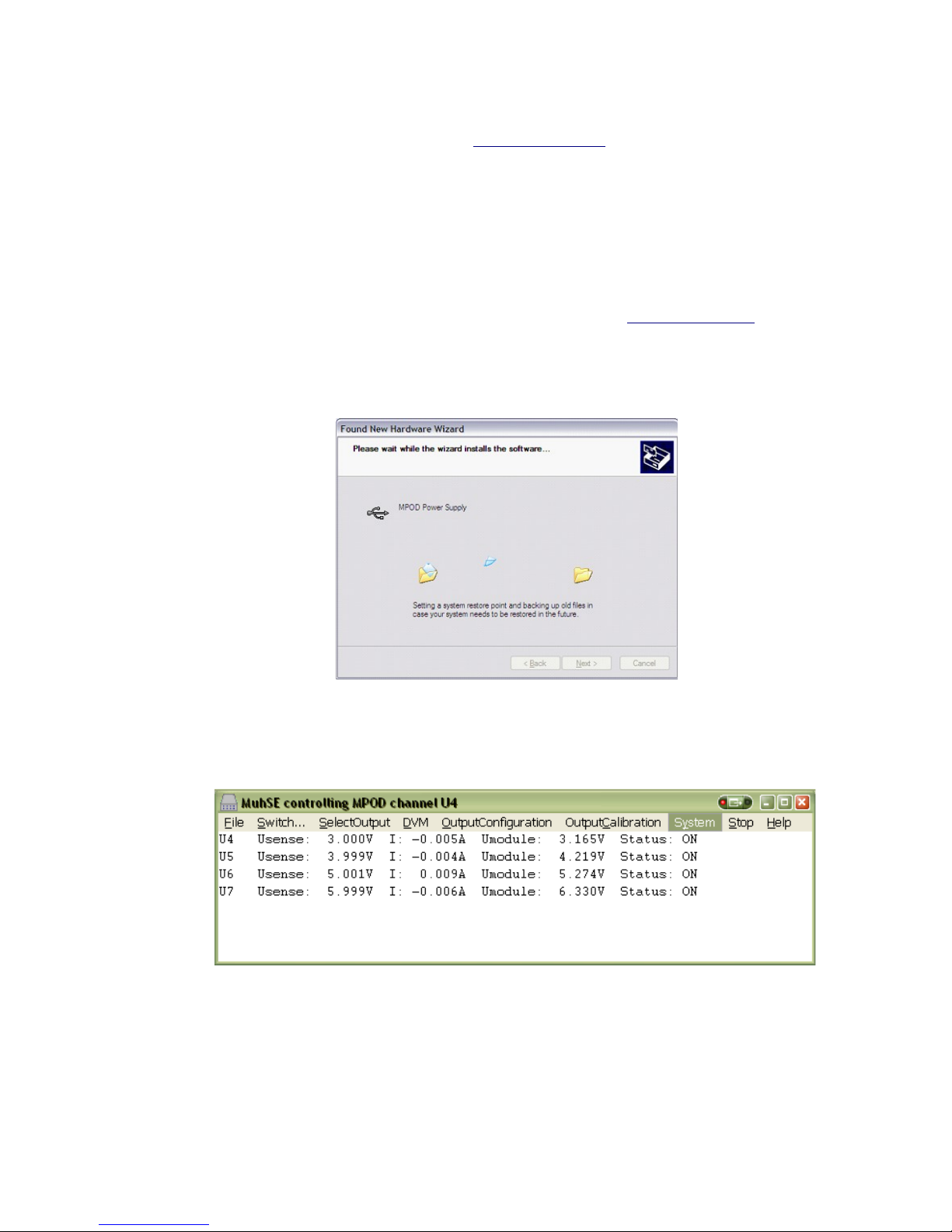

6.1 Software Setup for Microsoft Windows......................................................................18

6.2 Web Browser............................................................................................................... 20

6.3 NetSNMP....................................................................................................................21

6.4 ISEG High voltage module special commands............................................................26

6.5 Change of community names / setting of passwords...................................................31

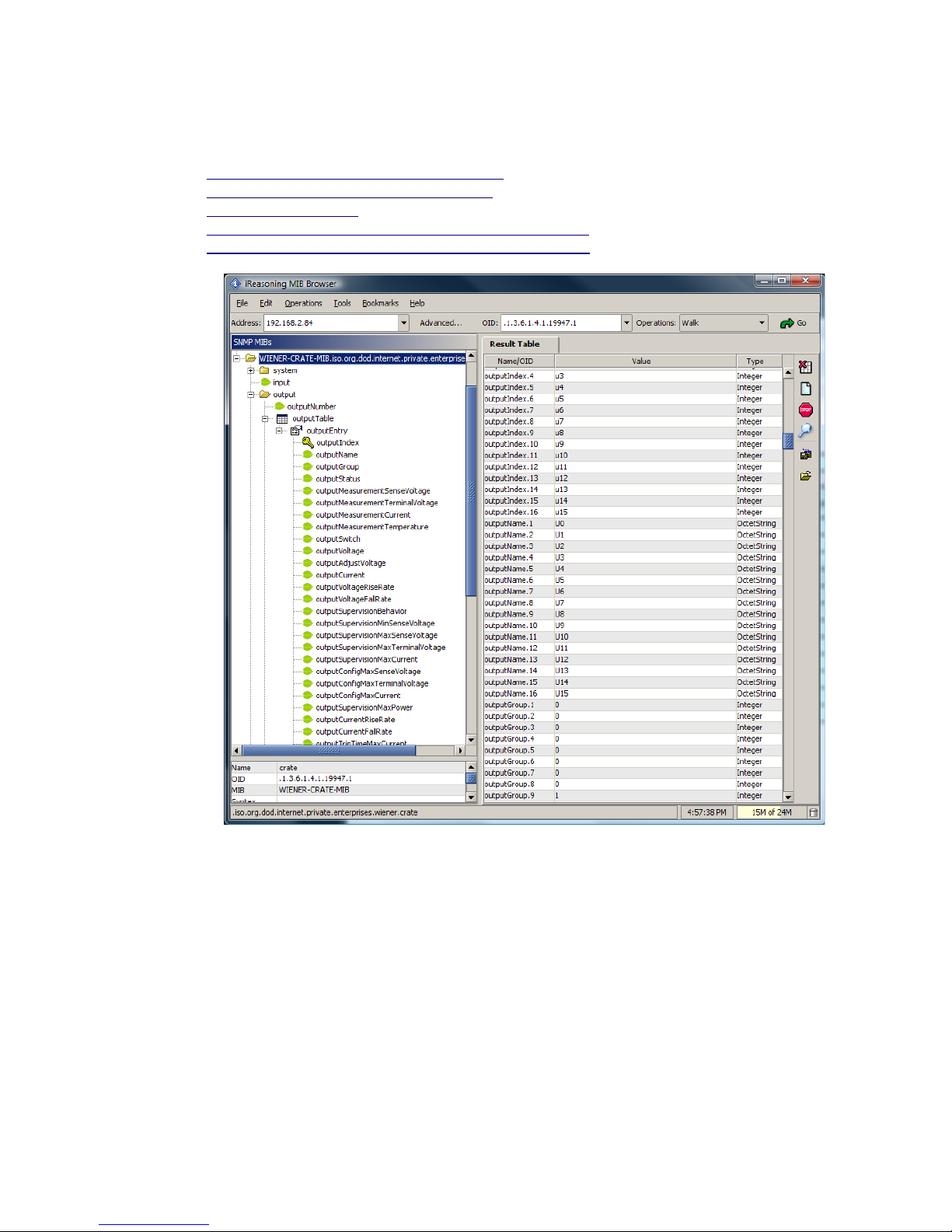

6.6 MIB Browser............................................................................................................... 32

6.7 A BASH Simple Script for SNMP..............................................................................32

6.8 Mpod SNMP Parameter List (most common).............................................................34

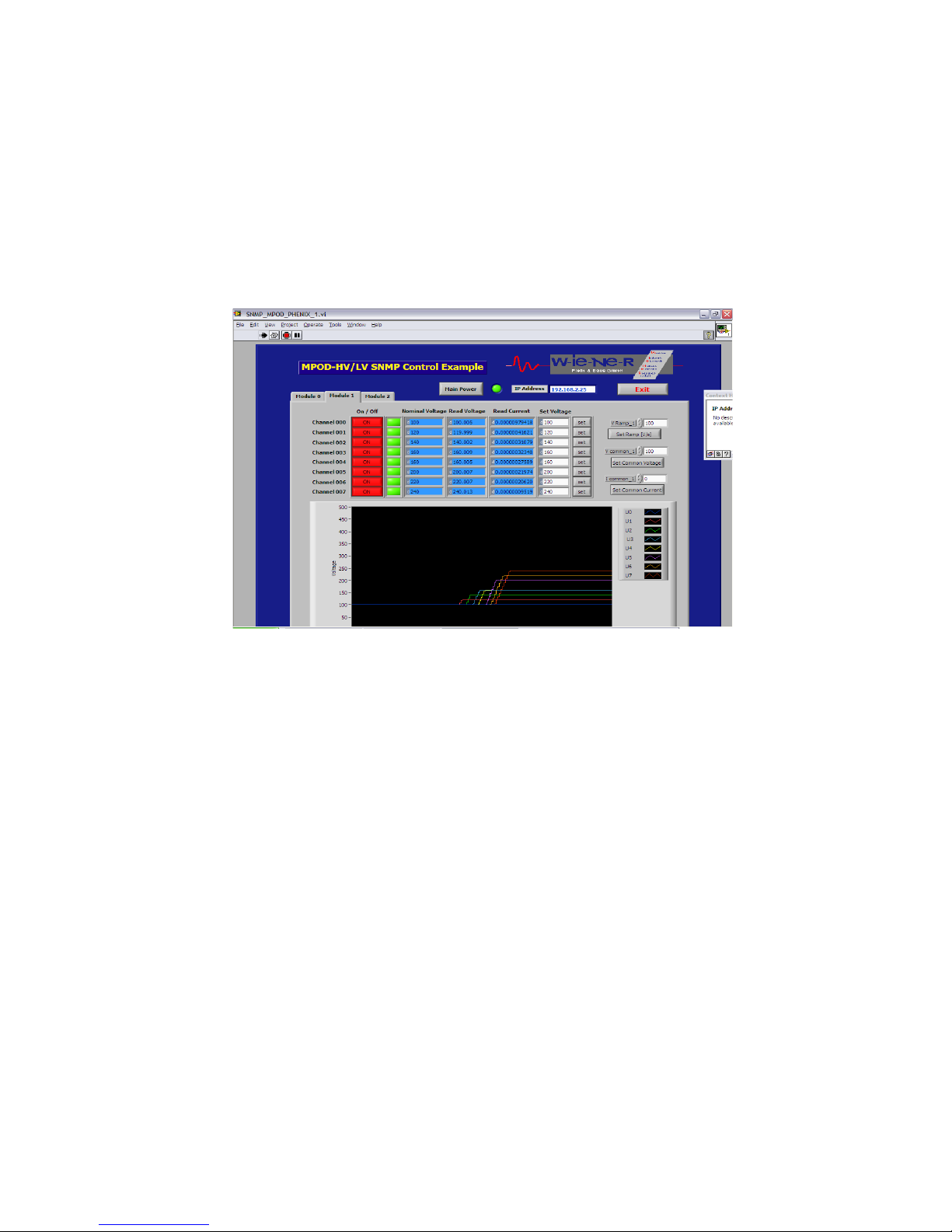

6.9 LabView Control Program (NETSNMP)....................................................................35

6.10 C++ programming (NetSNMP).................................................................................35

7 Mpod Crate............................................................................................................37

8 Primary Power Supply..........................................................................................37

8.1 Power Box Data Sheet.................................................................................................37

9 Mpod Low Voltage module MPV 8xx data sheet................................................38

10 SNMP examples for MPOD and high voltage EHS/EDS module...................40

11 WIENER SNMP Parameter structure...............................................................43

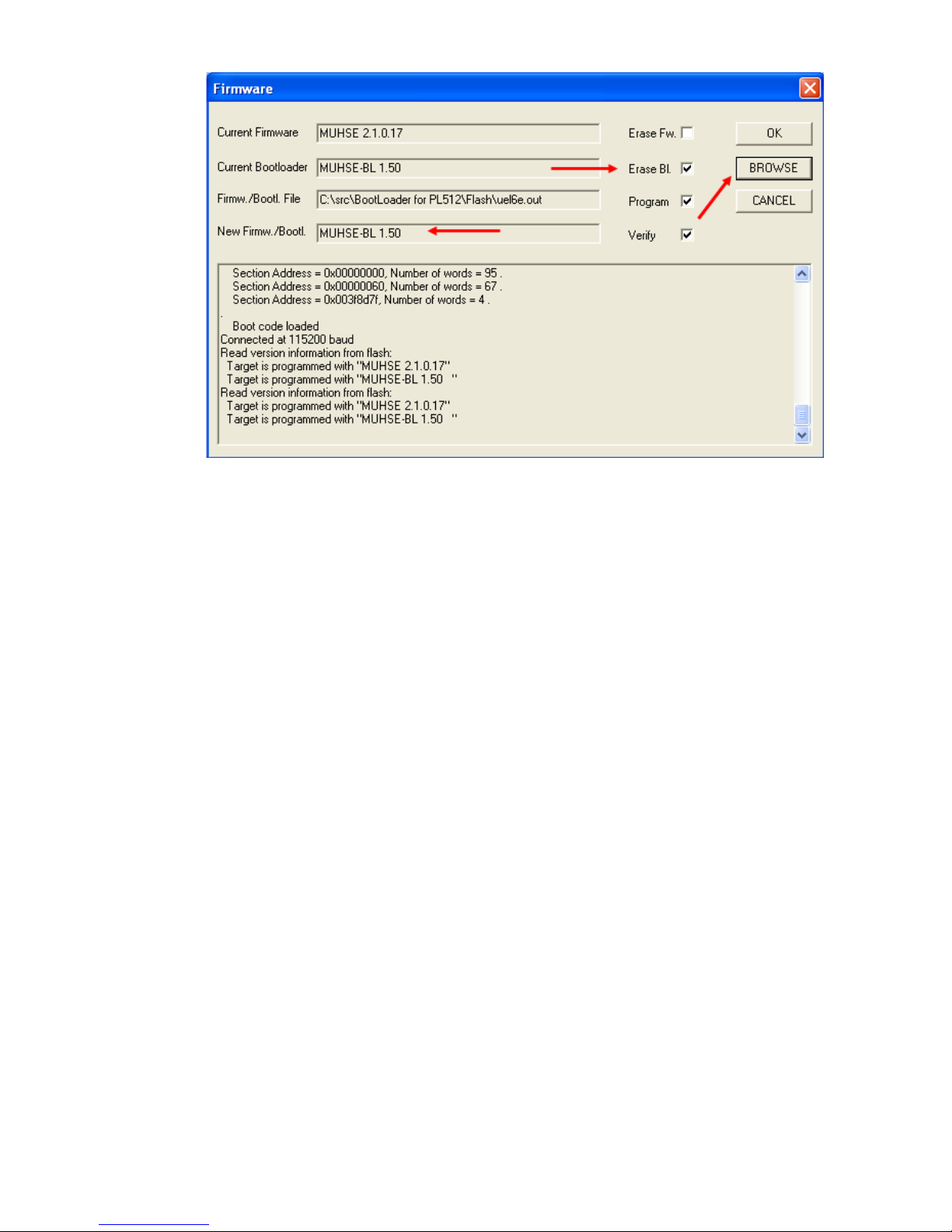

12 MPOD Firmware Update....................................................................................52

25. July 2012 iv

Figures

Tables

25. July 2012 v

1 General Information

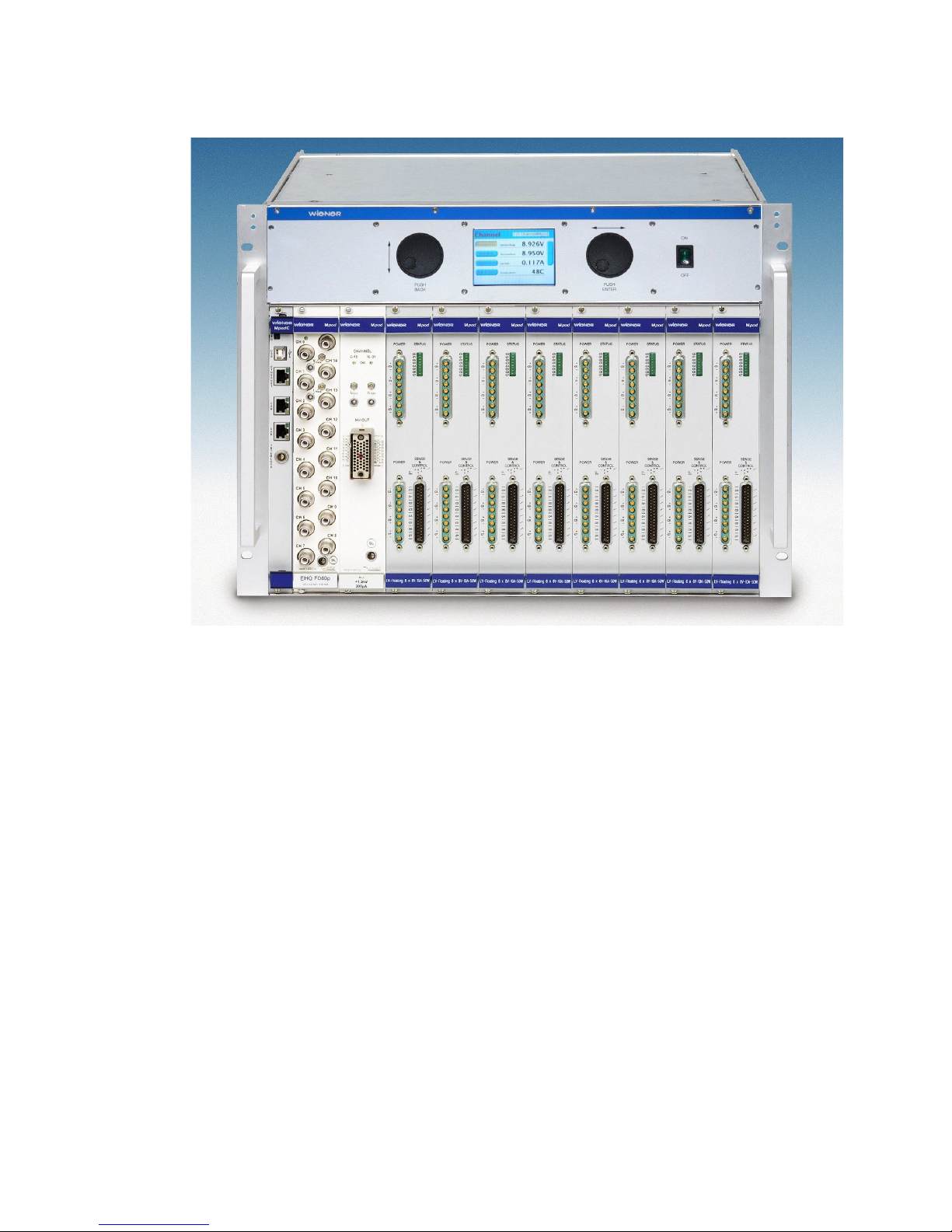

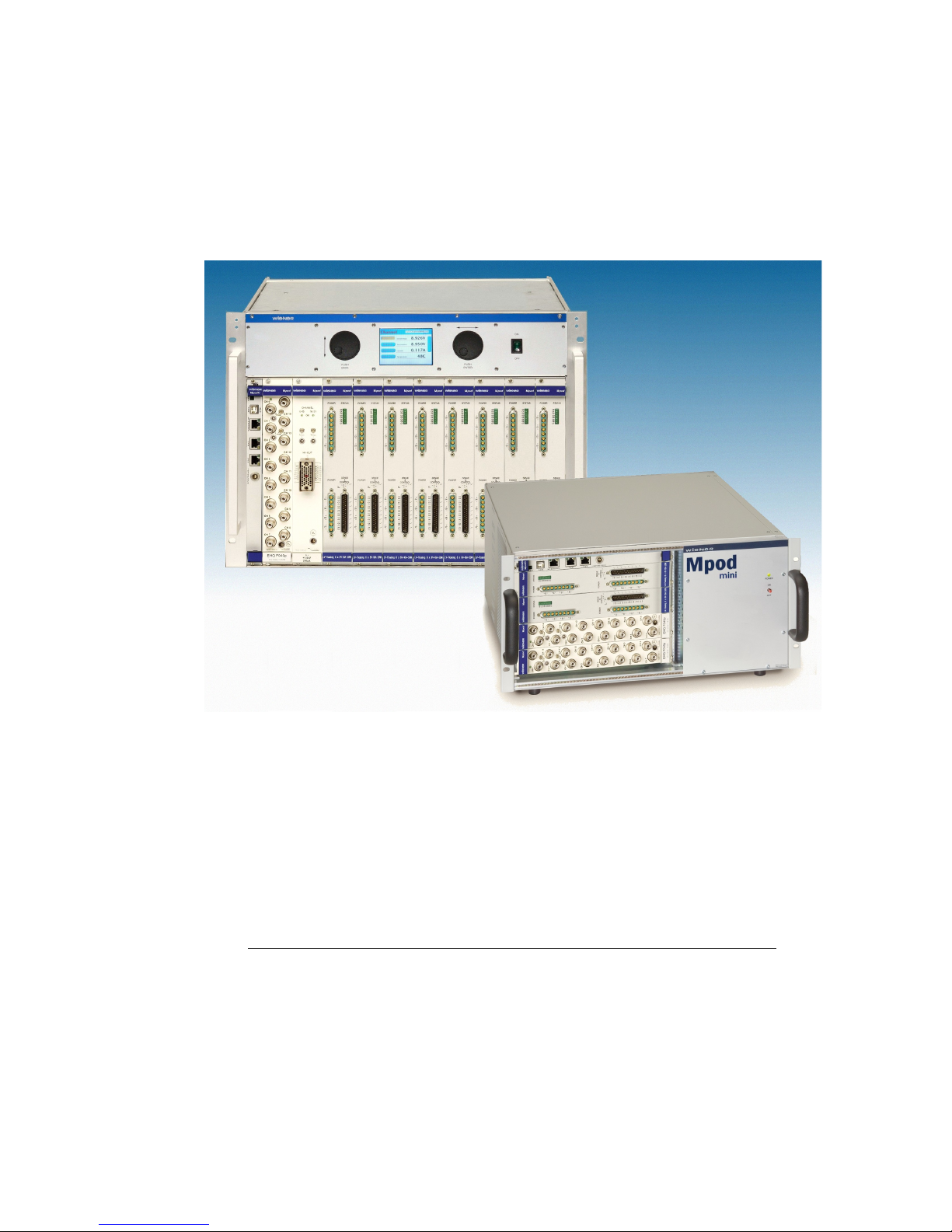

Mpod LX crate with mixed low and high voltage modules

1.1 M

pod

Features

Mpod is a mainframe for multi-channel high voltage (HV) and low voltage (LV) power supply
modules. A unique flexibility is given by outfitting the MPOD crate with either the LV or HV
backplane only or with both to allow combined use of LV and HV modules. The full size Mpod
crate has 10 slots for power modules which provides a high number of output channels. Its
modular design makes the customer able to easily replace the fan tray, the controller, the
primary power supply or the optional air filter.

● 10 module slots for up to 80 LV channels / up to 320 HV channels

● 8U high for bottom cooling air intake, optional 9U high as desktop or front / side intake

with 1U dust filter

● Modules and controller outputs can be placed either at front or rear side (picture above

shows front side)

● LV: 8 channels (0- 8/16/30/60V/120V, 50W / channel, floating

● HV: 320/160/80 or 40 channels (0- 2,5/4/6kV/8kV/10kV), channel- or module wise

floating or common ground

● Low noise and ripple

● Individually controlled output channels (voltage and current), programmable warning

and trip levels

● MPOD Controller with Ethernet (TCP/IP) / CANbus / USB Combi-interface, Interlock

● Ethernet port with integrated Web server, programmable with SNMP protocol via

TCP/IP, OPC Server

25. July 2012 1 Version 2.5.5

● CE conform EN 50 081/82 part 1 (EN 50 022 B)

● safety in accordance with EN 60 950

● Sinusoidal mains current EN 61000-3-2

1.2 Mpod Crate - standard types

The following crate types are standardized configurations with 8U high chassis. Optionally a
filter frame is available with bottom or front air inlet which increases the height to 9U.

Other configurations and mixed system with part of the crate outfitted with PCI or VME
backplanes are available on request.

Type Slots Remote control

interface

Local control /

display

Backplane HV

power

Output

Position

Mpod EC 10 Ethernet, CAN, USB - HV/LV 600W front
Mpod EC-R 10 Ethernet, CAN, USB - HV/LV 600W rear
Mpod LX 10 Ethernet, CAN, USB Yes, LCD HV/LV 600W front

Mpod LX-R 10 Ethernet, CAN, USB Yes, LCD HV/LV 600W rear
Mpod EC-LV 10 Ethernet, CAN, USB - LV - front
Mpod EC-LV-R 10 Ethernet, CAN, USB - LV - rear
Mpod EC-HV 10 Ethernet, CAN, USB - HV 600W front
Mpod EC-HV-R 10 Ethernet, CAN, USB - HV 600W rear
Mpod 2H 10 Ethernet, CAN, USB - HV 1200W front
Mpod 2H-R 10 Ethernet, CAN, USB - HV 1200W rear
Mpod 2H-LX 10 Ethernet, CAN, USB Yes, LCD HV 1200W front
Mpod 2H-LX-R 10 Ethernet, CAN, USB Yes, LCD HV 1200W rear

(CAN-bus for HV modules only, disabling Ethernet communication may be necessary for
ISEG CAN-HV control software)

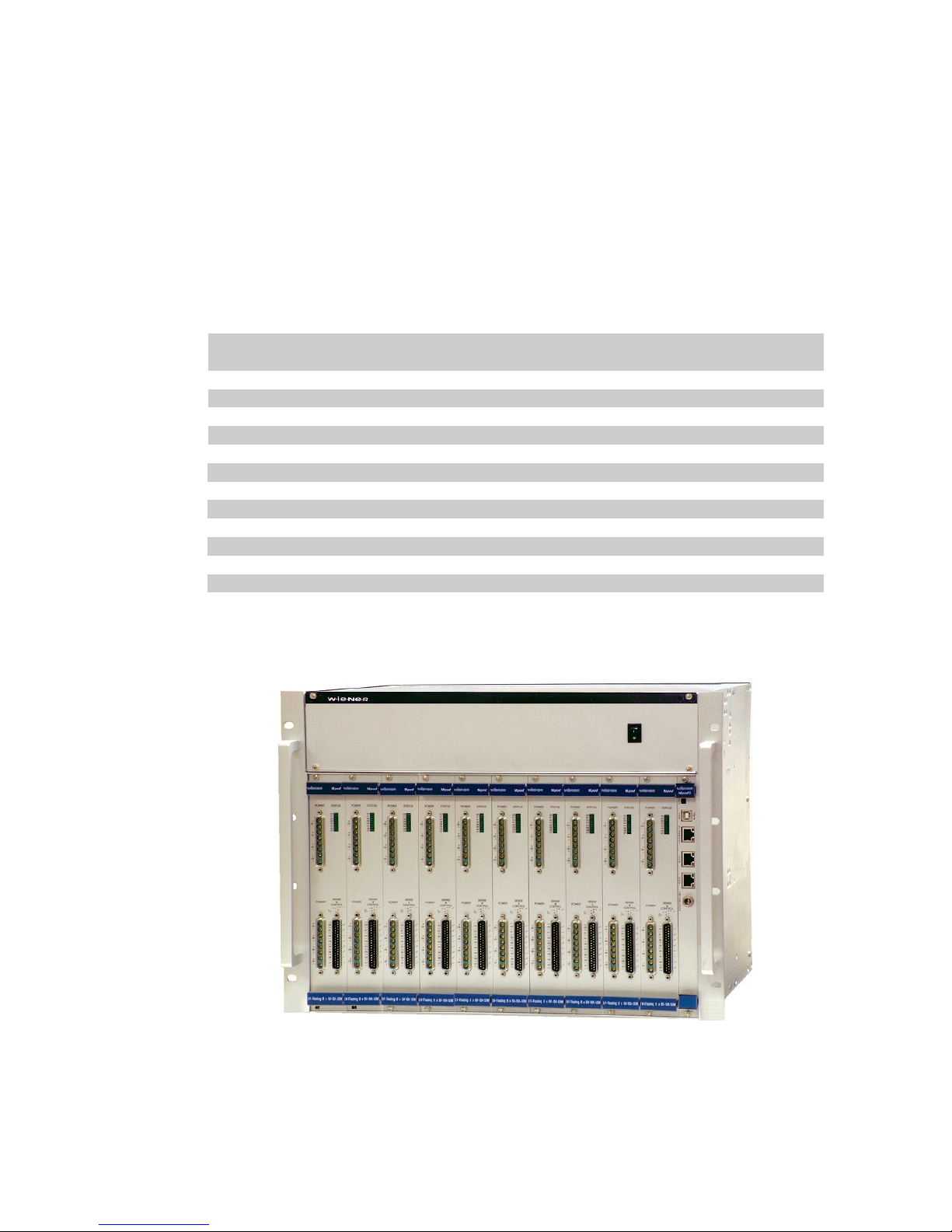

Mpod EC-LV crate with low voltage modules

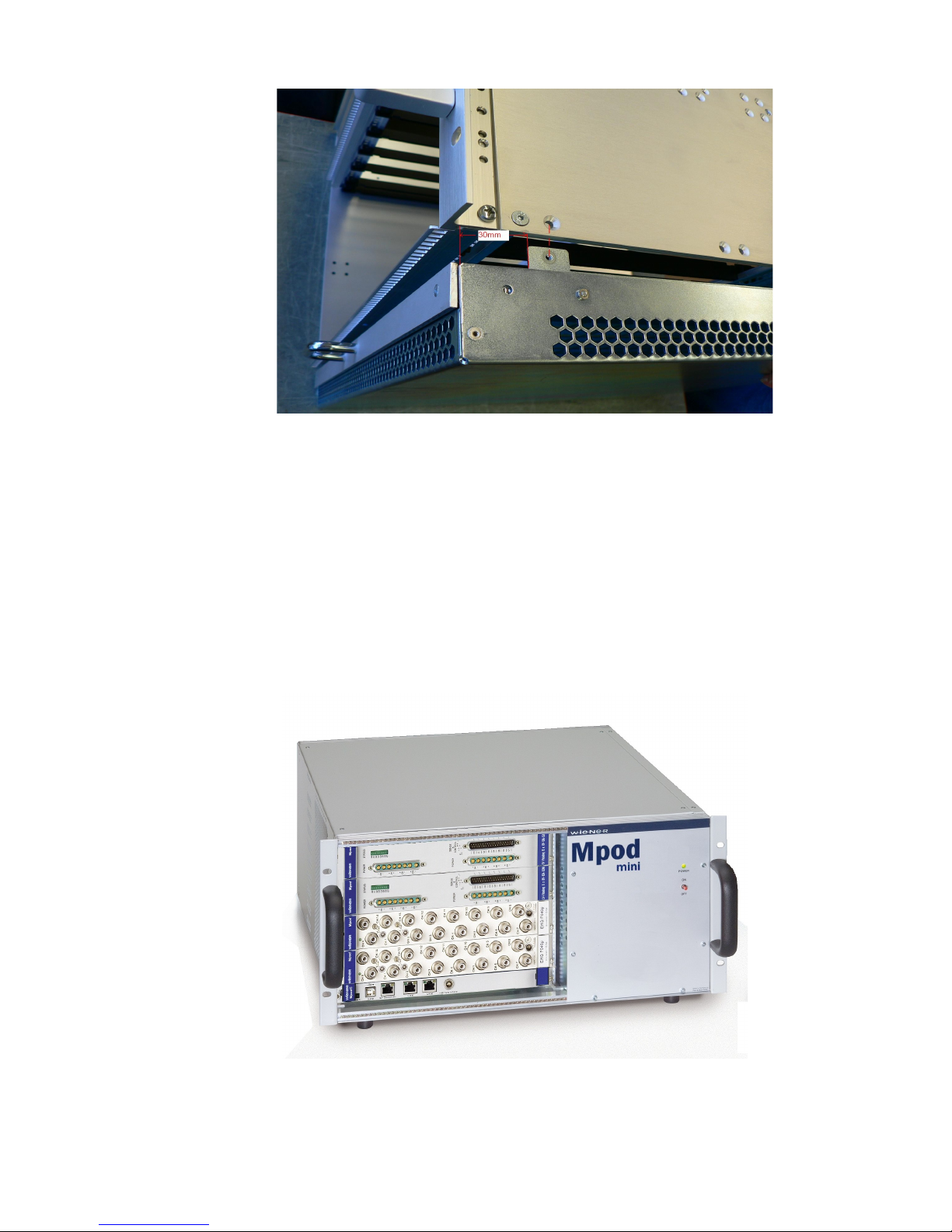

Optionally, Mpod can be outfitted with a removable 1U tray for frontal air inlet and air filter
underneath the bin, as in the picture:

25. July 2012 2 Version 2.5.5

1.3 Mpod Mini crate

The WIENER Mpod mini crate represents a compact 19” rack mountable chassis for up to 4
Mpod low and high voltage modules. The Mpod mini crate includes the primary power supply
with 600W power for high voltage modules as well as a cooling system with high performance
DC fan. It can be outfitted with HV backplane for us as a high voltage system only or with both
HV and LV backplanes.
The first half slot is reserved for the Mpod Controller which manages the primary power
supplies and provides Ethernet, USB and CAN-bus interfaces for remote monitoring and
control. Please note that it is possible to switch the Mpod crate off and on off remotely when
the front panel switch is in ON position.

Mpod Mini crate with Mpod controller and 2 high voltage + 2 low voltage modules

25. July 2012 3 Version 2.5.5

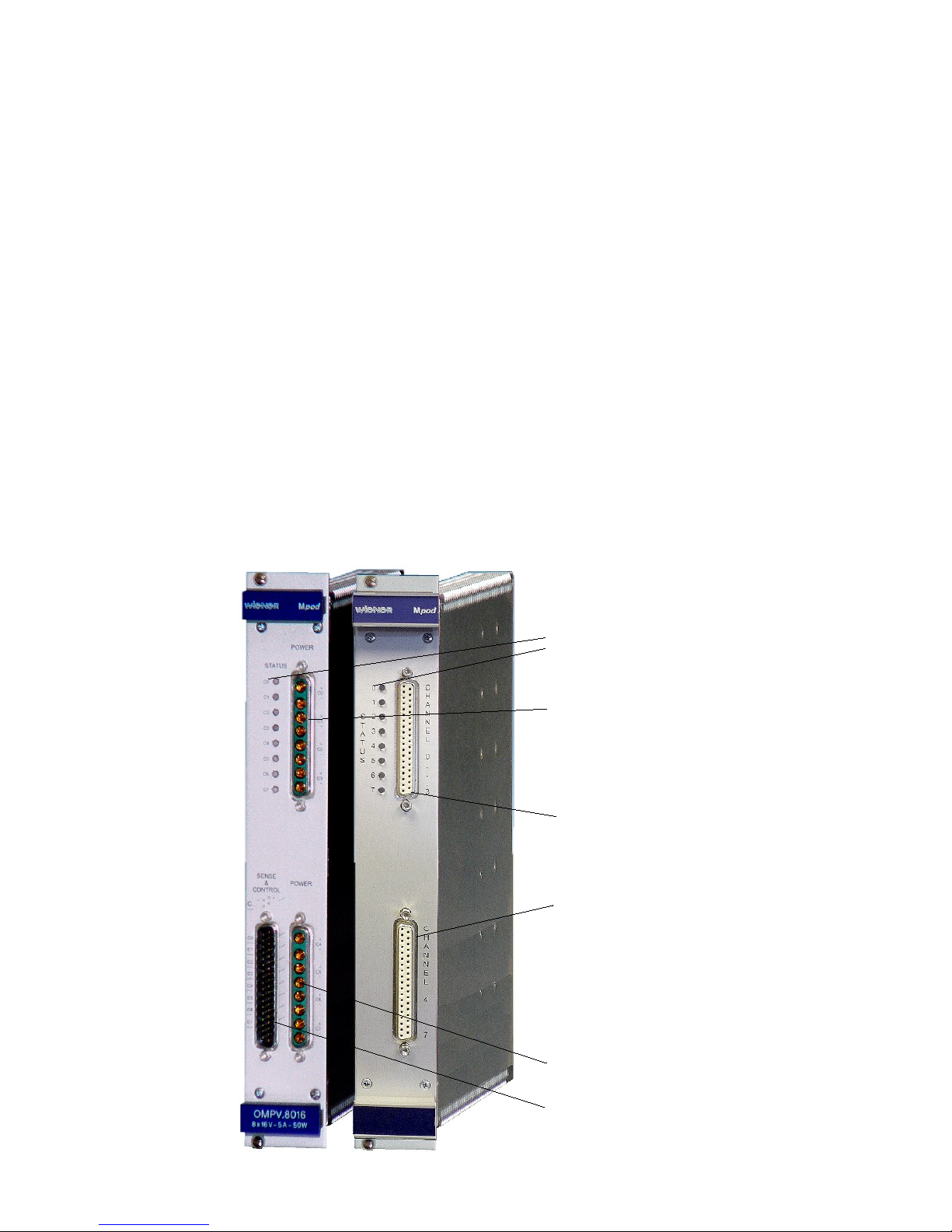

2 LV Modules

The MPV Mpod Low Voltage modules are available with either 4 or 8 channels for different
voltage ranges with 8V, 16V, 30V, 60V maximum respectively. Special modules with up to
120V are under development.
All MVP modules have the following features:

● 6U height, 220mm deep fully shielded mechanics

● All DC outputs with individual return lines, individually sensed, floating channel to

channel and channel to chassis ground (125V, 500V tested)

● Low noise and ripple

● Voltage and current settings / monitoring for each channel, 15 bit resolution, accuracy

+/-0.1% of full scale value

● Current monitoring and limiting for each channel, 15 bit resolution, accuracy +/-0.05%

of full scale value

● high stability, 0.2%/10k

● Programmable channel parameters:
○ voltage, under voltage / over voltage trip point
○ current limit
○ power, regulation type, internal / externl sense
○ ramping speed up and down (1V/s … 500V/s)
○ group features / error handling

● programming and monitoring via Ethernet (TCP/IP) and USB

● Connectors: 2 x 8 pin high current sub-D, 37 pin sub-D for sense / control or

2 x 37 pin sub-D for DC and sense (4 channels each)

25. July 2012 4 Version 2.5.5

DC terminal channel 4 to 7

DC terminal channel 0 to 3

Sense and Control terminal

DC terminal and sense
channel 0 to 3

DC terminal and sense
channel 4 to 7

Status LED's for all 8
channels

2.1 MPOD Low Voltage Module Versions

MPOD Low Voltage Series, 2 or 8 channels with floating ground

Type Channels Voltage I Max Peak Power V-Res I-Res Ripple

MPV 2008 2 0 to 8V 40A 200W / ch. 0.5mV 0.25mA <10mVpp
MPV 2016 2 0 to 15V 20A 200W / ch. 1mV <10mVpp
MPV 2030 2 0 to 30V 10A 200W / ch. 15bit <10mVpp
MPV 2060 2 0 to 60V 5A 200W / ch. 15bit <10mVpp

MPV 8008D 8 0 to 8V 10A 50W / ch. 0.5mV 0.5mA <30mVpp

MPV 8008I 8 0 to 8V 10A 50W / ch. 0.5mV 0.5mA <30mVpp

MPV 8008LD 8 0 to 8V 5A 40W / ch. 0.5mV 0.25mA <10mVpp

MPV 8008LI 8 0 to 8V 5A 40W / ch. 0.5mV 0.25mA <10mVpp

MPV 8016D 8 0 to 15V 5A 50W / ch. 1mV 0.25mA <10mVpp

MPV 8016I 8 0 to 15V 5A 50W / ch. 1mV 0.25mA <10mVpp

MPV 8030D 8 0 to 30V 2.5A 50W / ch. 2mV 0.12mA <10mVpp

MPV 8030I 8 0 to 30V 2.5A 50W / ch. 2mV 0.12mA <10mVpp

MPV 8060D 8 0 to 60V 1A 50W / ch. 4mV 0.06mA <10mVpp

MPV 8060I 8 0 to 60V 1A 50W / ch. 4mV 0.06mA <10mVpp

MPV 8120D 8 0 to 120V 100mA 50W / ch. 4mV 4 µA <10mVpp

MPV 8120I 8 0 to 120V 100mA 50W / ch. 4mV 4 µA <10mVpp

L = Low noise;

D = Sub D 37 pin female connector;

I = Interlock, with sub D 37 pin female connector.

MPOD Low Voltage mating connectors
Sub-D 37 male connector 8 4-channel combined power/sense

Sense for 8 channels

Sub-D 8 female (high current) 8 Special version with 40A contacts
Sub-D 37 extension cable 5m 37 Combined power/sense for 4 channels
Sub-D 37 extension cable 25m 37 Combined power/sense for 4 channels

Connectors are IEC807-3/DIN41652 conform. Custom made cable sets are available

on request.

2.2 Combined Power & Sense Connector Pin Assignment (standard female type)

Top connector

25. July 2012 5 Version 2.5.5

DSUB37 female

(Channel 0..3)

Pin Signal Comment

1

U0-

Channel 0 negative output

20

U0+

Channel 0 positive output

2

U0-

Channel 0 negative output

21

U0+

Channel 0 positive output

3

U0-

Channel 0 negative output

22

U0+

Channel 0 positive output

4

S0-

Channel 0 negative sense input

23

S0+

Channel 0 positive sense input

5

U1-

Channel 1 negative output

24

U1+

Channel 1 positive output

6

U1-

Channel 1 negative output

25

U1+

Channel 1 positive output

7

U1-

Channel 1 negative output

26

U1+

Channel 1 positive output

8

S1-

Channel 1 negative sense input

27

S1+

Channel 1 positive sense input

9

U2-

Channel 2 negative output

28

U2+

Channel 2 positive output

10

U2-

Channel 2 negative output

29

U2+

Channel 2 positive output

11

U2-

Channel 2 negative output

30

U2+

Channel 2 positive output

12

S2-

Channel 2 negative sense input

31

S2+

Channel 2 positive sense input

13

U3-

Channel 3 negative output

32

U3+

Channel 3 positive output

14

U3-

Channel 3 negative output

33

U3+

Channel 3 positive output

15

U3-

Channel 3 negative output

34

U3+

Channel 3 positive output

16

S3-

Channel 3 negative sense input

35

S3+

Channel 3 positive sense input

17

INTERLOCK0

Optional interlock input: The four channels of this connector are

36

INTERLOCK1

enabled only if a signal is applied here

18

LOOP0

Safety Loop, LOOP0 and LOOP1 are connected to each other, no

37

LOOP1

connection to other potentials

19 CHASSIS Connected to chassis / front panel

Bottom Connector

DSUB37 female

(Channel 4..7)

Pin Signal Comment

1

U4-

Channel 4 negative output

20

U4+

Channel 4 positive output

2

U4-

Channel 4 negative output

21

U4+

Channel 4 positive output

3

U4-

Channel 4 negative output

22

U4+

Channel 4 positive output

4

S4-

Channel 4 negative sense input

23

S4+

Channel 4 positive sense input

5

U5-

Channel 5 negative output

24

U5+

Channel 5 positive output

6

U5-

Channel 5 negative output

25

U5+

Channel 5 positive output

7

U5-

Channel 5 negative output

26

U5+

Channel 5 positive output

8

S5-

Channel 5 negative sense input

27

S5+

Channel 5 positive sense input

9

U6-

Channel 6 negative output

28

U6+

Channel 6 positive output

10

U6-

Channel 6 negative output

29

U6+

Channel 6 positive output

11

U6-

Channel 6 negative output

30

U6+

Channel 6 positive output

12

S6-

Channel 6 negative sense input

31

S6+

Channel 6 positive sense input

13

U7-

Channel 7 negative output

32

U7+

Channel 7 positive output

14

U7-

Channel 7 negative output

33

U7+

Channel 7 positive output

15

U7-

Channel 7 negative output

34

U7+

Channel 7 positive output

16

S7-

Channel 7 negative sense input

35

S7+

Channel 7 positive sense input

17

INTERLOCK0

Optional interlock input: The four channels of this connector are

36

INTERLOCK1

enabled only if a signal is applied here

18

LOOP0

Safety Loop, LOOP0 and LOOP1 are connected to each other, no

37

LOOP1

connection to other potentials

19 CHASSIS Connected to chassis / front panel

25. July 2012 6 Version 2.5.5

2.3 Sense & Control Connector Pin Assignment (modules with mixed DSUB37 +

DSUB37-8)

DSUB37 male
(Channel 0..7)

Pin Signal Comment

1

S0+

Channel 0 positive Sense Input

20

S0-

Channel 0 negative Sense Input

2

reserved

21

reserved

3

S1+

Channel 1 positive Sense Input

22

S1-

Channel 1 negative Sense Input

4

reserved

23

reserved

5

S2+

Channel 2 positive Sense Input

24

S2-

Channel 2 negative Sense Input

6

reserved

25

reserved

7

S3+

Channel 3 positive Sense Input

26

S3-

Channel 3 negative Sense Input

8

reserved

27

reserved

9

S4+

Channel 4 positive Sense Input

28

S4-

Channel 4 negative Sense Input

10

reserved

29

reserved

11

S5+

Channel 5 positive Sense Input

30

S5-

Channel 5 negative Sense Input

12

reserved

31

reserved

13

S6+

Channel 6 positive Sense Input

32

S6-

Channel 6 negative Sense Input

14

reserved

33

reserved

15

S7+

Channel 7 positive Sense Input

34

S7-

Channel 7 negative Sense Input

16

reserved

35

reserved

17

reserved

36

reserved

18

reserved

37

reserved

19 reserved

Some pins are reserved for future functionality.

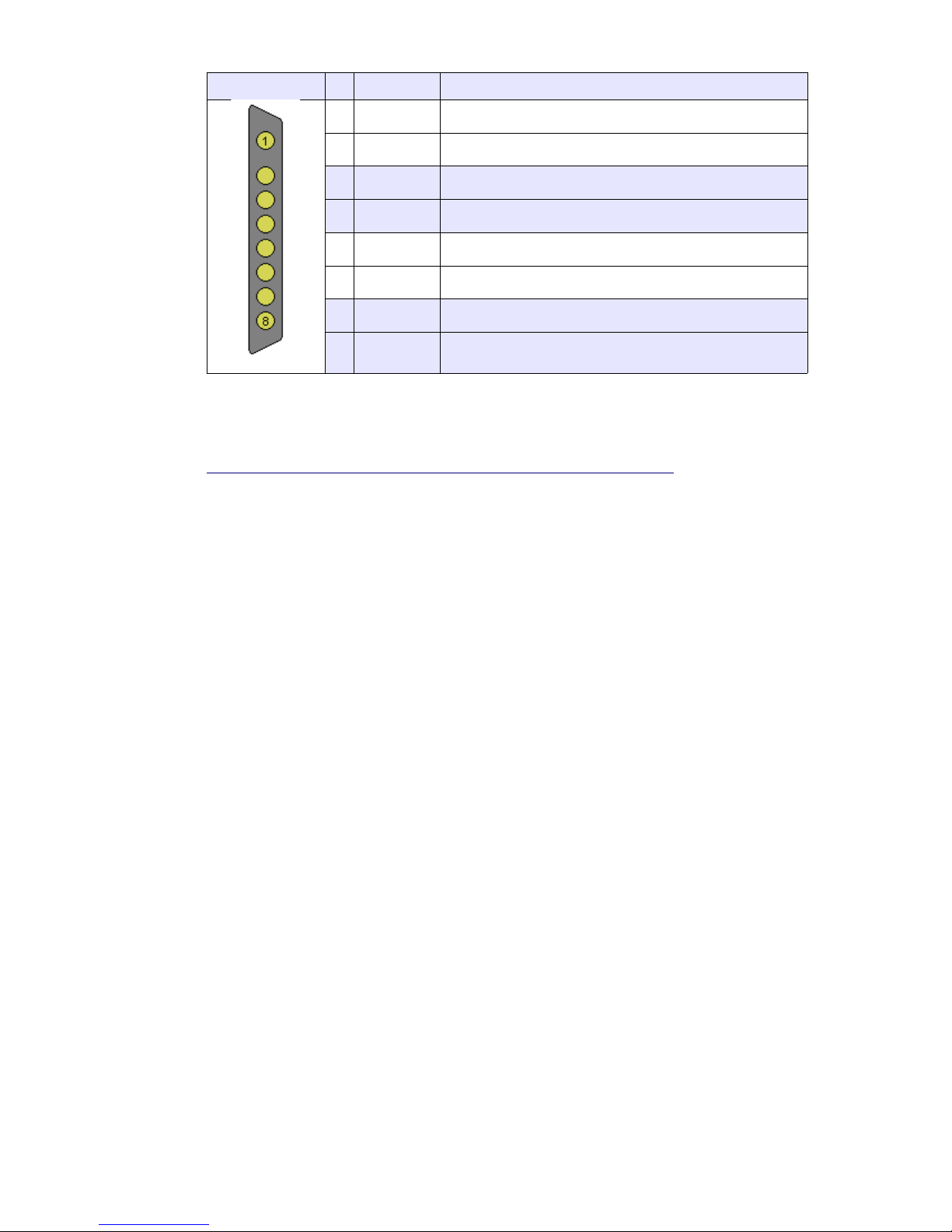

2.4 Power Connector Pin Assignment (modules with mixed DSUB37 + DSUB37-8)

DSUB37-8 female

(Channel 0..3)

Pin Signal Comment

1 U0+ Channel 0 positive Output

2 U0- Channel 0 negative Output

3 U1+ Channel 1 positive Output

4 U1- Channel 1 negative Output

5 U2+ Channel 2 positive Output

6 U2- Channel 2 negative Output

7 U3+ Channel 3 positive Output

8 U3- Channel 3 negative Output

25. July 2012 7 Version 2.5.5

DSUB37-8 female

(Channel 4..7)

Pin Signal Comment

1 U4+ Channel 4 positive Output

2 U4- Channel 4 negative Output

3 U5+ Channel 5 positive Output

4 U5- Channel 5 negative Output

5 U6+ Channel 6 positive Output

6 U6- Channel 6 negative Output

7 U7+ Channel 7 positive Output

8 U7- Channel 7 negative Output

Matching cable plug:

e.g. Erni TMC – P - 8W8 male, unloaded connector (103448) + pins

http://www.erni.com/DB/PDF/TMC/ERNI-D-SubHighPower0101-e.pdf

25. July 2012 8 Version 2.5.5

3 HV Modules

MPOD high voltage modules are manufactured by ISEG. For technical details please refer to
the ISEG manuals and data sheets of the EHS, EBS, EDS and EHQ (discontinued) multi
channel high voltage modules. General features are:

● High Voltage modules with 4, 8, 16 or 32 individually controlled channels

● Maximum voltage range from 500V up to 10 kV

● Extremely low noise and ripple: <5mVpp to <10mVpp

● All DC outputs floating or common ground depending on module type

● Voltage and current settings / monitoring for each channel, 16 to 21 bit resolution

● Current monitoring and limiting for each channel, 16 to 21 bit resolution

● Programmable channel parameters, group features

● output connectors:

8 channel modules SHV or REDEL (<4kV) multi pin
Kings for 8kV and 10kV (4 channels only)
16 channel modules SHV or REDEL (<4kV) multi pin
32 channel modules REDEL multi pin

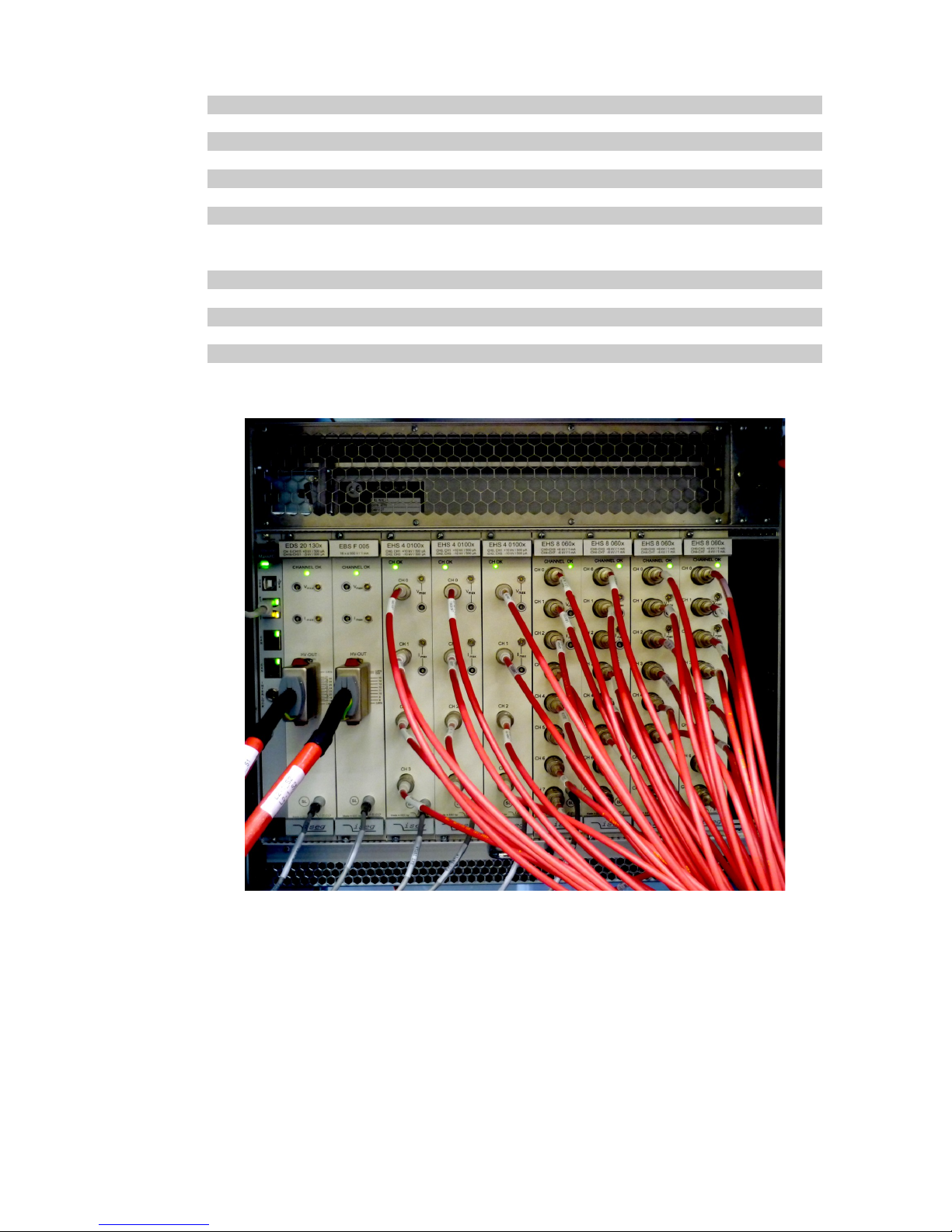

ISEG high voltage modules with 4 channels KINGS (10kV), 8 and 16 channels SHV, and 8 /
16 channels REDEL multi-pin connectors (from left to right)

25. July 2012 9 Version 2.5.5

EHS Series, 8/16 channels with common ground

Type Channels V max I max V res I res Ripple

EHS 40100x_504 4 10kV 0.5mA 20mV 1nA <30mV

EHS 8080x_105 8 8kV 1mA 20mV 2nA <30mV
EHS 8060x_105 8 6kV 1mA 12mV 2nA <30mV
EHS 8040x_205 8 4kV 2mA 10mV 4nA <10mV
EHS 8030x_305 8 3kV 3mA 10mV 5nA <10mV
EHS 8020x_405 8 2kV 4mA 5mV 10nA <10mV
EHS 8010x_805 8 1kV 8mA 2mV 20nA <10 mV
EHS 8005x_156 8 500V 15mA 1mV 30nA <10mV
EHS F040x_205 16 4kV 2mA 10mV 4nA <10mV
EHS F030x_305 16 3kV 3mA 10mV 5nA <10mV
EHS F020x_405 16 2kV 4mA 5mV 10nA <10mV
EHS F010x_805 16 1kV 8mA 2mV 20nA <10 mV
EHS F005x_156 16 500V 15mA 1mV 30nA <10mV

EHS Series, 8 / 16 channels with floating channels / ground

Type Channels V max I max V res I res Ripple

EHS 46100x_504 4 10kV 0.5mA 400mV 20nA <30mV

EHS 8660x_105 8 6kV 1mA 240mV 40nA <30mV
EHS 8640x_205 8 4kV 2mA 160mV 80nA <10mV
EHS 8630x_305 8 3kV 3mA 120mV 120nA <10mV
EHS 8620x_405 8 2kV 4mA 80mV 160nA <10mV
EHS 8610x_805 8 1kV 8mA 40mV 320nA <10 mV
EHS 8605x_156 8 500V 15mA 20mV 600nA <10mV
EHS F640x_205 16 4kV 2mA 160mV 80nA <10mV
EHS F630x_305 16 3kV 3mA 120mV 120nA <10mV
EHS F620x_405 16 2kV 4mA 80mV 160nA <10mV
EHS F610x_805 16 1kV 8mA 40mV 320nA <10 mV
EHS F605x_156 16 500V 15mA 20mV 600nA <10mV

EHS High Precision Series, 8/16 channels (floating channels or common floating ground)

Type Channels V max I max V res I res Ripple

EHS 42100x_504 (F) 4 10kV 0.5mA 20mV 1nA/50pA <30mV

EHS 8260x_105 (F) 8 6kV 1mA 12mV 1nA/50pA <20mV
EHS 8240x_205 (F) 8 4kV 2mA 10mV 2nA/50pA <5mV
EHS 8230x_305 (F) 8 3kV 3mA 10mV 3nA/50pA <5mV
EHS 8220x_405 (F) 8 2kV 4mA 5mV 4nA/50pA <5mV
EHS 8210x_805 (F) 8 1kV 8mA 2mV 5nA/50pA <5 mV
EHS 8205x_106 (F) 8 500V 10mA 1mV 8nA/50pA <5mV
EHS F240x_205 (F) 16 4kV 2mA 10mV 2nA/50pA <5mV
EHS F230x_305 (F) 16 3kV 3mA 10mV 3nA/50pA <5mV
EHS F220x_405 (F) 16 2kV 4mA 5mV 4nA/50pA <5mV
EHS F210x_805 (F) 16 1kV 8mA 2mV 5nA/50pA <5 mV
EHS F205x_106 (F) 16 500V 10mA 1mV 8nA/50pA <5mV

EHS High Density Series, 16 / 32 channels with common ground

Type Channels V max I max V res I res Ripple
EHS F1 40x_105 16 4kV 1mA 20mV 10nA <10mV
EDS F1 30x_135 16 3V 1.3mA 15mV 13nA <10mV
EDS F1 20x_205 16 2kV 2mA 10mV 20nA <10mV
EDS F1 10x_405 16 1kV 4mA 5mV 40nA <10mV
EDS 20 025x_504 32 4kV 1mA 20mV 10nA <10mV
EDS 21 030x_504 32 3V 1.3mA 15mV 13nA <10mV
EDS 20 025x_504 32 2kV 2mA 10mV 20nA <10mV
EDS 21 030x_504 32 1kV 4mA 5mV 40nA <10mV

25. July 2012 10 Version 2.5.5

EDS Distribution Series, 16 / 32 channels with common ground

Type Channels V max I max V res I res Ripple
EDS F0 05x_105 16 500V 1mA 5mV 20nA <10mV
EDS F0 05x_105 16 2.5kV 0.5mA 10mV 10nA <20mV
EDS F1 30x_504 16 3kV 0.5mA 10mV 100nA <20mV
EDS 20 005x_105 32 500V 1mA 5mV 20nA <10mV
EDS 20 025x_504 32 2.5kV 0.5mA 10mV 10nA <20mV
EDS 21 030x_504 32 3kV 0.5mA 10mV 100nA <20mV

EBS Bipolar High voltage modules, 8 / 16 channels with common ground

Type Channels V max I max V res I res Ripple
EBS 80 05 8 +-500V +-1mA 5mV 20nA <10mV
EBS F0 05 16 +-500V +-1mA 5mV 20nA <10mV
EBS 80 30 8 +-3kV +-0.5mA 10mV 100nA <10mV
EDS F0 30 16 +-3kV +-0.5mA 10mV 100nA <10mV

MPOD crate with rear side module option and air filter outfitted with ISEG EDS, EBS and
EHS high voltage modules and wired safety loop.

25. July 2012 11 Version 2.5.5

4 Mpod Controller

The Mpod controller which is plugged into the first half slot of the crate controls the primary
power supply as well as all inserted LV- and HV-modules. Further it connects these to remote
controlling interfaces / services in an unique way.

Mpod Controller features:

● TCP/IP 10M/100M port, auto ranging

● Built-in HTTP server

● TCP/IP protocol with SNMP v.2c for full control of all module parameters

● 2 CAN-Bus ports, wired in parallel for daisy-chaining

● USB 2 interface

● 3 status LED's

● Interlock connector

25. July 2012 12 Version 2.5.5

Status LED's

USB 2 port

Ethernet port

2 CANbus ports

Interlock connector 2-pin
Lemo or 9-pin SUBD

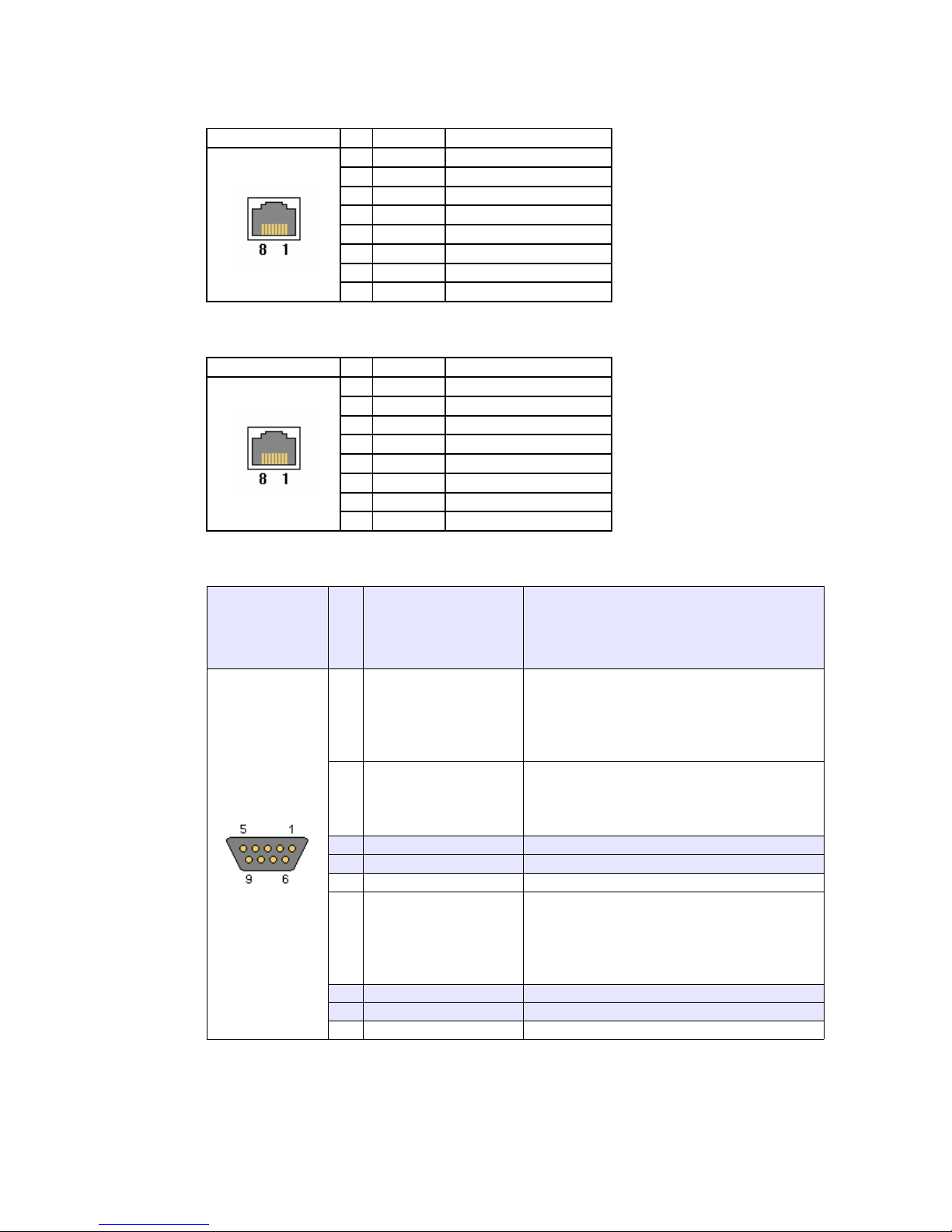

Ethernet port, standard NIC pin layout

RJ45 Pin Signal Comment

1 TX+
2 TX­3 RX+
4 GND 1 75 Ohm
5 GND 1
6 RX­7 GND 2 75 Ohm
8 GND 2

CAN-bus ports

RJ45 Pin Signal Comment

1 CAN-H
2 CAN-L
3 GND
4 n.c.
5 n.c.
6 reserved
7 GND
8 n.c.

Interlock connector

DSUB9 female Pin Signal Comment

1 CRATE_ENABLE

TTL input (1 kOhm resistor to GND)
A high level allows the channels to be
switched on by software
A low level forces all channels to switch off
with their specified down ramp.

2 CRATE_FAST_OFF

TTL input (1 kOhm resistor to GND)
A high level forces all channels to switch off
as fast as possible. Any ramp-down settings

are ignored.
3 reserved
4 reserved
5 GND Ground reference

6 CRATE_STATUS

TTL output (1 kOhm resistor to GND, 100

Ohm resistor to protect the output buffer)

This signal is driven high, if one or more

channels of the MPOD system do have a

non-zero output voltage
7 reserved
8 reserved
9 reserved

25. July 2012 13 Version 2.5.5

5 Local Control

5.1 Introduction

MPOD can be optionally equipped with a local color graphic display and two rotary controls.

5.2 Usage of the rotary controls

The two rotary knobs can be pushed and rotated. The left one controls vertical selections (e.g.

to scroll down a menu task or increase/decrease a operating value), while the right one controls

the horizontal selections (e.g. select other menues or submenues). By pushing the right knob it

is possible to escape from input fields and to switch off a selected channel. By pushing the right

knob it is possible to select a channel or to confirm input.

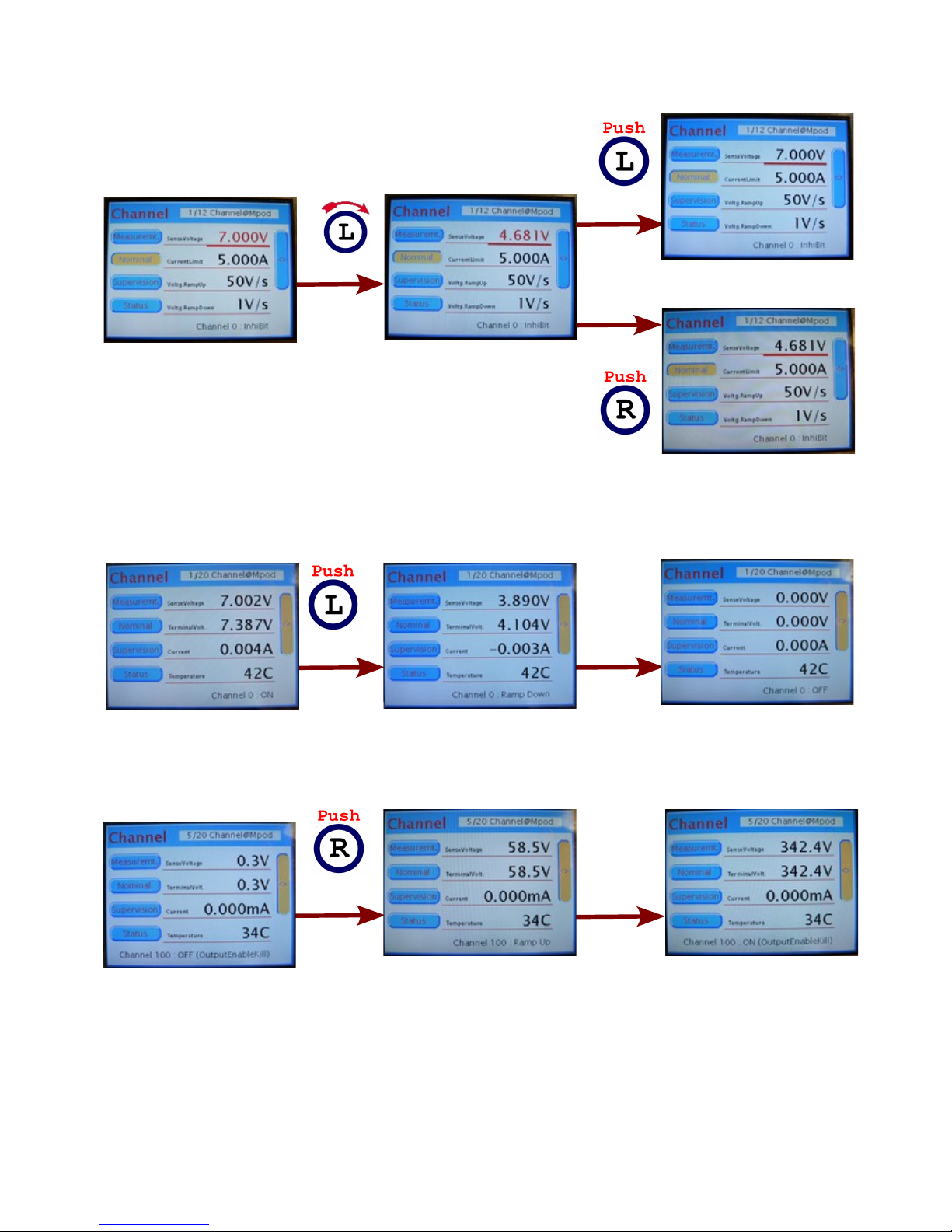

Examples:

Scroll main menu up and down

Channel selection

25. July 2012 14 Version 2.5.5

25. July 2012 15 Version 2.5.5

Increase or

decrease

value

Escape

Switch off

selected

channel

Confirm

Switch on

selected

channel

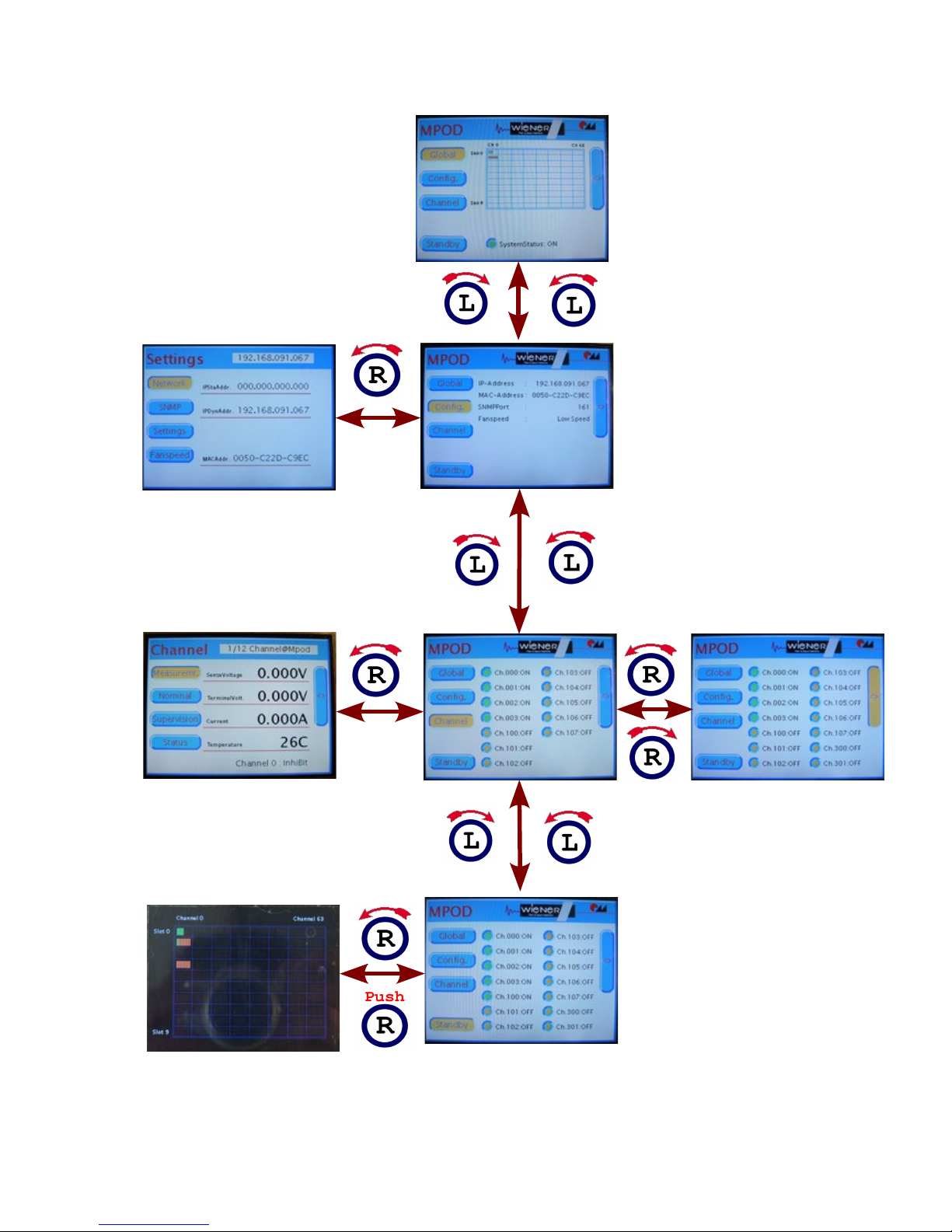

5.3 Main Menu Overview

25. July 2012 16 Version 2.5.5

Main Menu (Global)

- global status

- channel status

- module assigment

Settings Menu (Network)

- network parameters

- SNMP port

- temperature unit

- fan speed

Main Menu (Config)

- configuration settings

Channel Menu (Measurement)

- measured values

- nominal values

- supervision values

- system status

Display Standby

- channel / module assignment

- channel status indicator

Main Menu (Channel & Standby)

- plain text channel status

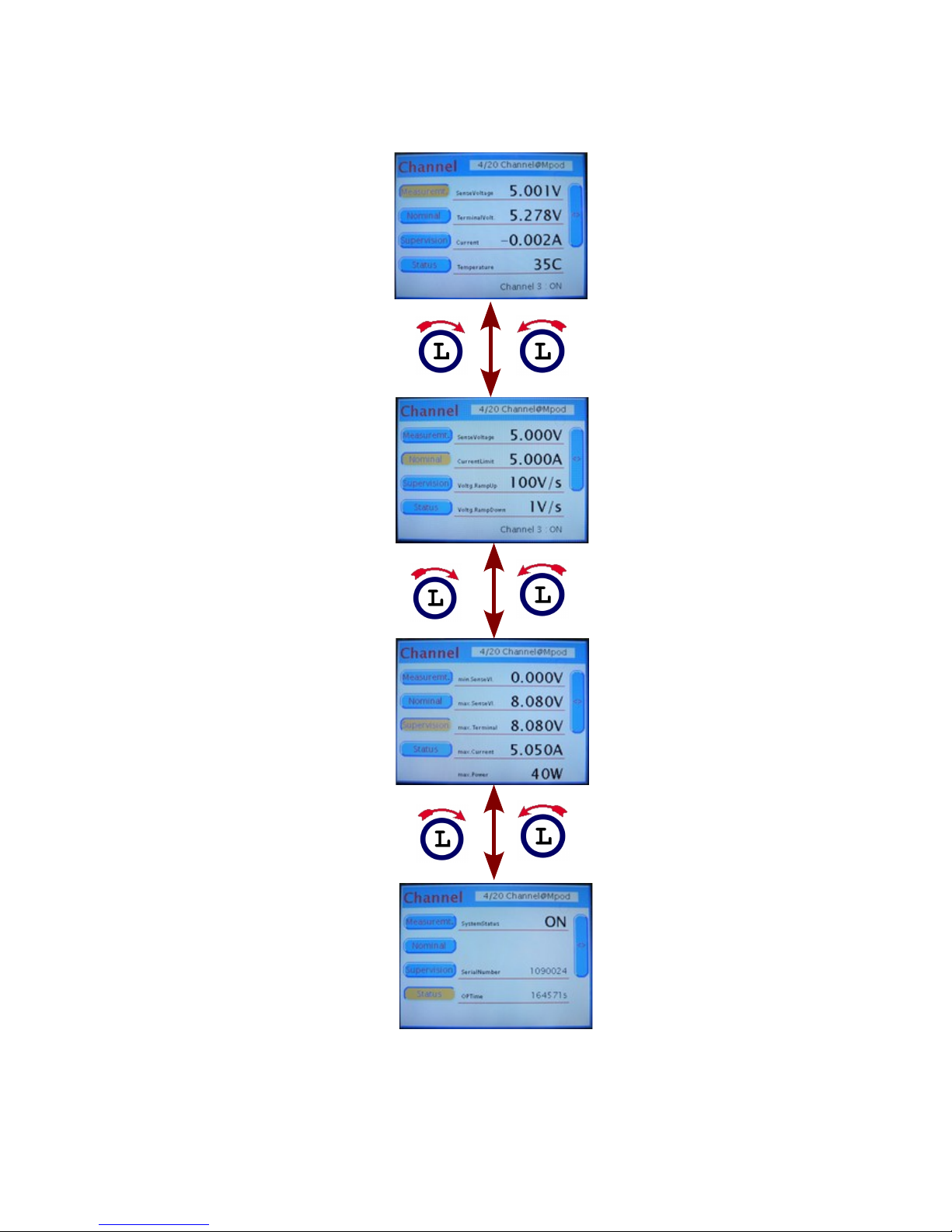

5.4 Channel Menu Overview

25. July 2012 17 Version 2.5.5

6 Remote Control / Software

Please check the download section at www.wiener-d.com for the latest version of Mpod
software and documentation!

6.1 Software Setup for Microsoft Windows

Before the Mpod Controller can be used, it may have to be configured according to the network
environment. The factory default configuration is DHCP.

This is done locally via display or by running the MUSEcontrol utility, which allows access via
the USB-port of the Mpod Controller with a computer running 32-bit Windows XP, VISTA or
Windows 7.

Please download the latest version from the download area at www.wiener-d.com. Run the
MUSEControl.msi Program to install all drivers and the USB program itself. It is
recommended to define a short path for the driver location during installation. Connecting the
MPOD Controller via USB it should be automatically detected and the Silicon Labs USB
drivers (SiLib.sys and SiUSBXp.sys) loaded

Starting the program, the main window gives a quick overview of the MPOD and its connected
MPV low voltage modules. Please note that the MPOD crate has to be switched on in order to
show the low voltage modules!

In case no low voltage modules are located in the crate an error message “No module found”
will pop up which should be ignored. Note, all ISEG high voltage modules will not be shown
and can not be controlled via USB!

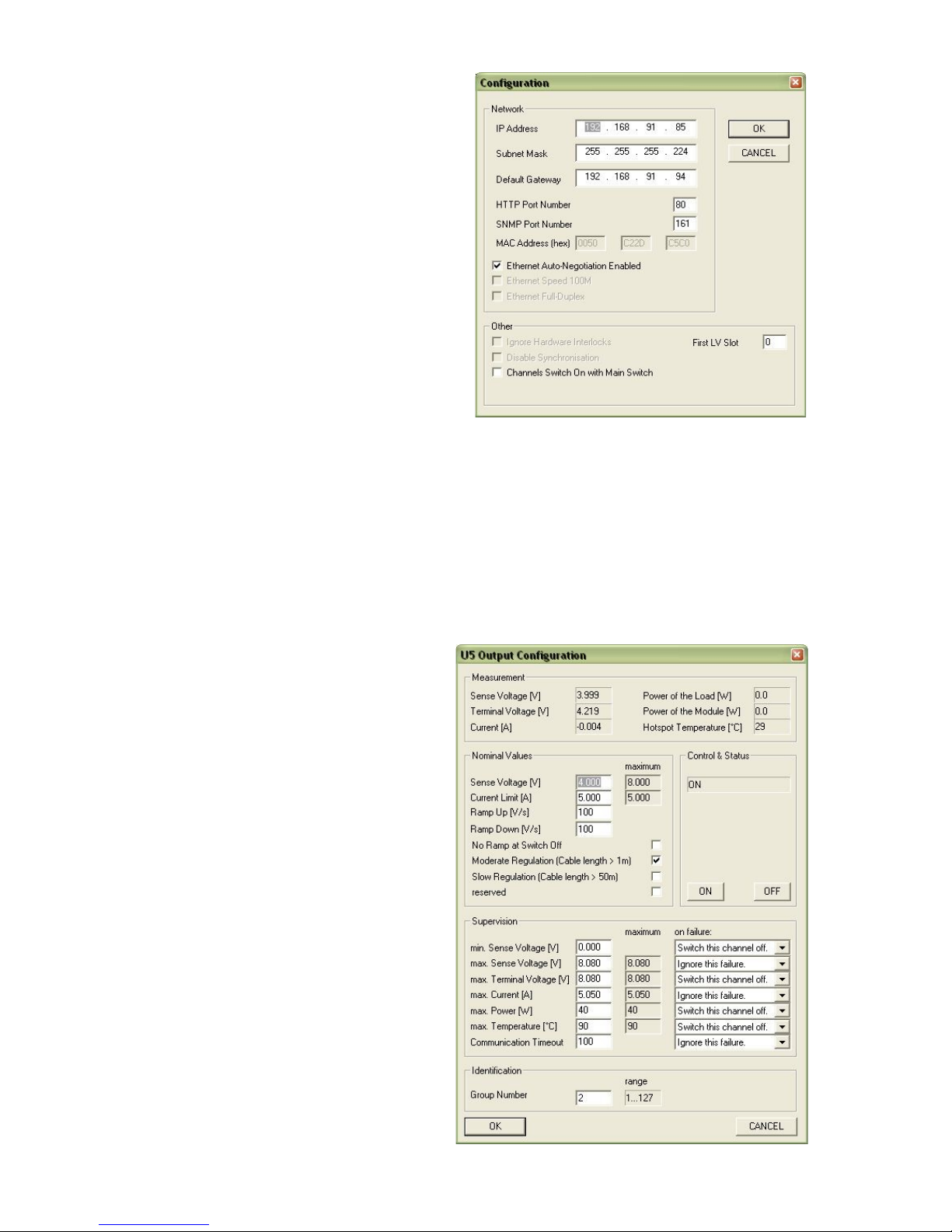

To prepare the MPOD controller select System → Configuration which starts the network
configuration dialog as shown below. Here you enter the TCP/IP network settings (IP address,
subnet mask and default gateway). You have to use the parameters of your local network here.

25. July 2012 18 Version 2.5.5

Please contact your network
administrator for details. In order to use
DHCP (factory default) an I address of

0.0.0.0 has to be selected.
IP address of 0.0.0.0 will enable
DHCP.
HTTP and SNMP port numbers should
only be modified if you know what you
do. Setting any ports to 0 disables the
server.
The “First LV Slot” item is an
intermediate solution to define the slot
number of the first LV-module. Any
HV-module plugged into this slot will
not be detected. (This setting is
necessary only for older MPOD
firmware versions and older MPV
modules without without automatic
detection of their slot numbers)

Another essential menu item is the

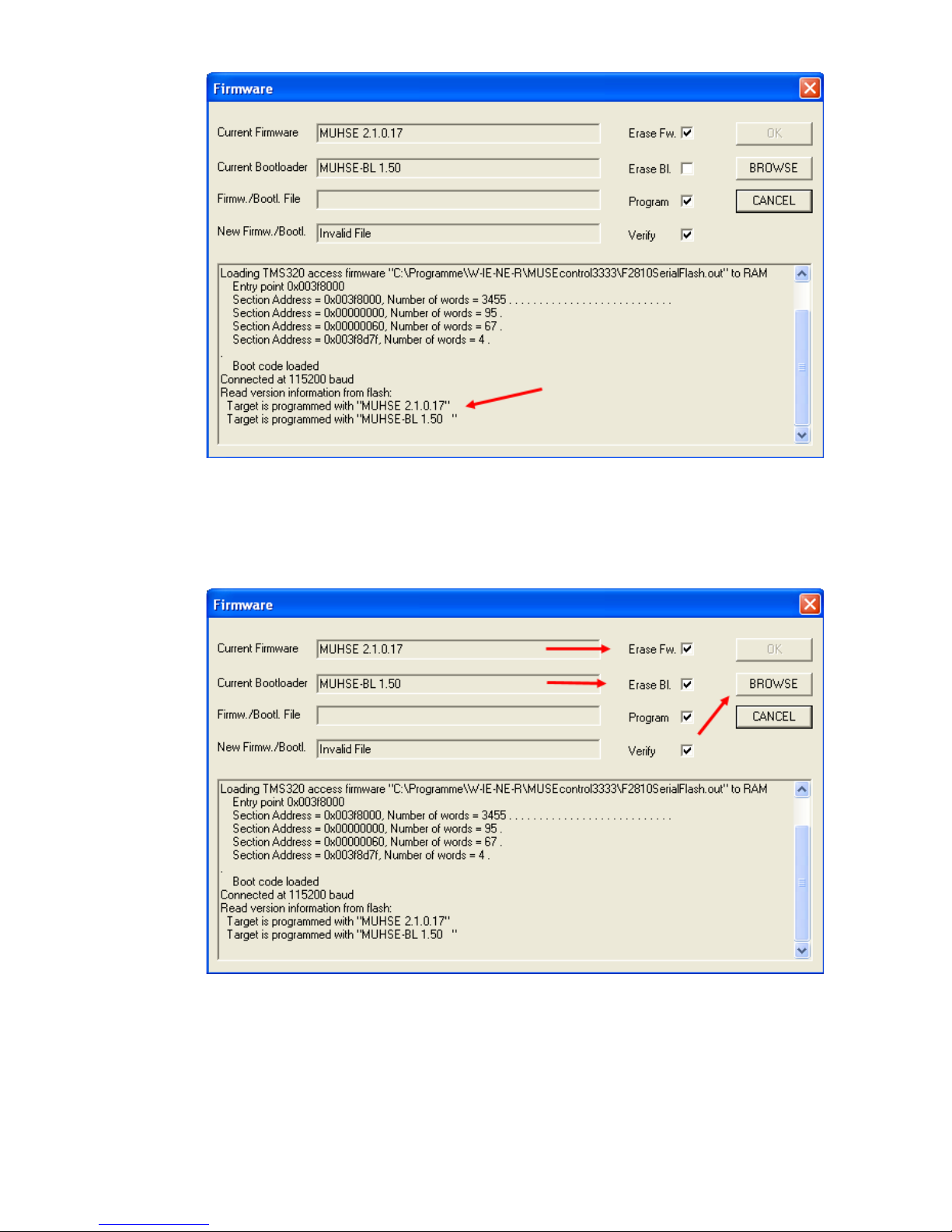

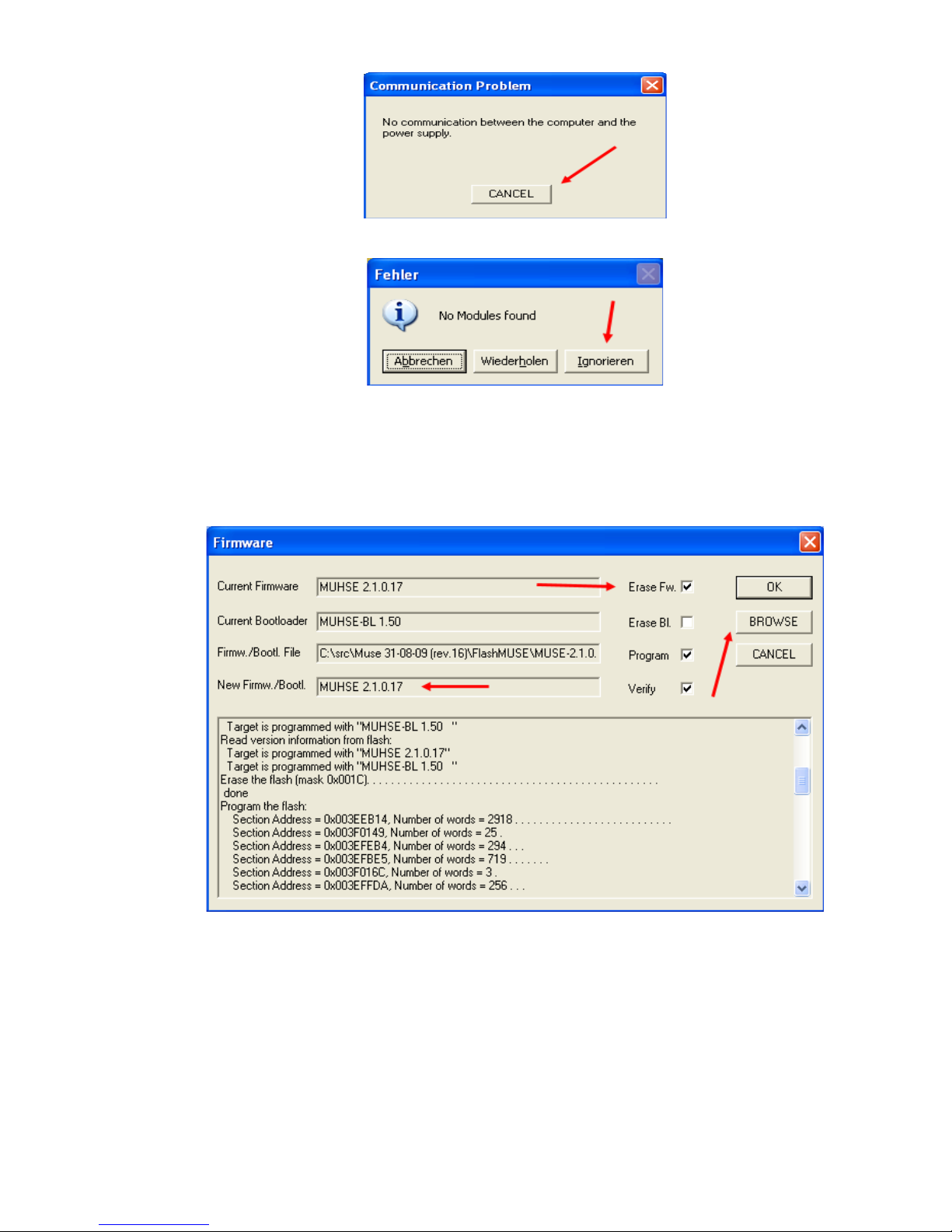

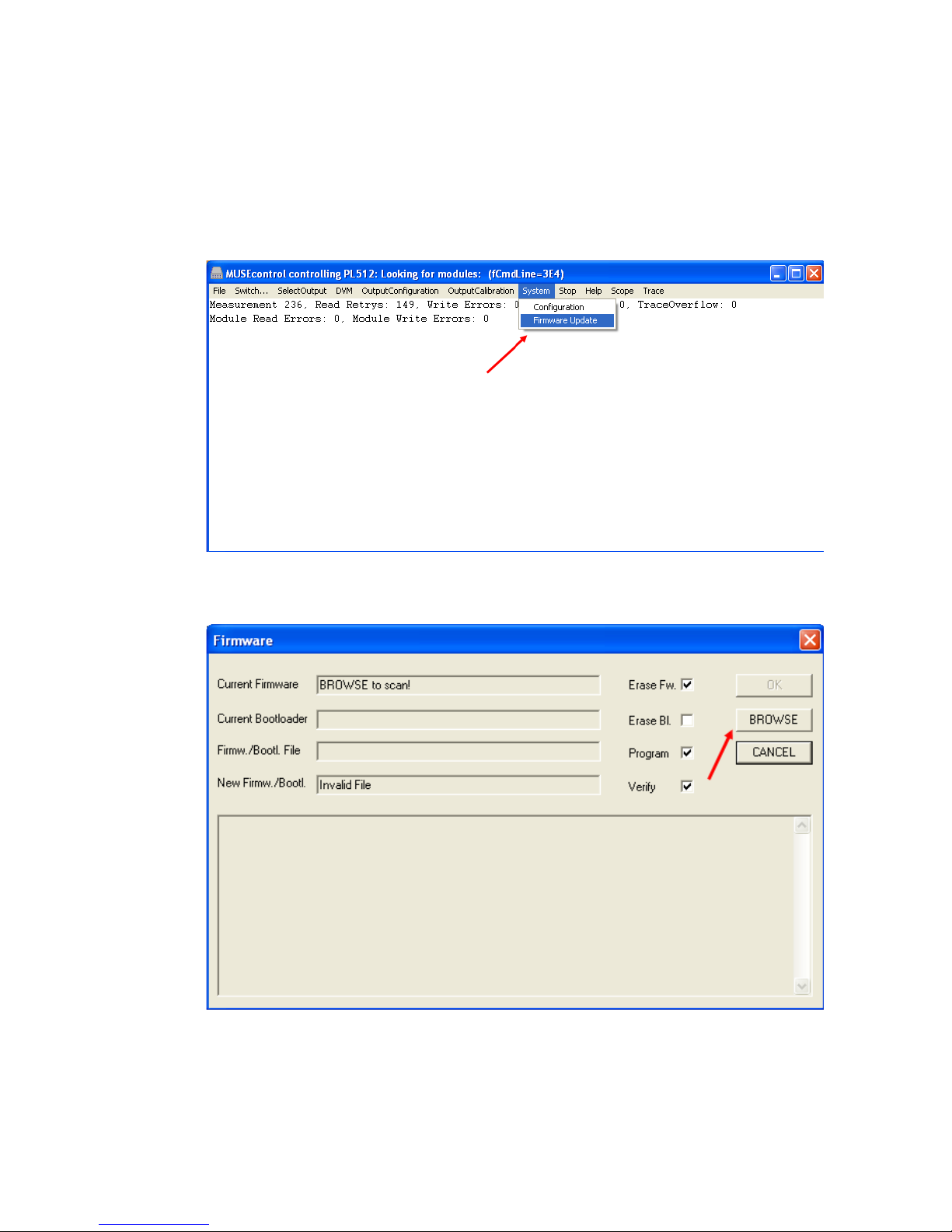

System → FirmwareUpdate which starts the firmware update procedures (see appendix
A).

Low Voltage channels can be completely programmed and monitor within the MUSE
application. You can switch on or off any channel by clicking at the line of the channel. If you

click with the right mouse button, the “OutputConfiguration” dialog is entered:

The dialog is divided into five main sections:

● Measurement

Shows the actual measured
sense voltage, terminal
voltage (at the module
terminals), current, the
calculated power and the
most critical module
temperature.

● Control & Status

Here the channel can be
switched on and off. If the
channel has switched off
because of any failure, the
reason is displayed here,
too.

● Nominal Values

Here the nominal output
voltage (sense voltage),
current limit and ramping
speeds are entered. The “No
Ramp at Switch Off” check
box forces immediate
switch off. The regulation
mode can be optimized for
different cable lengths (slow
regulation requests both
check boxes to be checked!)

● Supervision

Here the threshold values of

25. July 2012 19 Version 2.5.5

the minimum sense voltage, the maximum sense voltage, the maximum terminal
voltage, the maximum current, the maximum power, the maximum temperature and the
communication timeout can be entered. The right column “maximum” can only be
changed by this utility and is the maximum allowed value of the left column. The left
column may be changed here or via the TCP/IP network.
The most right column “on failure” defines the action if the associated threshold is
exceeded.
The “communication timeout” at the last low is an internal timeout of the
communication between different processors. If the processor responsible for a specific
output has no data from it's master processor for longer than this time (in milliseconds),
the output channel will be switched off.

● Identification

Here the group number of this channel can be entered.

Other main menu items associated with this dialog are “Start/Stop” (stop and restart the
communication with the Mpod controller via USB) and “SelectOutput”, which simple
increments the channel number which is displayed by the other dialogs.

The other main menu items are used for test and maintenance and should not used by the
customer.

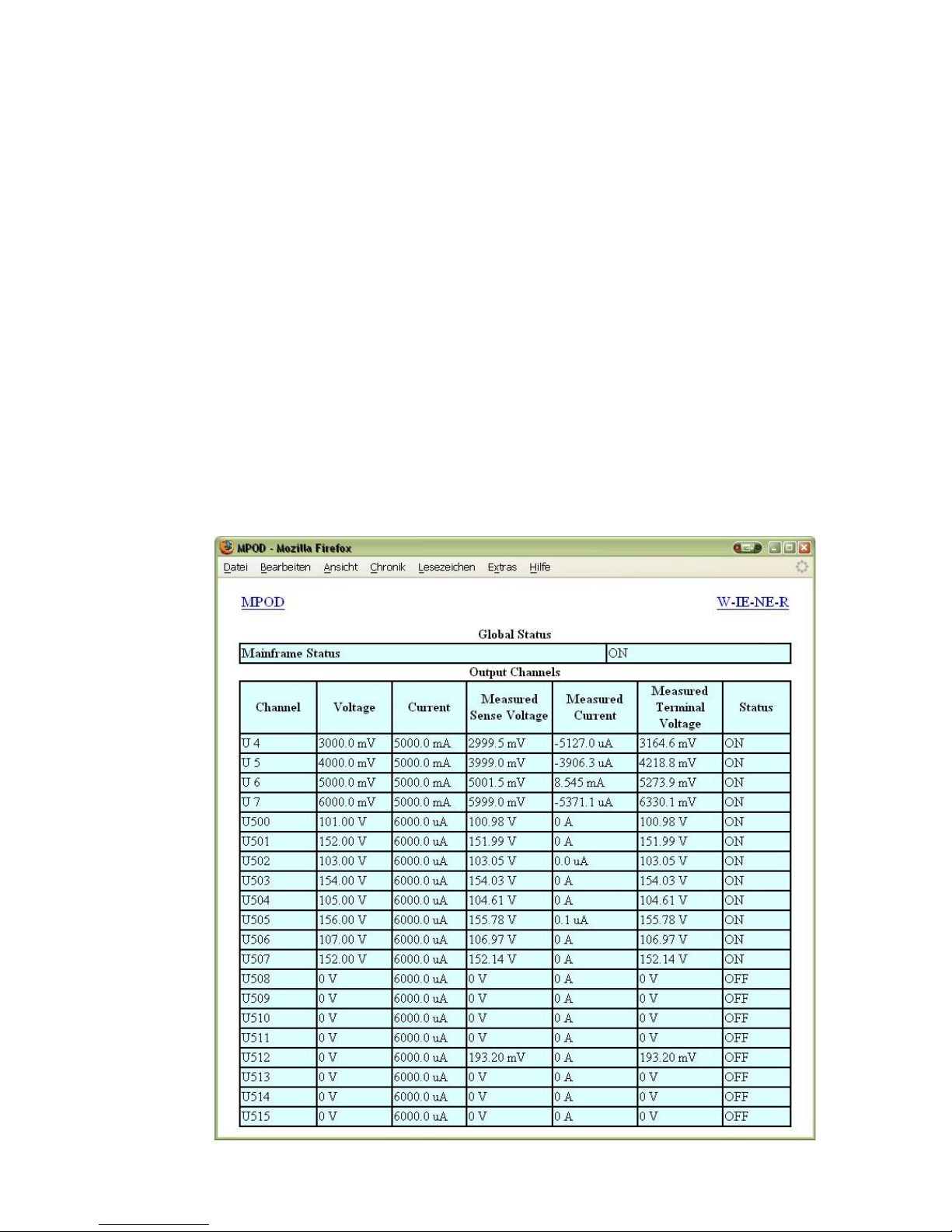

6.2 Web Browser

With a web browser pointing to the IP address as URL it is possible to get an overview of all
channels in a simple way.

25. July 2012 20 Version 2.5.5

6.3 NetSNMP

NetSNMP is an open source SNMP program which can be used to access the Mpod controller
via the Simple Network Management Protocol. Please see http://net-snmp.sourceforge.net/ for
more details.

Please install netSNMP from the CD-ROM or downloaded from WIENER support web site on
the control computer. In order to perform SNMP calls from any WIENER product the
WIENER-CRATE-MIB file must be stored somewhere on the PC doing the calls, by default
that location should be /usr/share/snmp/mibs (Windows: C:\usr\share\snmp\mibs).

The most commonly used net-snmp calls are:

snmpwalk – returns groups of parameters / items
snmpget – returns a specific parameter (read)
snmpset – sets a specific parameter (write)

Please see the Net-snmp description and help files for detailed instructions and options. All
parameters defined for the WIENER Mpod system as well as crates and other power supplies
are contained within the WIENER-CRATE-MIB.txt file.

The following community groups are used:

“public”: for all read operations
“private”: to switch crate on or off
“admin”: to change parameters as fan speed or temperature limits
“guru”: to change HV and LV channel parameters as voltages, current limits, ramps, ...

A fast an easy way to begin using SNMP is to use command line arguments. The command line
arguments specified in this document are based on netSNMP. The command line syntax is the
same for both windows and Linux (and probably MAC OSX).

For all WIENER-CRATE-MIB library calls a quick help text can be shown by using

snmptranslate -On -Td WIENER-CRATE-MIB::xxxx

snmptranslate -On -Td WIENER-CRATE-MIB::outputName

.1.3.6.1.4.1.19947.1.3.2.1.2
outputName OBJECT-TYPE

-- FROM WIENER-CRATE-MIB

-- TEXTUAL CONVENTION DisplayString
SYNTAX OCTET STRING (1..4)
DISPLAY-HINT "255a"
MAX-ACCESS read-only
STATUS current
DESCRIPTION "A textual string containing a short name of the
output. If the crate is equipped with an alphanumeric
display, this string is shown to identify a output channel."
::= { iso(1) org(3) dod(6) internet(1) private(4) enterprises(1) wiener(19947) c
rate(1) output(3) outputTable(2) outputEntry(1) 2 }

A first communication with the Mpod crate can be done using the snmpwalk to confirm the
existence of the power supply at the given IP address.

snmpwalk -Cp -Oqv -v 2c -M $path -m +WIENER-CRATE-MIB -c public $ip

with:

snmpwalk: This command will retrieve a block of information.

-v 2c: This parameters specifies which version of the SNMP to use. WIENER devices

use SNMP 2C.

25. July 2012 21 Version 2.5.5

-M $path: This parameter should be replaced with the path to the WIENER-CRATE­MIB.txt file. It is not needed in case the default path is used.

-m +WIENER-CRATE-MIB: This parameter tells the command to look at the
WIENER-CRATE-MIB to resolve the OID name.

-c public: This specifies which community of values can be accessed.

$ip: This should be replaced with the IP address of the MPOD crate.

Example for crate with IP address 192.168.2.25:

snmpwalk -v 2c -m +WIENER-CRATE-MIB -c public 192.168.2.25

returns:

SNMPv2-MIB::sysDescr.0 = STRING: WIENER MPOD (4193086, MPOD 1.1.1.6,
MPODslave 1.06)
SNMPv2-MIB::sysObjectID.0 = OID: WIENER-CRATE-MIB::sysMainSwitch.0
SNMPv2-MIB::sysUpTime.0 = Timeticks: (13401) 0:02:14.01
SNMPv2-MIB::sysContact.0 = STRING:
SNMPv2-MIB::sysName.0 = STRING:
SNMPv2-MIB::sysLocation.0 = STRING:
SNMPv2-MIB::sysServices.0 = INTEGER: 79

A list of all available parameters or sub-parameters as for instance channels can be obtained
using the command snmpwalk with the paramtere “crate”. To get all parameters use:

snmpwalk -Cp -Oqv -v 2c -M $path -m +WIENER-CRATE-MIB -c public $ip crate

example:

snmpwalk -v 2c -m +WIENER-CRATE-MIB -c public 192.168.2.25 crate

Further it is possible obtain the array of names or values for a specific parameter. The
following command provides a list of all existing output channels:

snmpwalk -Cp -Oqv -v 2c -M $path -m +WIENER-CRATE-MIB -c public $ip
outputName

Example:

snmpwalk -v 2c -m +WIENER-CRATE-MIB -c public 192.168.2.25 outputName

returns for MPOD system with 2 ISEG EHS HV modules (8 channels each) in slot 2 and 3:

WIENER-CRATE-MIB::outputName.u100 = STRING: U100
WIENER-CRATE-MIB::outputName.u101 = STRING: U101
WIENER-CRATE-MIB::outputName.u102 = STRING: U102
WIENER-CRATE-MIB::outputName.u103 = STRING: U103
WIENER-CRATE-MIB::outputName.u104 = STRING: U104
WIENER-CRATE-MIB::outputName.u105 = STRING: U105
WIENER-CRATE-MIB::outputName.u106 = STRING: U106
WIENER-CRATE-MIB::outputName.u107 = STRING: U107
WIENER-CRATE-MIB::outputName.u200 = STRING: U200
WIENER-CRATE-MIB::outputName.u201 = STRING: U201
WIENER-CRATE-MIB::outputName.u202 = STRING: U202
WIENER-CRATE-MIB::outputName.u203 = STRING: U203
WIENER-CRATE-MIB::outputName.u204 = STRING: U204
WIENER-CRATE-MIB::outputName.u205 = STRING: U205
WIENER-CRATE-MIB::outputName.u206 = STRING: U206
WIENER-CRATE-MIB::outputName.u207 = STRING: U207

25. July 2012 22 Version 2.5.5

This example returns 16 index numbers. Please note the following geographic module and
channel number coding for the SNMP call indexes, where the first digit is defined by the slot
number and the following two by the channel of the particular module in this slot:

Slot Channel Name index

1 0 to 99 Uxx .u00 to .u99

2 0 to 99 U1xx .u100 to .u199

... ... ... ...

10 0 to 99 U9xx .u901 to .u999

Please note that both the index as well as the name can be used!

snmpget -v 2c -m +WIENER-CRATE-MIB -c public 192.168.0.80 outputVoltage.u0

WIENER-CRATE-MIB::outputVoltage.u0 = Opaque: Float: 123.000000 V

is identical to

snmpget -v 2c -m +WIENER-CRATE-MIB -c public 192.168.0.80 outputVoltage.1

WIENER-CRATE-MIB::outputVoltage.u0 = Opaque: Float: 123.000000 V

In case of multi crate system there will be an additional digit for the crate number:

Name = 1000 * crate + 100*slot + channel
index = 1000 * crate + 100*slot + channel

(crate: 0 .... 9, slot: 0 ... 9 , channel: 0 ... 99)

To see all 0utput channel set voltage values use snmpwalk with outputVoltage:

snmpwalk -Cp -Oqv -v 2c -M $path -m +WIENER-CRATE-MIB -c public $ip
outputVoltage

Example:

snmpwalk -v 2c -m +WIENER-CRATE-MIB -c public 192.168.2.25 outputVoltage

returns for a MPOD system with one 8 channel ISEG EHS HV module in slot 3:

WIENER-CRATE-MIB::outputVoltage.u200 = Opaque: Float: 0.000000 V
WIENER-CRATE-MIB::outputVoltage.u201 = Opaque: Float: 0.000000 V
WIENER-CRATE-MIB::outputVoltage.u202 = Opaque: Float: 0.000000 V
WIENER-CRATE-MIB::outputVoltage.u203 = Opaque: Float: 0.000000 V
WIENER-CRATE-MIB::outputVoltage.u204 = Opaque: Float: 0.000000 V
WIENER-CRATE-MIB::outputVoltage.u205 = Opaque: Float: 0.000000 V
WIENER-CRATE-MIB::outputVoltage.u206 = Opaque: Float: 0.000000 V
WIENER-CRATE-MIB::outputVoltage.u207 = Opaque: Float: 0.000000 V

After obtaining information about the power supplies or a list of channels and parameters, it is
useful to be able to write or read information about it. This can be done using the snmpget and

snmpset commands.

snmpget -Oqv -v 2c -M $path -m +WIENER-CRATE-MIB -c guru $ip name.index

snmpset -v 2c -M $path -m +WIENER-CRATE-MIB -c guru $ip name.index format value

The most common kind of call you will want is to get data from the power supply. This is
easily done via the snmpget command. The example below retrieves information about whether
the main power for the crate is on. If you wish to test this example on your own system replace
“$path” with the path to WIENER-CRATE-MIB.txt (/usr/share/snmp/mibs by default and
“$ip” with the ip address of your MPOD (see following examples).

25. July 2012 23 Version 2.5.5

snmpget -v 2c -M $path -m +WIENER-CRATE-MIB -c public $ip sysMainSwitch.0

WIENER-CRATE-MIB::sysMainSwitch.0 = INTEGER: OFF(0)

This indicates that the MPOD crate is currently off. To better understand the call above we will
break it down by parameter:

snmpget: This command will retrieve a value about the MPOD crate or one of the
channels it houses..

-v 2c: This parameters specifies which version of the SNMP to use. WIENER devices
use SNMP 2C.

-M $path: This parameter should be replaced with the path to the WIENER-CRATE­MIB.txt file.

-m +WIENER-CRATE-MIB: This parameter tells the command to look at the
WIENER-CRATE-MIB to resolve the OID name.

-c public: This specifies which community of values can be accessed.

$ip: This should be replaced with the IP address of the MPOD crate.

sysMainSwitch.0:

This is the register you wish to retrieve.

Since we we know from the call above that the crate is off, we may want to turn it on.
(Software power cycling is only possible of the green mains switch on the MPOD is “ON”, this
is to prevent a remote user to override a local user and adds a level of safety to the unit.) To
turn MPOD on, we can use the command:

snmpset -v 2c - path -m +WIENER-CRATE-MIB -c private $ip sysMainSwitch.0 i 1

Most of the parameters for snmpset are the same as snmpget, the new parameters are
highlighted below.

i: Since sysMainSwitch.0 is an integer value, we specify the value to be an integer
with.

1: This is the value we wish to write. In this case we write ‘one’ to set the main switch
to on.

For most of the write commands (snmpset) the access type has to be changed from public to
guru.
A complete list of value names that can be written or read via SNMP can be found in the
WIENER-CRATE-MIB but commonly needed values are:

Value Name Type Access Comments
outputVoltage Float R/W The Channel set Voltage
outputCurrent Float R/W The channel current limit
outputMeasurementSenseVoltage Float R Actual channel Voltage
outputMeasurementCurrent Float R Actual channel current
outputSwitch Integer R/W Turns channel ON / OFF,

emergency off, reset error flags

outputVoltageRiseRate Float R/W Channel ramp rate
outputStatus Bits R Channel Status information

25. July 2012 24 Version 2.5.5

For example, to read channel set voltage use:

snmpget -Oqv -v 2c -M $path -m +WIENER-CRATE-MIB -c guru $ip
outputVoltage.index

Example:

snmpget -v 2c -m +WIENER-CRATE-MIB -c public 192.168.2.25 outputVoltage.u0

WIENER-CRATE-MIB::outputVoltage.u0 = Opaque: Float: 0.000000 V

Write and read individual set voltages, “guru” access needed to write!

snmpset -v 2c -m +WIENER-CRATE-MIB -c guru 192.168.2.25 outputVoltage.u101 F 200

WIENER-CRATE-MIB::outputVoltage.u101 = Opaque: Float: 200.000000 V

Note the “F” before the 200, this indicates that the value is a floating point number. This value
can be read back via:

snmpget -v 2c -m +WIENER-CRATE-MIB -c public 192.168.2.25 outputVoltage.u101

WIENER-CRATE-MIB::outputVoltage.u101 = Opaque: Float: 200.000000 V

Turning Channels ON/OFF - The individual channels of an MPOD system low or high voltage
module can be turned on or off using the snmpset command. To turn on channel Ux:

snmpset -Oqv -v 2c -M $path -m +WIENER-CRATE-MIB -c guru $ip
outputSwitch.index i 1

The same channel can be turned off with:

snmpset -Oqv -v 2c -M $path -m +WIENER-CRATE-MIB -c guru $ip
outputSwitch.index i 0

Example:

snmpset -v 2c -m +WIENER-CRATE-MIB -c guru 192.168.2.25 outputSwitch.u101 i 1

The outputSwitch can also be used for emergency-off and to reset error flags. The matching
values are: {off(0), on(1), resetEmergencyOff(2), setEmergencyOff(3), clearEvents(10)}

MPOD low and high voltage modules have programmable voltage ramp speeds. The WIENER
low voltage modules allow different ramp up and down values for each channel whereas for
ISEG modules with common ramp the channel-ID can be any channel of the module! For write
access “guru” is needed:

snmpset -Oqv -v 2c -M $path -m +WIENER-CRATE-MIB -c guru $ip
outputVoltageRiseRate.index F value

Example:

snmpset -v 2c -m +WIENER-CRATE-MIB -c guru 192.168.2.25
outputVoltageRiseRate.u101 F 10

WIENER-CRATE-MIB::outputVoltageRiseRate.u101 = Opaque: Float: 10.000000 V/s

snmpget -v 2c -m +WIENER-CRATE-MIB -c public 192.168.2.25
outputVoltageRiseRate.u101

WIENER-CRATE-MIB::outputVoltageRiseRate.u101 = Opaque: Float: 10.000000 V/s

25. July 2012 25 Version 2.5.5

To access multiple units the groupsSwitch function provides access to all modules in
the MPOD crate (index 0), all ISEG HV modules (index 64), or to all WIENER low
voltage modules (index 128). In addition groups can be defined for low voltage
modules.

Item Type Access Switch functions

groupsSwitch integer write Off (0), On (1),

resetEmergencyOff (2), setEmergencyOff (3),

disableKill (4), enableKill (5),

clearEvents (10)

Examples:

switch all channels of all modules on:

snmpset -v 2c -m +WIENER-CRATE-MIB -c guru 192.168.0.80 groupsSwitch.0 i 1

WIENER-CRATE-MIB::groupsSwitch.0 = INTEGER: on(1)

switch all channels off:

snmpset -v 2c -m +WIENER-CRATE-MIB -c guru 192.168.0.80 groupsSwitch.0 i 0

WIENER-CRATE-MIB::groupsSwitch.0 = INTEGER: off(0)

switch all high voltage channels (ISEG modules) off:

snmpset -v 2c -m +WIENER-CRATE-MIB -c guru 192.168.0.80 groupsSwitch.64 i 0

WIENER-CRATE-MIB::groupsSwitch.64 = INTEGER: off(0)

RESET ISEG HV Modules after Safetyloop error:

snmpset -v 2c -m +WIENER-CRATE-MIB -c guru 192.168.0.80 groupsSwitch.64 i
10

WIENER-CRATE-MIB::groupsSwitch.64 = INTEGER: clearEvents(10)

6.4 ISEG High voltage module special commands

Item Type Access Unit Range

outputVoltageRiseRate float value read-write [V/s] 2V/s - 20% Vnom

1% (KILL enabled)

ISEG high voltage modules have one common value for ramping up and down for all channels.
This value can be set or read by using any channel number of the particular module as index.
For ISEG high voltage modules with 2 PCB's each of the sub-grups of one PCB may have one
ramp value. In this case one should set the ramp twice by using a low and high channel number.
ISEG EHQ, EHS, EDS and EBS modules typically have a ramp rate range from 1V/s …. 20%
of Vnom (max. nominal voltage). In case KILL is enabled the maximum ramp rate is reduced
to 1% in order to lower the risk of unwanted trips during voltage ramp cycles.

snmpset -Oqv -v 2c -M $path -m +WIENER-CRATE-MIB -c guru $ip
outputVoltageRiseRate.index F value

Item Type Access Unit Range

outputCurrentRiseRate float value read-write [A/s] 2 - 100% nom. Val.

outputCurrentFallRate float value read-write [A/s] 2 - 100% nom. Val.

25. July 2012 26 Version 2.5.5

outputTripTimeMaxCurrent integer read-write [ms] 16 – 4000 ms

DESCRIPTION

The outputTripTimeMaxCurrent defines a span for the time out function. The activity is
depending from the programmed bit field outputFailureMaxCurrent of the item

outputSupervisionBehavior. A write value of 0 is switching off the delayed trip
function which was defined in the bit field outputFailureMaxCurrent of
outputSupervisionBehavior before.

Item Type Access Status bits / Switch functions

outputStatus bits read outputEnableKill (13)

outputEmergencyOff (14)

outputSwitch integer read-write Off (0), On (1),

resetEmergencyOff (2),

setEmergencyOff (3),

clearEvents (10)

DESCRIPTION

Read: An enumerated value which shows the current state of the output channel.
Write: Change the state of the channel.

If the channel is On, and the write value is Off, then the channel will switch off.
If the channel is Off, and the write value is On, and if no other signals (mainInhibit,
outputInhibit, outputEmergencyOff or outputFailureMaxCurrent) are active, then the channel
will switch on.

If the write value is resetEmergencyOff, then the channel will leave the state EmergencyOff.
A write of clearEvents is necessary before the voltage can ramp up again.
If the write value is setEmergencyOff, then the channel will have the state EmergencyOff,
which means that the High Voltage will switch off without a ramp and reset of the
outputVoltage to null volt.

If the write value is clearEvents, then all failure messages of the outputStatus will be reset (all
channel events, all module events and the state EmergencyOff.

Item Type Access Switch functions

groupsSwitch.64 integer write Off (0), On (1),

resetEmergencyOff (2), setEmergencyOff (3),

disableKill (4), enableKill (5),

clearEvents (10)

DESCRIPTION

Read: This function is not defined with groups of output channels.
Write: Switch the state of all channels of group 64 (all high voltage moddules).

If any channel is On, and the write value is Off, then all channels will switch off. If any channel
is Off, and the write value is On, and if no other signals (mainInhibit, outputInhibit,
outputEmergencyOff or outputFailureMaxCurrent) are active, then all channels will switch on.

If the write value is resetEmergencyOff, then all channels will leave the state EmergencyOff.
A write of clearEvents is necessary before the voltage can ramp up again.

25. July 2012 27 Version 2.5.5

If the write value is setEmergencyOff, then all channels will have the state EmergencyOff,
which means that the High Voltage will switch off without a ramp and reset of the
outputVoltage to null volt.

If the write value is disableKill, then all channels will switch to disableKill.
If the write value is enableKill, then all channels will switch to enableKill.
If the write value is clearEvents, then all failure messages of the outputStatus will be reset (all
channel events, all module events and the state EmergencyOff).

Item Type Access

outputSupervisionBehavior integer read-write

DESCRIPTION

A bit field packed into an integer which define the behaviour of the output channel / power
supply after failures.

For each supervision value, a two-bit field exists. The enumeration of this value (..L+..H*2) is:

WIENER LV devices

0 ignore the failure
1 switch off this channel
2 switch off all channels with the same group number
3 switch off the complete crate.

iseg HV devices

0 ignore the failure
1 switch off this channel by ramp down the voltage
2 switch off this channel by set a internal EmergencyOff
3 switch off the whole board of the HV module by set EmergencyOff.

The position of the bit fields in the integer value are:

Bit 0, 1: outputFailureMinSenseVoltage
Bit 2, 3: outputFailureMaxSenseVoltage
Bit 4, 5: outputFailureMaxTerminalVoltage

Bit 6, 7: outputFailureMaxCurrent

Bit 8, 9: outputFailureMaxTemperature
Bit 10, 11: outputFailureMaxPower

Bit 12, 13: outputFailureInhibit

Bit 14, 15: outputFailureTimeout

The iseg HV devices can use the bit fields:
outputFailureMaxCurrent support of the function delayed trip

The programmed activity will start when the

actual current exceeded permanently the value
of the item outputCurrent over the span of the
programmed time out (set via the item
outputTripTimeMaxCurrent).

outputFailureInhibit support of the optional hardware function

EXTERNAL INHIBIT per channel

The programmed activity will start when an
external channel inhibit occurs

The channel state have to be in disableKill for a proper work of the configuration of the
behaviour for the functions above.

Settings for outputSupervisionBehavior:

25. July 2012 28 Version 2.5.5

Action outputFailureMaxCurrent outputFailureInhibit

ignore the failure 0 0

switch off this channel by ramp
down the voltage

64 4096

switch off this channel by set a
internal EmergencyOff

128 8192

switch off the whole board of the
HV module by set EmergencyOff

192 12288

Attention!!! In order to use delayed software trips please make sure to have a firmware
on the ISEG high voltage mdoules which supports this feature. Please see the following
table of supported firmware releases. In case of older firmware the software trip will
not act, i.e. the error will be detected but no action (ram down of channel) will happen.

Name of

firmware

Release Date Description Device

class

E16D0 4.25 05/08/09 EDS 16/32 channel distributor module, with

Vmax from V

O max

to (V

O max

- 1kV)

1

E16D1 4.25 05/08/09 EDS 16/32 distributor module 21

E08C0 2.22 02/23/09 EHS 4/8/16 channel, common GND module 24

E08F0 2.27 12/18/08 EHS 4/8/16 channel, floating GND module 25

E08F2 4.06 06/23/09 EHS 4/8/16 channel, floating GND module, 2

ranges for measurement of current

26

E08B0 1.02 07/10/09 EBS 8/16 bipolar channels, distributor module 28

Example of necessary SNMP commands for the delayed trip function:

snmpset -Oqv -v 2c -m +WIENER-CRATE-MIB -c guru 192.168.2.25 groupsSwitch.64 i 4

disableKill

snmpset -Oqv -v 2c -m +WIENER-CRATE-MIB -c guru 192.168.2.25 outputVoltage.u100 F

60

60.000000 V

snmpset -Oqv -v 2c -m +WIENER-CRATE-MIB -c guru 192.168.2.25 outputSwitch.u100 i 1

On

snmpget -Oqv -v 2c -m +WIENER-CRATE-MIB -c public 192.168.2.25 outputVoltage.u100

60.000000 V

snmpget -Oqv -v 2c -m +WIENER-CRATE-MIB -c public 192.168.2.25

outputMeasurementSenseVoltage.u100

60.104588 V

snmpget -Oqv -v 2c -m +WIENER-CRATE-MIB -c public 192.168.2.25

outputMeasurementCurrent.u100

0.000001 A

25. July 2012 29 Version 2.5.5

snmpgetx -Oqv -v 2c -m +WIENER-CRATE-MIB -c public 192.168.2.25

outputMeasurementCurrent.u100

0.000000735 A

snmpget -Oqv -v 2c -m +WIENER-CRATE-MIB -c public 192.168.2.25

outputSupervisionBehavior.u100

0

snmpset -Oqv -v 2c -m +WIENER-CRATE-MIB -c guru 192.168.2.25

outputSupervisionBehavior.u100 i 64

64

snmpget -Oqv -v 2c -m +WIENER-CRATE-MIB -c public 192.168.2.25

outputSupervisionBehavior.u100

64

snmpget -Oqv -v 2c -m +WIENER-CRATE-MIB -c public 192.168.2.25

outputTripTimeMaxCurrent.u100

0 ms

snmpset -Oqv -v 2c -m +WIENER-CRATE-MIB -c guru 192.168.2.25

outputTripTimeMaxCurrent.u100 i 3000

3000 ms /* delay of 3 sconds */

snmpget -Oqv -v 2c -m +WIENER-CRATE-MIB -c public 192.168.2.25 outputStatus.u100

"80 " /* outputOn */

snmpgetx -Oqv -v 2c -m +WIENER-CRATE-MIB -c public 192.168.2.25

outputMeasurementCurrent.u100

0.000000735 A

snmpsetx -Oqv -v 2c -m +WIENER-CRATE-MIB -c guru 192.168.2.25 outputCurrent.u100

F 0.0000007

0.000000700 A

snmpget -Oqv -v 2c -m +WIENER-CRATE-MIB -c public 192.168.2.25 outputStatus.u100

"04 08 " /*outputFailureMaxCurrent, outputRampDown */

snmpget -Oqv -v 2c -m +WIENER-CRATE-MIB -c public 192.168.2.25 outputStatus.u100

"04 " /* outputFailureMaxCurrent */

snmpset -Oqv -v 2c -m +WIENER-CRATE-MIB -c guru 192.168.2.25 outputSwitch.u100 i

10

clearEvents

snmpsetx -Oqv -v 2c -m +WIENER-CRATE-MIB -c guru 192.168.2.25 outputCurrent.u100

F 0.00001

0.000010000 A

snmpset -Oqv -v 2c -m +WIENER-CRATE-MIB -c guru 192.168.2.25 outputSwitch.u100 i 1

On

snmpget -Oqv -v 2c -m +WIENER-CRATE-MIB -c public 192.168.2.25 outputStatus.u100

25. July 2012 30 Version 2.5.5

"80 10 " /* outputOn, outputRampUp */

/* a load has been switched on channel 0 to bring them in state CC current limited */

snmpget -Oqv -v 2c -m +WIENER-CRATE-MIB -c public 192.168.2.25 outputStatus.u100

"80 20 " /* outputOn, outputCurrentLimited */

.

snmpget -Oqv -v 2c -m +WIENER-CRATE-MIB -c public 192.168.2.25 outputStatus.u100

"80 20 " /* outputOn, outputCurrentLimited */

/* the delayed trip fuction ramps the voltage after 3 seconds to zero */

snmpget -Oqv -v 2c -m +WIENER-CRATE-MIB -c public 192.168.2.25 outputStatus.u100

"04 08 " /* outputFailureMaxCurrent, outputRampDown */

6.5 Change of community names / setting of passwords

For the communication with MPOD modules 4 types of SNMP communities are used,
“public", "private", "admin"and "guru". By default the community names are equal
to the community types.

snmpwalk -v 2c -m +WIENER-CRATE-MIB -c guru 192.168.0.80

snmpCommunityName

WIENER-CRATE-MIB::snmpCommunityName.public = STRING: "public"
WIENER-CRATE-MIB::snmpCommunityName.private = STRING: "private"
WIENER-CRATE-MIB::snmpCommunityName.admin = STRING: "admin"
WIENER-CRATE-MIB::snmpCommunityName.guru = STRING: "guru"

snmpwalk -v 2c -m +WIENER-CRATE-MIB -c private 192.168.0.80
snmpCommunityName

WIENER-CRATE-MIB::snmpCommunityName.public = STRING: "public"
WIENER-CRATE-MIB::snmpCommunityName.private = STRING: "private"

In order to secure the MPOD system communication the community names can be
used as passwords and be changed accordingly. The following example shows how the
change and test the community names. Using a wrong community name will result in a
time out error. Please note, that especially the communities with write access (private,
admin, guru) should be protected.

snmpset -v 2c -m +WIENER-CRATE-MIB -c guru 192.168.0.80
snmpCommunityName.guru s seCrET

WIENER-CRATE-MIB::snmpCommunityName.guru = STRING: "seCrET"

snmpwalk -v 2c -m +WIENER-CRATE-MIB -c guru 192.168.0.80
snmpCommunityName

Timeout: No Response from 192.168.0.80

snmpwalk -v 2c -m +WIENER-CRATE-MIB -c seCrET 192.168.0.80
snmpCommunityName

WIENER-CRATE-MIB::snmpCommunityName.public = STRING: "public"
WIENER-CRATE-MIB::snmpCommunityName.private = STRING: "private"
WIENER-CRATE-MIB::snmpCommunityName.admin = STRING: "admin"
WIENER-CRATE-MIB::snmpCommunityName.guru = STRING: "seCrET"

25. July 2012 31 Version 2.5.5

6.6 MIB Browser

There are several commercial or open source MIB-Browser programs available which can be
used for SNMP communication. These provide often a simple GUI and allow SNMP calls.
Following is a list of some free or open source MIB – browsers:

http://www.ireasoning.com/mibbrowser.shtml
http://www.serverscheck.com/mib_browser/
http://www.mibble.org/
http://www.ks-soft.net/hostmon.eng/mibbrowser/index.htm
http://www.tembria.com/products/snmpbrowser/index.html

6.7 A BASH Simple Script for SNMP

All of the commands above could be combined into scripts to set and monitor a predefined set
of channels. For example a Bash script to read all channels and set the voltages and current
limit to the same value for each channel could look like:

#!/bin/bash
# Simple Bash Script that will read and set all channels in a MPOD crate

ip=192.168.2.25
path=/usr/share/snmp/mibs
setVoltage=5
setCurrent=.100
setStatus=1

25. July 2012 32 Version 2.5.5

setRamp=100

channelCount=$(snmpget -Oqv -v 2c -M $path -m +WIENER-CRATE-MIB -c guru $ip
outputNumber.0)
indices=$(snmpwalk -Oqv -v 2c -M $path -m +WIENER-CRATE-MIB -c guru $ip
outputIndex)
x=(`echo $indices | tr ' ' ' '`)

COUNTER=0
while [ $COUNTER -lt $channelCount ]; do
index=$(echo ${x[${COUNTER}]})

voltage=$(snmpset -OqvU -v 2c -M $path -m +WIENER-CRATE-MIB -c guru $ip
outputVoltage.$index F $setVoltage)
iLimit=$(snmpset -OqvU -v 2c -M $path -m +WIENER-CRATE-MIB -c guru $ip
outputCurrent.$index F $setCurrent)
rampspeed=$(snmpset -OqvU -v 2c -M $path -m +WIENER-CRATE-MIB -c guru $ip
outputVoltageRiseRate.$index F $setRamp)
status=$(snmpset -OqvU -v 2c -M $path -m +WIENER-CRATE-MIB -c guru $ip
outputSwitch.$index i $setStatus)

voltage=$(snmpget -OqvU -v 2c -M $path -m +WIENER-CRATE-MIB -c guru $ip
outputVoltage.$index)
iLimit=$(snmpget -OqvU -v 2c -M $path -m +WIENER-CRATE-MIB -c guru $ip
outputCurrent.$index)
sense=$(snmpget -OqvU -v 2c -M $path -m +WIENER-CRATE-MIB -c guru $ip
outputMeasurementSenseVoltage.$index)
current=$(snmpget -OqvU -v 2c -M $path -m +WIENER-CRATE-MIB -c guru $ip
outputMeasurementCurrent.$index)
rampspeed=$(snmpget -OqvU -v 2c -M $path -m +WIENER-CRATE-MIB -c guru $ip
outputVoltageRiseRate.$index)
status=$(snmpget -OqvU -v 2c -M $path -m +WIENER-CRATE-MIB -c guru $ip
outputSwitch.$index)

echo "$voltage $iLimit $sense $current $rampspeed $status"

let COUNTER=COUNTER+1
done

25. July 2012 33 Version 2.5.5

6.8 Mpod SNMP Parameter List (most common)

Parameter Multi Access Type
sysMainSwitch 1 R/W i
sysStatus 1 R/W i
sysVmeSysReset 1 R/W i
outputNumber 1 R i
groupsNumber 1 R i
outputName 320 R string
outputGroup 320 R i
outputStatus 320 R i
outputMeasurementSenseVoltage 320 R F
outputMeasurementTerminalVoltage 320 R F
outputMeasurementCurrent 320 R F
outputMeasurementTemperature 320 R i
outputSwitch 320 R/W i
outputVoltage 320 R/W F
outputCurrent 320 R/W F
outputVoltageRiseRate 320 R/W F
outputVoltageFallRate 320 R/W F
outputSupervisionBehavior 320 R/W i
outputSupervisionMinSenseVoltage 320 R/W F
outputSupervisionMaxSenseVoltage 320 R/W F
outputSupervisionMaxTerminalVoltage 320 R/W F
outputSupervisionMaxCurrent 320 R/W F
outputSupervisionMaxTemperature 320 R/W i
outputConfigMaxSenseVoltage 320 R F
outputConfigMaxTerminalVoltage 320 R F
outputConfigMaxCurrent 320 R F
outputConfigMaxPower 320 R F
sensorNumber 1 R i
sensorTemperature 12 R i
sensorWarningThreshold 12 R/W i
sensorFailureThreshold 12 R/W i
snmpCommunityName 4 R/W string
psFirmwareVersion 1 R string
psSerialNumber 1 R string
psOperatingTime 1 R i
psDirectAccess 1 R/W string
fanFirmwareVersion 1 R string
fanSerialNumber 1 R string
fanOperatingTime 1 R i
fanAirTemperature 1 R i
fanSwicthOffDelay 1 R/W i
fanNominalSpeed 1 R/W i
fanNumberOfFans 1 R i
fanSpeed 6 R i

(see SNMP tree structure at end of manual for full structure)

25. July 2012 34 Version 2.5.5

6.9 LabView Control Program (NETSNMP)

All LabView MPOD function VI’s are using SNMP calls from the
WIENER_SNMP_LV.DLL. This DLL requires the installation of NETSNMP and the
WIENER –CRATE-MIB.txt file as described in Chapter 6.3!

The supplied LabView Mini programs allow controlling both low and high voltage
channels for small configurations of up to 4 Mpod modules. The programs can run in
parallel to web monitoring. The programs are provided as executable which will retuire the
NI LV Run-time-engine. All source code is available on the CD-ROM. Please run these
VI's with either LabView 8.5 or higher .

Example for LabView VI for 8 channel high voltage module

6.10 C++ programming (NetSNMP)

Using NetSNMP C++ programs can be easily written for monitoring and control of Mpod low /
high voltage modules. For Windows all needed functions are provided by a dynamically
loadable library WIENER_SNMP.DLL. This DLL requires NETSNMP and the WIENER –
CRATE-MIB.txt file as described in chapter 6.3!
The following functions are provided in this library (for details see source code):

SnmpInit
SnmpCleanup
SnmpOpen
SnmpClose

getMainSwitch
setMainSwitch
getMainStatus
getVmeReset
setVmeReset

getOutputNumber
getOutputGroups
getOutputGroup
getChannelStatus

25. July 2012 35 Version 2.5.5

getOutputSenseMeasurement
getOutputTerminalMeasurement
getCurrentMeasurement
getTemperatureMeasurement
setChannelSwitch
getChannelSwitch
getOutputVoltage
setOutputVoltage
getOutputCurrent
setOutputCurrent
getOutputRiseRate
setOutputRiseRate
getOutputFallRate
setOutputFallRate
getOutputSupervisionBehavior
setOutputSupervisionBehavior
getOutputSupervisionMinSenseVoltage
setOutputSupervisionMinSenseVoltage
getOutputSupervisionMaxSenseVoltage
setOutputSupervisionMaxSenseVoltage
getOutputSupervisionMaxTerminalVoltage
setOutputSupervisionMaxTerminalVoltage
getOutputSupervisionMaxCurrent
setOutputSupervisionMaxCurrent
getOutputSupervisionMaxTemperature
getOutputConfigMaxSenseVoltage
getOutputConfigMaxTerminalVoltage
getOutputConfigMaxCurrent
getOutputConfigMaxPower

getSensorNumber
getSensorTemp
getSensorWarningTemperature
setSensorWarningTemperature
getSensorFailureTemperature
setSensorFailureTemperature

getPsOperatingTime

getFanOperatingTime
getFanAirTemperature
getFanSwitchOffDelay
setFanSwitchOffDelay
getFanNominalSpeed
setFanNominalSpeed
setFanNominalSpeed
getFanNumberOfFans
getFanSpeed

snmpSetDouble
snmpGetDouble
snmpSetInt
snmpGetInt

25. July 2012 36 Version 2.5.5

7 Mpod Crate

Powered chassis for multichannel low and high voltage modules

Construction 8 or 9U x 19” crate max.10 modules, up to3 kW output

power / 3,6kW input power

Slots: 10 + ½ (MPOD controller)

Dimensions (w, h, d) 483 mm x 460 mm x 355 mm

Weight: 31,5 kg

8 Primary Power Supply

The power supply provides all necessary supply voltages for the LV- and HV-Modules.

It is connected to the mains (World wide input 100..240V AC, 50..60 Hz).

● World wide input: 100..240V AC, 50..60 Hz, single phase

● Sinusoidal current input, up to 16A, depending on the used modules

8.1 Power Box Data Sheet

3U box with max. 6 power modules.

Mains Input

Rated Input Voltage: 106 – 230 V AC, +/- 15% variation allowed
Rated Input Current: 16 A
Sinusoidal: CE CE EN 60555, IEC 555 pow. fact. 0,98 (230VAC)
Inrush current: 16 A, cold unit

Input protection: An external fuse or circuit breaker has to be installed

(16A max.)
RF rejection: EN 55 022 Class B, Input and Output
Output protection

overload: current limiting for booster circuits, 90°C cut off

temperature

Dimensions: 4U x 14 PU width acc. to IEC 60297, 450 mm deep
Weight: 4,7 kg

Operation temperature: 0....45°C without derating, storage: -30°C … + 85°C

M T B F electronics: 40°C ambient: ca. 100 000 h

integrated fan: 40°C ambient: ca. 65 000 h, 25° ambient >85000h

25. July 2012 37 Version 2.5.5

9 Mpod Low Voltage module MPV 8xx data sheet

• 8 channel low voltage module with floating outputs with individual return lines and

sense lines

• Polarity configurable, outputs are insulated from each other and the chassis mainframe

earth with 125V DC working voltage (Test voltage = 500VDC)

• 0.2% / 10K output voltage stability

• Voltage set / monitor: 15 bit resolution, +/-0.1% of full scale or better accuracy,

measurement of both sense and terminal voltage

• Current limit set / monitor: 15 bit resolution, +/-0.05% of full scale or better accuracy

• Ramp-up / down programmable from 1 V/s to 500 V/s in 1 V/s steps.

• Output Voltage Ripple: < 10mV

pp

; 1mV

Rms

with 350MHz Bandwidth

< 5mVpp; 0.5mV

Rms

with 100MHz Bandwidth

< 3mVpp; 0.5mV

Rms

with 20MHz Bandwidth

• Low conducted distubance current (Funkstörstrom TÜV)

• Static Regulation: < 10mV

• Dynamic Regulation: <100mV with I = +/- 25% change and 70A/s

recovery time < 5mS

• Dimensions: 6U x 40.64mm x 220mm

• Front Panel Indicators: tri-color LED's with on / off / failure for every channel

• Output Channels Connectors:

a) 2x 37-pin D-sub (outputs, returns, sense lines, chassis and interlock loop pair)
b) 2 x 8 pin high current sub-D and 37-pin sense/control connector

• Interlock Loop – optional

• Safety Loop – in connector PIN 18 and 37

Type Channels Voltage I Max Peak Power V-Res I-Res Ripple

MPV 8008D 8 0 to 8V 10A 50W / ch. 0.5mV 0.5mA <30mVpp

MPV 8008I 8 0 to 8V 10A 50W / ch. 0.5mV 0.5mA <30mVpp

MPV 8008LD 8 0 to 8V 5A 40W / ch. 0.5mV 0.25mA <10mVpp

MPV 8008LI 8 0 to 8V 5A 40W / ch. 0.5mV 0.25mA <10mVpp

MPV 8016D 8 0 to 15V 5A 50W / ch. 1mV 0.25mA <10mVpp

MPV 8016I 8 0 to 15V 5A 50W / ch. 1mV 0.25mA <10mVpp

MPV 8030D 8 0 to 30V 2.5A 50W / ch. 2mV 0.12mA <10mVpp

MPV 8030I 8 0 to 30V 2.5A 50W / ch. 2mV 0.12mA <10mVpp

MPV 8060D 8 0 to 60V 1A 50W / ch. 4mV 0.06mA <10mVpp

MPV 8060I 8 0 to 60V 1A 50W / ch. 4mV 0.06mA <10mVpp

MPV 8120D 8 0 to 120V 100mA 50W / ch. 4mV 4 µA <10mVpp

MPV 8120I 8 0 to 120V 100mA 50W / ch. 4mV 4 µA <10mVpp

25. July 2012 38 Version 2.5.5

Regulation fast remote sense circuit (short sensed distance, sense connected to output at
the MPOD module):

Static: MVP 2-8 V < 15 mV (+/-100% load, +/- full

mains range)

MVP other voltages < 0.05 % (+/-100% load, +/- full DC

input range)

Dynamic (0.5 m
wire):

MVP 2-8 V < 100 mV (50 % - 75 % load change)

other < 0.7 % (50 % - 75 % load change)

Recovery Time: MVP 2-8V 1%: 0.2 ms

0.1%: 0.5 ms

(50 % - 75 % load change)

MVP 5-16V, 7-24V 1%: 0.0 ms

0.1%: 1.0 ms

(50 % - 75 % load change)

MVP 30-60V 1%: 0.5 ms

0.1%: 1.0 ms

(50 % - 75 % load change)

Conditions Current slope <1000A/ms, 200uF per 1A parallel to load, fast

regulation mode selected.

Regulation slow remote sense circuit (long sensed distance):

Static: MVP 2-8V/ 30-60V < 15 mV (+/-100% load, +/- full

mains range)

Other < 0.05 % (+/-100% load, +/- full

mains range)

Dynamic: Dynamic deviation depends on current slope resp. filter capacitors at

load side only

30m cable to load, 0,3mF capacitance at load side, 1V drop at nominal

load, 10% - 90 % load change with 3ms slope (50A output=

13,33A/ms) leads to less than 10% temporary output voltage deviation

Recovery Time (40m
wire, 5V at load side,
U

drop

< 2 V:

MVP 2-7V, 2-8V 10%: <15 ms

1%: <25 ms

(50 % - 75 % load change)

Other 10%: <15 ms

1%: < 33 ms

(50 % - 75 % load change)

25. July 2012 39 Version 2.5.5

10 SNMP examples for MPOD and high voltage EHS/EDS module

/*****************************************************************************************************/

/* */

/* SNMP example for control of iseg Multi-Channel High Voltage Power Supply Modules in */

/* a W-IE-NE-R MPOD crate */

/* */

/* snmpget -Oqv -v 2c -M $path -m +WIENER-CRATE-MIB -c public 192.168.16.222 outputVoltage.u100 */

/* This command will request the value from datapoint set voltage. */

/* snmpget: starts a SNMP request */

/* -v 2c: This parameters specifies which version of the SNMP to use. WIENER devices use SNMP 2C. */

/* -M $path: This parameter should be replaced with the path to the WIENERCRATE-MIB.txt file. */

/* It is not needed in case the default path is used. */

/* -m +WIENER-CRATE-MIB: This parameter tells the command to look at the WIENER-CRATE-MIB */

/* to resolve the OID name. */

/* -c public: This specifies which community of values can be accessed */

/* 192.168.16.222: The IP address of the MPOD crate. */

/* outputVoltage.u100: The SNMP item to the data point set voltage of a module in the second */

/* slot of the MPOD crate HV channel 0. */

/* */

/* snmpset -Oqv -v 2c -m +WIENER-CRATE-MIB -c public 192.168.16.222 outputVoltage.u100 F 60 */

/* This command writes a floating point value to the datapoint set voltage. */

/* snmpset: starts a SNMP write instruction */

/* -c guru: This specifies the community for write accesses */

/* F 60: The F specifies the write value as a floating point formated value. */

/* The 60 is the write value 60 Volt. */

/* */

/* snmpset -Oqv -v 2c -m +WIENER-CRATE-MIB -c guru 192.168.16.222 outputSwitch.u100 i 1 */

/* This command write a switch on of the HV for one channel. */

/* outputSwitch.u100 i 1: Write of an integer formatted value to the item outputSwitch. */

/* With that item it is possible to switch differnt functions for instance */

/* set On(1). */

/*****************************************************************************************************/

snmpget -Oqv -v 2c -m +WIENER-CRATE-MIB -c public 192.168.16.222 outputVoltage.u100

200.000000 V

snmpset -Oqv -v 2c -m +WIENER-CRATE-MIB -c guru 192.168.16.222 outputVoltage.u100 F 60

60.000000 V

snmpset -Oqv -v 2c -m +WIENER-CRATE-MIB -c guru 192.168.16.222 outputSwitch.u100 i 1

On

25. July 2012 40 Version 2.5.5

snmpget -Oqv -v 2c -m +WIENER-CRATE-MIB -c public 192.168.16.222 outputVoltage.u100

60.000000 V

snmpget -Oqv -v 2c -m +WIENER-CRATE-MIB -c public 192.168.16.222 outputMeasurementSenseVoltage.u100

60.104588 V

snmpget -Oqv -v 2c -m +WIENER-CRATE-MIB -c public 192.168.16.222 outputMeasurementSenseVoltage.u100

60.104713 V

snmpget -Oqv -v 2c -m +WIENER-CRATE-MIB -c public 192.168.16.222 outputMeasurementCurrent.u100

0.000001 A

snmpgetx -Oqv -v 2c -m +WIENER-CRATE-MIB -c public 192.168.16.222 outputMeasurementCurrent.u100

0.000000735 A

snmpget -Oqv -v 2c -m +WIENER-CRATE-MIB -c public 192.168.16.222 outputSupervisionBehavior.u100

0

snmpset -Oqv -v 2c -m +WIENER-CRATE-MIB -c guru 192.168.16.222 outputSupervisionBehavior.u100 i 64

64

snmpget -Oqv -v 2c -m +WIENER-CRATE-MIB -c public 192.168.16.222 outputSupervisionBehavior.u100

64

snmpget -Oqv -v 2c -m +WIENER-CRATE-MIB -c public 192.168.16.222 outputTripTimeMaxCurrent.u100

0 ms

snmpset -Oqv -v 2c -m +WIENER-CRATE-MIB -c guru 192.168.16.222 outputTripTimeMaxCurrent.u100 i 3000

3000 ms /* delay of 3 sconds */

snmpget -Oqv -v 2c -m +WIENER-CRATE-MIB -c public 192.168.16.222 outputStatus.u100

"80 " /* outputOn */

snmpgetx -Oqv -v 2c -m +WIENER-CRATE-MIB -c public 192.168.16.222 outputMeasurementCurrent.u100

0.000000735 A

snmpsetx -Oqv -v 2c -m +WIENER-CRATE-MIB -c guru 192.168.16.222 outputCurrent.u100 F 0.0000007

0.000000700 A

snmpget -Oqv -v 2c -m +WIENER-CRATE-MIB -c public 192.168.16.222 outputStatus.u100

"04 08 " /*outputFailureMaxCurrent, outputRampDown */

25. July 2012 41 Version 2.5.5

snmpget -Oqv -v 2c -m +WIENER-CRATE-MIB -c public 192.168.16.222 outputStatus.u100

"04 " /* outputFailureMaxCurrent */

snmpset -Oqv -v 2c -m +WIENER-CRATE-MIB -c guru 192.168.16.222 outputSwitch.u100 i 10

clearEvents

snmpsetx -Oqv -v 2c -m +WIENER-CRATE-MIB -c guru 192.168.16.222 outputCurrent.u100 F 0.00001

0.000010000 A

snmpset -Oqv -v 2c -m +WIENER-CRATE-MIB -c guru 192.168.16.222 outputSwitch.u100 i 1

On

snmpget -Oqv -v 2c -m +WIENER-CRATE-MIB -c public 192.168.16.222 outputStatus.u100

"80 10 " /* outputOn, outputRampUp */

/* a load has been switched on channel 0 to bring them in state CC current limited */

snmpget -Oqv -v 2c -m +WIENER-CRATE-MIB -c public 192.168.16.222 outputStatus.u100

"80 20 " /* outputOn, outputCurrentLimited */

snmpget -Oqv -v 2c -m +WIENER-CRATE-MIB -c public 192.168.16.222 outputStatus.u100

"80 20 " /* outputOn, outputCurrentLimited */

snmpget -Oqv -v 2c -m +WIENER-CRATE-MIB -c public 192.168.16.222 outputStatus.u100

"80 20 " /* outputOn, outputCurrentLimited */

snmpget -Oqv -v 2c -m +WIENER-CRATE-MIB -c public 192.168.16.222 outputStatus.u100

"80 20 " /* outputOn, outputCurrentLimited */

snmpget -Oqv -v 2c -m +WIENER-CRATE-MIB -c public 192.168.16.222 outputStatus.u100

"80 20 " /* outputOn, outputCurrentLimited */

/* the delayed trip fuction pamps the voltage after 3 seconds to zero */

snmpget -Oqv -v 2c -m +WIENER-CRATE-MIB -c public 192.168.16.222 outputStatus.u100

"04 08 " /* outputFailureMaxCurrent, outputRampDown */

snmpget -Oqv -v 2c -m +WIENER-CRATE-MIB -c public 192.168.16.222 outputStatus.u100

"04 08 " /* outputFailureMaxCurrent, outputRampDown */

25. July 2012 42 Version 2.5.5

11 WIENER SNMP Parameter structure

// GENERATED WITH
// snmptranslate -w 120 -Tp WIENER-CRATE-MIB::crate > SnmpTree.txt
//

+--crate(1)
+--system(1)
| +-- -RW- EnumVal sysMainSwitch(1)
| | Values: off(0), on(1)
| +-- -R-- BitString sysStatus(2)
| | Values: mainOn(0), mainInhibit(1), localControlOnly(2), inputFailure(3), outputFailure(4),
| | fantrayFailure(5), sensorFailure(6), vmeSysfail(7), plugAndPlayIncompatible(8)
| +-- -RW- EnumVal sysVmeSysReset(3)
| | Values: trigger(1)
| +-- -RW- INTEGER sysHardwareReset(4)
| +-- -RW- BitString sysConfigDoMeasurementCurrent(10)
| | Values: ch0(0), ch1(1), ch2(2), ch3(3), ch4(4), ch5(5), ch6(6), ch7(7)
| +-- -RW- Integer32 sysOperatingTime(11)
| +-- -RW- String sysMemoryAccess(127)
| | Size: 516
| +-- -RW- Integer32 sysDebugMemory8(1024)
| | Range: 0..255
| +-- -RW- Integer32 sysDebugMemory16(1025)
| | Range: 0..65535
| +-- -RW- Integer32 sysDebugMemory32(1026)
| Range: -2147483648..2147483647
|
+--input(2)
+--output(3)
| +-- -R-- Integer32 outputNumber(1)
| | Range: 0..1999
| |
| +--outputTable(2)
| | |
| | +--outputEntry(1)
| | | Index: outputIndex
| | |
| | +-- ---- EnumVal outputIndex(1)
| | | Values: u0(1), u1(2), u2(3), u3(4), u4(5), u5(6), u6(7), u7(8), u8(9), u9(10), u10(11), u11(12),
| | | u12(13), u13(14), u14(15), u15(16), u16(17), u17(18), u18(19), u19(20), u20(21), u21(22),
| | | u22(23), u23(24), u24(25), u25(26), u26(27), u27(28), u28(29), u29(30), u30(31), u31(32),
| | | u32(33), u33(34), u34(35), u35(36), u36(37), u37(38), u38(39), u39(40), u40(41), u41(42),
| | | u42(43), u43(44), u44(45), u45(46), u46(47), u47(48), u48(49), u49(50), u50(51), u51(52),
| | | u52(53), u53(54), u54(55), u55(56), u56(57), u57(58), u58(59), u59(60), u60(61), u61(62),
| | | u62(63), u63(64), u64(65), u65(66), u66(67), u67(68), u68(69), u69(70), u70(71), u71(72),
| | | u72(73), u73(74), u74(75), u75(76), u76(77), u77(78), u78(79), u79(80), u80(81), u81(82),
| | | u82(83), u83(84), u84(85), u85(86), u86(87), u87(88), u88(89), u89(90), u90(91), u91(92),
| | | u92(93), u93(94), u94(95), u95(96), u96(97), u97(98), u98(99), u99(100), u100(101),
| | | u101(102), u102(103), u103(104), u104(105), u105(106), u106(107), u107(108), u108(109),
| | | u109(110), u110(111), u111(112), u112(113), u113(114), u114(115), u115(116), u116(117),
| | | u117(118), u118(119), u119(120), u120(121), u121(122), u122(123), u123(124), u124(125),
| | | u125(126), u126(127), u127(128), u128(129), u129(130), u130(131), u131(132), u132(133),
| | | u133(134), u134(135), u135(136), u136(137), u137(138), u138(139), u139(140), u140(141),
| | | u141(142), u142(143), u143(144), u144(145), u145(146), u146(147), u147(148), u148(149),
| | | u149(150), u150(151), u151(152), u152(153), u153(154), u154(155), u155(156), u156(157),
| | | u157(158), u158(159), u159(160), u160(161), u161(162), u162(163), u163(164), u164(165),
| | | u165(166), u166(167), u167(168), u168(169), u169(170), u170(171), u171(172), u172(173),
| | | u173(174), u174(175), u175(176), u176(177), u177(178), u178(179), u179(180), u180(181),
| | | u181(182), u182(183), u183(184), u184(185), u185(186), u186(187), u187(188), u188(189),
| | | u189(190), u190(191), u191(192), u192(193), u193(194), u194(195), u195(196), u196(197),
| | | u197(198), u198(199), u199(200), u200(201), u201(202), u202(203), u203(204), u204(205),
| | | u205(206), u206(207), u207(208), u208(209), u209(210), u210(211), u211(212), u212(213),

25. July 2012 43 Version 2.5.5

| | | u213(214), u214(215), u215(216), u216(217), u217(218), u218(219), u219(220), u220(221),
| | | u221(222), u222(223), u223(224), u224(225), u225(226), u226(227), u227(228), u228(229),
| | | u229(230), u230(231), u231(232), u232(233), u233(234), u234(235), u235(236), u236(237),
| | | u237(238), u238(239), u239(240), u240(241), u241(242), u242(243), u243(244), u244(245),
| | | u245(246), u246(247), u247(248), u248(249), u249(250), u250(251), u251(252), u252(253),
| | | u253(254), u254(255), u255(256), u256(257), u257(258), u258(259), u259(260), u260(261),
| | | u261(262), u262(263), u263(264), u264(265), u265(266), u266(267), u267(268), u268(269),
| | | u269(270), u270(271), u271(272), u272(273), u273(274), u274(275), u275(276), u276(277),
| | | u277(278), u278(279), u279(280), u280(281), u281(282), u282(283), u283(284), u284(285),
| | | u285(286), u286(287), u287(288), u288(289), u289(290), u290(291), u291(292), u292(293),
| | | u293(294), u294(295), u295(296), u296(297), u297(298), u298(299), u299(300), u300(301),
| | | u301(302), u302(303), u303(304), u304(305), u305(306), u306(307), u307(308), u308(309),
| | | u309(310), u310(311), u311(312), u312(313), u313(314), u314(315), u315(316), u316(317),
| | | u317(318), u318(319), u319(320), u320(321), u321(322), u322(323), u323(324), u324(325),
| | | u325(326), u326(327), u327(328), u328(329), u329(330), u330(331), u331(332), u332(333),
| | | u333(334), u334(335), u335(336), u336(337), u337(338), u338(339), u339(340), u340(341),
| | | u341(342), u342(343), u343(344), u344(345), u345(346), u346(347), u347(348), u348(349),
| | | u349(350), u350(351), u351(352), u352(353), u353(354), u354(355), u355(356), u356(357),
| | | u357(358), u358(359), u359(360), u360(361), u361(362), u362(363), u363(364), u364(365),
| | | u365(366), u366(367), u367(368), u368(369), u369(370), u370(371), u371(372), u372(373),
| | | u373(374), u374(375), u375(376), u376(377), u377(378), u378(379), u379(380), u380(381),
| | | u381(382), u382(383), u383(384), u384(385), u385(386), u386(387), u387(388), u388(389),
| | | u389(390), u390(391), u391(392), u392(393), u393(394), u394(395), u395(396), u396(397),
| | | u397(398), u398(399), u399(400), u400(401), u401(402), u402(403), u403(404), u404(405),
| | | u405(406), u406(407), u407(408), u408(409), u409(410), u410(411), u411(412), u412(413),
| | | u413(414), u414(415), u415(416), u416(417), u417(418), u418(419), u419(420), u420(421),
| | | u421(422), u422(423), u423(424), u424(425), u425(426), u426(427), u427(428), u428(429),
| | | u429(430), u430(431), u431(432), u432(433), u433(434), u434(435), u435(436), u436(437),
| | | u437(438), u438(439), u439(440), u440(441), u441(442), u442(443), u443(444), u444(445),
| | | u445(446), u446(447), u447(448), u448(449), u449(450), u450(451), u451(452), u452(453),
| | | u453(454), u454(455), u455(456), u456(457), u457(458), u458(459), u459(460), u460(461),
| | | u461(462), u462(463), u463(464), u464(465), u465(466), u466(467), u467(468), u468(469),
| | | u469(470), u470(471), u471(472), u472(473), u473(474), u474(475), u475(476), u476(477),
| | | u477(478), u478(479), u479(480), u480(481), u481(482), u482(483), u483(484), u484(485),
| | | u485(486), u486(487), u487(488), u488(489), u489(490), u490(491), u491(492), u492(493),
| | | u493(494), u494(495), u495(496), u496(497), u497(498), u498(499), u499(500), u500(501),
| | | u501(502), u502(503), u503(504), u504(505), u505(506), u506(507), u507(508), u508(509),
| | | u509(510), u510(511), u511(512), u512(513), u513(514), u514(515), u515(516), u516(517),
| | | u517(518), u518(519), u519(520), u520(521), u521(522), u522(523), u523(524), u524(525),
| | | u525(526), u526(527), u527(528), u528(529), u529(530), u530(531), u531(532), u532(533),
| | | u533(534), u534(535), u535(536), u536(537), u537(538), u538(539), u539(540), u540(541),
| | | u541(542), u542(543), u543(544), u544(545), u545(546), u546(547), u547(548), u548(549),
| | | u549(550), u550(551), u551(552), u552(553), u553(554), u554(555), u555(556), u556(557),
| | | u557(558), u558(559), u559(560), u560(561), u561(562), u562(563), u563(564), u564(565),
| | | u565(566), u566(567), u567(568), u568(569), u569(570), u570(571), u571(572), u572(573),
| | | u573(574), u574(575), u575(576), u576(577), u577(578), u578(579), u579(580), u580(581),
| | | u581(582), u582(583), u583(584), u584(585), u585(586), u586(587), u587(588), u588(589),
| | | u589(590), u590(591), u591(592), u592(593), u593(594), u594(595), u595(596), u596(597),
| | | u597(598), u598(599), u599(600), u600(601), u601(602), u602(603), u603(604), u604(605),
| | | u605(606), u606(607), u607(608), u608(609), u609(610), u610(611), u611(612), u612(613),
| | | u613(614), u614(615), u615(616), u616(617), u617(618), u618(619), u619(620), u620(621),
| | | u621(622), u622(623), u623(624), u624(625), u625(626), u626(627), u627(628), u628(629),
| | | u629(630), u630(631), u631(632), u632(633), u633(634), u634(635), u635(636), u636(637),
| | | u637(638), u638(639), u639(640), u640(641), u641(642), u642(643), u643(644), u644(645),
| | | u645(646), u646(647), u647(648), u648(649), u649(650), u650(651), u651(652), u652(653),
| | | u653(654), u654(655), u655(656), u656(657), u657(658), u658(659), u659(660), u660(661),
| | | u661(662), u662(663), u663(664), u664(665), u665(666), u666(667), u667(668), u668(669),
| | | u669(670), u670(671), u671(672), u672(673), u673(674), u674(675), u675(676), u676(677),
| | | u677(678), u678(679), u679(680), u680(681), u681(682), u682(683), u683(684), u684(685),
| | | u685(686), u686(687), u687(688), u688(689), u689(690), u690(691), u691(692), u692(693),
| | | u693(694), u694(695), u695(696), u696(697), u697(698), u698(699), u699(700), u700(701),
| | | u701(702), u702(703), u703(704), u704(705), u705(706), u706(707), u707(708), u708(709),
| | | u709(710), u710(711), u711(712), u712(713), u713(714), u714(715), u715(716), u716(717),
| | | u717(718), u718(719), u719(720), u720(721), u721(722), u722(723), u723(724), u724(725),

25. July 2012 44 Version 2.5.5

| | | u725(726), u726(727), u727(728), u728(729), u729(730), u730(731), u731(732), u732(733),
| | | u733(734), u734(735), u735(736), u736(737), u737(738), u738(739), u739(740), u740(741),
| | | u741(742), u742(743), u743(744), u744(745), u745(746), u746(747), u747(748), u748(749),
| | | u749(750), u750(751), u751(752), u752(753), u753(754), u754(755), u755(756), u756(757),
| | | u757(758), u758(759), u759(760), u760(761), u761(762), u762(763), u763(764), u764(765),
| | | u765(766), u766(767), u767(768), u768(769), u769(770), u770(771), u771(772), u772(773),
| | | u773(774), u774(775), u775(776), u776(777), u777(778), u778(779), u779(780), u780(781),
| | | u781(782), u782(783), u783(784), u784(785), u785(786), u786(787), u787(788), u788(789),
| | | u789(790), u790(791), u791(792), u792(793), u793(794), u794(795), u795(796), u796(797),
| | | u797(798), u798(799), u799(800), u800(801), u801(802), u802(803), u803(804), u804(805),
| | | u805(806), u806(807), u807(808), u808(809), u809(810), u810(811), u811(812), u812(813),
| | | u813(814), u814(815), u815(816), u816(817), u817(818), u818(819), u819(820), u820(821),
| | | u821(822), u822(823), u823(824), u824(825), u825(826), u826(827), u827(828), u828(829),
| | | u829(830), u830(831), u831(832), u832(833), u833(834), u834(835), u835(836), u836(837),
| | | u837(838), u838(839), u839(840), u840(841), u841(842), u842(843), u843(844), u844(845),
| | | u845(846), u846(847), u847(848), u848(849), u849(850), u850(851), u851(852), u852(853),
| | | u853(854), u854(855), u855(856), u856(857), u857(858), u858(859), u859(860), u860(861),
| | | u861(862), u862(863), u863(864), u864(865), u865(866), u866(867), u867(868), u868(869),
| | | u869(870), u870(871), u871(872), u872(873), u873(874), u874(875), u875(876), u876(877),
| | | u877(878), u878(879), u879(880), u880(881), u881(882), u882(883), u883(884), u884(885),
| | | u885(886), u886(887), u887(888), u888(889), u889(890), u890(891), u891(892), u892(893),
| | | u893(894), u894(895), u895(896), u896(897), u897(898), u898(899), u899(900), u900(901),
| | | u901(902), u902(903), u903(904), u904(905), u905(906), u906(907), u907(908), u908(909),
| | | u909(910), u910(911), u911(912), u912(913), u913(914), u914(915), u915(916), u916(917),
| | | u917(918), u918(919), u919(920), u920(921), u921(922), u922(923), u923(924), u924(925),
| | | u925(926), u926(927), u927(928), u928(929), u929(930), u930(931), u931(932), u932(933),
| | | u933(934), u934(935), u935(936), u936(937), u937(938), u938(939), u939(940), u940(941),
| | | u941(942), u942(943), u943(944), u944(945), u945(946), u946(947), u947(948), u948(949),
| | | u949(950), u950(951), u951(952), u952(953), u953(954), u954(955), u955(956), u956(957),
| | | u957(958), u958(959), u959(960), u960(961), u961(962), u962(963), u963(964), u964(965),
| | | u965(966), u966(967), u967(968), u968(969), u969(970), u970(971), u971(972), u972(973),
| | | u973(974), u974(975), u975(976), u976(977), u977(978), u978(979), u979(980), u980(981),
| | | u981(982), u982(983), u983(984), u984(985), u985(986), u986(987), u987(988), u988(989),
| | | u989(990), u990(991), u991(992), u992(993), u993(994), u994(995), u995(996), u996(997),
| | | u997(998), u998(999), u999(1000), u1000(1001), u1001(1002), u1002(1003), u1003(1004),
| | | u1004(1005), u1005(1006), u1006(1007), u1007(1008), u1008(1009), u1009(1010),
| | | u1010(1011), u1011(1012), u1012(1013), u1013(1014), u1014(1015), u1015(1016),
| | | u1016(1017), u1017(1018), u1018(1019), u1019(1020), u1020(1021), u1021(1022),
| | | u1022(1023), u1023(1024), u1024(1025), u1025(1026), u1026(1027), u1027(1028),
| | | u1028(1029), u1029(1030), u1030(1031), u1031(1032), u1032(1033), u1033(1034),
| | | u1034(1035), u1035(1036), u1036(1037), u1037(1038), u1038(1039), u1039(1040),
| | | u1040(1041), u1041(1042), u1042(1043), u1043(1044), u1044(1045), u1045(1046),
| | | u1046(1047), u1047(1048), u1048(1049), u1049(1050), u1050(1051), u1051(1052),
| | | u1052(1053), u1053(1054), u1054(1055), u1055(1056), u1056(1057), u1057(1058),
| | | u1058(1059), u1059(1060), u1060(1061), u1061(1062), u1062(1063), u1063(1064),
| | | u1064(1065), u1065(1066), u1066(1067), u1067(1068), u1068(1069), u1069(1070),
| | | u1070(1071), u1071(1072), u1072(1073), u1073(1074), u1074(1075), u1075(1076),
| | | u1076(1077), u1077(1078), u1078(1079), u1079(1080), u1080(1081), u1081(1082),
| | | u1082(1083), u1083(1084), u1084(1085), u1085(1086), u1086(1087), u1087(1088),
| | | u1088(1089), u1089(1090), u1090(1091), u1091(1092), u1092(1093), u1093(1094),
| | | u1094(1095), u1095(1096), u1096(1097), u1097(1098), u1098(1099), u1099(1100),
| | | u1100(1101), u1101(1102), u1102(1103), u1103(1104), u1104(1105), u1105(1106),
| | | u1106(1107), u1107(1108), u1108(1109), u1109(1110), u1110(1111), u1111(1112),
| | | u1112(1113), u1113(1114), u1114(1115), u1115(1116), u1116(1117), u1117(1118),
| | | u1118(1119), u1119(1120), u1120(1121), u1121(1122), u1122(1123), u1123(1124),
| | | u1124(1125), u1125(1126), u1126(1127), u1127(1128), u1128(1129), u1129(1130),
| | | u1130(1131), u1131(1132), u1132(1133), u1133(1134), u1134(1135), u1135(1136),
| | | u1136(1137), u1137(1138), u1138(1139), u1139(1140), u1140(1141), u1141(1142),
| | | u1142(1143), u1143(1144), u1144(1145), u1145(1146), u1146(1147), u1147(1148),
| | | u1148(1149), u1149(1150), u1150(1151), u1151(1152), u1152(1153), u1153(1154),
| | | u1154(1155), u1155(1156), u1156(1157), u1157(1158), u1158(1159), u1159(1160),
| | | u1160(1161), u1161(1162), u1162(1163), u1163(1164), u1164(1165), u1165(1166),
| | | u1166(1167), u1167(1168), u1168(1169), u1169(1170), u1170(1171), u1171(1172),
| | | u1172(1173), u1173(1174), u1174(1175), u1175(1176), u1176(1177), u1177(1178),

25. July 2012 45 Version 2.5.5

| | | u1178(1179), u1179(1180), u1180(1181), u1181(1182), u1182(1183), u1183(1184),
| | | u1184(1185), u1185(1186), u1186(1187), u1187(1188), u1188(1189), u1189(1190),
| | | u1190(1191), u1191(1192), u1192(1193), u1193(1194), u1194(1195), u1195(1196),
| | | u1196(1197), u1197(1198), u1198(1199), u1199(1200), u1200(1201), u1201(1202),
| | | u1202(1203), u1203(1204), u1204(1205), u1205(1206), u1206(1207), u1207(1208),
| | | u1208(1209), u1209(1210), u1210(1211), u1211(1212), u1212(1213), u1213(1214),
| | | u1214(1215), u1215(1216), u1216(1217), u1217(1218), u1218(1219), u1219(1220),
| | | u1220(1221), u1221(1222), u1222(1223), u1223(1224), u1224(1225), u1225(1226),
| | | u1226(1227), u1227(1228), u1228(1229), u1229(1230), u1230(1231), u1231(1232),
| | | u1232(1233), u1233(1234), u1234(1235), u1235(1236), u1236(1237), u1237(1238),
| | | u1238(1239), u1239(1240), u1240(1241), u1241(1242), u1242(1243), u1243(1244),
| | | u1244(1245), u1245(1246), u1246(1247), u1247(1248), u1248(1249), u1249(1250),
| | | u1250(1251), u1251(1252), u1252(1253), u1253(1254), u1254(1255), u1255(1256),
| | | u1256(1257), u1257(1258), u1258(1259), u1259(1260), u1260(1261), u1261(1262),
| | | u1262(1263), u1263(1264), u1264(1265), u1265(1266), u1266(1267), u1267(1268),
| | | u1268(1269), u1269(1270), u1270(1271), u1271(1272), u1272(1273), u1273(1274),
| | | u1274(1275), u1275(1276), u1276(1277), u1277(1278), u1278(1279), u1279(1280),
| | | u1280(1281), u1281(1282), u1282(1283), u1283(1284), u1284(1285), u1285(1286),
| | | u1286(1287), u1287(1288), u1288(1289), u1289(1290), u1290(1291), u1291(1292),
| | | u1292(1293), u1293(1294), u1294(1295), u1295(1296), u1296(1297), u1297(1298),
| | | u1298(1299), u1299(1300), u1300(1301), u1301(1302), u1302(1303), u1303(1304),
| | | u1304(1305), u1305(1306), u1306(1307), u1307(1308), u1308(1309), u1309(1310),
| | | u1310(1311), u1311(1312), u1312(1313), u1313(1314), u1314(1315), u1315(1316),
| | | u1316(1317), u1317(1318), u1318(1319), u1319(1320), u1320(1321), u1321(1322),
| | | u1322(1323), u1323(1324), u1324(1325), u1325(1326), u1326(1327), u1327(1328),
| | | u1328(1329), u1329(1330), u1330(1331), u1331(1332), u1332(1333), u1333(1334),
| | | u1334(1335), u1335(1336), u1336(1337), u1337(1338), u1338(1339), u1339(1340),
| | | u1340(1341), u1341(1342), u1342(1343), u1343(1344), u1344(1345), u1345(1346),
| | | u1346(1347), u1347(1348), u1348(1349), u1349(1350), u1350(1351), u1351(1352),
| | | u1352(1353), u1353(1354), u1354(1355), u1355(1356), u1356(1357), u1357(1358),
| | | u1358(1359), u1359(1360), u1360(1361), u1361(1362), u1362(1363), u1363(1364),
| | | u1364(1365), u1365(1366), u1366(1367), u1367(1368), u1368(1369), u1369(1370),
| | | u1370(1371), u1371(1372), u1372(1373), u1373(1374), u1374(1375), u1375(1376),
| | | u1376(1377), u1377(1378), u1378(1379), u1379(1380), u1380(1381), u1381(1382),
| | | u1382(1383), u1383(1384), u1384(1385), u1385(1386), u1386(1387), u1387(1388),
| | | u1388(1389), u1389(1390), u1390(1391), u1391(1392), u1392(1393), u1393(1394),
| | | u1394(1395), u1395(1396), u1396(1397), u1397(1398), u1398(1399), u1399(1400),
| | | u1400(1401), u1401(1402), u1402(1403), u1403(1404), u1404(1405), u1405(1406),
| | | u1406(1407), u1407(1408), u1408(1409), u1409(1410), u1410(1411), u1411(1412),
| | | u1412(1413), u1413(1414), u1414(1415), u1415(1416), u1416(1417), u1417(1418),
| | | u1418(1419), u1419(1420), u1420(1421), u1421(1422), u1422(1423), u1423(1424),
| | | u1424(1425), u1425(1426), u1426(1427), u1427(1428), u1428(1429), u1429(1430),
| | | u1430(1431), u1431(1432), u1432(1433), u1433(1434), u1434(1435), u1435(1436),
| | | u1436(1437), u1437(1438), u1438(1439), u1439(1440), u1440(1441), u1441(1442),
| | | u1442(1443), u1443(1444), u1444(1445), u1445(1446), u1446(1447), u1447(1448),
| | | u1448(1449), u1449(1450), u1450(1451), u1451(1452), u1452(1453), u1453(1454),
| | | u1454(1455), u1455(1456), u1456(1457), u1457(1458), u1458(1459), u1459(1460),
| | | u1460(1461), u1461(1462), u1462(1463), u1463(1464), u1464(1465), u1465(1466),
| | | u1466(1467), u1467(1468), u1468(1469), u1469(1470), u1470(1471), u1471(1472),
| | | u1472(1473), u1473(1474), u1474(1475), u1475(1476), u1476(1477), u1477(1478),
| | | u1478(1479), u1479(1480), u1480(1481), u1481(1482), u1482(1483), u1483(1484),
| | | u1484(1485), u1485(1486), u1486(1487), u1487(1488), u1488(1489), u1489(1490),
| | | u1490(1491), u1491(1492), u1492(1493), u1493(1494), u1494(1495), u1495(1496),
| | | u1496(1497), u1497(1498), u1498(1499), u1499(1500), u1500(1501), u1501(1502),
| | | u1502(1503), u1503(1504), u1504(1505), u1505(1506), u1506(1507), u1507(1508),
| | | u1508(1509), u1509(1510), u1510(1511), u1511(1512), u1512(1513), u1513(1514),
| | | u1514(1515), u1515(1516), u1516(1517), u1517(1518), u1518(1519), u1519(1520),
| | | u1520(1521), u1521(1522), u1522(1523), u1523(1524), u1524(1525), u1525(1526),
| | | u1526(1527), u1527(1528), u1528(1529), u1529(1530), u1530(1531), u1531(1532),
| | | u1532(1533), u1533(1534), u1534(1535), u1535(1536), u1536(1537), u1537(1538),
| | | u1538(1539), u1539(1540), u1540(1541), u1541(1542), u1542(1543), u1543(1544),
| | | u1544(1545), u1545(1546), u1546(1547), u1547(1548), u1548(1549), u1549(1550),
| | | u1550(1551), u1551(1552), u1552(1553), u1553(1554), u1554(1555), u1555(1556),
| | | u1556(1557), u1557(1558), u1558(1559), u1559(1560), u1560(1561), u1561(1562),

25. July 2012 46 Version 2.5.5

| | | u1562(1563), u1563(1564), u1564(1565), u1565(1566), u1566(1567), u1567(1568),
| | | u1568(1569), u1569(1570), u1570(1571), u1571(1572), u1572(1573), u1573(1574),
| | | u1574(1575), u1575(1576), u1576(1577), u1577(1578), u1578(1579), u1579(1580),
| | | u1580(1581), u1581(1582), u1582(1583), u1583(1584), u1584(1585), u1585(1586),
| | | u1586(1587), u1587(1588), u1588(1589), u1589(1590), u1590(1591), u1591(1592),
| | | u1592(1593), u1593(1594), u1594(1595), u1595(1596), u1596(1597), u1597(1598),
| | | u1598(1599), u1599(1600), u1600(1601), u1601(1602), u1602(1603), u1603(1604),
| | | u1604(1605), u1605(1606), u1606(1607), u1607(1608), u1608(1609), u1609(1610),
| | | u1610(1611), u1611(1612), u1612(1613), u1613(1614), u1614(1615), u1615(1616),
| | | u1616(1617), u1617(1618), u1618(1619), u1619(1620), u1620(1621), u1621(1622),
| | | u1622(1623), u1623(1624), u1624(1625), u1625(1626), u1626(1627), u1627(1628),
| | | u1628(1629), u1629(1630), u1630(1631), u1631(1632), u1632(1633), u1633(1634),
| | | u1634(1635), u1635(1636), u1636(1637), u1637(1638), u1638(1639), u1639(1640),
| | | u1640(1641), u1641(1642), u1642(1643), u1643(1644), u1644(1645), u1645(1646),
| | | u1646(1647), u1647(1648), u1648(1649), u1649(1650), u1650(1651), u1651(1652),
| | | u1652(1653), u1653(1654), u1654(1655), u1655(1656), u1656(1657), u1657(1658),
| | | u1658(1659), u1659(1660), u1660(1661), u1661(1662), u1662(1663), u1663(1664),
| | | u1664(1665), u1665(1666), u1666(1667), u1667(1668), u1668(1669), u1669(1670),
| | | u1670(1671), u1671(1672), u1672(1673), u1673(1674), u1674(1675), u1675(1676),
| | | u1676(1677), u1677(1678), u1678(1679), u1679(1680), u1680(1681), u1681(1682),
| | | u1682(1683), u1683(1684), u1684(1685), u1685(1686), u1686(1687), u1687(1688),
| | | u1688(1689), u1689(1690), u1690(1691), u1691(1692), u1692(1693), u1693(1694),
| | | u1694(1695), u1695(1696), u1696(1697), u1697(1698), u1698(1699), u1699(1700),
| | | u1700(1701), u1701(1702), u1702(1703), u1703(1704), u1704(1705), u1705(1706),
| | | u1706(1707), u1707(1708), u1708(1709), u1709(1710), u1710(1711), u1711(1712),
| | | u1712(1713), u1713(1714), u1714(1715), u1715(1716), u1716(1717), u1717(1718),
| | | u1718(1719), u1719(1720), u1720(1721), u1721(1722), u1722(1723), u1723(1724),
| | | u1724(1725), u1725(1726), u1726(1727), u1727(1728), u1728(1729), u1729(1730),
| | | u1730(1731), u1731(1732), u1732(1733), u1733(1734), u1734(1735), u1735(1736),
| | | u1736(1737), u1737(1738), u1738(1739), u1739(1740), u1740(1741), u1741(1742),
| | | u1742(1743), u1743(1744), u1744(1745), u1745(1746), u1746(1747), u1747(1748),
| | | u1748(1749), u1749(1750), u1750(1751), u1751(1752), u1752(1753), u1753(1754),
| | | u1754(1755), u1755(1756), u1756(1757), u1757(1758), u1758(1759), u1759(1760),
| | | u1760(1761), u1761(1762), u1762(1763), u1763(1764), u1764(1765), u1765(1766),
| | | u1766(1767), u1767(1768), u1768(1769), u1769(1770), u1770(1771), u1771(1772),
| | | u1772(1773), u1773(1774), u1774(1775), u1775(1776), u1776(1777), u1777(1778),
| | | u1778(1779), u1779(1780), u1780(1781), u1781(1782), u1782(1783), u1783(1784),
| | | u1784(1785), u1785(1786), u1786(1787), u1787(1788), u1788(1789), u1789(1790),
| | | u1790(1791), u1791(1792), u1792(1793), u1793(1794), u1794(1795), u1795(1796),
| | | u1796(1797), u1797(1798), u1798(1799), u1799(1800), u1800(1801), u1801(1802),
| | | u1802(1803), u1803(1804), u1804(1805), u1805(1806), u1806(1807), u1807(1808),
| | | u1808(1809), u1809(1810), u1810(1811), u1811(1812), u1812(1813), u1813(1814),
| | | u1814(1815), u1815(1816), u1816(1817), u1817(1818), u1818(1819), u1819(1820),
| | | u1820(1821), u1821(1822), u1822(1823), u1823(1824), u1824(1825), u1825(1826),
| | | u1826(1827), u1827(1828), u1828(1829), u1829(1830), u1830(1831), u1831(1832),
| | | u1832(1833), u1833(1834), u1834(1835), u1835(1836), u1836(1837), u1837(1838),
| | | u1838(1839), u1839(1840), u1840(1841), u1841(1842), u1842(1843), u1843(1844),
| | | u1844(1845), u1845(1846), u1846(1847), u1847(1848), u1848(1849), u1849(1850),
| | | u1850(1851), u1851(1852), u1852(1853), u1853(1854), u1854(1855), u1855(1856),
| | | u1856(1857), u1857(1858), u1858(1859), u1859(1860), u1860(1861), u1861(1862),
| | | u1862(1863), u1863(1864), u1864(1865), u1865(1866), u1866(1867), u1867(1868),
| | | u1868(1869), u1869(1870), u1870(1871), u1871(1872), u1872(1873), u1873(1874),
| | | u1874(1875), u1875(1876), u1876(1877), u1877(1878), u1878(1879), u1879(1880),
| | | u1880(1881), u1881(1882), u1882(1883), u1883(1884), u1884(1885), u1885(1886),
| | | u1886(1887), u1887(1888), u1888(1889), u1889(1890), u1890(1891), u1891(1892),
| | | u1892(1893), u1893(1894), u1894(1895), u1895(1896), u1896(1897), u1897(1898),
| | | u1898(1899), u1899(1900), u1900(1901), u1901(1902), u1902(1903), u1903(1904),
| | | u1904(1905), u1905(1906), u1906(1907), u1907(1908), u1908(1909), u1909(1910),
| | | u1910(1911), u1911(1912), u1912(1913), u1913(1914), u1914(1915), u1915(1916),
| | | u1916(1917), u1917(1918), u1918(1919), u1919(1920), u1920(1921), u1921(1922),
| | | u1922(1923), u1923(1924), u1924(1925), u1925(1926), u1926(1927), u1927(1928),
| | | u1928(1929), u1929(1930), u1930(1931), u1931(1932), u1932(1933), u1933(1934),
| | | u1934(1935), u1935(1936), u1936(1937), u1937(1938), u1938(1939), u1939(1940),
| | | u1940(1941), u1941(1942), u1942(1943), u1943(1944), u1944(1945), u1945(1946),

25. July 2012 47 Version 2.5.5

| | | u1946(1947), u1947(1948), u1948(1949), u1949(1950), u1950(1951), u1951(1952),
| | | u1952(1953), u1953(1954), u1954(1955), u1955(1956), u1956(1957), u1957(1958),
| | | u1958(1959), u1959(1960), u1960(1961), u1961(1962), u1962(1963), u1963(1964),
| | | u1964(1965), u1965(1966), u1966(1967), u1967(1968), u1968(1969), u1969(1970),
| | | u1970(1971), u1971(1972), u1972(1973), u1973(1974), u1974(1975), u1975(1976),
| | | u1976(1977), u1977(1978), u1978(1979), u1979(1980), u1980(1981), u1981(1982),
| | | u1982(1983), u1983(1984), u1984(1985), u1985(1986), u1986(1987), u1987(1988),
| | | u1988(1989), u1989(1990), u1990(1991), u1991(1992), u1992(1993), u1993(1994),
| | | u1994(1995), u1995(1996), u1996(1997), u1997(1998), u1998(1999), u1999(2000)
| | +-- -R-- String outputName(2)
| | | Textual Convention: DisplayString
| | | Size: 1..4
| | +-- -RW- Integer32 outputGroup(3)
| | | Range: 1..63
| | +-- -R-- BitString outputStatus(4)
| | | Values: outputOn(0), outputInhibit(1), outputFailureMinSenseVoltage(2),
| | | outputFailureMaxSenseVoltage(3), outputFailureMaxTerminalVoltage(4),
| | | outputFailureMaxCurrent(5), outputFailureMaxTemperature(6), outputFailureMaxPower(7),
| | | outputFailureTimeout(9), outputCurrentLimited(10), outputRampUp(11), outputRampDown(12),
| | | outputEnableKill(13), outputEmergencyOff(14)
| | +-- -R-- Opaque outputMeasurementSenseVoltage(5)
| | | Textual Convention: Float
| | | Size: 7
| | +-- -R-- Opaque outputMeasurementTerminalVoltage(6)
| | | Textual Convention: Float
| | | Size: 7
| | +-- -R-- Opaque outputMeasurementCurrent(7)
| | | Textual Convention: Float
| | | Size: 7
| | +-- -R-- EnumVal outputMeasurementTemperature(8)
| | | Values: ok(-128), failure(127)
| | +-- -RW- EnumVal outputSwitch(9)
| | | Values: off(0), on(1), resetEmergencyOff(2), setEmergencyOff(3), clearEvents(10)
| | +-- -RW- Opaque outputVoltage(10)
| | | Textual Convention: Float
| | | Size: 7
| | +-- -RW- Integer32 outputAdjustVoltage(11)
| | | Range: -128..127
| | +-- -RW- Opaque outputCurrent(12)
| | | Textual Convention: Float
| | | Size: 7
| | +-- -RW- Opaque outputVoltageRiseRate(13)
| | | Textual Convention: Float
| | | Size: 7
| | +-- -RW- Opaque outputVoltageFallRate(14)
| | | Textual Convention: Float
| | | Size: 7
| | +-- -RW- Integer32 outputSupervisionBehavior(15)
| | | Range: 0..65535
| | +-- -RW- Opaque outputSupervisionMinSenseVoltage(16)
| | | Textual Convention: Float
| | | Size: 7
| | +-- -RW- Opaque outputSupervisionMaxSenseVoltage(17)
| | | Textual Convention: Float
| | | Size: 7
| | +-- -RW- Opaque outputSupervisionMaxTerminalVoltage(18)
| | | Textual Convention: Float
| | | Size: 7
| | +-- -RW- Opaque outputSupervisionMaxCurrent(19)
| | | Textual Convention: Float
| | | Size: 7
| | +-- -RW- Opaque outputConfigMaxSenseVoltage(21)
| | | Textual Convention: Float
| | | Size: 7

25. July 2012 48 Version 2.5.5

| | +-- -RW- Opaque outputConfigMaxTerminalVoltage(22)
| | | Textual Convention: Float
| | | Size: 7
| | +-- -RW- Opaque outputConfigMaxCurrent(23)
| | | Textual Convention: Float
| | | Size: 7
| | +-- -RW- Opaque outputSupervisionMaxPower(24)
| | | Textual Convention: Float
| | | Size: 7
| | +-- -RW- Opaque outputCurrentRiseRate(25)
| | | Textual Convention: Float
| | | Size: 7
| | +-- -RW- Opaque outputCurrentFallRate(26)
| | | Textual Convention: Float
| | | Size: 7
| | +-- -RW- INTEGER outputTripTimeMaxCurrent(27)
| | | Range: 0..4000
| | +-- -R-- Opaque outputHardwareLimitVoltage(28)
| | | Textual Convention: Float
| | | Size: 7
| | +-- -R-- Opaque outputHardwareLimitCurrent(29)
| | | Textual Convention: Float
| | | Size: 7
| | +-- -RW- Opaque outputConfigGainSenseVoltage(30)
| | | Textual Convention: Float
| | | Size: 7
| | +-- -RW- Opaque outputConfigOffsetSenseVoltage(31)
| | | Textual Convention: Float
| | | Size: 7
| | +-- -RW- Opaque outputConfigGainTerminalVoltage(32)
| | | Textual Convention: Float
| | | Size: 7
| | +-- -RW- Opaque outputConfigOffsetTerminalVoltage(33)
| | | Textual Convention: Float
| | | Size: 7
| | +-- -RW- Opaque outputConfigGainCurrent(34)
| | | Textual Convention: Float
| | | Size: 7
| | +-- -RW- Opaque outputConfigOffsetCurrent(35)
| | | Textual Convention: Float
| | | Size: 7
| | +-- -RW- EnumVal outputRegulationMode(38)
| | | Values: fast(0), moderate(1), slow(2)
| | +-- -RW- Integer32 outputConfigMaxTemperature(39)
| |
| +-- -R-- Integer32 groupsNumber(3)
| | Range: 1..1999
| |
| +--groupsTable(4)
| |
| +--groupsEntry(1)
| | Index: groupsIndex
| |
| +-- ---- Integer32 groupsIndex(1)
| | Range: 0..1999
| +-- -RW- EnumVal groupsSwitch(9)
| Values: undefined(-1), off(0), on(1), resetEmergencyOff(2), setEmergencyOff(3), disableKill(4),
| enableKill(5), clearEvents(10)
|
+--sensor(4)
| +-- -R-- Integer32 sensorNumber(1)
| | Range: 0..8
| |
| +--sensorTable(2)

25. July 2012 49 Version 2.5.5

| |
| +--sensorEntry(1)
| | Index: sensorIndex
| |
| +-- ---- EnumVal sensorIndex(1)
| | Values: temp1(1), temp2(2), temp3(3), temp4(4), temp5(5), temp6(6), temp7(7), temp8(8)
| +-- -R-- Integer32 sensorTemperature(2)
| | Range: -128..127
| +-- -RW- Integer32 sensorWarningThreshold(3)
| | Range: 0..127
| +-- -RW- Integer32 sensorFailureThreshold(4)
| | Range: 0..127
| +-- -RW- Integer32 sensorAlarmThreshold(6)
| Range: 0..127
|
+--communication(5)
| +--snmp(1)
| | |
| | +--snmpCommunityTable(1)
| | | |
| | | +--snmpCommunityEntry(1)
| | | | Index: snmpAccessRight
| | | |
| | | +-- ---- EnumVal snmpAccessRight(1)
| | | | Values: public(1), private(2), admin(3), guru(4)
| | | +-- -RW- String snmpCommunityName(2)
| | | Size: 0..14
| | |
| | +-- -RW- Integer32 snmpPort(2)
| | +-- -RW- String firmwareUpdate(10)
| | | Size: 0..30
| | +-- -R-- IpAddr ipDynamicAddress(11)
| | +-- -RW- IpAddr ipStaticAddress(12)
| | +-- -RW- String macAddress(13)
| | Size: 6
| |
| +--can(2)
| +-- -RW- Integer32 canBitRate(1)
| +-- -R-- String canReceive(2)
| | Size: 14
| +-- -RW- String canTransmit(3)
| Size: 14
|
+--powersupply(6)
| +-- -R-- String psSerialNumber(2)
| | Textual Convention: DisplayString
| | Size: 0..255
| +-- -RW- Integer32 psOperatingTime(3)
| +-- -R-- Integer32 psAuxiliaryNumber(4)
| | Range: 0..8
| |
| +--psAuxiliaryTable(5)
| | |
| | +--psAuxiliaryEntry(1)
| | | Index: psAuxiliaryIndex
| | |
| | +-- ---- EnumVal psAuxiliaryIndex(1)
| | | Values: u0(1), u1(2), u2(3), u3(4), u4(5), u5(6), u6(7), u7(8)
| | +-- -R-- Opaque psAuxiliaryMeasurementVoltage(3)
| | | Textual Convention: Float
| | | Size: 7
| | +-- -R-- Opaque psAuxiliaryMeasurementCurrent(4)
| | Textual Convention: Float
| | Size: 7

25. July 2012 50 Version 2.5.5

| |
| +-- -RW- String psDirectAccess(1024)
| Size: 1..14
|
+--fantray(7)
| +-- -RW- String fanSerialNumber(2)
| | Textual Convention: DisplayString
| | Size: 0..14
| +-- -RW- Integer32 fanOperatingTime(3)
| +-- -R-- Integer32 fanAirTemperature(4)
| +-- -RW- Integer32 fanSwitchOffDelay(5)
| | Range: 0..900
| +-- -RW- Integer32 fanNominalSpeed(6)
| +-- -RW- Integer32 fanNumberOfFans(7)
| | Range: 0..12
| |
| +--fanSpeedTable(8)
| | |
| | +--fanSpeedEntry(1)
| | | Index: fanNumber
| | |
| | +-- ---- Integer32 fanNumber(1)
| | | Range: 1..12
| | +-- -R-- Integer32 fanSpeed(2)
| |
| +-- -RW- INTEGER fanMaxSpeed(9)
| +-- -RW- INTEGER fanMinSpeed(10)
| +-- -RW- Integer32 outputConfigFanMaxSpeed(11)
| +-- -RW- Integer32 outputConfigFanMinSpeed(12)
|
+--rack(8)
+--signal(9)
+-- -R-- Integer32 numberOfAnalogInputs(1)
| Range: 0..8
|
+--analogInputTable(2)
| |
| +--analogInputEntry(1)
| | Index: analogInputIndex
| |
| +-- ---- Integer32 analogInputIndex(1)
| | Range: 1..8
| +-- -R-- Opaque analogMeasurementVoltage(2)
| | Textual Convention: Float
| | Size: 7
| +-- -R-- Opaque analogMeasurementCurrent(3)
| Textual Convention: Float
| Size: 7
|
+-- -R-- BitString digitalInput(5)
| Values: d0(0), d1(1), d2(2), d3(3), d4(4), d5(5), d6(6), d7(7)
+-- -R-- BitString digitalOutput(6)
Values: d0(0), d1(1), d2(2), d3(3), d4(4), d5(5), d6(6), d7(7)

25. July 2012 51 Version 2.5.5

12 MPOD Firmware Update

(for Bootloader from revision 1.5 and Firmware from revision 2.*.0.15)

1) You need the muhse control program form revision 2.0.910.0. You can download it
from the wiener web site “www.wiener-d.com” or via the direct link
“http://www.wienerd.com/Support/MUSEcontrol/MUSEcontrolInstall-2.0.910.0.exe ” .
Start the muhse control program and select the tab “system”. In the opened pull down
menu select the item “Firmware Update” to update the device via USB.

2) Hit the button “browse” to scan the device for current version of bootloader and
firmware.

3) Check the version of the current firmware or bootloader. There are three options:

25. July 2012 52 Version 2.5.5

Option 1) Check “Erase Fw.” (erase firmware) and “Erase Bl.” (erase bootloader) if the
current firmware is older than 2.*.0.15 or it is a firmware without bootloader. After that
push the button “browse” to scan the flash. In some minutes select the new bootloader
filein the automatically opened file menu. Press the button “Ok”. Now the whole flash
will be erased and the new bootloader will be installed.

When the install process is done hit the button “cancel” to restart the system. It is
recommended to close the muhse control program before restarting.
A window which indicates a communication problem appears. The reason for this is
that only the bootloader without firmware is installed. Ignore this message by pushing
the button “cancel”.

25. July 2012 53 Version 2.5.5

Also ignore the no modules message to hit the button “Ignorieren”.

Follow the step 1 and 2. Execute the instructions of option 2.

Option 2) Check “Erase Fw.” (erase firmware) if there no current, legal firmware is
available or a newer one should be installed. After that push the button “browse” to
scan the flash. In some minutes select the new firmware file in the automatically
opened file menu. Press the button“Ok”. Now the firmware partition in the flash will be
formatted and the new firmware will be installed.

When the install process is done hit the button “cancel” to restart the system. It is
recommended to close the muhse control program before restarting.

Option 3) Check “Erase Bl.” (erase bootloader) if there an older bootloader (from
version 1.5) and a newer one should be installed. If no bootloader is available chose
option 1. After that push the button “browse” to scan the flash. In some minutes select
the new bootloader file in the automatically opened file menu. Press the button“Ok”.
Now the bootloader partition in the flash will be formatted and the new bootloader will
be installed.

25. July 2012 54 Version 2.5.5

When the install process is done hit the button “cancel” to restart the system. It is
recommended to close the muhse control program before restarting.

25. July 2012 55 Version 2.5.5
