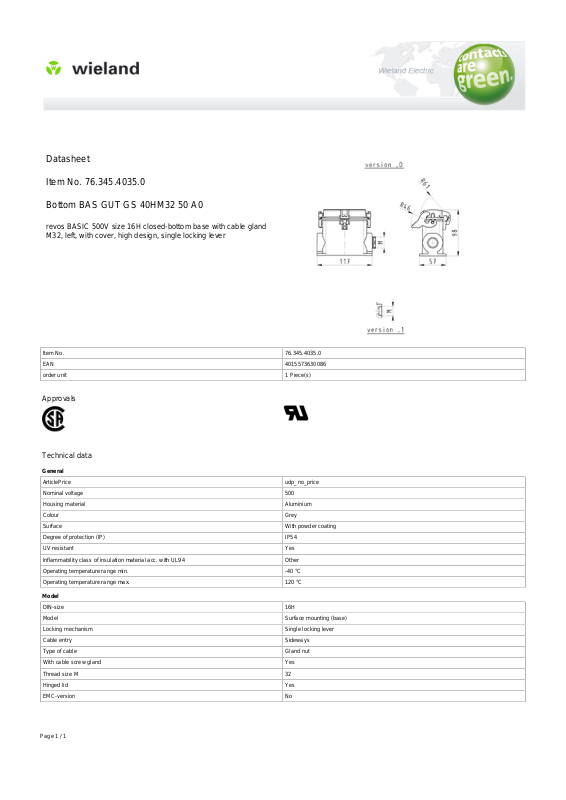

Wieland 76.345.4035.0 Data Sheet

Datasheet
Item No. 76.345.4035.0
Bottom BAS GUT GS 40HM32 50 A0

revos BASIC 500V size 16H closed-bottom base with cable gland
M32, left, with cover, high design, single locking lever

Item No. 76.345.4035.0
EAN 4015573630086
order unit 1 Piece(s)

Approvals

Technical data

General

ArticlePrice udp_no_price
Nominal voltage 500
Housing material Aluminium
Colour Grey
Surface With powder coating
Degree of protection (IP) IP54
UV resistant Yes
Inflammability class of insulation material acc. with UL94 Other
Operating temperature range min. -40 °C
Operating temperature range max. 120 °C

Model

DIN-size 16H
Model Surface mounting (base)
Locking mechanism Single locking lever
Cable entry Sideways
Type of cable Gland nut
With cable screw gland Yes
Thread size M 32
Hinged lid Yes
EMC-version No

Page 1 / 1
