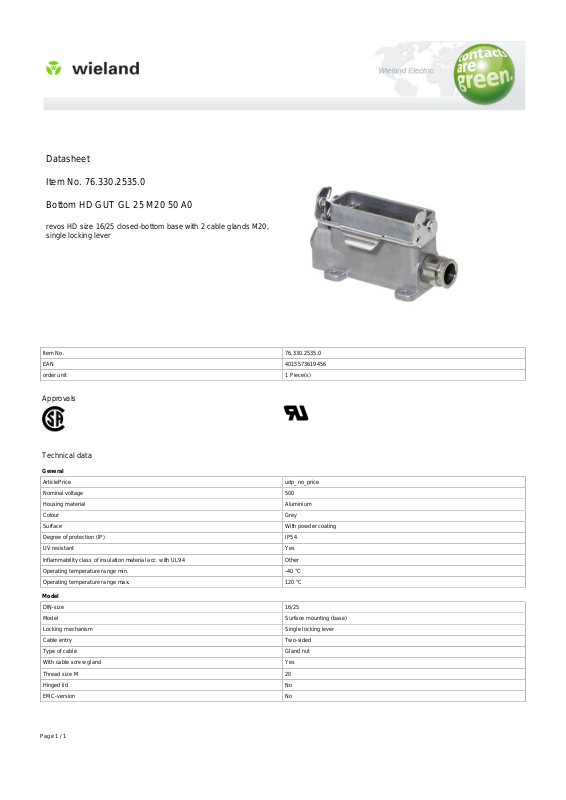

Datasheet
Item No. 76.330.2535.0
Bottom HD GUT GL 25 M20 50 A0
revos HD size 16/25 closed-bottom base with 2 cable glands M20,
single locking lever
Item No. 76.330.2535.0
EAN 4015573619456
order unit 1 Piece(s)
Approvals
Technical data
General
ArticlePrice udp_no_price
Nominal voltage 500
Housing material Aluminium
Colour Grey
Surface With powder coating
Degree of protection (IP) IP54
UV resistant Yes
Inflammability class of insulation material acc. with UL94 Other
Operating temperature range min. -40 °C
Operating temperature range max. 120 °C
Model
DIN-size 16/25
Model Surface mounting (base)
Locking mechanism Single locking lever
Cable entry Two-sided
Type of cable Gland nut
With cable screw gland Yes
Thread size M 20
Hinged lid No
EMC-version No
