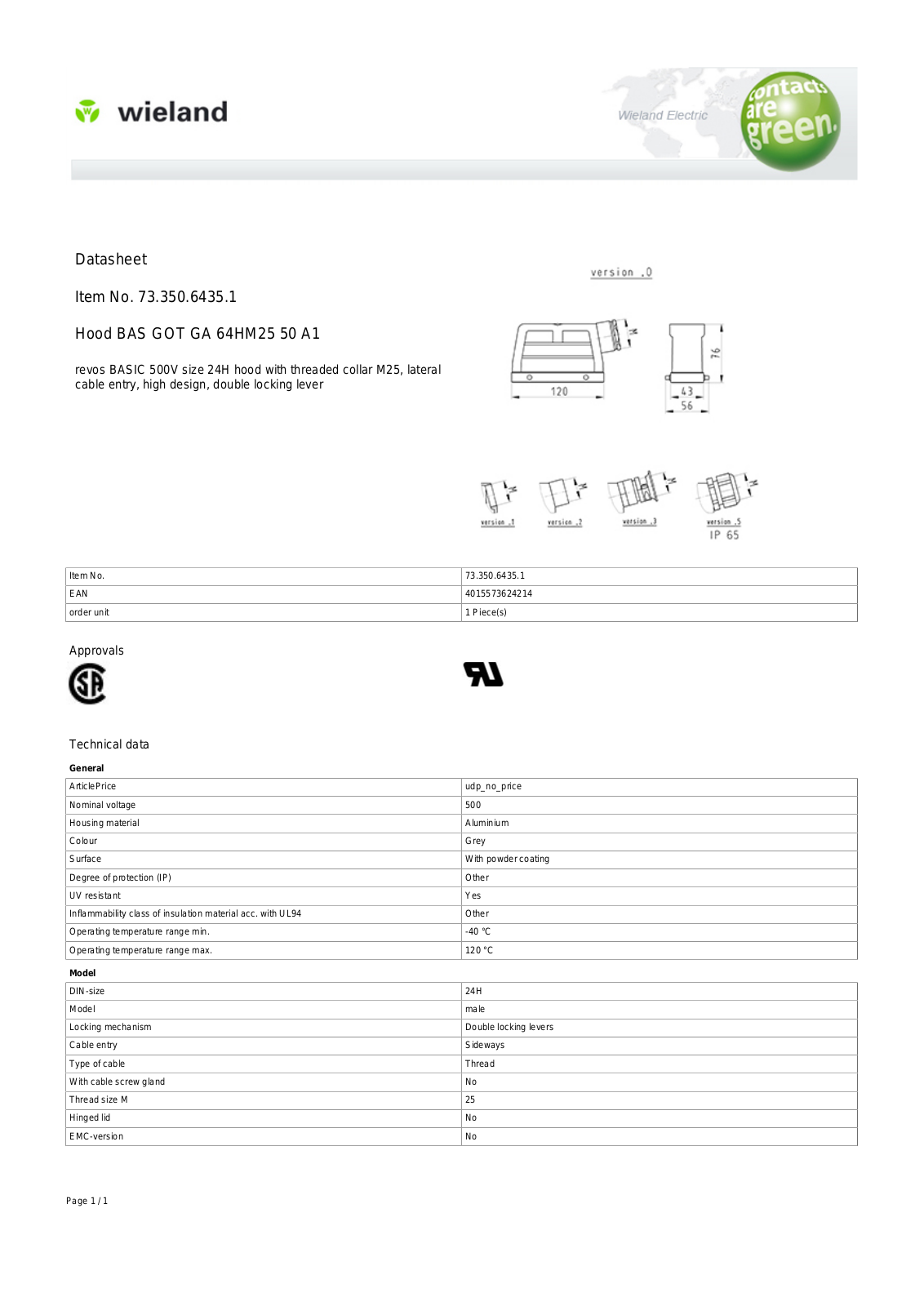

Wieland 73.350.6435.1 Data Sheet

Datasheet
Item No. 73.350.6435.1
Hood BAS GOT GA 64HM25 50 A1

revos BASIC 500V size 24H hood with threaded collar M25, lateral
cable entry, high design, double locking lever

Item No. 73.350.6435.1
EAN 4015573624214
order unit 1 Piece(s)

Approvals

Technical data

General

ArticlePrice udp_no_price
Nominal voltage 500
Housing material Aluminium
Colour Grey
Surface With powder coating
Degree of protection (IP) Other
UV resistant Yes
Inflammability class of insulation material acc. with UL94 Other
Operating temperature range min. -40 °C
Operating temperature range max. 120 °C

Model

DIN-size 24H
Model male
Locking mechanism Double locking levers
Cable entry Sideways
Type of cable Thread
With cable screw gland No
Thread size M 25
Hinged lid No
EMC-version No

Page 1 / 1
