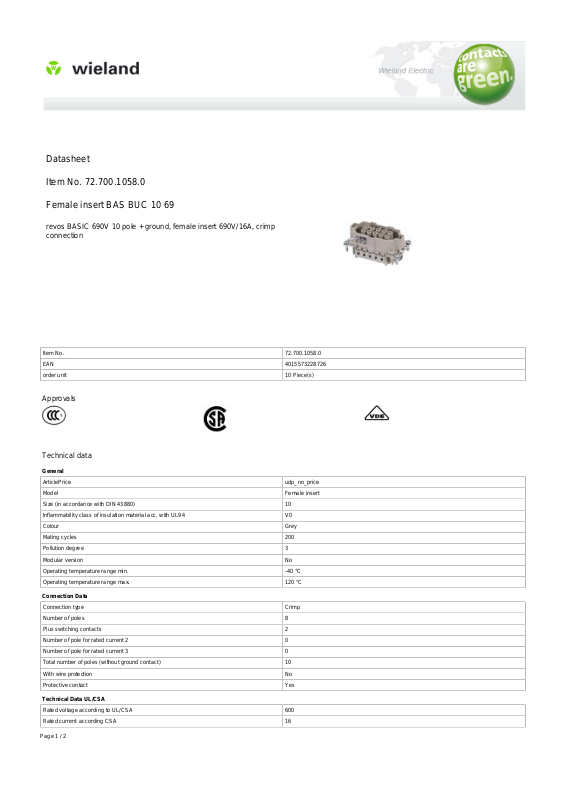

Wieland 72.700.1058.0 Data Sheet

Datasheet
Item No. 72.700.1058.0
Female insert BAS BUC 10 69

revos BASIC 690V 10 pole + ground, female insert 690V/16A, crimp
connection

Item No. 72.700.1058.0
EAN 4015573228726
order unit 10 Piece(s)

Approvals

Technical data

General

ArticlePrice udp_no_price
Model Female insert
Size (in accordance with DIN 43880) 10
Inflammability class of insulation material acc. with UL94 V0
Colour Grey
Mating cycles 200
Pollution degree 3
Modular version No
Operating temperature range min. -40 °C
Operating temperature range max. 120 °C

Connection Data

Connection type Crimp
Number of poles 8
Plus switching contacts 2
Number of pole for rated current 2 0
Number of pole for rated current 3 0
Total number of poles (without ground contact) 10
With wire protection No
Protective contact Yes

Technical Data UL/CSA

Rated voltage according to UL/CSA 600
Rated current according CSA 16

Page 1 / 2

Min. conductor cross section flexible wire 0.5
Max. conductor cross section flexible wire 4
Conductor cross section flexible AWG wire 20-12 AWG

Model

With housing No

Contacts

Contact material See contacts
Surface See contacts
Contact resistance 1.5 mOhm
Wire strip length 7 mm

Screws head design/recomm. Torque

Mounting screws H1/0.5-0.7 Nm
Ground conductor screws H2/1.2-1.6 Nm

Technical Data DIN EN 61984

Nominal voltage 690
Rated voltage face/ground 690
Nominal current 16
Rated impulse voltage 8 kV

Drawings
