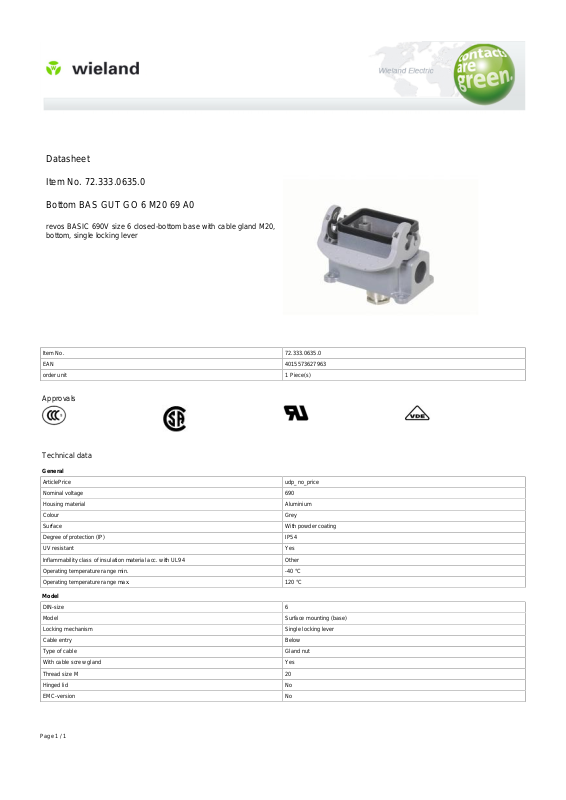

Wieland 72.333.0635.0 Data Sheet

Datasheet
Item No. 72.333.0635.0
Bottom BAS GUT GO 6 M20 69 A0

revos BASIC 690V size 6 closed-bottom base with cable gland M20,
bottom, single locking lever

Item No. 72.333.0635.0
EAN 4015573627963
order unit 1 Piece(s)

Approvals

Technical data

General

ArticlePrice udp_no_price
Nominal voltage 690
Housing material Aluminium
Colour Grey
Surface With powder coating
Degree of protection (IP) IP54
UV resistant Yes
Inflammability class of insulation material acc. with UL94 Other
Operating temperature range min. -40 °C
Operating temperature range max. 120 °C

Model

DIN-size 6
Model Surface mounting (base)
Locking mechanism Single locking lever
Cable entry Below
Type of cable Gland nut
With cable screw gland Yes
Thread size M 20
Hinged lid No
EMC-version No

Page 1 / 1
