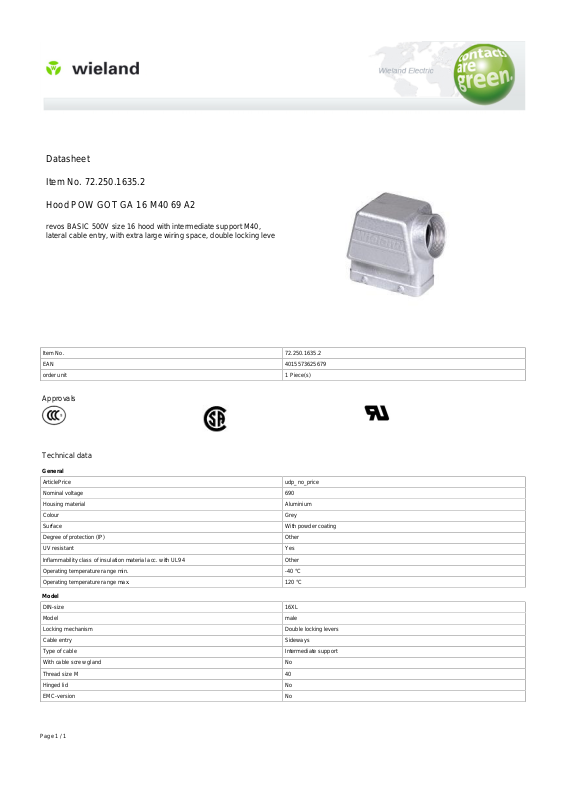

Wieland 72.250.1635.2 Data Sheet

Datasheet
Item No. 72.250.1635.2
Hood POW GOT GA 16 M40 69 A2

revos BASIC 500V size 16 hood with intermediate support M40,
lateral cable entry, with extra large wiring space, double locking leve

Item No. 72.250.1635.2
EAN 4015573625679
order unit 1 Piece(s)

Approvals

Technical data

General

ArticlePrice udp_no_price
Nominal voltage 690
Housing material Aluminium
Colour Grey
Surface With powder coating
Degree of protection (IP) Other
UV resistant Yes
Inflammability class of insulation material acc. with UL94 Other
Operating temperature range min. -40 °C
Operating temperature range max. 120 °C

Model

DIN-size 16XL
Model male
Locking mechanism Double locking levers
Cable entry Sideways
Type of cable Intermediate support
With cable screw gland No
Thread size M 40
Hinged lid No
EMC-version No

Page 1 / 1
