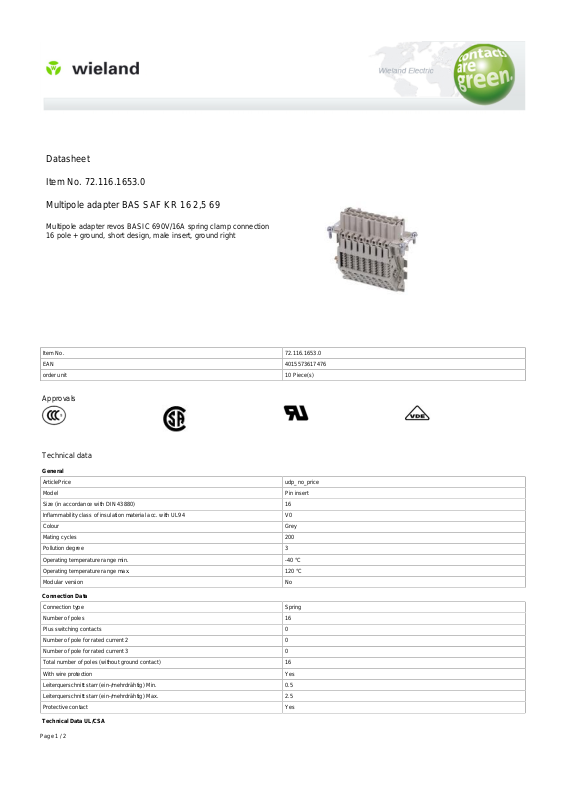

Wieland 72.116.1653.0 Data Sheet

Datasheet
Item No. 72.116.1653.0
Multipole adapter BAS SAF KR 16 2,5 69

Multipole adapter revos BASIC 690V/16A spring clamp connection
16 pole + ground, short design, male insert, ground right

Item No. 72.116.1653.0
EAN 4015573617476
order unit 10 Piece(s)

Approvals

Technical data

General

ArticlePrice udp_no_price
Model Pin insert
Size (in accordance with DIN 43880) 16
Inflammability class of insulation material acc. with UL94 V0
Colour Grey
Mating cycles 200
Pollution degree 3
Operating temperature range min. -40 °C
Operating temperature range max. 120 °C
Modular version No

Connection Data

Connection type Spring
Number of poles 16
Plus switching contacts 0
Number of pole for rated current 2 0
Number of pole for rated current 3 0
Total number of poles (without ground contact) 16
With wire protection Yes
Leiterquerschnitt starr (ein-/mehrdrähtig) Min. 0.5
Leiterquerschnitt starr (ein-/mehrdrähtig) Max. 2.5
Protective contact Yes

Technical Data UL/CSA

Page 1 / 2

Rated voltage according to UL/CSA 600
Rated current according UL 16
Rated current according CSA 16
Min. conductor cross section flexible wire 0.5
Max. conductor cross section flexible wire 2.5
Conductor cross section flexible AWG wire 20-12 AWG

Model

With housing No
Construction type Short design (4 marking fields)
Position of protective conductor Right

Contacts

Contact material Copper alloy
Surface Silver-plated
Wire strip length 9 mm
Contact resistance 3 mOhm

Screws head design/recomm. Torque

Mounting screws H1/0.5-0.7 Nm
Ground conductor screws H2/1.2-1.6 Nm

Technical Data DIN EN 61984

Nominal voltage 500
Rated voltage face/ground 500
Nominal current 16
Rated impulse voltage 6 kV
