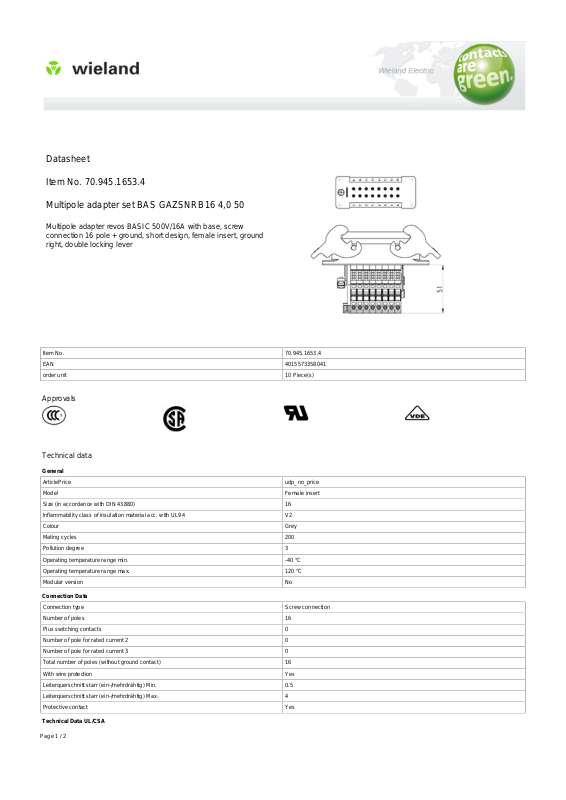

Datasheet
Item No. 70.945.1653.4
Multipole adapter set BAS GAZSNRB16 4,0 50

Multipole adapter revos BASIC 500V/16A with base, screw
connection 16 pole + ground, short design, female insert, ground
right, double locking lever

Item No. 70.945.1653.4
EAN 4015573358041
order unit 10 Piece(s)

Approvals

Technical data

General

ArticlePrice udp_no_price
Model Female insert
Size (in accordance with DIN 43880) 16
Inflammability class of insulation material acc. with UL94 V2
Colour Grey
Mating cycles 200
Pollution degree 3
Operating temperature range min. -40 °C
Operating temperature range max. 120 °C
Modular version No

Connection Data

Connection type Screw connection
Number of poles 16
Plus switching contacts 0
Number of pole for rated current 2 0
Number of pole for rated current 3 0
Total number of poles (without ground contact) 16
With wire protection Yes
Leiterquerschnitt starr (ein-/mehrdrähtig) Min. 0.5
Leiterquerschnitt starr (ein-/mehrdrähtig) Max. 4
Protective contact Yes

Technical Data UL/CSA

Page 1 / 2

Rated voltage according to UL/CSA 600
Rated current according UL 16
Rated current according CSA 16
Min. conductor cross section flexible wire 0.5
Max. conductor cross section flexible wire 4
Conductor cross section flexible AWG wire 20-12 AWG

Model

With housing Yes
Locking mechanism Double locking levers
Construction type Short design (4 marking fields)
Position of protective conductor Right

Contacts

Contact material Copper alloy
Surface Tin-plated
Wire strip length 12 mm
Contact resistance 3 mOhm

Screws head design/recomm. Torque

Mounting screws H1/0.5-0.7 Nm
Clamping screws M3/0.5-0.7 Nm Slot
Ground conductor screws H2/1.2-1.6 Nm

Technical Data DIN EN 61984

Nominal voltage 500
Rated voltage face/ground 500
Nominal current 16
Rated impulse voltage 6 kV
