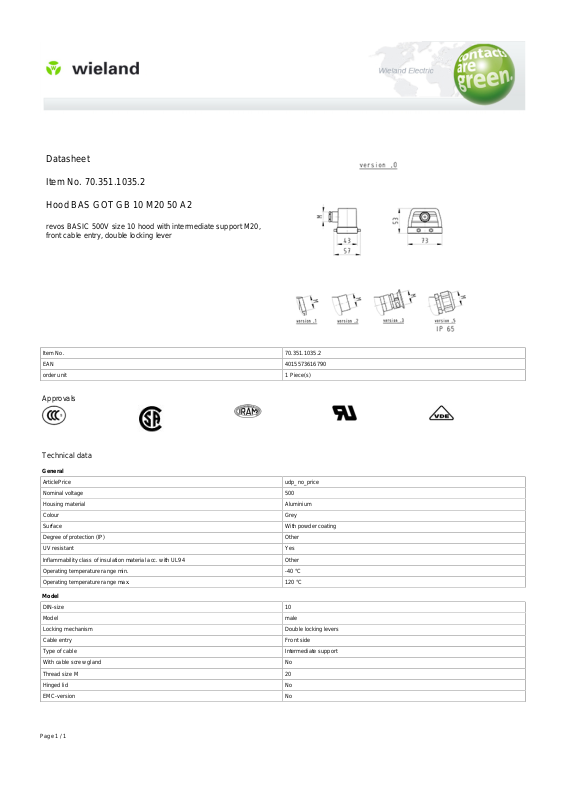

Wieland 70.351.1035.2 Data Sheet

Datasheet
Item No. 70.351.1035.2
Hood BAS GOT GB 10 M20 50 A2

revos BASIC 500V size 10 hood with intermediate support M20,
front cable entry, double locking lever

Item No. 70.351.1035.2
EAN 4015573616790
order unit 1 Piece(s)

Approvals

Technical data

General

ArticlePrice udp_no_price
Nominal voltage 500
Housing material Aluminium
Colour Grey
Surface With powder coating
Degree of protection (IP) Other
UV resistant Yes
Inflammability class of insulation material acc. with UL94 Other
Operating temperature range min. -40 °C
Operating temperature range max. 120 °C

Model

DIN-size 10
Model male
Locking mechanism Double locking levers
Cable entry Front side
Type of cable Intermediate support
With cable screw gland No
Thread size M 20
Hinged lid No
EMC-version No

Page 1 / 1
