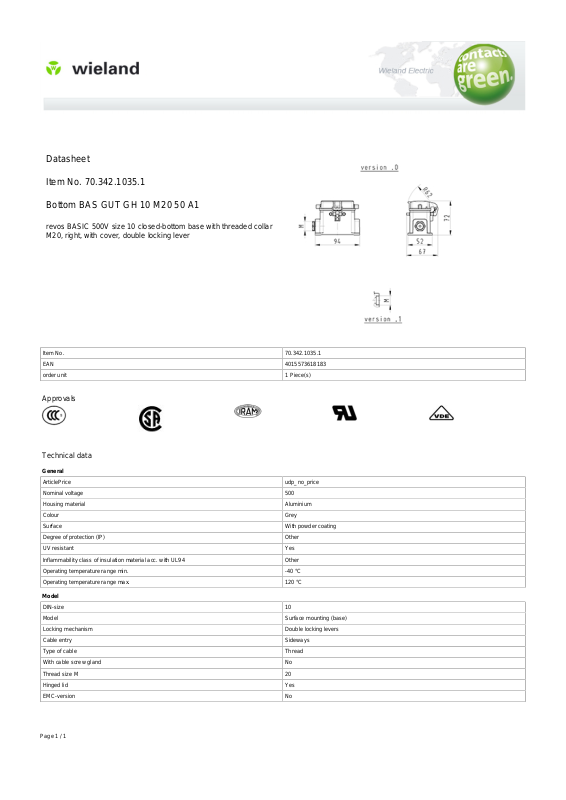

Wieland 70.342.1035.1 Data Sheet

Datasheet
Item No. 70.342.1035.1
Bottom BAS GUT GH 10 M20 50 A1

revos BASIC 500V size 10 closed-bottom base with threaded collar
M20, right, with cover, double locking lever

Item No. 70.342.1035.1
EAN 4015573618183
order unit 1 Piece(s)

Approvals

Technical data

General

ArticlePrice udp_no_price
Nominal voltage 500
Housing material Aluminium
Colour Grey
Surface With powder coating
Degree of protection (IP) Other
UV resistant Yes
Inflammability class of insulation material acc. with UL94 Other
Operating temperature range min. -40 °C
Operating temperature range max. 120 °C

Model

DIN-size 10
Model Surface mounting (base)
Locking mechanism Double locking levers
Cable entry Sideways
Type of cable Thread
With cable screw gland No
Thread size M 20
Hinged lid Yes
EMC-version No

Page 1 / 1
