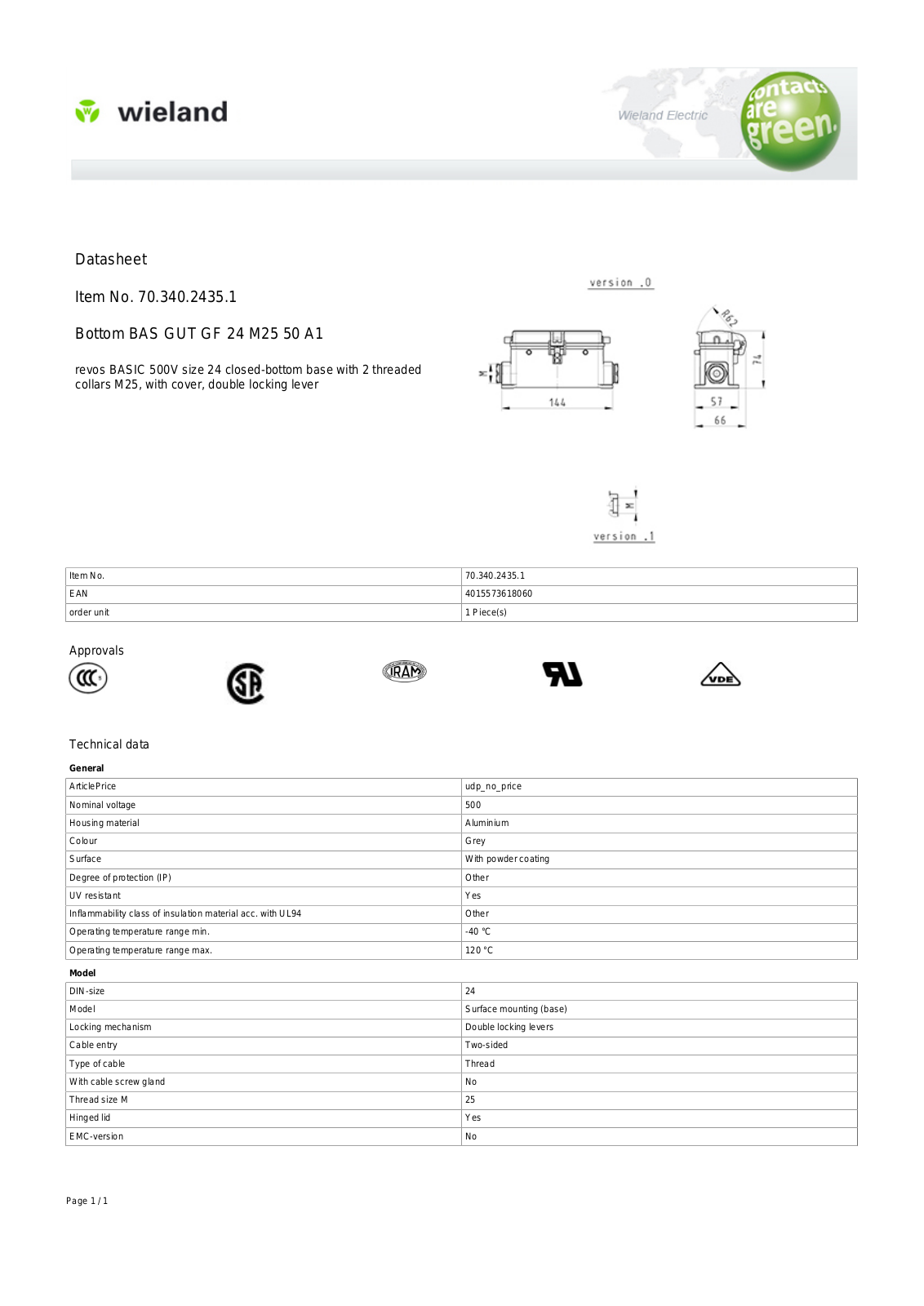

Wieland 70.340.2435.1 Data Sheet

Datasheet
Item No. 70.340.2435.1
Bottom BAS GUT GF 24 M25 50 A1

revos BASIC 500V size 24 closed-bottom base with 2 threaded
collars M25, with cover, double locking lever

Item No. 70.340.2435.1
EAN 4015573618060
order unit 1 Piece(s)

Approvals

Technical data

General

ArticlePrice udp_no_price
Nominal voltage 500
Housing material Aluminium
Colour Grey
Surface With powder coating
Degree of protection (IP) Other
UV resistant Yes
Inflammability class of insulation material acc. with UL94 Other
Operating temperature range min. -40 °C
Operating temperature range max. 120 °C

Model

DIN-size 24
Model Surface mounting (base)
Locking mechanism Double locking levers
Cable entry Two-sided
Type of cable Thread
With cable screw gland No
Thread size M 25
Hinged lid Yes
EMC-version No

Page 1 / 1
