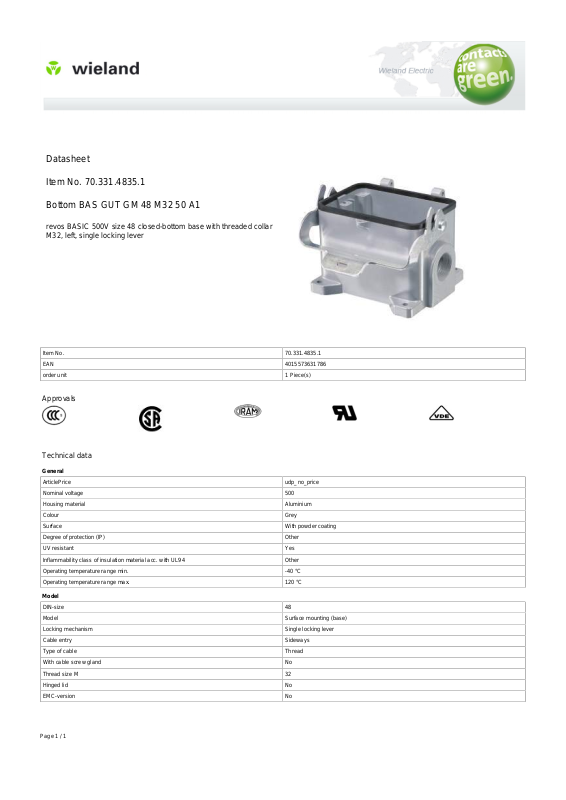

Datasheet
Item No. 70.331.4835.1
Bottom BAS GUT GM 48 M32 50 A1
revos BASIC 500V size 48 closed-bottom base with threaded collar
M32, left, single locking lever
Item No. 70.331.4835.1
EAN 4015573631786
order unit 1 Piece(s)
Approvals
Technical data
General
ArticlePrice udp_no_price
Nominal voltage 500
Housing material Aluminium
Colour Grey
Surface With powder coating
Degree of protection (IP) Other
UV resistant Yes
Inflammability class of insulation material acc. with UL94 Other
Operating temperature range min. -40 °C
Operating temperature range max. 120 °C
Model
DIN-size 48
Model Surface mounting (base)
Locking mechanism Single locking lever
Cable entry Sideways
Type of cable Thread
With cable screw gland No
Thread size M 32
Hinged lid No
EMC-version No
