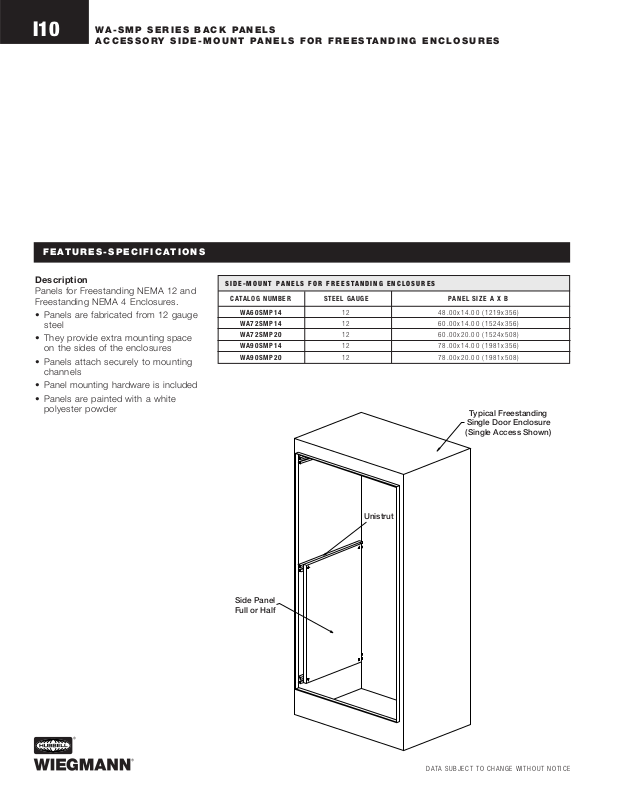

Wiegmann WA-SMP SERIES BACK PANELS Catalog Page

DATA SUBJECT TO CHANGE WITHOUT NOTICE

WA-SMP SERIES BACK PANELS
ACCESSORY SIDE-MOUNT PANELS FOR FREESTANDING ENCLOSURES

I10

FEATURES-SPECIFICATIONS

Description

Panels for Freestanding NEMA 12 and
Freestanding NEMA 4 Enclosures.

• Panels are fabricated from 12 gauge
steel

• They provide extra mounting space
on the sides of the enclosures

• Panels attach securely to mounting
channels

• Panel mounting hardware is included

• Panels are painted with a white
polyester powder

CATALOG NUMBER STEEL GAUGE PANEL SIZE A X B

WA60SMP14 12 48.00x14.00 (1219x356)

WA72SMP14 12 60.00x14.00 (1524x356)

WA72SMP20 12 60.00x20.00 (1524x508)

WA90SMP14 12 78.00x14.00 (1981x356)

WA90SMP20 12 78.00x20.00 (1981x508)

SIDE-MOUNT PANELS FOR FREESTANDING ENCLOSURES

Typical Freestanding

Single Door Enclosure

(Single Access Shown)

Side Panel
Full or Half

Unistrut
