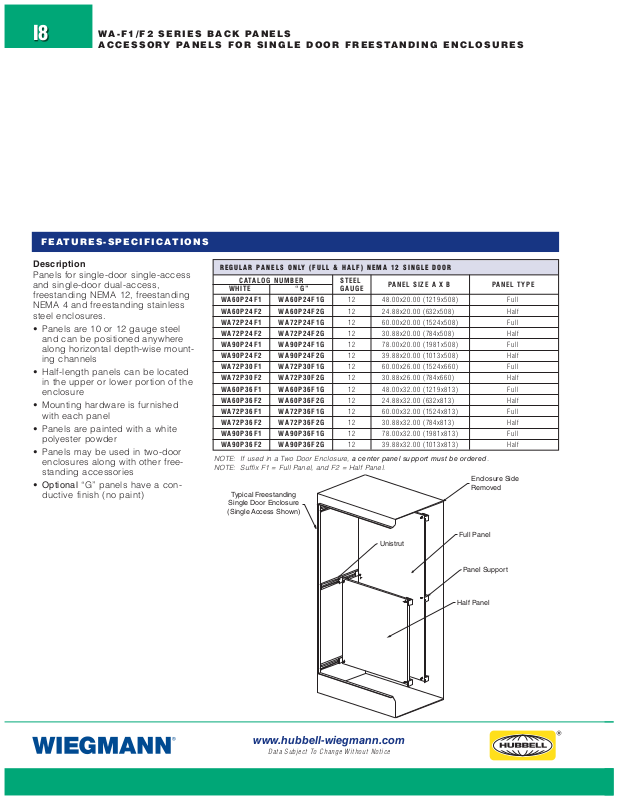

Wiegmann WA-F1 SERIES BACK PANELS, WA-F2 SERIES BACK PANELS Catalog Page
I8
WA-F1/F2 SERIES BACK PANELS
ACCESSORY PANELS FOR SINGLE DOOR FREESTANDING ENCLOSURES
FEATURES-SPECIFICATIONS
Description
Panels for single-door single-access
and single-door dual-access,
freestanding NEMA 12, freestanding
NEMA 4 and freestanding stainless
steel enclosures.
• Panels are 10 or 12 gauge steel
and can be positioned anywhere
along horizontal depth-wise mounting channels
• Half-length panels can be located
in the upper or lower portion of the
enclosure
• Mounting hardware is furnished
with each panel
• Panels are painted with a white
polyester powder
• Panels may be used in two-door
enclosures along with other freestanding accessories
• Optional “G” panels have a con-
ductive finish (no paint)
REGULAR PANELS ONLY (FULL & HALF) NEMA 12 SINGLE DOOR
CATALOG NUMBER STEEL
WHITE “G” GAUGE
WA60P24F1 WA60P24F1G 12 48.00x20.00 (1219x508) Full
WA60P24F2 WA60P24F2G 12 24.88x20.00 (632x508) Half
WA72P24F1 WA72P24F1G 12 60.00x20.00 (1524x508) Full
WA72P24F2 WA72P24F2G 12 30.88x20.00 (784x508) Half
WA90P24F1 WA90P24F1G 12 78.00x20.00 (1981x508) Full
WA90P24F2 WA90P24F2G 12 39.88x20.00 (1013x508) Half
WA72P30F1 WA72P30F1G 12 60.00x26.00 (1524x660) Full
WA72P30F2 WA72P30F2G 12 30.88x26.00 (784x660) Half
WA60P36F1 WA60P36F1G 12 48.00x32.00 (1219x813) Full
WA60P36F2 WA60P36F2G 12 24.88x32.00 (632x813) Half
WA72P36F1 WA72P36F1G 12 60.00x32.00 (1524x813) Full
WA72P36F2 WA72P36F2G 12 30.88x32.00 (784x813) Half
WA90P36F1 WA90P36F1G 12 78.00x32.00 (1981x813) Full
WA90P36F2 WA90P36F2G 12 39.88x32.00 (1013x813) Half
NOTE: If used in a Two Door Enclosure, a center panel support must be ordered.
NOTE: Suffix F1 = Full Panel, and F2 = Half Panel.
Typical Freestanding
Single Door Enclosure
(Single Access Shown)
PANELSIZEAXB PANELTYPE
Enclosure Side
Removed
Full Panel
Unistrut
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
Panel Support
Half Panel
DATA SUBJECT TO CHANGE WITHOUT NOTICE
ACCESSORY PANELS FOR TWO DOOR FREESTANDING ENCLOSURES
FEATURES-SPECIFICATIONS
WA-F1/F2 SERIES BACK PANELS
I9
Description
Panels for two-door single-access
and two-door dual-access Freestanding NEMA 12 enclosures.
• Panels are 10 gauge steel and
can be positioned anywhere along
horizontal depth-wise mounting
channels
• Half-length panels can be located
in the upper or lower portion of the
enclosure
• Mounting hardware is furnished
with each panel
• Panels are painted with a white
polyester powder
• Optional “G” panels have a con-
ductive finish (no paint)
BACK PANELS FOR TWO DOOR FREESTANDING ENCLOSURES
CATALOG NUMBER STEEL
WHITE “G” GAUGE
WA60P48F1 WA60P48F1G 10 48.00x44.00 (1219x1118) Full
WA60P48F2 WA60P48F2G 10 24.88x44.00 (632x1118) Half
WA72P48F1 WA72P48F1G 10 60.00x44.00 (1524x1118) Full
A72P48F2 WA72P48F2G 10 30.88x44.00 (784x1118) Half
W
WA72P60F1 WA72P60F1G 10 60.00x56.00 (1524x1422) Full
WA72P60F2 WA72P60F2G 10 30.88x56.00 (784x1422) Half
WA72P72F1 WA72P72F1G 10 60.00x68.00 (1524x1727) Full
WA72P72F2 WA72P72F2G 10 30.88x68.00 (784x1727) Half
WA90P48F1 WA90P48F1G 10 78.00x44.00 (1981x1118) Full
WA90P48F2 WA90P48F2G 10 39.88x44.00 (1013x1118) Half
WA90P72F1 WA90P72F1G 10 78.00x68.00 (1981x1727) Full
WA90P72F2 WA90P72F2G 10 39.88x68.00 (1013x1727) Half
NOTE: Center Panel support is supplied with a regular Two Door Enclosure Panel. This support is used
only as a brace. It is not intended to be used as a support for Single Door Panels, relay racks, etc.
NOTE: Suffix F1 = Full Panel, and F2 = Half Panel.
Typical Freestanding
Two Door Enclosure
(Dual Access Shown)
PANEL SIZE A X B PANEL TYPE
Side Removed
For Clar ity
Center Panel
Support
Full Panel
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
Panel Support
Half Panel
