ACCESSORIES

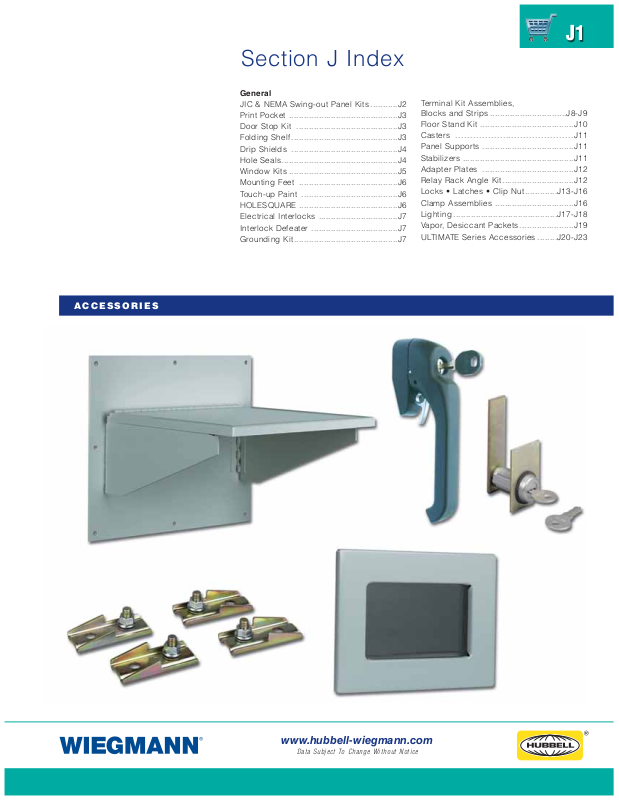

Section J Index
General
JIC & NEMA Swing-out Panel Kits ...........J2
Print Pocket ............................................J3
Door Stop Kit .........................................J3
Folding Shelf ...........................................J3
Drip Shields ...........................................J4
Hole Seals...............................................J4
Window Kits ............................................J5
Mounting Feet ........................................J6
Touch-up Paint .......................................J6
HOLESQUARE ........................................J6
Electrical Interlocks ................................J7
Interlock Defeater ...................................J7
Grounding Kit..........................................J7
J1

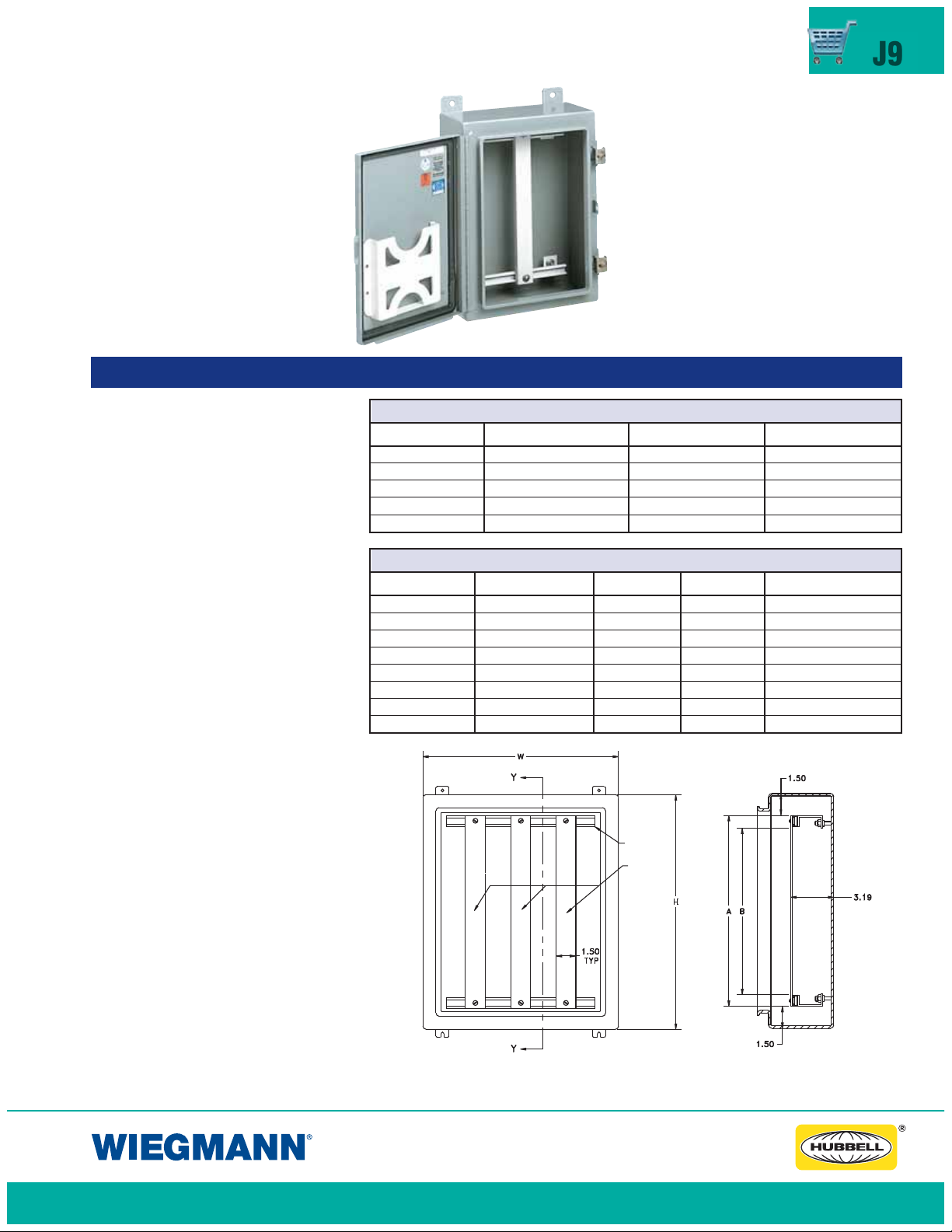

Terminal Kit Assemblies,
Blocks and Strips ...............................J8-J9
Floor Stand Kit ......................................J10

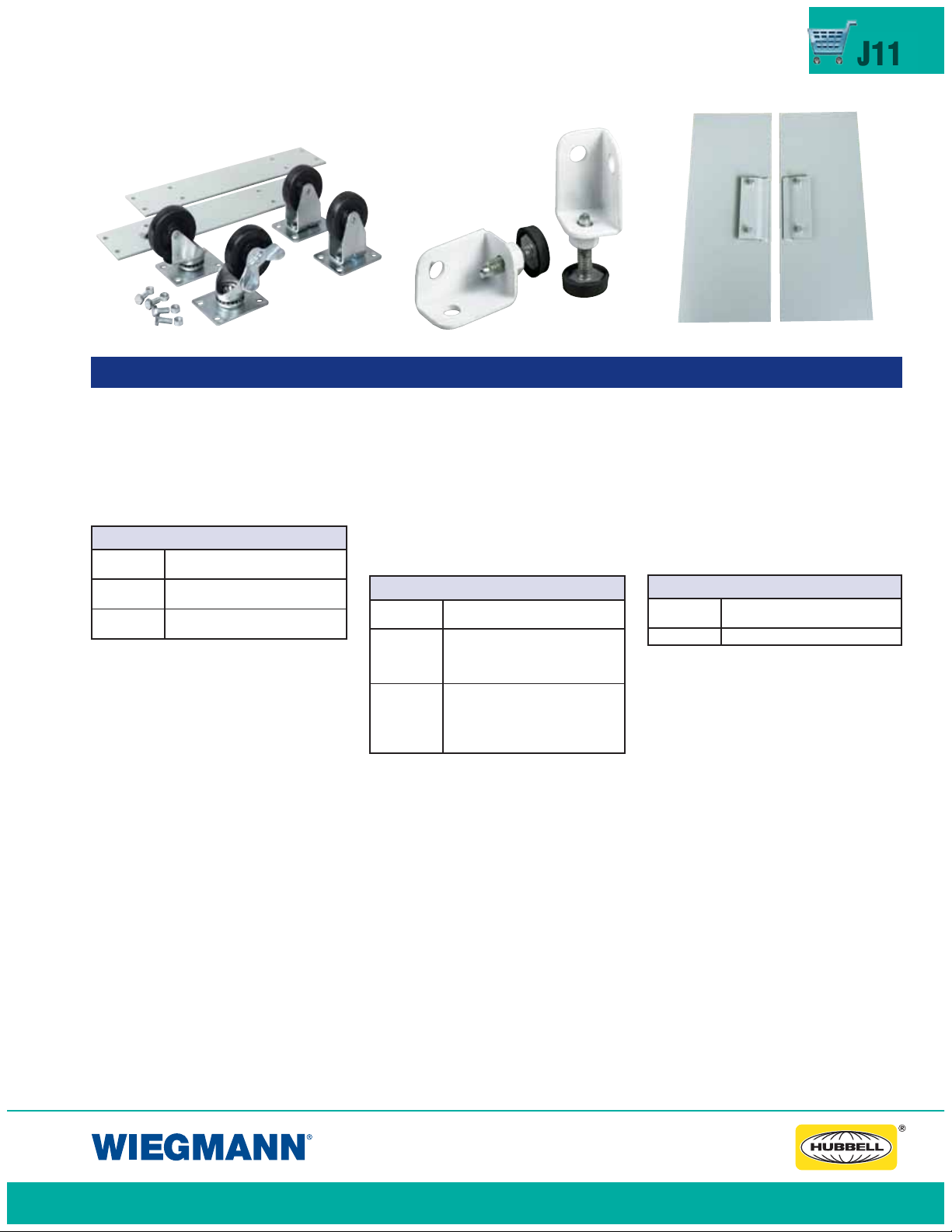

Casters ........................................J11
Panel Supports .....................................J11
Stabilizers .............................................J11

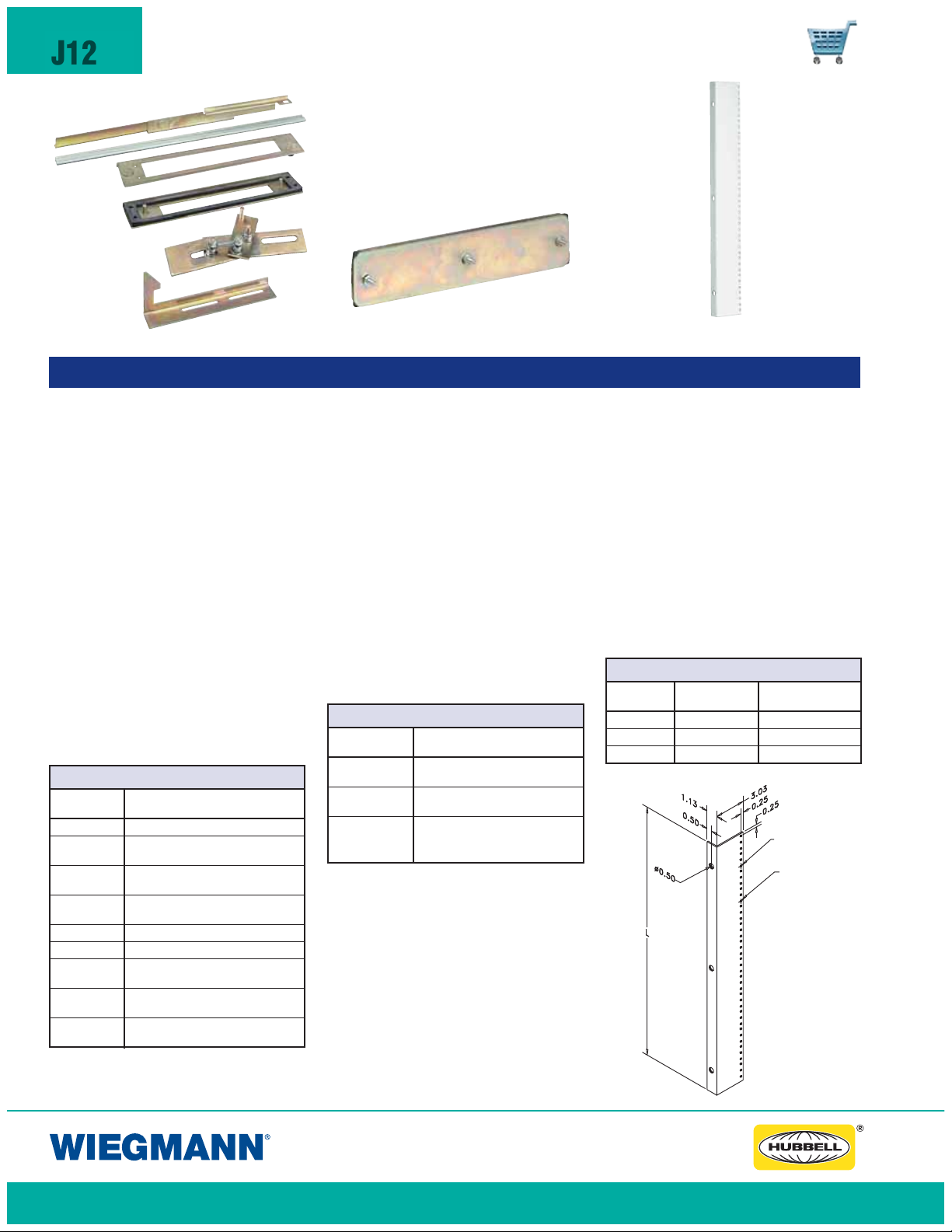

Adapter Plates .....................................J12
Relay Rack Angle Kit.............................J12

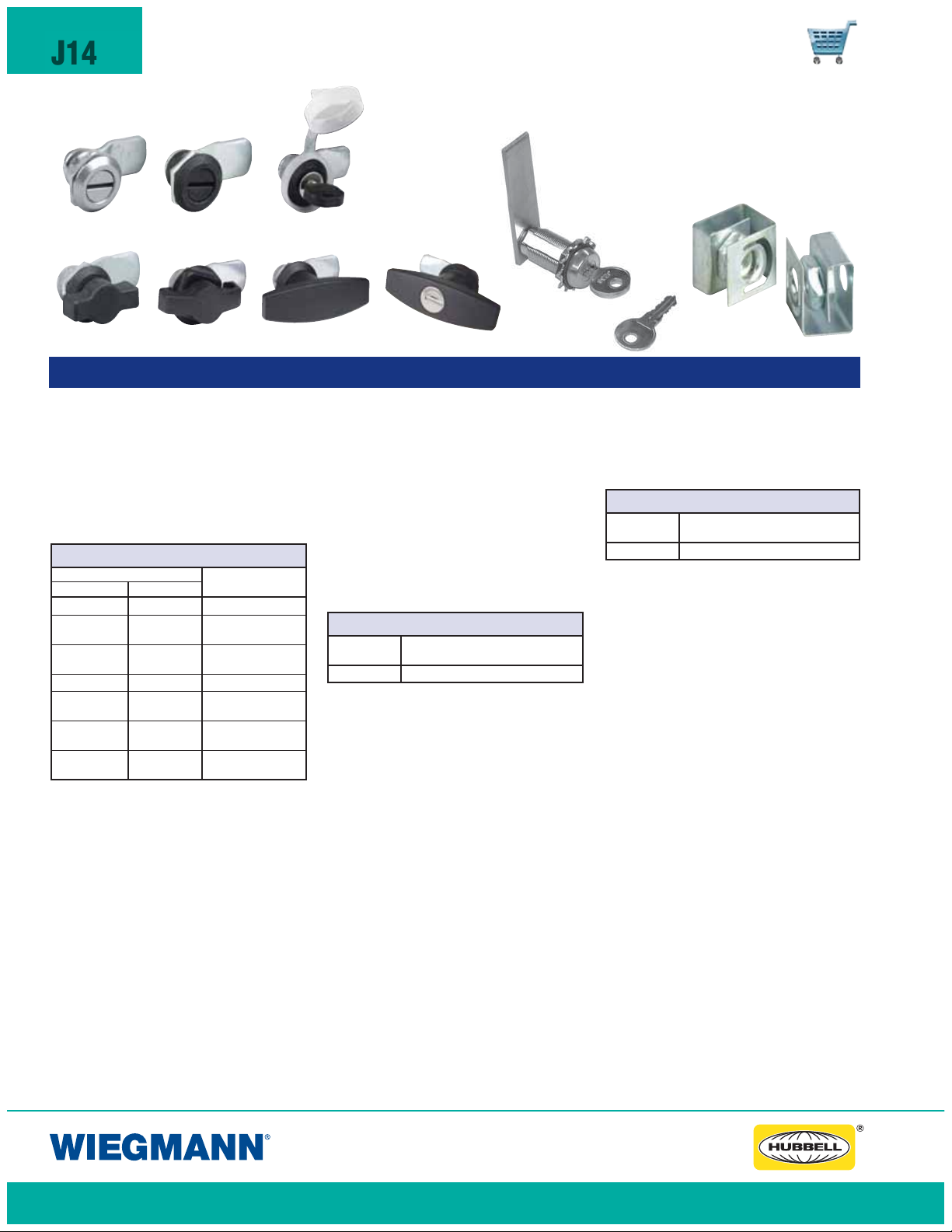

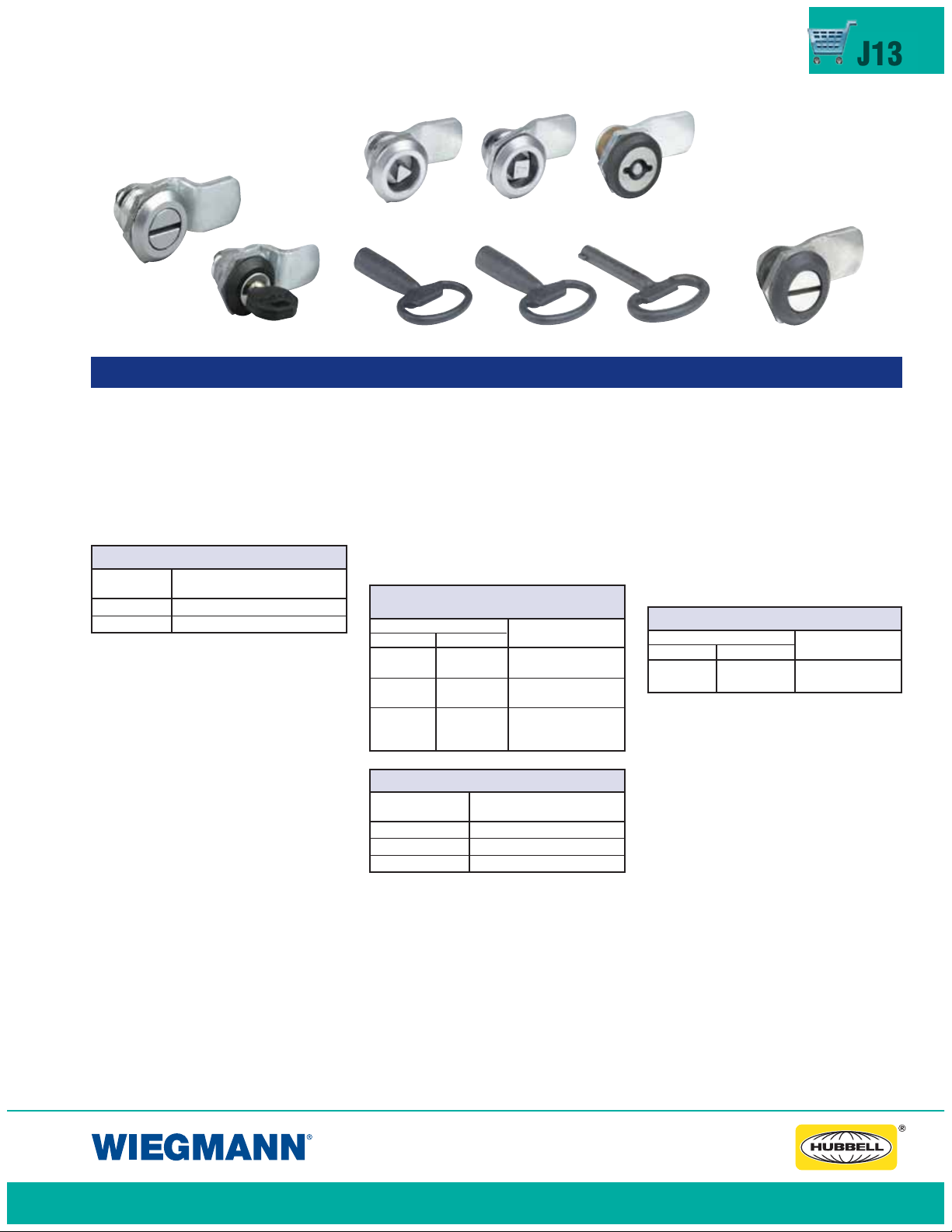

Locks • Latches • Clip Nut.............J13-J16

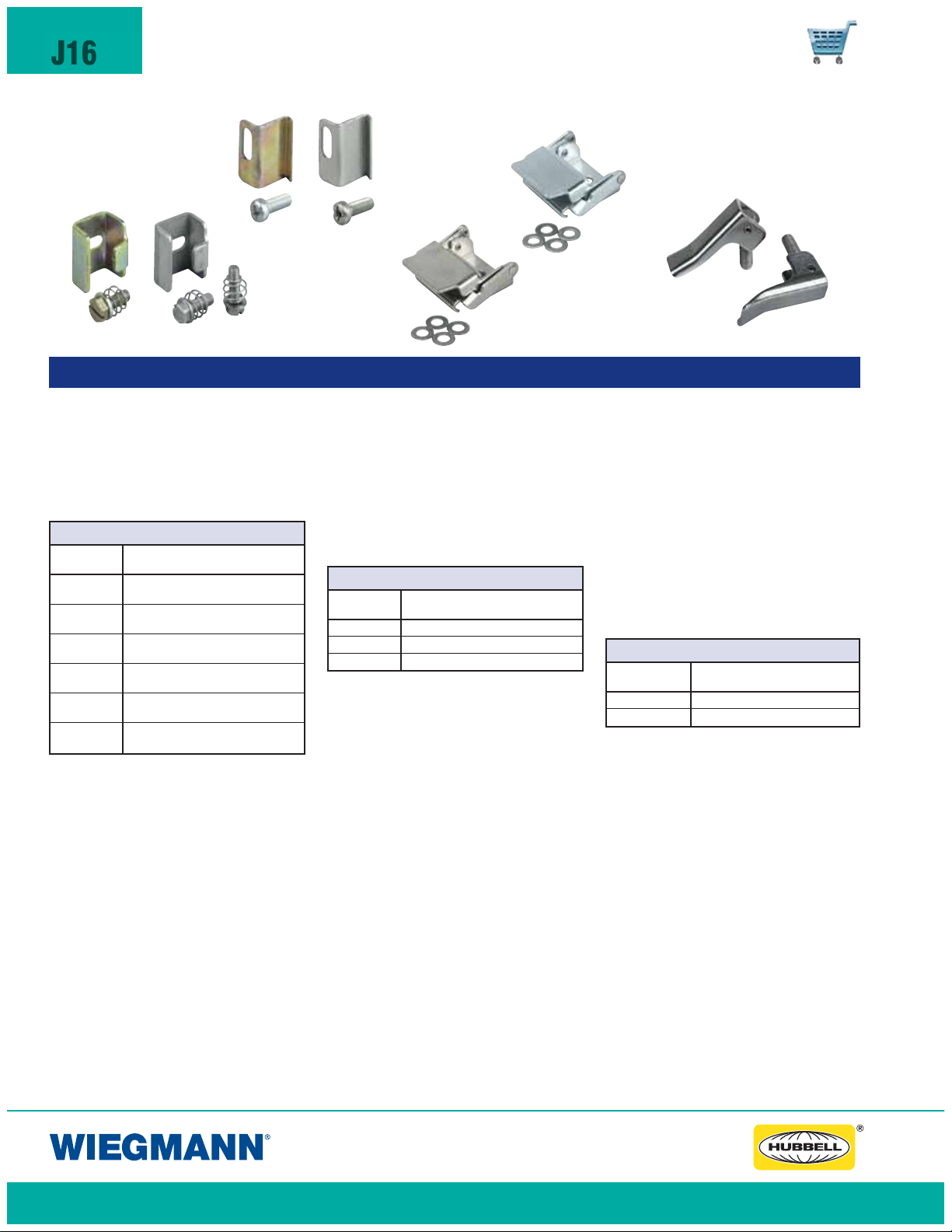

Clamp Assemblies ................................J16

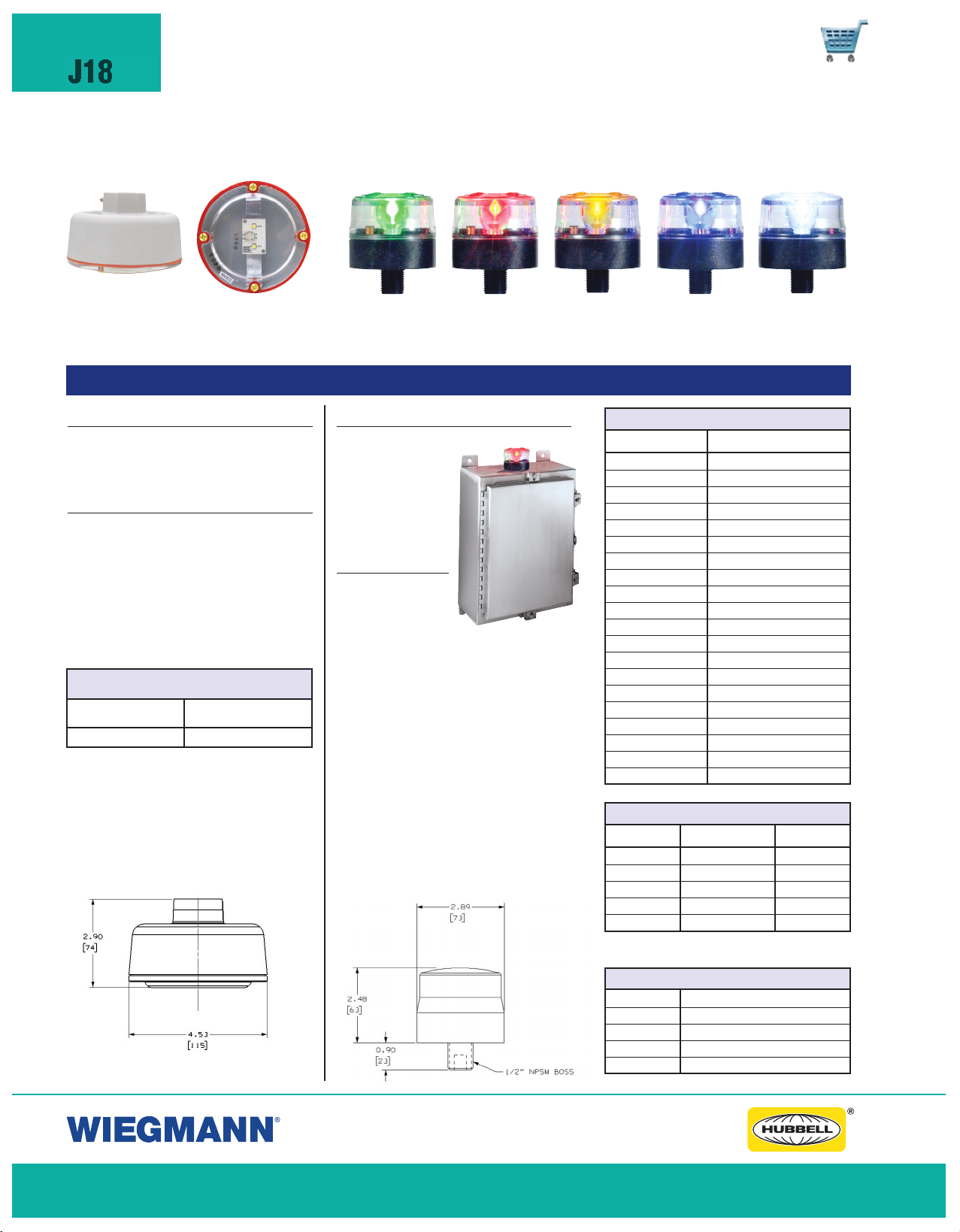

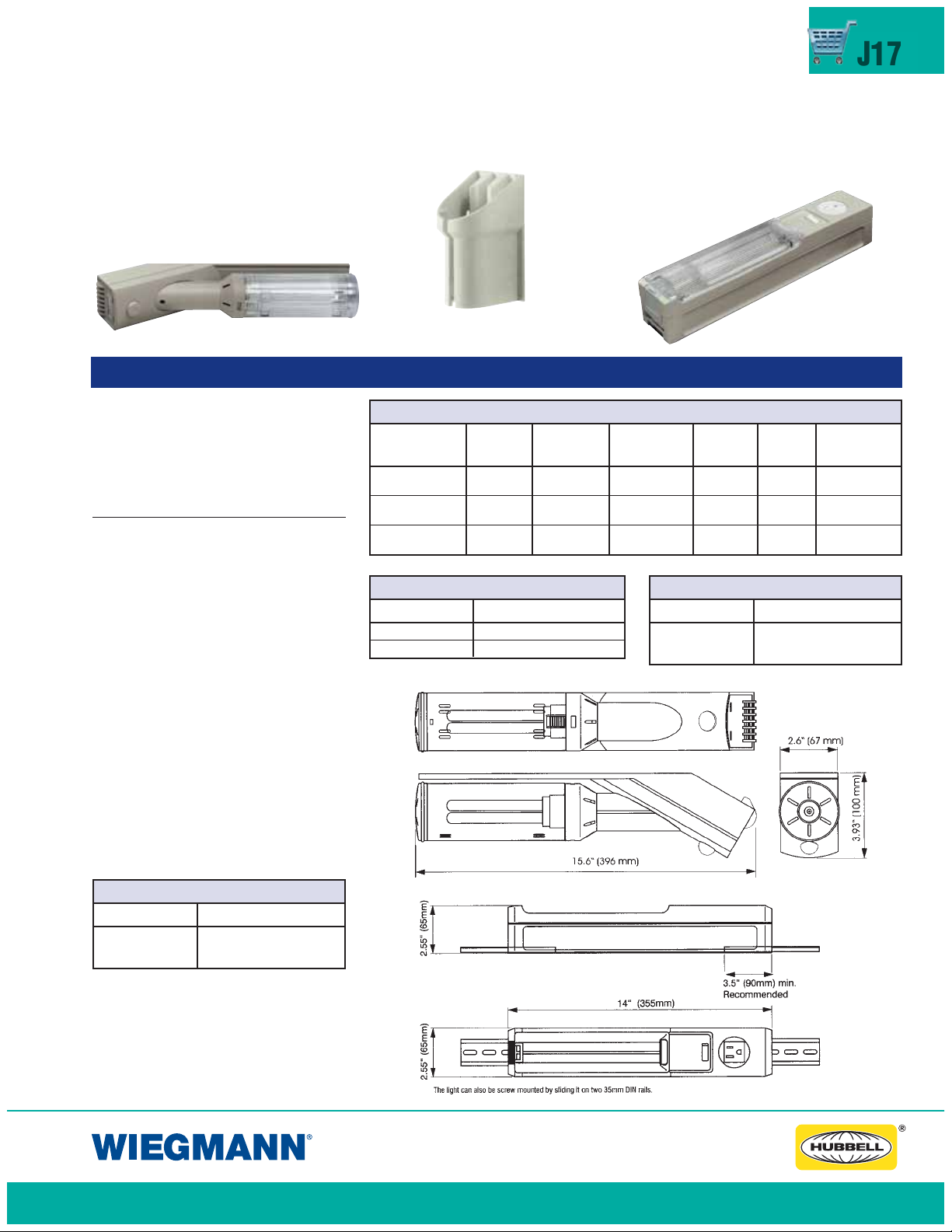

Lighting ..........................................J17-J18

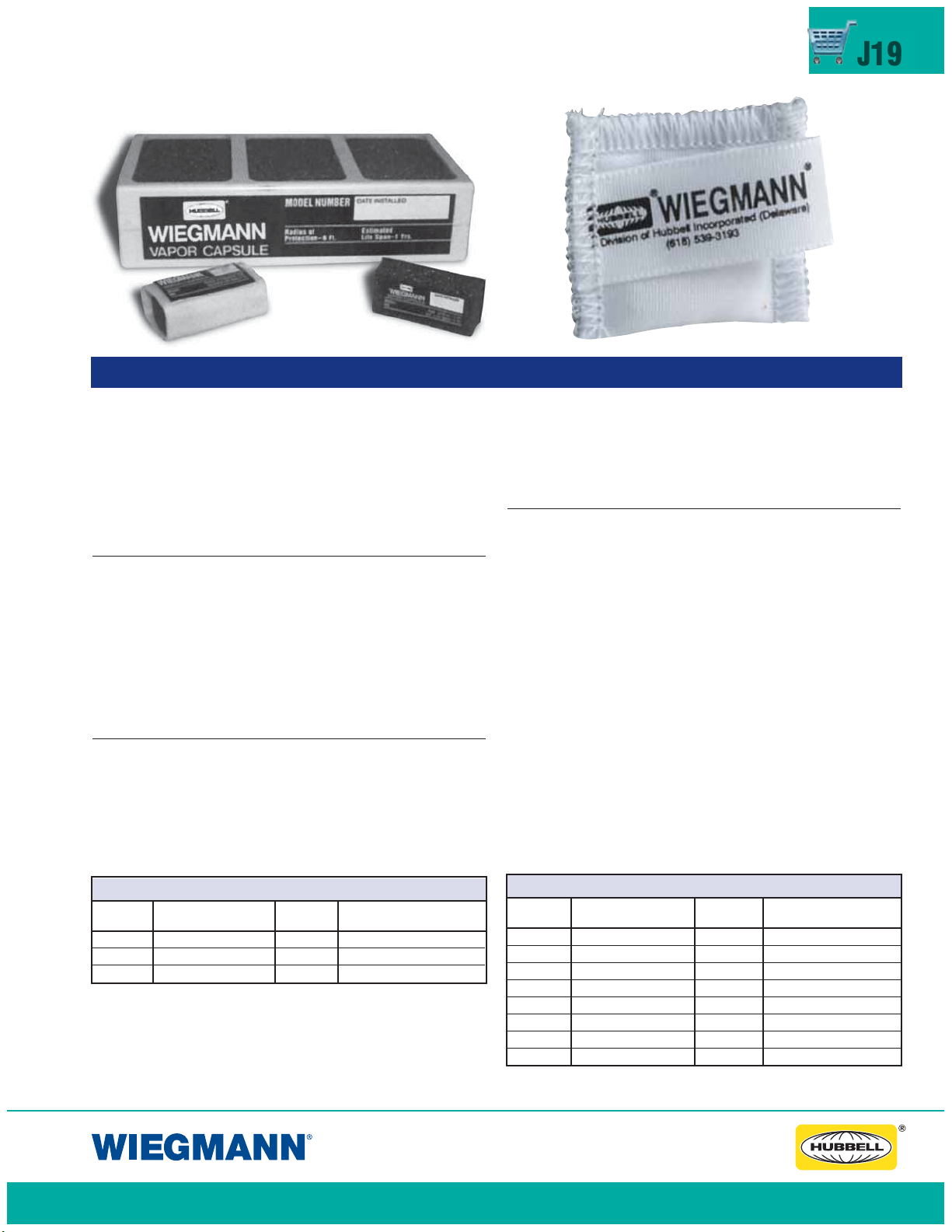

Vapor, Desiccant Packets......................J19

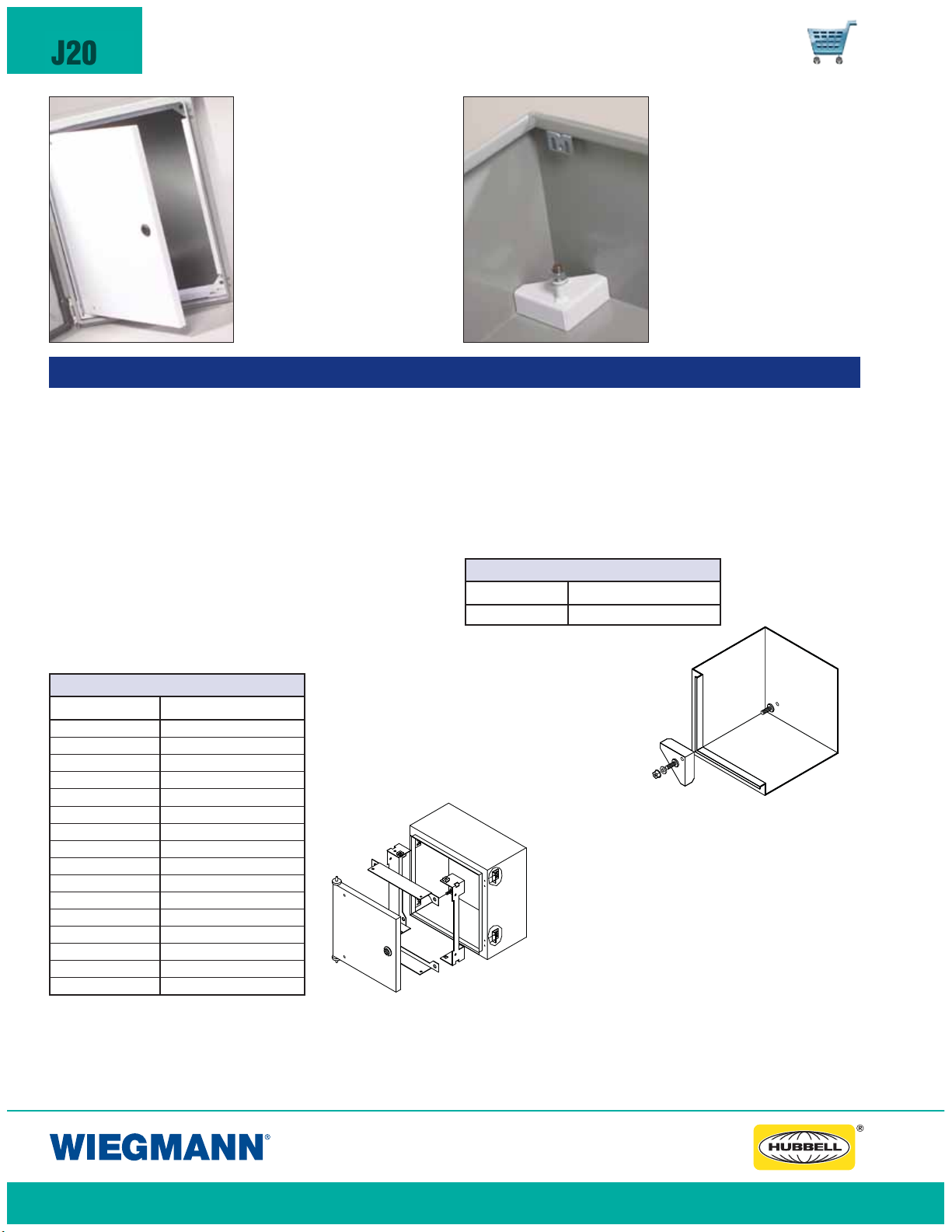

ULTIMATE Series Accessories ........J20-J23
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
J2
GENERAL ENCLOSURE ACCESSORIES
JIC & NEMA SWING-OUT PANEL KITS
WAJCDFK
FEATURES-SPECIFICATIONS
SWING-OUT PANEL KITS
Designed to allow mounting of switches,
gauges, pilot lights and other components near the front of the enclosure
for easy access or meter reading.
• These kits consist of heavy gauge
brackets and hinges which are easily installed by drilling small holes
in the sides of the enclosure and
bolting the bracket in place
• Sealing washers are also furnished
to ensure that the enclosure will
meet the original NEMA rating after
installation
• These kits are designed for
JIC Swing-Out Panel Kit
use with standard Wiegmann
JIC and NEMA panels
(Order Separately)
PANEL
Y
JIC & NEMA SWING OUT PANEL KITS
CATALOG NUMBER DESCRIPTION
WAJCDFK JIC Kit
WANADFK NEMA Kit
NOTE: Panels must be ordered separately.
(Order Separately)
Y
PANEL
WANADFK
NEMA Swing-Out Panel Kit
X
X
CAPTIVE THUMB
SCREW
FIXED
BRACKET
0.81
1. 2 5
VIEW WITH
COVER REMOVED
1.31 MIN.
0.69
PANEL (Order Separately)
SECTION Y-Y
CAPTIVE THUMB
SCREW
HINGE
BRACKET
1. 3 4
1. 0 6
FIXED BRACKET
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
VIEW WITH
COVER REMOVED
2.38
SECTION X-X
4.00
1.25 MIN.
2.31
PANEL (Order Separately)
HINGE
BRACKET
1. 0 6
GENERAL ENCLOSURE ACCESSORIES
PRINT POCKET • DOOR STOP KIT • FOLDING SHELF
J3
WAPPL0606
Print Pocket
FEATURES-SPECIFICATIONS
PRINT POCKET
• Plastic print pockets can be placed
anywhere within enclosure via 2way adhesive tape flanges
• White in color
PRINT POCKET
CATALOG NUMBER DESCRIPTION
WAPPL0606 6x6
WAPPL0810 8x10
WADSTOPK
Door Stop Kit
DOOR STOP KIT
• Designed for use on most standard
Wiegmann Type 4 and 12 enclosures to secure the door in the
open
position
• Door stop can be mounted at the
top or bottom of the door opening
after drilling two small holes in the
body of the enclosure and two
small holes in the door. The angle
of the door is easily adjusted and
the stop arm slides neatly out of the
way when the door is closed
• All parts are plated
DOOR STOP KIT
CATALOG NUMBER DESCRIPTION
WADSTOPK Door stop kit
WACSHELF12
Folding Shelf
FOLDING SHELF
• Designed to be used to support
and test equipment that is used to
install and maintain electrical components in an enclosure
• The shelf can be installed on the
inside or outside
surface of the Wiegmann enclosures
• When not in use, the shelf folds
down and projects only one inch
• All parts are made of heavy gauge
steel
• ANSI-61 gray polyester powder
paint finish
FOLDING SHELF
CATALOG NUMBER DESCRIPTION
WACSHELF12 12.00x12.00 (305x305)
WACSHELF18 18.00x18.00 (457x457)
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
J4
GENERAL ENCLOSURE ACCESSORIES
DRIP SHIELDS • HOLE SEALS
Drip Shields
FEATURES-SPECIFICATIONS
DRIP SHIELDS
•
Designed to protect door hardware from dripping
water and settling dust
• Drip shields attach easily to the enclosure with stainless
steel screws, gasket and sealing washers (hardware
is furnished)
• Drip shields fit all single door NEMA 12 and NEMA 4
wall mounted enclosures
• Stainless steel door clamps are furnished to replace the
standard door clamps
• Steel drip shields have a ANSI 61 gray polyester powder finish over phosphatized surfaces
• Stainless steel drip shields have a grained finish
• 42", 48", 60" and 72" drip shields fit floor mounted
double door enclosures. Specify when ordering for
double door wall mounted enclosures
DRIP SHIELDS
CATALOG NUMBER
STEEL STAINLESS STEEL
DK12 SSDK12 14 12.00 (305)
DK16 SSDK16 14 16.00 (406)
DK20 SSDK20 14 20.00 (508)
DK24 SSDK24 14 24.00 (610)
DK30 SSDK30 14 30.00 (762)
DK36 SSDK36 14 36.00 (914)
DK42 — 14 42.00 (1067)
DK48 — 14 48.00 (1219)
DK60 — 14 60.00 (1524)
DK72 — 14 72.00 (1829)
GAUGE
FITS ENCLOSURE
WIDTH
Hole Seals
HOLE SEALS
Designed to seal extra push-button holes, conduit
openings, and knockout openings from dirt, dust,
oil and water
Steel:
• Quick wing nut
• Oil resistant gasket
• ANSI 61 gray polyester powder
Stainless Steel:
• Quick wing nut
• Oil resistant gasket
• Grained finish
HOLE SEALS
CATALOG NUMBER
STEEL STAINLESS STEEL
WASPBG WASPBGSS
WAS050 WAS050SS 1/2-inch conduit holes 0.88 (22)
WAS075 WAS075SS 3/4-inch conduit holes 1.13 (29)
WASPB WASPBSS
WAS100 WAS100SS 1-inch conduit holes 1.38 (35)
WAS125 WAS125SS 1 1/4-inch conduit holes 1.63 (41)
WAS150 WAS150SS 1 1/2-inch conduit holes 2.00 (51)
WAS200 WAS200SS 2-inch conduit holes 2.50 (64)
WAS250 — 2 1/2-inch conduit holes 3.00 (76)
WAS300 — 3-inch conduit holes 3.63 (92)
WAS350 — 3 1/2-inch conduit holes 4.00 (102)
WAS400 — 4-inch conduit holes 4.63 (118)
DESCRIPTION
Miniature oil tight
pushbutton holes
Standard oil-tight
pushbutton holes
HOLE
DIAMETER
0.88 (22)
1.20 (30)
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
WAPWK0503NF WAPWK0503SS
FEATURES-SPECIFICATIONS
GENERAL ENCLOSURE ACCESSORIES
WINDOW KITS
J5
WINDOW KITS
•
Steel window kits are designed
to be used indoors on NEMA 12
enclosures
• Stainless steel window kits are
suitable for NEMA 12 and 13
enclosures in an indoor application.
These kits are easily installed by
making a cutout in the enclosure
and attaching the window and
frame in place. All necessary
hardware is included
• Kits are fully gasketed to maintain
an oil tight seal
• Frames are made from heavy steel
with a ANSI 61 gray polyester
powder finish over phosphatized
surfaces. Type 304 stainless steel
with a grained finish
WINDOW KITS
CATALOG NUMBER
STEEL STAINLESS STEEL
WAPWK0503NF WAPWK0503SS
WAPWK0905NF WAPWK0905SS
WAPWK1308NF WAPWK1308SS
WAPWK1705NF —
WAPWK1711NF WAPWK1711SS
WAPWK2315NF WAPWK2315SS
WAPWK2919NF —
WAPWK3523NF —
W + 2.50
W+1.69
WINDOW FRAME REQUIRED
H X W SIZE CUT-OUT SIZE
5.00x3.00 7.50x5.50 6.69x4.69
(127x76) (191x140) (170x119)
9.00x5.50 11.50x8.00 10.69x7.19
(229x140) (292x203) (272x183)
13.00x8.00 15.50x10.50 14.69x9.69
(330x203) (394x267) (373x170)
17.00x5.50 19.50x8.00 18.69x7.19
(432x140) (495x203) (475x183)
17.00x11.00 19.50x13.50 18.69x12.69
(432x279) (495x343) (475x322)
23.00x15.00 25.50x17.50 24.69x16.69
(584x381) (648x445) (627x424)
29.00x19.00 31.50x21.50 30.69x20.69
(737x483) (800x546) (780x526)
35.00x23.00 37.50x25.50 36.69x24.69
(889x584) (953x648) (932x627)
0.31
Closed-Cell
Gasketing
Enclosure
Cut-out
H
W
H+1.69
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
H + 2.50
Mounting
Surface
J6
GENERAL ENCLOSURE ACCESSORIES
MOUNTING FEET • TOUCH-UP PAINT • HOL SQUARE
Mounting Feet
FEATURES-SPECIFICATIONS
MOUNTING FEET
• Mounting foot kit N412MFK contains four steel external
mounting feet
• Mounting foot kit N412MFKSS contains four stainless
steel external mounting feet
• Sealing washers are provided with each kit to maintain
NEMA 4 or 12 rating after installation
• The N412MFK has a plated finish
MOUNTING FEET
CATALOG NUMBER DESCRIPTION
N412MFK For N412 steel enclosures
N412MFKSS
For N412 stainless steel
enclosures
WAGS E WAWE
TOUCH-UP PAINT
• Wiegmann touch-up paint is used to repair existing finishes on enclosures and panels
• Furnished in 12 oz. spray cans
TOUCH-UP PAINT
CATALOG NUMBER DESCRIPTION
WAGSE ANSI 61 gray satin enamel
WAWE White enamel
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
GENERAL ENCLOSURE ACCESSORIES
ELECTRICAL INTERLOCKS • INTERLOCK DEFEATER • 3" GROUNDING
J7
WAEK115 WADKDF WGS1008 WGNDKT
WAEK115NDH
FEATURES-SPECIFICATIONS
ELECTRICAL INTERLOCKS
The WAEK115 is designed to be used
with standard Wiegmann door latching
mechanisms. When turned on, this
interlock will prevent the door handle
from being turned to open the door.
This interlock is designed to fit handles
in the following enclosures:
• All two door NEMA 12 enclosures
• Free standing NEMA 12 enclosures
• All consoles
• All single door NEMA 12 enclosures
INTERLOCK DEFEATER
• This defeater is key operated and
enables personnel to enter an
enclosure while the enclosures internal components are energized.
Turning the key disengages the
circuit to the electrical interlock
INTERLOCK DEFEATER
CATALOG NUMBER DESCRIPTION
WAEKDF Defeater
GROUNDING KIT
• Field Grounding Kit
• Includes necessary parts to properly
ground enclosure
GROUNDING KIT
CATALOG NUMBER DESCRIPTION
WGNDKT Grounding Kit
WGS1008 Grounding Strap 8"
WGS1016 Grounding Strap 16"
which have 3 pt handle mechanisms
• Two door NEMA 12 enclosures for
flange-mounted disconnects
• Modular NEMA 12 enclosures
• Multi-door NEMA 12 enclosures
The WAEK115NDH is designed to
be used with standard Wiegmann
enclosures that have no handles.
This interlock requires drilling several
holes in the cover and the body for
mounting.
ELECTRICAL INTERLOCKS
CATALOG NUMBER DESCRIPTION VOLTS/HZ
WAEK115 Electrical interlock 120/60
WAEK115NDH Electrical interlock 120/60
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
J8
GENERAL ENCLOSURE ACCESSORIES

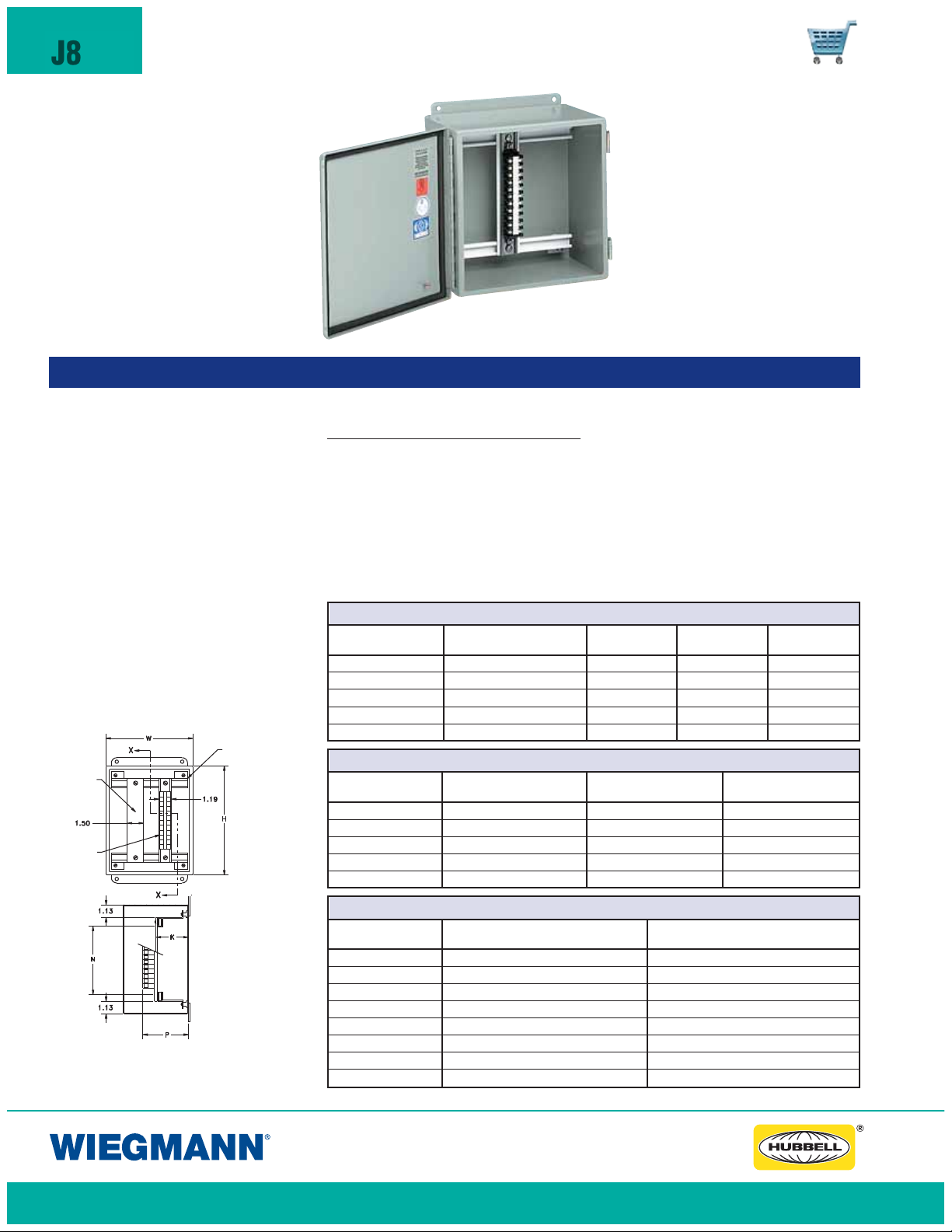

TERMINAL KIT ASSEMBLIES, BLOCKS AND STRIPS
FEATURES-SPECIFICATIONS
WA0808JTMA
TERMINAL KIT ASSEMBLIES,
BLOCKS AND STRIPS FOR
ALL SMALL JIC NEMA 12
AND JIC-NEMA 4 BOXES
• Provides a strong, versatile means for
mounting terminal blocks in Wiegmann
JIC boxes and other enclosures
• Easily installed bracket assembly
accommodates the desired number
of terminal straps or block strips
• Bracket assembly consists of two
white enamel brackets which mount
on weldnuts
• Terminal block strip (ordered separately) is Buchanan Type MD for wire
sizes No. 22 through 10, mounted on
a single terminal strap. Block strips
attach where desired by spring locking nuts. Order brackets, terminal
Bracket
Terminal
Strap
Terminal
Block
Strip
straps and block strips by part number shown below
or width dimension. Specify the
number of straps desired, checking
usable space for enclosure ordered
How To Order
• Each enclosure requires one bracket
assembly plus the desired number of
terminal straps. The bracket assembly
and the terminal straps must be
ordered separately
• To select the correct terminal strap,
determine whether the terminal straps
• To select the correct bracket assembly,
determine whether the bracket will
be mounted parallel to height or
width dimension of enclosure. Refer
to chart and specify correct bracket
by catalog number. One bracket is
needed for each row of collar studs
parallel to the brackets
will be mounted parallel to the height
BRACKET ASSEMBLIES FOR SMALL JIC NEMA 12 AND JIC NEMA 4 ENCLOSURES
CATALOG DIMENSION
NUMBER PARALLEL TO BRACKETS
WA0806JTMA 6.00 (152) 1.56 (40) 2.75 (70) 2.63 (67)
WA0808JTMA 8.00 (203) 1.56 (40) 2.75 (70) 4.63 (118)
WA1010JTMA 10.00 (254) 2.81 (71) 4.00 (102) 6.53 (166)
WA1212JTMA 12.00 (305) 2.81 (71) 4.00 (102) 8.53 (217)
WA1614JTMA 14.00 (356) 2.81 (71) 4.00 (102) 10.53 (267)
TERMINAL BLOCK STRIP & STRAP
CATALOG DIMENSION TERMINAL BLOCKS
NUMBER PARALLEL TO STRIP PER STRIP #
WA08JB 8.00 (203) 8 4.63 (118)
WA10JB 10.00 (254) 12 6.53 (166)
WA12JB 12.00 (305) 16 8.53 (217)
WA14JB 14.00 (356) 20 10.53 (267)
WA16JB 16.00 (406) 24 12.53 (318)
KPN
USABLE SPACE N
TERMINAL STRAPS
CATALOG ENCLOSURE DIMENSION
NUMBER PARALLEL TO STRAP
WA0806JS 8.00 (203) 4.63 (118)
Terminal Kit
Assembly for
Small JIC
Enclosures
(Series B & BN4)
Section X-X
NOTE: Terminal blocks are not included. Be sure to order one bracket assembly plus the desired number of terminal straps for each enclosure.
WA0808JS 8.00 (203) 4.63 (118)
WA1008JS 10.00 (254) 6.63 (168)
WA1010JS 10.00 (254) 6.63 (168)
WA1210JS 12.00 (305) 8.63 (219)
WA1212JS 12.00 (305) 8.63 (219)
WA1412JS 14.00 (356) 10.63 (270)
WA1614JS 16.00 (406) 12.63 (321)
USABLE SPACE N
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
DATA SUBJECT TO CHANGE WITHOUT NOTICE
TERMINAL KIT ASSEMBLIES, BLOCKS AND STRIPS
FEATURES-SPECIFICATIONS
GENERAL ENCLOSURE ACCESSORIES
WA16NTMA2
J9
TERMINAL KIT ASSEMBLIES AND STRAPS FOR
NEMA TYPE 4, 12 AND 13
ENCLOSURES
• Provide strong, versatile and easilyinstalled terminal block mounting
supports
• For use on extra large NEMA Type
1, 4 or 12 and large JIC enclosures
• Each bracket assembly consists of
two or three brackets which mount
on enclosure collar studs
• Mounting straps can be positioned
anywhere along the brackets and
are held in place by spring locking
nuts, making wiring easy and providing for the addition of more
straps at a later date
• Standard finish in white polyester
powder
• Brackets may be installed parallel
to height or width dimension. Each
enclosure requires one bracket
assembly and the desired number
of terminal straps
BRACKET ASSEMBLIES FOR NEMA 4, 12, AND 13 ENCLOSURES – BRACKET ASSEMBLY
CATALOG NUMBER NUMBER OF BRACKETS BRACKET LENGTH FOR ENCLOSURE WIDTH
WA12NTMA2 2 9.00 (229) 12.00 (305)
WA16NTMA2 2 13.00 (330) 16.00 (406)
WA20NTMA2 2 17.00 (432) 20.00 (508)
WA24NTMA2 2 21.00 (533) 24.00 (610)
WA24NTMA3 3 21.00 (533) 24.00 (610)
TERMINAL STRAPS
CATALOG NUMBER NUMBER OF STRAPS A B FOR ENCLOSURE WIDTH
WA12T 1 9.00 (229) 7.75 (197) 12.00 (305)
WA16T 1 13.00 (330) 11.75 (298) 16.00 (406)
WA20T 1 17.00 (432) 15.38 (391) 20.00 (508)
WA24T 1 21.00 (533) 19.75 (502) 24.00 (610)
WA30T 1 27.00 (686) 25.75 (654) 30.00 (762)
WA36T 1 33.00 (838) 31.75 (806) 36.00 (914)
WA42T 1 39.00 (991) 37.75 (959) 42.00 (1067)
WA48T 1 45.00 (1143) 43.75 (1111) 48.00 (1219)
Bracket
Te r m in a l
Strap
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
Section Y-Y
J10
GENERAL ENCLOSURE ACCESSORIES
FLOOR STAND KIT
FEATURES-SPECIFICATIONS
FK0608 SSFK1216
FLOOR STAND KIT
• Kits are easily installed on most
wall-mounted Wiegmann enclosures.
Kits can also be used to elevate
Wiegmann freestanding enclosures.
To install, drill holes in bottom of
existing enclosure and bolt in place.
Each kit includes two stands and
mounting bolts and nuts
• Steel floor stand has a ANSI 61
gray polyester powder finish over
phosphatized surfaces
• Stainless steel floor stand is type
304 stainless with a grained finish
1.00 5.00
2.25
1. 1 3
TYP
2.25
0.69
Ø 0.56
TYP
8.00
0.56
D
FLOOR STAND KIT
CATALOG NUMBER
STEEL STAINLESS STEEL
FK0608 SSFK0608 6.00 (152) 8.00 (203)
FK0610 SSFK0610 6.00 (152) 10.00 (254)
FK0612 SSFK0612 6.00 (152) 12.00 (305)
FK0618 SSFK0618 6.00 (152) 18.00 (457)
FK0624 SSFK0624 6.00 (152) 24.00 (610)
FK1208 SSFK1208 12.00 (305) 8.00 (203)
FK1210 SSFK1210 12.00 (305) 10.00 (254)
FK1212 SSFK1212 12.00 (305) 12.00 (305)
FK1216 SSFK1216 12.00 (305) 16.00 (406)
FK1218 SSFK1218 12.00 (305) 18.00 (457)
FK1220 SSFK1220 12.00 (305) 20.00 (508)
FK1224 SSFK1224 12.00 (305) 24.00 (610)
FK1808 — 18.00 (457) 8.00 (203)
FK1810 — 18.00 (457) 10.00 (254)
FK1812 — 18.00 (457) 12.00 (305)
FK1816 — 18.00 (457) 16.00 (406)
FK2408 — 24.00 (610) 8.00 (203)
FK2410 SSFK2410 24.00 (610) 10.00 (254)
FK2412 SSFK2412 24.00 (610) 12.00 (305)
FLOOR STAND ENCLOSURE
HEIGHT “H” SIZE “D”
4.00
1. 0 0
2.09
H
7. 7 5
10 GA.
6.00
X
2.09
Section X-X
X
10 GA.
Ø 0.56
TYP
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
Casters Panel Supports Stabilizers
FEATURES-SPECIFICATIONS
GENERAL ENCLOSURE ACCESSORIES
CASTERS • PANEL SUPPORTS • STABILIZERS
J11
CASTERS
•
Casters can be used on any enclosure to provide mobility
• Caster kit includes two swivel casters
and two stationary casters along with
all necessary mounting hardware
CASTERS
CATALOG
NUMBER
WC10C
WC12C
DESCRIPTION
Set of 4 casters, 2 mounting
plates and hardware
Set of 4 casters, 2 mounting
plates and hardware
PANEL SUPPORTS
• Provide additional support for panels
on which heavy instruments are
mounted
• The panel supports are adjustable
so the weight of the panel is partially
supported by the bottom of the
enclosure
• White polyester powder finish
PANEL SUPPORTS
CATALOG
NUMBER
WAPS03
WAPS09
DESCRIPTION
Two panel supports for 1-door and
2-door enclosures where distance
from bottom of panel to bottom of
enclosure is less then 2-1/4 inches
Two panel supports for free-standing
or multi-door enclosures where
distance from bottom of panel
to bottom of enclosure is between
2-7/8 inches and 8-1/2 inches
STABILIZERS
• Designed to prevent injury to workers
by stabilizing floor mounted enclosures which are not bolted down
against tipping. Stabilizers slip
under the floor stands and are
secured by tightening bolts in
washers
• ANSI 61 gray polyester finish
STABILIZERS
CATALOG
NUMBER
WAENST Two stabilizers
DESCRIPTION
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
J12
GENERAL ENCLOSURE ACCESSORIES
ADAPTER PLATES • RELAY RACK ANGLE KIT
WA21ABA WA22BAP WARAK24
FEATURES-SPECIFICATIONS
OPERATOR ADAPTER PLATES
• Used on all Wiegmann disconnect
enclosures with universal flange
cutouts
• An operator adapter plate is required
to install a disconnect in all Wiegmann
enclosures with a universal cutout
on pages F28-F49
• Operator adapters include an
adapter plate and additional parts
used to interlock the master door
with the disconnect operating
mechanism. Panel drilling and
installation instructions are
furnished with each adapter
• Each brand and type of disconnect
requires a different operator adapter.
It is important to select the proper
operator adapter and enclosure for
the disconnect that you have selected
OPERATOR ADAPTER PLATES
CATALOG
NUMBER
WA21ABA Allen-Bradley 1494F and 1494D
WA21ABVA Allen-Bradley 1494V, 140U, 1494C,
WA21CHVA Eaton Cutler-Hammer C361, C371
WA21CHVA ABB Controls Varible Depth, S1,
WA21FUFA Fuji
WA21GETDA General Electric STDA
WA21ITE Siemens ITE Max-Flex
WA21SDA Schneider Square D
WA21WHA Eaton Cutler-
TYPE OF OPERATOR ADAPTER
194RC
and C371 Flex Shaft
S2, T5 cable size
Controls Cable S3-S5, S6, S7
able depth and cable mechanism)
Hammer/Westinghouse
™
™
, ABB
®
Class 9422, (vari-
SM
BLANK ADAPTER PLATES
• Used to cover flange cutouts in
disconnect enclosures when
disconnects are not installed. This
greatly increases the versatility of
the disconnect enclosures enabling
them to also be used as regular
Type 12 enclosures
• Wiegmann blank adapter plates are
made from heavy gauge steel, with
oil-resistant gasket to maintain the
dust-tight and oil-tight qualities of
the enclosure
• All blank adapter plates are painted
ANSI 61 gray polyester powder
• All necessary mounting hardware
and instructions are included
BLANK ADAPTER PLATES
CATALOG
NUMBER
WA21BAP
WA22BAP
WA3456BAP
TYPE OF OPERATOR ADAPTER
Blank adapter for universal
cutouts on pages F28- F49
Blank adapter for enclosures
on page F24
Blank adapter for single door
wall-mount enclosures on
pages F2-F13
RELAY RACK ANGLE KIT
(FOR WALL MOUNTS)
• For NEMA 12, NEMA 4 and
NEMA 412 wall mount enclosures.
Designed for mounting 19 inch
rack mounted equipment in 24 inch
wide enclosures. Small holes are
pre-tapped at 10-32
• To install, drill holes in side of
enclosure and bolt angles in place
• Sealing washers are also provided
to maintain original NEMA rating
after installation
• Finish is white
RELAY RACK ANGLE KIT
CATALOG ANGLE
NUMBER LENGTH “L”
WARAK24 23.63 (600) Two Angles
WARAK30 29.63 (753) Two Angles
WARAK36 35.63 (905) Two Angles
DESCRIPTION
Standard E.I.A.
Spacing
D&T10-32
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
DATA SUBJECT TO CHANGE WITHOUT NOTICE
GENERAL ENCLOSURE ACCESSORIES
LOCKS • LATCHES
J13
N1C14T
N1C14TKL
FEATURES-SPECIFICATIONS
NEMA 1 TYPE 1/4-LATCH
•
Designed for field installation
standard NEMA 1 type enclosures
• Requires only a quarter turn to
open and close
• Available in both the 1/4-turn latch
and 1/4-turn key lock
NEMA 1 TYPE 1/4-LATCH
CATALOG
NUMBER
N1C14T NEMA 1 1/4-turn latch
N1C14TKL NEMA 1 1/4-turn key lock
DESCRIPTION
N41214TTRI
N41214TTRIK
N41214SQ
N41214SQK N41214TVPK
NEMA 412 TAMPER RESISTANT
LATCH KITS AND KEYS
• Designed for NEMA 412 Type
enclosures
• Latch kits are tamper resistant
• Available in both 1-point and
3-point 1/4-turn kits
• All have black matted finish or
chrome (see charts)
NEMA 412 TAMPER PROOF RESISTANT LATCH
KITS
CATALOG NUMBER
1-POINT 3-POINT
N41214TTRI N41214TTRI3
N41214SQ N41214SQ3
N41214TVP N41214TVP3
DESCRIPTION
Triangular 1/4-turn
keyed latch
Square 1/4-turn
keyed latch
Double bit vibration
proof 1/4-turn keyed
latch
N41214TVP
N41214TSS
STAINLESS STEEL LOCK
KIT FOR NEMA 412
• Designed for standard single door
Type 412 enclosures
• Requires only a quarter turn to
open and close
• Latch is water and dust tight
• Lock is stainless steel
• Can be used with N412 stainless
steel enclosures
STAINLESS STEEL LOCK KIT FOR NEMA 412
CATALOG NUMBER
1-POINT 3-POINT
N41214TSS N41214TSS3
DESCRIPTION
Stainless steel
1/4-turn
NEMA 412 TAMPER PROOF KEYS
CATALOG
NUMBER
N41214TTRIK Triangular key
N41214SQK Square key
N41214TVPK Double bit vibration proof key
DESCRIPTION
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
J14
GENERAL ENCLOSURE ACCESSORIES
LOCKS • CLIP NUT
N41214T
N41214TW
N41214TB
N41214TWPL
N41214TBKL
N41214TTH
FEATURES-SPECIFICATIONS
NEMA 412 LOCK KITS
• Designed for NEMA 412 Type
enclosures
• Available in both 1-point and
3-point 1/4-turn latches
• All have black matted finish or
chrome finish (see charts)
NEMA 412 LOCK KITS
CATALOG NUMBER
1-POINT 3-POINT
N41214T N41214T3 Slotted chrome finish
N41214TB N41214TB3
N41214TW N41214TW3
N41214TWPL** N41214TWPL3 Padlocking 1/4-turn
N41214TTH N41214TTH3
N41214TTHKL N41214TTH3KL
N41214TBKL*—
*NEMA 12 and 13 rating with dust cover only.
** Padlock hole size is 3/8" diameter.
DESCRIPTION
Slotted black matted
finish
Wing handle 1/4-turn
latch
1/4-turn black matted
tee handle
1/4-turn black matted
tee handle, key locking
1/4-turn black key
lock/dust cover
N41214TTHKL W1032NWACLSN12
LOCK KIT FOR NEMA4&12
ENCLOSURES
• Designed for field installation in
standard single door Type 3R,
4 and 12 enclosures
• Latch is water tight and dust tight
• It is necessary to drill or punch one
hole in the cover to receive the
latch
• Complete installation instructions
are included
LOCK KIT FOR NEMA4&12ENCLOSURES
CATALOG
NUMBER
WACLSN12 1-point key lock
DESCRIPTION
CLIP NUT PACKAGE
• Plated #10-32 clip nuts will fit all
rack mounting angles with 7/32
diameter holes
CLIP NUT PACKAGE
CATALOG
NUMBER
W1032N Clip nut (package of 20)
DESCRIPTION
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
GENERAL ENCLOSURE ACCESSORIES
LOCKS • LATCHES
J15
WAL3SS
(A,B,C,D)
WAL4
(A,B,C,D)
WAL3
(A,B,C,D)
FEATURES-SPECIFICATIONS
LOCK KITS FOR
JUNCTION BOXES
• Designed for field installation in
standard junction boxes. Latch is
water tight and dust tight
• It is necessary to drill or punch
one hole in the cover to receive
the cylinder lock
• Complete installation instructions
included
• Designed for field installation in
standard single door JIC, BCH,
BN4CH enclosures
LOCK KITS FOR JUNCTION BOXES
CATALOG
NUMBER
WACLJIC 1-Point cylinder key lock
WAPLKJIC Padlock lock kit
WAL3(A-D)SS, 316LSS, N4X PADLOCKING HANDLE
CATALOG
NUMBER
WAL3ASS 1-Point latch kit
WAL3BSS where H =
WAL3CSS where H =
WAL3DSS where H =
DESCRIPTION
DESCRIPTION
3-Point latch kit
16", 20", 24" or 30" H
3-Point latch kit
36", 42" or 48" H
3-Point latch kit
60" or 72" H
WAPLKJIC
Keylock
WAL2
Padlock
(A,B,C,D)
WAL1
WACLJIC
(A,B,C,D)
LATCH KITS FOR SINGLE
DOOR TYPE 12 ENCLOSURES
• Designed for field installation in
standard single door Type 3R,
4 and 12 enclosures
• Latch is water tight and dust tight
• It is necessary to drill or punch one
hole in the cover to receive the latch
• Complete installation instructions
are included
LATCH KITS FOR SINGLE DOOR TYPE 12
CATALOG NUMBER
PADLOCK KEYLOCK
HANDLE HANDLE
WAL1A WAL2A 1-Point latch kit
WAL3A‡ WAL4A*‡ 1-Point latch kit
WAL1B WAL2B
WAL3B‡ WAL4B*‡
WAL1C WAL2C
WAL3C‡ WAL4C*‡
WAL1D WAL2D
WAL3D‡ WAL4D*‡
*Combo key/padlocking handle.
‡N4/4X Rated handles.
KEYS FOR LATCH KITS
CATALOG
NUMBER
WAEMKA4 Key for Combo Key/Pad handles
WATVPKKEY Key for N12TVPK
WASQKKEY Key for N1214SQ, & N412SQ3
WATTRIKKEY Key for N412TTRIK
WAL2KEY Key for WAL2A-WAL2D
WACLSN12KEY Key for WACLSN12
DESCRIPTION
3-Point latch kit where
H is 16", 20", 24" or 30"
3-Point latch kit where
H is 16", 20", 24" or 30"
3-Point latch kit where
H is 36",42", or 48"
3-Point latch kit where
H is 36",42", or 48"
3-Point latch kit where
H is 60" or 72"
3-Point latch kit where
H is 60" or 72"
DESCRIPTION
WAL12B
WAL8
WAL12AR
WA8
NEMA 1 TYPE T HANDLE
LATCH & CYLINDER LOCK KITS
• The “T” handles are intended to
be used on various NEMA 1
cabinets. Not suitable for water
tight applications
• The 3 point latch comes with handle, latch, latch rods and all hardware. Handles are chrome plated
• Cylinder locks are designed for
field installation in the small NIC
and large NIC enclosures. Latch is
water and dust tight. It is necessary
to drill a hole in door to receive
latch
• Latch has chrome plated finish
HANDLE LATCH & CYLINDER LOCK KITS
CATALOG
NUMBER
WAL8 1-Point “T” locking handle
WA8 1-Point “T” non locking handle
WAL12B
WAL12AR
DESCRIPTION
1-Point key lock for small N1C
enclosures
3-Point key lock for large N1C
enclosures
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
J16
GENERAL ENCLOSURE ACCESSORIES
LATCHES
WAJICRA
WAN12RA
WAN4XRA
FEATURES-SPECIFICATIONS
REPLACEMENT CLAMP
ASSEMBLIES
• Designed for use as replacement
clamps on JIC, NEMA 4, NEMA 12
and N4X enclosures. All necessary
parts included
REPLACEMENT CLAMP ASSEMBLIES
CATALOG
NUMBER
WAJICRA
WABN4JIC
WABN4JICA
WAN12RA
WAN4XRA
WAN4XRAA
DESCRIPTION
N12 JIC Assembly includes:
clamp & screw
N4 JIC Assembly includes:
clamp & screw (304SS)
N4 JIC Assembly includes:
clamp & screw (316SS)
N12 Assembly includes: clamp,
screw, spring, washers(2)
N4X Assembly includes: clamp,
screw, spring, washers (2) (304SS)
N4X Assembly includes: clamp,
screw, spring, washers (2) (316SS)
WABN4JIC
WAL23SS
FAST OPERATING
JUNCTION BOX
• Provides quick access to enclosure
or wireway interiors. Install on
standard clamp bracket used on
Wiegmann junction boxes, type 12
troughs, and lay-in wireway.
Clamps are available in plated
steel, or stainless steel
FAST OPERATING JUNCTION BOX
CATALOG
NUMBER
WAL23 Plated steel clamp
WAL23SS 304 stainless steel
WAL23SSA 316 stainless steel
DESCRIPTION
WAL23
WAFT44XSS
TOGGLE LATCH FOR TYPE
4X FREE STANDING
ENCLOSURES
• Provides quick access to NEMA
Type 4 and 4X free standing
enclosures. The stainless steel
toggle latches replace the stainless
steel bolts used with conventional
door clamps
• Operation of the toggle releases
the door clamp so the door can be
opened easily without tools
• Pack: 2 toggle latches
TOGGLE LATCH FOR TYPE 4X FREE STANDING
CATALOG
NUMBER
WAFT44XSS 304 stainless steel
WAFT44XSSA 316 stainless steel
DESCRIPTION
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
DATA SUBJECT TO CHANGE WITHOUT NOTICE
WDL026SWLT120
FEATURES-SPECIFICATIONS
GENERAL ENCLOSURE ACCESSORIES
LIGHTING
LHPC02
Light Holder
WKL025SWLT120
J17
Applications
Used
where illumination is needed
inside an enclosure. WDL series is
available with motion sensor or on/off
switch. With optional holder kit, WDL
series lights can be “hand held” for
spot illumination.
Features
• Motion sensor version detects the
motion of the enclosure door being
opened and automatically turns light
on. The sensor is factory pre-set to
turn light off 5 minutes after motion
ceases. The motion sensor does
not detect movement through glass
or fiberglass, thus allowing installation in enclosures with windows or
glass doors
• Light color/temperature is bright
white
• Holder and lamp housing manu-
factured from UL94-VO, impact
resistant plastic
• Connection: 4 pole terminal, max.
AWG 14 for power supply and
parallel wiring of 2 lights
• Includes mounting screws
WDL & WKL SERIES LIGHTING
CATALOG OPERATING OUTLET ACTIVATION
NUMBER VOLTAGE RECEPTICALE METHOD
WDL026SWLT120 110-120 No
WDL026MSLT120 110-120 No
WKL025SWLT120 110-120 Yes
WDL SERIES MOUNTING ACCESSORIES
CATALOG NUMBER DESCRIPTION
WDL026MAG (2) Magnet mounting plates
WDL026SEAD Self adhesive mounting plates
Switch on
housing (100x396x67)
Passive infared
motion sensor (100x396x67)
Switch on
housing (65x355x65)
WDL Series
LIGHT LAMP
INTENSITY CURRENT
(LM) (HRS)
1000 10,000
1000 10,000
900 5,000
WDL SERIES ACCESSORY
CATALOG NUMBER DESCRIPTION
LHPC02 back to mount) with
Light holder (self adhesive
10' power cord
DIMENSIONS
HXWXD
3.93x15.6x2.6
3.93x15.6x2.6
2.55x14x2.55
REPLACEMENT BULBS WDL & WKL SERIES
CATALOG NUMBER DESCRIPTION
770-984 0858
666012 Gray Silk
WKL Series
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
G E N E R A L E N C L O S U R E A C C E S S O R I E S
L E D W O R K L I G H T S & S I G N A L S
F E AT U R E S - S P E C I F I C AT I O N S
LED WORK/TROUBLE LIGHTS
Applications
Provides illumination where needed
inside an enclosure utilizing LED
source with long life (50,000
maintenance-free hours).
Features
• Crisp white light with 6 Watt output
of approximately 485 lumens
• Compact in size
3
⁄4" NPT pendant
fixture
• Housing of high strength 30%
glass-filled thermoset polyester
with clear polycarbonate diffuser
LED SIGNAL LIGHTS
Applications
When mounted
to the outside of
an enclosure,
can serve as a
warning device
or to signal
an event or
occurrence.
Features
• 50,000 hour
expected life;
steady-on (ST)
or flashing (FL)
• Utilizes inver ted
cone design to provide full 360
degree coverage for more light
projection
• Available in five colors – red,
green, amber, blue and clear
• Flash rate is 7 micro flashes
approx. every second
• Can be mounted in any orientation, including lens in the UP or
SIDE positions
• Includes gasket and locknut, to
be user installed
• Maintains N4X seal
J18
W L S ER I E S S I GN A L L IG H T S
CA TA L O G N UM BE R
DE SC RIP TI ON
WL FG 25 A AMB LED FL 1 20-2 40VAC
WL FG 25 B BLU E LED F L 12 0-24 0VAC
WL FG 25 C CLE AR LED FL 1 20-2 40VAC
WL FG 25 G GREE N LED F L 12 0-24 0VAC
WL FG 25 R RED LED F L 12 0-24 0VAC
WL FG 26 A AMB L ED FL 12-80VDC (24VAC)
WL FG 26 B BLUE LED FL 12-80VDC (24VAC)
WL FG 26 C CLEAR LED FL 12-80VDC (24VAC)
WL FG 26 G GREE N LED FL 12-80VDC (24VAC)
WL FG 26 R RED LED F L 12-80VDC (24VAC)
WL SG 25 A AMB LED S T 12 0-24 0VAC
WL SG 25 B BLUE LED ST 1 20-2 40VAC
WL SG 25 C CLEA R LED S T 12 0-24 0VAC
WL SG 25 G G REEN LED ST 120-240VA C
WL SG 25 R R ED LED ST 1 20-2 40VAC
WL SG 26 A AMB LED S T 12 -80VD C (24VAC)
WL SG 26 B BLUE LED ST 12-80VDC (24VAC)
WL SG 26 C CLEA R LED ST 12-80VDC (24VAC)
WL SG 26 G G REEN LED ST 12-80VDC (24VAC)
WL SG 26 R R ED LED ST 1 2-80V DC (24VAC)
I N TE N SI T Y I N C A ND E L LA S
CO LO R FL A S HI NG S T E A DY
A m b e r 4. 3 / 7.4* 11 .3
R e d 5.9 / 10. 1* 1 5. 4
G r e e n 4. 5 / 7.8* 11 .8
B l u e 2 .5 / 4.3* 6.6
C l e a r 4. 8 / 8.2* 12 .5
E L EC T RI C A L R AT IN G S M A X IM U M
1 2 0 VA C 04 0m A Flas h
2 4 0 VA C 02 0m A Flas h
1 2 V D C 4 00 mA
8 0 V D C 6 0mA
2 4 VA C 1 98mA Fl as h
CA TA L O G
DE SC RIP TI ON
NU MB ER
W N V 6 L E D 6 Watt h ea d only *
W N V SE R I ES W OR K L I GH T S
WNV6LED
TYPICAL
INSTALLATION
GREEN
LED
RED
LED
AMBER
LED
BLUE
LED
CLEAR
LED
*Consult factory for po wer supply to be
mounted elsewhere inside enclosure.
* CD-S/ CD-Effec tive
www.hubbell-wiegmann.com
Da ta S ubje ct To C hang e Wi thou t No tice
WVC6-1
FEATURES-SPECIFICATIONS
GENERAL ENCLOSURE ACCESSORIES
VAPOR CAPSULES &DESICCANT PACKETS
WVC1-1
J19
VAPOR CAPSULES
Applications
Hubbell Wiegmann corrosion inhibiting (VCI) Vapor
Capsules contain proprietary chemical systems which emit
an invisible, odorless, nontoxic vapor which is diffused
throughout an enclosure. By placing these self-contained
capsules inside an enclosure, the vapors permeate to
every available surface. The condensed VCI molecules
passivate iron, steel, copper, brass, and aluminum.
Features
• “Peel and stick” adhesive allows application anywhere
within enclosure interior
• All capsules include blank date installed field to monitor
life span
• Estimated life span for all capsules is one year
• Recommended shelf life under normal conditions is one
year. Hubbell Wiegmann corrosion inhibitor products are
not returnable. Corrosion inhibitors should be store at
temperatures not exceeding 120ºF (45ºC)
Positioning of Capsule
It is important to note that the volume protected against
corrosion is decidedly different with the placement of vapor
capsule. For optimal protection, capsule should be placed
as close to center of enclosure as possible. Side mounting
(such as to door of enclosure) is often the most practical
and still offers, in most cases, excellent coverage.
DESICCANT PACKETS
Applications
Hubbell
Wiegmann industrial desiccant packets absorb airborne moisture within electrical and electronic enclosures
therefore eliminating the possibility of internal component
and enclosure corrosion.
Features
• Individual packets used in enclosures ranging from 1
cubic feet or less up to 20 cubic feet in volume
• Can use combination of different packet sizes to protect
enclosures over 20 cubic feet in volume
• Desiccant packets are non-toxic and safe for human
contact
• Each packet capable of absorbing over 500 x’s its own
weight in water
• Outperforms traditional silica gels, calcium sulfates, and
activated clay products
• To extend shelf life, each packet is individually wrapped
in foil
• Recommended shelf life under normal conditions is one
year. Hubbell Wiegmann corrosion inhibitor products are not
returnable. Corrosion inhibitors should be store at temperatures not exceeding 120ºF (45ºC)
NOTE: All conduit openings should be sealed with a hight quality putty,
duct seal, or encapsulant in order for desiccant packets to be 100% effective.
WVC VAPOR CAPSULES
CATALOG ENCLOSURE VOLUME PACKAGE DIMENSIONS
NUMBER PROTECTION (CU.FT.) QUANTITY* HXWXD
WVC1-1 4.2 50 0.75x2.13x1.00 (19x54x25)
WVC2-1 33.9 25 0.88x2.13x1.25 (22x54x32)
WVC6-1 905 4 2.00x8.00x4.00 (51x203x102)
*Sold in package quantity only
www.hubbell-wiegmann.com
WVC VAPOR CAPSULES
CATALOG ENCLOSURE VOLUME PACKAGE DIMENSIONS
NUMBER PROTECTION (CU.FT.) QUANTITY* HXWXD
WWG11-1 1 and less 25 1.00x1.00x.13 (25x25x3)
WWG12-1 1 to 2 25 1.00x2.00x.13 (25x51x3)
WWG13-1 2 to 3 25 1.00x3.00x.13 (25x76x3)
WWG22-1 2 to 3 25 2.00x2.00x.13 (51x51x3)
WWG25-2 3 to 4 10 2.00x5.00x.13 (51x127x3)
WWG33-1 4 to 5 10 3.00x3.00x.13 (76x76x3)
WWG37-3 5 to 10 10 3.00x7.00x.13 (76x178x3)
WWG77-6 10 to 20 10 7.00x7.00x.13 (178x178x3)
Data Subject To Change Without Notice
J20
ULTIMATE ENCLOSURE ACCESSORIES
SWING OUT PANEL • PANEL CONVERSION KIT
FEATURES-SPECIFICATIONS
SWING OUT PANEL
Swing panels are designed to mount internal equipment
directly behind the main enclosure door. Maximum swing
is 107 degrees. Convenient access to sub enclosure is
provided via 1⁄4 turn pull-tab. On solid doors, the clearance from the swing panel face to the interior door face is
1-1⁄4", and 1" on window doors (when the door is closed).
The kit includes the swing panel, brackets and hardware
necessary for a tub flange install. Swing out panels meet
Type 1 with enclosure door open.
Finish: White Polyester Powder.
Note: Swing out panel can also be mounted on front-to-back
adjustable depth mounting kits, or rear panel studs (adjustable
mounting kits must be purchased separately.
SWING OUT PANEL
CATALOG NUMBER
HFWNSP1212C
HFWNSP1612C
HFWNSP1616C
HFWNSP2016C
HFWNSP2416C
HFWNSP1620C
HFWNSP2020C
HFWNSP2420C
HFWNSP3020C
HFWNSP2024C
HFWNSP2424C
HFWNSP3024C
HFWNSP3624C
HFWNSP3030C
HFWNSP3630C
HFWNSP3636C
FOR ENCLOSURE SIZE
12X12(HXW)
16X12(HXW)
16X16(HXW)
20X16(HXW)
24X16(HXW)
16X20(HXW)
20X20(HXW)
24X20(HXW)
30X20(HXW)
20X24(HXW)
24X24(HXW)
30X24(HXW)
36X24(HXW)
30X30(HXW)
36X30(HXW)
36X36(HXW)
PANEL CONVERSION KIT
These kits allow you to utilize standard NEMA “NP” (non
Ultimate panels) within Ultimate enclosures. Simply bolt
the conversion brackets over the top of existing studs,
then install the Ultimate sub panel. Kit includes four
adapter plates and hardware for mounting Ultimate sub
panels.
Finish: White Polyester Powder.
PANEL CONVERSION KIT
CATALOG NUMBER
HFWCNP4C Anything 30H X 30W or less
FOR ENCLOSURE SIZE
**Time Saver Note: Tired of all the extensive labor when removing the competitions’ swing panel
to adjust the multi-depth brackets, then re-installing the swing panel? How many times have you
had to adjust because of different depth instruments? Wiegmann has solved the problem!
Simply use the hole access area on the swing panel, loosen the screws and adjust your swing
panel. Once the correct dimension is reached, simply tighten the screw and your ready to go!
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
ADJUSTABLE DEPTH MOUNTING KIT • DEAD FRONT KIT
FEATURES-SPECIFICATIONS
ULTIMATE ENCLOSURE ACCESSORIES
J21
ADJUSTABLE DEPTH MOUNTING KIT
Adjustable
depth mounting kits allow customers to slide
various accessories from front to back. They fit all
Wiegmann Ultimate Series depths.
If an adjustable depth is required, then these kits must be
purchased when using the following: swing out panels,
DIN rails, rack angles, mounting channels and grid straps.
Kit includes slide mechanisms and hardware to mount.
Use two kits when enclosure has 6 collar studs for mounting panel.
Finish: White Polyester Powder
Note: Dead front panel CANNOT be mounted on adjustable
mounting kit.
ADJUSTABLE DEPTH MOUNTING KIT
CATALOG NUMBER
HFWADM64C
HFWADM84C
HFWADM82C
HFWADM104C
HFWADM102C
HFWADM124C
HFWADM122C
FOR ENCLOSURE SIZE
6" depth or less W/4
collar studs
8" depth or less W/4
COLLAR STUDS
8" depth or less W/2
ADDITIONAL STUDS
10"depth or less W/4
COLLAR STUDS
10" depth or less W/2
ADDITIONAL STUDS
12" depth or less W/4
COLLAR STUDS
12" depth or less W/2
ADDITIONAL STUDS
DEAD FRONT KIT
Looking for a fixed sub mounting surface but need it
installed directly behind the door, then this is the kit for
you. The clearance from the Dead panel face to the interior door face is 1-5/16" on solid doors, and 1-1/16" on
window doors. Dead Front Kits are secured via four pan
head screws. Kit includes mounting brackets, grounding
hardware, and a carbon steel panel finished with white
Polyester Powder paint. Dead Fronts meet Type 1 with
enclosure door open.
Note: Dead Front kits CANNOT be mounted on adjustable
mounting kits.
DEAD FRONT KIT
CATALOG NUMBER
HFWDF1212C
HFWDF1612C
HFWDF2016C
HFWDF2020C
HFWDF2420C
HFWDF2424C
HFWDF3024C
FOR ENCLOSURE SIZE
12X12(HXW)
16X12(HXW)
20X16(HXW)
20X20(HXW)
24X20(HXW)
24X24(HXW)
30X24(HXW)
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
J22
ULTIMATE ENCLOSURE ACCESSORIES
MOUNTING CHANNEL • GRID STRAPS • RACK MOUNTING ANGLES • DIN RAIL KIT
MOUNTING CHANNEL
FEATURES-SPECIFICATIONS
MOUNTING
CHANNEL
Mounting
Channels can be
used when installing Din
rails, grid straps, and rack
mounting angles. Channels
can be mounted both vertically or horizontally to collar studs, or they may be
mounted to Adjustable
Depth Mounting Kits. Each
kit includes two channels.
Finish: White Polyester
MOUNTING CHANNELS
CATALOG
NUMBER
HFWMC12C
HFWMC16C
HFWMC20C
HFWMC24C
HFWMC30C
HFWMC36C
HFWMC42C
HFWMC48C
HFWMC60C
Powder.
GRID STRAPS
FOR ENCLOSURE SIZE
WHENHORW=12"
WHENHORW=16"
WHENHORW=20"
WHENHORW=24"
WHENHORW=30"
WHENHORW=36"
WHENHORW=42"
WHENHORW=48"
WHENHORW=60"
DIN RAIL KIT
RACK MOUNTING ANGLES
RACK MOUNTING ANGLES
Rack mounting angles allow the installation of 19" rack
equipment in 24" wide enclosures. “L” shaped thru-hole
angles may be fixed to the enclosure flange, or used in
combination with the Adjustable Depth Mounting Kits.
Thru-hole diameters are .281".
Brackets are fabricated from
14 ga. galvanized steel (non
painted). Mounting
hardware and two angles
are provided.
Note: W1032N clip nuts must be
purchased separately.
RACK MOUNTING ANGLES
CATALOG
NUMBER
HFWRA20C
HFWRA24C
HFWRA30C
HFWRA36C
HFWRA48C
FOR ENCLOSURE SIZE
20"H
24"H
30"H
36"H
48"H
GRID STRAPS
Grid Straps are used when a flexible means of installing
components are required. Straps are available in single or
three hole widths. Straps can be mounted both vertically
or horizontally to collar studs, or they may be mounted to
Adjustable Depth Mounting Kits. Two straps and mounting
hardware are included within kit (fasteners must be
ordered separate).
GRID STRAPS
CATALOG NUMBER
HFWGS12C
HFWGS16C
HFWGS20C
HFWGS24C
HFWGS30C
HFWGS36C
HFWGS42C
HFWGS48C
HFWGS60C
Note: Order separate grid fastener package catalog number HFWGSHC,
consisting of 20 clip nuts and 20 1⁄4-20 pan head screws for mounting
equipment to grid straps.
DESCRIPTION
Grid Straps - 1 Hole Wide
Grid Straps - 1 Hole Wide
Grid Straps - 1 Hole Wide
Grid Straps - 1 Hole Wide
Grid Straps - 1 Hole Wide
Grid Straps - 3 Hole Wide
Grid Straps - 3 Hole Wide
Grid Straps - 3 Hole Wide
Grid Straps - 3 Hole Wide
FOR ENCLOSURE SIZE
WhenHorW=12"
WhenHorW=16"
WhenHorW=20"
WhenHorW=24"
WhenHorW=30"
WhenHorW=36"
WhenHorW=42"
WhenHorW=48"
WhenHorW=60"
DIN RAIL KIT
DIN rails supply mounting surfaces for DIN mount snap-on
devices. Rails can be mounted both vertically or horizontally to collar studs, or they may be mounted to Adjustable
Depth Mounting Kits. Kit includes three rails and mounting
hardware.
Finish: plated.
DIN RAIL KIT
CATALOG
NUMBER
HFWDR12C
HFWDR16C
HFWDR20C
HFWDR24C
FOR ENCLOSURE SIZE
WhenHorW=12"
WhenHorW=16"
WhenHorW=20"
WhenHorW=24"
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
Loading...
