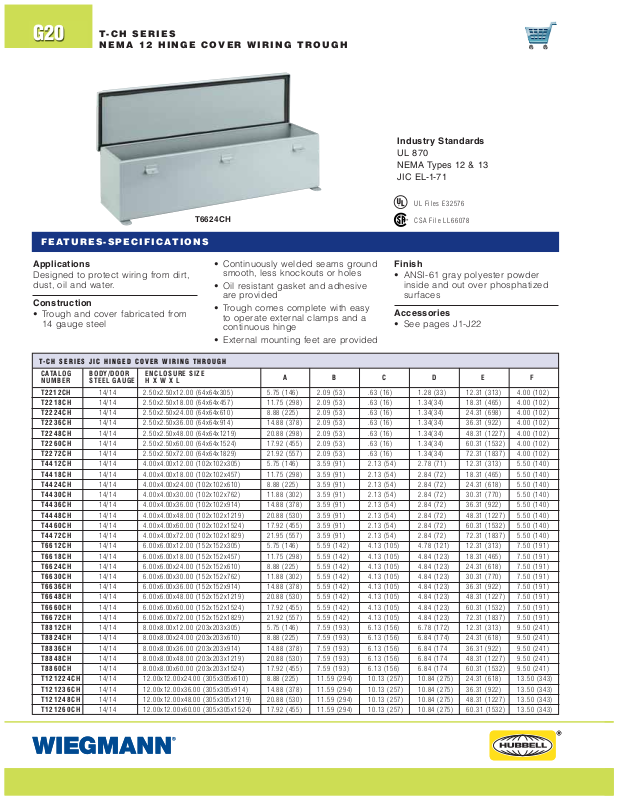

Wiegmann T-CH SERIES Catalog Page

G20

T-CH SERIES
NEMA 12 HINGE COVER WIRING TROUGH

FEATURES-SPECIFICATIONS

T6624CH

Industry Standards

UL 870
NEMA Types 12 & 13
JIC EL-1-71

UL Files E32576

CSA File LL66078

Applications

Designed

to protect wiring from dirt,

dust, oil and water.

Construction

• Trough and cover fabricated from
14 gauge steel

• Continuously welded seams ground
smooth, less knockouts or holes

• Oil resistant gasket and adhesive
are provided

• Trough comes complete with easy
to operate external clamps and a
continuous hinge

Fini sh

• ANSI-61 gray polyester powder
inside and out over phosphatized
surfaces

Acces sories

• See pages J1-J22

• External mounting feet are provided

T-CH SERIES JIC HINGED COVER WIRING THROUGH

CATALOG BODY/DOOR ENCLOSURE SIZE
NUMBER STEEL GAUGE H X W X L

T2212CH 14/14 2.50x2.50x12.00 (64x64x305) 5.75 (146) 2.09 (53) .63 (16) 1.28 (33) 12.31 (313) 4.00 (102)
T2218CH 14/14 2.50x2.50x18.00 (64x64x457) 11.75 (298) 2.09 (53) .63 (16) 1.34(34) 18.31 (465) 4.00 (102)
T2224CH 14/14 2.50x2.50x24.00 (64x64x610) 8.88 (225) 2.09 (53) .63 (16) 1.34(34) 24.31 (698) 4.00 (102)
T2236CH 14/14 2.50x2.50x36.00 (64x64x914) 14.88 (378) 2.09 (53) .63 (16) 1.34(34) 36.31 (922) 4.00 (102)
T2248CH 14/14 2.50x2.50x48.00 (64x64x1219) 20.88 (298) 2.09 (53) .63 (16) 1.34(34) 48.31 (1227) 4.00 (102)
T2260CH 14/14 2.50x2.50x60.00 (64x64x1524) 17.92 (455) 2.09 (53) .63 (16) 1.34(34) 60.31 (1532) 4.00 (102)
T2272CH 14/14 2.50x2.50x72.00 (64x64x1829) 21.92 (557) 2.09 (53) .63 (16) 1.34(34) 72.31 (1837) 4.00 (102)
T4412CH 14/14 4.00x4.00x12.00 (102x102x305) 5.75 (146) 3.59 (91) 2.13 (54) 2.78 (71) 12.31 (313) 5.50 (140)
T4418CH 14/14 4.00x4.00x18.00 (102x102x457) 11.75 (298) 3.59 (91) 2.13 (54) 2.84 (72) 18.31 (465) 5.50 (140)
T4424CH 14/14 4.00x4.00x24.00 (102x102x610) 8.88 (225) 3.59 (91) 2.13 (54) 2.84 (72) 24.31 (618) 5.50 (140)
T4430CH 14/14 4.00x4.00x30.00 (102x102x762) 11.88 (302) 3.59 (91) 2.13 (54) 2.84 (72) 30.31 (770) 5.50 (140)
T4436CH 14/14 4.00x4.00x36.00 (102x102x914) 14.88 (378) 3.59 (91) 2.13 (54) 2.84 (72) 36.31 (922) 5.50 (140)
T4448CH 14/14 4.00x4.00x48.00 (102x102x1219) 20.88 (530) 3.59 (91) 2.13 (54) 2.84 (72) 48.31 (1227) 5.50 (140)
T4460CH 14/14 4.00x4.00x60.00 (102x102x1524) 17.92 (455) 3.59 (91) 2.13 (54) 2.84 (72) 60.31 (1532) 5.50 (140)
T4472CH 14/14 4.00x4.00x72.00 (102x102x1829) 21.95 (557) 3.59 (91) 2.13 (54) 2.84 (72) 72.31 (1837) 5.50 (140)
T6612CH 14/14 6.00x6.00x12.00 (152x152x305) 5.75 (146) 5.59 (142) 4.13 (105) 4.78 (121) 12.31 (313) 7.50 (191)
T6618CH 14/14 6.00x6.00x18.00 (152x152x457) 11.75 (298) 5.59 (142) 4.13 (105) 4.84 (123) 18.31 (465) 7.50 (191)
T6624CH 14/14 6.00x6.00x24.00 (152x152x610) 8.88 (225) 5.59 (142) 4.13 (105) 4.84 (123) 24.31 (618) 7.50 (191)
T6630CH 14/14 6.00x6.00x30.00 (152x152x762) 11.88 (302) 5.59 (142) 4.13 (105) 4.84 (123) 30.31 (770) 7.50 (191)
T6636CH 14/14 6.00x6.00x36.00 (152x152x914) 14.88 (378) 5.59 (142) 4.13 (105) 4.84 (123) 36.31 (922) 7.50 (191)
T6648CH 14/14 6.00x6.00x48.00 (152x152x1219) 20.88 (530) 5.59 (142) 4.13 (105) 4.84 (123) 48.31 (1227) 7.50 (191)
T6660CH 14/14 6.00x6.00x60.00 (152x152x1524) 17.92 (455) 5.59 (142) 4.13 (105) 4.84 (123) 60.31 (1532) 7.50 (191)
T6672CH 14/14 6.00x6.00x72.00 (152x152x1829) 21.92 (557) 5.59 (142) 4.13 (105) 4.84 (123) 72.31 (1837) 7.50 (191)
T8812CH 14/14 8.00x8.00x12.00 (203x203x305) 5.75 (146) 7.59 (193) 6.13 (156) 6.78 (172) 12.31 (313) 9.50 (241)
T8824CH 14/14 8.00x8.00x24.00 (203x203x610) 8.88 (225) 7.59 (193) 6.13 (156) 6.84 (174) 24.31 (618) 9.50 (241)
T8836CH 14/14 8.00x8.00x36.00 (203x203x914) 14.88 (378) 7.59 (193) 6.13 (156) 6.84 (174 36.31 (922) 9.50 (241)
T8848CH 14/14 8.00x8.00x48.00 (203x203x1219) 20.88 (530) 7.59 (193) 6.13 (156) 6.84 (174 48.31 (1227) 9.50 (241)
T8860CH 14/14 8.00x8.00x60.00 (203x203x1524) 17.92 (455) 7.59 (193) 6.13 (156) 6.84 (174 60.31 (1532) 9.50 (241)
T121224CH 14/14 12.00x12.00x24.00 (305x305x610) 8.88 (225) 11.59 (294) 10.13 (257) 10.84 (275) 24.31 (618) 13.50 (343)
T121236CH 14/14 12.00x12.00x36.00 (305x305x914) 14.88 (378) 11.59 (294) 10.13 (257) 10.84 (275) 36.31 (922) 13.50 (343)
T121248CH 14/14 12.00x12.00x48.00 (305x305x1219) 20.88 (530) 11.59 (294) 10.13 (257) 10.84 (275) 48.31 (1227) 13.50 (343)
T121260CH 14/14 12.00x12.00x60.00 (305x305x1524) 17.92 (455) 11.59 (294) 10.13 (257) 10.84 (275) 60.31 (1532) 13.50 (343)

ABC DE F

T-CH SERIES

NEMA 12 HINGE COVER WIRING TROUGH

G21

Ø0.28

0.31

OMIT MIDDLE MOUNTING

FOOT IF L < 30.00"

H

CONTINUOUS HINGE

C

TOP VIEW WITH COVER REMOVED

E

A2.50

1.25

A 2.50

0.62 TYP

0.34 TYP

W

1.00 TYP

B

W+0.31

0.56

C

D

L

Notes:

1. 2 clamps are used whenL=12.00" and 18.00".

2. 3 clamps are used when L = 24.00" through 48.00".

3. 4 clamps are used when L = 60.00" and 72.00".

12 GA.

DATA SUBJECT TO CHANGE WITHOUT NOTICE

F
