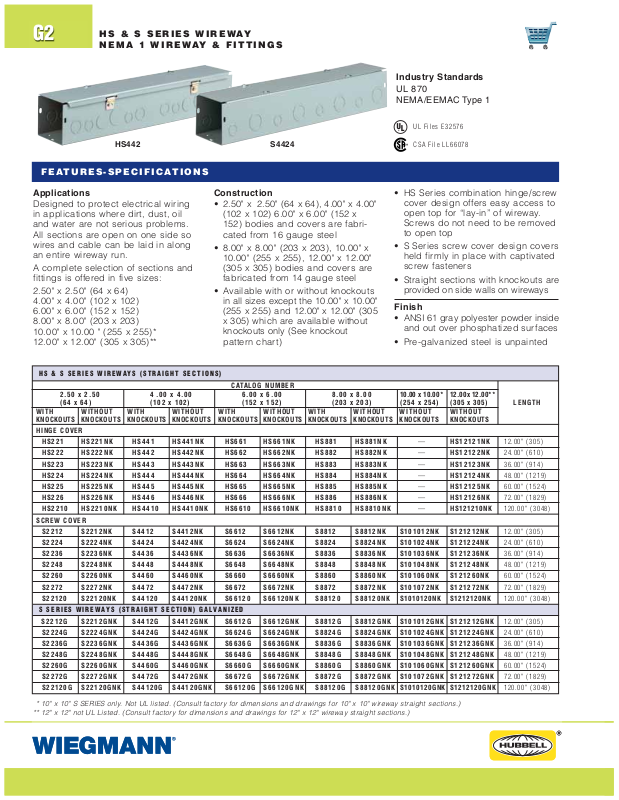

Wiegmann HS SERIES WIREWAY, S SERIES WIREWAY Catalog Page
G2
HS&SSERIES WIREWAY
NEMA 1 WIREWAY & FITTINGS
Industry Standards
UL 870
NEMA/EEMAC Type 1
UL Files E32576
HS442 S4424
CSA File LL66078
FEATURES-SPECIFICATIONS
Applications
Designed to protect electrical wiring
in applications where dirt, dust, oil
and water are not serious problems.
All sections are open on one side so
wires and cable can be laid in along
an entire wireway run.
A complete selection of sections and
fittings is offered in five sizes:
2.50" x 2.50" (64 x 64)
4.00" x 4.00" (102 x 102)
6.00" x 6.00" (152 x 152)
8.00" x 8.00" (203 x 203)
10.00" x 10.00 " (255 x 255)*
12.00" x 12.00" (305 x 305)**
HS & S SERIES WIREWAYS (STRAIGHT SECTIONS)
2.50 x 2.50 4 .00 x 4.00 6.00 x 6.00 8.00 x 8.00 10.00 x 10.00* 12.00 x 12.00**
(64 x 64) (102 x 102) (152 x 152) (203 x 203) (254 x 254) (305 x 305) LENGTH
WITH WITHOUT WITH WITHOUT WITH WITHOUT WITH WITHOUT WITHOUT WITHOUT
KNOCKOUTS KNOCKOUTS KNOCKOUTS KNOCKOUTS KNOCKOUTS KNOCKOUTS KNOCKOUTS KNOCKOUTS KNOCKOUTS KNOCKOUTS
HINGE COVER
HS221 HS221NK HS441 HS441NK HS661 HS661NK HS881 HS881NK — HS12121NK 12.00" (305)
HS222 HS222NK HS442 HS442NK HS662 HS662NK HS882 HS882NK — HS12122NK 24.00" (610)
HS223 HS223NK HS443 HS443NK HS663 HS663NK HS883 HS883NK — HS12123NK 36.00" (914)
HS224 HS224NK HS444 HS444NK HS664 HS664NK HS884 HS884NK — HS12124NK 48.00" (1219)
HS225 HS225NK HS445 HS445NK HS665 HS665NK HS885 HS885NK — HS12125NK 60.00" (1524)
HS226 HS226NK HS446 HS446NK HS666 HS666NK HS886 HS886NK — HS12126NK 72.00" (1829)
HS2210 HS2210NK HS4410 HS4410NK HS6610 HS6610NK HS8810 HS8810NK — HS121210NK 120.00" (3048)
SCREW COVER
S2212 S2212NK S4412 S4412NK S6612 S6612NK S8812 S8812NK S101012NK S121212NK 12.00" (305)
S2224 S2224NK S4424 S4424NK S6624 S6624NK S8824 S8824NK S101024NK S121224NK 24.00" (610)
S2236 S2236NK S4436 S4436NK S6636 S6636NK S8836 S8836NK S101036NK S121236NK 36.00" (914)
S2248 S2248NK S4448 S4448NK S6648 S6648NK S8848 S8848NK S101048NK S121248NK 48.00" (1219)
S2260 S2260NK S4460 S4460NK S6660 S6660NK S8860 S8860NK S101060NK S121260NK 60.00" (1524)
S2272 S2272NK S4472 S4472NK S6672 S6672NK S8872 S8872NK S101072NK S121272NK 72.00" (1829)
S22120 S22120NK S44120 S44120NK S66120 S66120NK S88120 S88120NK S1010120NK S1212120NK 120.00" (3048)
S SERIES WIREWAYS (STRAIGHT SECTION) GALVANIZED
S2212G S2212GNK S4412G S4412GNK S6612G S6612GNK S8812G S8812GNK S101012GNK S121212GNK 12.00" (305)
S2224G S2224GNK S4424G S4424GNK S6624G S6624GNK S8824G S8824GNK S101024GNK S121224GNK 24.00" (610)
S2236G S2236GNK S4436G S4436GNK S6636G S6636GNK S8836G S8836GNK S101036GNK S121236GNK 36.00" (914)
S2248G S2248GNK S4448G S4448GNK S6648G S6648GNK S8848G S8848GNK S101048GNK S121248GNK 48.00" (1219)
S2260G S2260GNK S4460G S4460GNK S6660G S6660GNK S8860G S8860GNK S101060GNK S121260GNK 60.00" (1524)
S2272G S2272GNK S4472G S4472GNK S6672G S6672GNK S8872G S8872GNK S101072GNK S121272GNK 72.00" (1829)
S22120G S22120GNK S44120G S44120GNK S66120G S66120GNK S88120G S88120GNK S1010120GNK S1212120GNK 120.00" (3048)
* 10" x 10" S SERIES only. Not UL listed. (Consult factory for dimensions and drawings for 10" x 10" wireway straight sections.)
** 12" x 12" not UL Listed. (Consult factory for dimensions and drawings for 12" x 12" wireway straight sections.)
Construction
• 2.50" x 2.50" (64 x 64), 4.00" x 4.00"
(102 x 102) 6.00" x 6.00" (152 x
152) bodies and covers are fabricated from 16 gauge steel
• 8.00" x 8.00" (203 x 203), 10.00" x
10.00" (255 x 255), 12.00" x 12.00"
(305 x 305) bodies and covers are
fabricated from 14 gauge steel
• Available with or without knockouts
in all sizes except the 10.00" x 10.00"
(255 x 255) and 12.00" x 12.00" (305
x 305) which are available without
knockouts only (See knockout
pattern chart)
CATALOG NUMBER
• HS Series combination hinge/screw
cover design offers easy access to
open top for “lay-in” of wireway.
Screws do not need to be removed
to open top
• S Series screw cover design covers
held firmly in place with captivated
screw fasteners
• Straight sections with knockouts are
provided on side walls on wireways
Finish
• ANSI 61 gray polyester powder inside
and out over phosphatized surfaces
• Pre-galvanized steel is unpainted
HS & S SERIES WIREWAY
NEMA 1 WIREWAY & FITTINGS
HS & S SERIES WIREWAY ACCESSORIES
2.50 x 2.50 4 .00 x 4.00 6.00 x 6.00 8.00 x 8.00 10.00 x 10.00* 12.00 x 12.00*
(64 x 64) (102 x 102) (152 x 152) (203 x 203) (254 x 254) (305 x 305)
E0202 E0404 E0606 E0808 — — End caps (with knockouts)
E0202NK E0404NK E0606NK E0808NK E1010NK E1212NK End caps (without knockouts)
T0202 T0404 T0606 T0808 T1010 T1212 Tee
X0202 X0404 X0606 X0808 X1010 X1212 Cross
AF0202 AF0404 AF0606 AF0808 AF1010 AF1212 Telescope
C0202 C0404 C0606 C0808 C1010 C1212 Connectors
PA0202 PA0404 PA0606 PA0808 PA1010 PA1212 Panel-Adapter
BH0202 BH0404 BH0606 BH0808 BH1010 BH1212 Bracket Hanger
— R0402 R0604 R0806 R1008 R1208 Reducer
SL020290 SL040490 SL060690 SL080890 SL101090 SL121290 Sweep Elbow – 90°
L020290 L040490 L060690 L080890 L101090 L121290 Elbow – 90°
L020245 L040445 L060645 L080845 L101045 L121245 Elbow – 45°
S SERIES ACCESSORIES (GALVANIZED)
— E0404G E0606G E0808G — — End caps (without knockouts)
E0202GNK — — — E1010GNK E1212GNK End caps (with knockouts)
T0202G T0404G T0606G T0808G T1010G T1212G Galvanized Tee
X0202G X0404G X0606G X0808G X1010G X1212G Galvanized Cross
AF0202G AF0404G AF0606G AF0808G AF1010G AF1212G Galvanized Telescope
C0202G C0404G C0606G C0808G C1010G C1212G Galvanized Connectors
PA0202G PA0404G PA0606G PA0808G PA1010G PA1212G Galvanized Panel-Adapter
BH0202G BH0404G BH0606G BH0808G BH1010G BH1212G Galvanized Bracket Hanger
— R0402G R0604G R0806G R1008G R1208G Galvanized Reducer
SL020290G SL040490G SL060690G SL080890G SL101090G SL121290G Galvanized Sweep Elbow – 90°
L020290G L040490G L060690G L080890G L101090G L121290G Galvanized Elbow – 90°
L020245G L040445G L060645G L080845G L101045G L121245G Galvanized Elbow – 45°
CATALOG NUMBER
DESCRIPTION
G3
HS SERIES 2" STRAIGHT SECTION DIMENSIONS
CATALOG NUMBER A B C
HS221 & HS221NK
HS222 & HS222NK
HS223 & HS223NK
HS224 & HS224NK
HS225 & HS225NK
HS226 & HS226NK
HS2210 & HS2210NK
12.00 (300) — 3.00 (75)
24.00 (600) 1.00 (25) 7.00 (175)
36.00 (900) 2.00 (50) 11.00 (275)
48.00 (1200) 3.00 (75) 15.00 (375)
60.00 (1500) 4.00 (100) 19.00 (475)
72.00 (1800) 5.00 (125) 23.00 (575)
120.00 (3000) 9.00 (225) 39.00 (975)
NK = No Knockouts
0.31 TYP 6PL
1.50
0.63 TYP 2PL
Ø 0.25 TYP 4PL
1.38TYP 2PL
3.00 TYP “C” PL
12.00 TYP “B” PL6.00
1.31 TYP
“A”
0.63 TYP 2PL
HS SERIES 2" STRAIGHT SECTION DIMENSIONS
1/2" - 3/4" CONCENTRIC KOTYP
0.25 X 0.50 SLOT
TYP 6PL
1.3 4 T Y P 4 P L
2.69 (TUB TOLID)
0.94 TYP 4PL
1.31TYP 2PL
2.88 (LID)
2.63 (TUB)
2.63 (TUB)
