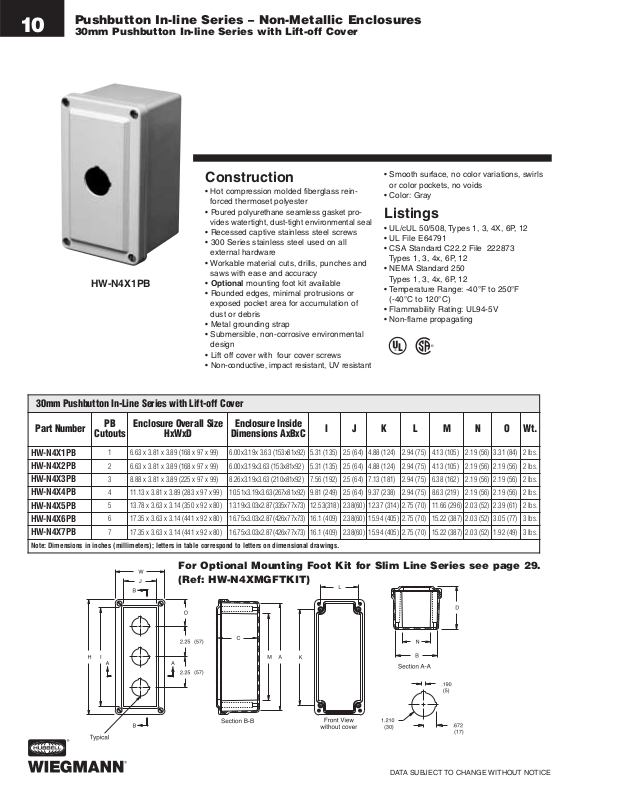

Wiegmann Pushbutton In-line Series – Non-Metallic Enclosures Catalog Page

Construction

• Hot compression molded fiberglass reinforced thermoset polyester

•

Poured polyurethane seamless gasket provides watertight, dust-tight environmental seal

• Recessed captive stainless steel screws

• 300 Series stainless steel used on all external hardware

• Workable material cuts, drills, punches and saws with ease and accuracy

• Optional mounting foot kit available

• Rounded edges, minimal protrusions or exposed pocket area for accumulation of dust or debris

• Metal grounding strap

• Submersible, non-corrosive environmental design

• Lift off cover with four cover screws

•

Non-conductive, impact resistant, UV resistant

• Smooth surface, no color variations, swirls or color pockets, no voids

• Color: Gray

Listings

• UL/cUL 50/508, Types 1, 3, 4X, 6P, 12

• UL File E64791

• CSA Standard C22.2 File 222873 Types 1, 3, 4x, 6P, 12

• NEMA Standard 250 Types 1, 3, 4x, 6P, 12

• Temperature Range: -40°F to 250°F (-40°C to 120°C)

• Flammability Rating: UL94-5V

• Non-flame propagating

DATA SUBJECT TO CHANGE WITHOUT NOTICE

Pushbutton In-line Series – Non-Metallic Enclosures

30mm Pushbutton In-line Series with Lift-off Cover

HW-N4X1PB

30mm Pushbutton In-Line Series with Lift-off Cover

Part Number

Cutouts

Enclosure Overall Size

HxWxD

Enclosure Inside

Dimensions AxBxC

I J K L M N O Wt.

HW-N4X1PB

1 6.63 x 3.81 x 3.89 (168 x 97 x 99) 6.00x3.19x 3.63 (153x81x92) 5.31 (135) 2.5 (64) 4.88 (124) 2.94 (75) 4.13 (105) 2.19 (56) 3.31 (84) 2 lbs.

HW-N4X2PB

2 6.63 x 3.81 x 3.89 (168 x 97 x 99) 6.00x3.19x3.63 (153x81x92) 5.31 (135) 2.5 (64) 4.88 (124) 2.94 (75) 4.13 (105) 2.19 (56) 2.19 (56) 2 lbs.

HW-N4X3PB

3 8.88 x 3.81 x 3.89 (225 x 97 x 99) 8.26x3.19x3.63 (210x81x92) 7.56 (192) 2.5 (64) 7.13 (181) 2.94 (75) 6.38 (162) 2.19 (56) 2.19 (56) 2 lbs.

HW-N4X4PB

4 11.13 x 3.81 x 3.89 (283 x 97 x 99) 10.51x3.19x3.63(267x81x92) 9.81 (249) 2.5 (64) 9.37 (238) 2.94 (75) 8.63 (219) 2.19 (56) 2.19 (56) 2 lbs.

HW-N4X5PB

5 13.78 x 3.63 x 3.14 (350 x 92 x 80) 13.19x3.03x2.87(335x77x73) 12.53(318) 2.38(60) 12.37 (314) 2.75 (70) 11.66 (296) 2.03 (52) 2.39 (61) 2 lbs.

HW-N4X6PB

6 17.35 x 3.63 x 3.14 (441 x 92 x 80) 16.75x3.03x2.87(426x77x73) 16.1 (409) 2.38(60) 15.94 (405) 2.75 (70) 15.22 (387) 2.03 (52) 3.05 (77) 3 lbs.

HW-N4X7PB

7 17.35 x 3.63 x 3.14 (441 x 92 x 80) 16.75x3.03x2.87(426x77x73) 16.1 (409) 2.38(60) 15.94 (405) 2.75 (70) 15.22 (387) 2.03 (52) 1.92 (49) 3 lbs.

Note: Dimensions in inches (millimeters); letters in table correspond to letters on dimensional drawings.

For Optional Mounting Foot Kit for Slim Line Series see page 29. (Ref: HW-N4XMGFTKIT)

22mm Pushbutton In-Line Series with Lift-off Cover

Part Number

Cutouts

Enclosure Overall Size

HxWxD

Enclosure Inside

Dimensions

AxBxC

I J K L M N O Wt.

HW-N4X1PB-22

1 6.63 x 3.81 x 3.89 (168 x 97 x 99) 6.00x3.19x3.63 (153x81x92) 5.31 (135) 2.5 (64) 4.88 (124) 2.94 (75) 4.13 (105) 2.19 (56) 3.31 (84) 2 lbs.

HW-N4X2PB-22

2 6.63 x 3.81 x 3.89 (168 x 97 x 99) 6.00x3.19x3.63 (153x81x92) 5.31 (135) 2.5 (64) 4.88 (124) 2.94 (75) 4.13 (105) 2.19 (56) 2.53 (64) 2 lbs.

HW-N4X3PB-22

3 6.63 x 3.81 x 3.89 (168 x 97 x 99) 6.00x3.19x3.63 (153x81x92) 5.31 (135) 2.5 (64) 4.88 (124) 2.94 (75) 4.13 (105) 2.19 (56) 1.75 (44) 2 lbs.

HW-N4X4PB-22

4 8.88 x 3.81 x 3.89 (225 x 97 x 99) 8.26x3.19x3.63 (210x81x92) 7.56 (192) 2.5 (64) 7.13 (181) 2.94 (75) 6.38 (162) 2.19 (56) 2.09 (53) 2 lbs.

HW-N4X5PB-22

5 11.13 x 3.81 x 3.89 (283 x 97 x 99) 10.51x3.19x3.63 (267x81x92) 9.81 (249) 2.5 (64) 9.37 (238) 2.94 (75) 8.63 (219) 2.19 (56) 2.44 (62) 2 lbs.

HW-N4X6PB-22

6 11.13 x 3.81 x 3.89 (283 x 97 x 99) 10.51x3.19x3.63 (267x81x92) 9.81 (249) 2.5 (64) 9.37 (238) 2.94 (75) 8.63 (219) 2.19 (56) 1.66 (42) 3 lbs.

HW-N4X7PB-22

7 13.78 x 3.63 x 3.14 (350 x 92 x 80) 13.19x3.03x2.87 (335x77x73) 12.53 (318) 2.38(60) 12.37(314) 2.75 (70) 11.66(296) 2.03 (52) 2.20 (56) 3 lbs.
