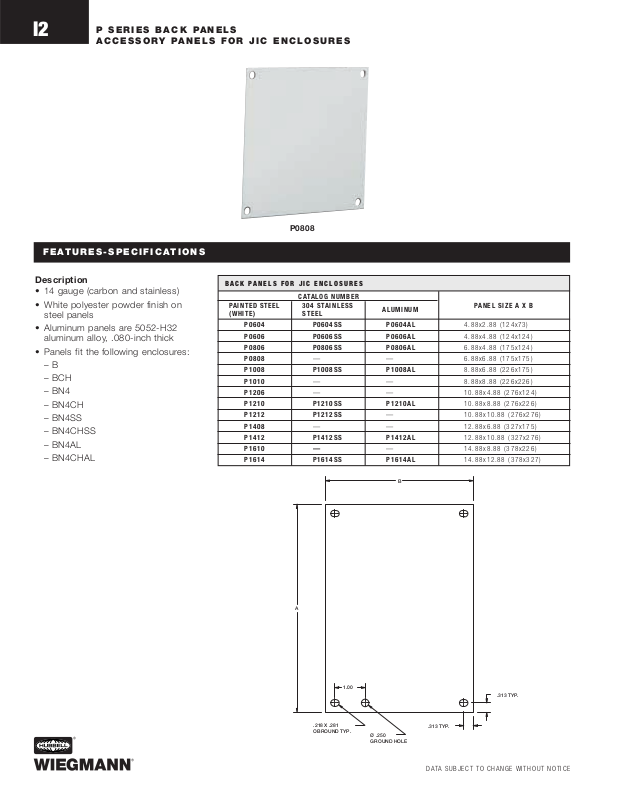

Wiegmann P SERIES BACK PANELS Catalog Page

DATA SUBJECT TO CHANGE WITHOUT NOTICE

P SERIES BACK PANELS
ACCESSORY PANELS FOR JIC ENCLOSURES

I2

Description

• 14 gauge (carbon and stainless)

• White polyester powder finish on
steel panels

• Aluminum panels are 5052-H32
aluminum alloy, .080-inch thick

• Panels fit the following enclosures:
– B
– BCH
– BN4
– BN4CH
– BN4SS
– BN4CHSS
– BN4AL
– BN4CHAL

CATALOG NUMBER

PAINTED STEEL 304 STAINLESS PANEL SIZE A X B
(WHITE) STEEL

ALUMINUM

P0604 P0604SS P0604AL 4.88x2.88 (124x73)

P0606 P0606SS P0606AL 4.88x4.88 (124x124)

P0806 P0806SS P0806AL 6.88x4.88 (175x124)

P0808 — — 6.88x6.88 (175x175)

P1008 P1008SS P1008AL 8.88x6.88 (226x175)

P1010 — — 8.88x8.88 (226x226)

P1206 — — 10.88x4.88 (276x124)

P1210 P1210SS P1210AL 10.88x8.88 (276x226)

P1212 P1212SS — 10.88x10.88 (276x276)

P1408 — — 12.88x6.88 (327x175)

P1412 P1412SS P1412AL 12.88x10.88 (327x276)

P1610 — — 14.88x8.88 (378x226)

P1614 P1614SS P1614AL 14.88x12.88 (378x327)

BACK PANELS FOR JIC ENCLOSURES

FEATURES-SPECIFICATIONS

OBROUND TYP.

.218 X .281

.313 TYP.

.313 TYP.

A

B

1.00

Ø .250

GROUND HOLE

P0808
