Section H Index
H1
OPERATOR INTERFACE
W1C Series
NEMA 12 Consoles.................................H2
WC9 Series
NEMA 12 Consoles.................................H4
WC10 Series
NEMA 12 Consoles.................................H6
WC12 Series
NEMA 12 Consoles.................................H8
WC14 Series
NEMA 12 Consoles...............................H10
WC-C Series
NEMA 12 Consolets..............................H12
CCOL & Base Series
NEMA 12 Pedestals ..............................H14
WPBA Series
NEMA 12 Sloping Pushbutton ...............H16
PB Series
NEMA 4 & 12 30.5mm Pushbutton ........H18
PBGX Series
NEMA 12 22.5mm Pushbutton ..............H20
PBXD Series
NEMA 4 & 12 30.5mm Pushbutton ........H22
PSL Series
NEMA 12 30.5mm Pushbutton ..............H24
PBYX Series
NEMA 12 30.5mm Pushbutton ..............H26
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
H2
W1C SERIES CONSOLES
NEMA 12 OPERATOR INTERFACE
FEATURES-SPECIFICATIONS
W1C30
Industry Standards
UL 508, Types 12 & 13
CSA Certified, Type 12 & 13
NEMA/EEMAC Types 12 & 13
UL Files E64791
CSA File LL66078
Applications
Designed
to house electrical and
electronic controls and instruments.
Pushbuttons, pilot lights, meters,
switches etc., can be mounted on
sloping control surfaces. Interior
components can be mounted on
standard back panel. Heavy duty
construction provides protection from
dirt, dust, oil and water.
Construction
• Bodies and doors fabricated from
14 gauge steel
• Seams are continuously welded
and ground smooth without knockouts, holes, or cutouts
W1C SERIES OPERATOR INTERFACE CONSOLES
CATALOG NUMBER ENCLOSURE SIZE H X W X D BACK PANEL SIZE H X W*
W1C24
W1C30
W1C36
W1C42**
W1C48**
* Back panel included with enclosure.
** Two Door Units
40.00x24.00x20.00 30.00x21.00
(1016x610x508) (762x533)
40.00x30.00x20.00 30.00x27.00
(1016x762x508) (762x686)
40.00x36.00x20.00 30.00x33.00
(1016x914x508) (762x838)
40.00x42.00x20.00 30.00x39.00
(1016x1067x508) (762x991)
40.00x48.00x20.00 30.00x45.00
(1016x1219x508) (762x1143)
• 3-point keylocking handle is provided
on front, main door
• Main door on console is raised
• Control panels are hinged along
bottom edge
• Controls panels, access panels and
instrument panels have captivated
screws which thread into sealed wells
• Door stops provided to hold control
panel open
• Print pocket is provided
• Grounding provisions provided
• Closed cell neoprene gasket
• Removable back panel included
with enclosure
Writing Desk
• Fabricated from 14 gauge steel
• Seams are continuously welded
and ground smooth
• Desks are removable and attach
easily to console front
• Desks must be ordered separately
Fini sh
• ANSI 61 gray polyester powder
inside and out over phosphatized
surfaces
• Included back panel is white polyester
powder over phosphatized surfaces
Acces sories
• See pages J1-J22
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
W1C SERIES CONSOLES
NEMA 12 OPERATOR INTERFACE
H3
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
H4
WC9 SERIES CONSOLES
NEMA 12 OPERATOR INTERFACE
Industry Standards
UL 508, Types 12 & 13
CSA Certified, Type 12 & 13
NEMA/EEMAC Types 12 & 13
UL Files E64791
WC924B
CSA File LL66078
FEATURES-SPECIFICATIONS
Applications
Designed
to house electrical and
electronic controls, instruments and
components. Heavy duty construction
provides protection from dirt, dust, oil
and water. Sloping front control panel
provides an ideal surface for mounting pushbuttons, pilot lights, meters
and switches. Interior components
can be mounted on panels located
on the sides and back of the enclosure. (Panels are optional)
Construction
• Bodies and doors fabricated from
14 gauge steel
• Continuously welded seams ground
smooth, less knockouts or holes
• 3-point keylocking handle is provided
on front access door
• Control panel attached with continuous
hinge along bottom edge and
secured with captive screws,
threaded into sealed wells
• Door stops are provided to hold
control panel open
• Collar studs provided for mounting
one, two or three optional panels
• Closed cell neoprene gasket
• Print pocket is provided
Fini sh
• ANSI 61 gray polyester powder
inside and out over phosphatized
surfaces
• Optional side and back panels
are white polyester powder over
phosphatized surfaces
Acces sories
• Side panels, back panels and
caster kits (reference tables)
• See pages J1-J22
• Grounding provisions provided
WC9 SERIES OPERATOR INTERFACE CONSOLES
CATALOG BODY/DOOR
NUMBER STEEL GAUGE CATALOG NUMBER* SIZE H X W CATALOG NUMBER H X W CATALOG NUMBER
WC924B** 14/14
WC936B 14/14
*Panels and Caster Kits must be ordered separately.
**UL Listed.
DESCRIPTION/SIZE
Console body only
24" wide (686x432) (686x432)
Console body only
36" wide (686x686) (686x432)
BACK PANEL BACK PANEL SIDE PANEL SIDE PANEL CASTER KIT
NP3020
NP3030
27.00x17.00
27.00x27.00
NP3020
NP3020
27.00x17.00
27.00x17.00
WC10C
WC10C
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
WC9 SERIES CONSOLES
NEMA 12 OPERATOR INTERFACE
H5
W = 24.00 OR
W=36.00
1.31 W - 2.63 OPENING
W - 0.25
1.88
2.50
W - 3.75
OPENING
W - 2.25
26.63
48.13
32.13
22.72
25.38
OPENING
3.44
21.69
DOOR
19.88
OPENING
45º
REF
1.88
X
OPTIONAL
BACK PANEL
C
3.50
X
1.09
18.00
OPTIONAL
SIDE PANEL
3.50
0.88 TYP
0.88 TYP
OPTIONAL
BACK PANEL
VIEW X-X
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
OPTIONAL
SIDE PANEL
1.09
TYP
Notes:
1. One 8X10 Print Pocket
is provided.
2. 3-point key-locking
handles are provided
on main doors.
3. Rear panel is optional.
H6
WC10 SERIES CONSOLES
NEMA 12 OPERATOR INTERFACE
Industry Standards
UL 508, Types 12 & 13
CSA Certified, Type 12 & 13
NEMA/EEMAC Types 12 & 13
UL Files E64791
WC10B
FEATURES-SPECIFICATIONS
Applications
Designed
to hold electrical and electronic controls and instruments. Pushbuttons, pilot lights, meters, switches
etc., can be mounted on sloping
control surfaces. Interior components
can be mounted on back panel and
terminal straps. Heavy-duty construction provides protection from dirt,
dust, oil and water.
Construction — Body
• Fabricated from 14 gauge steel
• Seams are continuously welded
and ground smooth
• 3-point keylocking handle is pro-
vided on front, main door
• Flush main door
• Control panels are hinged along
bottom edge
WC10 SERIES OPERATOR INTERFACE CONSOLES
CATALOG NUMBER DESCRIPTION / SIZE
WC10B* Console body only / 24.00" wide
WC10T Top for WC10B
WC10W Writing desk for WC10B
WC10C Caster kit
*U.L. Listed. Back panels are included with console.
NOTE: Tops, writing desks, and caster kits must be ordered separately.
• Controls panels have captivated
screws which thread into sealed wells
• Door stops provided to hold control
panel open
• Print pocket is provided
• Standard closed cell neoprene
gasket is provided
• Removable back panel is included
with enclosure
• Ground provisions provided
Construction — Top
• Fabricated from 14 gauge steel
• Seams are continuously welded
and ground smooth
• Instrument and access panels have
captivated screws which thread
into sealed wells
• Closed cell neoprene gasket
CSA File LL66078
Construction — Writing Desk
• Fabricated from 14 gauge steel
• Seams are continuously welded
and ground smooth
• Desks are removable and attach
easily to console front
Fini sh
• ANSI 61 gray polyester powder
inside and out over phosphatized
surfaces
• Included back panel is white polyester powder over phosphatized
surfaces
Acces sories
• See pages J1-J22
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
WC10 SERIES CONSOLES
NEMA 12 OPERATOR INTERFACE
H7
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
X
H8
WC12 SERIES CONSOLES
NEMA 12 OPERATOR INTERFACE
Industry Standards
UL 508, Types 12 & 13
CSA Certified, Type 12 & 13
NEMA/EEMAC Types 12 & 13
UL Files E64791
FEATURES-SPECIFICATIONS
Applications
Designed
to hold electrical and electronic
controls and instruments. Pushbuttons,
pilot lights, meters, switches etc., can
be mounted on sloping control surfaces.
Interior components can be mounted
on standard back panel and terminal
straps. Heavy duty construction provides
protection from dirt, dust, oil and water.
Construction— Body
• Bodies and doors fabricated from
14 gauge steel
• Seams are continuously welded
and ground smooth
• 3-point keylocking handle is provid-
ed on front, main door
• Double overlapping doors are
provided on two door consoles
• Main hinged doors are flush
• Large sloping control panels are
hinged along the bottom edge
• Control panels have captivated screws
which thread into sealed wells
WC1248BD
• Grounding provisions provided
• Door stops provided to hold control
panel open
• Print pocket is provided
• Closed cell neoprene gasket is
provided
• Removable back panel included
with console
• Studs are welded to inside of
console for mounting back panel
• An inclined body rail is welded
to each side of 24.00" wide and
36.00" wide consoles for support
of terminal straps
Construction—Top
• Fabricated from 14 gauge steel
• Tops has a sloped front surface
• Seams are continuously welded
and ground smooth
• Instrument and access panels have
captivated screws which thread
into sealed well
CSA File LL66078
• 4 holes are provided in bottom of
top for mounting to body
• Closed cell neoprene gasket
• Instrument panels and access panels are removable
Construction — Writing Desk
• Fabricated from 14 gauge steel
• Seams are continuously welded
and ground smooth
• Desks are removable and attach
easily to console front
Fini sh
• ANSI 61 gray polyester powder
inside and out over phosphatized
surfaces
• Included back panel is white polyester powder over phosphatized
surfaces
Acces sories
• See pages J1-J22
WC12 SERIES OPERATOR INTERFACE CONSOLES
CATALOG NUMBER CONSOLE
CONSOLE ONLY WIDTH
WC1224B 24" (610) WC1224T WC1224W WC12C 32"x18" (813x457)
WC12B 36" (914) WC12T WC12W WC12C 32"x30" (813x762)
WC1248BD 48" (1219) WC1248T WC1248W WC12C 32"x42" (813x1067)
CONSOLE TOP WRITING DESK CASKET KIT
CATALOG NUMBER
BACK PANEL
SIZE H X W
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
WC1224B & WC12B
WC12 SERIES CONSOLES
NEMA 12 OPERATOR INTERFACE
H9
WC1248BD
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
H10
WC14 SERIES CONSOLES
NEMA 12 OPERATOR INTERFACE
Industry Standards
UL 508, Types 12 & 13
CSA Certified, Type 12 & 13
NEMA/EEMAC Types 12 & 13
UL Files E64791
FEATURES-SPECIFICATIONS
Applications
Designed
to hold electrical and electronic
controls and instruments. Pushbuttons,
pilot lights, meters, switches etc., can
be mounted on the instrument panel.
Interior components are motorized on
stationary sub panels, swing-out sub
panels or relay rack angles (panels
are optional). Heavy duty construction
provides protection from dirt, dust,
oil and water. Numerous accessories
and variable combinations make
these consoles most versatile.
Construction — Body
• Bodies and doors fabricated from
14 gauge steel
• Seams are continuously welded and
ground smooth, less knockouts or holes
• 3-point keylocking handle is provided
on front, main door
• Double overlapping doors are provided
on two door consoles
• Main hinged doors are flush
WC14B
• Grounding provisions provided
• One or two large sloping control
panels are hinged on bottom
• Control panels have captivated
screws which thread into sealed wells
• Door stops provided to hold control
panel open
• Two print pockets are included
• Closed cell neoprene gasket is provided
• Horizontal channels are welded to
sides of console to support optional
panels, swing-out panels and rack
mounting angles
• Half, full, and swing panels are
optional
Construction — Top
• Fabricated from 14 gauge steel
• Top unit is 12.50" deep to accommodate most instruments
• Seams are continuously welded and
ground smooth, less knockouts or holes
CSA File LL66078
• Instrument and access panels have
captivated screws which thread
into sealed wells
• 4 holes are provided in bottom of
top for mounting to body
• Instrument and access panels are
removable
• Closed cell neoprene gasket
Construction — Writing Desk
• Fabricated from 14 gauge steel
• Seams are continuously welded
and ground smooth
• Desks are removable and attach
easily to console front
Fini sh
• ANSI 61 gray polyester powder
inside and out over phosphatized
surfaces
• Optional panels are white polyester
powder over phosphatized surfaces
Acces sories
• See pages J1-J22
WC14 SERIES OPERATOR INTERFACE CONSOLES
CATALOG NUMBER CONSOLE
CONSOLE ONLY WIDTH
WC14B (Single door) 24.00" (610) WC14T WC14W WC14P1 (Swing panel) 22.00x18.13 (559x461) WC12C WAPS1420CN WC14R
————WC14P2 (Half panel) 22.00x17.00 (559x432) — — —
————WC14P3 (Full panel) 42.25x17.00 (1073x432) — WAPS3816CN —
WC1436B (Single door) 36.00" (914) WC1436T WC1436W WC1436P1 (Swing panel) 22.00x30.13 (559x765) WC12C WAPS1420CN —
————WC1436P2 (Half panel) 22.00x29.00 (559x737) — — —
————WC1436P3 (Full panel) 42.25x29.00 (1073x737) — WAPS3816CN —
WC1448BD (Double door) 48.00 " (1219 ) WC1448T WC1448W WC1448P2 (Half panel) 22.00x41.00 (559x1041) WC12C WAPS1420CN —
————WC1448P3 (Full panel) 42.25x41.00 (1073x1041) — WAPS3816CN —
WC1460BD (Double door) 60.00 " (1524 ) WC1460T WC1460W WC1460P2 (Half panel) 22.00x53.00 (559x1346) WC12C WAPS1420CN —
————WC1460P3 (Full panel) 42.25x53.00 (1073x1346) — WAPS3816CN —
*Full, Half, and Swing panels must be ordered separately.
CONSOLE WRITING
TOP DESK
CATALOG NUMBER CATALOG NUMBER
VARIOUS PANEL*
PANEL SIZES
HXW
CASTER CLAMPING RACK
KIT NUTS ANGLES
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
WC14B and
WC1436B
WC14 SERIES CONSOLES
NEMA 12 OPERATOR INTERFACE
H11
48.13
INSTRUMENT
PANEL
WC1448BD
WC1460BD
Notes:
26.13
2.94
26.13
2.94
43.63
OPENING
OPENING
55.63
47.25
45.50
47.25
2.63
C
60.13
2.63
C
25.13
OPENING
3.44
15.25
29.2529.25
27.4427.44
29.2529.25
25.13
OPENING
3.44
2.25
15.25
1. Access doors open 180 degrees.
2. Two 8X10 Print Pockets are provided.
3. 3-point key-locking handles are provided on access doors.
4. Writing desk is provided with mounting hardware.
CONTROL
PANEL
CAPTIVE
FASTENERS
CONT.
HINGE
WRITING
CONT.
HINGE
CONSOLE
BODY
INSTRUMENT
PANEL
CONT.
HINGE
CONT.
HINGE
2.25
DESK
CONTROL
PANEL
CAPTIVE
FASTENERS
WRITING
DESK
CONSOLE
BODY
32.00
32.00
CONSOLE TOP
19.19
DOOR
OPENING
1.50
2.44
10.13
2.63
CONSOLE TOP
19.68
DOOR
OPENING
1.50
2.44
10.13
2.63
17.25
17.25
0.66
0.25
12.63
TYP
12.63
20.25
150º
REF
20.25
19.63
5.44
2.88
23.13
0.25
TYP
0.66
150º
REF
19.63
2.88
23.13
1.50
12.63
16.13
12.63
20.25
50.13
20.25
5.44
1.50
1.31
16.13
50.13
2.25
1.81
1.31
2.25
1.81
1.31
13.50
2.62
C
REAR VIEW
1.31
13.50
2.62
C
REAR VIEW
57.50
56.50
44.50
55.63
OPENING
OPENING
21.5021.50 1.31
45.63
OPENING
43.63
2.25
45.63
OPENING
2.25
1.81
2.25
1.31
2.25
1.81
46.50
46.50
CONT.
HINGE
CONT.
HINGE
www.hubbell-wiegmann.com
Data Subject To Change Without Notice

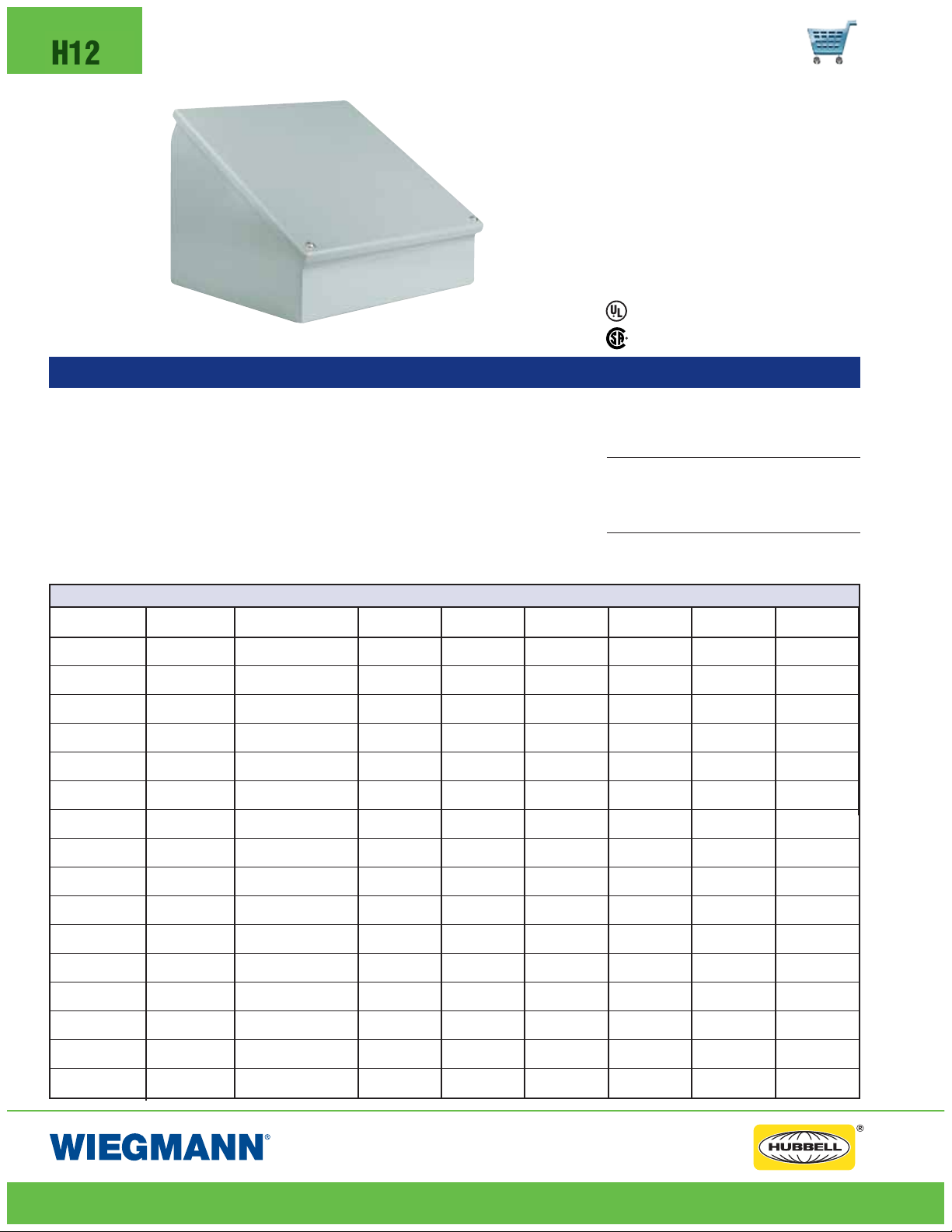

H12
WC-C SERIES CONSOLETS
NEMA 12 OPERATOR INTERFACE
Industry Standards
UL 508, Types 12 & 13
CSA Certified, Types 12 & 13
NEMA/EEMAC Type 12 & 13
JIC EL-1-71
UL Files E64791
WC12C12
FEATURES-SPECIFICATIONS
Applications
Designed
to house a variety of electronic control or instrumentation
devices. Consolets provide protection
from dust, dirt, oil, and water. Flexible
design allows for mounting on either
or two sides, creating control surfaces
of 30 degrees or 60 degrees.
Consolets can be mounted on desktops, pedestals, or other flat surfaces.
WC-C SERIES OPERATOR INTERFACE CONSOLETS
CATALOG BODY/DOOR ENCLOSURE SIZE
NUMBER STEEL GAUGE H X W X D
WC08C08 14/14
WC08C12 14/14
WC08C16 14/14
WC08C20 14/14
WC12C12 14/14
WC12C16 14/14
WC12C20 14/14
WC12C24 14/14
WC16C16 14/14
WC16C20 14/14
WC16C24 14/14
WC16C30 14/14
WC16C36 14/14
WC20C20 14/14
WC20C24 14/14
WC20C30 14/14
8.00x8.00x7.09 5.69 7.44 6.56 7.44 8.31 8.31
(203x203x180) (144) (189) (167) (189) (211) (211)
8.00x12.00x7.09 5.69 7.44 6.56 11.44 8.31 12.31
(203x305x180) (144) (189) (167) (291) (211) (313)
8.00x16.00x7.09 5.69 7.44 6.56 15.44 8.31 16.31
(203x406x180) (144) (189) (167) (392) (211) (414)
8.00x20.00x7.09 5.69 7.44 6.56 19.44 8.31 20.31
(203x508x180) (144) (189) (167) (494) (211) (516)
12.00x12.00x9.09 7.69 10.91 10.56 11.44 12.31 12.31
(305x305x231) (195) (277) (268) (291) (313) (313)
12.00x16.00x9.09 7.69 10.91 10.56 15.44 12.31 16.31
(305x406x231) (195) (277) (268) (392) (313) (414)
12.00x20.00x9.09 7.69 10.91 10.56 19.44 12.31 20.31
(305x508x231) (195) (277) (268) (494) (313) (516)
12.00x24.00x9.09 7.69 10.91 10.56 23.44 12.31 24.31
(305x610x231) (195) (277) (268) (595) (313) (618)
16.00x16.00x11.09 9.69 14.38 14.56 15.44 16.31 16.31
(406x406x282) (246) (365) (370) (392) (414) (414)
16.00x20.00x11.09 9.69 14.38 14.56 19.44 16.31 20.31
(406x508x282) (246) (365) (370) (494) (414) (516)
16.00x24.00x11.09 9.69 14.38 14.56 23.44 16.31 24.31
(406x610x282) (246) (365) (370) (595) (414) (618)
16.00x30.00x11.09 9.69 14.38 14.56 29.44 16.31 30.31
(406x762x282) (246) (365) (370) (748) (414) (770)
16.00x36.00x11.09 9.69 14.38 14.56 35.44 16.31 36.31
(406x914x282) (246) (365) (370) (900) (414) (922)
20.00x20.00x13.09 11.69 17.84 18.56 19.44 20.31 20.31
(508x508x333) (297) (453) (471) (494) (516) (516)
20.00x24.00x13.09 11.69 17.84 18.56 23.44 20.31 24.31
(508x610x333) (297) (453) (471) (595) (516) (618)
20.00x30.00x13.09 11.69 17.84 18.56 29.44 20.31 30.31
(508x762x333) (297) (453) (471) (748) (516) (770)
Construction
• Bodies and doors fabricated from
14 gauge steel
• Continuously welded seams ground
smooth, less knockouts or holes
• Captivated cover screws thread
into sealed wells
• Control panel is continuously
hinged along bottom edge
ENLKI J
CSA File LL66078
• Closed cell oil resistant neoprene
gasket
• Grounding provisions provided
Fini sh
• ANSI-61 gray polyester powder
inside and out over phosphatized
surfaces
Acces sories
See pages J1-J22
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
WC-C SERIES CONSOLETS
NEMA 12 OPERATOR INTERFACE
H13
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
H14

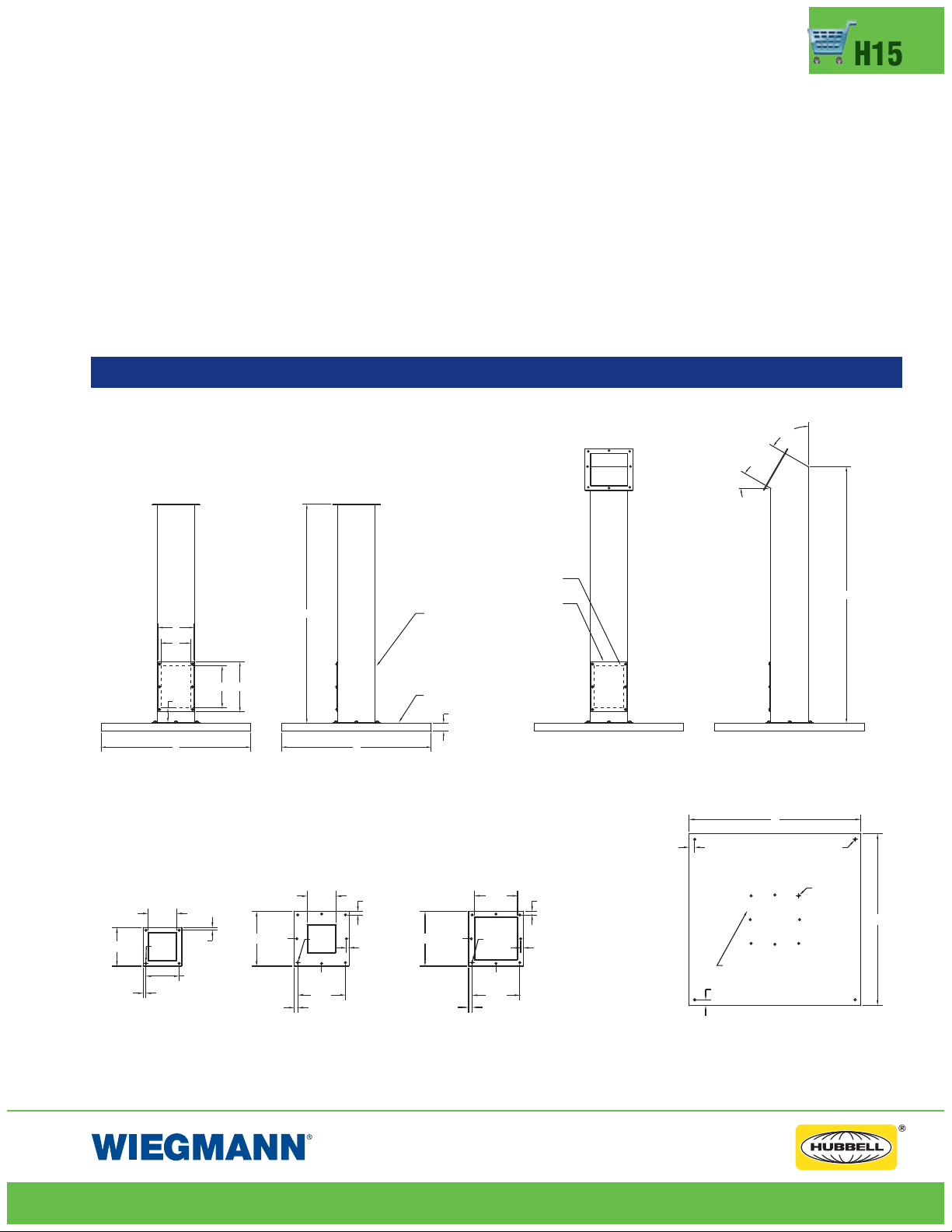

CCOL & BASE SERIES PEDESTALS
NEMA 12 OPERATOR INTERFACE
Industry Standards
Type12&13
WA44CCOL
WITH OPTIONAL BASE SHOWN
WA44BPCOL
WITH OPTIONAL BASE SHOWN
UL Files E64791
CSA File LL66078
FEATURES-SPECIFICATIONS
Applications
Designed
to permit floor mounting of
many types of enclosures and boxes.
Four column and two base sizes are
available. Columns can be mounted
on either base. Wiring connections
can be made through the base, through
the vertical column, or directly to the
enclosure. Columns have flanges at
each end and a gasketed access
plate. Screws, oil-resistant gaskets,
and box connector fitting are furnished with each column for joining
and enclosure to the top of the column. A cutout must be made in the
enclosure if the wires are to come
through the column.
Construction— Column
• Columns fabricated from 14 gauge
steel with 10 gauge flanges
• Gasket, screws and box connective
fittings are furnished for mounting
consolet
• Columns feature gasketed access
plate
• Stainless steel columns fabricated
from 304 stainless steel
Construction— Base
• 18" bases are fabricated from
10 gauge steel
• 24" bases are fabricated from
7 gauge steel
• Both bases have added reinforcing,
leveling screws and holes for securing
to floor
• Stainless steel bases fabricated
from 304 stainless steel
Fini sh
• ANSI-61 gray polyester powder
inside and out over phosphatized
surfaces
• Stainless steel product – standard
grain finish
OPERATOR INTERFACE PEDESTALS AND BASES
CATALOG NUMBER BODY/DOOR
GRAY STAINLESS STEEL
WA44CCOL WA44CCOLSS 14
WA66CCOL WA66CCOLSS 14
WA44PBCOL WA44PBCOLSS 14
WA66PBCOL WA66PBCOSS 14
WA18SBASE WA18SBASESS 10
WA24SBASE WA24SBASESS 7
NOTE: The user would normally remove the mounting feet from the enclosure if the enclosure is mounted on a pedestal.
Hubbell Wiegmann can supply enclosures without mounting feet/plates and with cutouts as a special. Consult factory for information.
STEEL GAUGE
SIZE DESCRIPTION
4.00x4.00
(102x102) (95) (70) (184) (152)
6.00x6.00
(152x152) (146) (121) (203) (171)
4.00x4.00
(102x102) (95) (70) (184) (152)
6.00x6.00
(152x152) (146) (121) (203) (171)
18.00x18.00
(457x457) (459) (29) (12)
24.00x24.00
(610x610) (606) (33) (20)
Straight pedestal column —
Straight pedestal column —
Angled pedestal column —
Angled pedestal column —
Pedestal base
Pedestal base
CD FHMN P
18.06
23.88
3.75 2.75
5.75 4.75
3.75 2.75
5.75 4.75
——
——
—
—
—
—
1.13
1.31
7.25 6.00
8.00 6.75
7.25 6.00
8.00 6.75
——
——
—
—
—
—
0.47
0.78
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
CCOL & BASE SERIES PEDESTALS
NEMA 12 OPERATOR INTERFACE
60.00º
30.00º
H15
5.38 TYP
TOP FLANGE
4.00
TYP
Ø0.28
0.38 TYP
4X4
D
F
2.13
C
0.38
TYP
4.63 TYP
N M
C
7.63 TYP
L
0.50 TYP
BOTTOM FLANGE
35.00
4.00
TYP
Ø0.28
C
L
6.63
TYP
4X4
C
0.50 TYP
0.38
TYP
4PL
ACCESS OPENING
6.00
TYP
Ø0.28
C
L
6.63
TYP
ACCESS PLATE
0.50 TYP
0.38
TYP
4PL
COLUMN
BASE
7.63 TYP
0.50 TYP
H
C
L
TOP AND BOTTOM FLANGES
6X6
ANGLED PEDESTALSSTRAIGHT PEDESTALS
PTYP
C
Ø0.31
Ø0.28
HOLE PATTERN TO MATCH BOTTOM
FLANGES OF PEDESTAL COLUMNS,
CENTERED ON BASES
PTYP
TOPVIEWOFBASES
41.00
C
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
H16
WPBA SERIES SLOPING PUSHBUTTON ENCLOSURES
NEMA 12 OPERATOR INTERFACE
Industry Standards
UL 508, Types 12 & 13
CSA Certified, Types 12 & 13
NEMA/EEMAC Type 12 & 13
JIC EL-1-71
UL Files E64791
WPBA10
FEATURES-SPECIFICATIONS
Applications
Designed
for use where slanted control
surfaces are wanted. Enclosures may
be mounted in a variety of ways to
meet specific requirements. Receives
all standard brands of oil-tight pushbuttons, switches and pilot lights. Provide
protection from dirt, dust, oil and water.
Construction
• Fabricated from 14 gauge steel
• Closed cell oil resistant neoprene gasket
WPBA SERIES OPERATOR INTERFACE • 30.5MM SLOPING FRONT PUSHBUTTON ENCLOSURES
CATALOG BODY/DOOR ENCLOSURE SIZE MOUNTING OVERALL
NUMBER STEEL GAUGE HXWXD AXB CXE
WPBA1 14/14
WPBA2 14/14
WPBA3 14/14
WPBA4 14/14
WPBA4S 14/14
WPBA6 14/14
WPBA8 14/14
WPBA9 14/14
WPBA10 14/14
WPBA12 14/14
WPBA12S 14/14
WPBA16 14/14
WPBA16S 14/14
WPBA20 14/14
WPBA25 14/14
WPBA30 14/14
3.50x3.25x4.78 4.03x2.38 4.53x3.56 3.53 3.31 3.00 1.78 1.88
(89x83x121) (102x60) (115x90) (90) (84) (76) (45) (48)
3.50x5.50x4.78 4.03x4.63 4.53x5.81 3.53 3.31 5.25 1.78 1.88
(89x140x121) (102x117) (115x148) (90) (84) (133) (45) (48)
3.50x7.75x4.78 4.03x6.88 4.53x8.06 3.53 3.31 7.50 1.78 1.88
(89x197x121) (102x175) (115x205) (90) (84) (191) (45) (48)
3.50x10.00x4.78 4.03x9.13 4.53x10.31 3.53 3.31 9.75 1.78 1.88
(89x254x121) (102x232) (115x262) (90) (84) (248) (45) (48)
7.25x6.25x6.66 7.28x5.38 7.78x6.56 6.78 5.19 6.00 2.16 2.63
(184x159x169) (185x137) (198x167) (172) (132) (152) (55) (67)
7.25x8.50x6.66 7.28x7.63 7.78x8.81 6.78 5.19 8.25 2.16 2.63
(184x216x169) (185x194) (198x224) (172) (132) (210) (55) (67)
7.25x10.75x6.66 7.28x9.88 7.78x11.06 6.78 5.19 10.50 2.16 2.63
(184x273x169) (185x251) (198x281) (172) (132) (267) (55) (67)
9.50x8.50x7.78 9.25x7.63 9.75x8.81 8.75 6.31 8.25 2.16 2.63
(241x216x198) (235x194) (248x224) (222) (160) (210) (55) (67)
7.25x13.00x6.66 7.28x12.13 7.78x13.31 6.78 5.19 12.75 2.16 2.63
(184x330x169) (185x308) (198x338) (172) (132) (324) (55) (67)
7.25x15.25x6.66 7.28x14.38 7.78x15.56 6.78 5.19 15.00 2.16 2.63
(184x387x169) (185x365) (198x395) (172) (132) (381) (55) (67)
11.75x8.50x8.91 11.19x7.63 11.69x8.81 10.69 7.44 8.25 2.16 2.63
(298x216x226) (284x194) (297x224) (271) (189) (210) (55) (67)
7.25x19.75x6.66 7.28x18.88 7.78x20.06 6.78 5.19 19.50 2.16 2.63
(184x502x169) (185x479) (198x510) (172) (132) (495) (55) (67)
11.75x10.75x8.91 11.19x9.88 11.69x11.06 10.69 7.44 10.50 2.16 2.63
(298x273x226) (284x251) (297x281) (271) (189) (267) (55) (67)
11.75x13.00x8.91 11.19x12.13 11.69x13.31 10.69 7.44 12.75 2.16 2.63
(298x330x226) (284x308) (297x338) (271) (189) (324) (55) (67)
14.00x13.00x10.03 13.13x12.13 13.63x13.31 12.63 8.56 12.75 2.16 2.63
(356x330x255) (333x308) (346x338) (321) (217) (324) (55) (67)
14.00x15.25x10.03 13.13x14.38 13.63x15.56 12.63 8.56 15.00 2.16 2.63
(356x387x255) (333x365) (346x395) (321) (217) (381) (55) (67)
• Continuously welded seams ground
smooth
• External mounting plate, top and
bottom of enclosure
• Captivated cover screws thread
into sealed wells
• Standard "4-way" pushbutton holes
accept all brands of oil-tight pushbuttons, switches and pilot lights
• Enclosures 7.25" x 6.25" x 6.75"
and larger have internal detachable
CSA File LL66078
hinges to hold cover open during
wiring, yet permit quick removal
• Grounding provisions provided
Fini sh
• ANSI-61 gray polyester powder
inside and out over phosphatized
surfaces
Acces sories
• See pages J1-J22
FGI JK
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
DATA SUBJECT TO CHANGE WITHOUT NOTICE
WPBA SERIES SLOPING PUSHBUTTON ENCLOSURES
NEMA 12 OPERATOR INTERFACE
X
2.252.25J
INTERNAL HINGE
PROVIDED
ON WPBA4S
AND LARGER
2.25
2.25
0.56
Y
1.63
2.44
H
F
W
B
H17
C
A
K
E
VIEW X-X
WPBA Hole Arrangements
WPBA1
X
30º
WPBA3WPBA2
G
0.19 TYP
Y
14 GA.D
Ø1.20TYP
Standard 4-Way
Pushbutton
WPBA10WPBA9WPBA8WPBA6WPBA4SWPBA4
Ø0.25TYP
I
SECTION Y-Y
0.67 TYP
WPBA12
WPBA12S
WPBA16S
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
WPBA30WPBA25WPBA20WPBA16
DATA SUBJECT TO CHANGE WITHOUT NOTICE
H18

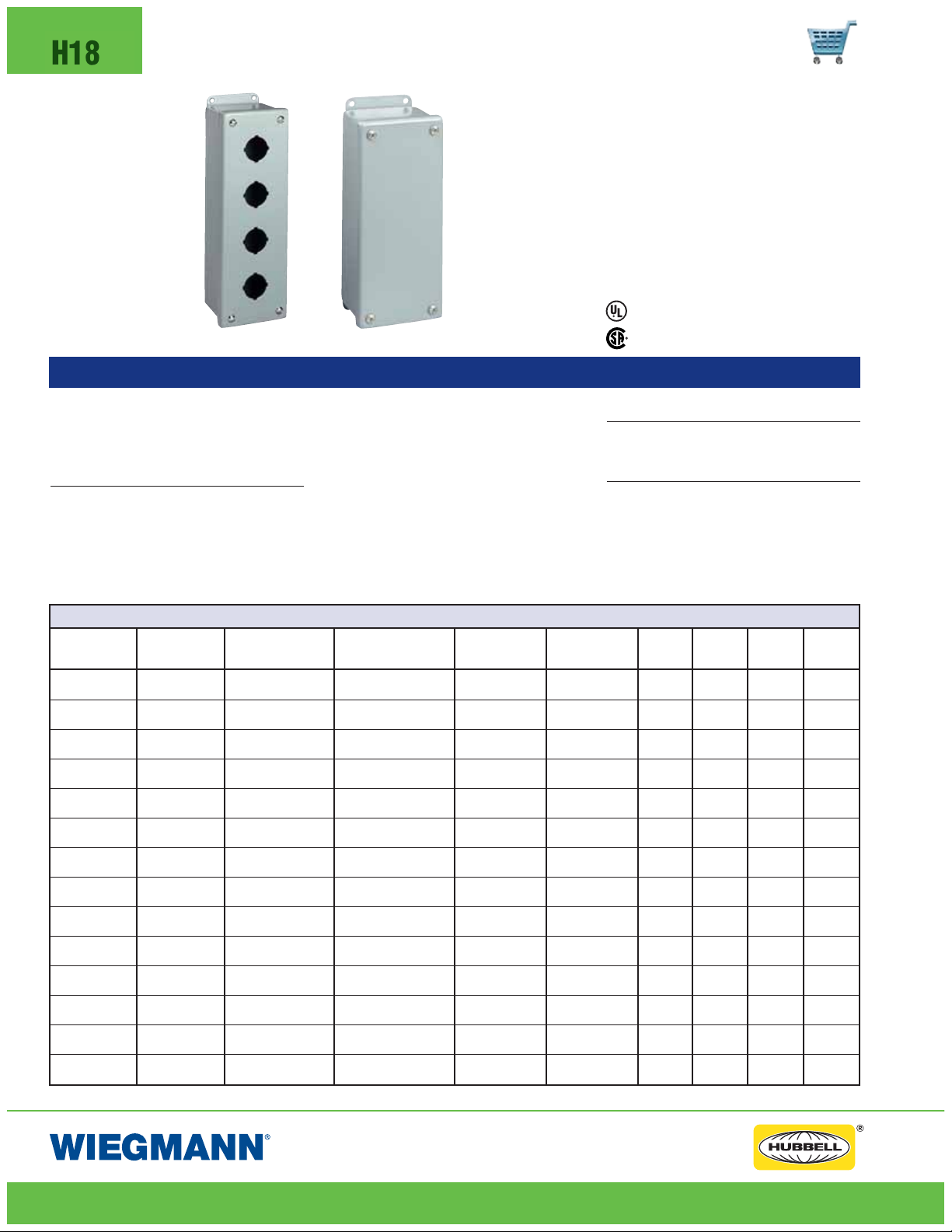

PB SERIES 30.5MM PUSHBUTTON ENCLOSURES
NEMA 4 & 12 OPERATOR INTERFACE
Industry Standards
UL 508, Types 4, 12 & 13
CSACertified,Types12&13
NEMA/EEMAC Type 4, 12 & 13
JIC EL-1-71
(PB16 & PB25 meet N12 only)
UL File E64791
PB4 PB3BC
FEATURES-SPECIFICATIONS
Applications
Designed
to hold all standard brands
of pushbuttons, switches and pilot
lights. Provide protection from dust,
dirt, oil and water.
Construction
• Bodies and doors fabricated from
14 gauge steel
• Continuously welded seams ground
smooth
• Closed cell oil resistant neoprene gasket
PB SERIES OPERATOR INTERFACE 30.5MM PUSHBUTTON ENCLOSURES
CATALOG
NUMBER
PB1 PB1BC 14/14
PB2 PB2BC 14/14
PB3 PB3BC 14/14
PB4 PB4BC 14/14
PB4S PB4SBC 14/14
PB5 PB5BC 14/14
PB6 PB6BC 14/14
PB6VL PB6VLBC 14/14
PB8 PB8BC 14/14
PB9 PB9BC 14/14
PB10 PB10BC 14/14
PB12 PB12BC 14/14
PB16** PB16BC** 14/14
PB25** PB25BC** 14/14
** Only meets N12.
BLANK COVER
ENCLOSURE
CATALOG NO.
BODY/DOOR ENCLOSURE SIZE MOUNTING OVERALL
STEELGAUGE HXWXD CXE LXM
• External mounting plates, top and
bottom of enclosure
• Captivated cover screws thread
into sealed wells
• Standard “4-way” pushbuttons holes
accept all brands of oil-tight push
buttons, switches and pilot lights
• Enclosures 9.50" x 6.25" x 3.00"
and larger have internal detachable
hinges to hold cover open during
wiring, yet permit quick removal
3.50x3.25x2.81 4.00x2.38 4.50x3.56 3.00 2.41 1.78 1.88
(89x83x71) (102x60) (114x90) (76) (61) (45) (48)
5.75x3.25x2.81 6.25x2.38 6.75x3.56 3.00 2.41 1.78 1.88
(146x83x71) (159x60) (171x90) (76) (61) (45) (48)
8.00x3.25x2.81 8.50x2.38 9.00x3.56 3.00 2.41 1.78 1.88
(203x83x71) (216x60) (229x90) (76) (61) (45) (48)
10.25x3.25x2.81 10.75x2.38 11.25x3.56 3.00 2.41 1.78 1.88
(260x83x71) (273x60) (286x90) (76) (61) (45) (48)
7.25x6.25x3.09 7.75x5.38 8.25x6.56 6.00 2.69 2.16 2.63
(184x159x79) (197x137) (210x167) (152) (68) (55) (67)
12.50x3.25x2.81 13.00x2.38 13.50x3.56 3.00 2.41 1.78 1.88
(318x83x71) (330x60) (343x90) (76) (61) (45) (48)
9.50x6.25x3.09 10.00x5.38 10.50x6.56 6.00 2.69 2.16 2.63
(241x159x79) (254x137) (267x167) (152) (68) (55) (67)
14.75x3.25x2.81 15.25x2.38 15.75x3.56 3.00 2.41 1.78 1.88
(375x83x71) (387x60) (400x90) (76) (61) (45) (48)
20.25x3.25x2.81 20.75x2.38 21.25x3.56 3.00 2.41 1.78 1.88
(514x83x71) (527x60) (540x90) (76) (61) (45) (48)
9.50x8.50x3.09 10.00x7.63 10.50x8.81 8.25 2.69 2.16 2.63
(241x216x79) (254x194) (267x224) (210) (68) (55) (67)
24.75x3.25x2.81 25.25x2.38 25.75x3.56 3.00 2.41 1.78 1.88
(629x83x71) (641x60) (654x90) (76) (61) (45) (48)
11.75x8.50x3.09 12.25x7.63 12.75x8.81 8.25 2.69 2.16 2.63
(298x216x79) (311x194) (324x224) (210) (68) (55) (67)
11.75x10.75x3.09 12.25x9.88 12.75x11.06 10.50 2.69 2.16 2.63
(298x273x79) (311x251) (324x281) (267) (68) (55) (67)
14.00x13.00x3.09 14.50x12.13 15.00x13.31 12.75 2.69 2.16 2.63
(356x330x79) (368x308) (381x338) (324) (68) (55) (67)
CSA File LL66078
• Grounding provisions provided
Fini sh
• ANSI-61 gray polyester powder inside
and out over phosphatized surfaces
Acces sories
• See page E2 for stainless steel
PB-SS Series
• PBBC Series, blank covers-no
holes (reference tables)
• For accessories, see pages J1-J22
FI AB
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
DATA SUBJECT TO CHANGE WITHOUT NOTICE
PB SERIES 30.5MM PUSHBUTTON ENCLOSURES
NEMA 4 & 12 OPERATOR INTERFACE
H19
W
E
A
L
2.252.25
F
M
HINGES PROVIDED WHEN
W >= 6.25"
2.25
C
2.25
2.25
B
Ø 0.25 TYP
0.56
H
I
D
1. 6 3
14 GA.
PB Hole Arrangements
PB4S
0.19 TYP
Standard 4-Way
Pushbutton
3.25
0.67 TYP
Ø 1.20 TYP
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
3.25
PB10
DATA SUBJECT TO CHANGE WITHOUT NOTICE
PB12PB9PB8PB6VLPB6PB5PB4PB3PB2PB1
PB25PB16
H20
PBGX SERIES 22.5MM PUSHBUTTON ENCLOSURES
NEMA 12 OPERATOR INTERFACE
Industry Standards
UL 508, Types 12 & 13
CSA Certified, Types 12 & 13
NEMA/EEMAC Type 12 & 13
JIC EL-1-71
UL Files E64791
PBGX6
FEATURES-SPECIFICATIONS
Applications
Designed
to hold all standard brands
of miniature oil-tight pushbuttons,
switches, and pilot lights. Provide protection from dust, dirt, oil and water.
Construction
• Fabricated from 14 gauge steel
• Continuously welded seams ground
smooth
• Closed cell oil resistant neoprene
gasket
• Captivated cover screws thread
into sealed wells
• Standard “4-way” miniature pushbutton holes accept all standard
brands of miniature push buttons,
switches and pilot lights
• Enclosures 8.50" x 5.00" x 4.25"
and larger have internal detachable
hinges to hold cover open during
wiring yet permit quick removal
• Grounding provisions provided
• External mounting plates, top and
bottom of enclosure
PBGX SERIES OPERATOR INTERFACE 22.5MM PUSHBUTTON ENCLOSURES
CATALOG BODY/DOOR ENCLOSURE SIZE MOUNTING OVERALL
NUMBER STEEL GAUGE H X W X D C X E L X M
PBGX1 14/14
PBGX2 14/14
PBGX3 14/14
PBGX4 14/14
PBGX6 14/14
PBGX9 14/14
PBGX12 14/14
PBGX20 14/14
PBGX25 14/14
3.25x2.75x3.50 1.88x3.75 4.25x3.06 2.50 3.09 1.53 1.78
(83x70x89) (48x95) (108x78) (64) (79) (39) (45)
5.13x2.75x3.50 1.88x5.63 6.13x3.06 2.50 3.09 1.53 1.78
(130x70x89) (48x143) (156x78) (64) (79) (39) (45)
7.00x2.75x3.50 1.88x7.50 8.00x3.06 2.50 3.09 1.53 1.78
(178x70x89) (48x191) (203x78) (64) (79) (39) (45)
8.88x2.75x3.50 1.88x9.38 9.88x3.06 2.50 3.09 1.53 1.78
(225x70x89) (48x238) (251x78) (64) (79) (39) (45)
8.50x5.00x4.25 4.13x9.00 9.50x5.31 4.75 3.84 1.91 2.53
(216x127x108) (105x229) (241x135) (121) (98) (48) (64)
8.50x6.50x4.25 5.63x9.00 9.50x6.81 6.25 3.84 1.91 2.53
(216x165x108) (143x229) (241x173) (159) (98) (48) (64)
10.38x6.50x4.25 5.63x10.88 11.38x6.81 6.25 3.84 1.91 2.53
(264x165x108) (143x276) (289x173) (159) (98) (48) (64)
12.25x8.00x4.25 7.13x12.75 13.25x8.31 7.75 3.84 1.91 2.53
(311x203x108) (181x324) (337x211) (197) (98) (48) (64)
12.25x9.50x4.25 8.63x12.75 13.25x9.81 9.25 3.84 1.91 2.53
(311x241x108) (219x324) (337x249) (235) (98) (48) (64)
CSA File LL66078
Fini sh
• ANSI-61 gray polyester powder
inside and out over phosphatized
surfaces
Acces sories
• See pages J1-J22
FIAB
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
PBGX SERIES 22.5MM PUSHBUTTON ENCLOSURES
NEMA 12 OPERATOR INTERFACE
W
C
A
2.252.25
.56
I
1. 6 3
H21
L
PBGX Hole Arrangements
2.25
0.13 TYP
E
2.25
2.25
B
F
M
Ø0.25TYP
H
Standard 4-Way
Miniature Pushbutton
D
14 GA.
0.48 TYP
Ø0.88TYP
PBGX25PBGX20PBGX12PBGX9PBGX6PBGX4PBGX3PBGX2PBGX1
www.hubbell-wiegmann.com
Data Subject To Change Without Notice

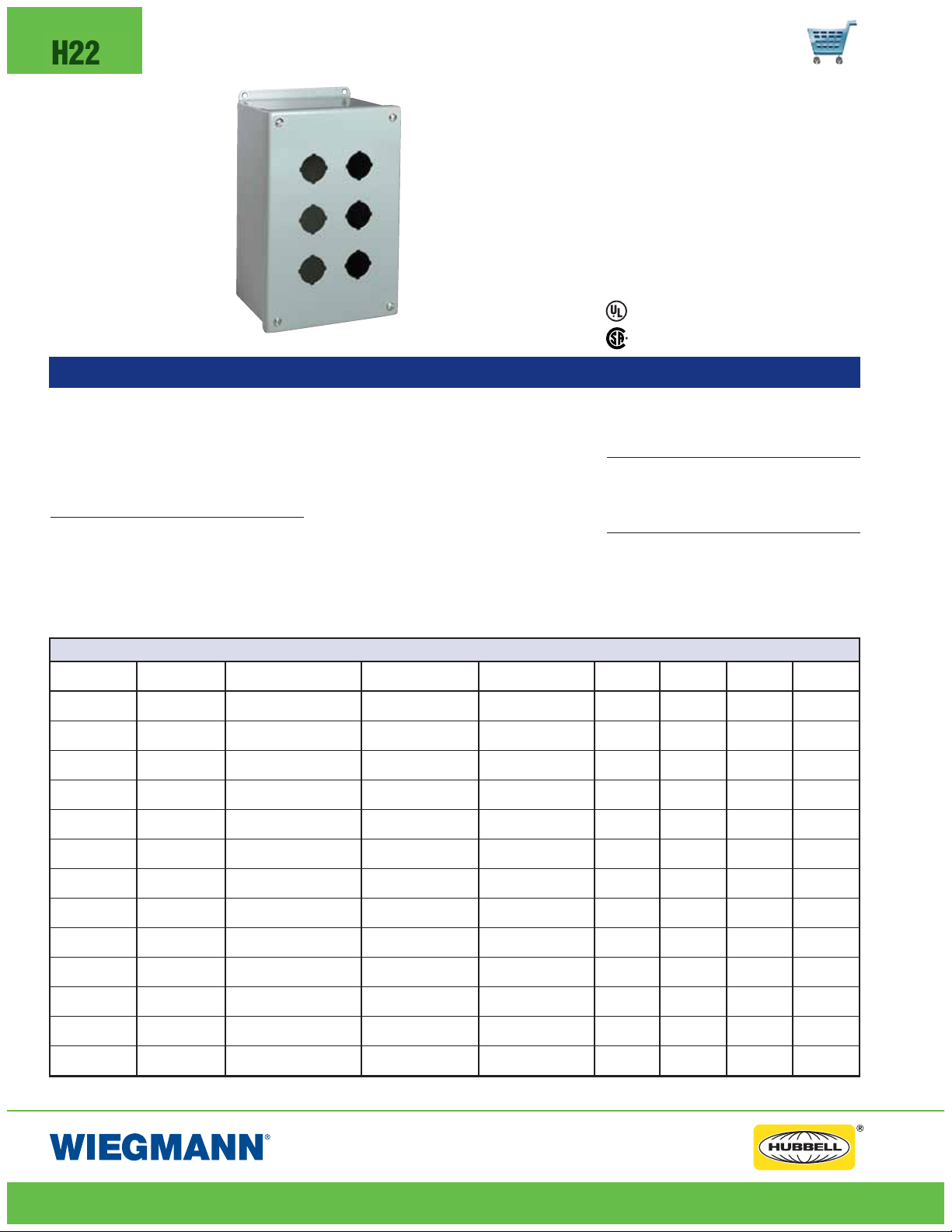

H22
PBXD SERIES 30.5MM PUSHBUTTON ENCLOSURES
NEMA 4 & 12 OPERATOR INTERFACE
Industry Standards
UL 508, Types 4, 12 & 13
CSACertified,Types12&13
NEMA/EEMAC Type 4, 12 & 13
JIC EL-1-71
(PB16, 16V, 20 & 25 meet N12 only)
UL File E64791
PBXD6
FEATURES-SPECIFICATIONS
Applications
Designed
to hold 30.5mm oil-tight
pushbuttons, switches, and pilot
lights. Provide protection against dirt,
dust, oil, and water. Extra deep
design accommodates additional
contact blocks for pushbuttons.
Construction
• Bodies and doors fabricated from
14 gauge steel
• Continuously welded seams ground
• Closed cell oil resistant neoprene
gasket
• External mounting plates, top and
bottom of enclosure
• Captivated cover screws thread
into sealed wells
• Standard “4-way” pushbuttons holes
accept all brands of oil-tight push
buttons, switches and pilot lights
• Enclosures 6.00" x 4.00" x 4.75"
and larger have internal detachable
smooth
PBXD SERIES OPERATOR INTERFACE 30.5MM PUSHBUTTON ENCLOSURES
CATALOG BODY/DOOR ENCLOSURE SIZE MOUNTING OVERALL
NUMBER STEEL GAUGE H X W X D E X C L X M
PBXD1 14/14
PBXD2 14/14
PBXD3 14/14
PBXD4 14/14
PBXD4S 14/14
PBXD6 14/14
PBXD9 14/14
PBXD10 14/14
PBXD12 14/14
PBXD16** 14/14
PBXD16V** 14/14
PBXD20** 14/14
PBXD25** 14/14
** Only meets N12.
4.00x4.00x4.81 3.13x4.50 5.00x4.31 3.75 4.41 2.19 2.16
(102x102x122) (79x114) (127x110) (95) (112) (56) (55)
6.00x4.00x4.81 3.13x6.50 7.00x4.31 3.75 4.41 2.19 2.03
(152x102x122) (79x165) (178x110) (95) (112) (56) (52)
8.00x4.00x4.81 3.13x8.50 9.00x4.31 3.75 4.41 2.19 1.88
(203x102x122) (79x216) (229x110) (95) (112) (56) (50)
10.00x4.00x4.81 3.13x10.50 11.00x4.31 3.75 4.41 2.19 1.78
(254x102x122) (79x267) (279x110) (95) (112) (56) (45)
7.25x6.25x4.81 5.38x7.75 8.25x6.56 6.00 4.41 2.19 1.66
(184x159x122) (137x197) (210x167) (152) (112) (56) (42)
9.50x6.25x4.81 5.38x10.00 10.50x6.56 6.00 4.41 2.19 2.66
(241x159x122) (137x254) (267x167) (152) (112) (56) (67)
9.50x8.50x4.81 7.63x10.00 10.50x8.81 8.25 4.41 2.19 2.66
(241x216x122) (194x254) (267x224) (210) (112) (56) (67)
14.00x6.25x4.81 5.38x14.50 15.00x6.56 6.00 4.41 2.19 2.66
(356x159x122) (137x368) (381x167) (152) (112) (56) (67)
11.75x8.50x4.81 7.63x12.25 12.75x8.81 8.25 4.41 2.19 2.66
(298x216x122) (194x311) (324x224) (210) (112) (56) (67)
11.75x10.75x4.81 9.88x12.25 12.75x11.06 10.50 4.41 2.19 2.66
(298x273x122) (251x311) (324x281) (267) (112) (56) (67)
20.75x6.25x4.81 5.38x21.25 21.75x6.56 6.00 4.41 2.19 2.66
(527x159x122) (137x540) (552x167) (152) (112) (56) (67)
14.00x10.75x4.81 9.88x14.50 15.00x11.06 10.50 4.41 2.19 2.66
(356x273x122) (251x368) (381x281) (267) (112) (56) (67)
14.00x13.00x4.81 12.13x14.50 15.00x13.31 12.75 4.41 2.19 2.66
(356x330x122) (308x368) (381x338) (324) (112) (56) (67)
CSA File LL66078
hinges to hold cover open during
wiring, yet permit quick removal
• Grounding provisions provided
Fini sh
• ANSI-61 gray polyester powder
inside and out over phosphatized
surfaces
Acces sories
• See page E4 for PBXD Series in
stainless steel
• For accessories, see pages J1-J22
FIAB
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
PBXD SERIES 30.5MM PUSHBUTTON ENCLOSURES
NEMA 4 & 12 OPERATOR INTERFACE
H23
A
L
PBXD Hole Arrangements
W
E
2.252.25
F
M
HINGES PROVIDED WHEN
W>=6.25"
2.25
C
2.25
2.25
B
Ø 0.25 TYP
0.56
H
I
D
1. 6 3
14 GA .
0.19 TYP
Standard 4-Way
Push butto n
0.67 TYP
Ø1.20TYP
PBXD4S PBXD12PBXD9PBXD6PBXD4PBXD3PBXD2PBXD1
PBXD16
PBXD16V
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
PBXD10
PBXD25PBXD20
H24
PSL SERIES 30.5MM PUSHBUTTON ENCLOSURES
NEMA 12 OPERATOR INTERFACE
Industry Standards
UL 508, Types 12 & 13
CSACertified,Types12&13
NEMA/EEMAC Type 12 & 13
JIC EL-1-71
UL Files E64791
PSL4
FEATURES-SPECIFICATIONS
Applications
Designed
to hold all standard brands of
pushbuttons, switches and pilot lights.
Provides protection from dust, dirt, oil
and water. This “Slimline” model is
designed for conditions where enclosures must fit within very limited areas.
Construction
• Fabricated from 14 gauge steel
• Continuously welded seams ground
• Closed cell oil resistant neoprene
gasket
• External mounting plates, top and
bottom of enclosure
• Captivated cover screws thread
into sealed wells
• Standard 4-way pushbutton holes
accept all brands of oil-tight pushbuttons, switches and pilot lights
• Grounding provisions provided
smooth
PSL SERIES OPERATOR INTERFACE 30.5MM PUSHBUTTON ENCLOSURES
CATALOG BODY/DOOR ENCLOSURE SIZE MOUNTING OVERALL
NUMBER STEEL GAUGE H X W X D C X E L X M
PSL1 14/14
PSL2 14/14
PSL3 14/14
PSL4 14/14
4.00x2.50x2.50 1.63x4.50 5.00x2.81 2.25 2.09
(102x64x64) (41x114) (127x71) (57) (53)
6.25x2.50x2.50 1.63x6.75 7.25x2.81 2.25 2.09
(159x64x64) (41x171) (184x71) (57) (53)
8.50x2.50x2.50 1.63x9.00 9.50x2.81 2.25 2.09
(216x64x64) (41x229) (241x71) (57) (53)
10.75x2.50x2.50 1.63x11.25 11.75x2.81 2.25 2.09
(273x64x64) (41x286) (298x71) (57) (53)
CSA File LL66078
Fini sh
• ANSI-61 gray polyester powder
inside and out over phosphatized
surfaces
Acces sories
• See pages J1-J22
FI
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
PSL SERIES 30.5MM PUSHBUTTON ENCLOSURES
NEMA 12 OPERATOR INTERFACE
H25
W
C
L
F
M
Standard 4-Way
E
2.25
2.16
Ø 0.25 TYP
Pushbutton
0.56
H
1.19 TYP
I
D
0.67 TYP
1.63
14 GA.
PSL Hole Arrangements
PSL1
PSL2
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
Ø 1.20 TYP
PSL3 PSL4
H26
PBYX SERIES 30.5MM PUSHBUTTON ENCLOSURES
NEMA 12 OPERATOR INTERFACE
Industry Standards
UL 508, Types 12 & 13
CSACertified,Types12&13
NEMA/EEMAC Type 12 & 13
JIC EL-1-71
UL Files E64791
PBYX12
FEATURES-SPECIFICATIONS
Applications
Designed
to hold 30.5mm oil-tight
pushbuttons, switches, and pilot
lights with extra size to allow 2.50"
between centers of pushbutton holes.
Provide protection against dirt, dust,
oil, and water.
Construction
• Fabricated from 14 gauge steel
• Continuously welded seams ground
smooth
• Back panel included with enclosure
• Closed cell oil resistant neoprene
gasket
• External mounting plates, top and
bottom of enclosure
• Captivated cover screws thread
into sealed wells
• Standard “4-way” pushbutton holes
accept all brands of oil-tight push
buttons, switches and pilot lights
• Grounding provisions provided
• Cover held in place by continuous
hinge
PBYX SERIES OPERATOR INTERFACE 30.5MM PUSHBUTTON ENCLOSURES
CATALOG BODY/DOOR ENCLOSURE SIZE MOUNTING BACK PANEL SIZE
NUMBER STEEL GAUGE H X W X D C X E A X B
PBYX4S 14/14
PBYX6 14/14
PBYX9 14/14
PBYX12 14/14
PBYX16 14/14
PBYX20 14/14
PBYX25 14/14
PBYX30 14/14
PBYX36 14/14
PBYX42 14/14
*Back panels included with enclosure.
8.50x7.50x6.00 9.00x6.50 6.50x5.50 7.25 4.78
(216x191x152) (229x165) (165x140) (184) (121)
11.00x7.50x6.00 11.50x6.50 9.00x5.50 7.25 4.78
(279x191x152) (292x165) (229x140) (184) (121)
11.00x10.00x6.00 11.50x9.00 9.00x8.00 9.75 4.78
(279x254x152) (292x229) (229x203) (248) (121)
13.50x10.00x6.00 14.00x9.00 11.50x8.00 9.75 4.78
(343x254x152) (356x229) (292x203) (248) (121)
13.50x12.50x6.00 14.00x11.50 11.50x10.50 12.25 4.78
(343x318x152) (356x292) (292x267) (311) (121)
16.00x12.50x6.00 16.50x11.50 14.00x10.50 12.25 4.78
(406x318x152) (419x292) (356x267) (311) (121)
16.00x15.00x6.00 16.50x14.00 14.00x13.00 14.75 4.78
(406x381x152) (419x356) (356x330) (375) (121)
18.50x15.00x6.00 19.00x14.00 16.50x13.00 14.75 4.78
(470x381x152) (483x356) (419x330) (375) (121)
18.50x17.50x6.00 19.00x16.50 16.50x15.50 17.25 4.78
(470x445x152) (483x419) (419x394) (438) (121)
21.00x17.50x6.00 21.50x16.50 19.00x15.50 17.25 4.78
(533x445x152) (546x419) (483x394) (438) (121)
CSA File LL66078
Fini sh
• ANSI-61 gray polyester powder
inside and out over phosphatized
surfaces
• Included back panels are white
polyester powder over phosphatized surfaces
Acces sories
• See pages J1-J22
FG
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
PBYX SERIES 30.5MM PUSHBUTTON ENCLOSURES
NEMA 12 OPERATOR INTERFACE
H27
H
0.50
0.50
0.31 TYP 1.00 TYP
0.31 TYP
0.38 TYP
B
VIEW WITH COVER REMOVED
14 GA.
W
A
E
F
CAPTIVE SCREW
NEOPRENE GASKET
BLIND NUT
0.38 TYP
1.00
TYP
D
G
14 GA.
0.67 TYP
2.50
TYP
2.50
TYP
2.50
TYP
2.50
TYP
C
0.56
0.19 TYP
Ø 1.20 TYP
Standard 4-Way
Push butto n
2.69
3.16
XX
0.22 X 0.28 SLOT
(4PL)
PANEL INCLUDED
PBYX Hole Arrangements
PBYX4S
0.56
SECTION X-X
PBYX20PBYX9
PBYX25PBYX16PBYX12PBYX6
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
PBYX36
PBYX42PBYX30
NOTES
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
Loading...
