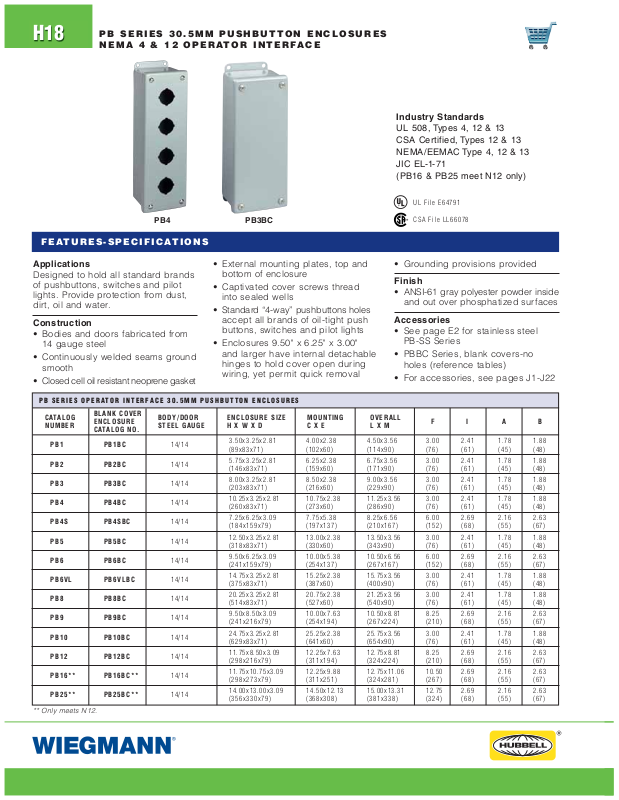

Wiegmann PB SERIES 30.5MM PUSHBUTTON ENCLOSURES Catalog Page
H18
PB SERIES 30.5MM PUSHBUTTON ENCLOSURES
NEMA 4 & 12 OPERATOR INTERFACE
Industry Standards
UL 508, Types 4, 12 & 13
CSACertified,Types12&13
NEMA/EEMAC Type 4, 12 & 13
JIC EL-1-71
(PB16 & PB25 meet N12 only)
UL File E64791
PB4 PB3BC
FEATURES-SPECIFICATIONS
Applications
Designed
to hold all standard brands
of pushbuttons, switches and pilot
lights. Provide protection from dust,
dirt, oil and water.
Construction
• Bodies and doors fabricated from
14 gauge steel
• Continuously welded seams ground
smooth
• Closed cell oil resistant neoprene gasket
PB SERIES OPERATOR INTERFACE 30.5MM PUSHBUTTON ENCLOSURES
CATALOG
NUMBER
PB1 PB1BC 14/14
PB2 PB2BC 14/14
PB3 PB3BC 14/14
PB4 PB4BC 14/14
PB4S PB4SBC 14/14
PB5 PB5BC 14/14
PB6 PB6BC 14/14
PB6VL PB6VLBC 14/14
PB8 PB8BC 14/14
PB9 PB9BC 14/14
PB10 PB10BC 14/14
PB12 PB12BC 14/14
PB16** PB16BC** 14/14
PB25** PB25BC** 14/14
** Only meets N12.
BLANK COVER
ENCLOSURE
CATALOG NO.
BODY/DOOR ENCLOSURE SIZE MOUNTING OVERALL
STEELGAUGE HXWXD CXE LXM
• External mounting plates, top and
bottom of enclosure
• Captivated cover screws thread
into sealed wells
• Standard “4-way” pushbuttons holes
accept all brands of oil-tight push
buttons, switches and pilot lights
• Enclosures 9.50" x 6.25" x 3.00"
and larger have internal detachable
hinges to hold cover open during
wiring, yet permit quick removal
3.50x3.25x2.81 4.00x2.38 4.50x3.56 3.00 2.41 1.78 1.88
(89x83x71) (102x60) (114x90) (76) (61) (45) (48)
5.75x3.25x2.81 6.25x2.38 6.75x3.56 3.00 2.41 1.78 1.88
(146x83x71) (159x60) (171x90) (76) (61) (45) (48)
8.00x3.25x2.81 8.50x2.38 9.00x3.56 3.00 2.41 1.78 1.88
(203x83x71) (216x60) (229x90) (76) (61) (45) (48)
10.25x3.25x2.81 10.75x2.38 11.25x3.56 3.00 2.41 1.78 1.88
(260x83x71) (273x60) (286x90) (76) (61) (45) (48)
7.25x6.25x3.09 7.75x5.38 8.25x6.56 6.00 2.69 2.16 2.63
(184x159x79) (197x137) (210x167) (152) (68) (55) (67)
12.50x3.25x2.81 13.00x2.38 13.50x3.56 3.00 2.41 1.78 1.88
(318x83x71) (330x60) (343x90) (76) (61) (45) (48)
9.50x6.25x3.09 10.00x5.38 10.50x6.56 6.00 2.69 2.16 2.63
(241x159x79) (254x137) (267x167) (152) (68) (55) (67)
14.75x3.25x2.81 15.25x2.38 15.75x3.56 3.00 2.41 1.78 1.88
(375x83x71) (387x60) (400x90) (76) (61) (45) (48)
20.25x3.25x2.81 20.75x2.38 21.25x3.56 3.00 2.41 1.78 1.88
(514x83x71) (527x60) (540x90) (76) (61) (45) (48)
9.50x8.50x3.09 10.00x7.63 10.50x8.81 8.25 2.69 2.16 2.63
(241x216x79) (254x194) (267x224) (210) (68) (55) (67)
24.75x3.25x2.81 25.25x2.38 25.75x3.56 3.00 2.41 1.78 1.88
(629x83x71) (641x60) (654x90) (76) (61) (45) (48)
11.75x8.50x3.09 12.25x7.63 12.75x8.81 8.25 2.69 2.16 2.63
(298x216x79) (311x194) (324x224) (210) (68) (55) (67)
11.75x10.75x3.09 12.25x9.88 12.75x11.06 10.50 2.69 2.16 2.63
(298x273x79) (311x251) (324x281) (267) (68) (55) (67)
14.00x13.00x3.09 14.50x12.13 15.00x13.31 12.75 2.69 2.16 2.63
(356x330x79) (368x308) (381x338) (324) (68) (55) (67)
CSA File LL66078
• Grounding provisions provided
Fini sh
• ANSI-61 gray polyester powder inside
and out over phosphatized surfaces
Acces sories
• See page E2 for stainless steel
PB-SS Series
• PBBC Series, blank covers-no
holes (reference tables)
• For accessories, see pages J1-J22
FI AB
DATA SUBJECT TO CHANGE WITHOUT NOTICE
PB SERIES 30.5MM PUSHBUTTON ENCLOSURES
NEMA 4 & 12 OPERATOR INTERFACE
H19
W
E
A
L
2.252.25
F
M
HINGES PROVIDED WHEN
W >= 6.25"
2.25
C
2.25
2.25
B
Ø 0.25 TYP
0.56
H
I
D
1. 63
14 GA.
PB Hole Arrangements
PB4S
0.19 TYP
Standard 4-Way
Pushbutton
0.67 TYP
Ø 1.20 TYP
3.25
3.25
PB10
DATA SUBJECT TO CHANGE WITHOUT NOTICE
PB12PB9PB8PB6VLPB6PB5PB4PB3PB2PB1
PB25PB16
