DATA SUBJECT TO CHANGE WITHOUT NOTICE
N4D SERIES ENCLOSURES
NEMA 4 FLOOR-MOUNT
D14
FEATURES-SPECIFICATIONS
Applications
Designed to house electrical and
electronic controls, components,
and instruments in wet non-corrosive
environments. Typical applications
for these enclosures include dairies,
breweries, and other food processing
activities that may require hose down.
Enclosures are also suitable for outdoor
applications.
Construction
• Bodies, doors, and floor stand feet
are fabricated from 12 and 10
gauge steel
• Continuously welded seams ground
smooth, less knockouts or holes
• X-type body stiffeners are added for
extra strength
Industry Standards
UL 508, Types 3, 4, & 12
CSA Certified, Type 3, 4, & 12
NEMA/EEMAC Types 3, 4, & 12
UL File E64791
CSA File LL66078
• Rolled lip around three sides of door
and along top of enclosures opening
excludes liquids and contaminants
from entering
• Quick and easy to operate stainless
steel door clamps around three sides
of doors are provided
• Heavy gauge continuous hinges are
provided to secure doors
• Doors are removable by pulling
stainless steel continuous hinge pin
• Hasp and staple are provided for
padlocking
• Print pocket is provided
• Standard 12" high floor kits are
welded to bottom of enclosure
• Heavy duty removable lifting eyes
CATALOG BODY/DOOR ENCLOSURE SIZE BACK PANEL BACK PANEL
NUMBER STEEL GAUGE W X H X D CATALOG NUMBER* SIZE A X B
N4D624810 12/12
62.12x48.12x10.12
NPDD6048
56.00x44.00
(1578x1222x257) (1422x1118)
N4D626012 12/12
62.12x60.12x12.12
NPDD6060
56.00x56.00
(1578x1527x308) (1422x1422)
N4D746012 12/12
74.12x60.12x12.12
NPDD7260
68.00x56.00
(1883x1527x308) (1727x1422)
N4D747212 10/10
74.12x72.12x12.12
NPDD7272
68.00x68.00
(1883x1832x308) (1727x1727)
N4D747224 10/10
74.12x72.12x24.12
NPDD7272
68.00x68.00
(1883x1832x613) (1727x1727)
N4D SERIES FLOOR-MOUNT ENCLOSURES
*Back panels must be ordered separately.
N4D624810
• Collar studs for mounting optional
panels
• Easily removable center post permits
easy panel installations
• Doors are sealed with closed cell
neoprene gasket
• Grounding provisions provided
Finish
• ANSI-61 gray polyester powder inside
and out over phosphatized surfaces
• Optional back panels are white
polyester powder over phosphatized
surfaces
Accessories
• Back panels (reference tables)
• See pages J1-J19
®
R
N4D SERIES ENCLOSURES
NEMA 4 FLOOR-MOUNT
D15
DATA SUBJECT TO CHANGE WITHOUT NOTICE
H
H - 3.13
1.75
0.656
1.75
2.25
1.38
1.75
FLOOR
STAND
W/2-2.31
1.75
2.38
H - 4.75
OPENING
W/2 - 3.69
OPENING
2.38
W
W/2-2.31
1.75
W - 2.75
CENTER
POST
REMOVED
REMOVABLE
CENTER POST
0.63
1.75
LIFTING
EYE
CONTINUOUS
HINGE
PADLOCK
HASP &
STAPLE
XX
1.38
SST DOOR
SST HINGE
PIN
CLAMPS
1.16
C
OPTIONAL PANEL
0.88
A
PANEL
SUPPORT
ZZ
C
3.06
3.06
D
Y
D
0.88
2.06 B
Y
2.06
10 GA.
PANEL
BODY
STIFFENER
COLLAR
STUD
SECTION Y-Y
D - .125
3.75
Ø 0.56
TYP
7.75
3.00
SECTION Z-Z
2.09
2.09
1.16
D
1.38
1.19
BODY STIFFENER
REMOVABLE CENTER POST
LEFT DOOR
SECTION X-X
4.75
6.25
C
RIGHT DOOR
10 GA.
PANEL (Order Separately)
NEOPRENE GASKET
CONTINUOUS HINGE
1.38
3/8 - 16
COLLAR STUD
0.88
DATA SUBJECT TO CHANGE WITHOUT NOTICE

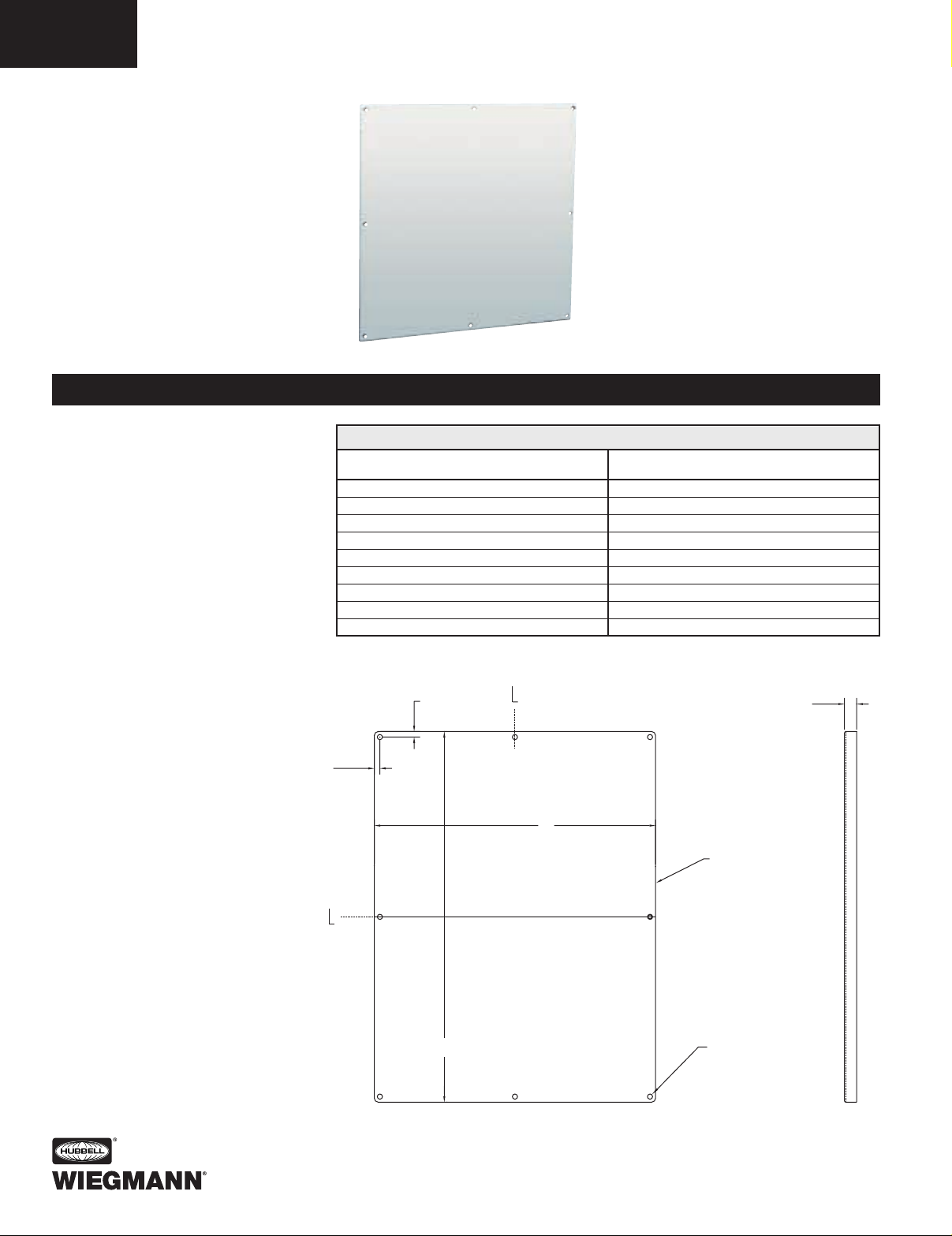

NPDD SERIES BACK PANELS
ACCESSORY PANELS FOR DOUBLE DOOR FLOOR-MOUNT ENCLOSURES
I6
Description
• Steel panels are fabricated from
10 gauge carbon steel
• Panels are painted with a white
polyester powder
• Panels are used in NEMA 12
double door floor-mounted
enclosures and some 2-door
wall-mount enclosures
FRONT VIEW
SIDE VIEW
PANEL
10 GA.
C
C
0.88 TYP
0.88 TYP
B
A
0.88
FLANGE
4 PL
0.563 Ø
TYP
CATALOG NUMBER
PAINTED STEEL (WHITE)
NPDD4242 39.00x39.00 (991x991)
NPDD4260 38.00x56.00 (965x1422)
NPDD4842 45.00x39.00 (1143x991)
NPDD4848 44.00x44.00 (1118x1118)
NPDD5442 50.00x38.00 (1270x965)
NPDD6048 44.00x56.00 (1118x1422)
NPDD6060 56.00x56.00 (1422x1422)
NPDD7260 56.00x68.00 (1422x1727)
NPDD7272 68.00x68.00 (1727x1727)
BACK PANELS FOR DOUBLE DOOR FLOOR-MOUNTED ENCLOSURES
FEATURES-SPECIFICATIONS
NPDD4242
PANEL SIZE A X B
