Wiegmann N1P SERIES BACK PANELS Catalog Page

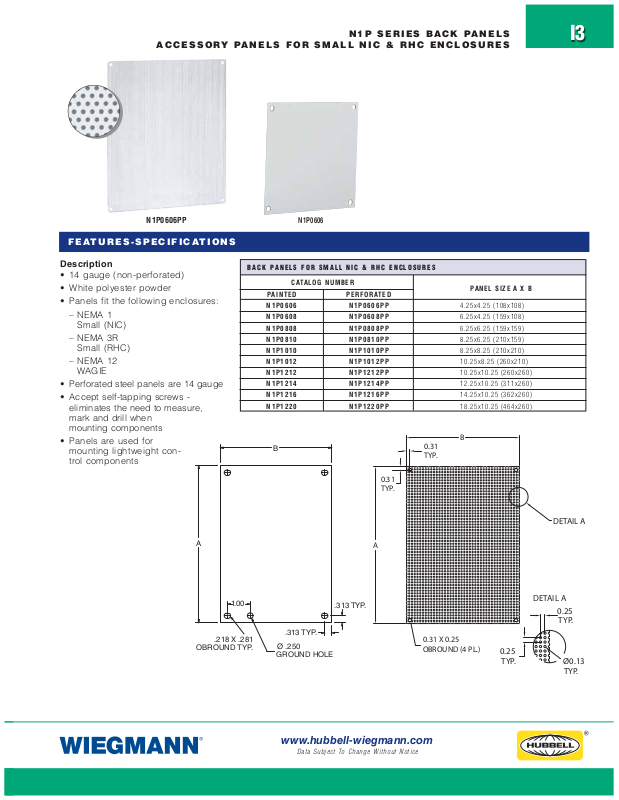

N1P SERIES BACK PANELS
ACCESSORY PANELS FOR SMALL NIC & RHC ENCLOSURES
I3
N1P0606PP
FEATURES-SPECIFICATIONS
Description
• 14 gauge (non-perforated)
• White polyester powder
• Panels fit the following enclosures:
–NEMA1
Small (NIC)
–NEMA3R
Small (RHC)
–NEMA12
WAGIE
• Perforated steel panels are 14 gauge
• Accept self-tapping screws eliminates the need to measure,
mark and drill when
mounting components
• Panels are used for
mounting lightweight control components
N1P0606
BACK PANELS FOR SMALL NIC & RHC ENCLOSURES
CATALOG NUMBER
PAINTED PERFORATED
N1P0606 N1P0606PP 4.25x4.25 (108x108)
N1P0608 N1P0608PP 6.25x4.25 (159x108)
N1P0808 N1P0808PP 6.25x6.25 (159x159)
N1P0810 N1P0810PP 8.25x6.25 (210x159)
N1P1010 N1P1010PP 8.25x8.25 (210x210)
N1P1012 N1P1012PP 10.25x8.25 (260x210)
N1P1212 N1P1212PP 10.25x10.25 (260x260)
N1P1214 N1P1214PP 12.25x10.25 (311x260)
N1P1216 N1P1216PP 14.25x10.25 (362x260)
N1P1220 N1P1220PP 18.25x10.25 (464x260)
B
0.31
TYP.
0.31
TYP.
PANEL SIZE A X B
B
A
1. 0 0
.218 X .281
OBROUND TYP.
A
.313 TYP.
.313 TYP.
Ø .250
GROUND HOLE
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
0.31 X 0.25
OBROUND (4 PL.)
0.25
TYP.
DETAIL A
DETAIL A
0.25
TYP.
Ø0.13
TYP.
I6
N1P SERIES BACK PANELS
ACCESSORY PANELS FOR LARGE NIC & RHC ENCLOSURES
FEATURES-SPECIFICATIONS
N1P1216LN1P1216L
Description
• 14 & 12 gauge (non-perforated)
• White polyester powder
• Panels fit the following enclosures:
– NEMA 1
Medium (NIC)
• Perforated steel panels are 14 gauge
• Accept self-tapping screws - eliminates the need to measure, mark
and drill when mounting components
• Panels are used for mounting lightweight control components
Ø 0.563 TYP.
0.75
TYP.
0.75
TYP.
BACK PANELS FOR LARGE NIC & RHC ENCLOSURES
CATALOG NUMBER
PAINTED PERFORATED
GAUGE PANEL SIZEAXB
N1P1216L N1P1216LPP 14 13.00x10.50 (330x267)
N1P1616 N1P1616PP 14 13.00x14.50 (330x368)
N1P1620 N1P1620PP 14 17.00x14.50 (432x368)
N1P2016 N1P2016PP 14 13.00x18.50 (330x470)
N1P2020 N1P2020PP 14 17.00x18.50 (432x470)
N1P1624 N1P1624PP 14 21.00x14.50 (533x368)
N1P2024 N1P2024PP 14 21.00x18.50 (533x470)
N1P2424 N1P2424PP* 12 21.00x22.50 (533x572)
N1P2030 N1P2030PP* 12 26.00x18.50 (660x470)
N1P2436 N1P2436PP* 12 32.00x22.50 (813x572)
N1P3036 N1P3036PP* 12 32.00x28.50 (813x724)
N1P2420 N1P2420PP 14 17.00x22.50 (432x572)
N1P2430 N1P2430PP* 12 26.00x22.50 (660x572)
N1P3030 N1P3030PP* 12 26.00x28.50 (660x724)
N1P3036 N1P3036PP* 12 32.00x28.50 (813x724)
*Perforated panels are formed on four sides.
B
C
L
Ø0.56
TYP.
0.75
TYP.
0.75
TYP.
DETAIL A
A
2.00 2.00
Ø .312 TYP. (2PL)
GROUND HOLE
B
OMIT MIDDLE
HOLES IF "B" IS
LESS THAN 28.00
OMIT MIDDLE
HOLES IF "A" IS
LESS THAN 28.00
www.hubbell-wiegmann.com
C
A
L
Data Subject To Change Without Notice
OMIT MIDDLE HOLES
IF "B" IS LESS THAN
28.00
OMIT MIDDLE HOLES
IF "A" IS LESS THAN
28.00
0.25
TYP.
0.25
TYP.
DETAIL A
Ø0.13
TYP.
