NEMA 1 ENCLOSURES

A1

Section A Index

SC Series

NEMA 1 Screw Cover Wall-Mount ...........A2

A Series

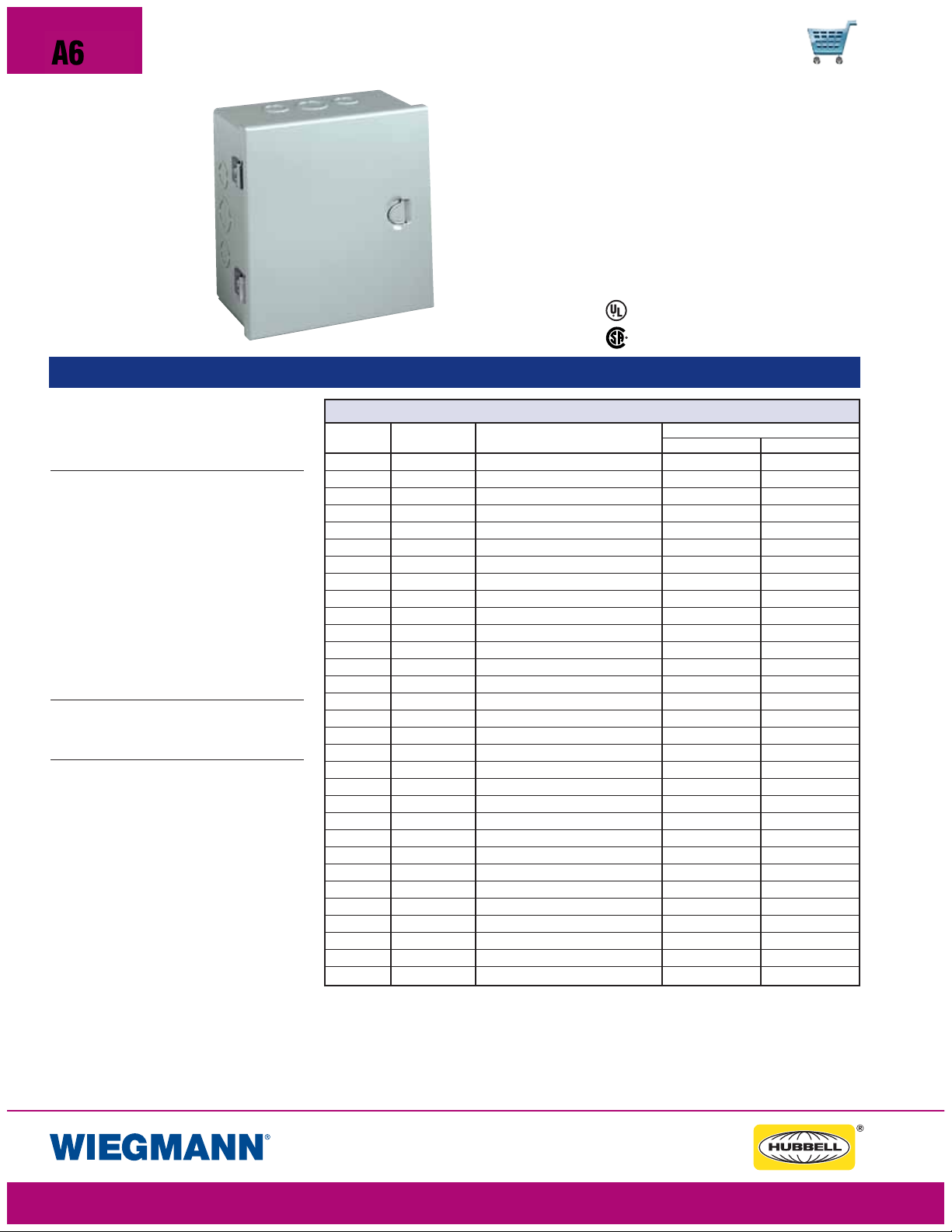

NEMA 1 Hinge Cover Wall-Mount ...........A6

N1C Series

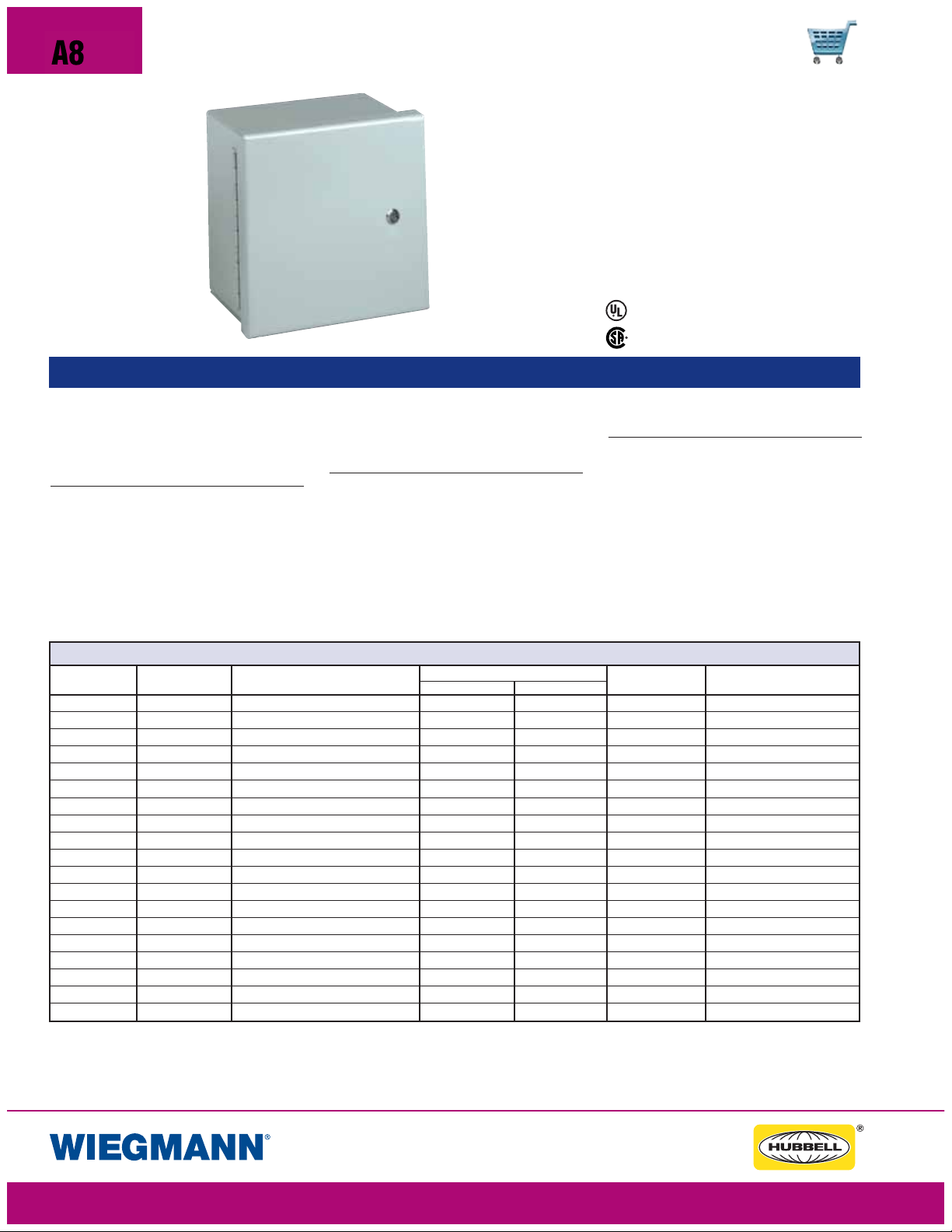

"Small" NEMA 1 Hinged Wall-Mount ........A8

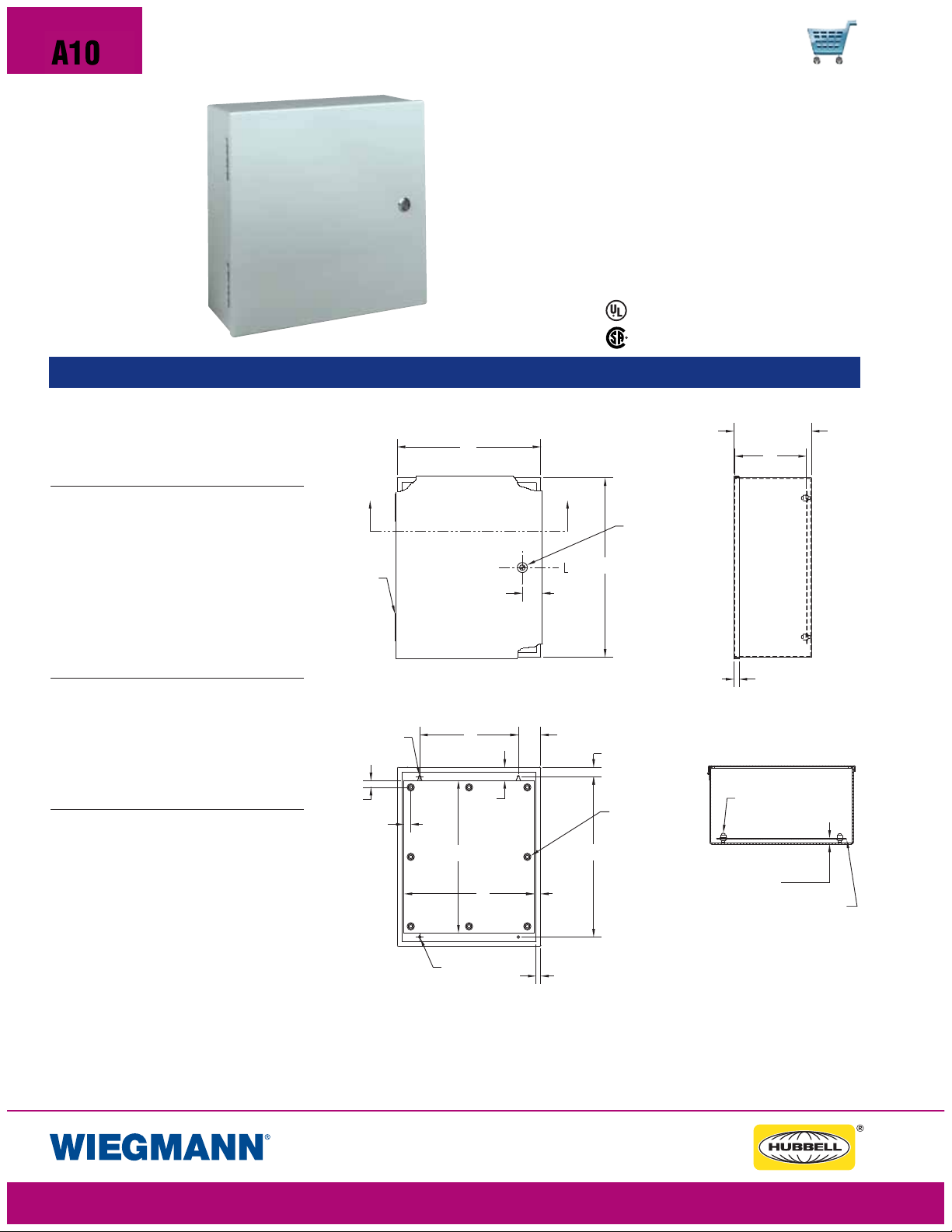

"Medium" NEMA 1 Hinged Wall-Mount ..A10

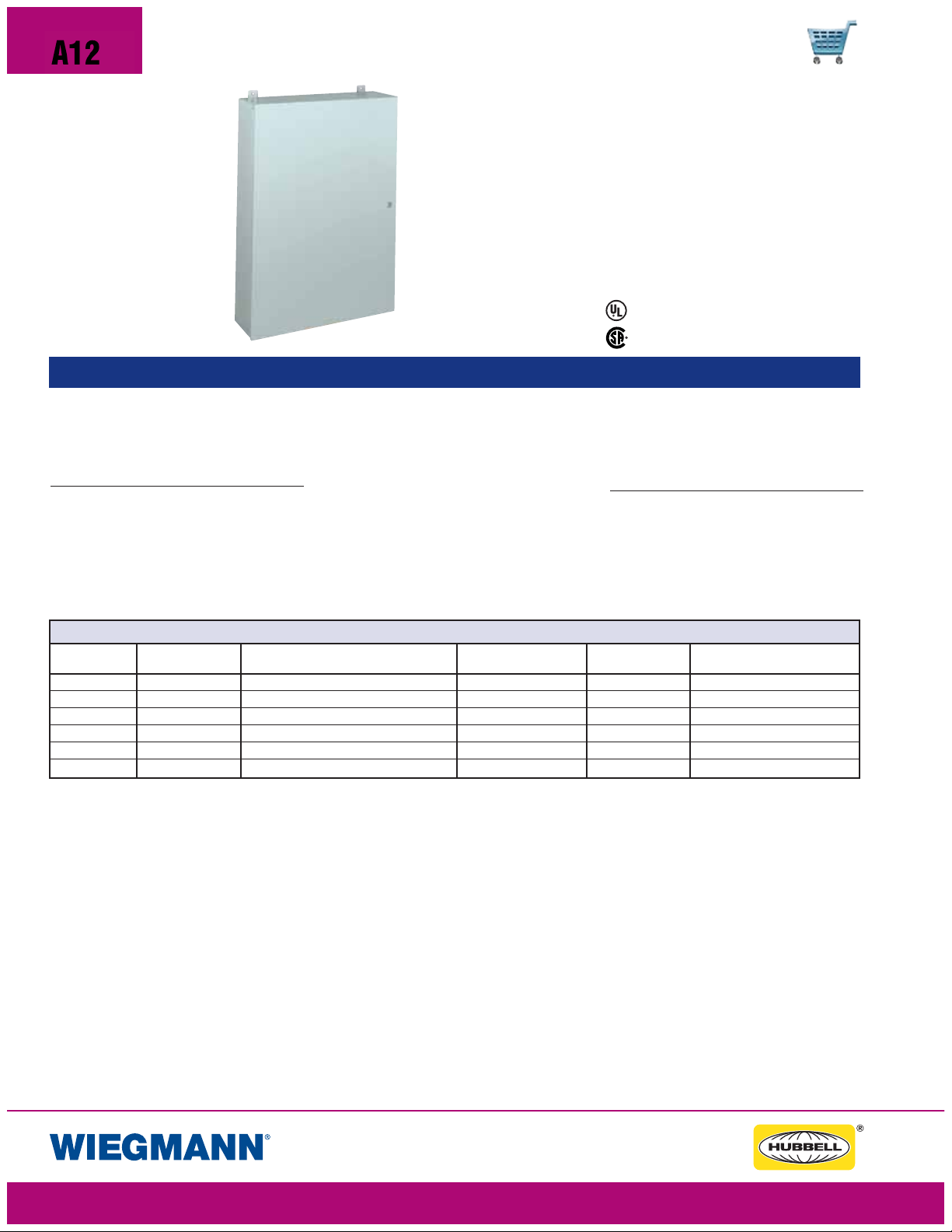

"Large" NEMA 1 Hinged Wall-Mount......A12

www.hubbell-wiegmann.com

Data Subject To Change Without Notice

A2

SC SERIES ENCLOSURES
NEMA 1 SCREW COVER WALL-MOUNT

Industry Standards

UL 50, Type 1
CSA Certified, Type 1 (See Note)
NEMA/EEMAC Type 1

SC060604

with SCF cover

SC080806G

SC080806NK

FEATURES-SPECIFICATIONS

Applications

Designed for use as a junction box
and pull box in commercial and gen­eral industrial applications. Flush
covers must be ordered separately
for flush mount applications.

Construction

• Fabricated from 16, 14 and 12
gauge steel or G-90 pre-galvanized
steel (reference table)

• Flat, removable covers fastened
with plated steel screws

SC SERIES SCREW COVER PULL BOX ENCLOSURES

CATALOG NUMBER

PAINTED GALVANIZED STEEL ONLY

W/KNOCKOUTS W/O KNOCKOUTS W/KNOCKOUTS W/O KNOCKOUTS

SC040404* SC040404NK* SC040404G* SC040404GNK* 16/16 Yes

SC040604* SC040604NK* SC040604G* SC040604GNK* 16/16 Yes

SC060604 SC060604NK SC060604G SC060604GNK 16/16 Yes

SC060804 SC060804NK SC060804G SC060804GNK 16/16 Yes

SC061204 SC061204NK SC061204G SC061204GNK 16/16 Yes

SC080804 SC080804NK SC080804G SC080804GNK 16/16 Yes

SC081004 SC081004NK SC081004G SC081004GNK 16/16 Yes

SC081204 SC081204NK SC081204G SC081204GNK 16/16 Yes

SC101004 SC101004NK SC101004G SC101004GNK 16/16 Yes

SC101204 SC101204NK SC101204G SC101204GNK 16/16 Yes

SC121204 SC121204NK SC121204G SC121204GNK 16/16 Yes

SC121504 SC121504NK SC121504G SC121504GNK 16/16 Yes

*Not UL Listed.

• Cover design permits easy removal
without extracting cover screws

• Mounting holes on back of box

• Available with or without knockouts.
Removable concentric knockouts
on all four sides of standard enclo­sures with knockouts

Fini sh

• ANSI-61 gray polyester powder
inside and out

• Unpainted pre-galvanized steel

BODY/DOOR COVERS

GAUGE SeePage A5

UL Files E23553

CSA File LL66078

Accessories

• See pages J1-J22

Optional Flush Covers

Designed to mount on enclosure for
flush installations. 16 or 14 gauge
steel (reference table).

• ANSI 61 gray polyester powder
finish.

• Unpainted pre-galvanized steel

ENCLOSURE SIZE

1

H+

⁄8", W+1⁄8", D+3⁄16"

4.00x4.00x4.00
(102x102x102)

6.00x4.00x4.00
(152x102x102)

6.00x6.00x4.00
(152x152x102)

8.00x6.00x4.00
(203x152x102)

12.00x6.00x4.00
(305x152x102)

8.00x8.00x4.00
(203x203x102)

10.00x8.00x4.00
(254x203x102)

12.00x8.00x4.00
(305x203x102)

10.00x10.00x4.00
(254x254x102)

12.00x10.00x4.00
(305x254x102)

12.00x12.00x4.00
(305x305x102)

15.00x12.00x4.00
(381x305x102)

KNOCKOUT PATTERN

WIDTH SIDE HEIGHT SIDE

AA

A A-B-A

A-B-A A-B-A

A-B-A A-B-A

A-B-A B-A-F-F-A-B

A-B-A A-B-A

A-B-A B-A-F-F-A

A-B-A B-A-F-F-A-B

B-A-F-F-A B-A-F-F-A

B-A-F-F-A B-A-F-F-A-B

B-A-F-F-A-B B-A-F-F-A-B

B-A-F-F-A-B A-B-A-F-F-A-B-A

Continued on page A3

www.hubbell-wiegmann.com

Data Subject To Change Without Notice

NEMA 1 SCREW COVER WALL-MOUNT

SC SERIES SCREW COVER PULL BOX ENCLOSURES (CONT.)

PAINTED GALVANIZED STEEL ONLY

CATALOG NUMBER

W/KNOCKOUTS W/O KNOCKOUTS W/KNOCKOUTS W/O KNOCKOUTS

SC121804 SC121804NK SC121804G SC121804GNK 16/16 Yes

SC122404 SC122404NK SC122404G SC122404GNK 16/16 Yes

SC151504 SC151504NK SC151504G SC151504GNK 16/16 Yes

SC151804 SC151804NK SC151804G SC151804GNK 16/16 Yes

SC181804 SC181804NK SC181804G SC181804GNK 16/16 Yes

SC182404 SC182404NK SC182404G SC182404GNK 16/16 Yes

SC183004 SC183004NK SC183004G SC183004GNK 16/16 Yes

SC242404 SC242404NK SC242404G SC242404GNK 14/14 Yes

SC060606 SC060606NK SC060606G SC060606GNK 16/16 Yes

SC060806 SC060806NK SC060806G SC060806GNK 16/16 Yes

SC061206 SC061206NK SC061206G SC061206GNK 16/16 Yes

SC080806 SC080806NK SC080806G SC080806GNK 16/16 Yes

SC081006 SC081006NK SC081006G SC081006GNK 16/16 Yes

SC081206 SC081206NK SC081206G SC081206GNK 16/16 Yes

SC101006 SC101006NK SC101006G SC101006GNK 16/16 Yes

SC101206 SC101206NK SC101206G SC101206GNK 16/16 Yes

SC121206 SC121206NK SC121206G SC121206GNK 16/16 Yes

SC121506 SC121506NK SC121506G SC121506GNK 16/16 Yes

SC121806 SC121806NK SC121806G SC121806GNK 16/16 Yes

SC122406 SC122406NK SC122406G SC122406GNK 16/16 Yes

Note: Must specify CSA Label when ordering.

Consult factory for dimensions and drawings
on 8", 10" and 12" deep enclosures.

2.06 TYP

Ø0.28 TYP

1.31 TYP

4.00" X 4.00"

MOUNTING

Note: 8", 10" and 12" deep
enclosures do not have mounting
embosses in back of enclosure,
only mounting holes.

W

BODY/DOOR COVERS

GAUGE See Page A5

SC SERIES ENCLOSURES

ENCLOSURE SIZE

1

H+

⁄8", W+1⁄8", D+3⁄16"

D

INSIDE

18.00x12.00x4.00
(457x305x102)

24.00x12.00x4.00
(610x305x102)

15.00x15.00x4.00
(381x381x102)

18.00x15.00x4.00
(457x381x102)

18.00x18.00x4.00
(457x457x102)

24.00x18.00x4.00
(610x457x102)

30.00x18.00x4.00
(762x457x102)

24.00x24.00x4.00
(610x610x102)

6.00x6.00x6.00
(152x152x152)

8.00x6.00x6.00
(203x152x152)

12.00x6.00x6.00
(305x152x152)

8.00x8.00x6.00
(203x203x152)

10.00x8.00x6.00
(254x203x152)

12.00x8.00x6.00
(305x203x152)

10.00x10.00x6.00
(254x254x152)

12.00x10.00x6.00
(305x254x152)

12.00x12.00x6.00
(305x305x152)

15.00x12.00x6.00
(381x305x152)

18.00x12.00x6.00
(457x305x152)

24.00x12.00x6.00
(610x305x152)

A

1.63 1.63

A

A

B

1.63 1.63 1.94 1.63

AA

B

FF

B-A-F-F-A-B A-B-A-F-F-A-B-A

B-A-F-F-A-B A-B-A-F-F-A-B-A

A-B-A-F-F-A-B-A A-B-A-F-F-A-B-A

A-B-A-F-F-A-B-A A-B-A-F-F-A-B-A

A-B-A-F-F-A-B-A A-B-A-F-F-A-B-A

A-B-A-F-F-A-B-A A-B-A-F-F-A-B-A

A-B-A-F-F-A-B-A A-B-A-F-F-A-B-A

A-B-A-F-F-A-B-A A-B-A-F-F-A-B-A

A-B-A A-B-A

A-B-A A-B-A

A-B-A B-A-F-F-A-B

A-B-A A-B-A

A-B-A B-A-F-F-A

A-B-A B-A-F-F-A-B

B-A-F-F-A B-A-F-F-A

B-A-F-F-A B-A-F-F-A-B

B-A-F-F-A-B B-A-F-F-A-B

B-A-F-F-A-B A-B-A-F-F-A-B-A

B-A-F-F-A-B A-B-A-F-F-A-B-A

B-A-F-F-A-B A-B-A-F-F-A-B-A

4" SIDE

6" &8" SIDE

A3

KNOCKOUT PATTERN

WIDTH SIDE HEIGHT SIDE

Continued on page A4

Knockout Patterns

A--1/2" TO 3/4"
B--3/4" TO 1"
F--1" TO 1-1/4"

10" SIDE

1.56 TYP

4.00" X 6.00"

2.06 TYP

Ø0.28 TYP

MOUNTING

0.63 TYP

1.56 TYP

1.56 TYP

H

Ø0.28 TYP

A

www.hubbell-wiegmann.com

Data Subject To Change Without Notice

1.63 1.63 1.94 1.63 1.63

A

1.63 1.63 1.63 1.94 1.63 1.63 1.63

B

A

BB

F

F

A

A

F

F

B

12" SIDE

A

15",18",24",
30" &36" SIDE.

A4

SC SERIES ENCLOSURES
NEMA 1 SCREW COVER WALL-MOUNT

SC SERIES SCREW COVER PULL BOX ENCLOSURES (CONT.)

W/KNOCKOUTS W/O KNOCKOUTS W/KNOCKOUTS W/O KNOCKOUTS

SC151506 SC151506NK SC151506G SC151506GNK 16/16 Yes

SC151806 SC151806NK SC151806G SC151806GNK 16/16 Yes

SC181806 SC181806NK SC181806G SC181806GNK 16/16 Yes

SC182406 SC182406NK SC182406G SC182406GNK 16/16 Yes

SC242406 SC242406NK SC242406G SC242406GNK 14/14 Yes

SC243006 SC243006NK SC243006G SC243006GNK 14/14 No

+

SC080808 SC080808NK SC080808G SC080808GNK 16/16 Yes

+

SC121208 SC121208NK SC121208G SC121208GNK 16/16 Yes

+

SC121608 SC121608NK SC121608G SC121608GNK 16/16 No

+

SC121808 SC121808NK SC121808G SC121808GNK 16/16 Yes

+

SC122408 SC122408NK SC122408G SC122408GNK 16/16 Yes

+

SC181808 SC181808NK SC181808G SC181808GNK 16/16 Yes

+

SC182408 SC182408NK SC182408G SC182408GNK 16/16 Yes

+

SC242408 SC242408NK SC242408G SC242408GNK 14/14 Yes

+

SC243008 SC243008NK SC243008G SC243008GNK 14/14 No

+

SC243608 SC243608NK SC243608G SC243608GNK 14/14 No

+

SC121210 SC121210NK SC121210G SC121210GNK 16/16 Yes

+

SC121810 SC121810NK SC121810G SC121810GNK 16/16 Yes

+

SC122410 SC122410NK SC122410G SC122410GNK 16/16 Yes

+

SC181810 SC181810NK SC181810G SC181810GNK 16/16 Yes

+

SC182410 SC182410NK SC182410G SC182410GNK 16/16 Yes

+

SC242410 SC242410NK SC242410G SC242410GNK 14/14 Yes

+

SC243010 SC243010NK SC243010G SC243010GNK 14/14 No

+

SC243610 SC243610NK SC243610G SC243610GNK 14/14 No

+

SC121212 SC121212NK SC121212G SC121212GNK 16/16 Yes

(+) All products, unless otherwise denoted by a (+), are: H+1/8", W+1/8", D+3/16"

PAINTED GALVANIZED STEEL ONLY

—

—

—

—

—

—

CATALOG NUMBER

+

+

+

+

+

+

+

+

+

+

+

SC303008NK

+

SC303608NK

+

SC363608NK

+

+

+

+

+

+

+

+

SC303010NK

+

SC303610NK

+

+

SC363610NK

+

+

+

+

+

+

+

+

+

+

+

—

—

—

+

+

+

+

+

+

+

—

—

+

—

+

+

+

+

+

+

+

+

+

+

+

+

SC303008GNK 12/12 No

+

SC303608GNK 12/12 No

+

SC363608GNK 12/12 No

+

+

+

+

+

+

+

+

SC303010GNK 12/12 No

+

SC303610GNK 12/12 No

+

+

SC363610GNK 12/12 No

+

BODY/DOOR COVERS

GAUGE See Page A5

ENCLOSURE SIZE

1

H+

⁄8", W+1⁄8", D+3⁄16"

15.00x15.00x6.00
(381x381x152)

18.00x15.00x6.00
(457x381x152)

18.00x18.00x6.00
(457x457x152)

24.00x18.00x6.00
(610x457x152)

24.00x24.00x6.00
(610x610x152)

30.00x24.00x6.00
(762x610x152)

8.00x8.00x8.00
(203x203x203)

12.00x12.00x8.00
(305x305x203)

16.00x12.00x8.00
(406x305x203)

18.00x12.00x8.00
(457x305x203)

24.00x12.00x8.00
(610x305x203)

18.00x18.00x8.00
(457x457x203)

24.00x18.00x8.00
(610x457x203)

24.00x24.00x8.00
(610x610x203)

30.00x24.00x8.00
(762x610x203)

36.00x24.00x8.00
(914x610x203)

30.00x30.00x8.00
(762x762x203)

36.00x30.00x8.00
(914x762x203)

36.00x36.00x8.00
(914x914x203)

12.00x12.00x10.00
(305x305x254)

18.00x12.00x10.00
(457x305x254)

24.00x12.00x10.00
(610x305x254)

18.00x18.00x10.00
(457x457x254)

24.00x18.00x10.00
(610x457x254)

24.00x24.00x10.00
(610x610x254)

30.00x24.00x10.00
(762x610x254)

30.00x30.00x10.00
(762x762x254)

36.00x30.00x10.00
(914x762x254)

36.00x24.00x10.00
(914x610x254)

36.00x36.00x10.00
(914x914x254)

12.00x12.00x12.00
(305x305x305)

KNOCKOUT PATTERN

WIDTH SIDE HEIGHT SIDE

A-B-A-F-F-A-B-A A-B-A-F-F-A-B-A

A-B-A-F-F-A-B-A A-B-A-F-F-A-B-A

A-B-A-F-F-A-B-A A-B-A-F-F-A-B-A

A-B-A-F-F-A-B-A A-B-A-F-F-A-B-A

A-B-A-F-F-A-B-A A-B-A-F-F-A-B-A

A-B-A-F-F-A-B-A A-B-A-F-F-A-B-A

A-B-A A-B-A

B-A-F-F-A-B B-A-F-F-A-B

B-A-F-F-A-B A-B-A-F-F-A-B-A

B-A-F-F-A-B A-B-A-F-F-A-B-A

B-A-F-F-A-B A-B-A-F-F-A-B-A

A-B-A-F-F-A-B-A A-B-A-F-F-A-B-A

A-B-A-F-F-A-B-A A-B-A-F-F-A-B-A

A-B-A-F-F-A-B-A A-B-A-F-F-A-B-A

A-B-A-F-F-A-B-A A-B-A-F-F-A-B-A

A-B-A-F-F-A-B-A A-B-A-F-F-A-B-A

A-B-A-F-F-A-B-A A-B-A-F-F-A-B-A

A-B-A-F-F-A-B-A A-B-A-F-F-A-B-A

A-B-A-F-F-A-B-A A-B-A-F-F-A-B-A

B-A-F-F-A-B B-A-F-F-A-B

B-A-F-F-A-B A-B-A-F-F-A-B-A

B-A-F-F-A-B A-B-A-F-F-A-B-A

A-B-A-F-F-A-B-A A-B-A-F-F-A-B-A

A-B-A-F-F-A-B-A A-B-A-F-F-A-B-A

A-B-A-F-F-A-B-A A-B-A-F-F-A-B-A

A-B-A-F-F-A-B-A A-B-A-F-F-A-B-A

A-B-A-F-F-A-B-A A-B-A-F-F-A-B-A

A-B-A-F-F-A-B-A A-B-A-F-F-A-B-A

A-B-A-F-F-A-B-A A-B-A-F-F-A-B-A

A-B-A-F-F-A-B-A A-B-A-F-F-A-B-A

B-A-F-F-A-B B-A-F-F-A-B

Continued on page A5

www.hubbell-wiegmann.com

Data Subject To Change Without Notice

NEMA 1 SCREW COVER WALL-MOUNT

6

SC SERIES SCREW COVER PULL BOX ENCLOSURES (CONT.)

PAINTED GALVANIZED STEEL ONLY

CATALOG NUMBER

W/KNOCKOUTS W/O KNOCKOUTS W/KNOCKOUTS W/O KNOCKOUTS

SC122412 SC122412NK SC122412G SC122412GNK 16/16 Yes

+

SC181812 SC181812NK SC181812G SC181812GNK 16/16 Yes

+

SC182412 SC182412NK SC182412G SC182412GNK 16/16 Yes

+

SC242412 SC242412NK SC242412G SC242412GNK 14/14 Yes

+

SC243012 SC243012NK SC243012G SC243012GNK 14/14 No

+

SC243612 SC243612NK SC243612G SC243612GNK 14/14 No

+

—

—

—

+

+

+

+

+

+

+

SC303012NK

+

SC303612NK

+

SC363612NK

+

+

+

+

+

+

—

—

—

+

+

+

+

+

+

+

SC303012GNK 12/12 No

+

SC303612GNK 12/12 No

+

SC363612GNK 12/12 No

(+) All products, unless otherwise denoted by a (+), are: H+1/8", W+1/8", D+3/16"

Note: Must specify CSA
Label when ordering.
Consult factory for
dimensions and drawings
on 8", 10" and 12" deep
enclosures.

Note: 8", 10" and 12" deep
enclosures do not have
mounting embosses in
back of enclosure, only
mounting holes.

Knockout
Patterns

A--1/2" TO 3/4"
B--3/4" TO 1"

A

4" SIDE

F--1" TO 1-1/4"

1.63 1.63

SURFACE & FLUSH COVERS ONLY

CATALOG NUMBER

SURFACE PNTD. SURFACE GALV. FLUSH PAINTED FLUSH GALV.

SC0404 SC0404G SCF0404 SCF0404G 6.00x6.00 (152x152) 4.00x4.00 (102x102)

SC0406 SC0406G SCF0406 SCF0406G 8.00x6.00 (203x152) 6.00x4.00 (102x102)

SC0606 SC0606G SCF0606 SCG0606G 8.00x8.00 (203x203) 6.00x6.00 (152x152)

SC0608 SC0608G SCF0608 SCF0608G 10.00x8.00 (254x203) 8.00x6.00 (203x152)

SC0612 SC0612G SCF0612 SCF0612G 14.00x8.00 (356x203) 12.00x6.00 (305x152)

SC0808 SC0808G SCF0808 SCF0808G 10.00x10.00 (254x254) 8.00x8.00 (203x203)

SC0810 SC0810G SCF0810 SCF0810G 12.00x10.00 (305x254) 10.00x8.00 (254x203)

SC0812 SC0812G SCF0812 SCF0812G 14.00x10.00 (356x254) 12.00x8.00 (305x203)

SC1010 SC1010G SCF1010 SCF1010G 12.00x12.00 (305x305) 10.00x10.00 (254x254)

SC1012 SC1012G SCF1012 SCF1012G 14.00x12.00 (356x305) 12.00x10.00 (305x254)

SC1212 SC1212G SCF1212 SCF1212G 14.00x14.00 (356x356) 12.00x12.00 (305x305)

SC1215 SC1215G SCF1215 SCF1215G 17.00x14.00 (432x356) 15.00x12.00 (381x305)

SC1216 SC1216G SCF1216 SCF1216G 18.00x14.00 (457x356) 16.00x12.00 (406x305)

A

A

B

6" &8" SIDE

1.63 1.63 1.94 1.63

SC1218 SC1218G SCF1218 SCF1218G 20.00x14.00 (508x356) 18.00x12.00 (457x305)

SC1224 SC1224G SCF1224 SCF1224G 26.00x14.00 (660x356) 24.00x12.00 (610x305)

SC1515 SC1515G SCF1515 SCF1515G 17.00x17.00 (432x432) 15.00x15.00 (381x381)

SC1518 SC1518G SCF1518 SCF1518G 20.00x17.00 (508x432) 18.00x15.00 (457x381)

AA

B

10" SIDE

12" SIDE

FF

1.63 1.63 1.94 1.63 1.63

A

F

F

1.63 1.63 1.63 1.94 1.63 1.63 1.

A

BB

SC1616 SC1616G SCF1616 SCF1616G 18.00x18.00 (457x457) 16.00x16.00 (406x406)

SC1818 SC1818G SCF1818 SCF1818G 20.00x20.00 (508x508) 18.00x18.00 (457x457)

SC1824 SC1824G SCF1824 SCF1824G 26.00x20.00 (660x508) 24.00x18.00 (610x457)

SC1830 SC1830G SCF1830 SCF1830G 32.00x20.00 (813x508) 30.00x18.00 (762x457)

SC2424 SC2424G SCF2424 SCF2424G 26.00x26.00 (660x660) 24.00x24.00 (610x610)

**Surface covers are same size as H x W of box.

BODY/DOOR COVERS

GAUGE See Chart Below

SC SERIES ENCLOSURES

ENCLOSURE SIZE

1

H+

⁄8", W+1⁄8", D+3⁄16"

24.00x12.00x12.00
(610x305x305)

18.00x18.00x12.00
(457x457x305)

24.00x18.00x12.00
(610x457x305)

24.00x24.00x12.00
(610x610x305)

30.00x24.00x12.00
(762x610x305)

36.00x24.00x12.00
(914x610x305)

30.00x30.00x12.00
(762x762x305)

36.00x30.00x12.00
(914x762x305)

36.00x36.00x12.00
(914x914x305)

0.88 TYP

FLUSH COVER SIZE FOR BOX SIZE
AXB HXW**

KNOCKOUT PATTERN

WIDTH SIDE HEIGHT SIDE

B-A-F-F-A-B A-B-A-F-F-A-B-A

A-B-A-F-F-A-B-A A-B-A-F-F-A-B-A

A-B-A-F-F-A-B-A A-B-A-F-F-A-B-A

A-B-A-F-F-A-B-A A-B-A-F-F-A-B-A

A-B-A-F-F-A-B-A A-B-A-F-F-A-B-A

A-B-A-F-F-A-B-A A-B-A-F-F-A-B-A

A-B-A-F-F-A-B-A A-B-A-F-F-A-B-A

A-B-A-F-F-A-B-A A-B-A-F-F-A-B-A

A-B-A-F-F-A-B-A A-B-A-F-F-A-B-A

Flush Covers

A5

B

A

15",18",24",

2.06 TYP

4.00" X 4.00"

A

B

30" &36" SIDE.

F

F

1.31 TYP

MOUNTING

A

Ø0.28 TYP

B

0.63 TYP

1.56 TYP

2.06 TYP

4.00" X6.00"

Ø0.28 TYP

MOUNTING

1.56 TYP

1.56 TYP

W

H

Ø0.28 TYP

D

INSIDE

0.22 TYP

A

www.hubbell-wiegmann.com

Data Subject To Change Without Notice

A6

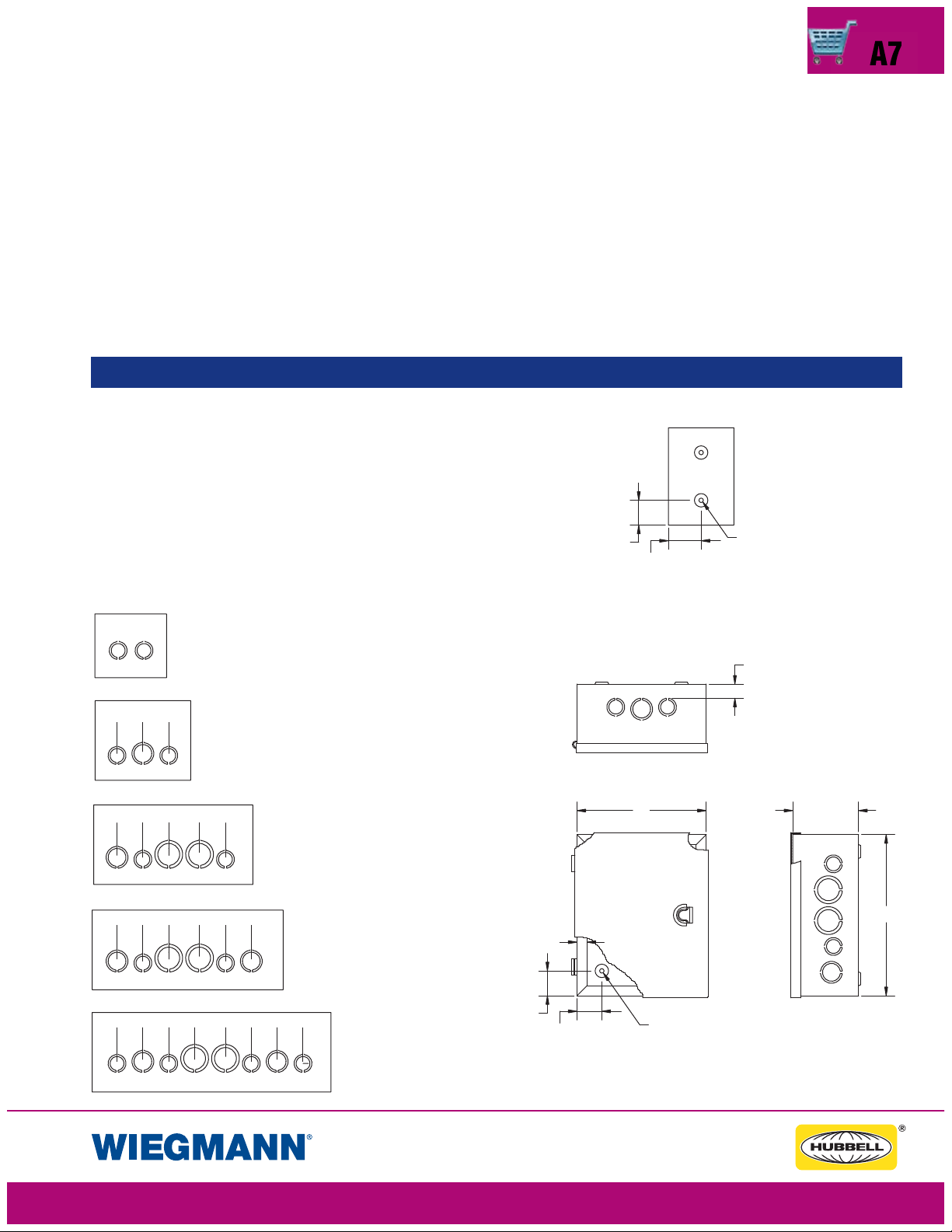

A SERIES ENCLOSURES
NEMA 1 HINGE COVER WALL-MOUNT

Industry Standards

UL 50, Type 1
CSA Certified, Type 1
NEMA/EEMAC Type 1

UL Files E6924

FEATURES-SPECIFICATIONS

Applications

Designed

for use as surface-mounted
junction box, service box, switch box
and cutout box.

Construction

• Bodies and doors fabricated from

16 or 14 gauge steel

• 3" depth boxes furnished with

formed steel hinge non removable
cover. 4" and 6" depth boxes
furnished with clamp style hinges
allowing for removable/replaceable
covers

• Various sizes of removable concen-

tric knockouts are furnished on all
four sides of standard cutout boxes

• Mounting holes on back of box

Finish

• ANSI-61 gray polyester powder

inside and out

Accessories

• See pages J1-J22

A080804

A SERIES HINGE COVER ENCLOSURES

CATALOG BODY/DOOR ENCLOSURE SIZE
NUMBER STEEL GAUGE H+

+

A040503 16/16 5.00x4.50x3.00 (127x114x76) A-A A-A

+

A060603 16/16 6.00x6.00x3.00 (152x152x76) A-B-A A-B-A

A040604 16/16 6.00x4.00x4.00 (152x102x102) A-A A-B-A

A060604 16/16 6.00x6.00x4.00 (152x152x102) A-B-A A-B-A

A060804 16/16 8.00x6.00x4.00 (203x152x102) A-B-A A-B-A

A080804 16/16 8.00x8.00x4.00 (203x203x102) A-B-A A-B-A

A081004 16/16 10.00x8.00x4.00 (254x203x102) A-B-A B-A-F-F-A

A081204 16/16 12.00x8.00x4.00 (305x203x102) A-B-A B-A-F-F-A-B

A101004 16/16 10.00x10.00x4.00 (254x254x102) B-A-F-F-A B-A-F-F-A

A101204 16/16 12.00x10.00x4.00 (305x254x102) B-A-F-F-A B-A-F-F-A-B

A121204 16/16 12.00x12.00x4.00 (305x305x102) B-A-F-F-A-B B-A-F-F-A-B

A121504 16/16 15.00x12.00x4.00 (381x305x102) B-A-F-F-A-B A-B-A-F-F-A-B-A

A121604 16/16 16.00x12.00x4.00 (406x305x102) B-A-F-F-A-B A-B-A-F-F-A-B-A

A121804 16/16 18.00x12.00x4.00 (457x305x102) B-A-F-F-A-B A-B-A-F-F-A-B-A

A151804 16/16 18.00x15.00x4.00 (457x381x102) A-B-A-F-F-A-B-A A-B-A-F-F-A-B-A

A060606 16/16 6.00x6.00x6.00 (152x152x152) A-B-A A-B-A

A080806 16/16 8.00x8.00x6.00 (203x203x152) A-B-A A-B-A

A081006 16/16 10.00x8.00x6.00 (254x203x152) A-B-A B-A-F-F-A

A101006 16/16 10.00x10.00x6.00 (254x254x152) B-A-F-F-A B-A-F-F-A

A101206 16/16 12.00x10.00x6.00 (305x254x152) B-A-F-F-A B-A-F-F-A-B

A121206 16/16 12.00x12.00x6.00 (305x305x152) B-A-F-F-A-B B-A-F-F-A-B

A121606 16/16 16.00x12.00x6.00 (406x305x152) B-A-F-F-A-B A-B-A-F-F-A-B-A

A121806 16/16 18.00x12.00x6.00 (457x305x152) B-A-F-F-A-B A-B-A-F-F-A-B-A

A151506 16/16 15.00x15.00x6.00 (381x381x152) A-B-A-F-F-A-B-A A-B-A-F-F-A-B-A

A161606 16/16 16.00x16.00x6.00 (406x406x152) A-B-A-F-F-A-B-A A-B-A-F-F-A-B-A

A181806 16/16 18.00x18.00x6.00 (457x457x152) A-B-A-F-F-A-B-A A-B-A-F-F-A-B-A

A182406 14/14 24.00x18.00x6.00 (610x457x152) A-B-A-F-F-A-B-A A-B-A-F-F-A-B-A

A242406 14/14 24.00x24.00x6.00 (610x610x152) A-B-A-F-F-A-B-A A-B-A-F-F-A-B-A

A243006 14/14 30.00x24.00x6.00 (762x610x152) A-B-A-F-F-A-B-A A-B-A-F-F-A-B-A

A243606 14/14 36.00x24.00x6.00 (914x610x152) A-B-A-F-F-A-B-A A-B-A-F-F-A-B-A

+

A243608 14/14 36.00x24.00x8.00 (914x610x203) A-B-A-F-F-A-B-A A-B-A-F-F-A-B-A

NOTE: Must specify CSA Label when ordering.

(+) All products, unless otherwise denoted by a (+), are: H+1/8", W+1/8", D+3/16"

NOTE: 8" deep enclosures do not have mounting embosses in back of enclosure,

only mounting holes.

NOTE: Second numerical value of catalog # represents height.

1

⁄8", W+1⁄8", D+3⁄16"

CSA File LL66078

KNOCKOUT PATTERNS

WIDTH SIDE HEIGHT SIDE

www.hubbell-wiegmann.com

Data Subject To Change Without Notice

A SERIES ENCLOSURES

NEMA 1 HINGE COVER WALL-MOUNT

A7

Knockout Patterns

4-1/2" &5" SIDE

A

A

1.63 1.63

A

B

A

B

1.63 1.63 1.94 1.63

AA

FF

1.63 1.63 1.94 1.63 1.63

A

F

F

6" &8" SIDE

A

BB

10" SIDE

12" SIDE

A--1/2" TO 3/4"
B--3/4" TO 1"
F--1" TO 1-1/4"

0.63 TYP

1.56 TYP

2.06 TYP

4.00" X 6.00"

W

Ø0.28 TYP

MOUNTING

0.88
TYP

D

INSIDE

H

1.63 1.63 1.63 1.94 1.63 1.63 1.63

A

A

B

F

A

F

1.56 TYP

15",16",18",24"
30" &36" SIDE.

A

B

1.56 TYP

Ø0.28 TYP

www.hubbell-wiegmann.com

Data Subject To Change Without Notice

A8

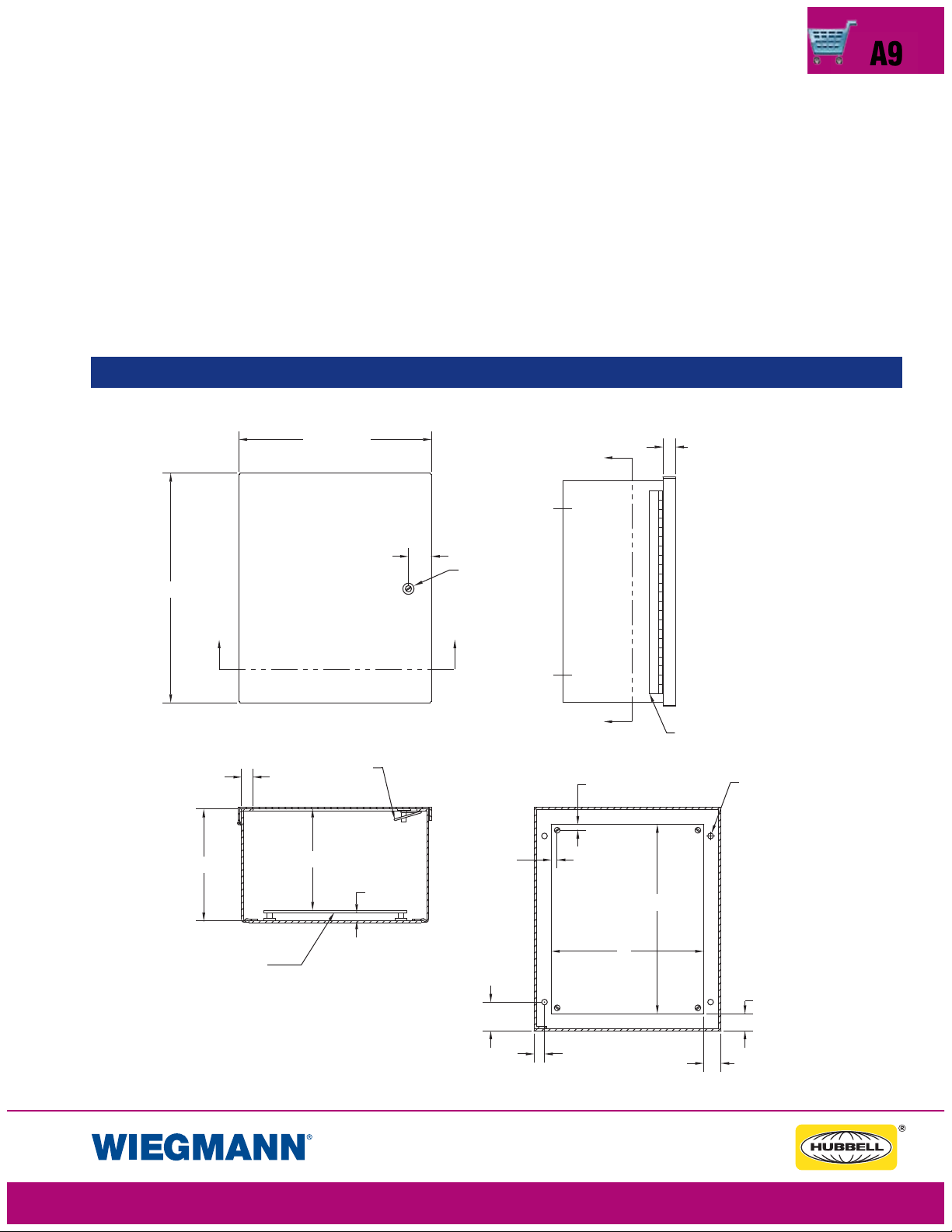

N1C SERIES ENCLOSURES
“SMALL” NEMA 1 HINGED WALL-MOUNT

Industry Standards

UL 50, Type 1
CSA Certified, Type 1
NEMA/EEMAC Type 1

UL Files E6924

N1C060604

CSA File LL66078

FEATURES-SPECIFICATIONS

Applications

Designed

for use as control enclo­sures and instrument cases in areas
not requiring oil-tight and dust-tight
specifications.

Construction

• Bodies and doors fabricated from

14 gauge steel (reference tables)

• Continuous hinged covers

• Doors furnished standard with
flushmount quarter-turn style latch

• Weldnuts provided for mounting
optional back panels

Fini sh

• ANSI-61 gray polyester powder
inside and out

• Optional back panels are white
polyester powder

• Optional perforated panels are
painted white polyester powder

Accessories

• Back panels (reference tables) and
page I3

• Cylinder lock kit

• See pages J1-J22

• Mounting holes on back of cabinet

• Grounding provisions provided

“SMALL” N1C SERIES HINGE COVER ENCLOSURES

CATALOG BODY/DOOR ENCLOSURE SIZE BACK PANEL CATALOG NUMBER* BACK PANEL BACK PANEL
NUMBER STEEL GAUGE H+

N1C060604 14/14 6.00x6.00x4.00 (152x152x102) N1P0606 N1P0606PP 14 4.25x4.25 (108x108)

N1C060804 14/14 8.00x6.00x4.00 (203x152x102) N1P0608 N1P0608PP 14 6.25x4.25 (159x108)

N1C080804 14/14 8.00x8.00x4.00 (203x203x102) N1P0808 N1P0808PP 14 6.25x6.25 (159x159)

N1C081004 14/14 10.00x8.00x4.00 (254x203x102) N1P0810 N1P0810PP 14 8.25x6.25 (210x159)

N1C101004 14/14 10.00x10.00x4.00 (254x254x102) N1P1010 N1P1010PP 14 8.25x8.25 (210x210)

N1C101204 14/14 12.00x10.00x4.00 (305x254x102) N1P1012 N1P1012PP 14 10.25x8.25 (260x210)

N1C121204 14/14 12.00x12.00x4.00 (305x305x102) N1P1212 N1P1212PP 14 10.25x10.25 (260x260)

N1C121404 14/14 14.00x12.00x4.00 (356x305x102) N1P1214 N1P1214PP 14 12.25x10.25 (311x260)

N1C060806 14/14 8.00x6.00x6.00 (203x152x152) N1P0608 N1P0608PP 14 6.25x4.25 (159x108)

N1C080806 14/14 8.00x8.00x6.00 (203x203x152) N1P0808 N1P0808PP 14 6.25x6.25 (159x159)

N1C081006 14/14 10.00x8.00x6.00 (254x203x152) N1P0810 N1P0810PP 14 8.25x6.25 (210x159)

N1C101006 14/14 10.00x10.00x6.00 (254x254x152) N1P1010 N1P1010PP 14 8.25x8.25 (210x210)

N1C101206 14/14 12.00x10.00x6.00 (305x254x152) N1P1012 N1P1012PP 14 10.25x8.25 (260x210)

N1C121206 14/14 12.00x12.00x6.00 (305x305x152) N1P1212 N1P1212PP 14 10.25x10.25 (260x260)

N1C121406 14/14 14.00x12.00x6.00 (356x305x152) N1P1214 N1P1214PP 14 12.25x10.25 (311x260)

N1C121606S 14/14 16.00x12.00x6.00 (406x305x152) N1P1216 N1P1216PP 14 14.25x10.25 (362x260)

N1C122006 14/14 20.00x12.00x6.00 (508x305x152) N1P1220 N1P1220PP 14 18.25x10.25 (464x260)

+

N1C121208 14/14 12.00x12.00x8.00 (305x305x203) N1P1212 N1P1212PP 14 10.25x10.25 (260x260)

+

N1C121408 14/14 14.00x12.00x8.00 (356x305x203) N1P1214 N1P1214PP 14 12.25x10.25 (311x260)

1

⁄8", W+1⁄8", D+3⁄16"

PAINTED PERFORATED

STEEL GAUGE SIZE A X B

*Back panels must be ordered separately

(+) All products, unless otherwise denoted by a (+), are: H+1/8", W+1/8", D+3/16"

NOTE: Second numerical value of catalog # represents height.

www.hubbell-wiegmann.com

Data Subject To Change Without Notice

N1C SERIES ENCLOSURES

“SMALL” NEMA 1 HINGED WALL-MOUNT

A9

H+.50

W + .50

Y

1. 2 5

XX

0.63
TYP

D

FLUSH COIN

LATCH

D - 0.53

0.46

1/4 TURN
LATCH
FLUSH
MOUNTED

Y

0.31 TYP

0.31
TYP

0.69 TYP

Notes:

1. Panels are 14 Ga. steel or

2. Perforated =16 Ga. steel.

3. Panel screws are #10-32.

CONTINUOUS

HINGE

Ø 0.31 TYP
MOUNTING HOLES

A

PANEL

(Order Separately)

SECTION X-X

B

1.56 TYP

0.56 TYP

SECTION Y-Y

www.hubbell-wiegmann.com

Data Subject To Change Without Notice

0.94 TYP

0.93TYP

A10

N1C SERIES ENCLOSURES
“MEDIUM” NEMA 1 HINGED WALL-MOUNT

Industry Standards

UL 50, Type 1
CSA Certified, Type 1
NEMA/EEMAC Type 1

UL File E6924

FEATURES-SPECIFICATIONS

Applications

Designed

for use in control and
instrumentation applications in areas
which do not require oil-tight and
dust-tight specifications.

Construction

• Bodies and doors fabricated from

14 gauge steel

• Mounting holes on back of cabinet

• Collar studs provided for mounting

optional back panel

• Doors furnished standard with

flushmount quarter-turn style latch

• Doors secured by butt hinges

• Grounding provisions provided

Finish

• ANSI-61 gray polyester powder

inside and out

• Optional back panels are white

polyester powder

• Optional perforated subpanels are

painted white polyester powder

Accessories

• Back panels (reference tables) and

page I6

• See pages J1-J22

N1C161606LP

XX

BUTT

HINGES

0.75
TYP

Ø 0.31

TYP

0.75
TYP

CSA File LL66078

D

W

1/4 TURN
LATCH
FLUSH
MOUNTED

H

C

2.06

0.69

GF

I

L

TYP

A

B

0.75
TYP

OMIT MIDDLE
STUDS IF
"A" AND "B"
IS LESS
THAN 28.00

E

0.683 (16GA. = PERF. PANEL)

0.705 (14GA. PANEL)

0.727 (12GA. PANEL)

OUTSIDE

K

SECTION X-X

3/8-16 COLLAR
STUD

PANEL

(ORDER SEPARATELY)

Ø 0.31

TYP

VIEW WITH

0.50 TYP

FLANGE WIDTH

SEE NOTE 1

COVER REMOVED

www.hubbell-wiegmann.com

Data Subject To Change Without Notice

Notes:

1. Cat. #’s denoted by
an asterisk (*) include a
flange only on the latch side.

“MEDIUM” N1C SERIES HINGE COVER ENCLOSURES

CATALOG BODY/DOOR ENCLOSURE SIZE

NU M B ER STEEL GAUGE H X W X D

N1C121606LP* 14/14

N1C161606LP* 14/14

N1C162006LP* 14/14

N1C162406LP* 14/14

N1C201606LP* 14/14

N1C202006LP* 14/14

N1C202406LP* 14/14

N1C242406LP* 14/14

N1C203006LP* 14/14

N1C243006LP 14/14

N1C243606LP 14/14

N1C303606LP 14/14

N1C121608LP* 14/14

N1C162008LP* 14/14

N1C202008LP* 14/14

N1C202408LP* 14/14

N1C242008LP* 14/14

N1C242408LP* 14/14

N1C243008LP 14/14

N1C303008LP 14/14

N1C243608LP 14/14

N1C303608LP 14/14

N1C202410LP* 14/14

N1C243010LP 14/14

N1C242412LP* 14/14

N1C243012LP 14/14

N1C303612LP 14/14

*See note 1 on the drawing.

**Back panels must be ordered separately

NOTE: Second numerical value of catalog # represents height.

16.00x12.00x6.75
(406x305x171) (330x267) (352) (178) (64) (27) (152) (38)

16.00x16.00x6.75
(406x406x171) (330x368) (352) (279) (64) (27) (152) (38)

20.00x16.00x6.75
(508x406x171) (432x368) (454) (279) (64) (27) (152) (38)

24.00x16.00x6.75
(610x406x171) (533x368) (556) (279) (64) (27) (152) (38)

16.00x20.00x6.75
(406x508x171) (330x470) (352) (381) (64) (27) (152) (38)

20.00x20.00x6.75
(508x508x171) (432x470) (454) (381) (64) (27) (152) (38)

24.00x20.00x6.75
(610x508x171) (533x470) (556) (381) (64) (27) (152) (38)

24.00x24.00x6.75
(610x610x171) (533x572) (556) (483) (64) (27) (151) (38)

30.00x20.00x6.63
(762x508x168) (660x470) (699) (324) (92) (32) (148) (51)

30.00x24.00x6.63
(762x610x168) (660x572) (699) (425) (92) (32) (148) (51)

36.00x24.00x6.63
(914x610x168) (813x572) (851) (425) (92) (32) (148) (51)

36.00x30.00x6.63
(914x762x168) (813x724) (851) (578) (92) (32) (148) (51)

16.00x12.00x8.75
(406x305x222) (330x267) (352) (178) (64) (27) (203) (38)

20.00x16.00x8.75
(508x406x222) (432x368) (454) (279) (64) (27) (203) (38)

20.00x20.00x8.75
(508x508x222) (432x470) (454) (381) (64) (27) (203) (38)

24.00x20.00x8.75
(610x508x222) (533x470) (556) (381) (64) (27) (203) (38)

20.00x24.00x8.75
(508x610x222) (432x572) (454) (483) (64) (27) (203) (38)

24.00x24.00x8.75
(610x610x222) (533x572) (556) (483) (64) (27) (202) (38)

30.00x24.00x8.63
(762x610x219) (660x572) (699) (425) (92) (32) (199) (51)

30.00x30.00x8.63
(762x762x219) (660x724) (699) (578) (92) (32) (199) (51)

36.00x24.00x8.63
(914x610x219) (813x572) (851) (425) (92) (32) (199) (51)

36.00x30.00x8.63
(914x762x219) (813x724) (851) (578) (92) (32) (199) (51)

24.00x20.00x10.75
(610x508x273) (533x470) (556) (381) (64) (27) (253) (38)

30.00x24.00x10.63
(762x610x270) (660x572) (699) (425) (92) (32) (250) (51)

24.00x24.00x12.75
(610x610x324) (533x572) (556) (483) (64) (27) (304) (38)

30.00x24.00x12.63
(762x610x321) (660x572) (699) (425) (92) (32) (300) (51)

36.00x30.00x12.63
(914x762x321) (813x724) (851) (578) (92) (32) (300) (51)

BACK PANEL PERFORATED
CATALOG SUBPANEL
NUMBER** PART NUMBER**

N1P1216L N1P1216LPP

N1P1616 N1P1616PP

N1P1620 N1P1620PP

N1P1624 N1P1624PP

N1P2016 N1P2016PP

N1P2020 N1P2020PP

N1P2024 N1P2024PP

N1P2424 N1P2424PP

N1P2030 N1P2030PP

N1P2430 N1P2430PP

N1P2436 N1P2436PP

N1P3036 N1P3036PP

N1P1216L N1P1216LPP

N1P1620 N1P1620PP

N1P2020 N1P2020PP

N1P2024 N1P2024PP

N1P2420 N1P2420PP

N1P2424 N1P2424PP

N1P2430 N1P2430PP

N1P3030 N1P3030PP

N1P2436 N1P2436PP

N1P3036 N1P3036PP

N1P2024 N1P2024PP

N1P2430 N1P2430PP

N1P2424 N1P2424PP

N1P2430 N1P2430PP

N1P3036 N1P3036PP

N1C SERIES ENCLOSURES

“MEDIUM” NEMA 1 HINGED WALL-MOUNT

BACK PANEL BACK PANEL
SIZE A X B

13.00x10.50

13.00x14.50

17.00x14.50

21.00x14.50

13.00x18.50

17.00x18.50

21.00x18.50

21.00x22.50

26.00x18.50

26.00x22.50

32.00x22.50

32.00x28.50

13.00x10.50

17.00x14.50

17.00x18.50

21.00x18.50

17.00x22.50

21.00x22.50

26.00x22.50

26.00x28.50

32.00x22.50

32.00x28.50

21.00x18.50

26.00x22.50

21.00x22.50

26.00x22.50

32.00x28.50

STEEL GAUGE

14

14

14

14

14

14

14

12

12

12

12

12

14

14

14

14

14

12

12

12

12

12

14

12

12

12

12

EFGIKL

13.88 7.00 2.50 1.06 5.974 1.50

13.88 11.00 2.50 1.06 5.974 1.50

17.88 11.00 2.50 1.06 5.974 1.50

21.88 11.00 2.50 1.06 5.974 1.50

13.88 15.00 2.50 1.06 5.974 1.50

17.88 15.00 2.50 1.06 5.974 1.50

21.88 15.00 2.50 1.06 5.974 1.50

21.88 19.00 2.50 1.06 5.952 1.50

27.50 12.75 3.63 1.25 5.827 2.00

27.50 16.75 3.63 1.25 5.827 2.00

33.50 16.75 3.63 1.25 5.827 2.00

33.50 22.75 3.63 1.25 5.827 2.00

13.88 7.00 2.50 1.06 7.974 1.50

17.88 11.00 2.50 1.06 7.974 1.50

17.88 15.00 2.50 1.06 7.974 1.50

21.88 15.00 2.50 1.06 7.974 1.50

17.88 19.00 2.50 1.06 7.974 1.50

21.88 19.00 2.50 1.06 7.952 1.50

27.50 16.75 3.63 1.25 7.827 2.00

27.50 22.75 3.63 1.25 7.827 2.00

33.50 16.75 3.63 1.25 7.827 2.00

33.50 22.75 3.63 1.25 7.827 2.00

21.88 15.00 2.50 1.06 9.974 1.50

27.50 16.75 3.63 1.25 9.827 2.00

21.88 19.00 2.50 1.06 11.952 1.50

27.50 16.75 3.63 1.25 11.827 2.00

33.50 22.75 3.63 1.25 11.827 2.00

A11

www.hubbell-wiegmann.com

Data Subject To Change Without Notice

A12

N1C SERIES ENCLOSURES
“LARGE” NEMA 1 HINGED WALL-MOUNT

Industry Standards

UL 508, Type 1
CSA Certified, Type 1
NEMA/EEMAC Type 1

UL File E6924

N1C304209

CSA File LL66078

FEATURES-SPECIFICATIONS

Applications

Designed

for use in control and
instrumentation applications in areas
which do not require oil-tight and
dust-tight specifications.

Construction

• Bodies and doors fabricated from

14 gauge steel

• Continuous hinged doors

• Door and body stiffeners provided
for extra rigidity in larger enclosures

• Collar studs provided for mounting
optional back panels

• External mounting feet provided

• Grounding provisions provided

• Doors are furnished standard with
flushmount quarter-turn latch

Fini sh

• ANSI-61 gray polyester powder
inside and out

• Optional panels are white polyester
powder

Acces sories

• Back panels (reference tables) and
page I4

• See pages J1-J22

• Doors are easily removable by
pulling the hinge pin

“LARGE” N1C SERIES HINGE COVER ENCLOSURES

CATALOG BODY/DOOR ENCLOSURE SIZE BACK PANEL BACK PANEL BACK PANEL
NUMBER STEEL GAUGE H X W X D CATALOG NUMBER* STEEL GAUGE SIZE A X B

N1C304209 14/14 42.00x30.00x8.94 (1067x762x227) NP4230 12 39.00x27.00 (991x686)

N1C364209 14/14 42.00x36.00x8.94 (1067x914x227) NP4236 12 39.00x33.00 (991x838)

N1C364809 14/14 48.00x36.00x8.94 (1219x914x227) NP4836 12 45.00x33.00 (1143x838)

N1C364811 14/14 48.00x36.00x10.94 (1219x914x278) NP4836 12 45.00x33.00 (1143x838)

N1C304213 14/14 42.00x30.00x12.94 (1067x762x329) NP4230 12 39.00x27.00 (991x686)

N1C364817 14/14 48.00x36.00x17.25 (1219x914x438) NP4836 12 45.00x33.00 (1143x838)

* Back panels must be ordered separately

NOTE: Second numerical value of catalog # represents height.

www.hubbell-wiegmann.com

Data Subject To Change Without Notice

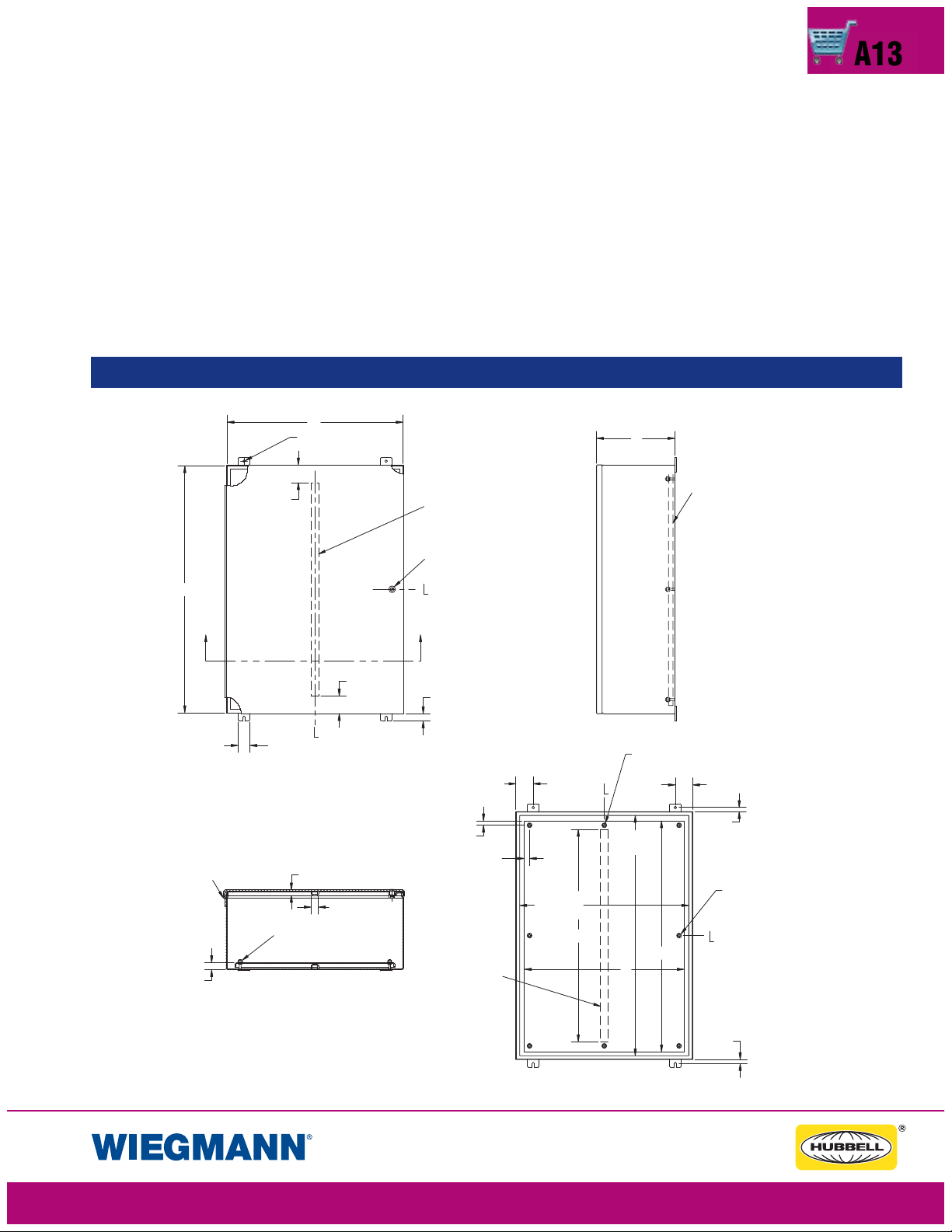

W

Ø0.44 TYP

N1C SERIES ENCLOSURES

“LARGE” NEMA 1 HINGED WALL-MOUNT

D

A13

H

CONTINUOUS

HINGE

1.09

3.00

C

2.00
TYP

0.75

3/8-16 COLLAR
STUD

SECTION X-X

1.25

3.00

DOOR STIFFENER
PROVIDED WHEN
W=36.00"

FLUSH MOUNTED
1/4 TURN LATCH

C

XX

1.25 TYP

0.88 TYP

0.88 TYP

BODY

STIFFENER

3.00
TYP

W-1.28

OPENING

H-6.00

OMIT TWO MIDDLE STUDS

IF W < 31.00"

C

H-1.28

OPENING

A

B

OPTIONAL
PANEL

3.00
TYP

0.63
TYP

OMIT TWO

C

MIDDLE STUDS

IF H <31.00"

VIEW WITH COVER

REMOVED

www.hubbell-wiegmann.com

Data Subject To Change Without Notice

0.63
TYP

NOTES

www.hubbell-wiegmann.com

Data Subject To Change Without Notice
