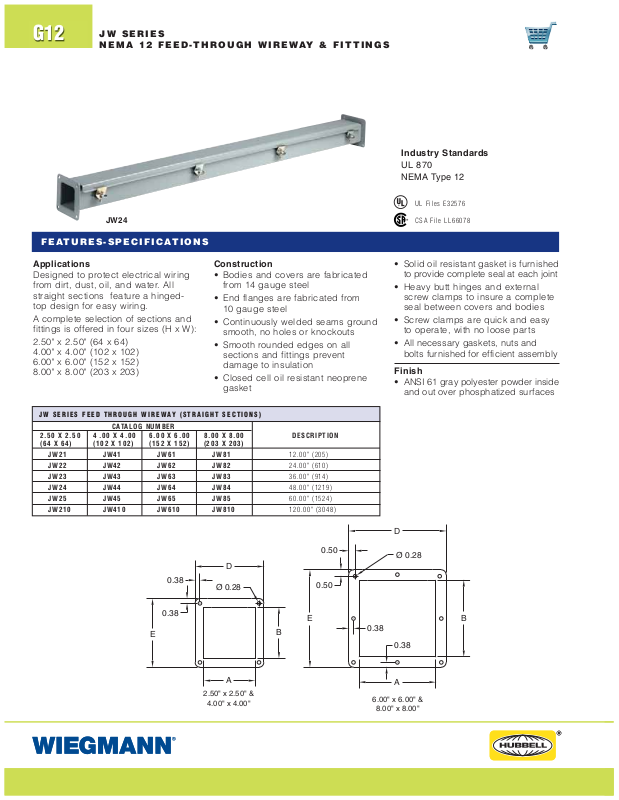

Wiegmann JW SERIES Catalog Page
G12
JW SERIES
NEMA 12 FEED-THROUGH WIREWAY & FITTINGS
JW24
FEATURES-SPECIFICATIONS
Industry Standards
UL 870
NEMA Type 12
UL Files E32576
CSA File LL66078
Applications
Designed
to protect electrical wiring
from dirt, dust, oil, and water. All
straight sections feature a hingedtop design for easy wiring.
A complete selection of sections and
fittings is offered in four sizes (H x W):
2.50" x 2.50" (64 x 64)
4.00" x 4.00" (102 x 102)
6.00" x 6.00" (152 x 152)
8.00" x 8.00" (203 x 203)
Construction
• Bodies and covers are fabricated
from 14 gauge steel
• End flanges are fabricated from
10 gauge steel
• Continuously welded seams ground
smooth, no holes or knockouts
• Smooth rounded edges on all
sections and fittings prevent
damage to insulation
• Closed cell oil resistant neoprene
gasket
JW SERIES FEED THROUGH WIREWAY (STRAIGHT SECTIONS)
2.50 X 2.50 4 .00 X 4.00 6.00 X 6.00 8.00 X 8.00 DESCRIPTION
(64 X 64) (102 X 102) (152 X 152) (203 X 203)
JW21 JW41 JW61 JW81 12.00" (205)
JW22 JW42 JW62 JW82 24.00" (610)
JW23 JW43 JW63 JW83 36.00" (914)
JW24 JW44 JW64 JW84 48.00" (1219)
JW25 JW45 JW65 JW85 60.00" (1524)
JW210 JW410 JW610 JW810 120.00" (3048)
CATALOG NUMBER
0.38
D
Ø0.28
0.50
0.50
• Solid oil resistant gasket is furnished
to provide complete seal at each joint
• Heavy butt hinges and external
screwclampstoinsureacomplete
seal between covers and bodies
• Screw clamps are quick and easy
to operate, with no loose parts
• All necessary gaskets, nuts and
bolts furnished for efficient assembly
Fini sh
• ANSI 61 gray polyester powder inside
and out over phosphatized surfaces
D
Ø 0.28
0.38
E
A
2.50" x 2.50" &
4.00" x 4.00"
B
E
0.38
0.38
A
6.00" x 6.00" &
8.00" x 8.00"
B
JW SERIES
NEMA 12 FEED-THROUGH WIREWAY & FITTINGS
JW SERIES FEED THROUGH WIREWAY (FITTINGS)
2.50 x 2.50 4 .00 x 4.00 6.00 x 6.00 8.00 x 8.00 DESCRIPTION
(64 x 64) (102 x 102) (152 x 152) (203 x 203)
JWS2 JWS4 JWS6 JWS8 Telescope*
JWF2 JWF4 JWF6 JWF8 Cut-off (1 set of gaskets and screws included)
JWL902 JWL904 JWL906 JWL908 90 Degree elbow (1 set of gaskets and screws included)
JWL452 JWL454 JWL456 JWL458 45 Degree elbow (1 set of gaskets and screws included)
JWT2 JWT4 JWT6 JWT8 Tee-top (2 sets of gaskets and screws included)
JWX2 JWX4 JWX6 JWX8 Cross (3 sets of gaskets and screws included)
JWE2 JWE4 JWE6 JWE8 End plate (1 set of gaskets and screws included)
JWA2 JWA4 JWA6 JWA8 Box adaptor (1 set of gaskets and screws included)
— JWRB42C — — Reducer 4.00" (102) to 2.50" (54) center hole**
——JWRB64C — Reducer 6.00" (152) to 4.00" (102) center hole**
—— —JWRB84C Reducer 8.00" (203) to 4.00" (102) center hole**
—— —JWRB86C Reducer 8.00"(203) to 6.00" (152) center hole**
JWD2 JWD4 JWD6 JWD8 Drop-hanger
JWBH2 JWBH4 JWBH6 JWBH8 Bracket-hanger
JWN221 JWN441 JWN661 JWN881 1.00" Nipple
JWN222 JWN442 JWN662 JWN882 2.00" Nipple
JWN223 JWN443 JWN663 JWN883 3.00" Nipple
JWN226 JWN446 JWN666 JWN886 6.00" Nipple
JWSC22 JWSC44 JWSC66 — Swivel nipple-regular
JWFF2 JWFF4 JWFF6 JWFF8 Flexible fitting***
— JW4BK60 JW6BK60 JW8BK60 60.00" Barrier kit
JWG22 JWG44 JWG66 JWG88 Extra gasket and screws
* Not UL listed.
** One set of gaskets and screws included with all reducers.
***Minimum length 3", maximum length 8".
CATALOG NUMBER
G13
JW SERIES WIREWAY & FITTINGS DIMENSIONS
A X B C - LENGTH D E F G H J K P R S T U
2.50x2.50 12.00 24.00 36.00 48.00 60.00 120.00 3.88 3.88 5.50 8.50 2.50 2.00 4.25 4.63 3.75 9.31 4.50 4.38
(64x64) (305) (610) (914) (1219) (1524) (3048) (99) (99) (140) (216) (64) (51) (108) (118) (95) (236) (114) (111)
4.00x4.00 12.00 24.00 36.00 48.00 60.00 120.00 5.38 5.38 7.00 10.00 3.25 2.44 5.00 6.13 3.75 11.75 6.00 5.88
(102x102) (305) (610) (914) (1219) (1524) (3048) (137) (137) (178) (254) (83) (62) (127) (156) (95) (298) (152) (149)
6.00x6.00 12.00 24.00 36.00 48.00 60.00 120.00 7.63 7.63 9.00 12.00 4.25 3.00 6.00 8.25 3.75 15.25 8.13 7.88
(152x152) (305) (610) (914) (1219) (1524) (3048) (194) (194) (229) (305) (108) (76) (152) (210) (95) (387) (207) (200)
8.00x8.00 12.00 24.00 36.00 48.00 60.00 120.00 9.63 9.63 11.00 14.00 5.25 3.75 7.00 10.25 3.75 20.56 12.13 9.88
(203x203) (305) (610) (914) (1219) (1524) (3048) (245) (245) (279) (356) (133) (95) (178) (260) (95) (522) (308) (251)
DATA SUBJECT TO CHANGE WITHOUT NOTICE
