RSC SERIES ENCLOSURES
NEMA 3R SCREW COVER WALL-MOUNT
Industry Standards
UL 50, Types 1 & 3R
CSA Certified, Type 1 & 3R
NEMA/EEMAC Type 1 & 3R
UL File E23553
RSC060604
FEATURES-SPECIFICATIONS
Applications
Designed
for use as wiring boxes and
junction boxes. Provide protection in outdoor applications against rain, sleet, and
snow, or indoors against dripping water.
Construction
• Bodies and doors fabricated from 16,
14, or 12 gauge carbon steel and
pre-galvanized steel (reference table)
• Drip shield top and smooth seam-
less sides and front
• Knockouts are standard on bottom
of 4.00" and 6.00" deep enclosures
(reference table)
• A slip-on reversible cover is
securely fastened with screws
located along bottom edge
• No gasketing is required
• Hasp for padlocking or meter seal
is provided
Finish
• ANSI-61 gray polyester powder
inside and out over carbon steel
• Pre-galvanized steel (unfinished)
Accessories
• See pages J1-J22
‡Not UL Listed. No hasp or meter seal.
Must specify CSA Label when ordering.
Notes: For removal of cover, move downward, then
outward.
4.00x4.00x4.00 only has 2 mounting holes
centered horizontally.
4.00x6.00x4.00 only has 2 mounting holes
centered vertically.
Note: 8", 10" and 12" deep enclosures do not
have mounting embosses in back of
enclosure, only mounting holes.
Note: Second numerical value of catalog #
represents height.
**Also available with No Knockouts
Add “NK” to Catalog Number
CSA File LL66078
RSC SERIES SCREW COVER ENCLOSURES
CATALOG NUMBER
PAINTED GALVANIZED
RSC040404**‡ RSC040404G** 16/16 4.00x4.00x4.00 (102x102x102) A
RSC040604**‡ RSC040604G** 16/16 6.00x4.00x4.00 (152x102x102) A
RSC060604** RSC060604G** 16/16 6.00x6.00x4.00 (152x152x102) A-B-A
RSC060804** RSC060804G** 16/16 8.00x6.00x4.00 (203x152x102) A-B-A
RSC080804** RSC080804G** 16/16 8.00x8.00x4.00 (203x203x102) A-B-A
RSC081004** RSC081004G** 16/16 10.00x8.00x4.00 (254x203x102) A-B-A
RSC101004** RSC101004G** 16/16 10.00x10.00x4.00 (254x254x102) B-A-F-F-A
RSC101204** RSC101204G** 16/16 12.00x10.00x4.00 (305x254x102) B-A-F-F-A
RSC121204** RSC121204G** 16/16 12.00x12.00x4.00 (305x305x102) B-A-F-F-A-B
RSC121504** RSC121504G** 16/16 15.00x12.00x4.00 (381x305x102) B-A-F-F-A-B
RSC181804** RSC181804G** 16/16 18.00x18.00x4.00 (457x457x102) A-B-A-F-F-A-B-A
RSC060606** RSC060606G** 16/16 6.00x6.00x6.00 (152x152x152) A-B-A
RSC060806** RSC060806G** 16/16 8.00x6.00x6.00 (203x152x152) A-B-A
RSC080806** RSC080806G** 16/16 8.00x8.00x6.00 (203x203x152) A-B-A
RSC081006** RSC081006G** 16/16 10.00x8.00x6.00 (254x203x152) A-B-A
RSC081206** RSC081206G** 16/16 12.00x8.00x6.00 (305x203x152) A-B-A
RSC101006** RSC101006G** 16/16 10.00x10.00x6.00 (254x254x152) B-A-F-F-A
RSC101206** RSC101206G** 16/16 12.00x10.00x6.00 (305x254x152) B-A-F-F-A
RSC121206** RSC121206G** 16/16 12.00x12.00x6.00 (305x305x152) B-A-F-F-A-B
RSC121506** RSC121506G** 16/16 15.00x12.00x6.00 (381x305x152) B-A-F-F-A-B
RSC121806** RSC121806G** 16/16 18.00x12.00x6.00 (457x305x152) B-A-F-F-A-B
RSC151806** RSC151806G** 16/16 18.00x15.00x6.00 (457x381x152) A-B-A-F-F-A-B-A
RSC181806** RSC181806G** 16/16 18.00x18.00x6.00 (457x457x152) A-B-A-F-F-A-B-A
RSC182406** RSC182406G** 16/16 24.00x18.00x6.00 (610x457x152) A-B-A-F-F-A-B-A
RSC242406** RSC242406G** 14/14 24.00x24.00x6.00 (610x610x152) A-B-A-F-F-A-B-A
+
RSC121208 RSC121208G 16/16 12.00x12.00x8.00 (305x305x203) No Knockouts
+
RSC121808 RSC121808G 16/16 18.00x12.00x8.00 (457x305x203) No Knockouts
+
RSC151808 RSC151808G 16/16 18.00x15.00x8.00 (457x381x203) No Knockouts
+
RSC181808 RSC181808G 16/16 18.00x18.00x8.00 (457x457x203) No Knockouts
+
RSC182408 RSC182408G 14/14 24.00x18.00x8.00 (610x457x203) No Knockouts
+
RSC202408 RSC202408G 14/14 24.00x20.00x8.00 (610x508x203) No Knockouts
+
RSC242408 RSC242408G 14/14 24.00x24.00x8.00 (610x610x203) No Knockouts
+
RSC243008 RSC243008G 14/14 30.00x24.00x8.00 (762x610x203) No Knockouts
+
RSC121210 RSC121210G 16/16 12.00x12.00x10.00 (305x305x254) No Knockouts
+
RSC161610 RSC161610G 16/16 16.00x16.00x10.00 (406x406x254) No Knockouts
+
RSC242412 RSC242412G 14/14 24.00x24.00x12.00 (610x610x305) No Knockouts
+
RSC243612 RSC243612G 12/12 36.00x24.00x12.00 (914x610x305) No Knockouts
+
RSC303012 RSC303012G 12/12 30.00x30.00x12.00 (762x762x305) No Knockouts
+
RSC303612 RSC303612G 12/12 36.00x30.00x12.00 (914x762x305) No Knockouts
+
RSC363612 RSC363612G 12/12 36.00x36.00x12.00 (914x914x305) No Knockouts
+
RSC242416 RSC242416G 14/14 24.00x24.00x16.00 (610x610x406) No Knockouts
+
RSC303016 RSC303016G 12/12 30.00x30.00x16.00 (762x762x406) No Knockouts
+
RSC363616 RSC363616G 12/12 36.00x36.00x16.00 (914x914x406) No Knockouts
+
RSC364816 RSC364816G 12/12 48.00x36.00x16.00 (1219x914x406) No Knockouts
(+) All products, unless otherwise denoted by a (+), are: H+1/8", W+1/8", D+3/16"
BODY/DOOR ENCLOSURE SIZE KNOCKOUT
STEEL GAUGE
1
H+
⁄8", W+1⁄8", D+3⁄16"
PATTERNS
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
RSC SERIES ENCLOSURES
NEMA 3R SCREW COVER WALL-MOUNT
B3
0.63 TYP
SEE NOTE 1
D
INSIDE
H
W
HASP &
METER SEAL
1.56
0.88
TYP
2.06
Ø0.84
TYP
0.13
TYP
H-3.00
1.56 TYP
Ø0.28 TYP.
3.00
Ø0.28
TYP
W-3.00
1.56 TYP
Ø0.28 TYP.
2.06
1.31
1.50
NOTES:
1. Enclosures with D = 8.00" or more do not have
an internal flange.
Knockout Patterns
A--1/2" TO 3/4"
B--3/4" TO 1"
F--1" TO 1-1/4"
4" WIDTH
A
1.63 1.63
A
A
B
6" &8" WIDTH
4.00" X 6.00"
MOUNTING
1.63 1.63 1.94 1.63
AA
B
1.63 1.63 1.94 1.63 1.63
1.63 1.63 1.63 1.94 1.63 1.63 1.63
A
A
B
FF
F
F
A
F
A
BB
A
F
10" WIDTH
12" WIDTH
A
B
4.00" X4.00"
MOUNTING
15",18",&
24" WIDTH
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
B4
RHC SERIES ENCLOSURES
“SMALL” NEMA 3R HINGE COVER WALL-MOUNT
Industry Standards
UL 50, Types 1 & 3R
CSA Certified, Type 1 & 3R
NEMA/EEMAC Type 1 & 3R
UL File E6924
RHC060604
CSA File LL66078
FEATURES-SPECIFICATIONS
Applications
Designed
for use as wiring boxes and
junction boxes. Provides protection
in outdoor installations against rain,
sleet, and snow, or indoors against
dripping water.
Construction
• Bodies and doors fabricated from
16 gauge carbon steel
• Continuous hinge
• Lid is supplied with a padlockable
draw latch
“SMALL” RHC SERIES HINGE COVER ENCLOSURES
CATALOG BODY/DOOR ENCLOSURE SIZE KNOCKOUT BACK PANEL CATALOG NUMBER* BACK PANEL
NUMBER STEEL GAUGE H X W X D PATTERN WHITE PERFORATED SIZE A X B
RHC060604 16/16
RHC060804 16/16
RHC080804 16/16
RHC080806 16/16
RHC081006 16/16
RHC101206 16/16
RHC121206 16/16
* Back panels must be ordered separately.
NOTE: Second numerical value of catalog # represents height.
6.06x6.00x4.13
(154x152x105) (108x108) (203) (178)
8.06x6.00x4.13
(205x152x105) (159x108) (254) (229)
8.06x8.00x4.13
(205x203x105) (159x159) (254) (229)
8.06x8.00x6.13
(205x203x156) (159x159) (254) (229)
10.06x8.00x6.13
(256x203x156) (210x159) (305) (279)
12.06x10.00x6.13
(306x254x156) (260x210) (356) (330)
12.06x12.00x6.13
(306x305x156) (260x260) (356) (330)
• Hinge is made of carbon steel with
a stainless steel hinge pin
• Standard size enclosures are provided
with knockouts in bottom
• Weldnuts provided for mounting
optional back panels
• External mounting plates, top and
bottom of enclosure
• Knockouts on bottom of enclosure
• Grounding provisions provided
G-F-G N1P0606 N1P0606PP
G-F-G N1P0608 N1P0608PP
G-F-G N1P0808 N1P0808PP
G-F-G N1P0808 N1P0808PP
G-F-G N1P0810 N1P0810PP
G-F-G N1P1012 N1P1012PP
F-G-H-I-G N1P1212 N1P1212PP
Fini sh
• ANSI-61 gray polyester powder
inside and out
• Optional back panels are white
polyester powder
• Optional perforated panels are
painted white polyester powder
(See page I3)
Acces sories
• Back panels (reference tables)
• See pages J1-J22
CE
4.25x4.25 8.00 7.00
6.25x4.25 10.00 9.00
6.25x6.25 10.00 9.00
6.25x6.25 10.00 9.00
8.25x6.25 12.00 11.00
10.25x8.25 14.00 13.00
10.25x10.25 14.00 13.00
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
RHC SERIES ENCLOSURES
“SMALL” NEMA 3R HINGE COVER WALL-MOUNT
B5
C E
CONTINUOUS
HINGE
3
H
W
0.31 X 0.56 MOUNTING
SLOT TYP
QUICK RELEASE
PADLOCKING
DOOR LATCH
0.31 TYP
0.19
OPTIONAL SUB PANEL
(ORDER SEPARATELY)
A
0.44 INSIDE
0.91
D
KNOCKOUT PATTERN
(PATTERNS ARE CENTERED IN WIDTH)
0.31 TYP
B
F = 3/4" X1" CONCENTRIC KO
G = 1/2" X 3/4" CONCENTRIC KO
1.00 TYP ALL KO'S
H= 1" SOLID KO
I = 1-1/4" SOLID KO
GIHGF
1.631.941.631.63
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
B6
RHC SERIES ENCLOSURES
“MEDIUM” NEMA 3R HINGE COVER WALL-MOUNT
Industry Standards
UL508,Types1&3R
CSA Certified, Type 1 & 3R
NEMA/EEMAC Type 1 & 3R
UL File E6924
RHC161606
FEATURES-SPECIFICATIONS
Applications
Designed
for use as wiring boxes and
junction boxes. Provide protection in
outdoor installations against rain,
sleet, and snow, or indoors against
dripping water.
Construction
• Bodies and doors fabricated from
14 gauge carbon steel
• Continuous hinge
• Hinge is made of galvanized steel
with a stainless steel pin
• No knockouts
• Collar studs provided for mounting
optional back panels
• External mounting plates, top and
bottom of enclosure
• Hasp and staple provided for
padlocking
• Grounding provisions provided
Finish
• ANSI-61 gray polyester powder
inside and out
• Optional back panels are white
polyester powder
• Optional perforated panels are
painted white polyester powder
(See pages I2-I7)
Accessories
• Back panels (reference tables)
• See pages J1-J22
C
E
H
0.31 X 0.56 SLOT
SEE NOTE 1
0.50
TYP
CONTINUOUS
HINGE
12 GA.
G
F
1.25
SECTION X-X
0.50
TYP
0.69
DOOR
STIFFENER
OMIT BODY STIFFENER
IF H < 30.00"
XX
OMIT MIDDLE
DOOR SCREW IF
H < 30.00"
PADLOCKING
HASP
1.16
3/8 - 16
COLLAR STUD
CSA File LL66078
OMIT MIDDLE
STUD IF W = 30.00"
OR LESS
1.50
DRIP SHIELD
D
0.88
0.88
W-2.75
OPENING
B
PANEL
ORDER SEPARATELY
1.09
0.27
A
H-2.75
OPENING
NOTES:
1. RHC303012 & larger have a 0.38 X 0.63
mounting slot.
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
OMIT MIDDLE
STUD IF H = 30.00"
OR LESS
1.50
VIEW WITH
COVER REMOVED
RHC SERIES ENCLOSURES
“MEDIUM” NEMA 3R HINGE COVER WALL-MOUNT
“MEDIUM” RHC SERIES HINGE COVER ENCLOSURES
CATALOG BODY/DOOR ENCLOSURE SIZE
NUMBER STEEL GAUGE H X W X D SIZE A X B
RHC161206 14/14
RHC161606 14/14
RHC201606 14/14
RHC202008 14/14
RHC242008 14/14
RHC242408 14/14
RHC302408 14/14
RHC303012 14/14
RHC362412 14/14
RHC363012 14/14
RHC363612 14/14
RHC423012 14/14
RHC423612 14/14
RHC483612 14/14
RHC603612 14/14
RHC303016 14/14
RHC483616 14/14
* Back panels must be ordered separately.
16.00x12.00x6.00
(406x305x152) (330x229) (457) (432) (127)
16.00x16.00x6.00
(406x406x152) (330x330) (457) (432) (229)
20.00x16.00x6.00
(508x406x152) (432x330) (559) (533) (229)
20.00x20.00x8.00
(508x508x203) (432x432) (559) (533) (330)
24.00x20.00x8.00
(610x508x203) (533x432) (660) (635) (330)
24.00x24.00x8.00
(610x610x203) (533x533) (660) (635) (432)
30.00x24.00x8.00
(762x610x203) (686x533) (813) (787) (432)
30.00x30.00x12.00
(762x762x305) (686x686) (813) (787) (686) (343)
36.00x24.00x12.00
(914x610x305) (838x533) (965) (940) (432)
36.00x30.00x12.00
(914x762x305) (838x686) (965) (940) (686) (343)
36.00x36.00x12.00
(914x914x305) (838x838) (965) (940) (686) (343)
42.00x30.00x12.00
(1067x762x305) (991x686) (1118) (1092) (686) (343)
42.00x36.00x12.00
(1067x914x305) (991x838) (1118) (1092) (686) (343)
48.00x36.00x12.00
(1219x914x305) (1143x838) (1270) (1245) (686) (343)
60.00x36.00x12.00
(1524x914x305) (1448x838) (1575) (1549) (686) (343)
30.00x30.00x16.00
(762x762x406) (686x686) (813) (787) (686) (343)
48.00x36.00x16.00
(1219x914x406) (991x838) (1270) (1245) (686) (343)
BACK PANEL CATALOG NUMBER*
WHITE PERFORATED
NP1612 NP1612PP
NP1616 NP1616PP
NP2016 NP2016PP
NP2020 NP2020PP
NP2420 NP2420PP
NP2424 NP2424PP
NP3024 NP3024PP
NP3030 NP3030PP
NP3624 NP3624PP
NP3630 NP3630PP
NP3636 NP3636PP
NP4230 —
NP4236 —
NP4836 —
NP6036 —
NP3030 NP3030PP
NP4836 NP4836PP
BACK PANEL
13.00x9.00 18.00 17.00 5.00
13.00x13.00 18.00 17.00 9.00
17.00x13.00 22.00 21.00 9.00
17.00x17.00 22.00 21.00 13.00
21.00x17.00 26.00 25.00 13.00
21.00x21.00 26.00 25.00 17.00
27.00x21.00 32.00 31.00 17.00
27.00x27.00 32.00 31.00 27.00 13.50
33.00x21.00 38.00 37.00 17.00
33.00x27.00 38.00 37.00 27.00 13.50
33.00x33.00 38.00 37.00 27.00 13.50
39.00x27.00 44.00 43.00 27.00 13.50
39.00x33.00 44.00 43.00 27.00 13.50
45.00x33.00 50.00 49.00 27.00 13.50
57.00x33.00 62.00 61.00 27.00 13.50
27.00x27.00 32.00 31.00 27.00 13.50
45.00x33.00 50.00 49.00 27.00 13.50
B7
CEFG
—
—
—
—
—
—
—
—
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
B8
LOH SERIES ENCLOSURES
NEMA 3R HINGE COVER WALL-MOUNT
Industry Standards
UL 50, Types 1 & 3R
CSA Certified, Type 1 & 3R
NEMA/EEMAC Type 1 & 3R
UL File E6924
LOH121206
CSA File LL66078
FEATURES-SPECIFICATIONS
Applications
Designed
for use as wiring box and
junction box. Provide protection in
outdoor installations against rain,
sleet, and snow, or indoors against
dripping water.
Construction
• Bodies and doors fabricated from
16 or 14 gauge carbon steel
(reference table)
• Drip shield top and seam-free
• Door is hinged on left side with lift
off hinges
• Stainless steel hinge pin
• No knockouts
• Mounting holes are provided on
back of enclosure
• Door fastened securely with draw
pull catch
• Provision for padlocking
• Grounding provisions provided
Finish
• ANSI-61 gray polyester powder
inside and out
• Optional back panels are white
polyester powder
Acces sories
• Mounting feet kit (reference table,
see page B9)
• Back panels (reference table)
• For accessories see pages J1-J22
sides, front, and back
LOH SERIES HINGE COVER ENCLOSURES
CATALOG BODY/DOOR ENCLOSURE SIZE BACK PANEL BACK PANEL
NUMBER STEEL GAUGE H X W X D CATALOG NUMBER* SIZE A X B
LOH080604** 16/16
LOH080806** 16/16
LOH100806 16/16
LOH121006 16/16
LOH121206 16/16
LOH161206 16/16
LOH161606 14/14
LOH201606 14/14
LOH202008 14/14
LOH242008 14/14
LOH242408 14/14
LOH302408 14/14
* Back panels must be ordered separately. If a back panel is required, an optional panel mounting kit is required. See page B9.
** One draw pull catch.
Note: If mounting feet are required, an optional mounting foot kit is required. See page B9.
8.00x6.00x4.00
(203x152.00x102) (124x124) (257) (232) (102) (57) (8) (40) (14)
8.00x8.00x6.00
(203x203.00x152) (175x124) (257) (232) (102) (57) (8) (40) (40)
10.00x8.00x6.00
(254x203x152) (174x174) (308) (283) (102) (57) (8) (40) (14)
12.00x10.00x6.00
(305x254x152) (226x226) (359) (334) (102) (57) (8) (40) (14)
12.00x12.00x6.00
(305x305x152) (276x226) (359) (334) (102) (57) (8) (40) (40)
16.00x12.00x6.00
(406x305x152) (327x175) (461) (435) (102) (57) (8) (40) (14)
16.00x16.00x6.00
(406x406x152) (330x330) (461) (437) (330) (330) (22) (38) (38)
20.00x16.00x6.00
(508x406x152) (432x330) (564) (538) (330) (330) (22) (38) (38)
20.00x20.00x8.00
(508x508x203) (432x432) (564) (538) (330) (330) (22) (38) (38)
24.00x20.00x8.00
(610x508x203) (533x432) (665) (640) (330) (330) (22) (38) (38)
24.00x24.00x8.00
(610x610x203) (533x533) (665) (640) (330) (330) (22) (38) (38)
30.00x24.00x8.00
(762x610x203) (686x533) (818) (538) (330) (330) (22) (38) (38)
P0606
P0806
P0808
P1010
P1210
P1412
NP1616
NP2016
NP2020
NP2420
NP2424
NP3024
4.88x4.88 10.13 9.13 4.00 2.25 0.31 1.56 0.56
6.88x4.88 10.13 9.13 4.00 2.25 0.31 1.56 1.56
6.88x6.88 12.13 11.13 4.00 2.25 0.31 1.56 0.56
8.88x8.88 14.13 13.13 4.00 2.25 0.31 1.56 0.56
10.88x8.88 14.13 13.13 4.00 2.25 0.31 1.56 1.56
12.88x10.88 18.13 17.13 4.00 2.25 0.31 1.56 0.56
13.00x13.00 18.13 17.19 13.00 13.00 0.88 1.50 1.50
17.00x13.00 22.19 21.19 13.00 13.00 0.88 1.50 1.50
17.00x17.00 22.19 21.19 13.00 13.00 0.88 1.50 1.50
21.00x17.00 26.19 25.19 13.00 13.00 0.88 1.50 1.50
21.00x21.00 26.19 25.19 13.00 13.00 0.88 1.50 1.50
27.00x21.00 32.19 21.19 13.00 13.00 0.88 1.50 1.50
CEF G HIJ
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
LOH SERIES ENCLOSURES
NEMA 3R HINGE COVER WALL-MOUNT
B9

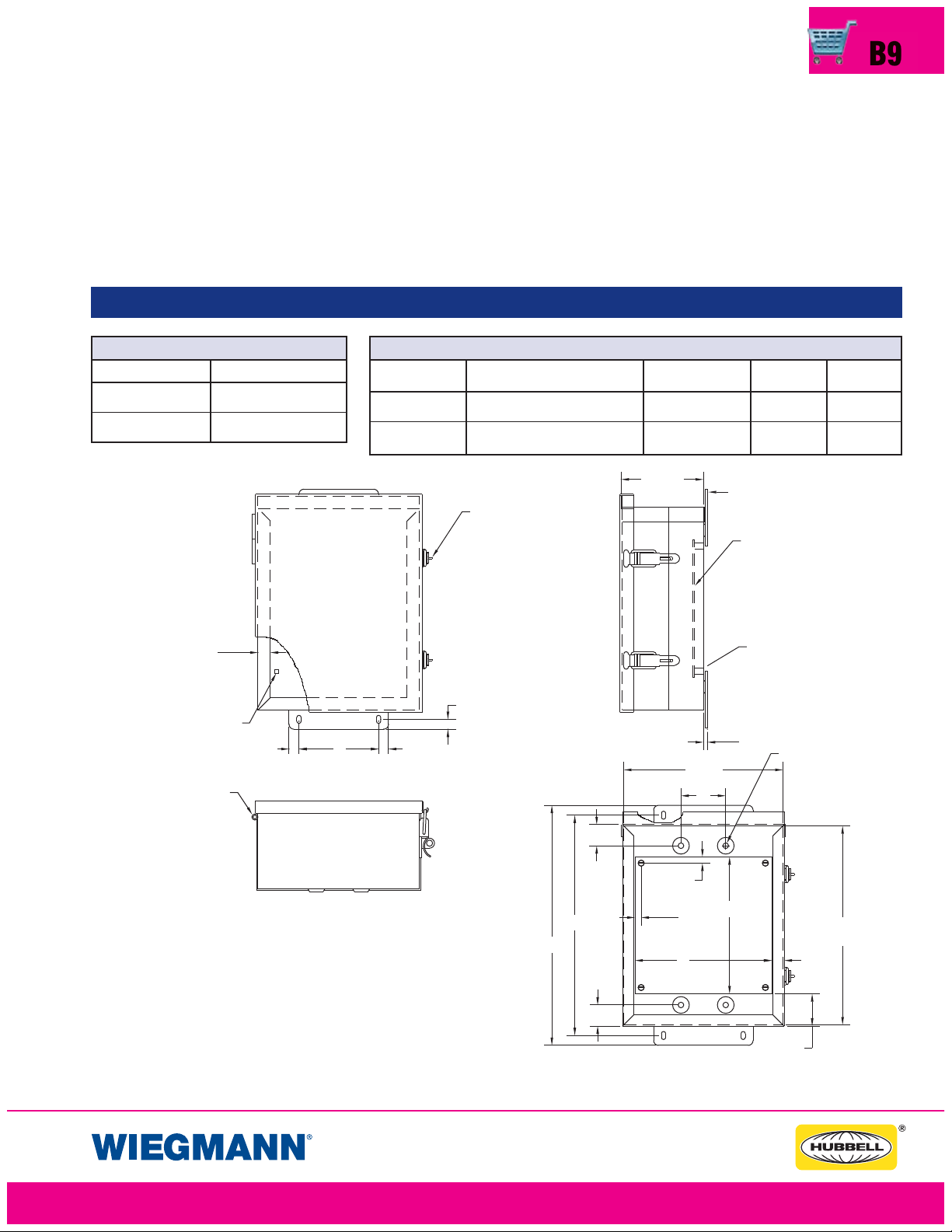

PANEL MOUNTING KIT (OPTIONAL)
CATALOG NUMBER DESCRIPTION
WAPMK3RL016
WAPMK3RL014
0.63 TYP
FLANGE
3 SIDES
KNOCKOUT PROVIDED
FOR OPTIONAL PANEL
MOUNTING KIT
Panel Mounting Kit for
16 ga. Enclosures
Panel Mounting Kit for
14 ga. Enclosures
0.50 F
LIFT-OFF
HINGES
MOUNTING FOOT KIT (OPTIONAL)
CATA L O G
NUMBER WIDTH OF FOOT MATERIAL SPACING
WAMFK3RL016
WAMFK3RL014
0.50
0.50
DESCRIPTION
Mounting Foot Kit for Enclosures
16x12x6 and smaller
Mounting Foot Kit for Enclosures
16x16x6 and larger
Quick-Release
Padlocking
Door Latch
OVERALL GAUGE OF HOLE
5.00 (127) 14 4.00 (102)
14.00 (356) 10 13.00 (330)
D
INSIDE
W
INSIDE
G
OPTIONAL
MOUNTING FOOT
PANEL
(Order Separately)
OPTIONAL PANEL
MOUNTING KIT
0.20
Ø 0.28 TYP
1.18
E
C
1.06
View With Cover Removed & Panel Installed
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
H TYP
TYP
A
H
B
H
INSIDE
J
I
B10

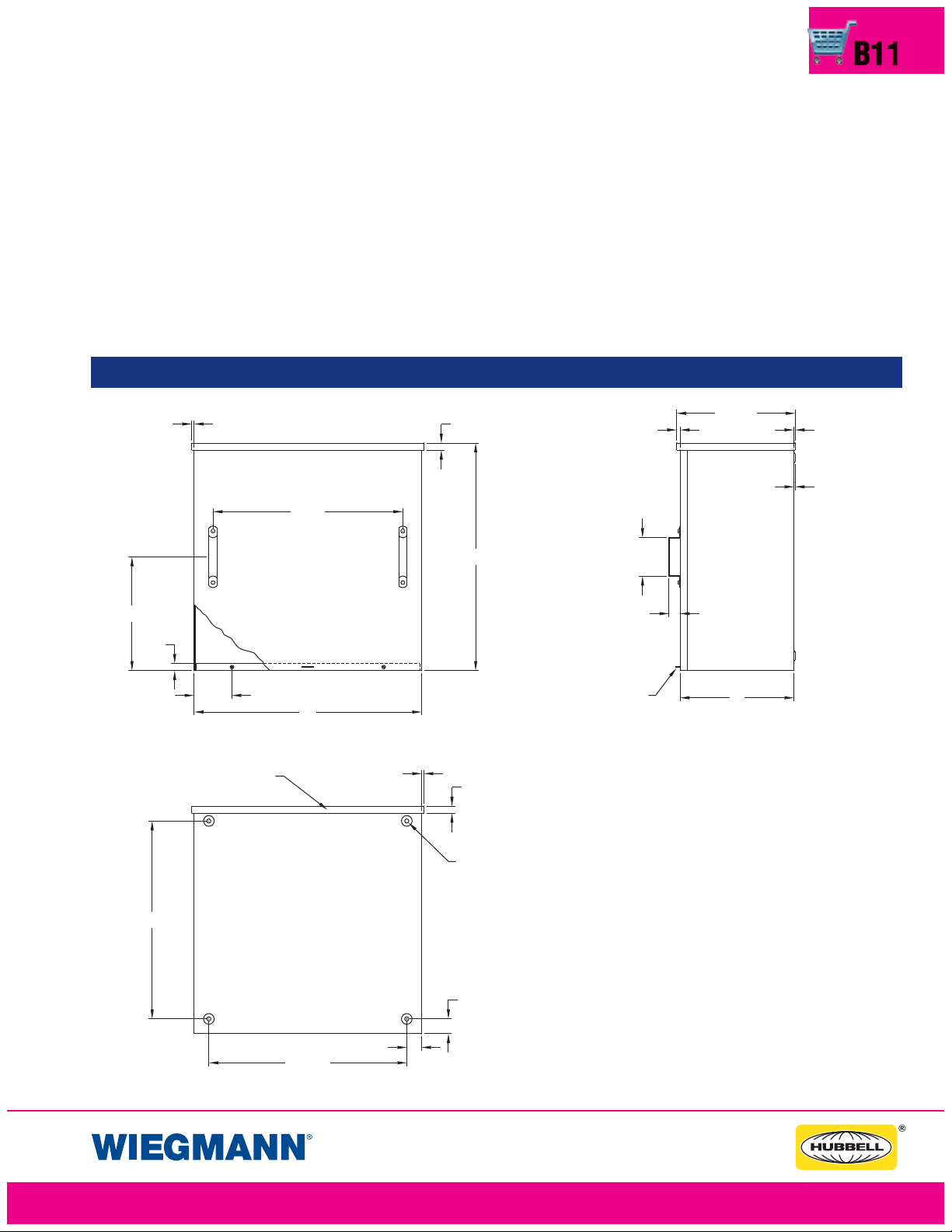

WCT SERIES ENCLOSURES
NEMA 3R SCREW COVER WALL-MOUNT
Industry Standards
UL 50, Types 1 & 3R
CSA Certified, Type 1 & 3R
NEMA/EEMAC Type 1 & 3R
UL File E23553
WCT242412
FEATURES-SPECIFICATIONS
Applications
Designed
for use as transformer
housings, junction boxes, and service
boxes.
Construction
• Drip shield top and smooth seamless
sides and front
• A slip-on removable cover is
securely fastened with plated
• No gasketing is required
• Mounting holes on back of cabinet
• Door handles provided
• Hasp for padlocking and provisions
for meter seal are provided
• Grounding provisions provided
• For removal of cover, move downward, then outward
screws located along bottom edge
WCT SERIES SCREW COVER ENCLOSURES
CATALOG BODY/DOOR ENCLOSURE SIZE
NUMBER STEEL GAUGE H X W X D
WCT242412 14/14 24.00x24.00x12.00 (610x610x305)
WCT303012 12/12 30.00x30.00x12.00 (762x762x305)
WCT363012 12/12 36.00x30.00x12.00 (914x762x305)
WCT363612 12/12 36.00x36.00x12.00 (914x914x305)
WCT483616 12/12 48.00x36.00x16.00 (1220x914x406)
CSA File LL66078
Finish
• ANSI-61 gray polyester powder
inside and out
Acces sories
• See pages J1-J22
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
WCT SERIES ENCLOSURES
NEMA 3R SCREW COVER WALL-MOUNT
B11
0.25 TYP
H/2
0.75
4.00
DRIP SHIELD
20.00
W
FRONT VIEW
0.25 TYP
0.75
H
0.75
Ø 0.44 TYP
4.00
1.25
HASP AND
METER SEAL
D + 0.50
0.130.38
0.13 TYP
D
RIGHT SIDE
H - 3.00
1.56 TYP
1.56 TYP
W - 3.00
REAR VIEW
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
B12

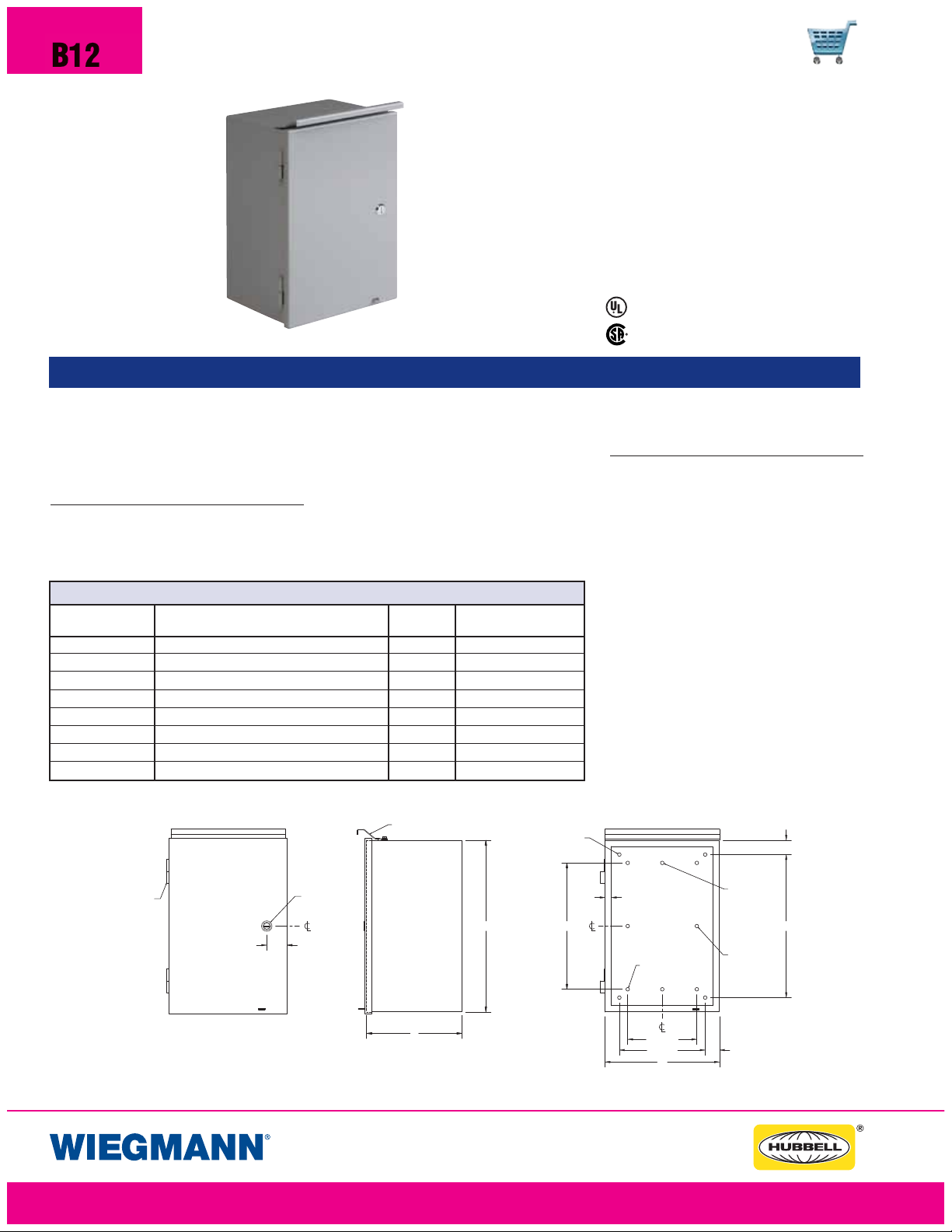

CT SERIES ENCLOSURES
NEMA 3R SINGLE DOOR HINGE COVER
Industry Standards
UL Listed Type 3R
UL File E23553
CT242412
FEATURES-SPECIFICATIONS
Applications
Enclosur
es are designed as a housing
for current and voltage transformers,
recorders, meters, junction, service
box, relay and/or for terminal instrumentation.
Construction
• Manufactured from 14 and 12
gauge carbon steel
CT SERIES SINGLE DOOR HINGE COVER ENCLOSURES
CATALOG ENCLOSURE SIZE BODY PANEL
NUMBER H X W X D GAUGE CATALOG NUMBER
CTSD121810 18.00x12.00x10.00 (457x305x254) 14 WBP1812
CTSD182410 24.00x18.00x10.00 (610x457x254) 14 WBP2418
CTSD202010 20.00x20.00x10.00 (508x508x254) 14 WBP2020
CTSD202412 24.00x20.00x12.00 (610x508x305) 14 WBP2420
CTSD242412 24.00x24.00x12.00 (610x610x305) 14 WBP2424
CTSD243012 30.00x24.00x12.00 (762x610x305) 14 WBP3024
CTSD243612 36.00x24.00x12.00 (914x610x305) 14 WBP3624
CTSD303612 36.00x30.00x12.00 (914x762x305) 12 WBP3630
NOTE: Second numerical value of catalog # represents height.

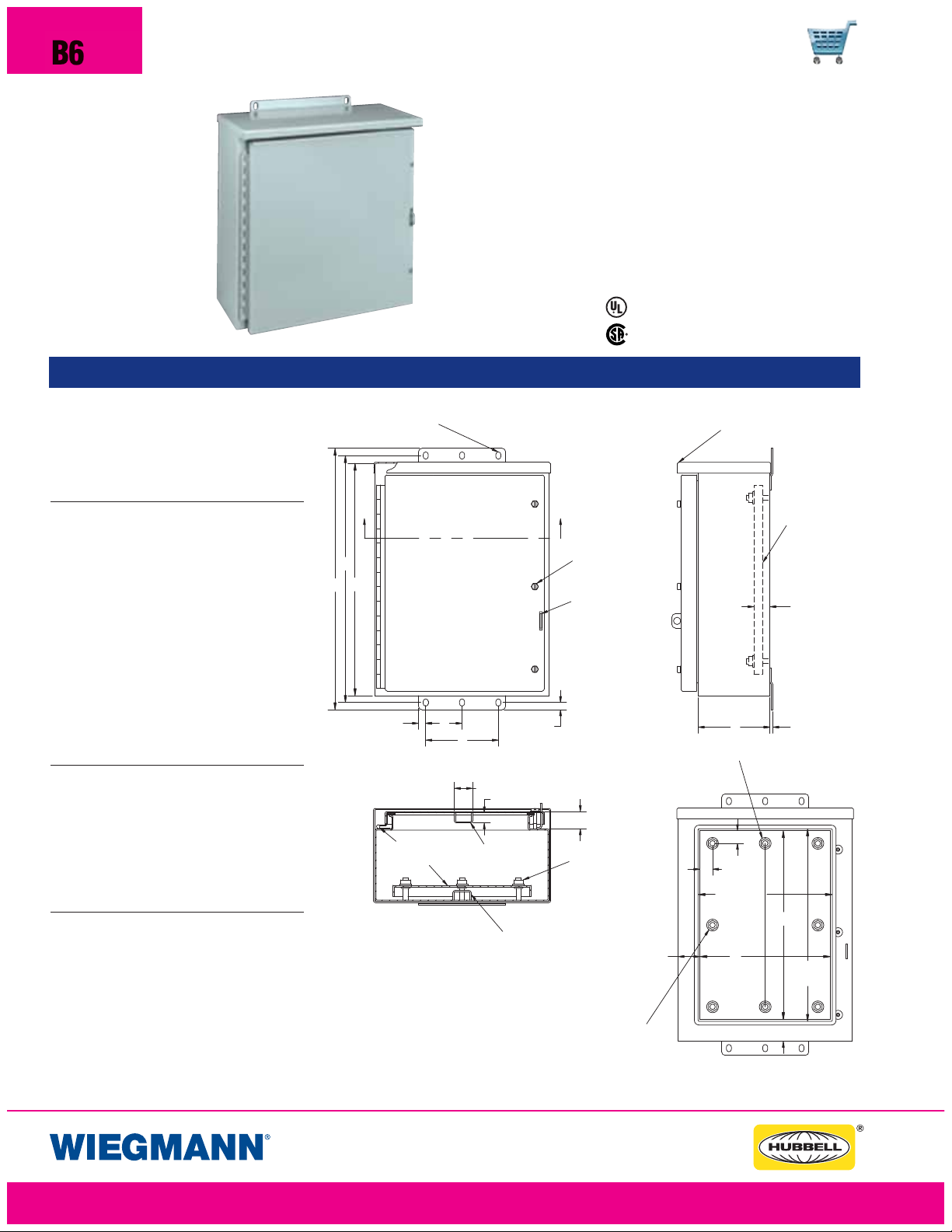

• Fully seam welded and ground
smooth, with weep hole
• Drip shield
• Lift off hinges, gasketed doors
• Supplied with non-locking 1/4 turn
latch
• Meter seal provisions
• Mounting holes in back
CSA File LL66078
• Supplied with studs in back of
enclosure to support optional
wood sub panel
Fini sh
• ANSI 61 polyester powder inside
and out
LIFT-OFF
HINGES
2.12
1/4 TURN
LATCH
DRIP SHIELD
H
D
ø 0.38 TYP.
MOUNTING HOLES
H-4.75
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
FLANGE
0.66 TYP.
3/8-16 PANEL
STUD TYP
(PANEL NOT
INCLUDED)
W-4.75
W
FRONT VIEW
(WITH COVER REMOVED)
OMIT MIDDLE
STUDS IF
W < 31.00
OMIT MIDDLE
STUDS IF
H < 31.00
1. 50W-3.00
1. 50
H-3.00
CT SERIES ENCLOSURES
NEMA 3R DOUBLE DOOR HINGE COVER
Industry Standards
UL Listed Type 3R
UL File E23553
B13

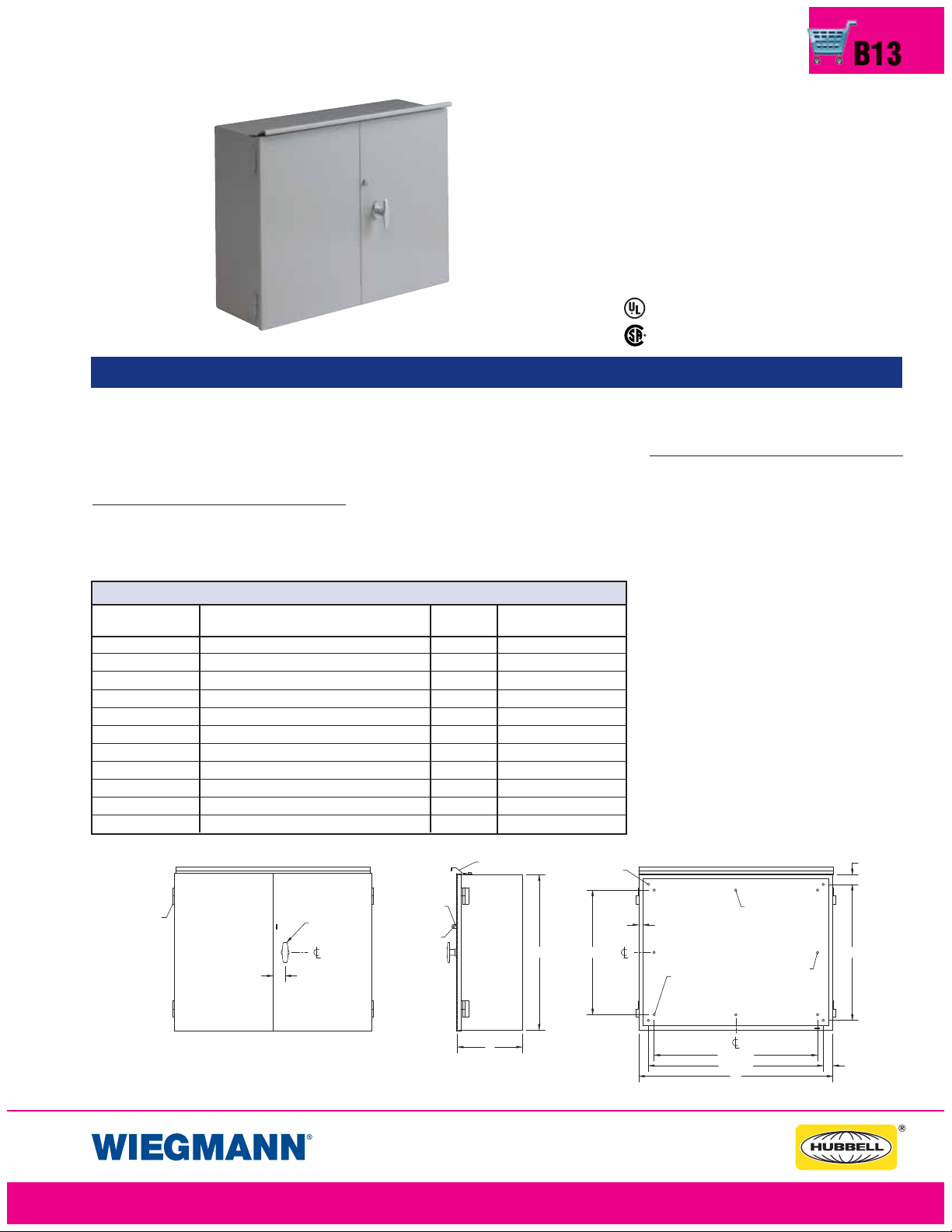

CTDD363612
FEATURES-SPECIFICATIONS
Applications
Enclosur
es are designed as a housing
for current and voltage transformers,
recorders, meters, junction, service
box, relay and/or for terminal instrumentation.
Construction
• Manufactured from 14 and 12
gauge carbon steel
CT SERIES DOUBLE DOOR HINGE COVER ENCLOSURES
CATALOG ENCLOSURE SIZE BODY PANEL
NUMBER H X W X D GAUGE CATALOG NUMBER
CTDD302410 24.00x30.00x10.00 (610x762x254) 14 WBP3024
CTDD303012 30.00x30.00x12.00 (762x762x254) 12 WBP3030DD
CTDD303612 36.00x30.00x12.00 (914x762x254) 12 WBP3630
CTDD362412 24.00x36.00x12.00 (610x914x254) 14 WBP3624
CTDD363012 30.00x36.00x12.00 (762x914x254) 12 WBP3630
CTDD363212 32.00x36.00x12.00 (813x914x254) 12 WBP3236DD
CTDD363612 36.00x36.00x12.00 (914x914x254) 12 WBP3636DD
CTDD363616 36.00x36.00x16.00 (914x914x406) 12 WBP3636DD
CTDD443012 30.00x44.00x12.00 (762x1118x305) 12 WBP3044DD
CTDD424212 42.00x42.00x12.00 (1067x1067x305) 12 WBP4242DD
CTDD484816 48.00x48.00x16.00 (1219x1219x406) 12 WBP4848DD
NOTE: Second numerical value of catalog # represents height.
1/4 TURN
1. 88
3-POINT
TEE
HANDLE
LIFT-OFF
HINGES
• Fully seam welded and ground
smooth, with weep hole
• Drip shield
• Lift off hinges, gasketed doors
• Supplied with non-locking “T”
handle
• Meter seal provisions
• Mounting holes in back
DRIP SHIELD
ø 0.13 HOLE
FOR METER
SEAL
ø 0.37 HOLE
FOR PAD-
LOCKING
H
ø 0.38 TYP.
MOUNTING
HOLES
H-4.75
CSA File LL66078
• Supplied with studs in back of
enclosure to support optional wood
sub panel
Finish
• ANSI 61 polyester powder inside
and out
1. 50
OMIT MIDDLE
FLANGE
0.66 TYP.
3/8 -16 PANEL
STUD TYP.
(PANEL NOT
INCLUDED)
STUDS IF
W < 31.00
OMIT MIDDLE
STUDS IF
H < 31.00
H-3.00
D
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
W-4.75
W-3.00
W
FRONT VIEW
(WITH COVER REMOVED)
1. 50
NOTES
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
Loading...
