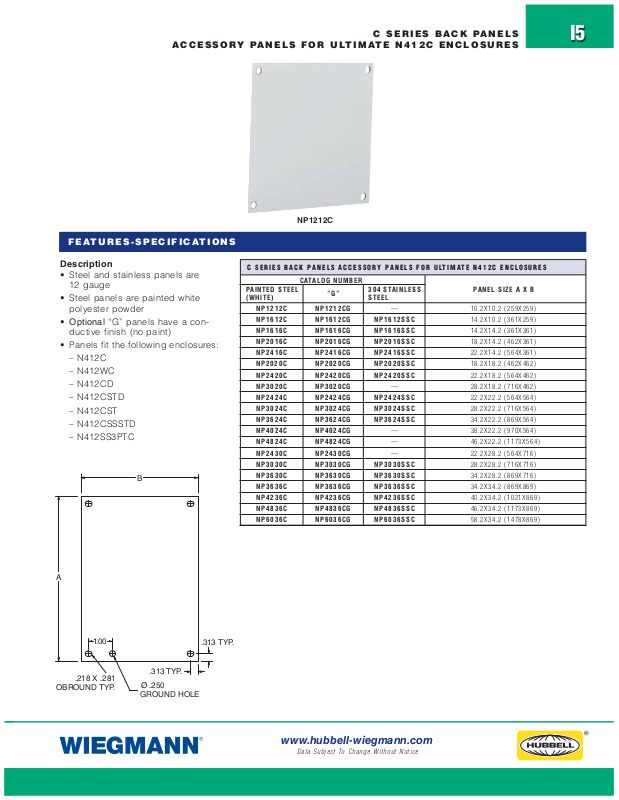

Wiegmann C SERIES BACK PANELS Catalog Page

ACCESSORY PANELS FOR ULTIMATE N412C ENCLOSURES

FEATURES-SPECIFICATIONS

NP1212C

C SERIES BACK PANELS

I5

Description

• Steel and stainless panels are
12 gauge

• Steel panels are painted white
polyester powder

• Optional “G” panels have a con-
ductive finish (no paint)

• Panels fit the following enclosures:
–N412C
–N412WC
–N412CD
– N412CSTD
– N412CST
– N412CSSSTD
– N412SS3PTC

B

C SERIES BACK PANELS ACCESSORY PANELS FOR ULTIMATE N412C ENCLOSURES

PAINTED STEEL 304 STAINLESS PANEL SIZE A X B
(WHITE)

NP1212C NP1212CG — 10.2X10.2 (259X259)
NP1612C NP1612CG NP1612SSC 14.2X10.2 (361X259)
NP1616C NP1616CG NP1616SSC 14.2X14.2 (361X361)
NP2016C NP2016CG NP2016SSC 18.2X14.2 (462X361)
NP2416C NP2416CG NP2416SSC 22.2X14.2 (564X361)
NP2020C NP2020CG NP2020SSC 18.2X18.2 (462X462)
NP2420C NP2420CG NP2420SSC 22.2X18.2 (564X462)
NP3020C NP3020CG — 28.2X18.2 (716X462)
NP2424C NP2424CG NP2424SSC 22.2X22.2 (564X564)
NP3024C NP3024CG NP3024SSC 28.2X22.2 (716X564)
NP3624C NP3624CG NP3624SSC 34.2X22.2 (869X564)
NP4024C NP4024CG — 38.2X22.2 (970X564)
NP4824C NP4824CG — 46.2X22.2 (1173X564)
NP2430C NP2430CG — 22.2X28.2 (564X716)
NP3030C NP3030CG NP3030SSC 28.2X28.2 (716X716)
NP3630C NP3630CG NP3630SSC 34.2X28.2 (869X716)
NP3636C NP3636CG NP3636SSC 34.2X34.2 (869X869)
NP4236C NP4236CG NP4236SSC 40.2X34.2 (1021X869)
NP4836C NP4836CG NP4836SSC 46.2X34.2 (1173X869)
NP6036C NP6036CG NP6036SSC 58.2X34.2 (1478X869)

CATALOG NUMBER

”G”

STEEL

A

1.00

.218 X .281

OBROUND TYP.

.313 TYP.

.313 TYP.

Ø .250
GROUND HOLE
