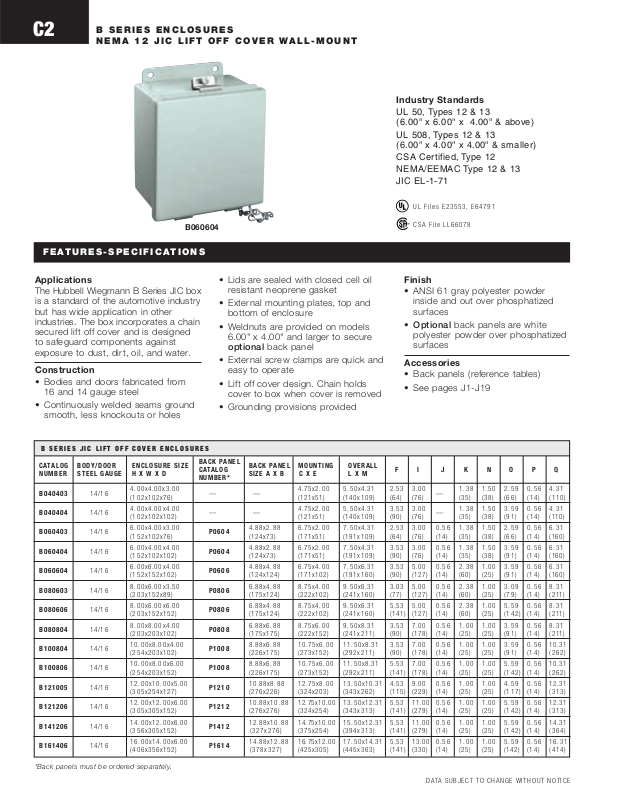

B SERIES ENCLOSURES
NEMA 12 JIC LIFT OFF COVER WALL-MOUNT
C2
FEATURES-SPECIFICATIONS
Applications
The Hubbell Wiegmann B Series JIC box
is a standard of the automotive industry
but has wide application in other
industries. The box incorporates a chain
secured lift off cover and is designed
to safeguard components against
exposure to dust, dirt, oil, and water.
Construction
• Bodies and doors fabricated from
16 and 14 gauge steel
• Continuously welded seams ground
smooth, less knockouts or holes
Industry Standards
UL 50, Types 12 & 13
(6.00" x 6.00" x 4.00" & above)
UL 508, Types 12 & 13
(6.00" x 4.00" x 4.00" & smaller)
CSA Certified, Type 12
NEMA/EEMAC Type 12 & 13
JIC EL-1-71
UL Files E23553, E64791
CSA File LL66078
BACK PANEL
CATALOG BODY/DOOR ENCLOSURE SIZE
CATALOG
BACK PANEL MOUNTING OVERALL
FI J KNOPQ
NUMBER STEEL GAUGE H X W X D
NUMBER*
SIZE A X B C X E L X M
B040403 14/16
4.00x4.00x3.00
——
4.75x2.00 5.50x4.31 2.53 3.00
—
1.38 1.50 2.59 0.56 4.31
(102x102x76) (121x51) (140x109) (64) (76) (35) (38) (66) (14) (110)
B040404 14/16
4.00x4.00x4.00
——
4.75x2.00 5.50x4.31 3.53 3.00
—
1.38 1.50 3.59 0.56 4.31
(102x102x102) (121x51) (140x109) (90) (76) (35) (38) (91) (14) (110)
B060403 14/16
6.00x4.00x3.00
P0604
4.88x2.88 6.75x2.00 7.50x4.31 2.53 3.00 0.56 1.38 1.50 2.59 0.56 6.31
(152x102x76) (124x73) (171x51) (191x109) (64) (76) (14) (35) (38) (66) (14) (160)
B060404 14/16
6.00x4.00x4.00
P0604
4.88x2.88 6.75x2.00 7.50x4.31 3.53 3.00 0.56 1.38 1.50 3.59 0.56 6.31
(152x102x102) (124x73) (171x51) (191x109) (90) (76) (14) (35) (38) (91) (14) (160)
B060604 14/16
6.00x6.00x4.00
P0606
4.88x4.88 6.75x4.00 7.50x6.31 3.53 5.00 0.56 2.38 1.00 3.59 0.56 6.31
(152x152x102) (124x124) (171x102) (191x160) (90) (127) (14) (60) (25) (91) (14) (160)
B080603 14/16
8.00x6.00x3.50
P0806
6.88x4.88 8.75x4.00 9.50x6.31 3.03 5.00 0.56 2.38 1.00 3.09 0.56 8.31
(203x152x89) (175x124) (222x102) (241x160) (77) (127) (14) (60) (25) (79) (14) (211)
B080606 14/16
8.00x6.00x6.00
P0806
6.88x4.88 8.75x4.00 9.50x6.31 5.53 5.00 0.56 2.38 1.00 5.59 0.56 8.31
(203x152x152) (175x124) (222x102) (241x160) (141) (127) (14) (60) (25) (142) (14) (211)
B080804 14/16
8.00x8.00x4.00
P0808
6.88x6.88 8.75x6.00 9.50x8.31 3.53 7.00 0.56 1.00 1.00 3.59 0.56 8.31
(203x203x102) (175x175) (222x152) (241x211) (90) (178) (14) (25) (25) (91) (14) (211)
B100804 14/16
10.00x8.00x4.00
P1008
8.88x6.88 10.75x6.00 11.50x8.31 3.53 7.00 0.56 1.00 1.00 3.59 0.56 10.31
(254x203x102) (226x175) (273x152) (292x211) (90) (178) (14) (25) (25) (91) (14) (262)
B100806 14/16
10.00x8.00x6.00
P1008
8.88x6.88 10.75x6.00 11.50x8.31 5.53 7.00 0.56 1.00 1.00 5.59 0.56 10.31
(254x203x152) (226x175) (273x152) (292x211) (141) (178) (14) (25) (25) (142) (14) (262)
B121005 14/16
12.00x10.00x5.00
P1210
10.88x8.88 12.75x8.00 13.50x10.31 4.53 9.00 0.56 1.00 1.00 4.59 0.56 12.31
(305x254x127) (276x226) (324x203) (343x262) (115) (229) (14) (25) (25) (117) (14) (313)
B121206 14/16
12.00x12.00x6.00
P1212
10.88x10.88 12.75x10.00 13 .50x12.31 5.53 11.00 0.56 1.00 1.00 5.59 0.56 12.31
(305x305x152) (276x276) (324x254) (343x313) (141) (279) (14) (25) (25) (142) (14) (313)
B141206 14/16
14.00x12.00x6.00
P1412
12.88x10.88 14.75x10.00 15 .50x12.31 5.53 11.00 0.56 1.00 1.00 5.59 0.56 14.31
(356x305x152) (327x276) (375x254) (394x313) (141) (279) (14) (25) (25) (142) (14) (364)
B161406 14/16
16.00x14.00x6.00
P1614
14.88x12.88 16.75x12.00 17 .50x14.31 5.53 13.00 0.56 1.00 1.00 5.59 0.56 16.31
(406x356x152) (378x327) (425x305) (445x363) (141) (330) (14) (25) (25) (142) (14) (414)
B SERIES JIC LIFT OFF COVER ENCLOSURES
*Back panels must be ordered separately.
• Lids are sealed with closed cell oil
resistant neoprene gasket
• External mounting plates, top and
bottom of enclosure
• Weldnuts are provided on models
6.00" x 4.00" and larger to secure
optional back panel
• External screw clamps are quick and
easy to operate
• Lift off cover design. Chain holds
cover to box when cover is removed
• Grounding provisions provided
Finish
• ANSI 61 gray polyester powder
inside and out over phosphatized
surfaces
• Optional back panels are white
polyester powder over phosphatized
surfaces
Accessories
• Back panels (reference tables)
• See pages J1-J19
B060604
DATA SUBJECT TO CHANGE WITHOUT NOTICE
®
R
B SERIES ENCLOSURES
NEMA 12 JIC LIFT OFF COVER WALL-MOUNT
C3
DATA SUBJECT TO CHANGE WITHOUT NOTICE
0.38
X
0.44
0.75 H
1.00
0.31 TYP
J
W
Ø 0.31
TYP
E
Q
P
F
O
14 GA.
X
L
0.75
0.560.31 TYP
0.50
B
A
C
I
0.38
Panel (Order Separately)
Notes:
1. Panels are 14 Ga. Steel.
2. Panel screws are
3. Two clamps are used
4. Chain is supplied
0.63
D
#10-32 Pan Head.
if W = 8" or more.
but not shown.
M
N
SECTION X-X
W
1.25
K
VIEW SHOWING CLAMP POSITION
WHEN "W" IS LESS THAN 8"
W
1.25
KK
VIEW SHOWING CLAMP POSITION
WHEN "W" EQUALS 8" OR MORE
DATA SUBJECT TO CHANGE WITHOUT NOTICE
P SERIES BACK PANELS
ACCESSORY PANELS FOR JIC ENCLOSURES
I2
Description
• 14 gauge (carbon and stainless)
• White polyester powder finish on
steel panels
• Aluminum panels are 5052-H32
aluminum alloy, .080-inch thick
• Panels fit the following enclosures:
– B
– BCH
– BN4
– BN4CH
– BN4SS
– BN4CHSS
– BN4AL
– BN4CHAL
CATALOG NUMBER
PAINTED STEEL 304 STAINLESS PANEL SIZE A X B
(WHITE) STEEL
ALUMINUM
P0604 P0604SS P0604AL 4.88x2.88 (124x73)
P0606 P0606SS P0606AL 4.88x4.88 (124x124)
P0806 P0806SS P0806AL 6.88x4.88 (175x124)
P0808 — — 6.88x6.88 (175x175)
P1008 P1008SS P1008AL 8.88x6.88 (226x175)
P1010 — — 8.88x8.88 (226x226)
P1206 — — 10.88x4.88 (276x124)
P1210 P1210SS P1210AL 10.88x8.88 (276x226)
P1212 P1212SS — 10.88x10.88 (276x276)
P1408 — — 12.88x6.88 (327x175)
P1412 P1412SS P1412AL 12.88x10.88 (327x276)
P1610 — — 14.88x8.88 (378x226)
P1614 P1614SS P1614AL 14.88x12.88 (378x327)
BACK PANELS FOR JIC ENCLOSURES
FEATURES-SPECIFICATIONS
OBROUND TYP.
.218 X .281
.313 TYP.
.313 TYP.
A
B
1.00
Ø .250
GROUND HOLE
P0808
