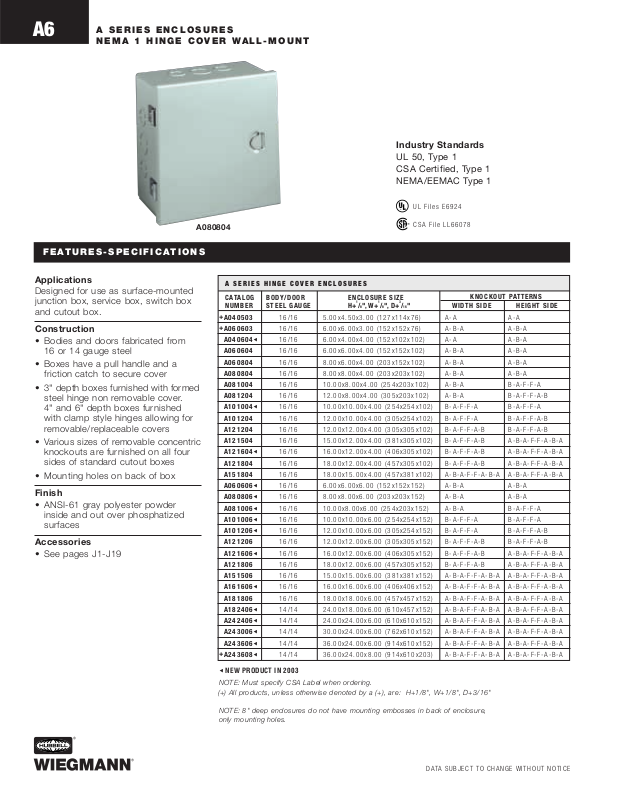

A SERIES ENCLOSURES
NEMA 1 HINGE COVER WALL-MOUNT
A6
FEATURES-SPECIFICATIONS
Applications
Designed for use as surface-mounted
junction box, service box, switch box
and cutout box.
Construction
• Bodies and doors fabricated from
16 or 14 gauge steel
• Boxes have a pull handle and a
friction catch to secure cover
• 3" depth boxes furnished with formed
steel hinge non removable cover.
4" and 6" depth boxes furnished
with clamp style hinges allowing for
removable/replaceable covers
• Various sizes of removable concentric
knockouts are furnished on all four
sides of standard cutout boxes
• Mounting holes on back of box
Finish
• ANSI-61 gray polyester powder
inside and out over phosphatized
surfaces
Accessories
• See pages J1-J19
Industry Standards
UL 50, Type 1
CSA Certified, Type 1
NEMA/EEMAC Type 1
UL Files E6924
CSA File LL66078
CATALOG BODY/DOOR ENCLOSURE SIZE
KNOCKOUT PATTERNS
NUMBER STEEL GAUGE
H+
1
/8", W+1/8", D+3/16" WIDTH SIDE HEIGHT SIDE
A040503 16/16 5.00x4.50x3.00 (127x114x76) A-A A-A
A060603 16/16 6.00x6.00x3.00 (152x152x76) A-B-A A-B-A
A0406046 16/16 6.00x4.00x4.00 (152x102x102) A-A A-B-A
A060604 16/16 6.00x6.00x4.00 (152x152x102) A-B-A A-B-A
A060804 16/16 8.00x6.00x4.00 (203x152x102) A-B-A A-B-A
A080804 16/16 8.00x8.00x4.00 (203x203x102) A-B-A A-B-A
A081004 16/16 10.00x8.00x4.00 (254x203x102) A-B-A B-A-F-F-A
A081204 16/16 12.00x8.00x4.00 (305x203x102) A-B-A B-A-F-F-A-B
A1010046 16/16 10.00x10.00x4.00 (254x254x102) B-A-F-F-A B-A-F-F-A
A101204 16/16 12.00x10.00x4.00 (305x254x102) B-A-F-F-A B-A-F-F-A-B
A121204 16/16 12.00x12.00x4.00 (305x305x102) B-A-F-F-A-B B-A-F-F-A-B
A121504 16/16 15.00x12.00x4.00 (381x305x102) B-A-F-F-A-B A-B-A-F-F-A-B-A
A1216046 16/16 16.00x12.00x4.00 (406x305x102) B-A-F-F-A-B A-B-A-F-F-A-B-A
A121804 16/16 18.00x12.00x4.00 (457x305x102) B-A-F-F-A-B A-B-A-F-F-A-B-A
A151804 16/16 18.00x15.00x4.00 (457x381x102) A-B-A-F-F-A-B-A A-B-A-F-F-A-B-A
A0606066 16/16 6.00x6.00x6.00 (152x152x152) A-B-A A-B-A
A0808066 16/16 8.00x8.00x6.00 (203x203x152) A-B-A A-B-A
A0810066 16/16 10.00x8.00x6.00 (254x203x152) A-B-A B-A-F-F-A
A1010066 16/16 10.00x10.00x6.00 (254x254x152) B-A-F-F-A B-A-F-F-A
A1012066 16/16 12.00x10.00x6.00 (305x254x152) B-A-F-F-A B-A-F-F-A-B
A121206 16/16 12.00x12.00x6.00 (305x305x152) B-A-F-F-A-B B-A-F-F-A-B
A1216066 16/16 16.00x12.00x6.00 (406x305x152) B-A-F-F-A-B A-B-A-F-F-A-B-A
A121806 16/16 18.00x12.00x6.00 (457x305x152) B-A-F-F-A-B A-B-A-F-F-A-B-A
A151506 16/16 15.00x15.00x6.00 (381x381x152) A-B-A-F-F-A-B-A A-B-A-F-F-A-B-A
A1616066 16/16 16.00x16.00x6.00 (406x406x152) A-B-A-F-F-A-B-A A-B-A-F-F-A-B-A
A181806 16/16 18.00x18.00x6.00 (457x457x152) A-B-A-F-F-A-B-A A-B-A-F-F-A-B-A
A1824066 14/14 24.00x18.00x6.00 (610x457x152) A-B-A-F-F-A-B-A A-B-A-F-F-A-B-A
A2424066 14/14 24.00x24.00x6.00 (610x610x152) A-B-A-F-F-A-B-A A-B-A-F-F-A-B-A
A2430066 14/14 30.00x24.00x6.00 (762x610x152) A-B-A-F-F-A-B-A A-B-A-F-F-A-B-A
A2436066 14/14 36.00x24.00x6.00 (914x610x152) A-B-A-F-F-A-B-A A-B-A-F-F-A-B-A
A2436086 14/14 36.00x24.00x8.00 (914x610x203) A-B-A-F-F-A-B-A A-B-A-F-F-A-B-A
A SERIES HINGE COVER ENCLOSURES
6 NEW PRODUCT IN 2003
NOTE: Must specify CSA Label when ordering.
NOTE: 8" deep enclosures do not have mounting embosses in back of enclosure,
only mounting holes.
A080804
DATA SUBJECT TO CHANGE WITHOUT NOTICE
+
+
+
(+) All products, unless otherwise denoted by a (+), are: H+1/8", W+1/8", D+3/16"
®
R
A SERIES ENCLOSURES
NEMA 1 HINGE COVER WALL-MOUNT
A7
D
E
0.63
P
0.88
.631.63
.631.63
.63
.631.631.631.63
3
.56
P
.56
P
Ø
0.28
P
G
.00
6.00"
.56
P
.06
P
Ø
0.28
P
B
B
B
B
B
B
"
30" & 36" S
.
E
E
6" & 8" SIDE
E
out Patt
s
"
/4"
DATA SUBJECT TO CHANGE WITHOUT NOTICE
Knock
1
TY
2
TY
ern
A -- 1/2" TO 3/4
12" SID
B -- 3/4" TO 1"
F -- 1" TO 1-1
TY
4-1/2" & 5" SID
1
1
1
1.941
10" SID
4
" X
MOUNTIN
TY
INSID
1.631.631.631.941.631.631.6
15", 16", 18", 24
IDE
1
TY
1
TY
TY
