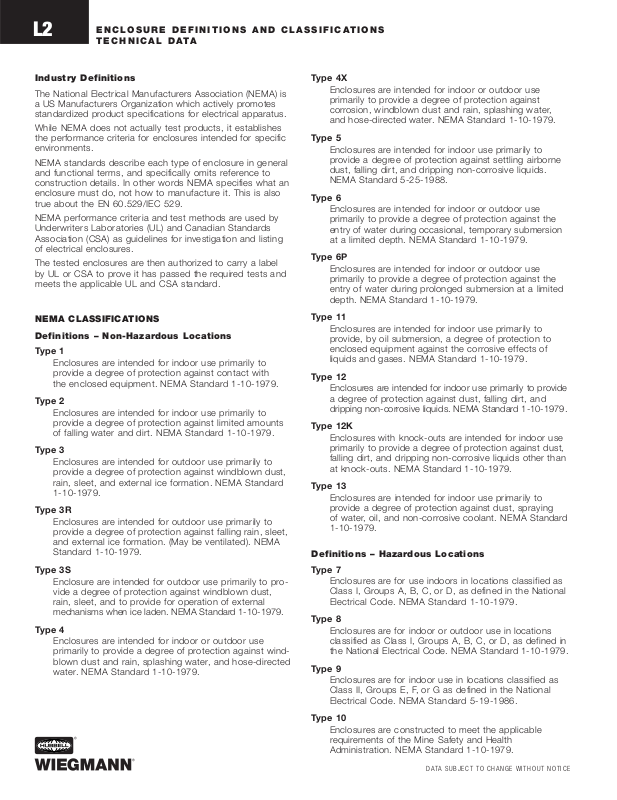

ENCLOSURE DEFINITIONS AND CLASSIFICATIONS
TECHNICAL DATA
L2
Industry Definitions
The National Electrical Manufacturers Association (NEMA) is
a US Manufacturers Organization which actively promotes
standardized product specifications for electrical apparatus.
While NEMA does not actually test products, it establishes
the performance criteria for enclosures intended for specific
environments.
NEMA standards describe each type of enclosure in general
and functional terms, and specifically omits reference to
construction details. In other words NEMA specifies what an
enclosure must do, not how to manufacture it. This is also
true about the EN 60.529/IEC 529.
NEMA performance criteria and test methods are used by
Underwriters Laboratories (UL) and Canadian Standards
Association (CSA) as guidelines for investigation and listing
of electrical enclosures.
The tested enclosures are then authorized to carry a label
by UL or CSA to prove it has passed the required tests and
meets the applicable UL and CSA standard.
NEMA CLASSIFICATIONS
Definitions – Non-Hazardous Locations
Type 1
Enclosures are intended for indoor use primarily to
provide a degree of protection against contact with
the enclosed equipment. NEMA Standard 1-10-1979.
Type 2
Enclosures are intended for indoor use primarily to
provide a degree of protection against limited amounts
of falling water and dirt. NEMA Standard 1-10-1979.
Type 3
Enclosures are intended for outdoor use primarily to
provide a degree of protection against windblown dust,
rain, sleet, and external ice formation. NEMA Standard
1-10-1979.
Type 3R
Enclosures are intended for outdoor use primarily to
provide a degree of protection against falling rain, sleet,
and external ice formation. (May be ventilated). NEMA
Standard 1-10-1979.
Type 3S
Enclosure are intended for outdoor use primarily to provide a degree of protection against windblown dust,
rain, sleet, and to provide for operation of external
mechanisms when ice laden. NEMA Standard 1-10-1979.
Type 4
Enclosures are intended for indoor or outdoor use
primarily to provide a degree of protection against windblown dust and rain, splashing water, and hose-directed
water. NEMA Standard 1-10-1979.
Type 4X
Enclosures are intended for indoor or outdoor use
primarily to provide a degree of protection against
corrosion, windblown dust and rain, splashing water,
and hose-directed water. NEMA Standard 1-10-1979.
Type 5
Enclosures are intended for indoor use primarily to
provide a degree of protection against settling airborne
dust, falling dirt, and dripping non-corrosive liquids.
NEMA Standard 5-25-1988.
Type 6
Enclosures are intended for indoor or outdoor use
primarily to provide a degree of protection against the
entry of water during occasional, temporary submersion
at a limited depth. NEMA Standard 1-10-1979.
Type 6P
Enclosures are intended for indoor or outdoor use
primarily to provide a degree of protection against the
entry of water during prolonged submersion at a limited
depth. NEMA Standard 1-10-1979.
Type 11
Enclosures are intended for indoor use primarily to
provide, by oil submersion, a degree of protection to
enclosed equipment against the corrosive effects of
liquids and gases. NEMA Standard 1-10-1979.
Type 12
Enclosures are intended for indoor use primarily to provide
a degree of protection against dust, falling dirt, and
dripping non-corrosive liquids. NEMA Standard 1-10-1979.
Type 12K
Enclosures with knock-outs are intended for indoor use
primarily to provide a degree of protection against dust,
falling dirt, and dripping non-corrosive liquids other than
at knock-outs. NEMA Standard 1-10-1979.
Type 13
Enclosures are intended for indoor use primarily to
provide a degree of protection against dust, spraying
of water, oil, and non-corrosive coolant. NEMA Standard
1-10-1979.
Definitions – Hazardous Locations
Type 7
Enclosures are for use indoors in locations classified as
Class I, Groups A, B, C, or D, as defined in the National
Electrical Code. NEMA Standard 1-10-1979.
Type 8
Enclosures are for indoor or outdoor use in locations
classified as Class I, Groups A, B, C, or D, as defined in
the National Electrical Code. NEMA Standard 1-10-1979.
Type 9
Enclosures are for indoor use in locations classified as
Class II, Groups E, F, or G as defined in the National
Electrical Code. NEMA Standard 5-19-1986.
Type 10
Enclosures are constructed to meet the applicable
requirements of the Mine Safety and Health
Administration. NEMA Standard 1-10-1979.
Page 2
DATA SUBJECT TO CHANGE WITHOUT NOTICE
ENCLOSURE TYPES NON-HAZARDOUS LOCATIONS
ENCLOSURE DEFINITIONS AND CLASSIFICATIONS
TECHNICAL DATA
L3
TYPE
DESIGNATION
1
2
3
3R
4
4X
6
12
13
NATIONAL ELECTRICAL MANUFACTURERS
ASSOCIATION (NEMA STANDARD 250)
AND ELECTRICAL AND ELECTRONIC MFG.
ASSOCIATION OF CANADA (EEMAC)
Enclosures are intended for indoor use primarily to
provide a degree of protection against contact with
the enclosed equipment or locations where unusual
service conditions do not exist.
Enclosures are intended for indoor use primarily
to provide a degree of protection against limited
amounts of falling water and dirt.
Enclosures are intended for outdoor use primarily
to provide a degree of protection against windblown dust, rain, and sleet; undamaged by the
formation of ice on the enclosure.
Enclosures are intended for outdoor use primarily
to provide a degree of protection against falling
rain and sleet; undamaged by the formation of ice
on the enclosure.
Enclosures are intended for indoor or outdoor use
primarily to provide a degree of protection against
windblown dust and rain, splashing water, and
hose-directed water; undamaged by the formation
of ice on the enclosure.
Enclosures are intended for indoor or outdoor use
primarily to provide a degree of protection against
corrosion, windblown dust and rain, splashing
water, and hose-directed water; undamaged by the
formation of ice on the enclosure.
Enclosures are intended for use indoors or outdoors
where occasional submersion is encountered.
Enclosures are intended for indoor use primarily to
provide a degree of protection against dust, falling
dirt, and dripping non-corrosive liquids.
Enclosures are intended for indoor use primarily
to provide a degree of protection against dust,
spraying of water, oil, and non-corrosive coolant.
This material is reproduced from NEMA. The preceding descriptions, however, are not intended to be
complete representations of National Electrical
Manufacturers Association standards for enclosures
nor those of the Electrical and Electronic
Manufacturers Association of Canada.
UNDERWRITERS LABORATORIES INC.
(UL 50 AND UL 508)
Indoor use primarily to provide protection against
contact with the enclosed equipment and against
a limited amount of falling dirt.
Indoor use to provide a degree of protection against
limited amounts of falling water and dirt.
Outdoor use to provide a degree of protection
against windblown dust and windblown rain; undamaged by the formation of ice on the enclosure.
Outdoor use to provide a degree of protection
against falling rain; undamaged by the formation
of ice on the enclosure.
Either indoor or outdoor use to provide a degree of
protection against falling rain, splashing water, and
hose-directed water; undamaged by the formation
of ice on the enclosure.
Either indoor or outdoor use to provide a degree of
protection against falling rain, splashing water, and
hose-directed water; undamaged by the formation
of ice on the enclosure; resists corrosion.
Indoor or outdoor use to provide a degree of
protection against entry of water during temporary
submersion at a limited depth; undamaged by the
formation of ice on the enclosure.
Indoor use to provide a degree of protection against
dust, dirt, fiber flyings, dripping water, and external
condensation of non-corrosive liquids.
Indoor use to provide a degree of protection against
lint, dust seepage, external condensation and
spraying of water, oil, and non-corrosive liquids.
This material is reproduced from Underwriters Laboratories Inc. Standard for Safety for Cabinets and Boxes,
UL 50, Copyright 1997 and Industrial Control Equipment,
UL 508, Copyright 1996 by Underwriters Laboratories Inc.
Underwriters Laboratories Inc. (UL) shall not be responsible to anyone for the use of or reliance upon a UL
Standard by anyone. UL shall not incur any obligation
or liability for damages, including consequential damages,
arising out of or connection with the use, interpretation
of, or reliance upon a UL Standard.
CANADIAN STANDARDS ASSOCIATION
(STANDARD C22.2 NO. 94)
General purpose enclosure. Protects against
accidental contact with live parts.
Indoor use to provide a degree of protection
against dripping and light splashing of non-corrosive liquids and falling dirt.
Indoor or outdoor use; provides a degree of
protection against rain, snow, and windblown
dust; undamaged by the external formation of
ice on the enclosure.
Indoor or outdoor use; provides a degree of
protection against rain and snow; undamaged by
the external formation of ice on the enclosure.
Indoor or outdoor use; provides a degree of
protection against rain, snow, windblown dust,
splashing and hose-directed water; undamaged
by the external formation of ice on the enclosure.
Indoor or outdoor use; provides a degree of
protection against rain, snow, windblown dust,
splashing and hose-directed water; undamaged
by the external formation of ice on the enclosure;
resists corrosion.
Indoor or outdoor use; provides a degree of
protection against the entry of water during
temporary submersion at a limited depth;
undamaged by the external formation of ice on
the enclosure; resists corrosion.
Indoor use; provides a degree of protection
against circulating dust, lint, fibers, and flyings;
dripping and light splashing of non-corrosive
liquids; not provided with knockouts.
Indoor use; provides a degree of protection
against circulating dust, lint, fibers, and flyings;
seepage and spraying of non-corrosive liquids,
including oils and coolants.
This material is reproduced from the Canadian
Standards Association.
PROVIDES A DEGREE OF PROTECTION AGAINST
TYPE OF ENCLOSURE
THE FOLLOWING ENVIRONMENTAL CONDITIONS
1* 2* 4 4X 5 6 6P 11 12 12K 13
I Incidental contact with the enclosed equipment
• • •• •• • ••• •
Falling dirt
• • •• •• • ••• •
Falling liquids and light splashing
••• • • ••• •
Dust, lint, fibers, and flyings†
•• •• • •• •
Hose down and splashing water
•• • •
Oil and coolant seepage
•• •
Oil or coolant spraying and splashing
•
Corrosive agents
•••
Occasional temporary submersion
••
Occasional prolonged submersion
•
COMPARISON OF SPECIFIC NON-HAZARDOUS APPLICATIONS INDOOR LOCATIONS
*These enclosures may be ventilated. However, Type 1 may not provide protection against small particles of falling dirt when ventilation
is provided in the enclosure top.
†These fibers and flyings are non-hazardous materials and are not considered Class III type ignitable fibers or combustible flyings.
For Class III type ignitable fibers or combustible flyings see the National Electrical Code, Section 500-6(a).
®
R
Page 3
DATA SUBJECT TO CHANGE WITHOUT NOTICE
ENCLOSURE DEGREES OF PROTECTION
TECHNICAL DATA
L4
In order to protect the sometimes delicate equipment
against foreign objects there are protection standards
developed which grade the degree of protection level
achieved. It is important to know that there are two such
standards for the degree of protection by an enclosure.
• The European specification: IP-code according to
EN 60.529 / IEC 529
• The American specification: TYPE-code according to
NEMA 250
The European IP-Code
To help the design engineer identify the degree of protection
provided by an enclosure, EN60.529/IEC 529 (International
Electrotechnical Commission) was introduced. The latest
version was issued 11/89. (Correct at date of printing).
Both harmonized standards classify the extent to which an
enclosure will resist the ingress of solid bodies and water
under designated tests.
After successful testing the enclosure will be allocated
a classification code with the letters IP (International
Protection) prefixing that code.
Further explanation of the degree of protection provided
by an enclosure indicated by the IP-code is detailed below:
Code letters
(International Protection)
IP 55 W
First Characteristic Numeral
(dust protection, numerals 0-6, or letter X)
Second Characteristic Numeral
(water protection, numerals 0-8, or letter X)
Optional Letter for Application in Specified Weather Conditions
(normally agreed between user and manufacturer, example: Rain hood)
Page 4
DATA SUBJECT TO CHANGE WITHOUT NOTICE
ENCLOSURE DEGREES OF PROTECTION
TECHNICAL DATA
L5
THE IP SCALE
2ND NUMERAL:
DEGREE OF PROTECTION WITH RESPECT TO HARMFUL INGRESS OF WATER
012345678
Protected
Protected Protected
Protected
Non against
against against
against
Protected Protected Protected Protected
protected dripping
dripping dripping
splashing
against against against against
water
water of water of
water
water jets heavy seas immersion submersion
±15° angle ±60° angle
Test time Test time Test time 10 Test time Test time Test time Test time Test time
10 mins 10 mins mins max 200 10 mins 1 min/m 1 min/m 30 mins 30 mins
0 Non Protected
IP 00 IP 01 IP 02 10l./min 10l./min 12.5l./min 100l./min
80kN/m 80kN/m 30kN/m 100 kN/m
Protected against
1 solid objects greater IP 10 IP 11 IP 12 IP 13
than Dia. 50 mm
Protected against
2 solid objects greater IP 20 IP 21 IP 22 IP 23
than Dia. 12 mm
Protected against
3 solid objects greater IP 30 IP 31 IP 32 IP 33 IP 34
than Dia. 2.5 mm
Protected against
4 solid objects greater IP 40 IP 41 IP 42 IP 43 IP 44 IP 45 IP 46
than Dia. 1.0 mm
5 Dust protected IP 54 IP 55 IP 56
6 Dust tight IP 65 IP 66 IP 67 IP 68
1ST NUMERAL:
DEGREE OF PROTECTION
WITH RESPECT TO PERSONS
AND SOLID OBJECTS.
NEMA TYPE IP23 IP30 IP32 IP55 IP64 IP65 IP66 IP67
1
•
2
•
3
•
3R
•
4
•
4X
•
6
•
12
•
13
•
NEMA TO IEC – ENCLOSURE RATING CROSS-REFERENCE*
*Note: This cross-reference table is an approximation of NEMA and IEC classifications for reference only. Please consult the appropriate agency's requirements
and test qualifications for complete information.
Page 5
DATA SUBJECT TO CHANGE WITHOUT NOTICE
ENCLOSURE STANDARDS
TECHNICAL DATA
NEMA
National Electrical Manufacturers’ Association
2101 L Street Northwest, Washington, DC 20037
NEMA Standards Publication No. 250
Enclosures for Electrical Equipment (1000 Volts Maximum)
NEMA Standards Publication No. ICS6
Enclosures for Industrial Controls and Systems
UL
Underwriters' Laboratories Inc.
333 Pfingsten Road, Northbrook, Il 60062
UL 50 Cabinets and Boxes
UL 508 Industrial Control Equipment
UL 870 Wireway, Auxiliary Gutter, and Associated fittings.
CSA
Canadian Standards Association
178 Rexdale Boulevard, Rexdale, Toronto, Ontario Canada
M9W 1R3
CSA Standard C22.2, No. 14 Industrial Control Equipment
for Use in Ordinary (Non-Hazardous) Locations
CSA Standard C22.2, No. 40 Cutout, Junction,
and Pull Boxes
CSA Standard C22.2, No. 94-M91 Special Purpose
Enclosures
JIC
Joint Industry Counsel
7901 Westpark Drive, McLean, VA 22101
EMP-1 Electrical Standards for Mass Production Equipment
EGP-1 Electrical Standards for General Purpose
Machine Tools
IEC
International Electrotechnical Commission
3 Rue de Varemb, CH-1211
Geneva 20, Switzerland
IEC 529 Classification of Degrees of Protection
Provided by Enclosures
ANSI
American National Standards Institute
1430 Broadway
New York, NY 10018
ANSI Z55.1-1967 Gray Finishes for Industrial
Apparatus and Equipment
EEMAC
Electrical/Electronic Manufacturers Association of Canada
10 Carlson Court
Suite 500
Rexdale (Toronto), Ontario Canada M9W 6L2
TUV
TUV Rheinland
Glenview, IL
Newtown, CT
San Ramon, CA
VDE
Institute of German Electronics Engineers
Merianstrasse 28
D-6050 Offenbach, Germany
EIA
Electronic Industries Association
2001 Eye Street Northwest
Washington, DC 20006
EIA RS-310-D Racks, Panels, and Associated Equipment
NFPA
National Fire Protection Association
Batterymarch Park
Quincy, MA 02269
NFPA 70 National Electrical Code
FORD
Ford Manufacturing Standards
Ford Motor Company
The American Road
Dearborn, MI 48121
EXI Electrical Standards for Mass Production Equipment
L6

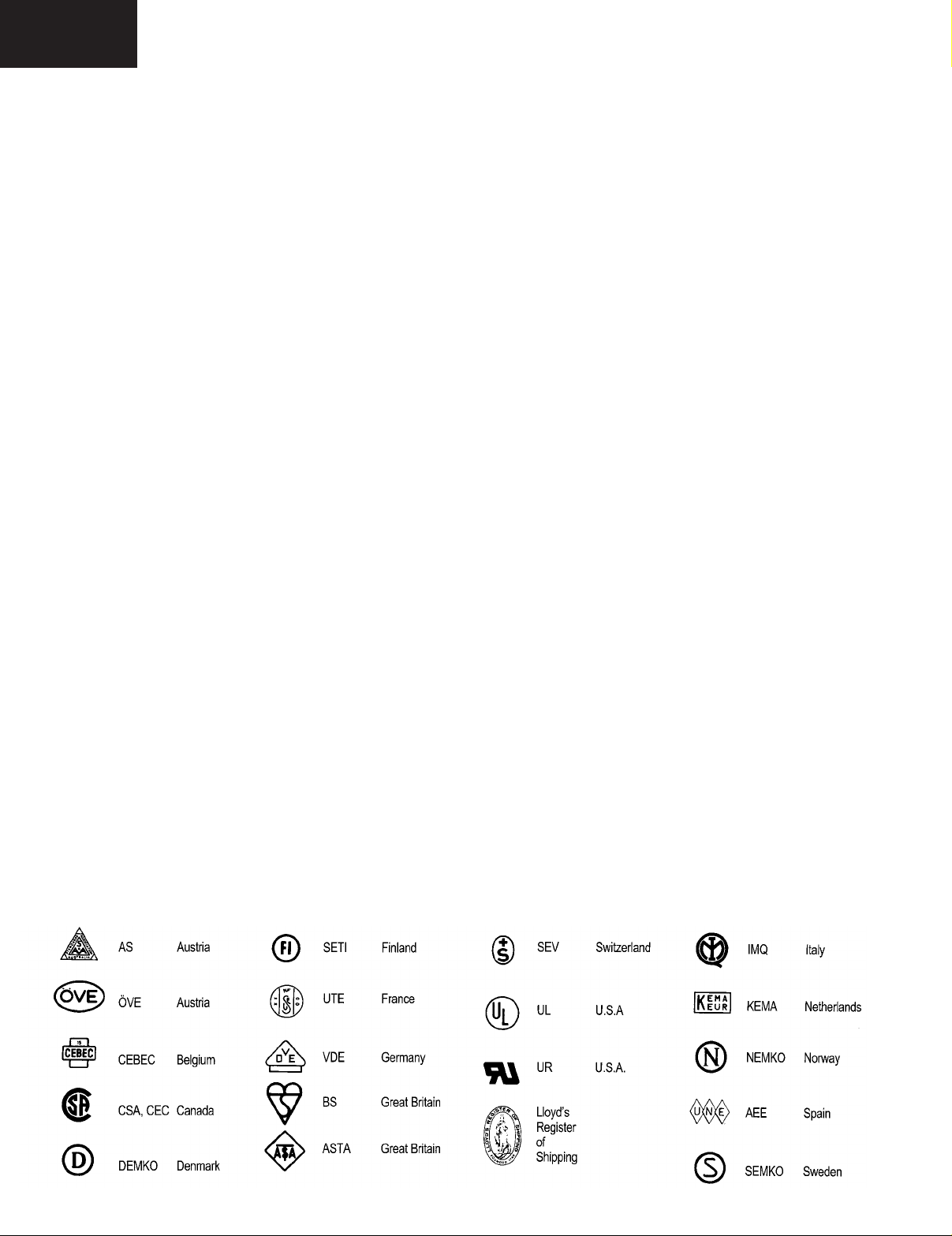

CERTIFICATES & APPROVALS
Page 6
DATA SUBJECT TO CHANGE WITHOUT NOTICE
ENCLOSURE POWDER PAINT APPLICATION
TECHNICAL DATA
Degreasing, Iron Phosphatizing and Rinsing
During this process the steel is cleaned and passivated.
This way the product will not corrode and good adhesion
of the paint to the steel surface is achieved.
Forced Drying
To make sure that the products are completely dry before
the painting process starts, they are dried at 100 degree C.
Structure Powder Coating
The powder coating is electrostatically applied. This way
ALL faces are covered inside and outside assuring high
mechanical strength, very good corrosion protection and
resistance to chemicals, temperature and weather variations.
The powder coating can easily be re-painted and is free
from heavy metals, chromate and silicon.

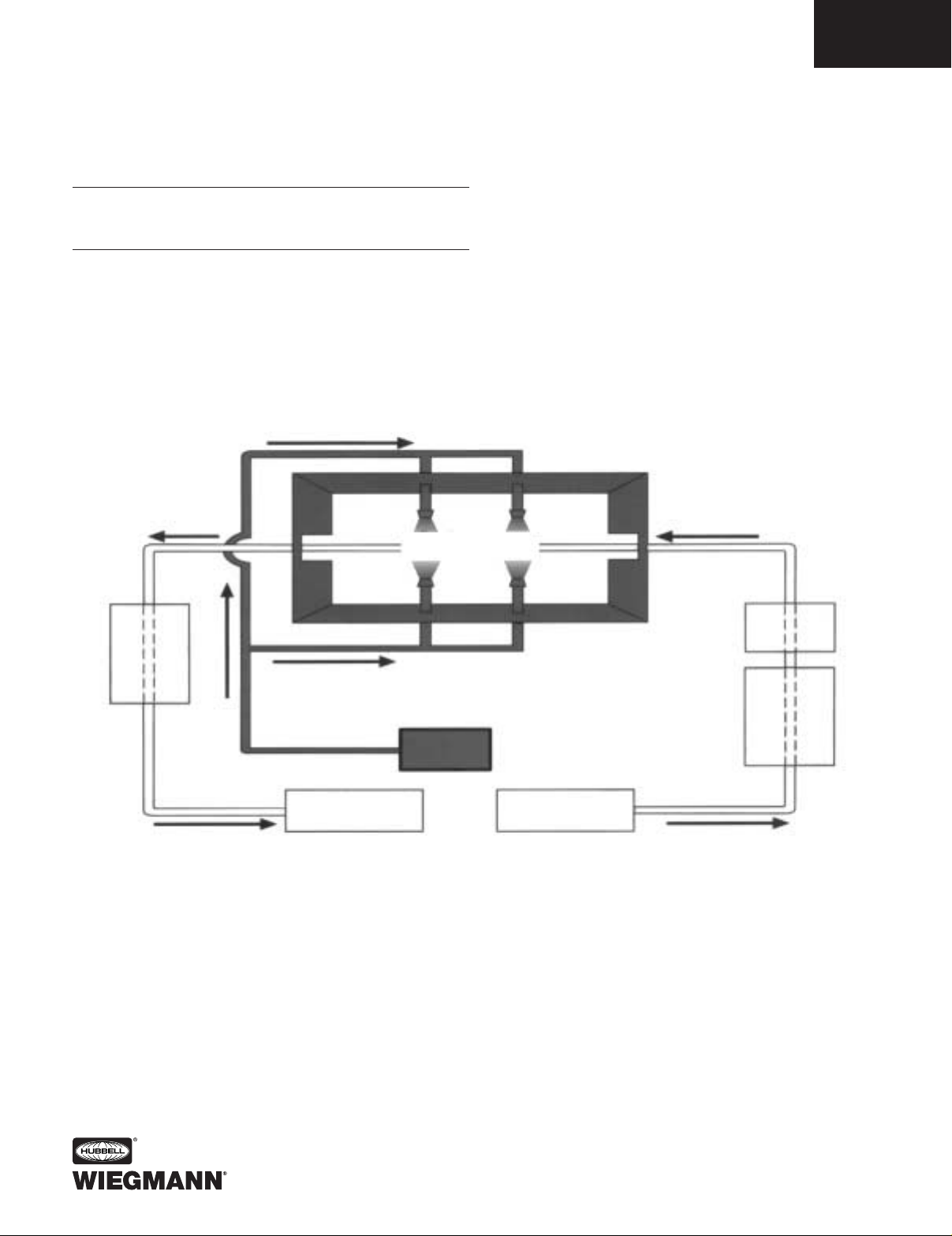

Painting Process
Hardening
Taking down
enclosures
Hanging up
enclosures
Phosphatizing
Drying
L7
Page 7
DATA SUBJECT TO CHANGE WITHOUT NOTICE
ENCLOSURE METAL SPECIFICATIONS
TECHNICAL DATA
MATERIALS AND FINISHES METALS
CHARACTERISTICS OF VARIOUS MATERIALS
Hot Rolled Pickled and Oiled Steel Sheets
(ASTM A569)
A low-carbon, hot-finished steel produced by passing bar stock, at a
temperature above the recrystallation temperature, between a set of
rolls. Scale has been removed by means of a hot, weak sulfuric acid
bath, after which an oil film is applied.
Cold Rolled Steel (ASTM A366)
A low-carbon, cold-finished steel produced by passing bar stock
through a set of rolls.
Galvanized Steel (ASTM A526)
Steel with a zinc coating to provide corrosion resistance. The
most common method of applying the zinc coating is hot dip
galvanizing. Other optional methods include electrodeposition
and metal spraying. Galvanizing provides protection against
corrosion by serving as a sacrificial barrier and providing cathodic
protection at sheared edges.
18-8 Stainless Steel (Type 302-304)
A highly corrosion resistant iron-based alloy containing between 18%
and 20% chromium. Stainless steel is the strongest of the corrosion
resistant materials. It exhibits many of the same resistances attributed
to fiberglass materials as well as resistance to highly polar solvents
such as acetone and mek.
316 or 316L Stainless Steel
Provide improved resistance to salt, some acids, and high temperature.
Resistance to sulfates and chlorine is less than Type 304.
5052 Aluminum
A lightweight metal that has a protective oxide layer which shields its
surface from most corrosive elements. 5052 is the strongest non-heat
treatable aluminum alloy.
Monel
A high nickel-base alloy characterized by good strength and good
resistance to heat and corrosion.
COSTS
Low
Low
Low to Moderate
Moderate
Moderate to High
Moderate
High
SUGGESTED APPLICATION
General indoor and outdoor use after a suitable
finish has been applied to protect against corrosion.
General indoor and outdoor use after a suitable finish has been applied
to protect against corrosion.
Indoor or outdoor use in neutral pH (pH is a measurement of the degree
of acidity or alkalinity of a solution: pH values from 0 to 7 indicate acidity,
and pH values from 7 to 14 indicate alkalinity). Resists oil, gas, glycerine,
dichromates, borates, and silicates. Most frequent application is outdoor
including seacoast atmospheres. Additional finishes may be applied to
improve corrosion resistance.
Indoor and outdoor use. Ideally suited for use in food processing areas,
dairies, breweries, or any wet area. Also works well in areas where caustic
elements or alkalies are present.
Indoor or outdoor use in almost any environment. These stainless steels
are the most corrosion resistant metal materials used by Wiegmann for
enclosures. A superior material choice for marine environments.
Indoor or outdoor use, particularly in marine environments. Also an
excellent choice for enclosures exposed to solvents, petrochemicals,
some acids, most sulfates and nitrates.
Frequently specified for marine and chemical plant applications.
Mainly used as hardware on non-metallic enclosures.
L8
Page 8
DATA SUBJECT TO CHANGE WITHOUT NOTICE
ENCLOSURE GAUGE AND METRIC
TECHNICAL DATA
4THS 8THS 16THS 32NDS 64THS TO 3 PLACES TO 2 PLACES ILLIMETERS
1/64 .016 .02 0
1/32 .031 .03 1
3/64 .047 .05 1
1/16 .062 .06 2
5/64 .078 .08 2
3/32 .094 .09 2
7/64 .109 .11 3
1/8 .125 .12 3
9/64 .141 .14 4
5/32 .156 .16 4
11/64 .172 .17 4
3/16 .188 .19 5
13/64 .203 .20 5
7/32 .219 .22 6
15/64 .234 .23 6
1/4 .250 .25 6
17/64 .266 .27 7
9/32 .281 .28 7
19/64 .297 .30 8
5/16 .312 .31 8
21/64 .328 .33 8
11/32 .344 .34 9
23/64 .359 .36 9
3/8 .375 .38 10
25/64 .391 .39 10
13/32 .406 .41 10
27/64 .422 .42 11
7/16 .438 .44 11
29/64 .453 .45 12
15/32 .469 .47 12
31/64 .484 .48 12
1/2 .500 .50 13
33/64 .516 .52 13
17/32 .531 .53 13
35/64 .547 .55 14
9/16 .562 .56 14
37/64 .578 .58 15
19/32 .594 .59 15
39/64 .609 .61 15
5/8 .625 .62 16
41/64 .641 .64 16
21/32 .656 .66 17
43/64 .672 .67 17
11/16 .688 .69 17
45/64 .703 .70 18
23/32 .719 .72 18
47/64 .734 .73 19
3/4 .750 .75 19
49/64 .766 .77 19
25/32 .781 .78 20
51/64 .797 .80 20
13/16 .812 .81 21
53/64 .828 .83 21
27/32 .844 .84 21
55/64 .859 .86 22
7/8 .875 .88 22
57/64 .891 .89 23
29/32 .906 .91 23
59/64 .922 .92 23
15/16 .938 .94 24
61/64 .953 .95 24
31/32 .969 .97 25
63/64 .984 .98 25
1 inch 1.000 1.00 25
NEMA TO IEC – ENCLOSURE RATING CROSS-REFERENCE* DECIMAL & METRIC EQUIVALENTS
GAUGE THICKNESS
NUMBER (INCHES)
7 Gauge .179
8 Gauge .164
9 Gauge .150
10 Gauge .134
11 Gauge .120
12 Gauge .105
13 Gauge .090
14 Gauge .075
15 Gauge .067
16 Gauge .060
17 Gauge .054
18 Gauge .048
19 Gauge .042
20 Gauge .036
21 Gauge .033
22 Gauge .030
N.I.B. GAUGE EQUIVALENTS
Steel Manufacturers’ Standard Gauge
for Sheet Steel (Hot or Cold Rolled)
L9
Page 9
DATA SUBJECT TO CHANGE WITHOUT NOTICE
ENCLOSURE METRIC CONVERSION
TECHNICAL DATA
Repainting
For best adhesion results, correct surface preparation before
repainting is critical. To avoid discoloration of solvent-based
high solids baking enamel, do not bake over 360 F. Always
follow instructions provided by your paint manufacturer.
Apply thin finish coats. Allow the paint to cure properly for
best adhesion and hardness.
Panel Installation
When installing the interior sub-panel, it may be necessary
to bend one or more mounting studs (slightly) to permit the
panel to slide in place. If this would happen, simply position
the panel on the studs that line up properly, and pry the
other stud into position with a screwdriver inserted through
the panel hole.
Door Closing Adjustments
(Single Door Wall Mount) If the surface on which the
enclosure is mounted is not flat, the door may not open and
close properly. If heavy equipment is mounted on the door,
the door may sag slightly. If the top of door strikes the lip
which extends around the body opening, place metal shims
behind the mounting foot which is located at the bottom
of the enclosure and closest to the door hinge. Place the
shims between the mounting foot and the wall or mounting
surface; be sure all mounting bolts are tight!
(Two Door Floor Mounting) The overlapping doors are
factory-fitted to meet evenly at the top and bottom. If the
floor under the enclosure is not level, the doors will not close
evenly. In this case, place metal shims under the corners
of the enclosure. The enclosure should be bolted in place
with doors closed to prevent tipping when installing shims.
Shims under the right front corner will raise the right door.
Shims under the left front corner will raise the left door. It is
important that the doors meet evenly to insure a proper seal
against liquids and dust. Be sure all mounting bolts are tight!
Lifting Enclosures
To lift an enclosure which has eyebolts or mounting feet,
be sure to use all the eyebolts or tip mounting feet provided.
Arrange your chains and cables with spreader bars, etc., so
you are lifting straight up on the eyebolts or top mounting feet.
1mm = 0.039 in. 8mm = 0.315 in. 60mm = 2.362 in. 400mm = 15.748 in.
2mm = 0.079 in. 9mm = 0.354 in. 70mm = 2.756 in. 500mm = 19.685 in.
3mm = 0.118 in. 10mm = 0.394 in. 80mm = 3.150 in. 600mm = 23.622 in.
4mm = 0.157 in. 20mm = 0.787 in. 90mm = 3.543 in. 700mm = 27.559 in.
5mm = 0.197 in. 30mm = 1.181 in. 100mm = 3.937 in. 800mm = 31.496 in.
6mm = 0.236 in. 40mm = 1.575 in. 200mm = 7.874 in. 900mm = 35.433 in.
7mm = 0.276 in. 50mm = 1.969 in. 300mm = 11.811 in. 1000mm = 39.370 in.
LENGTH CONVERSIONS
IMPERIAL TO METRIC METRIC TO IMPERIAL
1 sq. inch = 645.16 sq. millimeters 1 sq. millimeter (mm2) = 0.00155 sq. inch
1 sq. inch = 6.4516 sq. centimeters 1 sq. centimeter (cm2) = 0.1550 sq. inch
1 sq. foot = 929.03 sq. centimeters 1 sq. meter (m2) = 10.7640 sq. feet
1 sq. foot = 0.0929 sq. meter 1 sq. meter (m2) = 1.196 sq. yards
1 sq. yard = 0.836 sq. meter
AREA CONVERSIONS
3.0 mm = 0.118 ins. 10 gauge = 0.1345/0.1225 ins. = 3.416 / 3.112 mm
2.5 mm = 0.098 ins. 12 gauge = 0.1046 / 0.0926 ins. = 2.657 / 2.352 mm
2.0 mm = 0.079 ins. 14 gauge = 0.0747 / 0.0667 ins. = 1.897 / 1.694 mm
1.5 mm = 0.059 ins. 16 gauge = 0.0598 / 0.5928 ins. = 1.519 / 1.341 mm
CONVERSIONS
L10
Page 10
DATA SUBJECT TO CHANGE WITHOUT NOTICE
ENCLOSURE INFORMATION
CUSTOMER INFORMATION
ENCLOSURE SPECIAL QUOTATIONS
TECHNICAL DATA
Please copy and complete.
Mail to: Hubbell Wiegmann Or fax to:
Attention: Quotations (618)539-5794
501 West Apple
Freeburg, IL 62243
Please attach drawings (if applicable).
L11
WIEGMANN QUOTATION REQUEST
Distributor:
Dist. Contact:
Stocking Dist. (Y/N)
End Customer:
Customer Contact:
New Quote (Y/N):
Agent: Name:
Date
(If repeat, list old quote #.)
Request Delivery
Standard Size
Nema List:
Material:
Spl. Punching:
Pems/Weld Studs (Y/N)
Panel (Y/N)
Accessories Installed (Fans, Heaters, etc.) (Y/N)
Standard Color
Drawing #
Special Size
Total Quantity:
Per Release
NEMA 1
NEMA 12
NEMA 3R
NEMA 4
CRS
SS
Alum.
Galv.
NEMA 4X
Special Size
Blanket:
COMPETITIVE INFORMATION
Competition
Wiegmann Target Price (Dist. Net)
Competition Price Level
Door
Tub
Panel
Accessories
It is the responsibility of the Sales Agent to provide all pertinent information necessary to quote. Information missing or illegible drawings may result in a “no
quote” or hold until information is researched & provided.
Page 11
DATA SUBJECT TO CHANGE WITHOUT NOTICE
CUSTOM ENCLOSURES
TECHNICAL DATA
L12
Custom Design Support & Solutions
Wiegmann can provide custom enclosure design support
tailored for your application. When you take advantage of
Wiegmann's expertise you can be confident that your
enclosure will reflect the latest technology configured to
match your installation requirements.
Our services are designed to support a wide variety of
customers from first-time users of Wiegmann enclosures
to established customers creating advanced systems on
accelerated implementation schedules. When you need
custom enclosures, count on us for help. No one knows
enclosures like Wiegmann.
Industry Standards
Our procedures and products are designed and manufactured to comply with National Electrical Manufacturers
Association (NEMA), Underwriters Laboratories Inc. (UL),
Canadian Standards Association (CSA), International
Electrotechnical Commission (IEC), and American National
Standards Institute (ANSI) requirements for enclosures.
Proper use and application of standards is carefully
monitored. This commitment to quality is your assurance
that Wiegmann custom enclosures, like their standard
enclosure counterparts, will stand up even under the most
rigorous conditions.

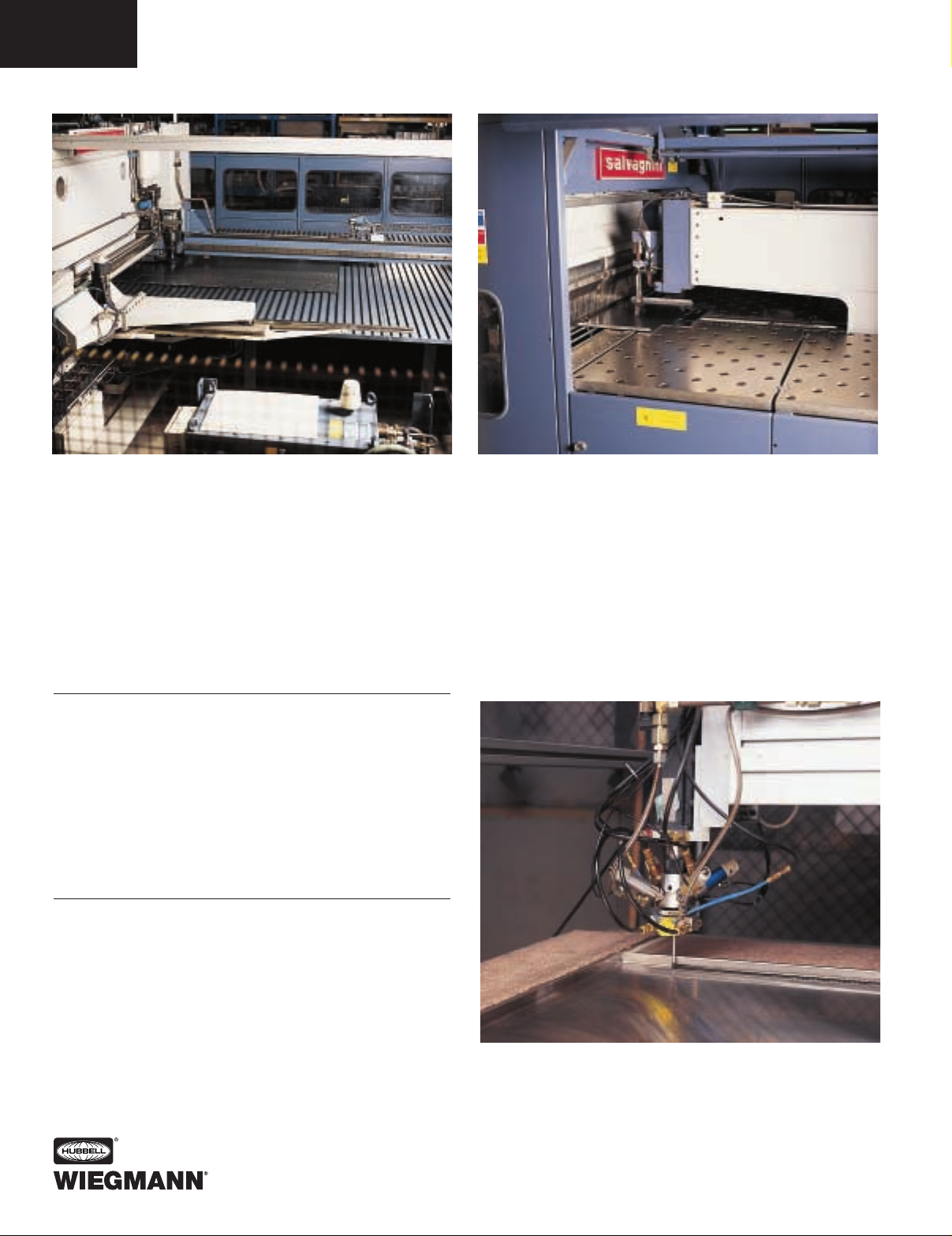

Total Custom Manufacturing Capability
Our custom engineering department and manufacturing
facility employ state-of-the-art systems and equipment
for fast turnaround.
Wiegmann manufacturing systems and procedures were
designed from the ground up to meet a wide range of
customer requirements. So if your application calls for
unique materials or finishes, holes or cutouts, special sizes
or shapes, we can help you meet those expectations.
We can also handle custom finishes on steel, stainless steel
and aluminum. Custom products can be painted in any
number of colors or color combinations. Wiegmann's offers
special colors in powder coats.
Finally, Wiegmann's Customer Support Services is dedicated
to a single goal providing the best possible service for both
our products and our customers. Our network of authorized
representatives and distributors stand ready to assist you in
providing pricing information and delivery schedules as well
as expert advice and recommendations.
Page 12
DATA SUBJECT TO CHANGE WITHOUT NOTICE
CUSTOM ENCLOSURES
TECHNICAL DATA
L13

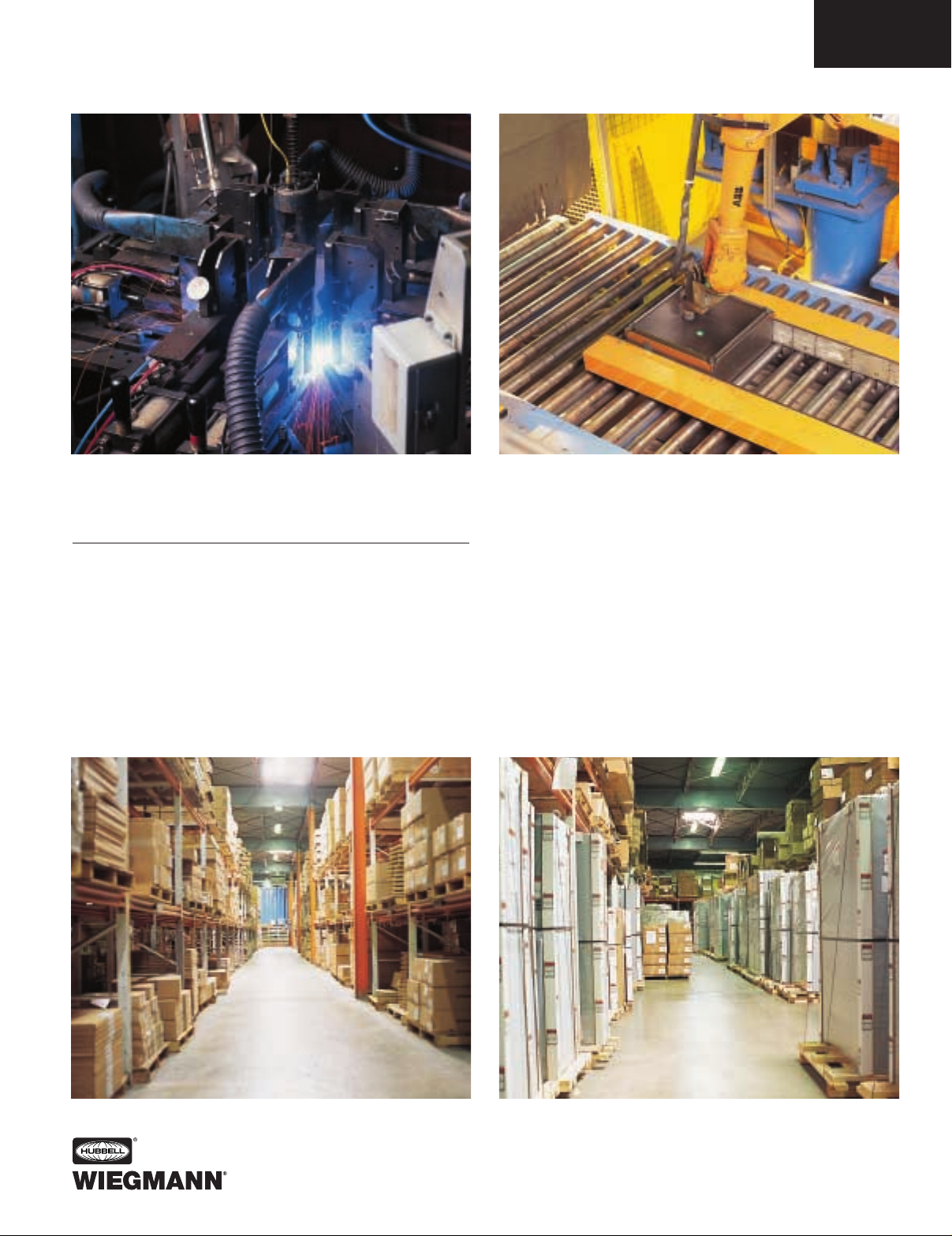

To obtain a quotation and place an order for a custom
enclosure, contact your local factory authorized Wiegmann
representative sales office.
Suggestions for Ordering
These suggestions will help you plan your custom enclosure.
Establish...
• Product quantity
• Environmental factors
• Product lead time
• Delivery deadlines
• Schedule of shipments
Determine enclosure material of choice based upon
application and environment.
Develop a detailed drawing or layout or Wiegmann will be
happy to assist in drawing. This will help us do an accurate
job of pricing, engineering, and estimating delivery schedules.
Provide us with the name and telephone number of a project
team member who is familiar with the technical aspects of
the order.
Consider modifying a Wiegmann standard enclosure.
Wiegmann manufactures over 2,500 models and with
minor modifications may be suitable for your application.
See page L11 for custom ordering form.
Loading...
