User Instructions
A copy of these instructions should be left with the user
READ THESE INSTRUCTIONS BEFORE USING THE APPLIANCE
SAFETY GUARD
The guard on this appliance conforms to the requirements of BS EN 13278: 2003 and satisfies the current fireguard
regulations. The guard is fitted to prevent risk of fire or injury from burns and must not be removed. It does not give full
protection for young children, the elderly or the infirm. It is recommended that in circumstances where children, the elderly
or infirm are left unsupervised then an additional fireguard conforming to BS 8423: 2002 may be required.
It is a legal requirement that all gas appliances are installed by a Registered installer in accordance with the Gas Safety Installation
and Use Regulations 1998 or the latest edition.
Failure to install the appliance as stated can lead to prosecution; it is in your interests that the law is complied with.
IMPORTANT: References to the above standards are for guidance only. Installers must always check to ensure that the references
made to EN and BS standards in this document are to the latest requirements.
Manufacturer’s instructions must NOT be taken in any way as over-riding statutory regulations.
ROOM VENTILATION:
Adequate room ventilation must be provided for this appliance.
Do not block any vents within the home.
PRODUCT DISPOSAL INSTRUCTIONS: When you have no further use for the product, please dispose of the product at your local
authorities recycling centre. For business users DO NOT dispose of the product with normal commercial waste.
WIDNEY LEISURE LTD.
SAXON BUSINESS PARK, HANBURY ROAD,
STOKE PRIOR, BROMSGROVE,
WORCESTERSHIRE B60 4AD. ENGLAND
TELEPHONE: +44(0)1527 577800
Email: [email protected] Web: www.widney-leisure.co.uk
Part No. W00490 Issue B

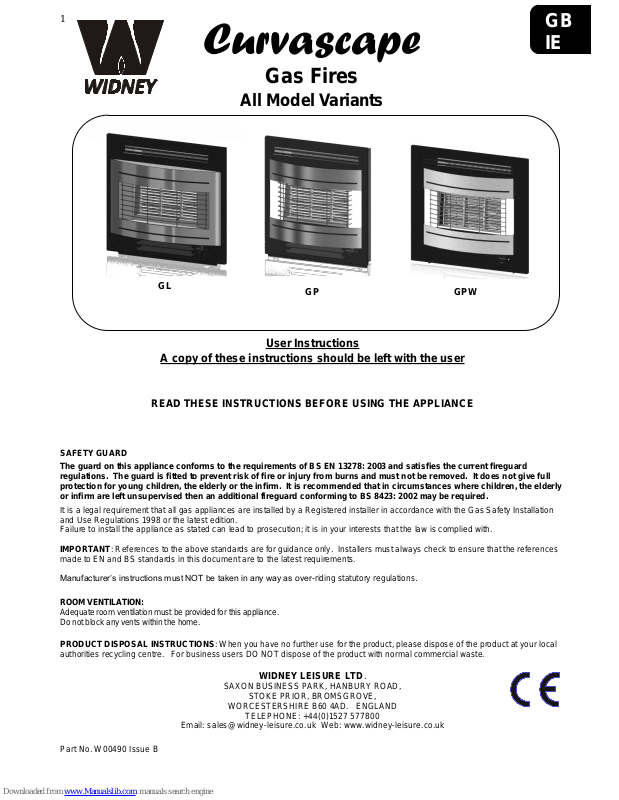

Curvascape
Gas Fires
GL
GB
IE
GP GPW
Page 2
2
About Your Fire
Widney fires are designed for use in holiday homes and semi-permanent dwellings. They provide efficient radiated heat to the
localised area and have been rigorously tested to ensure compliance with the relevant standards.
Your new fire should provide years of reliable heating providing that it is correctly maintained as detailed in this manual.
If service is required please refer to the contact information provided at the end of this manual.
SECTION 1: FIRE OPERATION
READ THESE INSTRUCTIONS BEFORE LIGHTING YOUR FIRE.
(Your installer should give you instruction on how to operate this appliance).
When the fire is first lit, it should be run on high setting for about 1 hour. Ensure the room is well ventilated and all doors and
windows are open, this is to allow for any residual lubricants remaining from the manufacturing process to burn off.
TO LIGHT THE FIRE:
The fire has an integral ignition system which will light the pilot and
main burner flame on initial lighting.
Ensure that the gas supply is turned on to the appliance
Ensure that the gas valve is in the off position as indicated in the
diagram. Fig8
1) Depress the gas control knob and turn anti-clockwise
rapidly (Two Clicks will be heard), the fire should now be lit.
The main burner and pilot can be viewed via the small
round hole in the chrome trim just in front of the radiants.
WARNING: do not get too close to the fire. Fig12
2). After rotating the control knob hold in the depressed position for
approximately 10 seconds this will allow the thermocouple safety device to
operate.
3).Once lit the fire control can be turned anti-clockwise to full heat or any position
between low and high for the desired output.
If the fire fails to ignite on the first attempt repeat the procedure in rapid
succession 3 times. If the fire has not lit after 3 attempts leave for 5
minutes and repeat steps 1 to 3.
In some cases the fire may need several attempts to ignite if the gas supply has
recently been replaced to purge air from the system.
SECTION 2: CLEANING
It is recommended for all chrome or stainless surfaces that a damp cloth is used then any residual marks dried off with a soft cloth.
To clean painted surfaces us a soft cloth.
It is recommended that the surfaces behind the fire guard be cleaned regularly with a feather type duster to reach between the bars
of the fireguard, DO NOT REMOVE THE FIRE GUARD.
Page 3
3
SECTION 3: SPECIFICATION
Overall height:
GL
GP
GPW
552mm
552mm
552mm
Overall width:
GL
GP
GPW
582mm
497mm
582mm
Overall depth: (including spigot length)
GL
GP
GPW
224mm
224mm
224mm
Weight:
10Kg
Wall opening:
535mm High x 440mm Wide
Heat input:
Max: 3.8 kW Gross
Min: 1.9 kW Gross
Appliance efficiency classification:
1
Gas Connection:
Suitable for connection to 5/16” or 8mm
copper pipe with olive and nut.
Burner:
Worgas Type POO -2041 W00283
Injector:
Widney JE001(1.02mm) LPG
Widney JE005 (1.48mm) NG
Control Valve with Rotary Piezo:
Copreci W00407 LPG
Copreci W00166 NG
Pilot/Oxygen depletion device:
Copreci Pt. No. “21100/181” W00020
LPG Copreci Pt. No. “21100/182”
W00170 NG
Pressure test point:
On Control Valve
Gas Consumption
Gas type
High
Low
G20
0.362 m3/hr
0.181 m3/hr
G25
0.421 m3/hr
0.211 m3/hr
G30
0.108 m3/hr (0.28 kg/hr)
0.054 m3/hr (0.14 kg/hr)
G31 (37 mbar)
0.143 m3/hr (0.27 kg/hr)
0.072 m3/hr (0.135 kg/hr)
G31 (30 mbar)
0.129 m3/hr (0.243 kg/hr)
0.065 m3/hr (0.122 kg/hr)
Page 4
4
Gas and Electric Heating Systems
Warranty and Service
SECTION 4: WARRANTY, SERVICE AND MAINTENANCE
Servicing must be undertaken by a Registered engineer in accordance with the gas safety (Installation and Use) Regulations 1998, or
equivalent country standard.
It is recommended that a Registered engineer services the appliance annually in accordance with the service instructions in the
Installation and Maintenance Manual.
WHAT TO DO IF YOUR APPLIANCE IS FAULTY OR YOU REQUIRE SPARES:
(DO NOT TAMPER WITH THE FIRE)
1. Check the simple fault chart to identify the problem, if in doubt consult a Registered Gas Engineer for assistance.

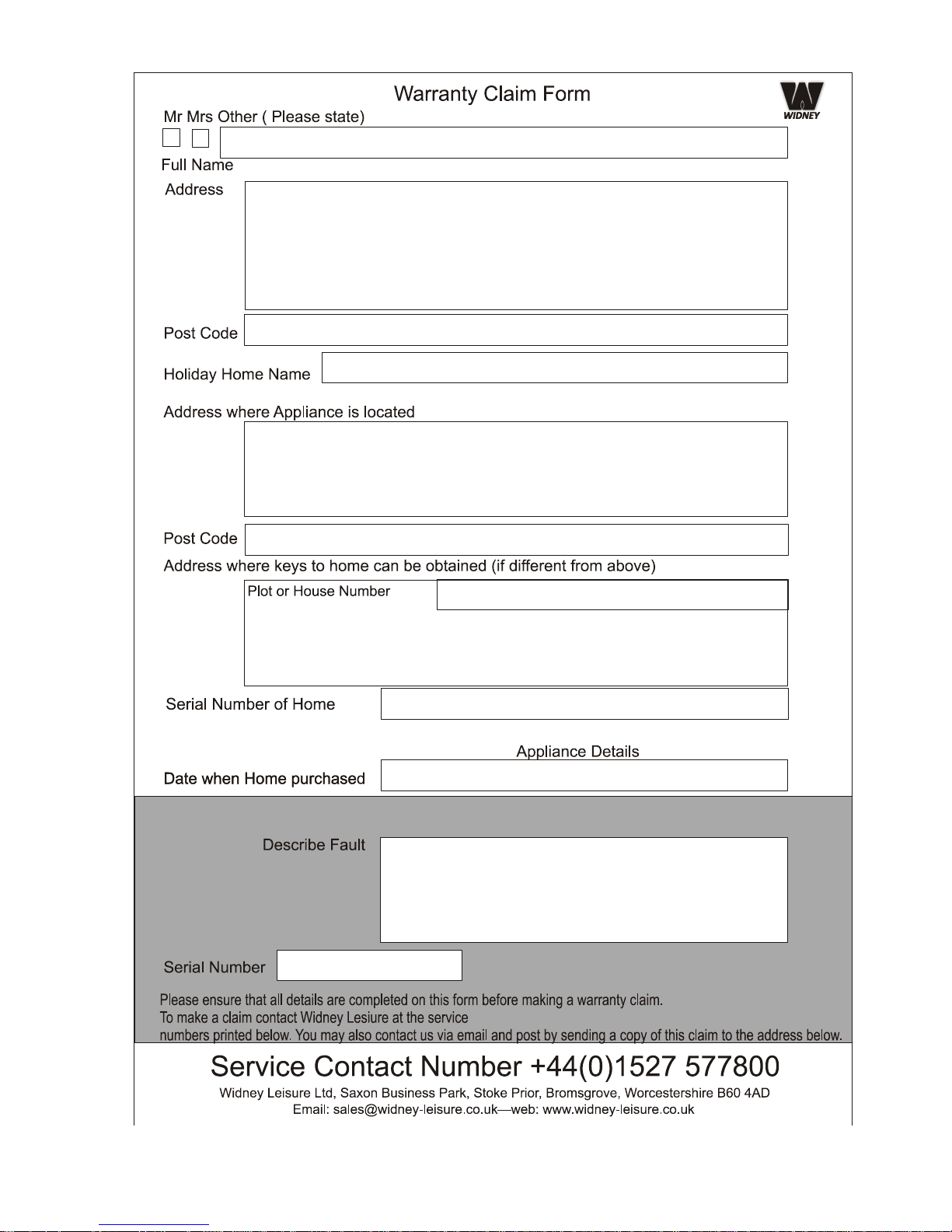

2. Complete the attached Warranty Form.
3. Contact the reseller of the product and request assistance.
If you are unable to contact the reseller please contact Widney Leisure directly at the address listed on the guarantee card.
All Widney products are guaranteed against normal operation providing they have been installed and maintained in accordance with the
instructions. Widney reserve the right to refuse or charge for any work if the above terms are not complied with.
Warranty
If your Gas or Electric heating appliance is less than 2 years old, it will be covered by our 2 year warranty (providing it has been serviced after the
first twelve months). Please refer to the warranty information in the document.
Service Promise
Widney’s service line operates five days a week with engineers working five days a week excluding bank holidays, excluding Christmas Day,
Boxing Day and New Year’s Day).
Call out Guarantee
In the event of a breakdown we will endeavor to attend within 48 hours of the service call providing the service call is within the working week as
detailed in the service promise.
Widney’s trained operators are available:
8.00 am to 4.30 pm Monday to Thursday
8.00 am to 12.00pm Friday
To Contact Service Telephone the number indicated on the Warranty Claim Form or email: [email protected] warranty service.
General Warranty Terms
Widney offers a limited warranty to all products. Any product first sold to end user is guaranteed to be free from defects in both components
and workmanship under regular uses defined in user manuals during the warranty period. The warranty period commences on the date of
purchase of the Appliance or the date of commissioning of the home.
Attention: Your original Purchase invoice (sales receipt) and warranty card showing the date of purchase, model number and serial number of the
product is your proof of the date of purchase, or proof of purchase of the home.
This International Limited Warranty is applicable and shall be honoured in every country where Widney or its Authorized Service Providers offer
warranty service subject to the terms and conditions provided in this International Limited Warranty Statement.
Warranty
During the warranty period, the defective product will be either repaired or replaced at the discretion of Widney except in the cases listed in the
Limitation of Liability Clause of this document.
This International Limited Warranty covers the costs of service parts and labour required to restore your product to fully functional condition.
Widney will, at its discretion, repair or replace any defective products or parts thereof covered by this International Limited warranty with new
or refurbished parts of the product that are equivalent to new products in both functionality and performance. A product or part that is repaired
or replaced under this International Limited warranty shall be covered for the remainder of the original warranty period applying to the product
or part, or for six months, whichever expires last. All exchanged parts and products under this International Limited Warranty will become the
property of Widney.
Page 5
5
Obtaining the Warranty Service
Warranty service is performed by WIDNEY authorized service personnel located within a country where WIDNEY or its authorized Service
Providers offer the warranty service subject to the terms and conditions provided in this International Limited Warranty.
Warranty service authorization under this International Limited Warranty will be honoured only if claims are made within the warranty period.
Contact details of the nearest service centre may be obtained on WIDNEY website www.widney-leisure.co.uk.
The clients are requested to perform the following actions before claiming WIDNEY product as defective:
Complete the warranty claim form.
Refer to user manual enclosed within the product package for important tips on how to operate and troubleshoot the product.
International Warranty
Warranty may be valid when WIDNEY brand name product is purchased in one country and transferred to another country, where an authorized
WIDNEY service centre is located, without voiding the warranty. Please be advised that service availability and response time may vary from
country to country.
WIDNEY is not responsible for any export and import control issues, handling fees, tariffs, import duties, and all other related fees that may be
incurred during transferring.
Limitation of Liability
Widney reserves the rights to refuse warranty service of products under disputable conditions. Widney also holds the rights to declare final
decision whether products are within warranty conditions. The following actions and damages will result in voiding the limited warranty:
Damage caused by act of nature, such as fire, flood, wind, earthquake, lightning, etc.
Damage or incompatibility caused by failure to perform a proper installation or to provide an appropriate operational environment for the
product.
Damage caused by impact with other objects, dropping, falls, spilled liquids, or submersion in liquids.
Damage caused by unauthorized repair or disassembling of the product.
Damage caused by any other abuse, misuse, mishandling, or misapplication.
The serial number of the product (or serial number stickers of its parts) has been modified, removed, blurred or damaged.
Cracks and scratches on LCD and plastic material as well as other defects caused by transportation, handling or customer abuse.
Disclaimer of Warranty
THIS WARRANTY IS EXPRESSED IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING THE IMPLIED WARRANTY OF
MERCHANTABILITY, THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE AND OF ALL OTHER OBLIGATIONS OR LIABILITIES ON
WIDNEY’S PART, AND IT NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PARTY TO ASSUME FOR WIDNEY ANY OTHER LIABILITIES. THE
FOREGOING CONSTITUTES THE BUYER’S SOLE AND EXCLUSIVE REMEDY FOR THE FURNISHING OF DEFECTIVE OR NONCONFORMING PRODUCTS
AND WIDNEY WILL NOT IN ANY EVENT BE LIABLE FOR COST OF SUBSTITUTE OR REPLACEMENT, COST OF FACILITIES OR SERVICE, DOWNTIME
COSTS, LOSS OF PROFITS, REVENUES OR GOODWILL, RELIANCE DAMAGES, LOSS OF DATA, LOSS OF USE IF OR DAMAGE TO ANY ASSOCIATED
EQUIPMENT, OR ANY OTHER INDIRECT, INCIDENTAL, SPECIAL, OR CONSEQUENTIAL DAMAGES BY REASON OF THE FACT THAT SUCH PRODUCTS
WILL HAVE BEEN DETERMINED TO BE DEFECTIVE OR NONCONFORMING.
This Limited Warranty gives you specific legal rights. You may also have other rights that may vary from state to state or from country to
country. You are advised to consult applicable state or country laws for full determination of your rights.
WIDNEY products are not designed for any “critical applications.” ”Critical applications” shall mean life support systems, medical applications,
connections to implanted medical devices, commercial transportation, nuclear facilities or systems or any other applications where product
