Widex DEX User Instructions

USER INSTRUCTIONS

TV-Dex

Contents

PACKAGE CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

YOUR NEW TV-DEX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

TV-CONTROLLER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

TV-BASE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

LIGHT-EMITTING DIODES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

GETTING STARTED. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

CONNECTING THE UNITS: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

WHEN USING MORE THAN ONE TV-BASE . . . . . . . . . . . . . . 14

USAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

TRANSMISSION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

ADJUSTING THE VOLUME . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

MUTE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

ROOM OFF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

RECHARGING THE BATTERY . . . . . . . . . . . . . . . . . . . . . . . . . .20

TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

CARING TIPS AND WARNINGS. . . . . . . . . . . . . . . . . . . . . . . . . . 23

SAFETY WARNING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

REGULATORY INFORMATION. . . . . . . . . . . . . . . . . . . . . . . . . . . 26

2

3

1.

2.

PaCkage Contents

User manual

TV-Controller

Box 1:
Mini USB power supply

Box 2:
Lanyard

Box 3:

a. 3.5 mm jack to

3.5 mm jack cable

b. 3.5 mm jack to

phono cable

Box 4:

a. TV-Base
b. SCART adaptor

Your new tV-Dex

We hope you will be pleased with your DEX™ TV­Controller and TV-Base. These user instructions ex­plain how these units should be operated. Please
read this booklet carefully before you start using
the units.

1. TV-Controller

2. TV-Base

a. b.

a. b.

4

5

1. 2. 3.

1.HEARING AID

2.HEARING AIDS

1.

tV-Controller

The controller is provided with four keys:

1. Transmission on/off

2. Room off

3. Volume up

4. Volume down

1.

3.

4.

2.

tV-Base

On the back of the base you will find the following
inputs:

1. Power

2. TV

3. Audio

On the underside of the base there is a switch with
a choice of two settings:

1. Monaural/binaural switch

The setting chosen by your hearing care profes­sional depends on whether you use a hearing aid in
only one ear (monaural) or in both ears (binaural).

6

7

1.

3.

4.

1.

2.

POWER

TV

AUDIO

2.

light-emitting DioDes

There are two light-emitting diodes (LEDs) on the
controller.

1. Constant green light: Transmission

2. Changing from green to red: Transmission off

3. Constant red light: Room off active

4. Flashing red and green light: Battery charging

getting starteD

You can skip steps 5+6 if you only wish to transmit
from the TV, and steps 3+4 if you only wish to trans­mit from an audio source.

CONNECTING THE UNITS:

1. Connect the mini-USB power supply unit to
the base.
(The supply unit is available in four versions.
Your supply may therefore not look exactly as
illustrated).

2. Plug the other end into a wall socket.

8

9

POWER

TV AUD IO

4a.

3a.

3b.

4b.

3a. Connect the jack to phono cable to the base.
4a. Plug the two phono connectors at the other

end of the cable into AUDIO OUT on the TV.
Please refer to the user guide for your TV for
further details.

If the TV has no AUDIO OUT, a SCART adaptor
should be used:

3b. Connect the phono connectors to the two

terminals on the included SCART adaptor (red
to red and white to white).

4b. Plug the SCART adaptor into the TV´s SCART

socket.

10

11

POWER

TV AUD IO

6.

5.

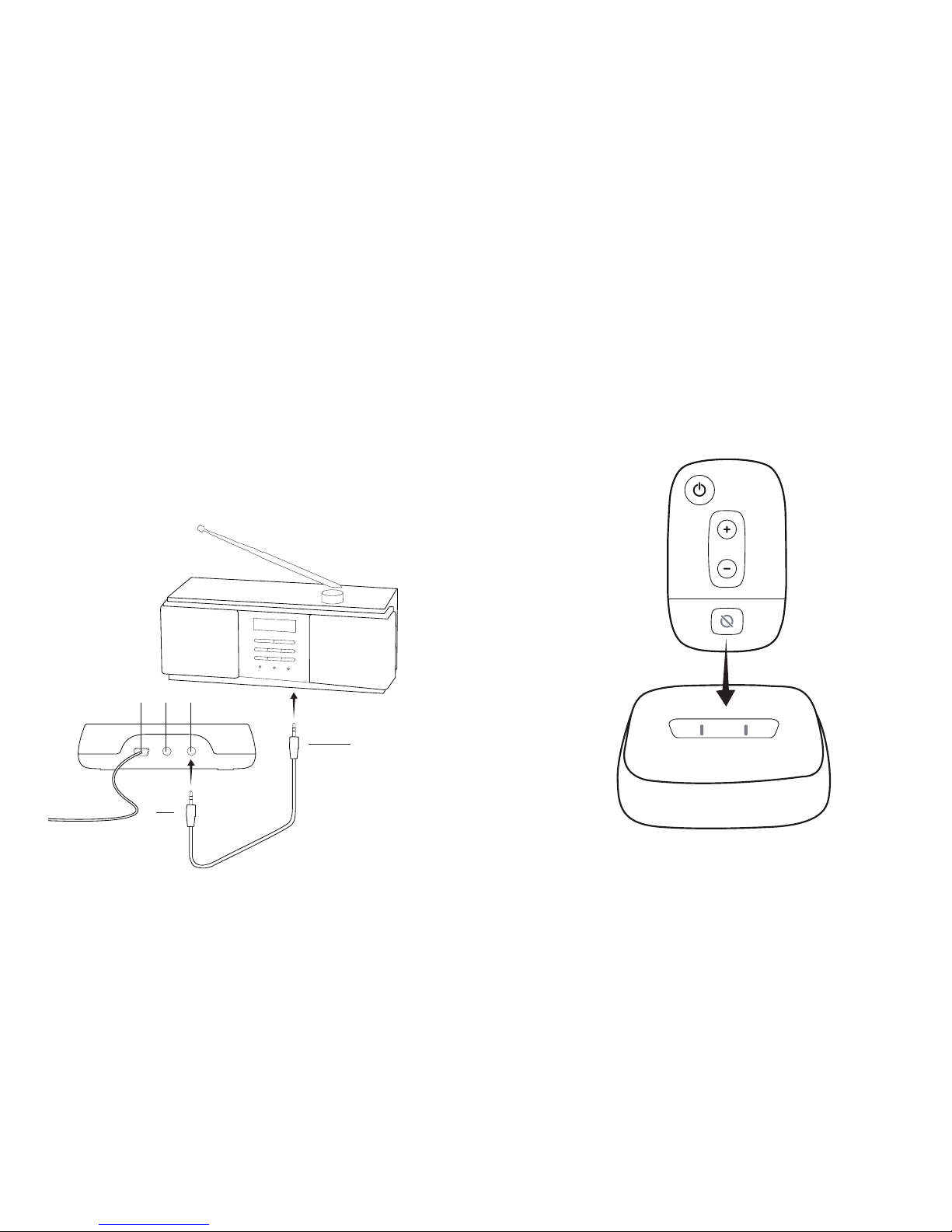

5. Plug the jack to jack cable into the audio input
on the base.

6. Connect the other end to the audio source
(e.g. a stereo system).

7. Place the controller in the base and allow it to
charge for eight hours (the first time).

12

13

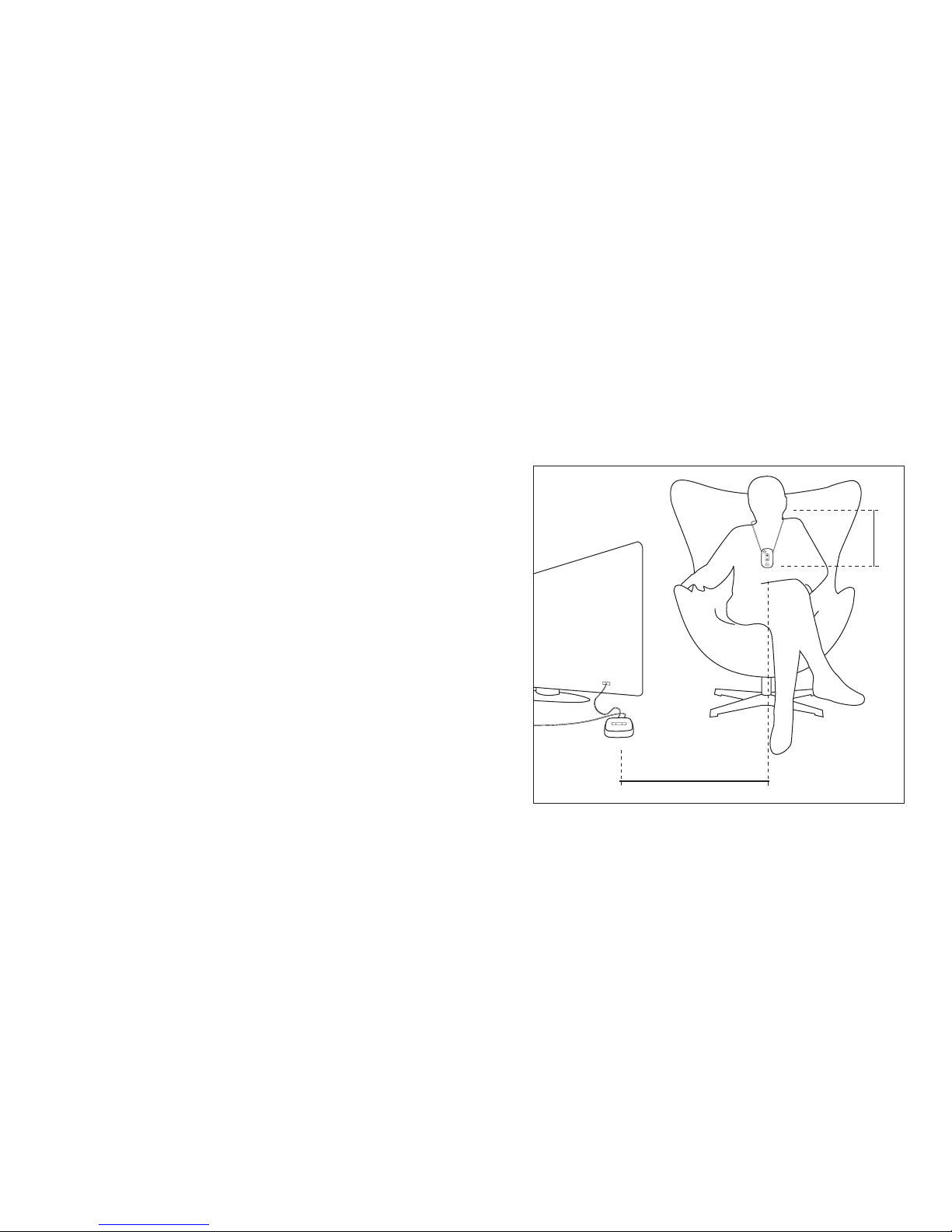

Up to 10 m

Up to 1.0 m

WHEN USING MORE THAN ONE TV-BASE

If you only have one base, this base is automatically
selected the first time you charge the controller in
the base. If you have more than one base, you can
change between these by placing the controller in
the base you wish to use for approx. 5 seconds.

usage

We recommend that you hang the controller around
your neck when in use, on the lanyard provided.

14

15

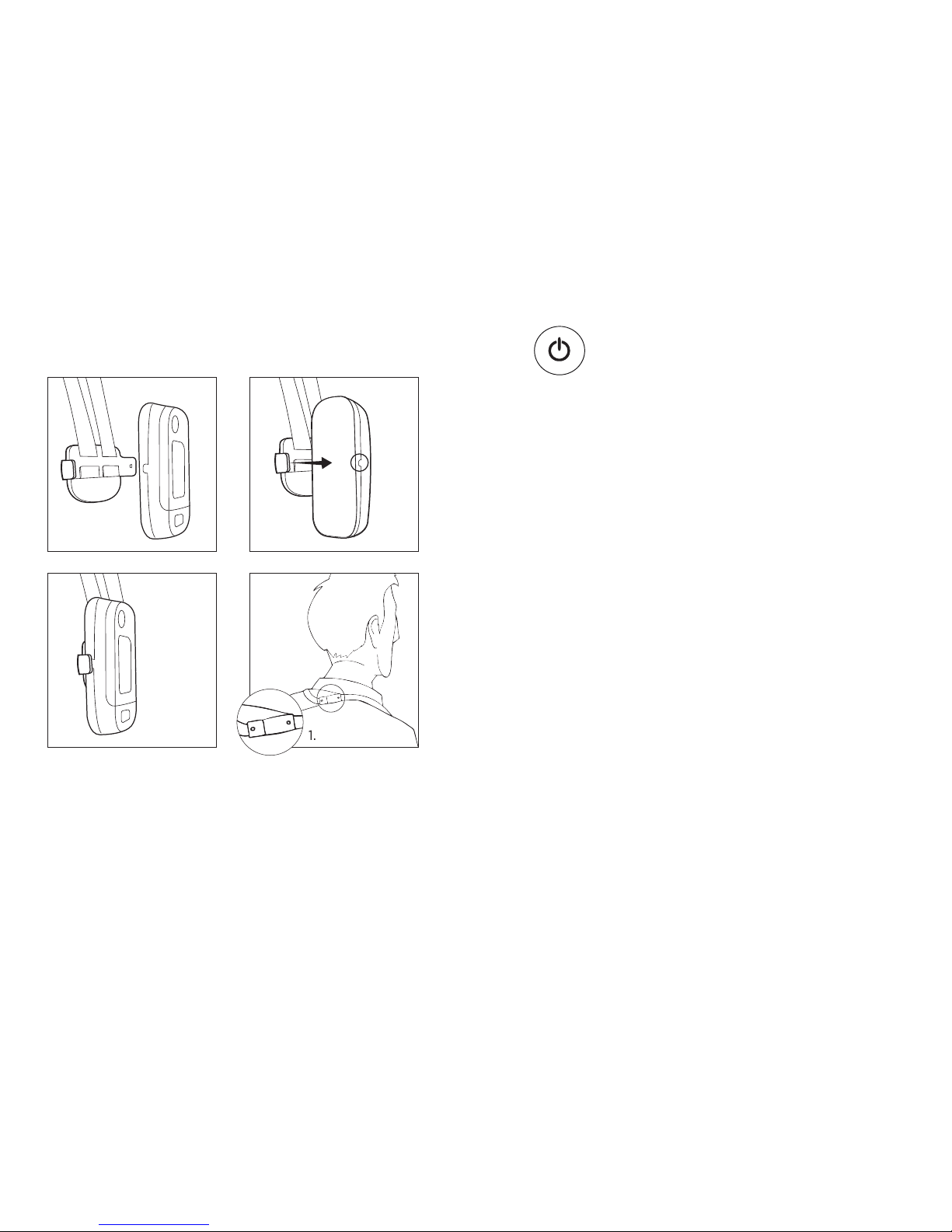

Place the controller in the plastic holder at the end
of the lanyard as illustrated.

The breakaway buckle of the lanyard must be posi­tioned at the back of your neck (1).

TRANSMISSION

With either TV or audio connected

• Press the transmission on/off key on the control-

ler once to start transmitting from the connected
source. An acoustic signal will sound in your hear­ing aids, and the transmission LED will turn green.

• Press the key again once to stop transmission.

The hearing aids will enter the Master program as
indicated by a voice message or beep tones. The
green LED will change briefly to red and then off.

With both TV and audio connected:

• Press the transmission on/off key on the control-

ler once to start transmission from the TV. An
acoustic signal will sound in your hearing aids,
and the transmission LED will turn green.

• Press the key a second time to transmit sound

from the audio source instead. An acoustic signal
will sound in your hearing aids.

• Press the key a third time to stop transmission.

The hearing aids will enter the Master program, as
indicated by a voice message or beep tones. The
green LED will change briefly to red and then off.

16

17

UP

DOWN

If you carry your controller around with you and
move outside the operating range, transmission will
be interrupted and your hearing aids will switch to
the Master program. The LED will flash at slow in­tervals to indicate that transmission has been inter­rupted. The change will be indicated by a voice
message. If your hearing aids are set up with beep­tone indication instead, no acoustic indication will
sound.

If you come in range again, the controller will detect
the signal from the TV/Audio and restart transmis­sion. A sound will be heard in the hearing aids. The
LED will light constantly rather than flash.

Note that the LED may continue to be red if you
chose to turn off the hearing aid microphones dur­ing transmission.

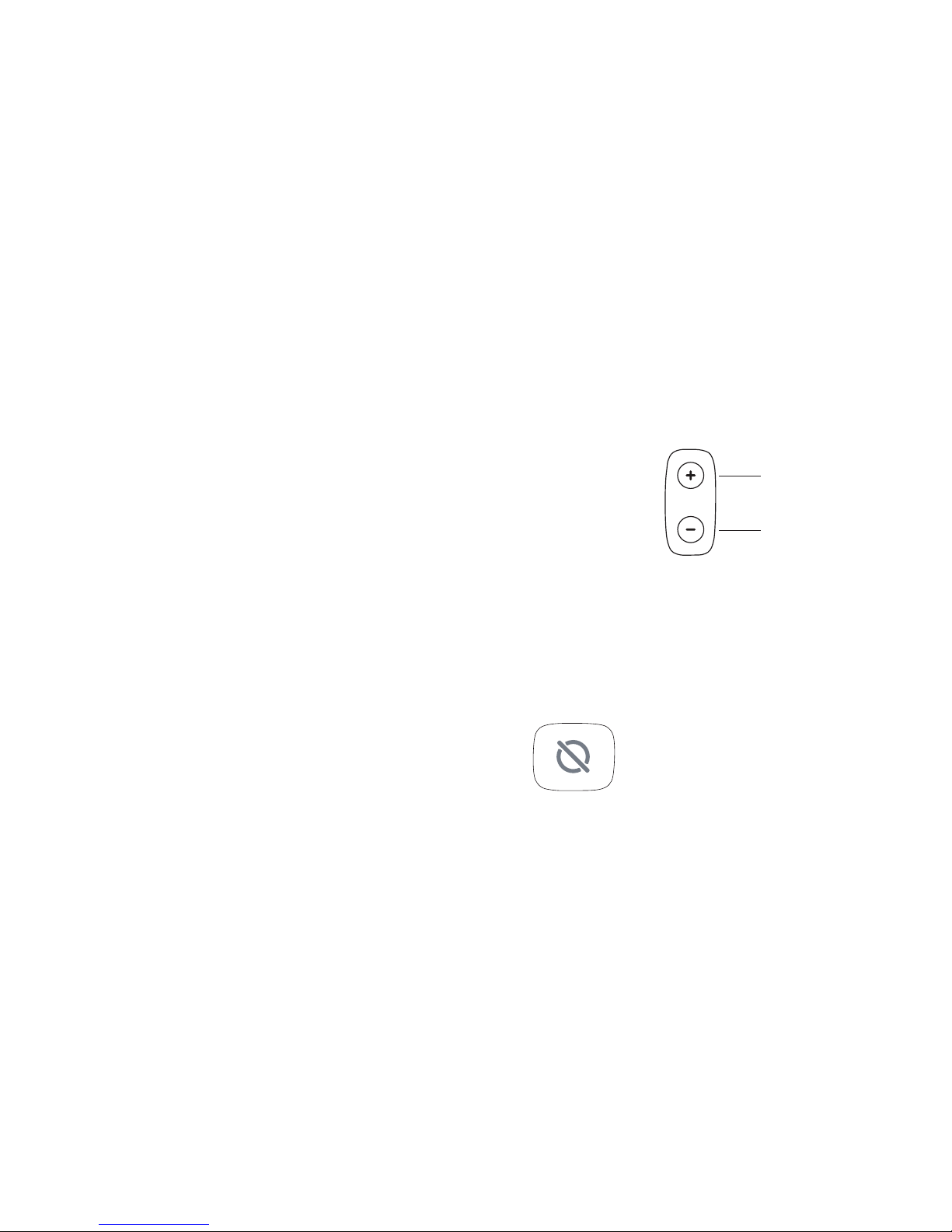

ADJUSTING THE VOLUME

Press the volume up key to raise the volume of the
transmitted TV or audio sound. Press the volume
down key to lower the volume.

MUTE

You can mute the transmitted TV or audio sound on
the TV or audio source.

ROOM OFF

If you wish to turn the hearing aid mi­crophones off during transmission,
so that you only hear the transmitted

sound, press the room on/off key
once. To turn the microphones back on, press again.
An acoustic indicator will sound in your hearing
aids, and the red LED will turn off.

18

19

RECHARGING THE BATTERY

The controller uses a rechargeable battery. When
fully charged, the battery has a capacity of approx.
10 hours of transmission, decreasing over time.

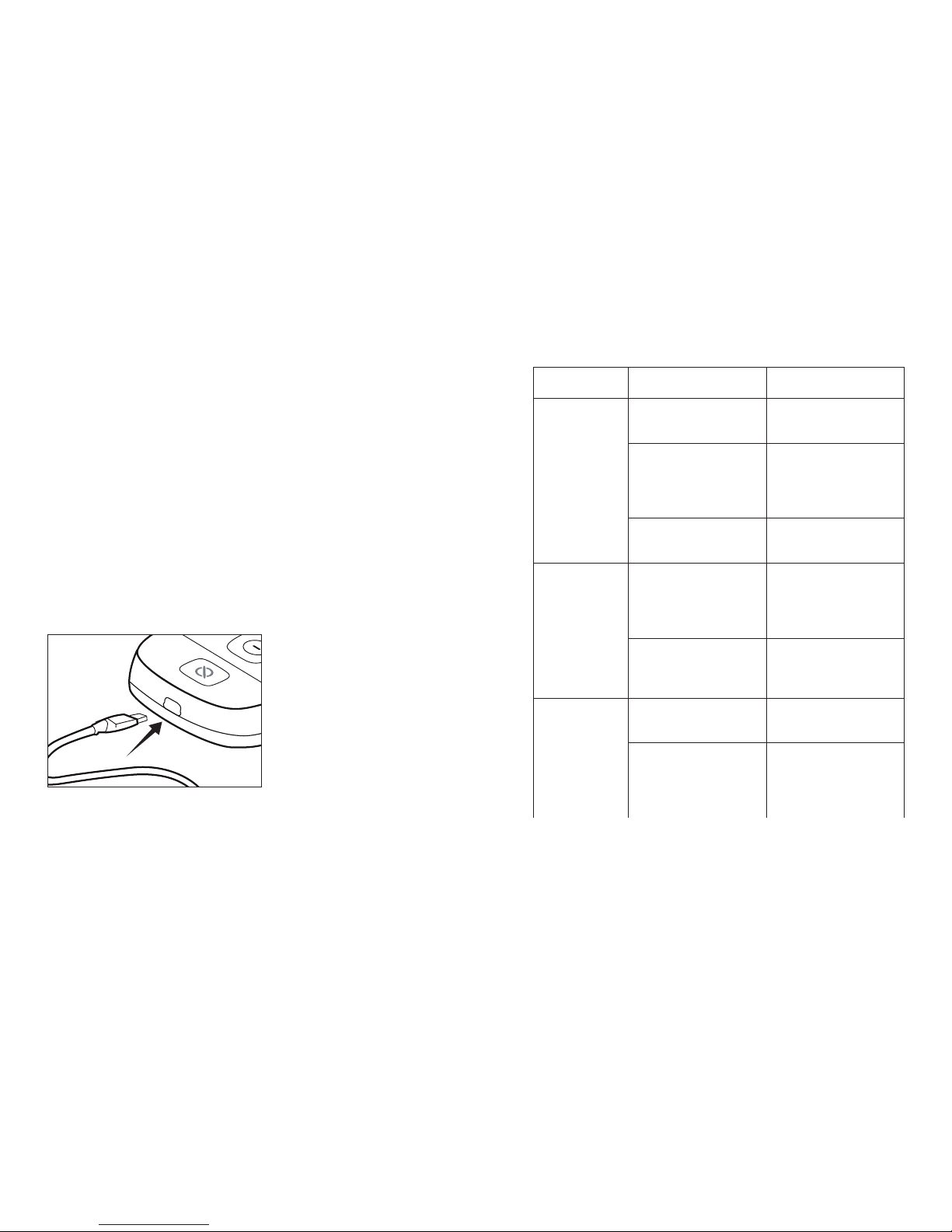

When the battery runs low, transmission is inter­rupted. To recharge the battery, place the controller
in the base for approximately 4 hours.

You can also recharge the battery using an appro­priate USB power supply supplied by Widex.

Contact your hearing care professional if the bat­tery needs replacement.

trouBleshooting

Problem Potential cause Solution

Your TV­Controller
does not work

The battery is

exhausted

Charge the battery

Base has not been

selected

Place the TV­Controller in the
TV-Base for at least
5 seconds

The battery needs

replacement

Contact your hearing
care professional

The green
diode on the
TV-Controller
turns on for a
brief period
of time and
then turns off

The jack plug for tv

or audio connection

is not connected to

the TV-Base

Connect the jack plug
as shown on page
10/12

The TV-Base is not

connected to the

electrical mains

Connect the TV-Base
as described on page
9

No
transmitted
sound even if
the green
diode is
turned on

TV/audio source is

not switched on

Switch TV/audio
source on

Sound source and

TV-Base are not

properly connected

Connect the sound
source and TV-Base
as shown on pages
10,11,12

20

21

Problem Potential cause Solution

Transmission
interrupted

TV-Controller
battery is exhausted

Charge the TV­Controller

TV-Controller is out
of operating range

Move within
operating range

When trans­mitting, parts
of the sound
image from
the TV/audio
source are
missing

Monaural/binaural
switch on the
underside of the
TV-Base is not set
correctly

Check that the
switch is in the
correct position. See
page 6.

Volume of
transmitted
sound
changes
when you
adjust the
volume of the
sound source

TV-Base is not
connected to the
correct output

Connect the TV­Base to the correct
TV/audio output.
Please refer to the
user instructions for
the TV/audio source.

Caring tiPs anD warnings

• The TV-DEX units are valuable objects and should

be treated with care.

• Do not expose your TV-DEX units to extreme

temperatures or high humidity.

• Never try to open or repair the TV-DEX units

yourself. (This should only be done by authorised
personnel.)

• Clean the units with a soft cloth. Never wash them

with water, cleaning solutions or other liquids.

• Do not carry the TV-DEX units with you during X-

rays, scans or radiation treatments and never
place them in a microwave oven. These are some
of the types of radiation that can damage the
units. However, radiation from, for example, room
surveillance equipment, burglar alarms or mobile
phones is weaker and will not damage your TV­DEX units.

• Keep your TV-DEX units and their parts and ac-

cessories out of reach of children and anyone else
who might swallow parts of the devices, or other­wise cause injury to themselves with these items.
In case of ingestion, contact a physician immedi­ately.

• Do not use the TV-DEX units on aeroplanes or in

hospitals without permission.

22

23

• Do not use the TV-DEX units in mines or other ar­eas with explosive gases.

• Although the TV-DEX units have been designed
to comply with the most stringent international
electromagnetic compatibility standards, the
possibility cannot be excluded that they may
cause interference with other equipment, such as
medical devices.

• If you wear your TV-Controller around your neck,
make sure that the breakaway buckle on the lan­yard is always at the back of your neck.

• TV-DEX units are made of modern non-allergenic
materials. Nonetheless, in rare cases skin irrita­tion may occur. If you notice such skin irritation,
contact your hearing care professional.

safetY warning

This device is powered by an external power supply.

• Only connect a power supply that is compatible
with the TV-DEX.

• The power supply must have an output rating of
5VDC, 500mA and mini USB connector.

• The power supply input rating voltage must
match the mains power voltage in your region
and the power supply must have a mains male
plug that is compatible with the AC wall socket in
your region

• The power supply must be designed for ITE and
must have the certification marks showing certifi­cation by an agency acceptable in your region.

Widex strongly recommends that you always use a
power supply that is delivered by your Widex Dis­tributor to ensure safe and efficient use of your TV­DEX.

24

25

WIDEX

•

3540 Lynge

Denmark

•

www.widex.com

regulatorY information

Hereby, Widex A/S declares that this TV-Controller
and TV-Base are in compliance with the essential
requirements and other relevant provisions of Di­rective 1999/5/EC.

A copy of the Declaration of Conformity can be
found at: http://www.widex.co

Federal Communications Commission
and Industry Canada Statement

FCC ID: TTY-TVB
FCC ID: TTY-TVC
IC: 5676B-TVB
IC: 5676B-TVC

This device complies with part 15 of the FCC Rules and
with RSS-210 of Industry Canada. Operation is subject to
the following two conditions:

(1) This device may not cause harmful interference, and (2)
this device must accept any interference received, includ­ing interference that may cause undesired operation.

NOTE:
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide rea­sonable protection against harmful interference in a resi­dential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harm­ful interference to radio or television reception, which can
be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by
one or more of the following measures:

26

27

– Reorient or relocate the receiving antenna.

– Increase the separation between the equipment and

receiver.

– Connect the equipment into an outlet on a circuit dif-

ferent from that to which the receiver is connected.

– Consult the dealer or an experienced radio/TV techni-

cian for help.

NOTE:
This equipment complies with FCC radiation exposure
limits set forth for an uncontrolled environment. This
transmitter must not be co-located or operating in con­junction with any other antenna or transmitter.

This equipment complies with the Industry Canada RF
radiation exposure limits set forth for an uncontrolled
environment as per IC RSS-102 Issue 3.

Changes or modifications to the equipment not ex­pressly approved by Widex could void the user’s au­thority to operate the equipment.

Hearing aids, accessories and batteries
should not be disposed of with normal
household waste. Please consult your
national Widex distributor for advice on
how to dispose of these items.

28

29

30

31

¡9 514 0130 001?¤

Printed by HTO / 04-10
9 514 0130 001 #01

¡#01v¤

WIDEX

•

3540 Lynge

Denmark

•

www.widex.com
