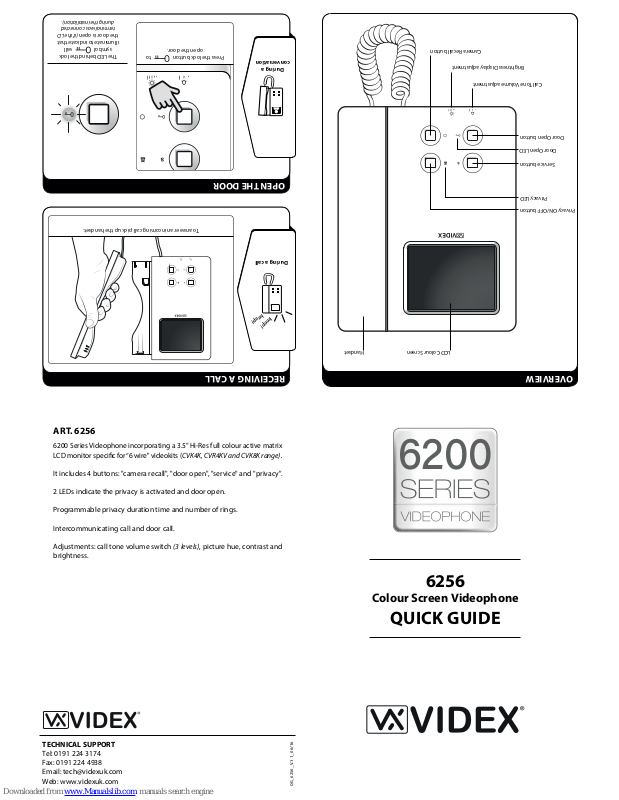

Widex 6256 Quick Manual

6200

QG_6256_V.1.1_06/16

TECHNICAL SUPPORT

Tel: [phone]
Fax: [phone]
Email: [e-mail]
Web: www.videxuk.com

beep!

beep!

6256

Colour Screen Videophone

QUICK GUIDE

OVERVIEW RECEIVING A CALL

OPEN THE DOOR

ART. 6256

6200 Series Videophone incorporating a 3.5” Hi-Res full colour active matrix
LCD monitor specic for “6 wire" videokits (CVK4K, CVR4KV and CVK8K range).

It includes 4 buttons: "camera recall", "door open", "service" and "privacy".

2 LEDs indicate the privacy is activated and door open.

Programmable privacy duration time and number of rings.

Intercommunicating call and door call.

Adjustments: call tone volume switch (3 levels), picture hue, contrast and
brightness.

During a call

During a

conversation

To answer an incom ing call pick up the ha ndset.

Press the lo ck button to

open the door.

The LED beh ind the lock

symbol

will

illuminate to indicate that

the door is open (if the LD

terminal was connected

during the installation).

Privacy ON/OFF button

Privacy LED

Door Open button

Service button

Door Open LED

Brightness Display adjustment

Call Tone Volume adjustment

Camera Recall button

LCD Colour Screen Handset

zZz

zZz

zZz

zZz

zZz

zZz

beep!

beep!

zZz

zZz

beep!

beep!

zZz

zZz

beep!

beep!

SERVICE BUTTON

PRIVACY FUNCTION

CAMERA RECALL

When th e

system is in

standby

When th e

system is in

standby

CALL TONE VOLUME ADJUSTMENT BRIGHTNESS DISPLAY ADJUSTMENT

During a c all, a

conversation or in

camera recall mode

In every

situation

In every

situation

During an incoming

call, with t he
privac y enabled, the
videophone will not

ring and no p icture

will be displayed.

To set up the func tion of the ser vice button, pl ease

contact V idex Technical.

Press the pr ivacy button to enable th e privacy

functi on. The LED behin d the privacy sy mbol

will

illuminat e to indicate that the p rivacy is enabl ed.

The priv acy functio n will automatical ly switch OFF

after th e programmed tim e expires or by pres sing the

privacy button

again.

When the conversation

time (set up during the

installation) has ended,

the videophone stops

all communi cation and

the syste m returns to the

standby condition.

Push the ser vice button to activa te the secondar y

service (if this was set up du ring the installati on).

Move the sw itch, under the cal l tone symbol to
adjust th e call tone volume le vel. Move to the lef t for a

low call ton e level, to the centre f or a medium call ton e

level and to t he right for a high cal l tone level.

Turn the roller u nder the brightn ess control symb ol

to adjust th e brightness of the p icture. Any

adjustm ent to the left wil l reduce the bright ness and

any adjustm ent to the right will i ncrease the brigh tness.

During 'C amera Recall' it i s possible:

To start a conver sation;

To push the lock b utton

to open the d oor;

To push the ser vice button

to activa te the

secondary service.

Hang up the h andset to end the conve rsation.

Pick up the han dset and then push t he camera recal l

button

as many times a s the ID value of the do or

panel (e.g. if recalling t he picture fro m door ID 2, press this

button t wice, for door ID 3 pre ss this button 3 time s etc.).

The vide ophone display w ill show the pictu re from the

camera on t he relevant outd oor station rec alled.
