RT2070 USB Wireless LAN Adapter User’s Manual

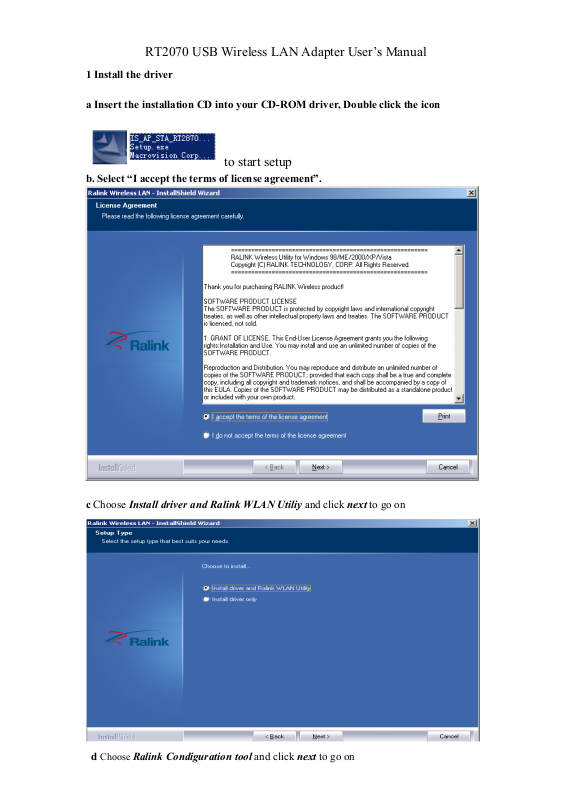

1 Install the driver

a Insert the installation CD into your CD-ROM driver, Double click the icon

to start setup

b. Select “I accept the terms of license agreement”.

c Choose Install driver and Ralink WLAN Utiliy and click next to go on

d Choose Ralink Condiguration tool and click next to go on

e

f Click Finish to end the setup

2 Plug in your usb wireless LAN adapter, it will be recognized and auto installed.
Just confirmed it like below.
3 Make infrastructure connection

Double click the icon in red circle

You will see:

You can click the button Rescan to find which AP is in range, they will show on the
window, choice one you want to connect, and click the button connect, and click ok to
finish the connection operation.
An infrastructure connection is accomplished.

Note, please choose correct channel setting up to your law, for example, ch13 is permitted

in your country, and you set your router at ch13, while you choose ch1-ch11 (default
setting), you will never find the AP, and you will have to choose ch1-ch13 setting in
Advanced page as below

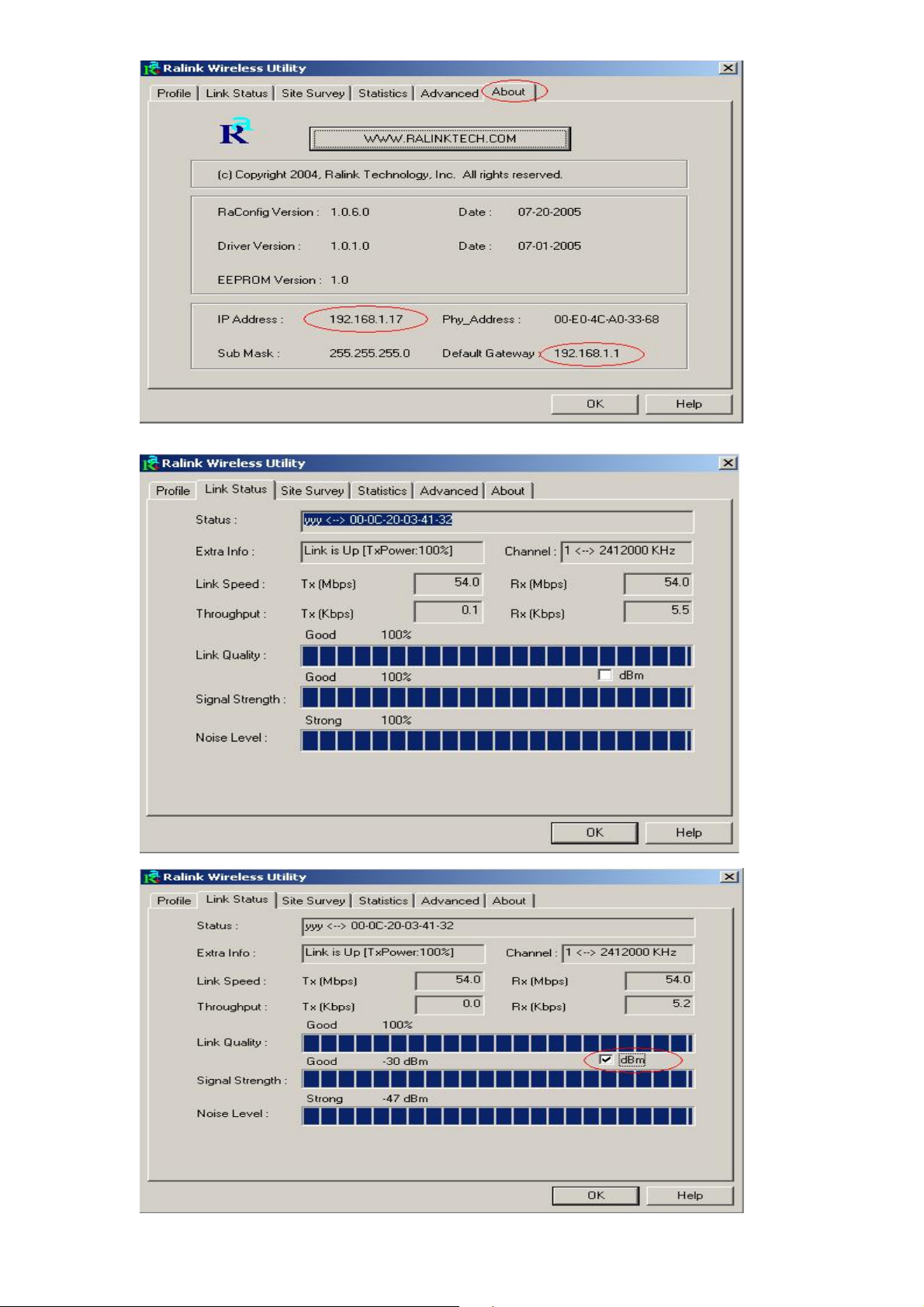

4 Some help information in Rlink Wireless Utility
