WWW.WIDDDERTOOLS.COM® 1 (203) 777-5395
WIDDER®TOOLS
HPIH Hand Pump
PRODUCT INFORMATION AND OPERATING INSTRUCTIONS:
Description: The H Series is a portable, self-contained, manual hand pump hydrostatic test
systems. H Series units come standard with relief valves and a soft seat check valve system for
solid performance. The H Series also includes a convenient handle slot for ease and safety during
transportation.
Specifications: Displacement per stroke: -3000 model - .53 cu. in.
-5000 model - .30 cu. in.
Inlet and Outlet: ½” NPT - Female
Weight: 18 lbs.
IMPORTANT: FOR YOUR SAFETY BEFORE OPERATING THIS UNIT, READ THIS
OPERATOR’S MANUAL CAREFULLY AND COMPLETELY. LEARN THE
OPERATION, APPLICATIONS, AND POTENTIAL HAZARDS PETICULIAR TO THIS
TOOL.
WWW.WIDDDERTOOLS.COM® 2 (203) 777-5395
SAFETY PRECAUTIONS:
1. Be sure all pressure on air and water fittings is relieved before disconnecting any hoses or
fittings.
2. Wear eye protection.
3. Pressurization of any materials is dangerous- follow OSHA procedures for stored energy
and any pressurization cautions pertaining to the fluids used.
4. This system can develop pressure up to the nameplate pressure- do not over pressure test
vessels as damage can occur.
OPERATING INSTRUCTIONS:
1. Close Needle Bleed Valve.
2. Attach water to input side with supply off.
3. Attach output using suitable hose.
4. Fill vessel to be tested by opening water supply
5. When vessel is full, lift pump handle completely and crack needle valve to bleed any air
6. Once bled, close needle valve.
7. Pump unit to desired test pressure ** Do not exceed pump rated pressure!
8. When test is complete, close inlet water supply, then crack needle valve to relieve system
pressure.
9. Disconnect hoses.
WWW.WIDDDERTOOLS.COM® 3
(203) 777-5395

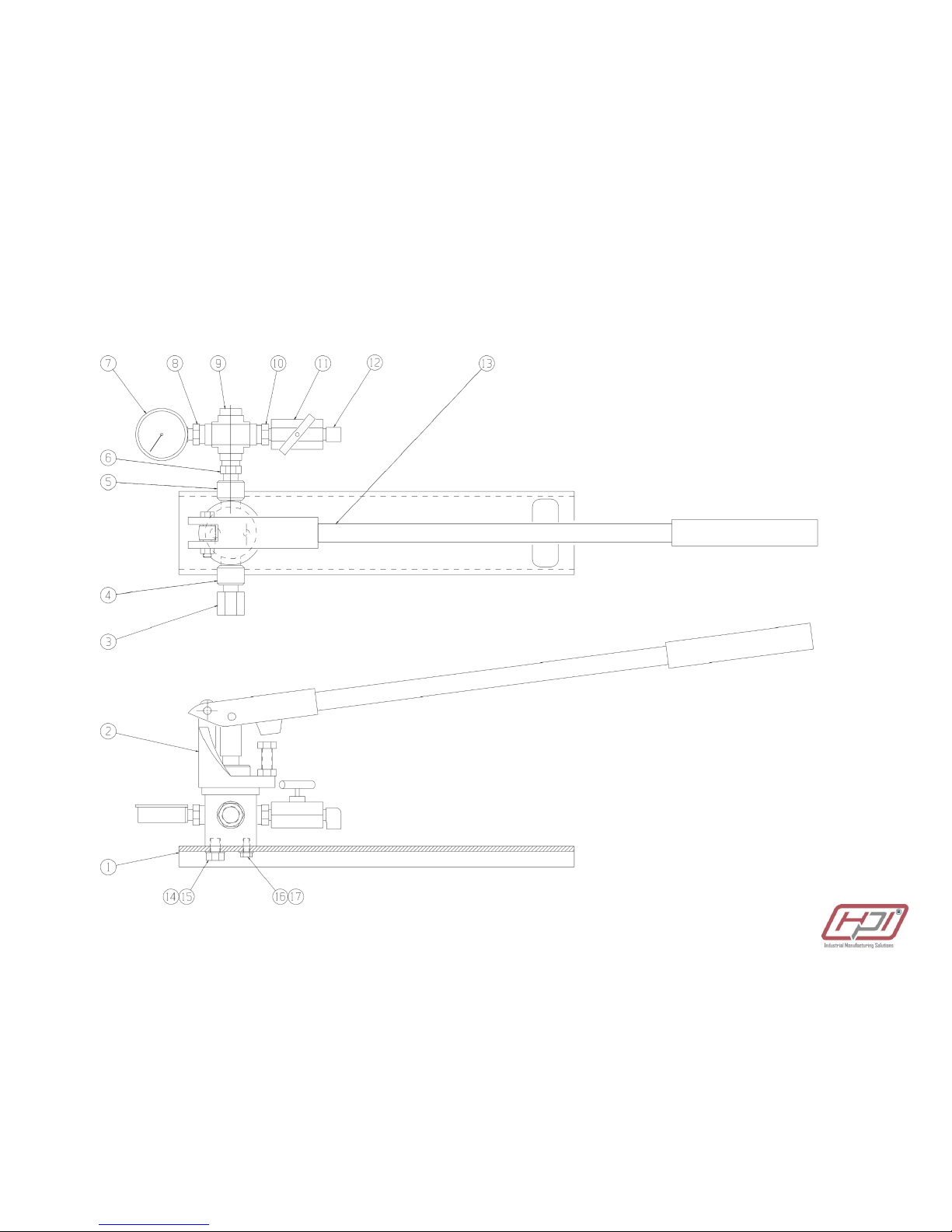

WIDDER® HPIH Hydrostatic Test Pump
WWW.WIDDDERTOOLS.COM® 4
(203) 777-5395
WIDDER® HPIH Hydrostatic Test Pump
Item
Description
Part #
HPIH-3000
HPIH-5000
1
Base
PH-1001
PH-1001
2
Pump
PH-1002-3000
PH-1002-5000
3
Inlet Adapter
PH-1010
PH-1004
4
Inlet Check Valve
PH-1017
PH-1019
5
Outlet Check Valve
PH-1018
PH-1020
6
Outlet Adapter
PH-1016
PH-1015
7
Gauge
PH-1003-3000
PH-1003-5000
8
Gauge Adapter
PH-1005
PH-1005
9
Cross
PH-1011
PH-1011
10
Valve Adapter
PH-1015
PH-1015
11
Bleed Valve
PMI028
PMI028
12
Elbow
PMI048
PMI048
13
Handle
PH-1021
PH-1021
14
Hex Bolt (Large)
PH-1006
PH-1006
15
Washer (Large)
PH-1007
PH-1007
16
Hex Bolt (Small)
PH-1008
PH-1008
17
Washer (Small)
PH-1009
PH-1009
18
Seal Kit
HPIH-3000SK
HPIH-5000SK
