Torch
Master Guide
A User’s Manual
2 | The Torch : Master Guide
The
Torch
Master Guide
C
urrently being reviewed by The
Guinness Book of World
Records, The Torch is the world’s
brightest and most powerful ashlight.
This ashlight is easily capable of
melting plastic, lighting paper on
re within seconds, and if you want,
frying an egg or a marshmallow on
a stick! At 4100 lumens, The Torch
is 100 lumens more powerful than
The Polarion Helios, the former most
powerful ashlight. Looking to buy a
bright ashlight? This ashlight torch
will not disappoint you.
So how did we make such a powerful,
bright flashlight? The Torch uses an
incredible halogen light bulb rated
at 100 Watts and runs on a custom
built high voltage rechargeable
battery. To keep the front lens from
shattering due to the immense heat
generated, The Torch flashlight is
equipped with a specialized heat
resistant glass lens and is encased in
a durable, military grade aluminum
case. Check out The Torch flashlight
in action below.
Without the Torch With the Torch
Without the Torch With the Torch
Above: Actual photos of the Torch in action.
| 3
Before operating, please make sure the battery is fully charged according
to the Battery Charging Instructions below:
Operating Instructions
To charge your Torch battery, rst plug 1.
the battery charger into a wall outlet.
Switch the charger to 0.9A. 2. DO NOT
charge using 1.8A, doing so will
damage the battery and void your
manufacturer’s warranty.
Using a piece of tape, ordinary Scotch 3.
tape will do, fasten the heat sensor to
the battery unit. Please refer to the
picture on the right.
Connect the red wire to the positive 4.
end of the battery (the end that is
protruding) and connect the red/
black wire to the negative end of the
battery.
A 5. RED LED light indicates charging.
A GREEN LED light indicates fully
charged.
Do not over charge the battery, a full 6.
charge at 0.9A will usually take 100
minutes.
During the charging process, your Torch 7.
battery will become warm to hot. The heat
sensor you have attached in step 3 will
help monitor the battery’s temperature
and will end the charging process if the
battery becomes too hot.
4 | The Torch : Master Guide
The Torch flashlight generates a
tremendous amount of heat. Use
the Torch in three (3) minute
intervals only. The Torch flashlight
will become extremely hot if used
above the recommended usage
times. After 3 minutes of continuous
use, allow the Torch to rest for two
(2) minutes before using it again.
After fully charging the battery unit,
unscrew the end cap of the Torch
flashlight by turning the end cap
counter clockwise. Insert the battery
positive end rst. Screw the end cap
back on tightly by twisting the end
cap on clockwise. Point the Torch
flashlight away from you. Use the
on/off button located on the end cap to
power on/off your Torch ashlight.

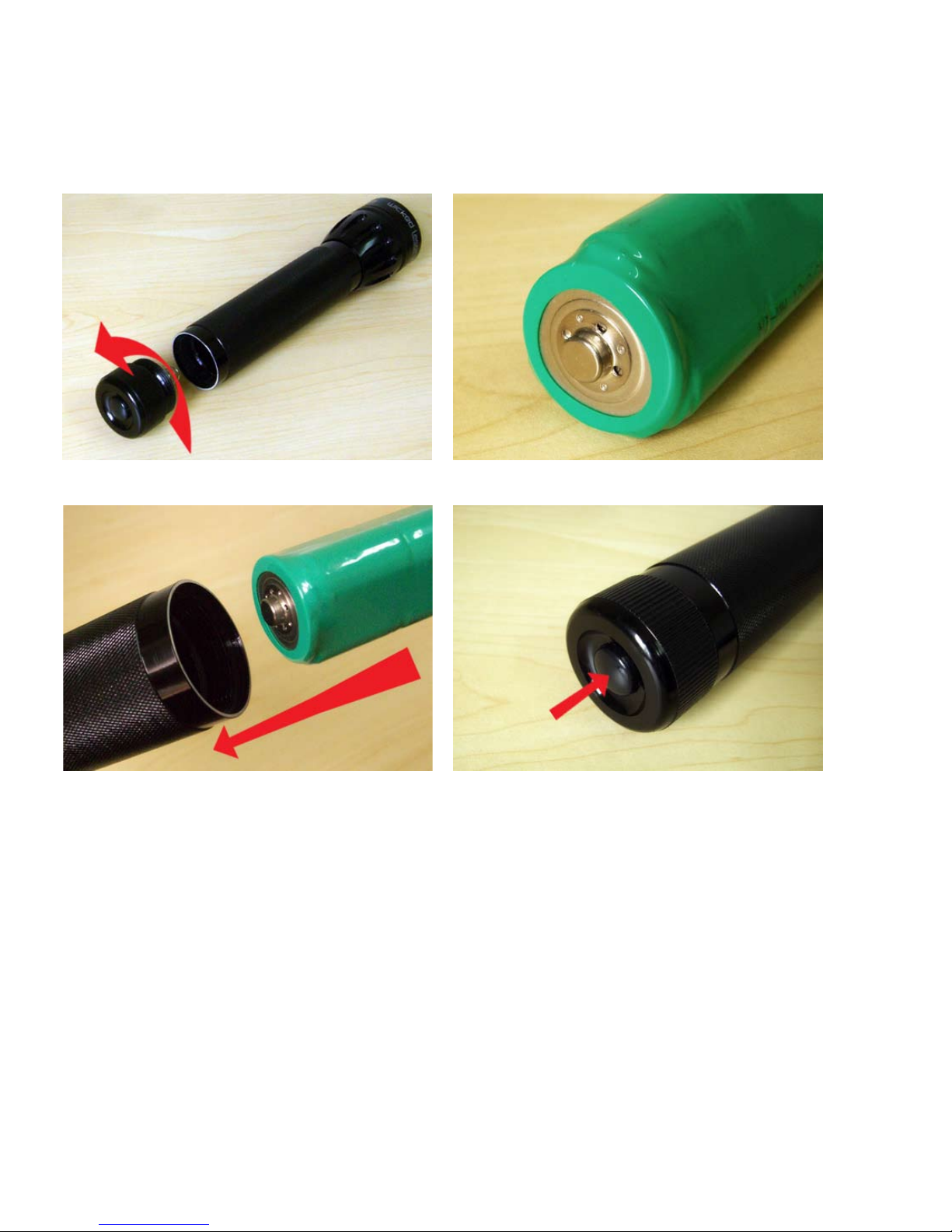

Battery, front view / positive end.Turn end-cap counter-clockwise to open.
Push On / Off power button to operate.Insert battery positive end rst.
| 5
Bulb Replacement Instructions
To replace the bulb of the Torch
ashlight, you must rst unscrew the
head of the ashlight. Twist the head
of the ashlight counter clockwise and
unscrew all the way. Using a piece of
cloth or tissue to cover the light bulb, pull
the light bulb away from the ashlight.
Again, using a piece of cloth or tissue,
pick up the replacement bulb and align
the 2 prongs with the 2 holes located
on the light bulb holder. Push vertically
until the light bulb is in place. Replace
the front cap by twisting clockwise.
Cover lightbulb with a piece of clean cloth.Turn head counter-clockwise to open.
Align 2 prongs with 2 holes to insert
replacement bulb.
Pull bulb away from ashlight.
6 | The Torch : Master Guide
If the Torch Battery Charger is not charging and/or the indication lights are not
lit when plugged in, please open the fuse compartment to check if the fuse has
blown. If this is the case, replace the fuse unit.
Fuse Replacement Instructions
Replace burnt-out fuse.Turn counter-clockwise to open
fuse compartment.
Warnings
FOLLOW ALL CHARGING INSTRUCTIONS AND OPERATION INSTRUCTIONS CAREFULLY.
The Torch is an extremely bright ashlight, do not aim or point the Torch toward the eyes of yourself or
people around you. When in operation, do not place any objects in close range or in front of the Torch’s
lens. Do not leave the Torch ashlight on unattended. Do not touch the head or aperture of the Torch
during or after use. To protect your hands from the heat generated by the Torch, wear protective gloves
during operation. The Torch ashlight is not a toy, keep away from children. To prevent accidents from
occurring, please remove the battery after use. Wicked Lasers is not responsible for any accidents or
damages caused by the Torch ashlight due to improper use or misuse of this product.
Questions?
For questions regarding the Torch ashlight, please email support@wickedlasers.com
or call us toll free at 1-877-952-7377.
