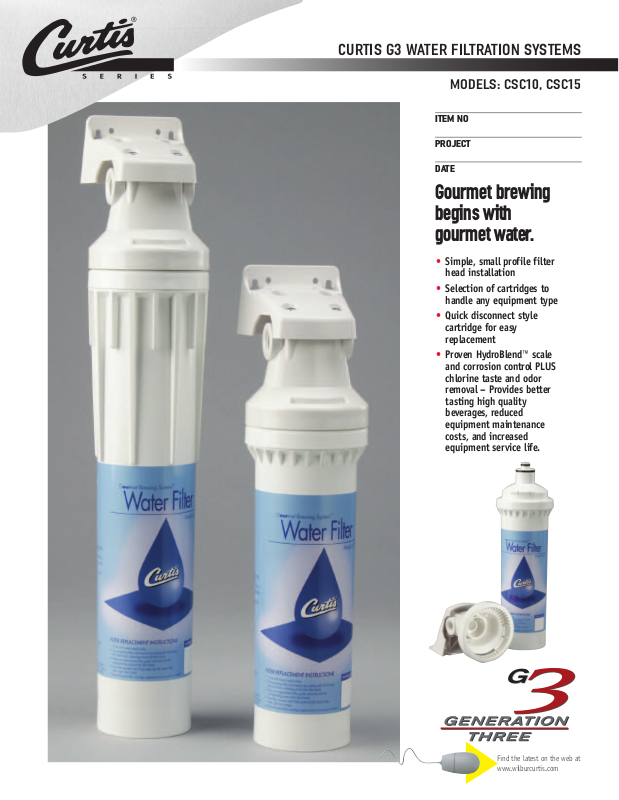

CURTIS G3 WATER FILTRATION SYSTEMS
MODELS: CSC10, CSC15
ITEM NO
PROJECT
DATE
Gourmet brewing
begins with
gourmet water.
• Simple, small profile filter
head installation
• Selection of cartridges to
handle any equipment type
• Quick disconnect style
cartridge for easy
replacement
• Proven HydroBlend™ scale
and corrosion control PLUS
chlorine taste and odor
removal – Provides better
tasting high quality
beverages, reduced
equipment maintenance
costs, and increased
equipment service life.
Find the latest on the web at
.wilburcurtis.com
www
Why worry about water?
The Scale is Tipped Against You.
Most water supplies contain high levels of scale-causing
minerals (primarily calcium and magnesium) that build up on the heating elements, tanks, valves and other parts of your coffee brewing
equipment. Excessive scale can cause increased service calls and complicate refurbishing of brewing equipment.
The Chlorine Connection.
Coffee is made up of 98% water. Consequently, the quality of the
water greatly affects the quality of the brewed beverage. Municipal
water supplies are treated with chlorine as a disinfectant. If not
removed, the chlorine may react with the coffee, producing a bitter,
unpleasant taste and odor.
The Clear Answer – CURTIS® Water Filtration Systems.
Curtis Water Filtration Systems are specifically designed for
coffee brewing equipment. Advanced HydroBlend™ technology delivers
effective scale and corrosion control, and enhanced
filtration components provide superior chlorine taste and odor removal
for a better tasting gourmet beverage. Plus, Curtis Filters feature an
extra large filtration medium which provides proper water flow well past
the recommended replacement cycle –
eliminating clogged filters and unnecessary service calls.
Engineered for the Rigors of High
Temperature Brewing.
Most filters are designed for cold water applications. The
HydroBlend™ technology used in Curtis Water Filtration Systems, is
engineered to excel under high temperature conditions,
providing unparalleled scale control for your brewing equipment.
Simply The Best Solution.
Both user-friendly and economical, Curtis Water Filtration Systems are
your best insurance to protect your valuable investment and provide
consistent high quality results. Use of a Curtis Filtration System practically guarantees reduced service calls while simplifying refurbishing programs. And, Curtis G3 equipment provides an automatic reminder when
filters should be replaced through its programmable P-Maintenance fea-
e.
tur
Don’t Water Down Your Profits.
Offer your customers the very best brew possible and insure your
quality coffee brewing equipment investment with a quality water filtration system. Curtis® Water Filtration Systems.
Installation and Replacement is Simple!
1.
Unpack the water filter system.
Components include filter cartridge and head with mounting
bracket.
2.
Locate space for filter installation.
For wall mounting allow 2” space under the filter for cartridge
removal.
3.
Make connection to feed head using 3/8” Male NPT connectors.
(Do not over tighten! If using a brass compression fitting,
use a back up wrench when tightening the compression nut.)
4.
Install the cartridge into the head.
Line up the posts in the filter head with the grooves on the
cartridge. Push upward into the head until it seats, then turn
clockwise 1/4 turn until the filter stops.
To remove, turn counter-clockwise 1/4 turn until it stops
then pull down and remove filter
CSC10
CSC15
CSC00H
Rated Pressure Temperature Ship.
Specifications
CSC10AC00 with Head Chlorine & Sediment Removal, Scale Prevention/OCS 10,000 1.65 10 35-125psi 35-100°F 3/8” FNPT 17 1.23
CSC10CC00 C
CSC15AC00 with Head Chlorine & Sediment Removal, Scale Prevention/OCS 15,000 2.0 10 35-125psi 35-100°F 3/8” FNPT 23 1.69
CSC15CC00 C
© 2004 Wilbur Curtis Compan
artridge Only
tridge Only
ar
y
, In
on/
cati
Appli
e & Sediment Removal, Scale Prevention/OCS 10,000 1.65 10 35-125psi 35-100°F 15 1.23
Chlorin
e &
Chlorin
.
c
on
Descripti
Sediment Removal, Scale Prevention/OCS 15,000 2.0 10 35-125psi 35-100°F 21 1.69
*Rated Life is f
WILBUR CUR
6913 A
Telephone: 800-421-6150 · 323-837-2300
Fax: 323-837-2406
www.wilburcurtis.com
TIS COMPANY, INC.
eet, Montebello, CA 90640-5403
cco Str
Life* Flow Micron Range Range Water Wt.** Cube**
(Gallons) (GPM) Rating (psi) (°F) Connection (lbs.) (cu. ft.)
f scale, filters should be replaced every 6 months.
or Chlorine Remo
al. T
v
o ensur
oper contr
e pr
ol o
** Shipping Weight and Cube are per cases of 6.
e latest on th
d th
Fin
www.wilburcurtis.com
Printed In U.S.A · JUL/04 – 12727 F-3366 rev. A
