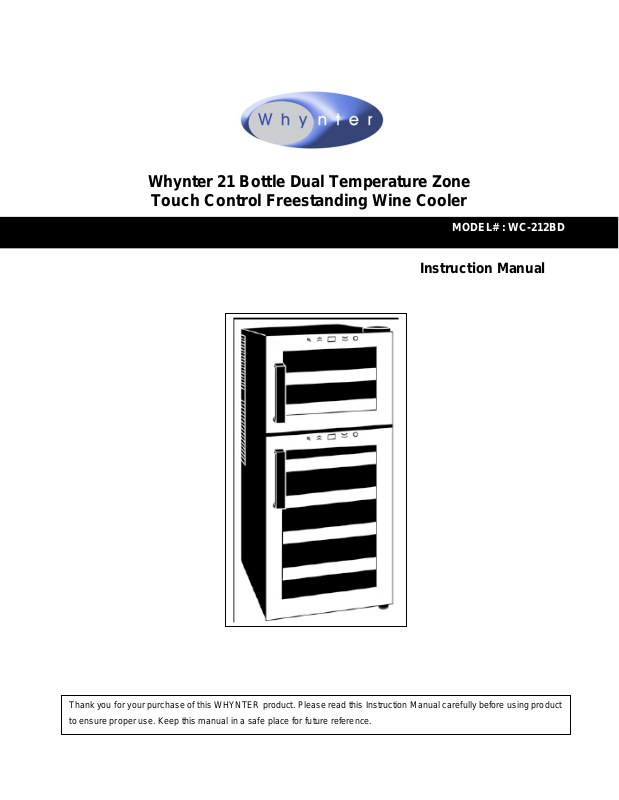

Whynter wc-212bd User Manual

Whynter 21 Bottle Dual Temperature Zone

Touch Control Freestanding Wine Cooler

MODEL# : WC-212BD

SB/W

Instruction Manual

Thank you for your purchase of this WHYNTER product. Please read this Instruction Manual carefull y before using product
to ensure proper use. Keep this manual in a safe place for future reference.

TABLE OF CONTENTS

Parts and Features …………………….………...3
Technical Data ……………………………………4
Important Safety Instructions……………………5 - 6
Installation …………………………………………7
Operations …………………………………………8 - 9
Care and Maintenance……………………………9

Troubleshooting……………………….................10 - 11

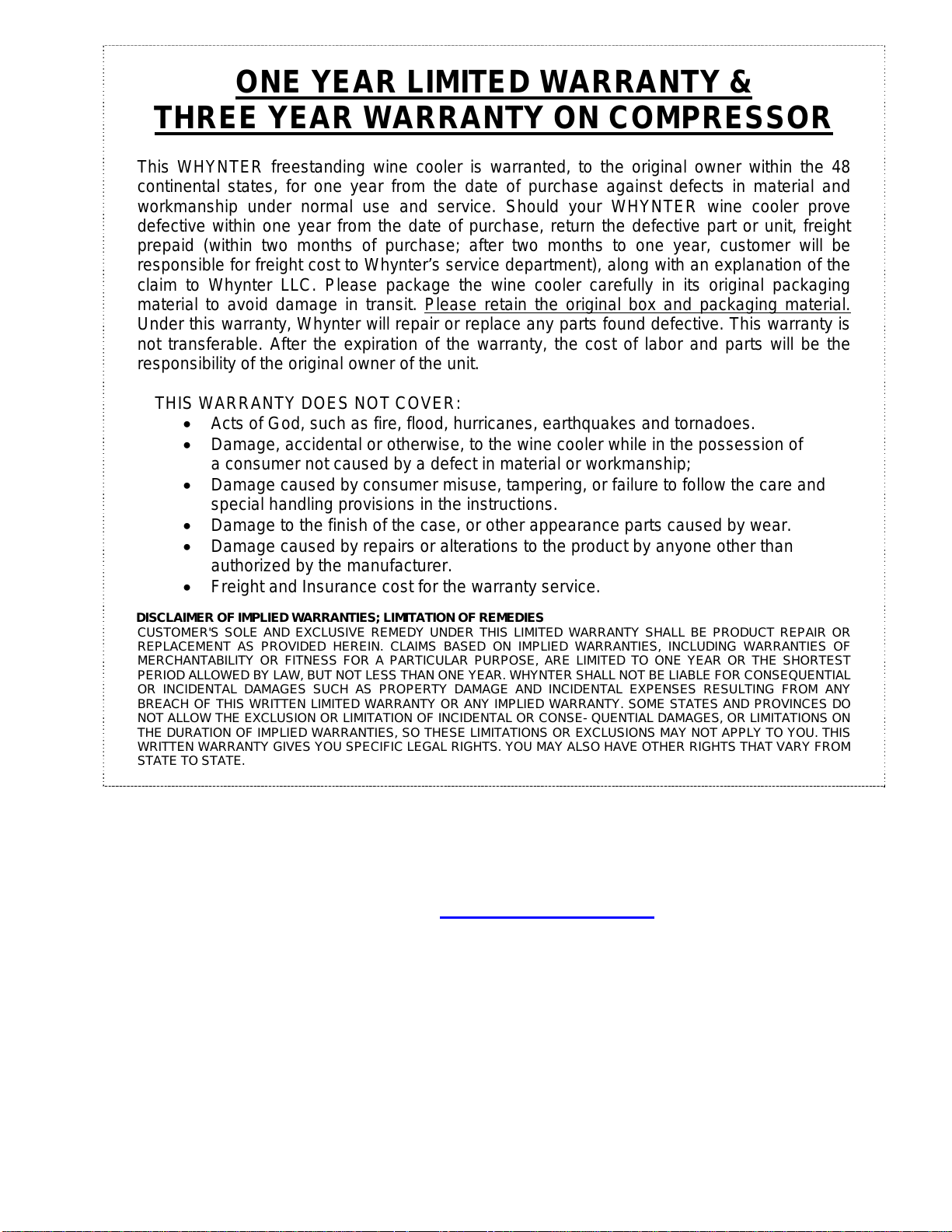

Warranty …………..………………………............12

1. Parts and Features

1. DOOR HINGE 2. INTERIOR LIGHT

3. FAN MASK 4. WINE RACK

5. FOOT 6. UPPER TEMPERATURE DISPLAY

7. UPPER TEMPERATURE
CONTROL

9. LOWER TEMPERATURE
CONTROL

11. TEMPERED GLASS DOOR

8. LOWER TEMPERATURE
DISPLAY

10.HANDLES

2. Technical Data

Model no. WC-212BD
Capacity 60L (21 standard wine bottles)
Voltage 100-120v
Current 2.0Amp
Input power 140W
Power
Consumption(KW.h/24h)
Max Temperature
Difference
Temperature Control
Range
Net weight 45 lbs
Gross weight 50 lbs
Product size(W×H×D) 13.5” × 31.5” × 20” (21.5” with

Packing size(W×H×D) 15” × 33.5” × 21.6”

Up Zone 44-66 ºF (7-18Ԩ)

Lower Zone 50-66 ºF (10-18Ԩ)

1.2(59°F)
﹥64°F

handle installed)
