WHYNTER RESIDENTIAL PORTABLE DEHUMIDIER
MODEL# : RPD-401W / RPD-651W
Instruction Manual
TABLE OF CONTENTS
SAFETY PRECAUTIONS
Danger ..........................................................................................................................................4
Warning ............................................................................................................................. ..............4
Electrical information ................................................................................................................... ...5
How it works .....................................................................................................................................5
Energy Saving Guide ........................................................................................................................5
CONTROL PANEL ON THE DEHUMIDIFIER
Control panel.................................................................................................................................6 - 7
Unit features and alerts.....................................................................................................................7
IDENTIFICATION OF PARTS
Identification of parts ........................................................................................................... ...........8
AIR FILTER INSTALLATION
Installation the air filters....................................................................................................................9
OPERATING THE UNIT
Positioning the unit ….................................................................................................................. ....10
Removing the collected water ........................................................................................................11
CARE AND MAINTENANCE
Care and Maintenance of the dehumidifier .......................................................................................12
TECHNICAL DATA
Technical data …............................................................................................................................. 13
TROUBLESHOOTING
Troubleshooting tips ........................................................................................................................14
WARRANTY INFORMATION
Warranty ...........................................................................................................................................15
2 | P a g e
Thank you for choosing the Whynter dehumidifier. Please follow the instructions provided in
this user guide to obtain the very best performance from your dehumidifier. We trust that your
Whynter dehumidifier will provide the performance and reliability that we stand for.
Your Whynter dehumidifier is designed to remove moisture in the air by condensation removal
and collecting the condensation water in the internal water bucket or draining through a drain
hose.
Please keep this user manual in a safe place for future reference.
DISPOSAL
This symbol on the product or its packaging indicates that the appliance cannot be treated as
normal domestic trash, but must be handed in at a collection point for recycling electric and
electronic appliances. Your contribution to the correct disposal of this product protects the
environment. Further information about the recycling of this product can be obtained from your
local municipal authority.
3 | P a g e
Your safety and the safety of others are very important to us.
To reduce the risk of fire, electrical shock or injury when using your appliance,
follow these basic precautions.
SAFETY PRECAUTIONS
To prevent injury to the user or other people and property damage, the following instructions must be
followed. Incorrect operation due to ignoring of instructions may cause harm or damage.
The seriousness is classified by the following indications.
Do not under any circumstances cut or remove the third (ground) prong from the power cord.
Make sure this unit is connected to a correctly grounded power supply outlet. Do not use an
extension cord or power strip.
Do not use an excessively wet cloth, industrial solvents, oil-based products to clean this appliance.
To avoid the risk of shock, the product should never be used in bathrooms, shower rooms, or in any
other steamy or wet areas.
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliances.
Do not repair, disassemble and/or modify the unit by yourself.
Always turn off the appliance when cleaning the air filter, and transporting.
Do not turn this appliance on and off by plugging and unplugging. Always use the ON/OFF switch.
Do not drink or use the water collected or drained from the appliance.
Do not remove the water bucket during operation.
Transport the unit in an upright position only, or leave it in an upright position for at least 2 hours
before first use.
This appliance must be installed in an area protected from the element, such as wind, rain, water
spray or drips.
When using this appliance in confined spaces, such as closets, be sure to keep doors open to allow
proper ventilation to prevent overheating and fire.
The unit should not be located next to ovens, grills or other sources of high heat.
Always place the unit on even and hard and level surface.
Do not sit or place objects on the unit.
Do not allow children to climb, stand or hang on the appliance. The unit could tip over and get
damaged and seriously injure somebody.
Ensure curtains or other objects are not obstructing the air intake and exhaust.
Never insert your fingers or other objects into the air intakes and air outlets.
Do not operate the appliance without the air filter.
Do not use harsh chemicals to clean the filter. Dry thoroughly before inserting the air filter into the
unit.
When positioning or moving the appliance ensure that it is not turned upside down or greater than 45°
or more off level.
This appliance is designed for household, non-commercial use only. Any other use will void the
warranty.
At the end of each season, all water must be drained from the unit and air filter must be cleaned
before storage.
THE MANUFACTURER DISCLAIMS ANY RESPONSIBILITY IF THE ABOVE INSTRUCTIONS
This symbol indicates the possibility of death or serious injury.
This symbol indicates the possibility of injury or damage to property.
ARE NOT FOLLOWED.
4 | P a g e
Do not, under any
circ ums tances , cut ,
remove, o r bypas s
the grou ndi ng prong.
This unit is gro unded through the
power cord plug whe n plugg ed
into a ma tching wal l outlet.
Electrical Information
The appliance is equipped with a three-prong grounded plug
on the power cord for your protection. Never modify,
remove or attempt to repair the plug yourself.
Do not pull the unit by the power cord or pull on the cord to
unplug the unit. Grip the plug and pull it away from the wall
receptacle.
Ensure the power cord is not tangled, knotted or otherwise
distorted before operating the unit.
The dehumidifier must be plugged directly into a properly
grounded wall outlet receptacle. If the wall receptacle you
intend to use is not adequately grounded or protected by a
time delay fuse or circuit breaker, have a qualified
electrician install an outlet that is appropriate to local
electrical codes and requirements.
Do not use extension cords, power strips or an adapter plug
with this unit
Always unplug the unit before opening, installing or servicing.
How it Works
When the dehumidifier is started, the fan begins to pull moisture-laden air across the dehumidifying
coils. The coils condense or draw moisture from the air, and air flows through the side louvers into the
room as dry, warm air. Moisture removed from air is collected in a water bucket on the front of the
dehumidifier.
The unit is designed to operate between 41°F (5°C), and 96°F (35°C). The "Compressor" circuit has
an automatic 3 minute time delayed start if the unit is turned off and on quickly. This prevents
overheating of the compressor and possible circuit breaker tripping. Make sure the tank is fitted
correctly otherwise unit will not turn on.
Energy Saving Guide
This Whynter dehumidifier is an Energy Star rated appliance. Follow the guide below can help to get
the best performance and efficiency from your dehumidifier.
Do not cover the air intake and outlet.
Do not place the unit in front of curtains or drapes- to ensure they do not obstruct the air
intake.
Keep curtains, blinds or drapes closed during the sunniest part of the day.
Close all windows and doors.
Indoor relative humidity should ideally be kept between 35%RH and 60%RH depending on the
ambient temperature.
Make sure the unit is on a hard and level surface.
To prolong the compressor's life, please wait at least 3 minutes before turning the unit back on
after shutting it off.
Inspect and keep the air filter clean by cleaning regularly.
Perform routine maintenance.
5 | P a g e
CONTROL PANEL
2. Fan Button
Controls the fan speed. The Turbo indicator light will
come on when High speed is selected. The Normal
indicator light will come on when Low speed is
selected.
Set the fan control to Turbo for maximum moisture
removal. When the desired humidity level is achieved
and quiet operation is preferred, you can set the fan
speed to Normal.
3. Continue Operation Button
Programs the unit to run continuously until the water
bucket is full. The humidity level cannot be set
(Buttons 5 and 6). The Continue indicator light will
come on when this mode is selected.
4. Filter Reset Button
The check filter feature is a reminder to clean the air
filter for efficient operation. Filter indicator light will
come on after approximately 250 hours of operation.
After the filter is cleaned and replaced, reset the unit
by pressing the Filter Button and the Reset indicator
light will go off.
5 /6. / Humidity Control / Timer Button
The humidity level can be set within a range of
35%RH (Relative Humidity) to 85%RH in 5%
increments.
7. Timer Button
The Timer button enables you to initiate the Autostart and Auto-stop feature.
Use the and buttons to increase or decrease
the desired time interval in 0.5 hour increments. To
cancel the selected timer setting, press the Timer
button again or turn the unit off.
8. On/ Off Button
Turns the dehumidifier on and off.
NOTE: The control panel of the appliance you purchased may be slightly different according
to the models.
5 7 6 8 9
5 /5
6 | P a g e
10. Display Screen
The display screen shows a number of different indications depending on the selection function.
Shows the set % relative humidity level from 35%RH to 85%RH.
Shows auto start/stop time (0~24 hours).
After the option settings are completed, the display shows the approximate room humidity level in a
range of 30%RH (Relative Humidity) to 90%RH
The display screen may also display the following alerts:
Error Codes and Protection Codes:
AS- Humidity sensor error: Power off the unit, then unplug it for 15 minutes. Plug in and power on. If error
repeats, call for service.
ES- Temperature sensor error: Power off the unit, then unplug it for 15 minutes. Plug in and power on. If error
repeats, call for service.
P1- Unit is defrosting: Allow the unit time to defrost. The error will clear after the unit is self-defrosted.
P2- Bucket is full or bucket is not in right position: Empty the water bucket and reinstall it properly.
E1- Unit Error: Power off the unit, then unplug it for 15 minutes. Plug in and power on. If error repeats, call for
service.
Timer Button
7
10
Di s p la y Sc r e e n
Unit Features and Alerts
Bucket Level Light
Bucket level indicator light will illuminate when the bucket is full and needs to be emptied. This
light will also illuminate when the bucket is removed or not properly inserted. The dehumidifier
shuts off within 30 seconds of the indicator light illuminating.
Auto Shut Off
When the selected humidity level is reached, the dehumidifying function will shut off automatically
and the fan will run continuously.
Auto Defrost
In the event frost builds up on the evaporator coils, the compressor will cycle off and the fan will
continue to run until the frost is evaporated.
Three Minute Cycle Down Function
After the unit has stopped, it cannot be restarted for 3 minutes. This is to ensure the unit
completes its cycles down before reactivation.
Auto-Restart
In the event of a power outage, unit restarts at the previously set function mode and settings when
power is restored.
Setting the Timer (Auto-start/stop)
Setting Auto Stop timer
With the unit is operating in any function mode, press the TIMER button. The TIME OFF light will
come on. Then set the desired time delay OFF hours by pressing the and buttons. The time
increments are at 0.5 hour to up to 10 hours, then at 1 hour to 24 hours. When the delay time set
has elapsed, the unit switches off. To cancel the delayed switch off function, turn off the unit.
Setting Auto Start timer
With the unit is turned off, press the TIMER button. The TIME ON light will come on. Then set the
desired time delay OFF hours by pressing the and buttons. The time increments are at 0.5
hour to up to 10 hours, then at 1 hour to 24 hours. When the delay time set has elapsed, the unit
switches on. To cancel the delayed switch off function, turn off the unit.
When the Auto start & Auto stop times are set within the same program sequence, TIME ON and
TIME OFF indicator lights illuminate identifying both ON and OFF times are programmed.
When the display shows P2, the Auto Stop/ Start function is canceled.
Silver Ion Air Filter
Your Whynter dehumidifier is equipped with an advanced Silver Ion air filter which is designed to
not only trap dust and large particles but also kills bacteria in the air and controls the growth of
microbes, such as virus, fungi and spores.
7 | P a g e
IDENTIFICATION OF PARTS
Front ( Above)
1.Control Panel
2.Air Intake Grille
Rear (Below )
3.Air Outlet Vent
1.Drain Hose Outlet
4.Handle
2.Casters
5.Removeable Water Bucket
3.Power Cord and Plug
6.Water Level Window
4.Power Cord Bracket (RPD-651W)
Power Cord Strap (RPD-401W)
All the pictures in the manual are for explanation purposes only. The actual shape of the unit you
purchased may be slightly different, but the operations and functions are the same.
1
Model: RPD-651W
Model: RPD-401W
1
Model: RPD-651W Model: RPD-401W
4
1
8 | P a g e
4
AIR FILTERS INSTALLATION
Your Whynter portable dehumidifer is equipped with a washable Pre-Filter and a Silver Ion Filter.
The washable Pre-Filter removes large particles such as dust, pet hair and dander. The Silver
Ion air filter which is designed to kills bacteria in the air and controls the growth of microbes,
such as virus, fungi and spores. It is recommended you replace the Silver Ion Filter every two to
three months or as needed. Follow the steps below to install the filters.
WARNING: NEVER OPERATE THE DEHUMIDIFIER WITHOUT THE PRE-FILTER
1. Pull up the pre-filter frame
2. Remove the Pre-Filter from the filter frame.
3. Place the Silver Ion Filter on the Pre-Filter.
4. Reattached the filter frame.
5. Insert the assembled filter frame into the unit.
9 | P a g e
OPERATING YOUR DEHUMIDIFER
This dehumidifier is intended for indoor residential
applications only and should not be used for commercial
or industrial applications.
Place the dehumidifier on a smooth, hard and level floor
strong enough to support the unit with a full bucket of
water.
Do not attempt to roll the unit over objects.
Avoid placing the unit in an area where the temperature
will not fall below 40F. The coils may become covered
with frost at temperatures below 40F and may reduce
performance.
Do not place the unit near clothes dryer, heater or
radiator.
The dehumidifier must be operated in an enclosed area.
Shut all doors, windows and openings to your target
dehumidifying space for maximum performance
Allow at least 10” of air space on all sides of the unit for
good air circulation.
NOTE:
When using the dehumidifier for the first time, operate the unit continuously for 24 hours.
This unit is designed to operate in environment between 41°F and 95°F.
Dehumidifiers working in a basement will have little or no effect on adjacent enclosed rooms such as closets,
unless there is enough circulation of air in and out of the enclosed area.
If the unit has been switched off and needs to be switched on again, allow approximately three minutes for the
correct operation to resume.
Select a suitable location and make sure you have easy access to the electrical outlet.
Ensure the air filter and water bucket are correctly installed before switching the unit on.
Always be careful when moving the unit with a full water bucket.
Ensure that the safety requirements and warnings detailed in this user manual are followed when operating
this unit.
Positioning the unit
.
10 | P a g e
Removing the collected water
There are two ways to remove the collected water.
1. Manual drain
When the unit is off and the bucket is full, the unit will
beep 8 times and the Bucket Level indicator light will
flash, the digital display will also indicate P2.
When the unit is on and the bucket is full, the
compressor shuts off but the fan runs for an
additional 30 seconds to dry any moisture on the
condenser. The unit will then beep 8 times and the
Bucket Level indicator light will flash, the digital
display will also indicate P2.
Slowly pull out the bucket. (Fig 5) Grip the left and
right handles securely, carefully pull the bucket out
to prevent water spillage. (Fig 6) Do not put the
bucket on the floor as the bottom of the bucket is
uneven and it may tip.
Dispose the water (Fig 7) and reinstall it to the
dehumidifier. The bucket must be installed securely
for the unit to operate.
The unit will restart when the bucket is restored in its
correct position.
NOTES:
When the bucket is removed, do not touch any parts
inside of the unit. Doing so may damage the unit.
Be sure to push the bucket gently all the way into the
unit. Hitting the bucket against anything or failing to
push it in securely may cause the unit to malfunction.
When the bucket is removed, check if there is any
excess water at the base of the unit. Wipe any visible
water inside the unit before replacing the bucket.
2. Continuous drain
Water can be automatically emptied into a floor
drain by attaching the unit with a water hose( 24mm)
(included).
Remove the water bucket from the unit and set
aside.
Lift up the Darin Hose Outlet cover located on the
right side of the unit (Fig.8)
Insert the female threaded end of the hose to
the Drain Hose Outlet. (Fig.9a)
Grip the hose from inside the unit and screw the hose
onto the threaded portion of the tray located in the
bucket opening.(Fig.9b)
Make sure the hose is securely fastened to prevent
leakage. Direct the hose toward a drain or other suitable
drainage outlet. Make sure that there are no distortions
with the hose that may stop the water flow.
Reinsert the water bucket back in the unit and make
sure that it is inserted securely.(Fig.9c)
Select the desired humidity setting and fan speed on
the unit for continuous draining to start.
NOTE: If the unit stops operating, check if the Bucket
Level light is illuminated. If it is, remove the bucket and
empty the water and then check the seal between the hose
and the drip tray. If there is a leak, replace the hose gasket
and re-tighten the hose.
1. Pull the bucket out carefully.
Fig.5
2. Hold both sides of the
bucket evenly and pull it
out from the unit
completely.
3. Pour the water out.
Fig.7
Fig.9a
Fig.9b
Fig.
11 | P a g e
CARE AND MAINTAINCE
Fig 10
ALWAYS turn off and unplug the dehumidifier before cleaning.
1. Cleaning the air grille and main unit
Use a damp cloth to wrap the main unit or use water and a mild detergent. Do not use bleach,
chemicals or abrasives.
Do not splash water directly onto the unit. Doing so may cause an electrical shock, cause the
insulation to deteriorate, or cause the unit to rust.
Use a vacuum attachment or brush to clean the air intake and outlet grilles.
2. Cleaning the bucket
Clean the bucket to prevent growth of mold, mildew and bacteria every two weeks.
Fill the bucket with clean warm water and add mild detergent to the water.
Dry thoroughly before reinserting the bucket to the main unit.
NOTE: Do not clean the bucket in a dishwasher.
3. Cleaning the air filter
To ensure the air intake is filtered properly and to assure that your
dehumidifier runs efficiently, it is recommended to clean the air filter
at least once every two weeks.
Remove the bucket and pull filter downwards. (Fig 10)
Use a vacuum cleaner or tap the filter lightly to remove loose dust
and dirt.
Rinse the air filter under warm or cold running water
(no hotter than 100F.)
Dry thoroughly before reinserting the air filter.
Reinstall the air filter and replace bucket securely.
CAUTION:
NEVER operate the dehumidifier without an air filter in place.
4. End of Season Storage
After turning off the unit, wait 24 hours before emptying the bucket to allow excess moisture to drain
into the bucket.
Clean the main unit, water bucket and air filter as detailed above.

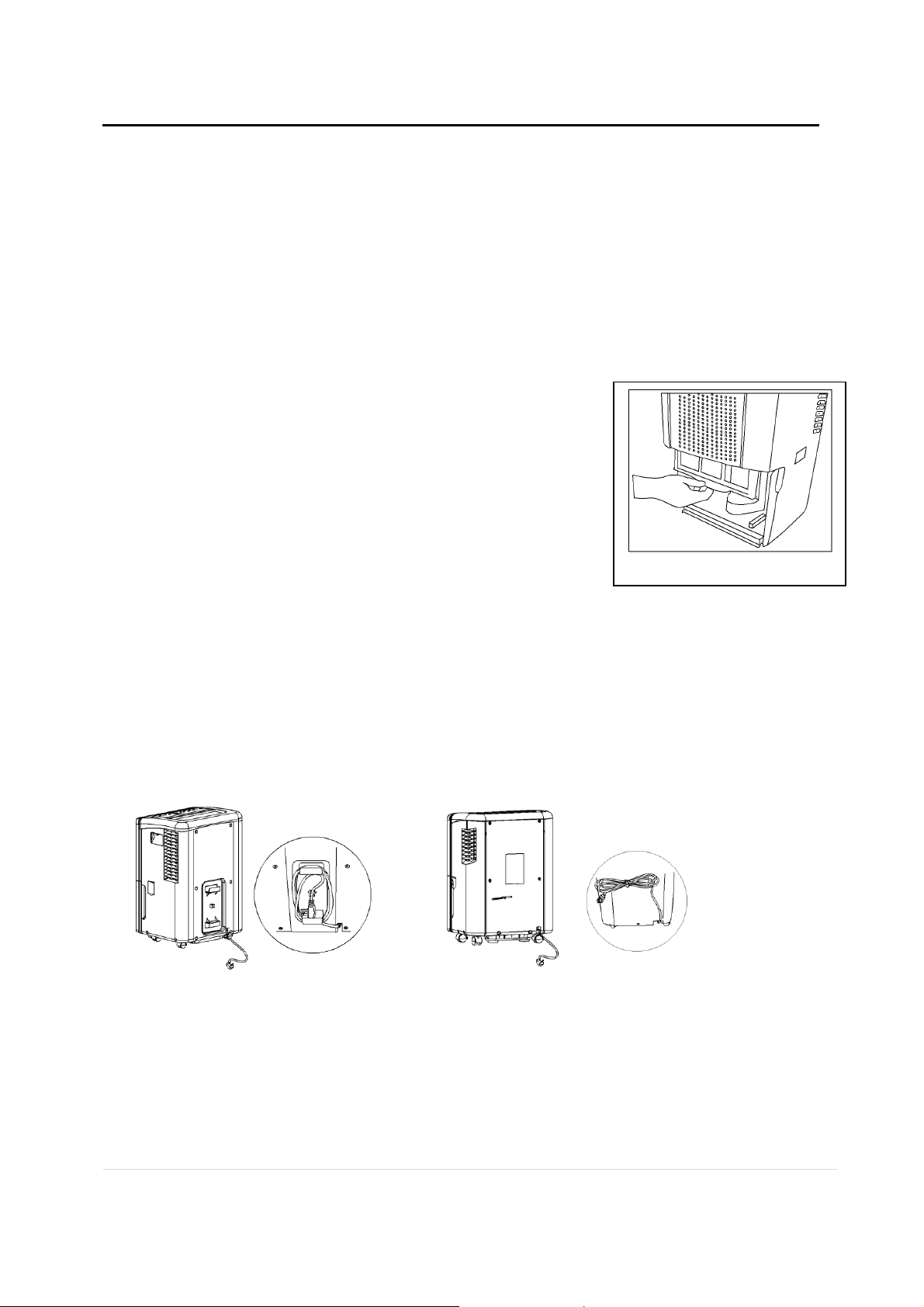

Wrap the cord around the power cord bracket (Fig.12a) or wrap the cord and secure it with the
power cord strap (Fig.12b).
Cover the unit with the original plastic bag that came with the unit or any appropriate dust cover.
Store the unit upright in a dry, well-ventilated place.
Fig. 12a
Model: RPD-651W Model: RPD401W
Fig.
12b
12 | P a g e
TECHNICAL DATA
RPD-651W
Dehumidifying capacity
40 pints/ day
65 pints/ day
EEV (Liters per kWHour)
1.5
1.8
Power supply
115v/ 60Hz
115v/ 60Hz
Maximum power input
490 Watts
710 Watts
Maximum input
4.8 Amps
6.6 Amps
Refrigerant
R-134A
R-410A
Air flow M3/H(CFM)
270/220
370/330
Fan speeds
2 (H & L)
2 (H & L)
Unit Dimensions
14.5” ×10.5” ×20”
15” x 14” ×24”
Unit Weight
30 lbs
43 lbs
RPD-401W
13 | P a g e
TROUBLESHOOTING
Problem
Possible Causes
Solutions
The dehumidifier does not
operate.
Power failure / outage.
The automatic switch, line
fuse, or breaker has been
tripped.
The power supply voltage is
too low.
The power cord is damaged.
The dryness level you
selected has been reached.
Water bucket is full or not
positioned properly.
Restore the power supply.
Flip the switch / change the fuse / turn the
breaker back on. Also note that you may have too
many appliances drawing power on one circuit,
you may need to move the other appliances to
another circuit.
Move the unit onto another circuit with the correct
voltage.
Call for service. Only authorized personnel
should replace damaged power cord or power
plug.
If you want to remove more moisture, press the
'Continue' button to run the unit continuously.
Empty water bucket and insert the bucket to the
unit properly.
The dehumidifier runs too
much.
Windows or doors near
dehumidifier are open.
Area to be dehumidified is too
large.
Air movement through
dehumidifier is blocked. Air
grill may be dirty.
Continuous mode is on.
Close all windows or doors.
You may need an additional dehumidifier for
area.
Clean the air filter.
The unit must be placed in a space that does not
restrict air flowing into the rear coil or out of the
front grill.
Set the RH% level and the unit will stop when the
set RH% is reached.
The dehumidifier runs but the
room is not dry enough.
Humidity setting (RH%) is too
high.
The dehumidifier does not
have sufficient clearance to
operate.
Room temperature is too low.
Windows or doors are
opened.
Set the humidity level to a lower RH% or choose
Continue for maximum dryness.
Ensure there is at least 10” of clearance for
proper ventilation.
The unit will not operate satisfactorily if the room
temperature is below 41 °F(5 °C).
Close windows or doors.
Frost appears on the coils
above the bucket.
The dehumidifier has been
turned on recently.
Room temperature is too low.
This is normal due to refrigerant rushing through
the coil. Frost will usually disappear within 60
minutes.
The unit will not operate satisfactorily if the room
temperature is below 41 °F(5 °C).
The dehumidifier makes loud
noise.
Unit not level.
Shut off the unit and it sit on level surface for at
least 6 hours.
The dehumidifier leaks.
Continuous drainage hose is
loose.
Cracked water bucket.
Secure the drain hose.
Contact customer service.
14 | P a g e
ONE YEAR LIMITED WARRANTY
This WHYNTER dehumidifier is warranted, to the original owner within the 48 continental states, for
one year from the date of purchase against defects in material and workmanship under normal use
and service. Should your WHYNTER dehumidifier prove defective within one year from the date of
purchase, return the defective part or unit, freight prepaid (within two months of purchase; after two
months to one year, customer will be responsible for freight cost to Whynter’s service department),
along with an explanation of the claim to Whynter LLC. Please package the dehumidifier carefully in
its original packaging material to avoid damage in transit. Please retain the original box and
packaging material. Under this warranty, Whynter will repair or replace any parts found defective.
This warranty is not transferable. After the expiration of the warranty, the cost of labor and parts will
be the responsibility of the original owner of the unit.
THIS WARRANTY DOES NOT COVER:
Acts of God, such as fire, flood, hurricanes, earthquakes and tornadoes.
Damage, accidental or otherwise, to the dehumidifier while in the possession of a
consumer not caused by a defect in material or workmanship;
Damage caused by consumer misuse, tampering, or failure to follow the care and
special handling provisions in the instructions.
Damage to the finish of the case, or other appearance parts caused by wear.
Damage caused by repairs or alterations to the product by anyone other than authorized
by the manufacturer.
Freight and Insurance cost for the warranty service.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR OR
REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD
ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR. WHYNTER SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR
INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF
THIS WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSE- QUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF
IMPLIED WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRITTEN WARRANTY
GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.
To obtain service or information, contact
Whynter LLC via email at service@whynter.com or call
866-WHYNTER.
Product contents and specifications may change without notice.
Copyright © 2010 Whynter LLC
www.Whynter.com
Loading...
